Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11200 - CYJ NZ EURO4/JAPAN NEW LONG TERM 2005
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

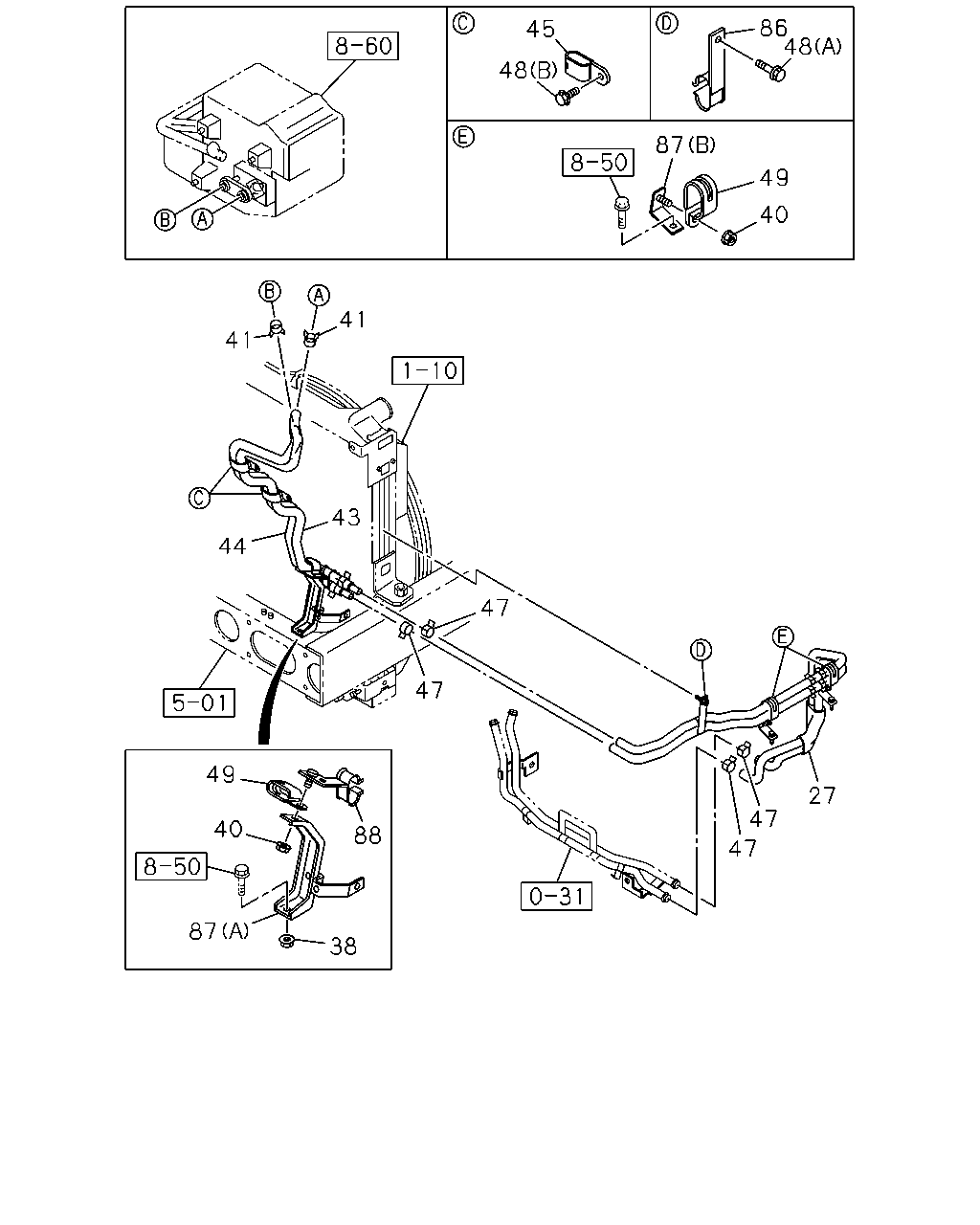

8-45 — HEATER PIPING
(#20859) — 16 parça
86
48
45
48
87
49
40
41
41
43
44
47
47
49
27
47
40
88
47
87
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
1-83565-839-1
01
1
0904-
38
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0904-
40
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
0904-
41
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
02
1
0904-
43
HOSE; WATER,OUTLET,HTR
1-83565-828-1
01
1
0904-
44
HOSE; WATER,HTR,INL
1-83565-826-1
01
1
0904-
45
CLIP; WATER PIPE
1-09701-238-0
02
1
0904-
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
0904-
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
02
1
0904-
48
BOLT; CLIP FIX
(A) M8X25 FLANGE
0-28650-825-0
02
1
0904-
48
BOLT; CLIP FIX
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
0904-
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
03
1
0904-
86
CLIP; HTR HOSE
1-83573-076-0
01
1
0904-
87
BRACKET; HTR HOSE CLIP
(B)
1-83573-251-1
02
1
0904-
87
BRACKET; HTR HOSE CLIP
(A)
8-98066-735-0
01
1
0904-
88
STAY; WATER HOSE
1-83573-291-1
01
1
0904-
