Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#20857) — 302 parça

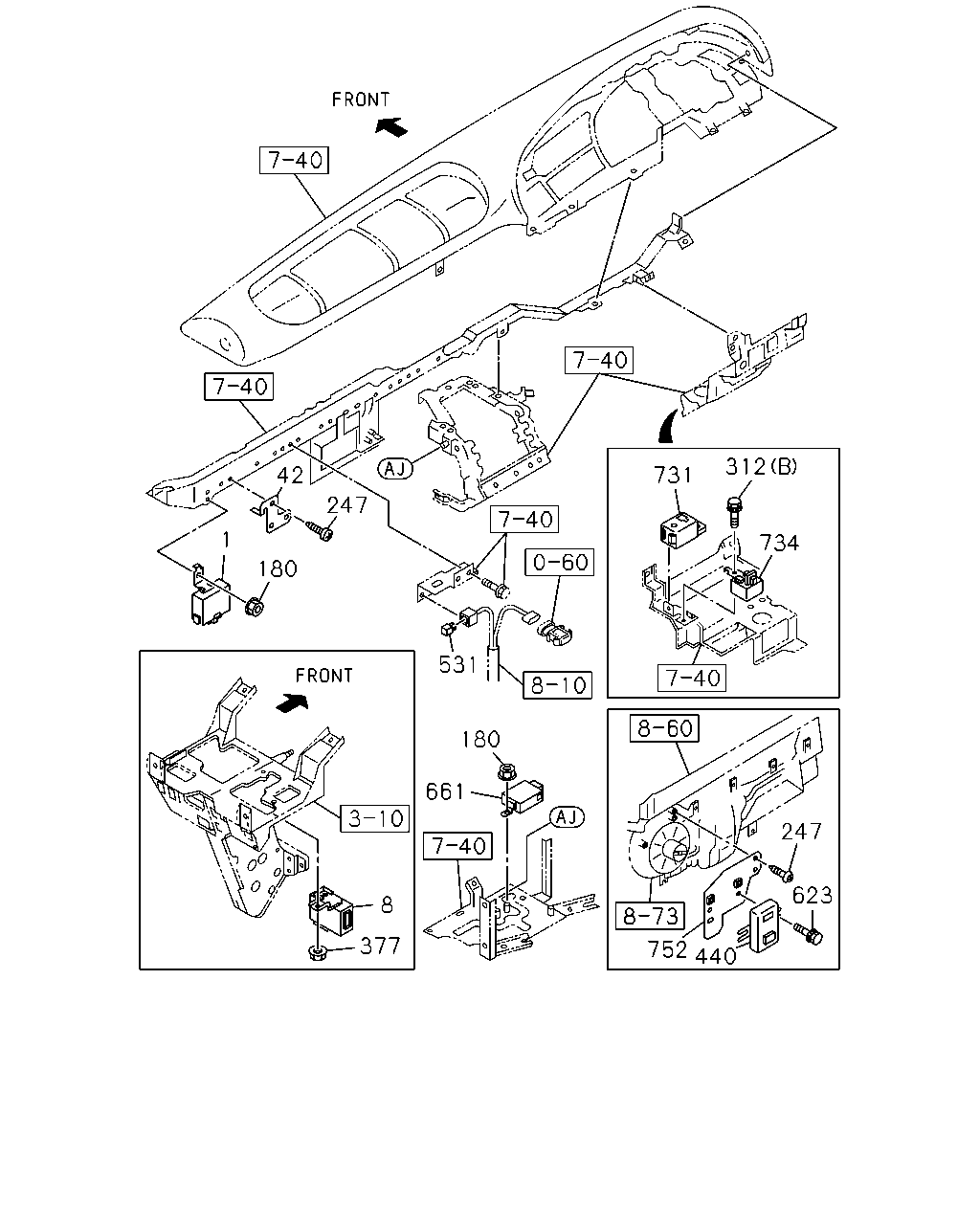

42 312 731 247 1 734 180 531 180 661 247 623 8 377 752 440

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-97613-970-1	01	1	0904-
8	RELAY; WIPER	1-83316-002-4	01	1	0904-
42	BRACKET; RELAY	1-82698-128-2	01	1	0904-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0904-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0904-
247	SCREW; BRKT M5X14	8-94279-325-0	01	1	0904-
247	SCREW; BRKT M5X14	8-94279-325-0	03	1	0904-
312	BOLT; BUZZER (A) M10X35 FLANGE	0-28651-035-0	01	1	0904-
312	BOLT; BUZZER (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0904-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0904-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	02	1	0904-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0904-
531	RELAY; MAIN 24V	1-82550-308-1	01	1	0904-1005
531	RELAY; MAIN 24V	8-98167-175-0	01	1	1006-
623	BOLT; MODULE M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0904-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0904-
731	ALARM; INFORMATION	1-83460-051-1	01	1	0904-
734	ALARM; MULTI	1-83460-106-0	01	1	0904-
752	BRACKET; MODULE	8-97611-710-0	01	1	0904-

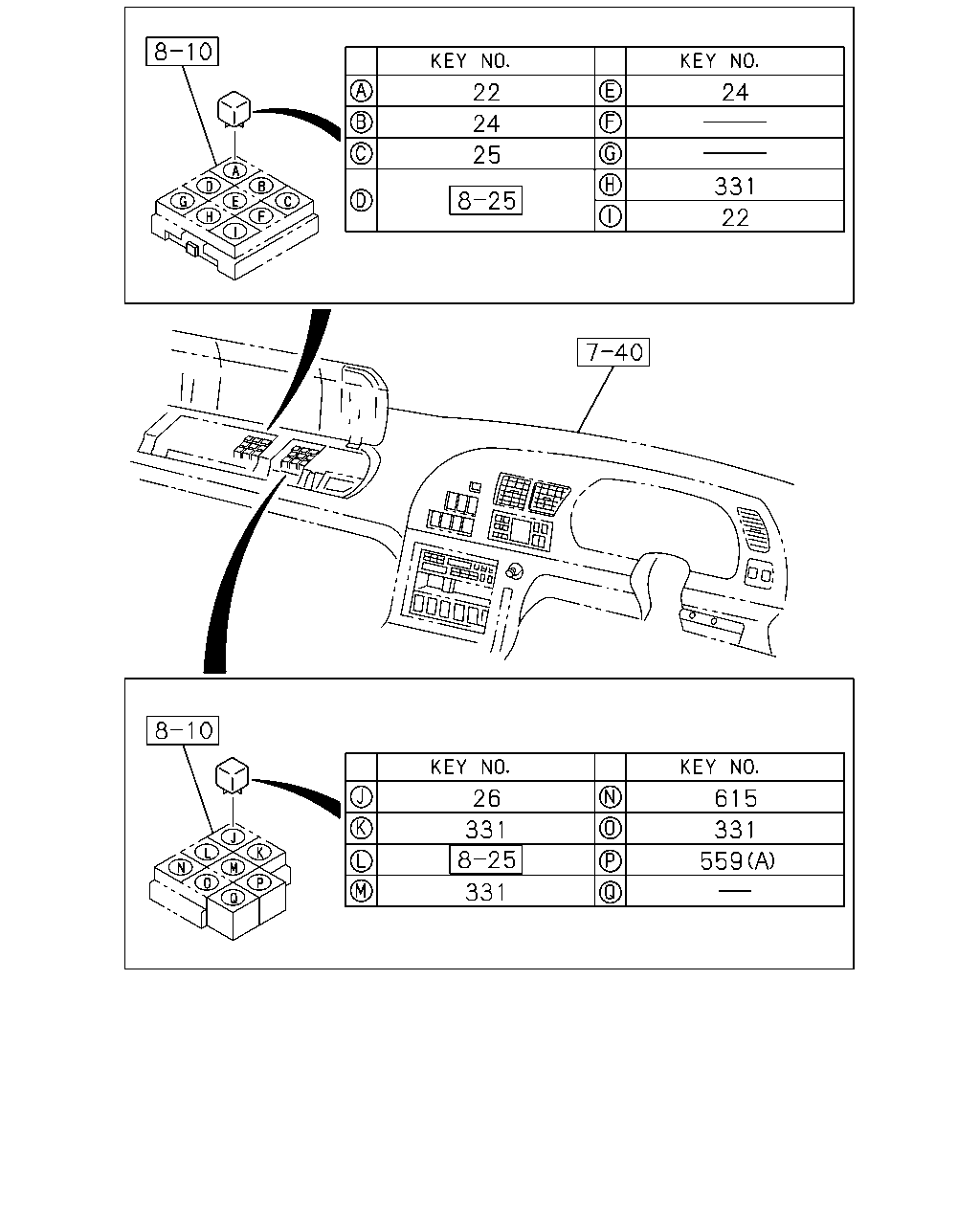

22 24 24 25 331 22 26 615 331 331 8 25 559 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	RELAY; WIPER	1-83316-002-4	01	1	0904-
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0904-
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0904-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0904-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0904-
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	02	1	0904-1008
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	02	1	0904-1008
331	RELAY; A/C 24V 12.5A PANASONIC	8-97262-933-0	02	1	1009-
331	RELAY; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 24V 12.5A PANASONIC	8-97262-933-0	02	1	1009-
559	RELAY; MAG VLV (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0904-
559	RELAY; MAG VLV (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0904-
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0904-

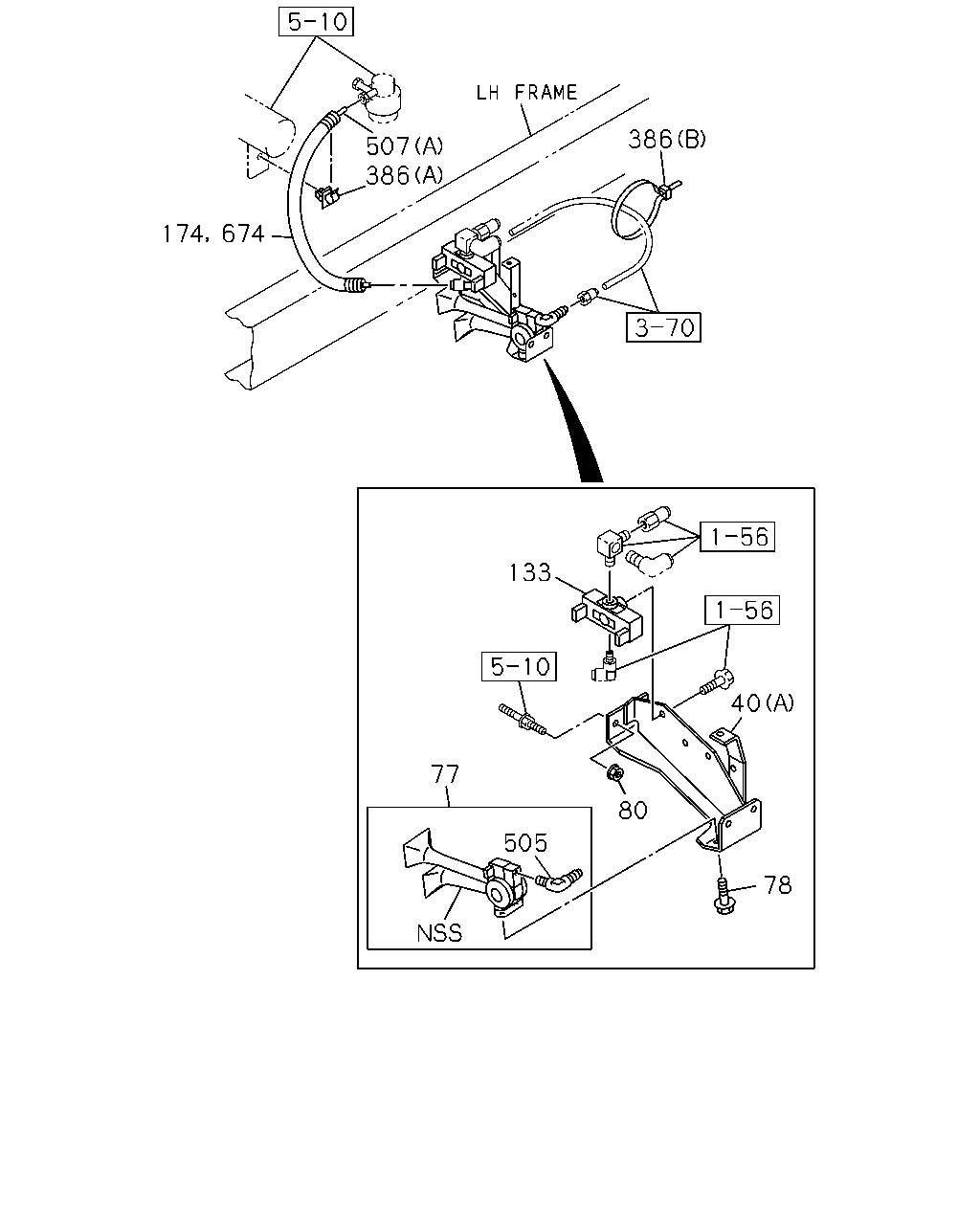

386 507 386 174 674 133 40 77 80 505 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0904-
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0904-
40	BRACKET; MAG VLV (C)	1-82569-420-0	01	1	0904-
77	HORN ASM	1-83430-041-2	01	1	0904-
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0904-
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	02	1	0904-
133	VALVE; MAG,AIR HORN	1-53458-378-2	01	1	0904-
174	COVER L=600 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0904-
386	CLIP; HARNESS (B) L=350	1-09707-183-0	02	1	0904-
386	CLIP; HARNESS (A) ID=9.5	5-09709-020-0	01	1	0904-
505	JOINT; AIR HORN	1-83439-006-0	01	1	0904-
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0904-
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0904-
674	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0904-

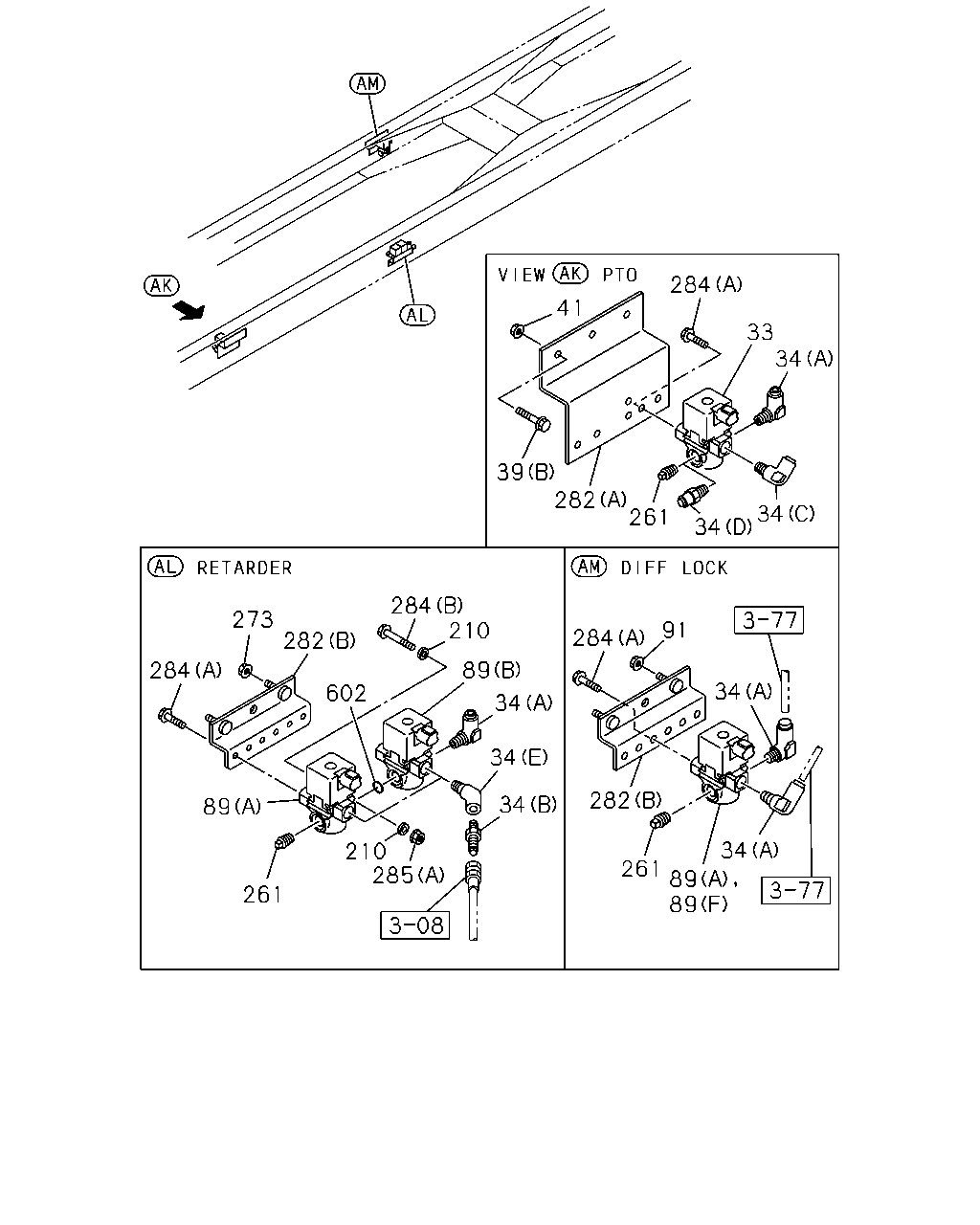

89 89 261 282 34 34 91 284 34 34 261 282 39 34 33 284 273 282 602 210 285 261 89 284 284 210 89 34 34 34 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82563-871-2	01	1	0904-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0904-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0904-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0904-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0904-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0904-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4	1-09664-211-0	02	1	0904-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0904-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0904-
39	BOLT; BRKT,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE	0-28650-820-0	05	1	1009-
39	BOLT; BRKT,MAG VLV 6WG1 TC-R(75L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0904-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE	0-28650-825-0	02	1	0904-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91180-108-0	02	1	0904-
89	VALVE; MAG,DIFF LOCK (F)	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0904-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0904-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	1206-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-094-2	01	1	0904-
89	VALVE; MAG,DIFF LOCK (E)	1-82564-095-1	02	1	0904-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-407-1	01	1	0904-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0904-
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0904-
210	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82569-266-0	08	1	1009-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0904-
210	WASHER; PL,BRKT 6WG1 TC-R(75L)	1-82569-266-0	06	1	0904-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0904-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0904-1008
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0904-1008
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0904-1008
261	PLUG; MAG VLV 6WG1 TC-R(75L) PT1/4	9-99204-513-0	01	1	0904-1008
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1009-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	1009-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	1009-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1009-
273	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	02	1	0904-
282	BRACKET; MAG VLV 6WG1 TC-R(75L) (C)	1-82569-298-0	01	1	0904-1008
282	BRACKET; MAG VLV (C)	1-82569-298-0	01	1	1009-
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	0904-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82569-358-0	01	1	0904-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-47479-364-1	01	1	0904-
284	BOLT; MAG VLV 6WG1 TC-R(75L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0904-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	04	1	0904-1008
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	04	1	1009-
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	04	1	1009-
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0904-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0904-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0904-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0904-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0904-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0904-
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0904-
285	NUT; MAG VLV 6WG1 TC-R(75L) (A) M6 FLANGE	0-91180-106-0	03	1	0904-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	0904-1008
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	1009-
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	04	1	1009-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0904-
602	GASKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8	9-09565-117-0	04	1	1009-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0904-
602	GASKET; MAG VLV 6WG1 TC-R(75L) ID=16.8	9-09565-117-0	03	1	0904-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0904-

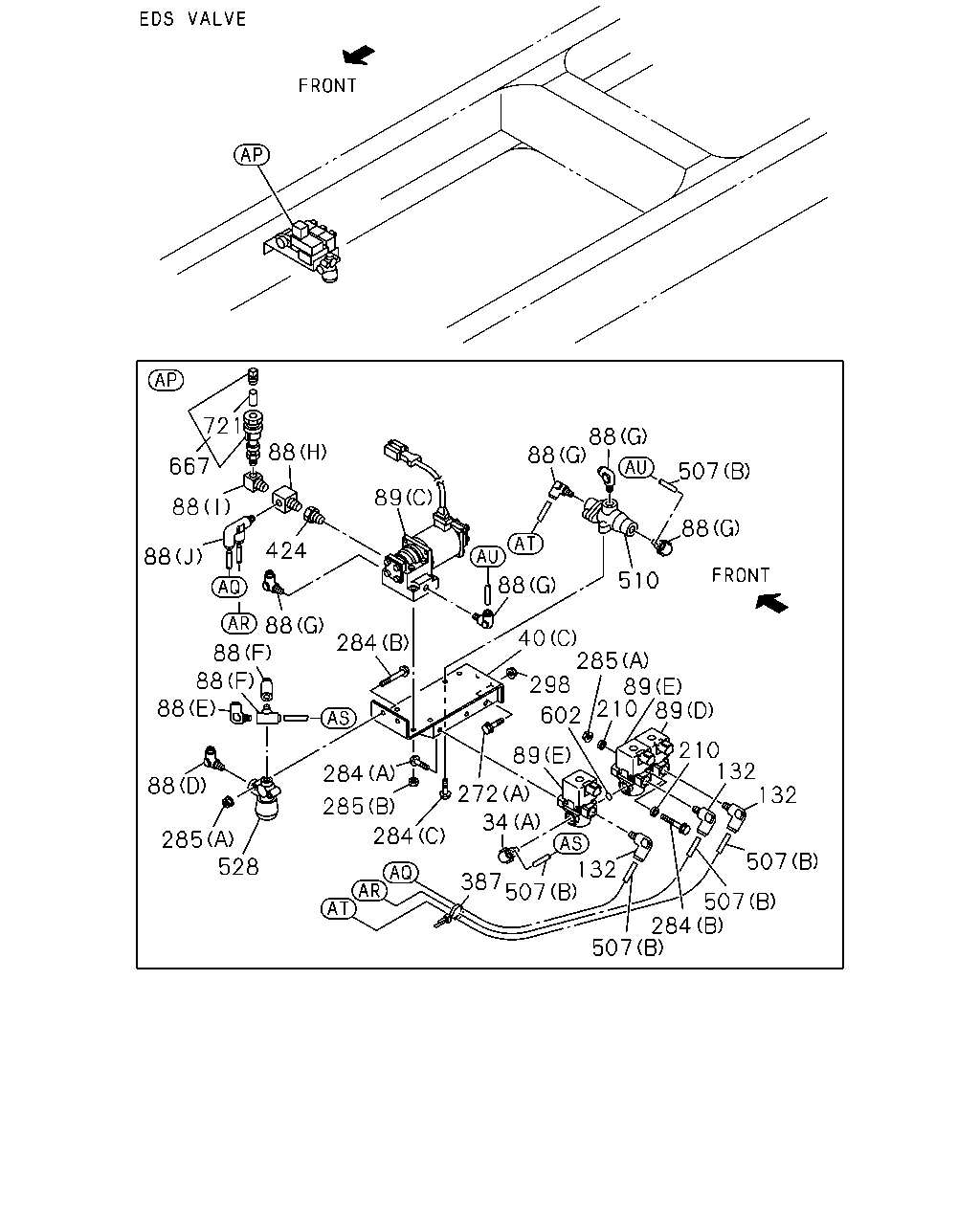

721 88 88 88 667 507 89 88 88 424 88 510 88 88 88 88 88 40 285 298 89 284 602 210 132 132 89 284 88 272 285 34 284 285 528 132 387 507 507 507 284 507 210 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0904-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0904-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0904-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0904-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0904-
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4	1-09664-211-0	02	1	0904-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0904-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0904-
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0904-
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0904-
40	BRACKET; MAG VLV (C)	1-82569-420-0	01	1	0904-
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (K) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1009-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0904-
88	CONNECTOR; MAG VLV 6WG1 TC-R(75L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0904-
88	CONNECTOR; MAG VLV (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0904-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0904-
88	CONNECTOR; MAG VLV (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0904-
88	CONNECTOR; MAG VLV (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0904-
88	CONNECTOR; MAG VLV (F)	1-09661-065-0	02	1	0904-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0904-
88	CONNECTOR; MAG VLV (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0904-
88	CONNECTOR; MAG VLV (H) PT3/8 3WAY	1-09661-300-0	01	1	0904-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0904-
89	VALVE; MAG,DIFF LOCK (F)	8-97641-594-0	01	1	1206-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0904-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	0904-1205
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82563-871-2	01	1	1206-
89	VALVE; MAG,DIFF LOCK (D)	1-82564-094-2	01	1	0904-
89	VALVE; MAG,DIFF LOCK (E)	1-82564-095-1	02	1	0904-
89	VALVE; MAG,DIFF LOCK (C)	1-82564-407-1	01	1	0904-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82563-872-1	01	1	0904-
132	CONNECTOR; OUTLET,MAG VLV DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0904-
210	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82569-266-0	08	1	1009-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0904-
210	WASHER; PL,BRKT 6WG1 TC-R(75L)	1-82569-266-0	06	1	0904-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0904-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	0904-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-
272	BOLT; MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0904-
284	BOLT; MAG VLV 6WG1 TC-R(75L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0904-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	04	1	0904-1008
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	04	1	1009-
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	04	1	1009-
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0904-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0904-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0904-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0904-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0904-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0904-
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0904-
285	NUT; MAG VLV 6WG1 TC-R(75L) (A) M6 FLANGE	0-91180-106-0	03	1	0904-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	0904-1008
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	1009-
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	04	1	1009-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0904-
298	NUT; MAG VLV M10 FLANGE	0-91180-210-0	02	1	0904-
387	CLIP; BAND L=350	1-09707-183-0	01	1	0904-
424	ADAPTER PT3/8	1-09664-210-0	01	1	0904-
507	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0904-
507	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	05	1	0904-
510	VALVE; CHECK	1-48410-531-1	01	1	0904-
528	VALVE; PRESSURE REDUCING	1-48410-744-0	01	1	0904-
602	GASKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8	9-09565-117-0	04	1	1009-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0904-
602	GASKET; MAG VLV 6WG1 TC-R(75L) ID=16.8	9-09565-117-0	03	1	0904-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0904-
667	LUBRICATION	8-98063-001-0	01	1	0904-
721	ELEMENT; LUBRICATION	1-33779-028-0	01	1	0904-

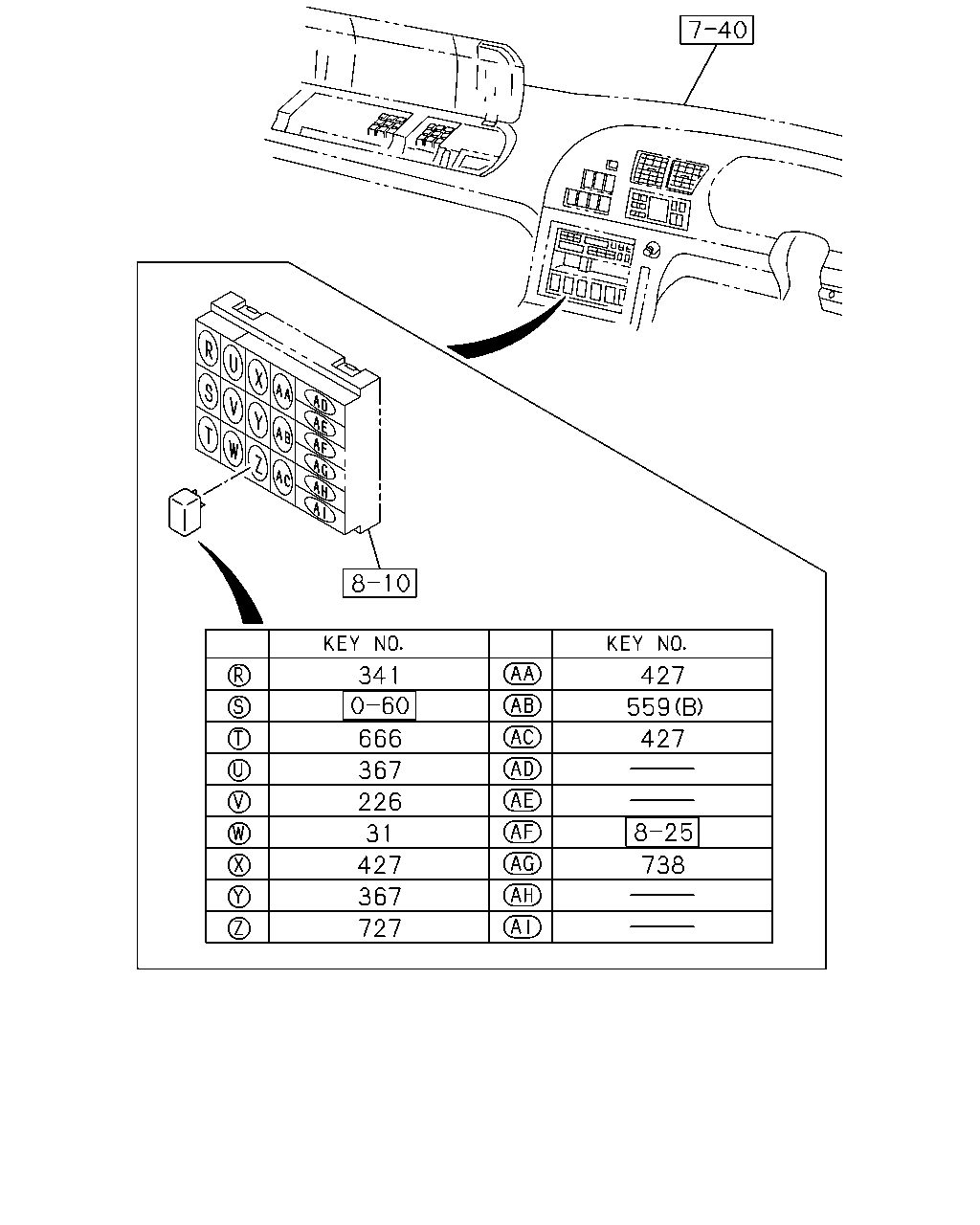

341 427 666 427 367 226 31 427 738 367 727 559

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 24V 10A PANASONIC	8-97173-035-1	01	1	0904-
226	RELAY; EXH BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0904-
341	RELAY 24V 10A PANASONIC	8-97173-035-1	01	1	0904-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0904-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0904-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A PANASONIC	8-97173-035-1	02	1	0904-
559	RELAY; MAG VLV (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0904-
559	RELAY; MAG VLV (A) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0904-
666	RELAY; STARTER 24V 10A PANASONIC	8-97173-035-1	01	1	0904-
727	RELAY; START CUT 24V 10A PANASONIC	8-97173-035-1	01	1	0904-1306
727	RELAY; START CUT 24V 10A PANASONIC	8-98167-173-0	01	1	1307-
738	RELAY; EXH & RETARDER CUT 24V 10A PANASONIC	8-97173-035-1	01	1	0904-

566 377 732 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0904-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	01	1	0904-
377	NUT; RELAY M6 FLANGE	0-91180-106-0	02	1	0904-
566	HARNESS; REMOTE CONT	1-82626-888-1	01	1	0904-
732	RELAY; EDS	1-82550-337-1	01	1	0904-

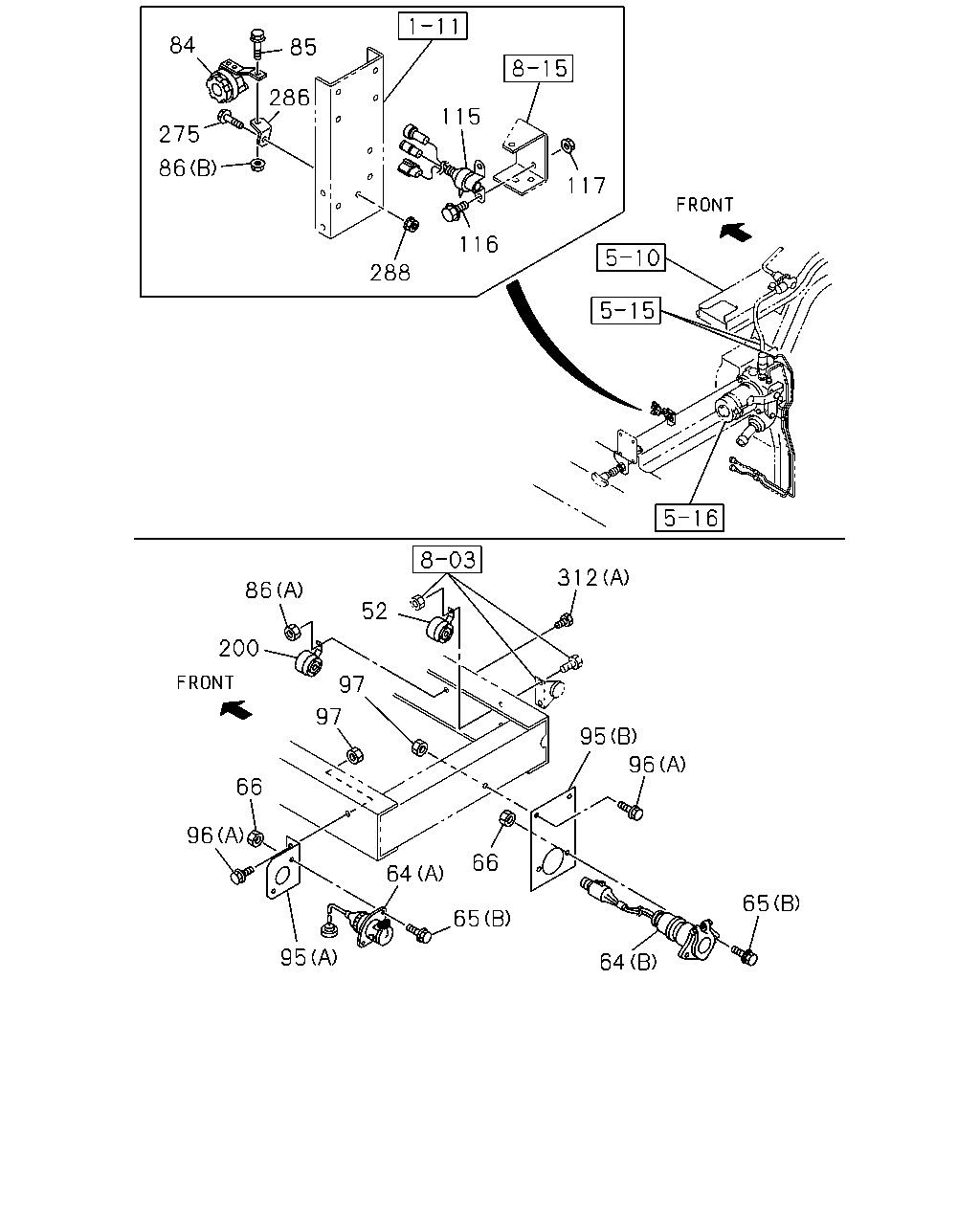

84 85 286 115 275 86 117 116 288 312 86 52 200 97 97 95 96 66 96 66 64 65 65 95 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK METRO DENSO	8-98069-861-0	01	1	0904-
64	SOCKET; TRAILER (A) 7P	1-82523-014-0	01	1	0904-
64	SOCKET; TRAILER (B) L=860	1-82699-449-2	01	1	0904-1008
64	SOCKET; TRAILER (B) L=860	8-98172-008-0	01	1	1009-
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28050-616-0	02	1	0904-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	0904-
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	04	1	0904-
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0904-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0904-
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	0904-
86	NUT; BUZZER (A) M10 FLANGE	0-91180-210-0	01	1	0904-
95	BRACKET; SOCKET,TRAILER (B)	1-82699-387-0	01	1	0904-
95	BRACKET; SOCKET,TRAILER (A)	1-82699-979-0	01	1	0904-1008
95	BRACKET; SOCKET,TRAILER (A)	8-97985-137-0	01	1	1009-
96	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	02	1	0904-
96	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	04	1	0904-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0904-
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0904-
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	0904-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0904-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0904-
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0904-
200	BUZZER; WARNING,AIR SUSP	1-83460-104-0	01	1	0904-
275	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0904-
275	BOLT; BRKT M8X14 FLANGE	0-28080-814-0	01	1	0904-
286	BRACKET	1-82699-199-0	01	1	0904-
288	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0904-
312	BOLT; BUZZER (A) M10X35 FLANGE	0-28651-035-0	01	1	0904-
312	BOLT; BUZZER (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0904-

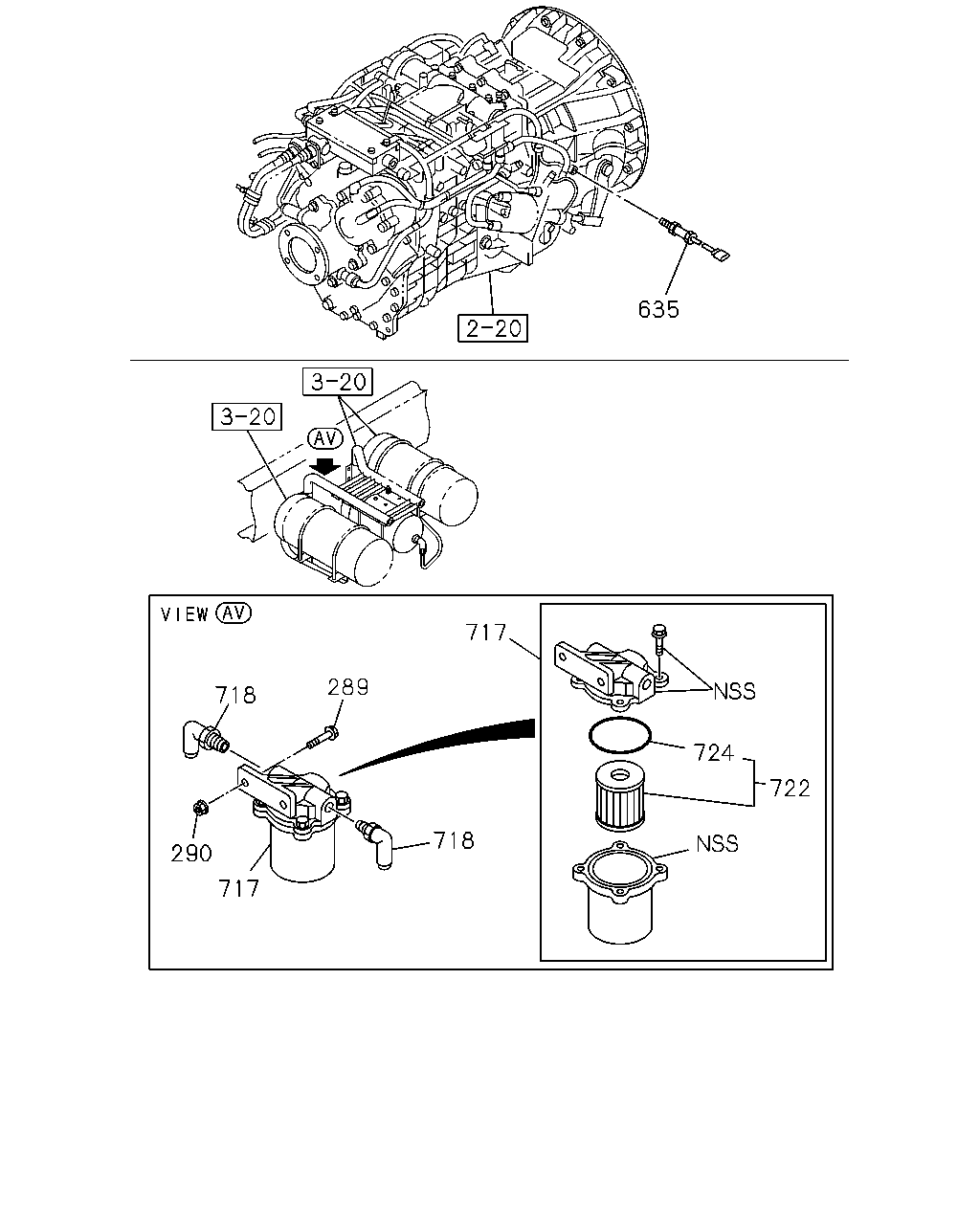

635 717 289 718 724 722 718 290 717

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
289	BOLT M8X25 FLANGE	0-28650-825-0	02	1	0904-
290	NUT M8 FLANGE	0-91180-108-0	02	1	0904-
635	SENSOR; PICK UP,INPUT SHAFT	1-81510-736-1	01	1	0904-
717	FILTER; MAG VLV	8-98092-703-0	01	1	0904-
718	CONNECTOR; FILTER DIN8 & M16 ELBOW	1-09661-531-0	02	1	0904-
722	ELEMENT; AIR FILTER	1-33779-040-0	01	1	0904-
724	GASKET; AIR FILTER	5-09623-075-0	01	1	0904-

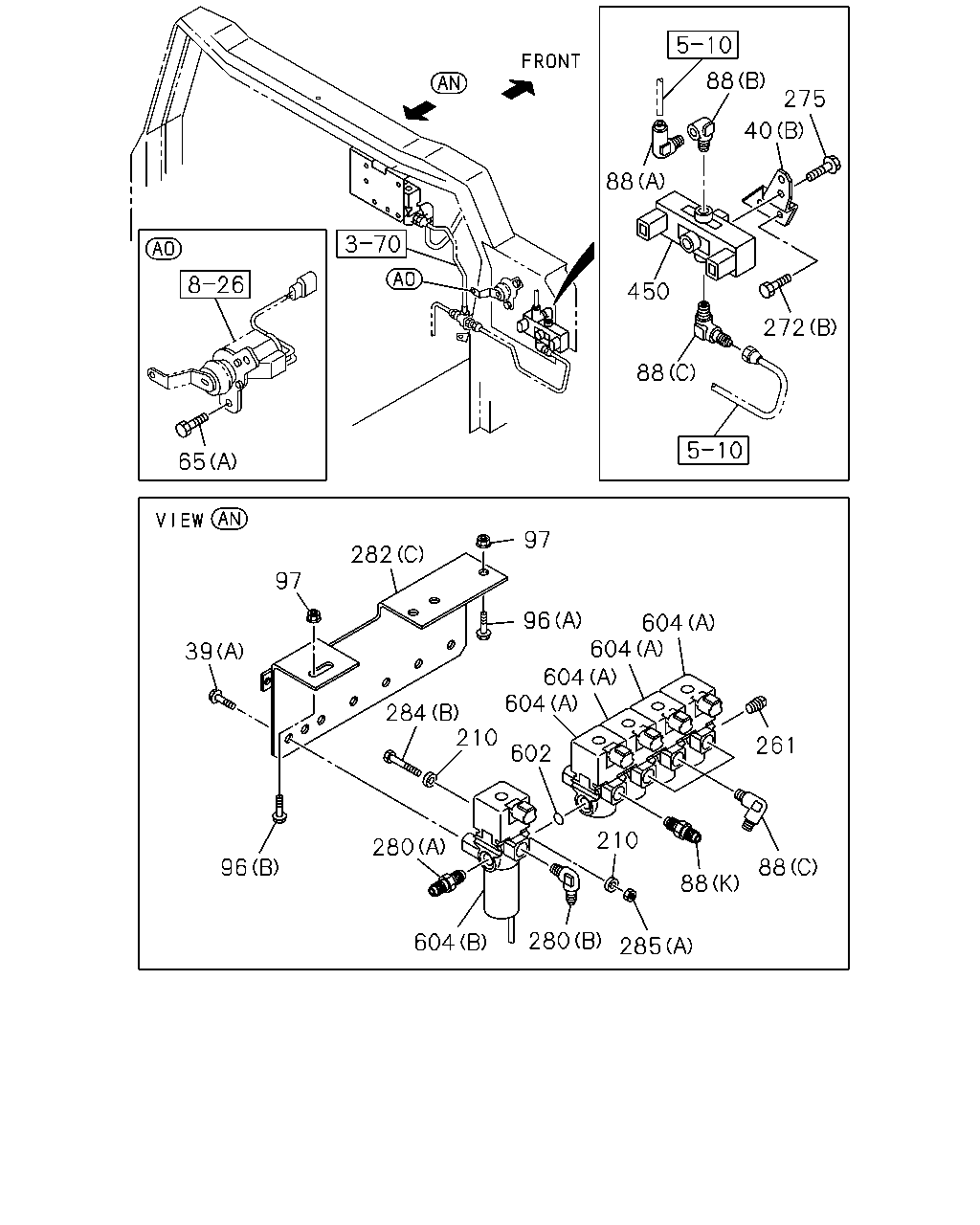

88 275 40 88 450 272 88 65 97 282 97 96 604 604 604 604 39 284 210 261 602 210 280 88 96 88 280 604 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M8X20 FLANGE	0-28650-820-0	05	1	1009-
39	BOLT; BRKT,MAG VLV 6WG1 TC-R(75L) (A) M8X20 FLANGE	0-28650-820-0	04	1	0904-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE	0-28650-825-0	02	1	0904-
40	BRACKET; MAG VLV (A)	1-53457-180-0	01	1	0904-
40	BRACKET; MAG VLV (B)	1-53458-380-0	01	1	0904-
40	BRACKET; MAG VLV (C)	1-82569-420-0	01	1	0904-
65	BOLT; SOCKET FIX (A) M6X16 FLANGE	0-28050-616-0	02	1	0904-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	0904-
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (K) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
88	CONNECTOR; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	1009-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0904-
88	CONNECTOR; MAG VLV 6WG1 TC-R(75L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	04	1	0904-
88	CONNECTOR; MAG VLV (I) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0904-
88	CONNECTOR; MAG VLV (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0904-
88	CONNECTOR; MAG VLV (G) DIN8 & R3/8 ELBOW	1-09660-957-0	05	1	0904-
88	CONNECTOR; MAG VLV (J) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0904-
88	CONNECTOR; MAG VLV (F)	1-09661-065-0	02	1	0904-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0904-
88	CONNECTOR; MAG VLV (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0904-
88	CONNECTOR; MAG VLV (H) PT3/8 3WAY	1-09661-300-0	01	1	0904-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0904-
96	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	02	1	0904-
96	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	04	1	0904-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0904-
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0904-
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	04	1	0904-
210	WASHER; PL,BRKT 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-82569-266-0	08	1	1009-
210	WASHER; PL,BRKT	1-82569-266-0	04	1	0904-
210	WASHER; PL,BRKT 6WG1 TC-R(75L)	1-82569-266-0	06	1	0904-
210	WASHER; PL,BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82569-266-0	02	1	0904-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0904-1008
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0904-1008
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	0904-1008
261	PLUG; MAG VLV 6WG1 TC-R(75L) PT1/4	9-99204-513-0	01	1	0904-1008
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1009-
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	1009-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4	9-99204-513-0	01	1	1009-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1009-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	0904-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-
272	BOLT; MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0904-
275	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0904-
275	BOLT; BRKT M8X14 FLANGE	0-28080-814-0	01	1	0904-
280	CONNECTOR; IN,MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1009-
280	CONNECTOR; IN,MAG VLV 6WG1 TC-R(75L) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0904-1008
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
282	BRACKET; MAG VLV 6WG1 TC-R(75L) (C)	1-82569-298-0	01	1	0904-1008
282	BRACKET; MAG VLV (C)	1-82569-298-0	01	1	1009-
282	BRACKET; MAG VLV (B)	1-82569-358-0	01	1	0904-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82569-358-0	01	1	0904-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-47479-364-1	01	1	0904-
284	BOLT; MAG VLV 6WG1 TC-R(75L) (B) M6X50 FLANGE	0-28050-650-0	03	1	0904-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	04	1	0904-1008
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	04	1	1009-
284	BOLT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (B) M6X50 FLANGE	0-28050-650-0	04	1	1009-
284	BOLT; MAG VLV (C) M8X14 FLANGE	0-28080-814-0	02	1	0904-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0904-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE	0-28650-820-0	02	1	0904-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE	0-28650-820-0	02	1	0904-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	03	1	0904-
284	BOLT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE	0-28050-650-0	01	1	0904-
285	NUT; MAG VLV (B) M5	0-91110-505-0	03	1	0904-
285	NUT; MAG VLV 6WG1 TC-R(75L) (A) M6 FLANGE	0-91180-106-0	03	1	0904-
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	0904-1008
285	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	04	1	1009-
285	NUT; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) (A) M6 FLANGE	0-91180-106-0	04	1	1009-
285	NUT; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE	0-91180-106-0	01	1	0904-
450	VALVE; MAG	1-53458-378-2	01	1	0904-
602	GASKET; MAG VLV 6WG1 TC-C(72L),6WG1 TC-S(97L) ID=16.8	9-09565-117-0	04	1	1009-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	02	1	0904-
602	GASKET; MAG VLV 6WG1 TC-R(75L) ID=16.8	9-09565-117-0	03	1	0904-
602	GASKET; MAG VLV BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8	9-09565-117-0	01	1	0904-
604	VALVE; MAG,ENG CONT 6WG1 TC-C(72L),6WG1 TC-S(97L) (B)	8-97633-075-0	01	1	1009-
604	VALVE; MAG,ENG CONT 6WG1 TC-R(75L) (A)	1-82563-871-2	04	1	0904-1008
604	VALVE; MAG,ENG CONT (A)	1-82563-871-2	04	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
