Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11200 - CYJ NZ EURO4/JAPAN NEW LONG TERM 2005
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#20854) — 48 parça
◀

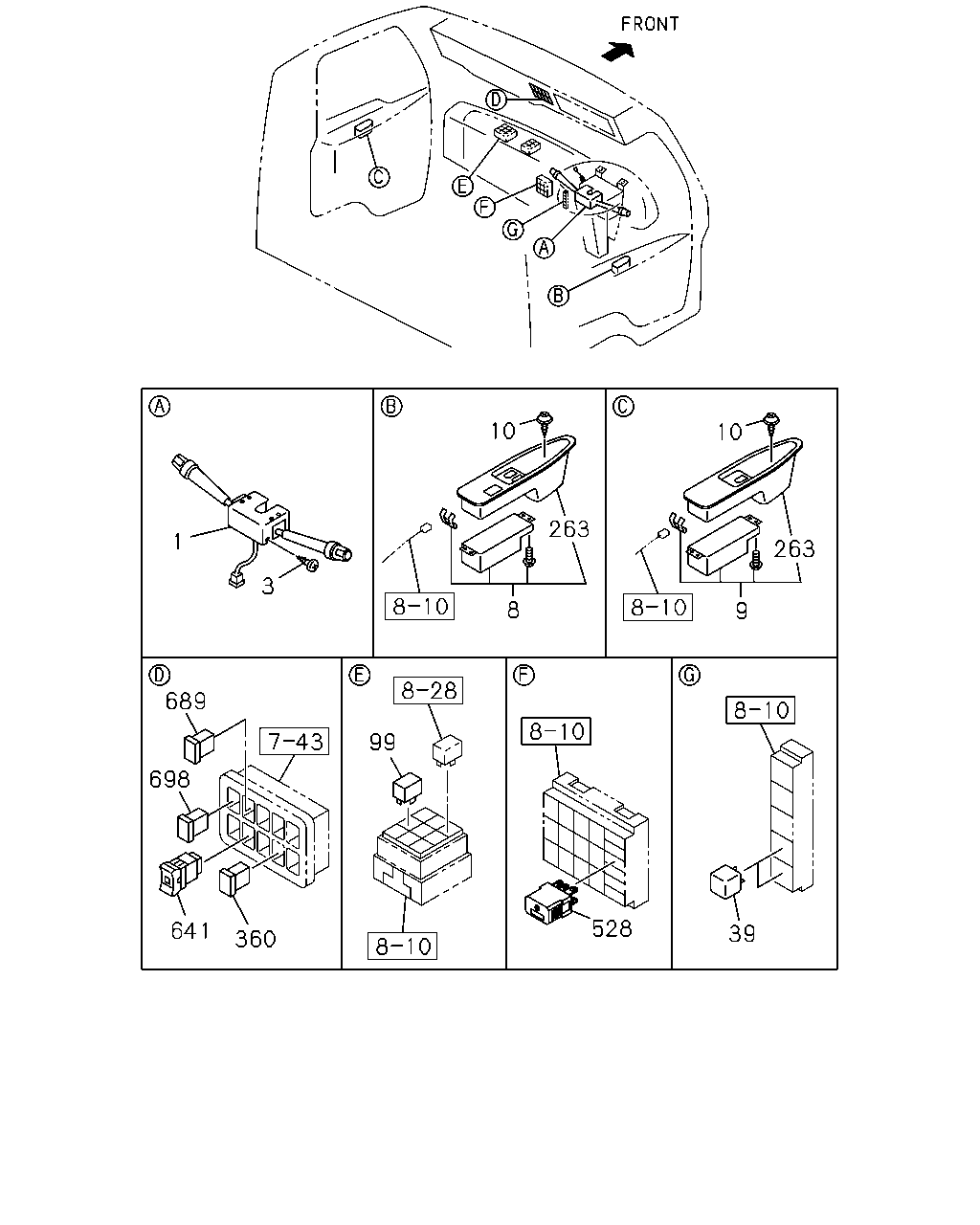

[825A] CAB SIDE NO.1 (15 parça)

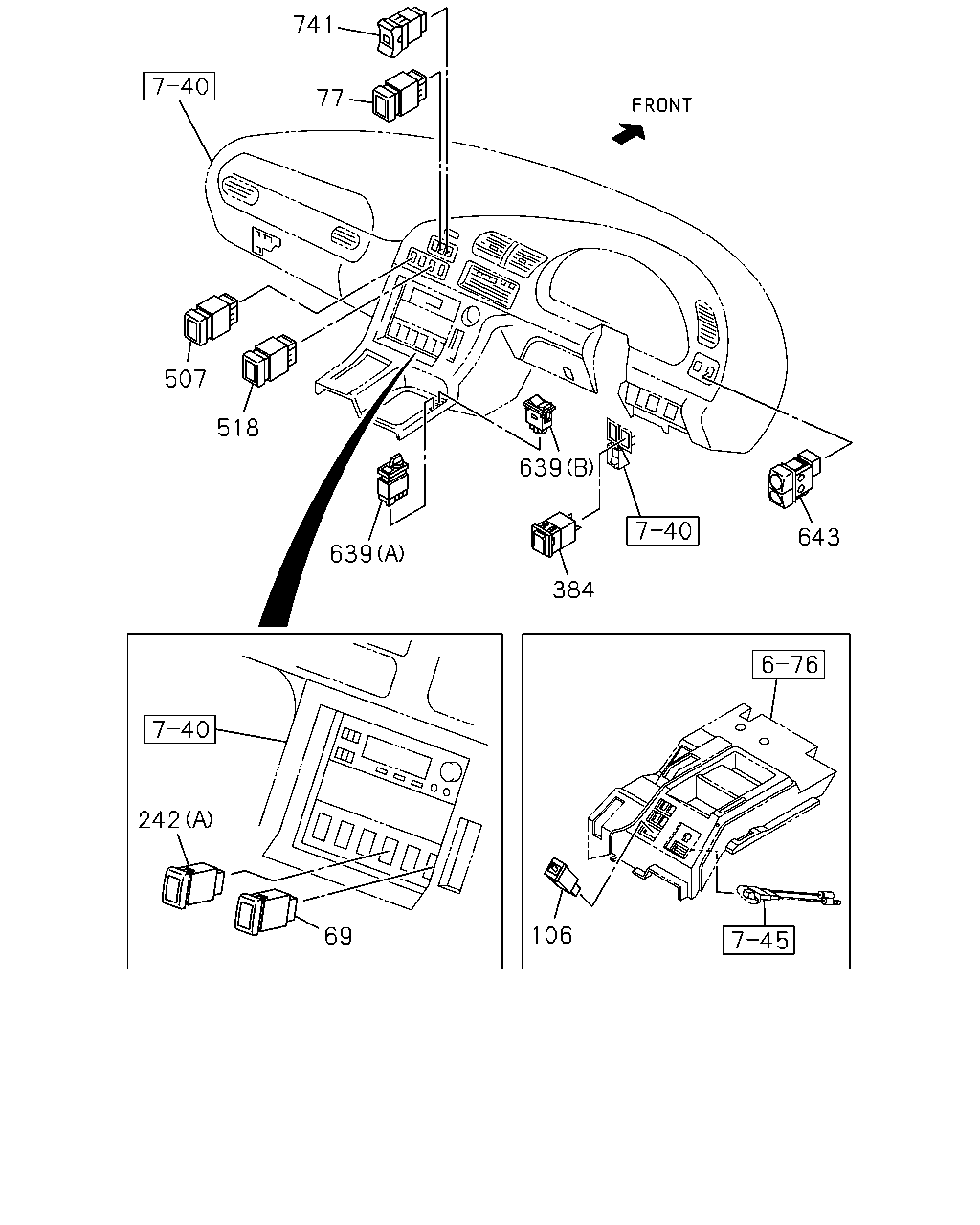

[825A] CAB SIDE NO.2 (13 parça)

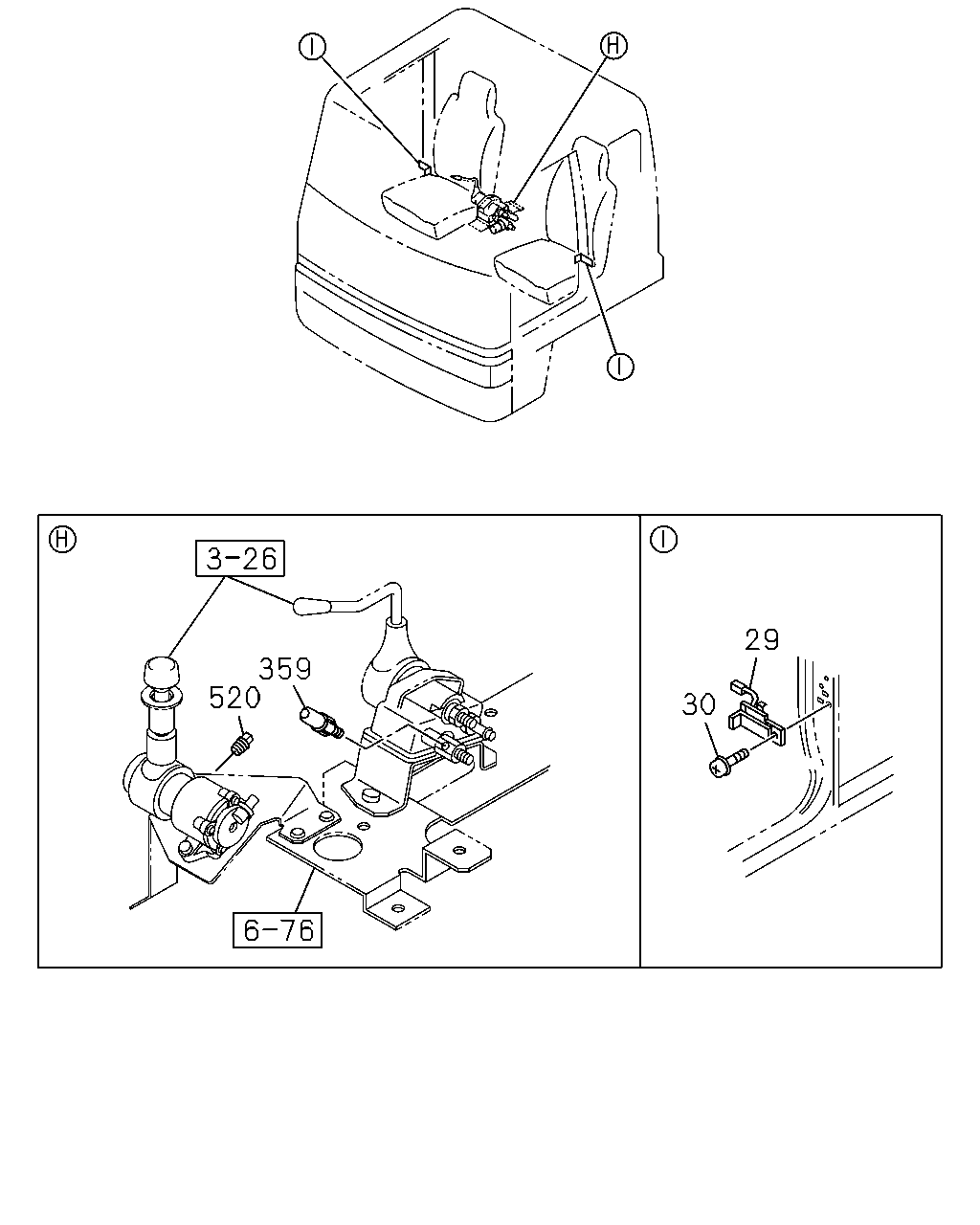

[825A] CAB SIDE NO.3 (4 parça)
[825A] FRAME SIDE NO.2 (9 parça)

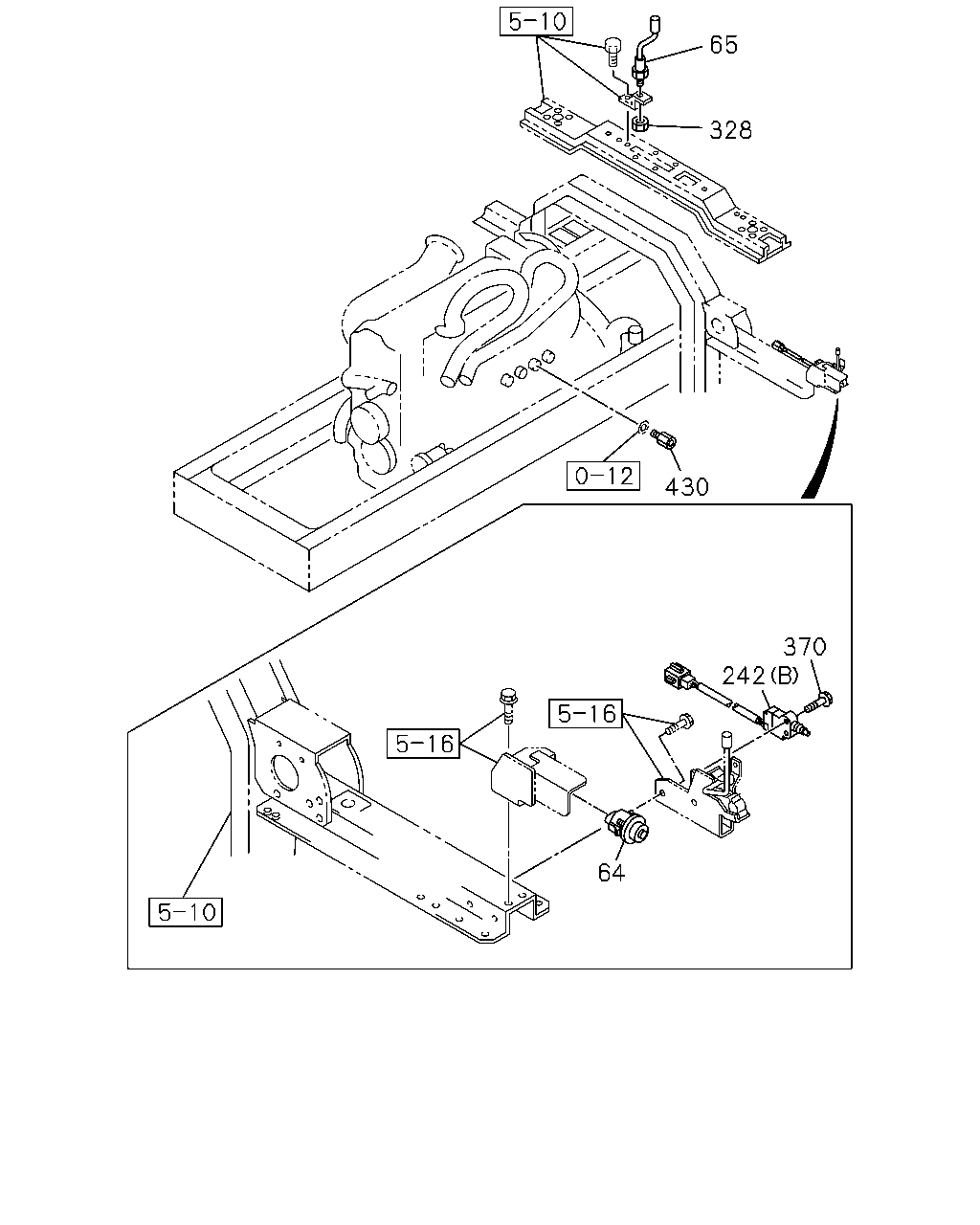

[825A] FRAME SIDE NO.1 (7 parça)
▶
10
10
263
1
263
3
8
9
689
99
698
528
641
39
360
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-694-2
01
1
0904-
1
SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82360-695-2
01
1
0904-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0904-
8
SWITCH; POWER WINDOW
DRIVER SIDE
1-82380-166-2
01
1
0904-
9
SWITCH; POWER WINDOW
PASSENGER SIDE
1-82380-167-1
01
1
0904-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
0904-
39
RELAY; DOOR LK
24V 12.5A PANASONIC
8-97262-933-0
02
1
0904-
99
RELAY; FOG LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0904-
263
COVER; SW
DRIVER SIDE
1-82385-005-2
01
1
0904-
263
COVER; SW
PASSENGER SIDE
1-82385-006-3
01
1
0904-
360
SWITCH ASM; DIFF LK
1-82340-677-0
01
1
0904-
528
RELAY; BUZZER
24V 10A PANASONIC
8-97173-035-1
01
1
0904-
641
SWITCH; MAP
8-97615-637-0
01
1
0904-
689
SWITCH; DPD
CATALYSIS CONTROL WITH DPD<8JM>
1-82340-693-0
01
1
1009-
698
SWITCH; EDS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-82340-698-0
01
1
0904-
741
77
507
518
639
643
639
384
242
106
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
69
SWITCH; AUTO CRUISE
8-97610-834-0
01
1
0904-
77
SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)
1-82340-413-0
01
1
0904-
106
SWITCH; REMOTE CONT MIRROR
1-82350-223-0
02
1
0904-
242
SWITCH
(A)
1-82340-553-0
01
1
0904-
242
SWITCH
(B) STAMP NO
1-82380-172-1
01
1
0904-
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
0904-
507
SWITCH; MIRROR HEATER
1-82340-423-0
01
1
0904-
518
SWITCH; RADIO TUNE
1-82350-231-0
01
1
0904-1008
518
SWITCH; RADIO TUNE
RADIO SEEK SW<NBN>
1-82350-231-0
01
1
1009-
639
SWITCH; EMERGENCY
(A)
1-82330-068-0
01
1
0904-
639
SWITCH; EMERGENCY
(B)
1-82350-363-0
01
1
0904-
643
SWITCH; SKIP SHIFT
8-97381-249-0
01
1
0904-
741
SWITCH; TRAILER
8-98147-983-0
01
1
0908-
29
359
520
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
02
1
0904-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
02
1
0904-
359
SWITCH; TRAILER BRAKE
STAMP 0.3
8-98010-857-0
01
1
0904-
520
PLUG; CONNECTOR
PT1/4
9-99204-513-0
01
1
0904-
667
666
666
237
482
236
666
397
667
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
236
BRACKET; AXLE HARNESS,RR
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>
1-47479-698-0
01
1
0904-
237
NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE
0-91180-108-0
01
1
0904-
397
NUT; BRKT FIX
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE
0-91180-108-0
01
1
0904-
482
BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE
0-28650-830-0
01
1
0904-
666
CLIP; AXLE HARNESS
(C) L=250
5-09707-030-1
01
1
0904-
666
CLIP; AXLE HARNESS
(A) ID=11X2 L=20
1-09700-871-0
04
1
0904-
666
CLIP; AXLE HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 H=20 L=20
8-98033-780-0
01
1
0904-
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
04
1
0904-
667
BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE
0-28650-820-0
01
1
0904-
65
328
430
370
242
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SWITCH; CAB TILT MAIN
1-82380-173-2
01
1
0904-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
0904-
242
SWITCH
(A)
1-82340-553-0
01
1
0904-
242
SWITCH
(B) STAMP NO
1-82380-172-1
01
1
0904-
328
NUT; SW
M16
0-91110-516-0
01
1
0904-
370
BOLT; SW
M6X30 FLANGE
0-28650-630-0
02
1
0904-
430
ADAPTER; SW
M14 & PT1/4 STRAIGHT
1-09669-130-0
01
1
0904-
