Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11200 - CYJ NZ EURO4/JAPAN NEW LONG TERM 2005
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶

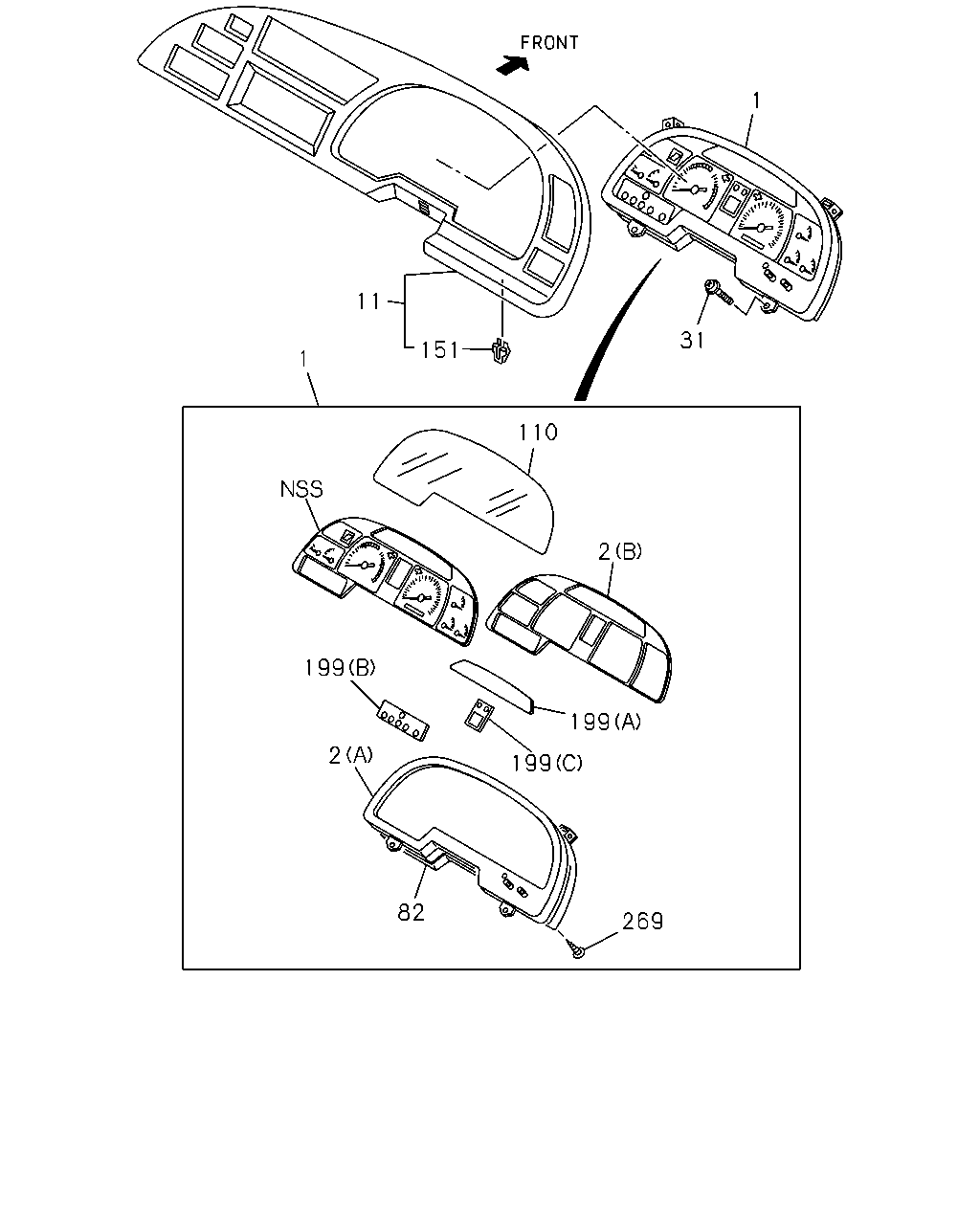

8-21 — METER ASM
(#20853) — 21 parça
1
11
31
151
1
110
2
199
199
2
199
82
269
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
6WG1 TC-C(72L)
8-97632-725-2
01
1
1009-1103
1
METER COMPL; CLUSTER
6WG1 TC-S(97L)
8-97638-840-0
01
1
1009-1103
1
METER COMPL; CLUSTER
6WG1 TC-C(72L),6WG1 TC-S(97L)
8-97638-840-1
01
1
1104-
1
METER COMPL; CLUSTER
8-97631-092-1
01
1
0904-1008
1
METER COMPL; CLUSTER
6WG1 TC-R(75L)
8-97631-092-1
01
1
1009-1103
1
METER COMPL; CLUSTER
6WG1 TC-R(75L)
8-97638-836-1
01
1
1104-
2
PANEL; CLUSTER
(B)
1-83119-885-0
01
1
0904-
2
PANEL; CLUSTER
(A)
1-83119-887-0
01
1
0904-
11
CLUSTER ASM; METER
METER PANEL GRAIN OF WOOD<NAY>
1-72418-014-9
01
1
1009-
11
CLUSTER ASM; METER
1-72418-012-9
01
1
0904-1008
11
CLUSTER ASM; METER
EXC. METER PANEL GRAIN OF WOOD<NAY>
1-72418-012-9
01
1
1009-
31
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
0-74160-620-0
03
1
0904-
82
CASE ASM; CLUSTER METER
1-83119-892-0
01
1
0904-
110
GLASS; CLUSTER METER
1-83119-886-0
01
1
0904-
151
CLIP; METER CLUSTER
8-97217-066-0
10
1
0904-
199
LENS; WARNING LAMP
6WG1 TC-C(72L),6WG1 TC-S(97L) (A)
8-98158-149-0
01
1
1009-
199
LENS; WARNING LAMP
(C)
1-83119-891-0
01
1
0904-
199
LENS; WARNING LAMP
(B)
1-83119-928-1
01
1
0904-
199
LENS; WARNING LAMP
(A)
8-98133-606-0
01
1
0904-1008
199
LENS; WARNING LAMP
6WG1 TC-R(75L) (A)
8-98133-606-0
01
1
1009-
269
SCREW; METER CLUSTER
1-83119-893-0
09
1
0904-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
