◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11200 - CYJ NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#20852) — 17 parça

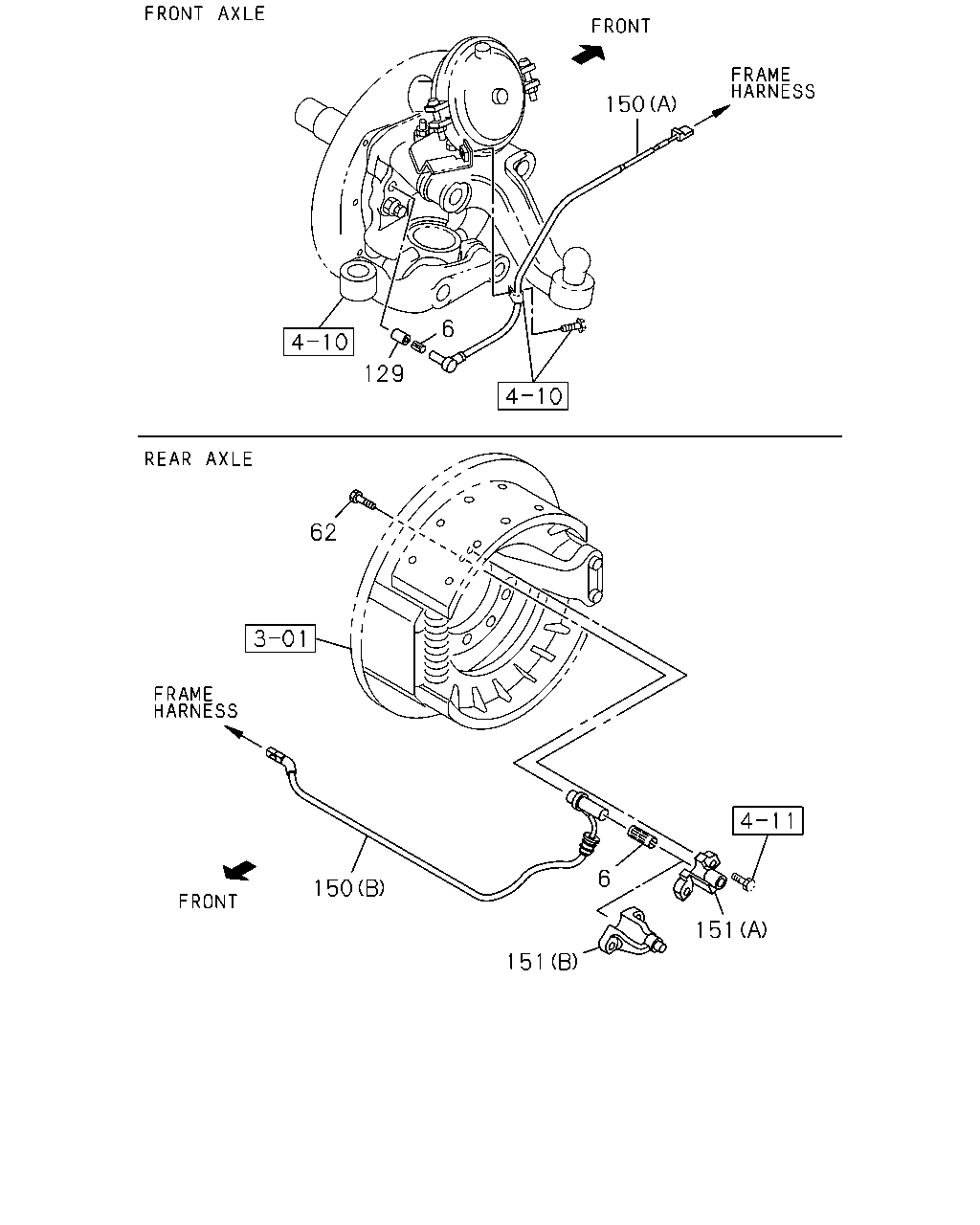

çizim 129810
62 129 150 150 6 151 151 6
BalonParca AdiParca NoAdetTipApplied Date
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0904-
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0904-
62 BOLT; SENSOR
M8X16 		9-05820-816-0 02 1 0904-1506
62 BOLT; SENSOR
M8X16 HEX SOCKET 		0-58330-816-0 02 1 1507-
129 COLLAR 1-83129-471-0 02 1 0904-
129 COLLAR 1-83129-471-0 02 1 0904-
150 SENSOR; SPEED,ABS
(A) 		1-83127-864-3 02 1 0904-
150 SENSOR; SPEED,ABS
(A) 		1-83127-864-3 02 1 0904-
150 SENSOR; SPEED,ABS
(B) 		1-83127-977-1 01 1 0904-
150 SENSOR; SPEED,ABS
(B) 		1-83127-978-1 01 1 0904-
151 BRACKET; SPD SENSOR
(A) 		1-83129-405-0 01 1 0904-1504
151 BRACKET; SPD SENSOR
(B) 		8-98299-398-0 01 1 1505-
151 BRACKET; SPD SENSOR
(A) 		1-83129-406-0 01 1 0904-1504
151 BRACKET; SPD SENSOR
(B) 		8-98299-399-0 01 1 1505-

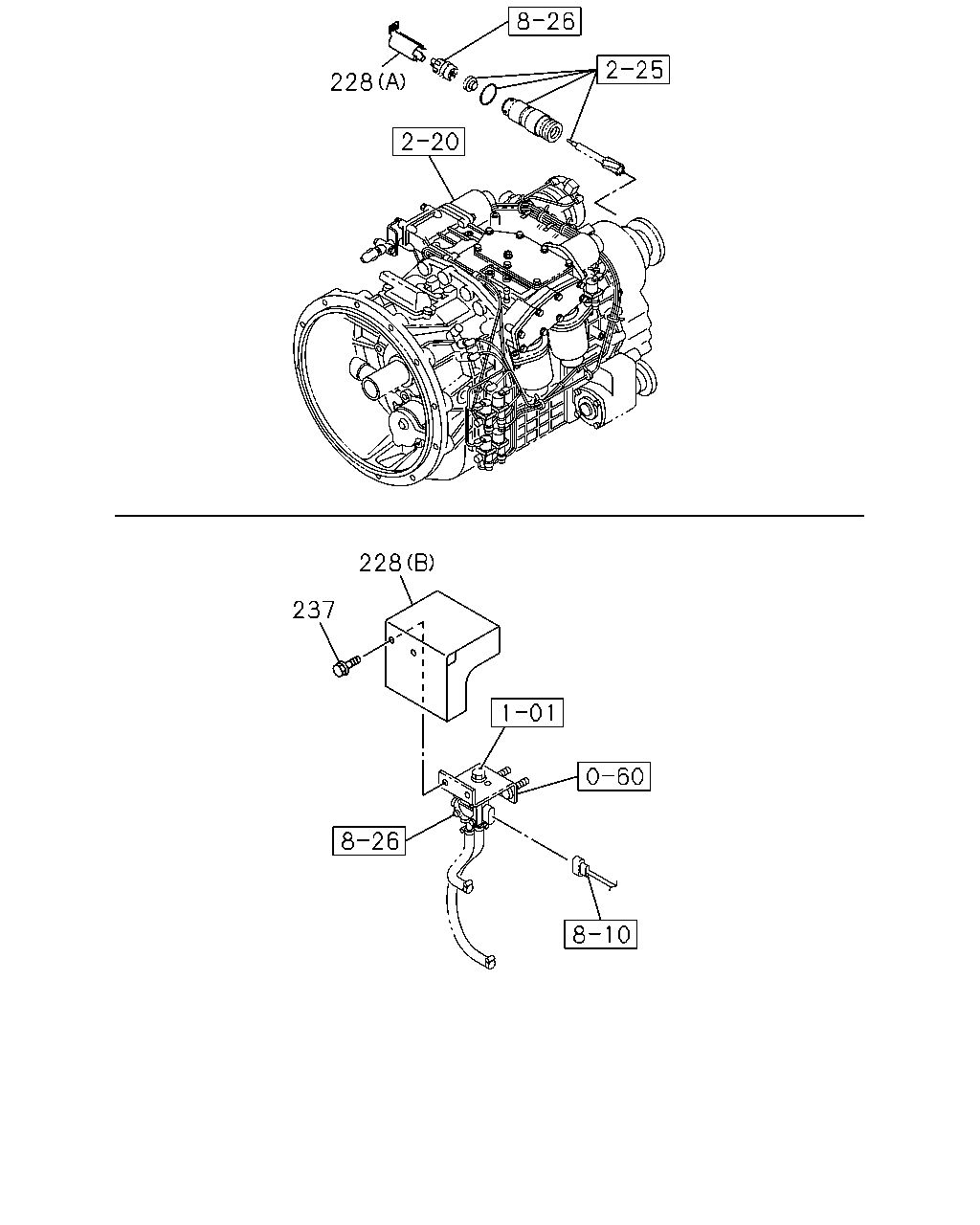

çizim 130008
228 228 237
BalonParca AdiParca NoAdetTipApplied Date
228 PROTECTOR; SENSOR
EMISSION REGULATION NEW LONG TERM<JBG> (B) 		8-97621-446-0 01 1 1009-
228 PROTECTOR; SENSOR
(A) 		8-98119-901-0 01 1 0904-
237 BOLT; PROTECTOR
EMISSION REGULATION NEW LONG TERM<JBG> M8X20 FLANGE 		0-28050-820-0 02 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
