Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#20851) — 580 parça

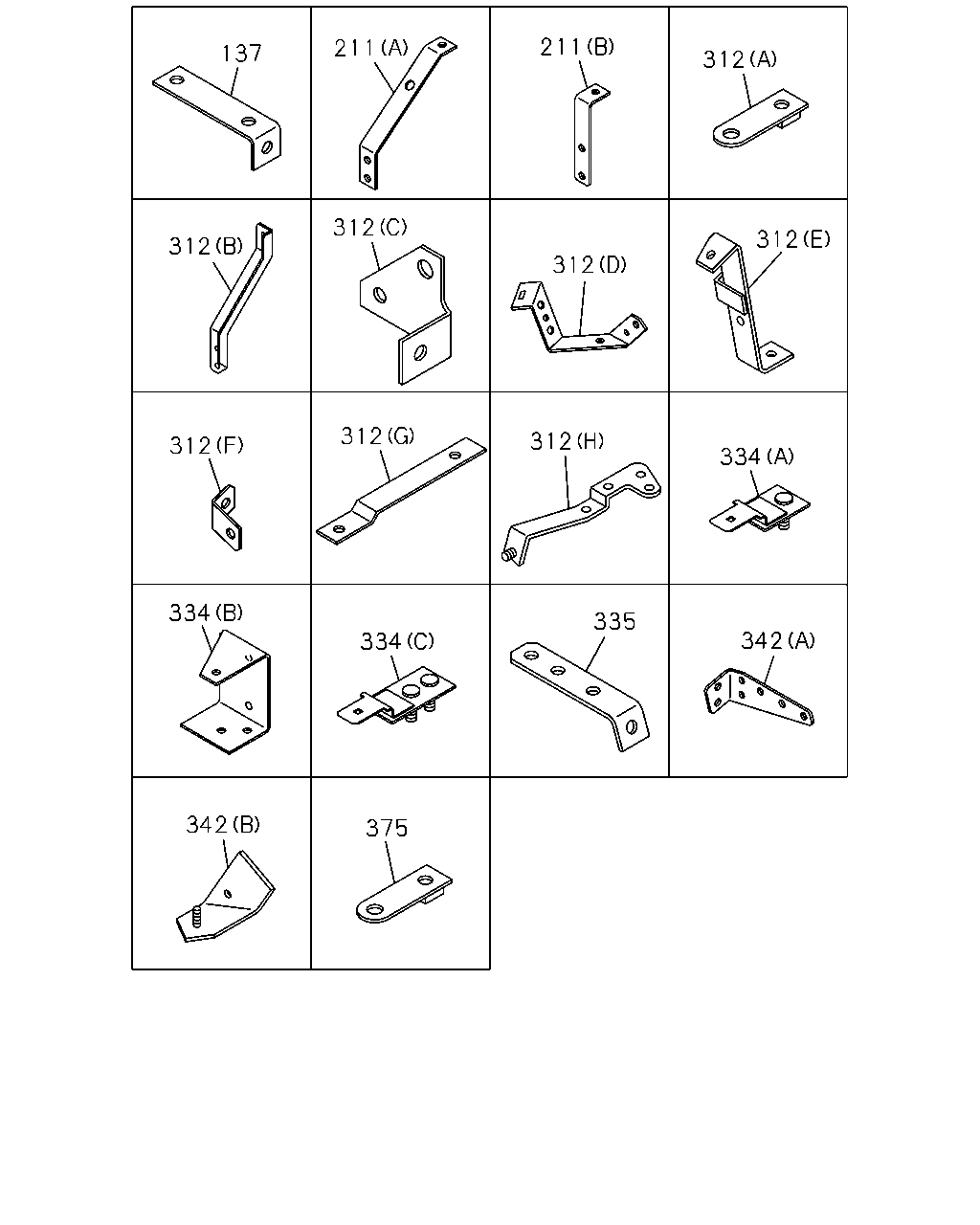

211 211 137 312 312 312 312 312 312 312 312 334 334 335 342 334 342 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP L=175 H=30	1-47479-386-1	01	1	0904-
211	BRACKET; AXLE HARNESS (A)	1-47479-430-0	02	1	0904-
211	BRACKET; AXLE HARNESS (B)	1-82698-588-0	01	1	0904-
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (H)	1-82698-443-0	01	1	1009-
312	BRACKET; CLIP HARNESS (A)	1-82699-182-0	01	1	0904-
312	BRACKET; CLIP HARNESS (D)	1-82698-556-0	01	1	0904-1008
312	BRACKET; CLIP HARNESS (D)	1-82698-556-0	01	1	1009-
312	BRACKET; CLIP HARNESS (C)	1-82698-570-0	01	1	0904-
312	BRACKET; CLIP HARNESS (F)	1-82699-199-0	01	1	0904-1008
312	BRACKET; CLIP HARNESS (F)	1-82699-199-0	01	1	1009-
312	BRACKET; CLIP HARNESS (G)	8-98035-927-1	01	1	0904-1008
312	BRACKET; CLIP HARNESS (G)	8-98035-927-1	01	1	1009-
312	BRACKET; CLIP HARNESS (B)	8-98052-591-0	01	1	0904-1008
312	BRACKET; CLIP HARNESS (B)	8-98052-591-0	01	1	1009-
312	BRACKET; CLIP HARNESS (E) L=195.5	1-82698-502-0	01	1	0904-1008
312	BRACKET; CLIP HARNESS (E) L=195.5	1-82698-502-0	01	1	1009-
334	BRACKET 6WG1 TC-C(72L),6WG1 TC-S(97L) (C)	8-98157-823-0	01	1	1009-
334	BRACKET (B)	1-53457-153-2	01	1	0904-1008
334	BRACKET (B)	1-53457-153-2	01	1	1009-
334	BRACKET (A)	1-82698-543-0	01	1	0904-1008
334	BRACKET 6WG1 TC-R(75L) (A)	1-82698-543-0	01	1	1009-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	0904-
342	BRACKET; HARNESS CAB MTG (B)	1-47479-974-0	01	1	0904-0906
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	0904-1008
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	1009-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0904-1008
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	1009-

119 524 219 294 515 552 515 127 423 82 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	WASHER; PL BRKT,HARNESS ID=10.5 OD=22	0-91614-610-0	02	1	0904-1008
82	WASHER; PL BRKT,HARNESS ID=10.5 OD=22	0-91614-610-0	02	1	1009-
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	0904-1008
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	1009-
127	SCREW; FACIA HARNESS CLIP M3X10	9-93490-310-0	04	1	0904-
219	NUT M8 FLANGE	0-91180-108-0	13	1	0904-1008
219	NUT M8 FLANGE	0-91180-108-0	13	1	1009-
219	NUT M8 FLANGE	0-91180-108-0	02	1	0904-
219	NUT M8 FLANGE	0-91180-108-0	02	1	0904-
294	NUT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE	0-91180-108-0	01	1	1009-
294	NUT M8 FLANGE	0-91180-108-0	08	1	0904-1001
294	NUT M8 FLANGE	0-91180-108-0	07	1	1002-
294	NUT M8 FLANGE	0-91180-108-0	07	1	1002-
294	NUT M8 FLANGE	0-91180-108-0	07	1	0904-1001
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	0904-1008
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	1009-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	0904-1008
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	1009-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	04	1	0904-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0904-1008
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	1009-
515	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0904-1008
515	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1009-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0904-1008
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	1009-
552	NUT; BRKT,HARNESS EMISSION REGULATION NEW LONG TERM<JBG> M8 FLANGE	0-91180-108-0	04	1	1009-

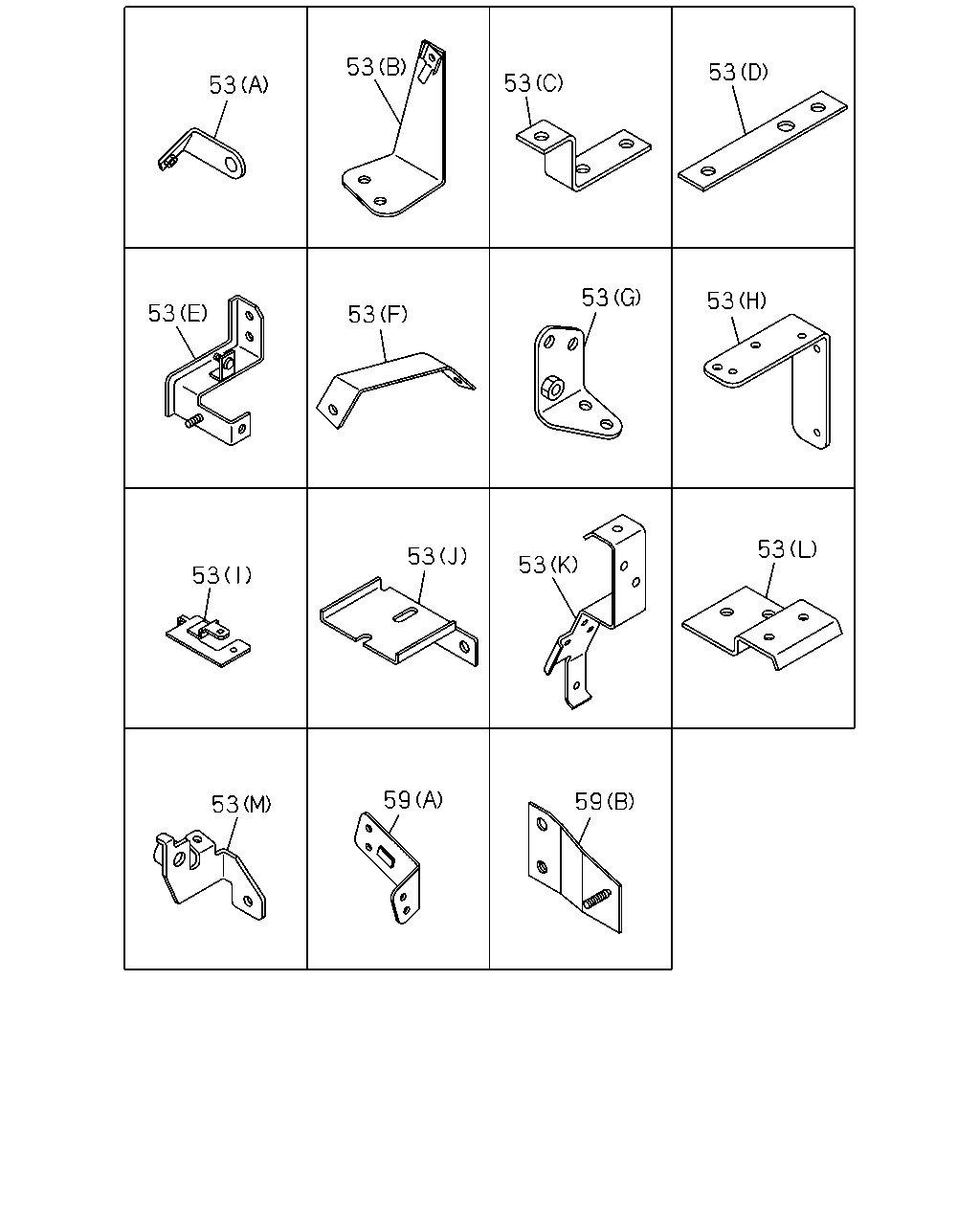

53 53 53 53 53 53 53 53 53 53 53 53 59 59 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (M)	8-98194-068-0	01	1	1112-
53	BRACKET; HARNESS EMISSION REGULATION NEW LONG TERM<JBG> (K)	8-97616-550-0	01	1	1009-
53	BRACKET; HARNESS EMISSION REGULATION NEW LONG TERM<JBG> (L)	8-97621-939-0	01	1	1009-
53	BRACKET; HARNESS (D) L=130	1-47478-959-0	02	1	0904-1008
53	BRACKET; HARNESS (D) L=130	1-47478-959-0	02	1	1009-
53	BRACKET; HARNESS (F)	1-47479-537-0	09	1	0904-1008
53	BRACKET; HARNESS (F)	1-47479-537-0	09	1	1009-
53	BRACKET; HARNESS (I)	1-82698-495-2	01	1	0904-1008
53	BRACKET; HARNESS (I)	1-82698-495-2	01	1	1009-
53	BRACKET; HARNESS (G)	8-97610-339-1	01	1	0904-
53	BRACKET; HARNESS (H)	8-97610-340-1	01	1	0904-
53	BRACKET; HARNESS (J)	8-98032-696-0	01	1	0904-1008
53	BRACKET; HARNESS (J)	8-98032-696-0	01	1	1009-
53	BRACKET; HARNESS (E)	8-98050-989-0	01	1	0904-1008
53	BRACKET; HARNESS (E)	8-98050-989-0	01	1	1009-
53	BRACKET; HARNESS (B)	8-98052-592-0	01	1	0904-1008
53	BRACKET; HARNESS (B)	8-98052-592-0	01	1	1009-
53	BRACKET; HARNESS (C)	8-98124-778-0	01	1	0904-
53	BRACKET; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42129-495-0	01	1	0904-
59	BRACKET; FRAME HARNESS (A)	1-82698-531-0	01	1	0904-1008
59	BRACKET; FRAME HARNESS (A)	1-82698-531-0	01	1	1009-
59	BRACKET; FRAME HARNESS (B)	8-98061-135-1	01	1	0904-

1 1 1 224 1 292 292 178 178 178 596 178 178 503 530 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=40	1-09337-015-0	02	1	0904-
1	SLEEVE; RUBBER (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	0904-
1	SLEEVE; RUBBER (C) ID=38.1 L=50	5-09360-835-0	01	1	0904-
1	SLEEVE; RUBBER (D) ID=18 OD=22 L=25	8-94412-773-0	01	1	0904-
178	GROMMET; HARNESS (E) ID=28 OD=35 T=25	1-09332-011-1	02	1	0904-
178	GROMMET; HARNESS (C) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	02	1	0904-1008
178	GROMMET; HARNESS (C) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	02	1	1009-
178	GROMMET; HARNESS (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	0904-1008
178	GROMMET; HARNESS (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	1009-
178	GROMMET; HARNESS (C) W0/SLIT ID=24 OD=30 T=22	1-09332-126-0	02	1	0904-
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	0904-1008
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1009-
178	GROMMET; HARNESS (D) ID=28 OD=35 T=17	9-09956-256-2	02	1	0904-
178	GROMMET; HARNESS (D) ID=28 OD=35 T=17	9-09956-256-2	02	1	0904-
224	SLEEVE; RUBBER,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50	1-09337-023-0	01	1	0904-
292	CAP; RUBBER (A)	1-82690-667-0	01	1	0904-1008
292	CAP; RUBBER (A)	1-82690-667-0	01	1	1009-
292	CAP; RUBBER (B)	1-82691-239-0	02	1	0904-1008
292	CAP; RUBBER 6WG1 TC-R(75L) (B)	1-82691-239-0	02	1	1009-
503	CONNECTOR	1-82690-666-0	01	1	0904-1008
503	CONNECTOR	1-82690-666-0	01	1	1009-
530	SEAL; HARNESS (A) 180X40	1-72498-019-1	16	1	0904-1008
530	SEAL; HARNESS (A) 180X40	1-72498-019-1	16	1	1009-
530	SEAL; HARNESS (A) 100X40	1-72498-022-1	02	1	0904-1008
530	SEAL; HARNESS (A) 100X40	1-72498-022-1	02	1	1009-
530	SEAL; HARNESS (B) OD=25 BLACK	1-76798-019-0	01	1	0904-1008
530	SEAL; HARNESS (B) OD=25 BLACK	1-76798-019-0	01	1	1009-
530	SEAL; HARNESS LOW ROOF<6XQ> (A) 100X40	1-72498-022-1	01	1	0904-
596	GROMMET CATALYSIS CONTROL WITH DPD<8JM> ID=28 OD=35 T=17	9-09956-256-2	01	1	1009-

14 194 16 48 171 194 425 14 51 81 104 111 206 212 305 369 14 16 102 121 142 171 194 369 612 16 16 81 16 16 128 16 212 16 16 51 102 142 194 369 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

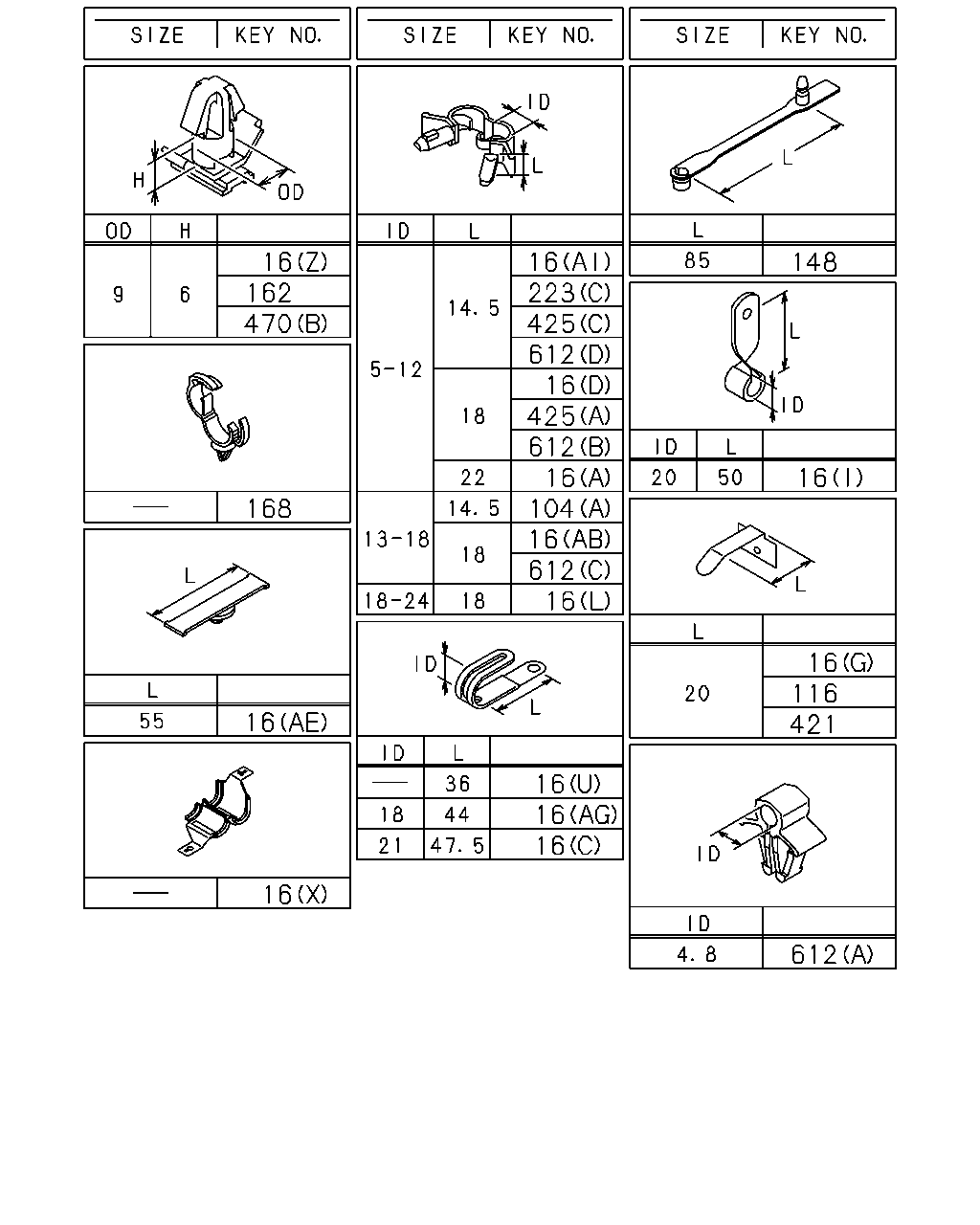

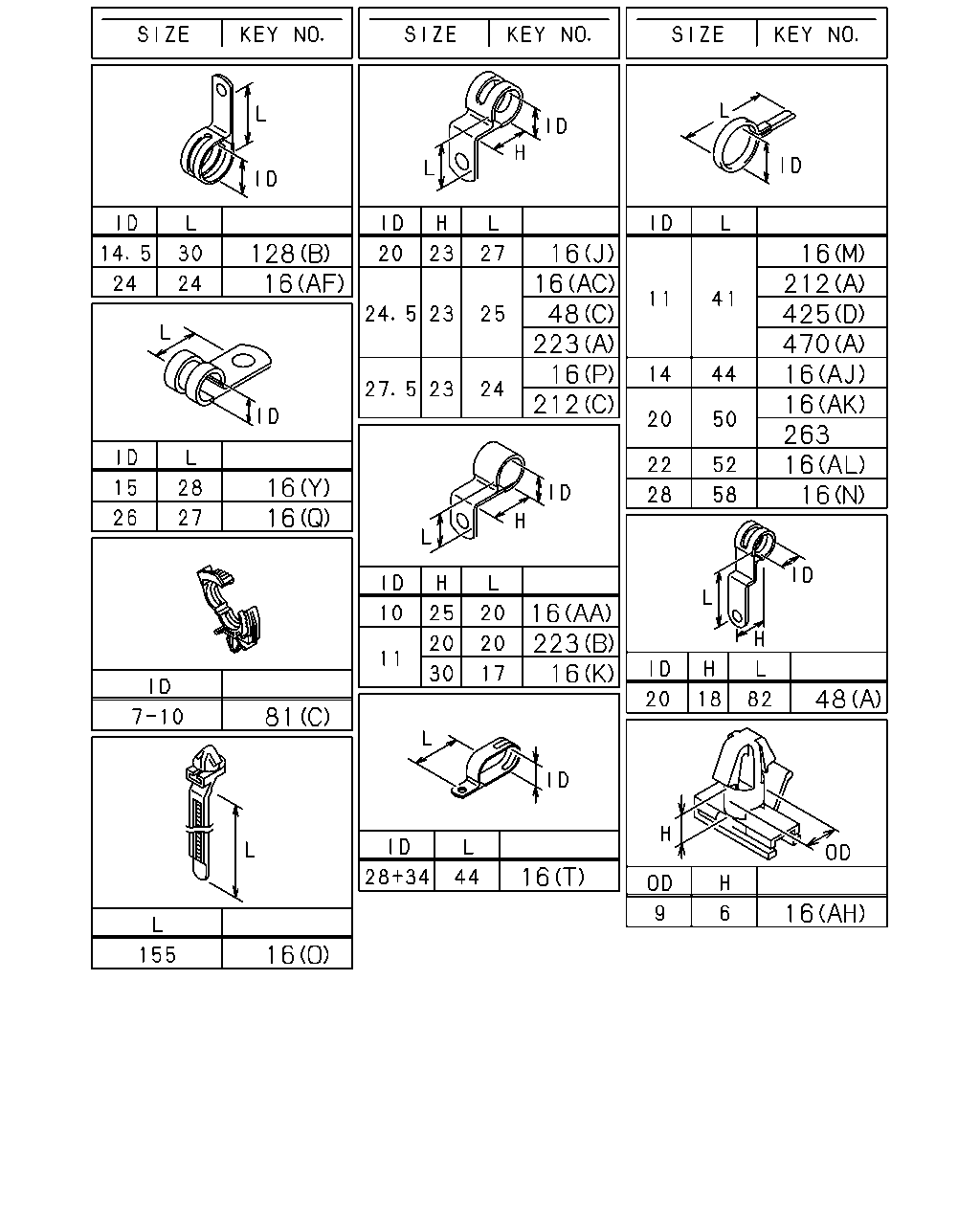

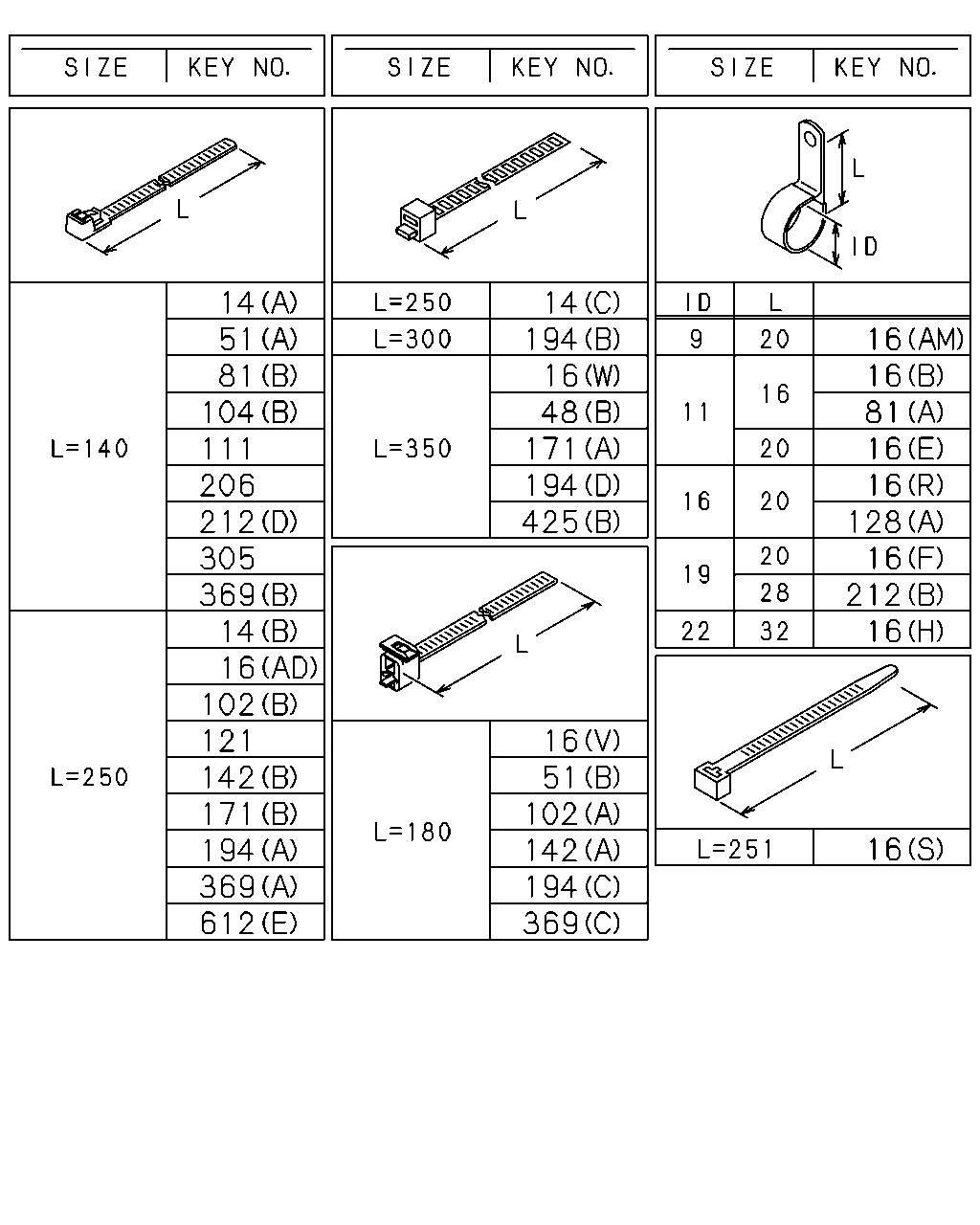

14	CLIP; BAND,HARNESS (C) L=250	1-09707-126-0	02	1	0904-
14	CLIP; BAND,HARNESS (C) L=250	1-09707-126-0	02	1	0904-
14	CLIP; BAND,HARNESS (C) L=250	1-09707-126-0	01	1	0904-
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250	5-09707-030-1	01	1	0904-
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140	5-09707-031-1	01	1	0904-
16	CLIP; HARNESS (AM) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=21 L=47.5	8-94178-108-0	05	1	1009-
16	CLIP; HARNESS (W) L=350	1-09707-183-0	05	1	0904-1008
16	CLIP; HARNESS (W) L=350	1-09707-183-0	05	1	1009-
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	02	1	0904-1008
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	02	1	1009-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	10	1	0904-1008
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	10	1	1009-
16	CLIP; HARNESS (H) ID=22 L=32	1-09700-126-1	01	1	0904-1008
16	CLIP; HARNESS (H) ID=22 L=32	1-09700-126-1	01	1	1009-
16	CLIP; HARNESS (N) ID=28 L=58	1-09700-400-0	05	1	0904-1008
16	CLIP; HARNESS (N) ID=28 L=58	1-09700-400-0	05	1	1009-
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	14	1	0904-1008
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	14	1	1009-
16	CLIP; HARNESS (J) ID=20 H=23 L=27	1-09700-861-0	02	1	0904-1008
16	CLIP; HARNESS (J) ID=20 H=23 L=27	1-09700-861-0	02	1	1009-
16	CLIP; HARNESS (D) ID=5-12 L=18	1-09709-287-0	09	1	0904-1002
16	CLIP; HARNESS (D) ID=5-12 L=18	1-09709-287-0	08	1	1003-
16	CLIP; HARNESS (L) ID=18-24 L=18	1-09709-294-0	02	1	0904-1008
16	CLIP; HARNESS (L) ID=18-24 L=18	1-09709-294-0	01	1	1009-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	02	1	0904-1008
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	05	1	0904-0906
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	04	1	0907-
16	CLIP; HARNESS (AK) ID=20 L=50	9-09917-430-0	07	1	0904-1008
16	CLIP; HARNESS (AK) ID=20 L=50	9-09917-430-0	07	1	1009-1409
16	CLIP; HARNESS (AK) ID=20 L=50	9-09917-430-0	08	1	1410-
16	CLIP; HARNESS (AL) ID=22 L=52	9-09917-431-0	03	1	0904-1008
16	CLIP; HARNESS (AL) ID=22 L=52	9-09917-431-0	01	1	1009-
16	CLIP; HARNESS (B) ID=11 L=16	0-95235-025-0	02	1	0904-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	05	1	0904-1105
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (R) ID=16 L=20	0-95235-536-0	02	1	0904-
16	CLIP; HARNESS (F) ID=19 L=20	0-95235-836-0	03	1	0904-
16	CLIP; HARNESS (AA) ID=10 H=25 L=20	1-09700-519-0	01	1	0904-
16	CLIP; HARNESS (AA) ID=10 H=25 L=20	1-09700-519-0	01	1	0904-
16	CLIP; HARNESS (I) ID=20 L=50	1-09700-679-1	01	1	0904-1008
16	CLIP; HARNESS (I) ID=20 L=50	1-09700-679-1	01	1	1009-
16	CLIP; HARNESS (AC) ID=24.5 H=23 L=25	1-09700-862-0	03	1	0904-
16	CLIP; HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (AF) ID=24 L=24	1-09701-001-1	01	1	0904-1002
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	02	1	1003-1008
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	03	1	1009-
16	CLIP; HARNESS (Q) ID=26 L=27	1-09701-006-0	02	1	0904-
16	CLIP; HARNESS (Y) ID=15 L=28	1-09701-216-0	02	1	0904-1008
16	CLIP; HARNESS (Y) ID=15 L=28	1-09701-216-0	02	1	1009-
16	CLIP; HARNESS (T) ID=28+34 L=44	1-09701-311-0	01	1	0904-
16	CLIP; HARNESS (V) L=180	1-09707-162-1	01	1	0904-1008
16	CLIP; HARNESS (V) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS (X) W/SPONGE RUBBER	1-09709-150-0	01	1	0904-1008
16	CLIP; HARNESS (X) W/SPONGE RUBBER	1-09709-150-0	01	1	1009-
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	07	1	0904-
16	CLIP; HARNESS (D) ID=5-12 L=18	1-09709-287-0	01	1	0904-1008
16	CLIP; HARNESS (D) ID=5-12 L=18	1-09709-287-0	01	1	1009-
16	CLIP; HARNESS (A) ID=5-12 L=22	1-09709-288-0	02	1	0904-
16	CLIP; HARNESS (A) ID=5-12 L=22	1-09709-288-0	02	1	0904-
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	03	1	0904-1008
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	02	1	1009-
16	CLIP; HARNESS (L) ID=18-24 L=18	1-09709-294-0	01	1	0904-1008
16	CLIP; HARNESS (L) ID=18-24 L=18	1-09709-294-0	02	1	1009-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	01	1	0904-1008
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	02	1	1009-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	09	1	0904-1205
16	CLIP; HARNESS (AD) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (C) ID=21 L=47.5	8-94178-108-0	03	1	0904-1008
16	CLIP; HARNESS 6WG1 TC-R(75L) (C) ID=21 L=47.5	8-94178-108-0	03	1	1009-
16	CLIP; HARNESS (U) L=36	8-94224-891-1	01	1	0904-
16	CLIP; HARNESS (AG) ID=18 L=44	8-97367-985-1	05	1	0904-
16	CLIP; HARNESS (AH) OD=9 H=6	8-97368-793-0	03	1	0904-1008
16	CLIP; HARNESS (AH) OD=9 H=6	8-97368-793-0	03	1	1009-
16	CLIP; HARNESS (S) L=251	8-97619-917-0	03	1	0904-
16	CLIP; HARNESS (AJ) ID=14 L=44	9-09917-427-0	02	1	0904-1008
16	CLIP; HARNESS (AJ) ID=14 L=44	9-09917-427-0	02	1	1009-
16	CLIP; HARNESS (AL) ID=22 L=52	9-09917-431-0	01	1	0904-1008
16	CLIP; HARNESS (AL) ID=22 L=52	9-09917-431-0	03	1	1009-
16	CLIP; HARNESS (AE) L=55	8-94432-655-0	03	1	0904-1008
16	CLIP; HARNESS (AE) L=55	8-94432-655-0	03	1	1009-
16	CLIP; HARNESS (O) L=155	8-97173-307-0	03	1	0904-1008
16	CLIP; HARNESS (O) L=155	8-97173-307-0	03	1	1009-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) ID=11 L=20	0-95235-035-0	02	1	0904-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 H=30 L=17	1-09700-113-0	01	1	0904-
16	CLIP; HARNESS HIGH ROOF<S2F> (G) L=20 SET=10 PIECE	1-09987-246-2	04	1	0904-
48	CLIP; FRAME HARNESS (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0904-1008
48	CLIP; FRAME HARNESS (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
48	CLIP; FRAME HARNESS (A) ID=20 H=18 L=82	1-09701-288-0	01	1	0904-1008
48	CLIP; FRAME HARNESS (A) ID=20 H=18 L=82	1-09701-288-0	01	1	1009-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	11	1	0904-1008
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	11	1	1009-
51	CLIP; COOLER CMPR (A) L=140	5-09707-031-1	01	1	0904-1008
51	CLIP; COOLER CMPR (A) L=140	5-09707-031-1	01	1	1009-
51	CLIP; COOLER CMPR (B) L=180	1-09707-162-1	01	1	0904-
81	CLIP; HARNESS (B) L=140	5-09707-031-1	06	1	0904-1007
81	CLIP; HARNESS (B) L=140	5-09707-031-1	04	1	1008-
81	CLIP; HARNESS (C) ID=7-10	8-94472-578-0	02	1	0904-1007
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	0-95235-025-0	02	1	0904-1008
81	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	1009-
102	CLIP; BAND (A) L=180	1-09707-162-1	01	1	0904-
102	CLIP; BAND (B) L=250	5-09707-030-1	01	1	0904-1002
102	CLIP; BAND (B) L=250	5-09707-030-1	01	1	1003-
102	CLIP; BAND (B) L=250	5-09707-030-1	01	1	1003-
104	CLIP; HEADLAMP HARNESS (B) L=140	5-09707-031-1	12	1	0904-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0904-1008
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	1009-
111	CLIP; STOP LAMP SW HARNESS L=140	5-09707-031-1	01	1	0904-1008
111	CLIP; STOP LAMP SW HARNESS L=140	5-09707-031-1	01	1	1009-
121	CLIP; FACIA HARNESS L=250	5-09707-030-1	02	1	0904-1008
121	CLIP; FACIA HARNESS L=250	5-09707-030-1	02	1	1009-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0904-1008
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1009-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0904-1008
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1009-
142	CLIP; HARNESS,ENG (A) L=180	1-09707-162-1	01	1	0904-1207
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1208-
142	CLIP; HARNESS,ENG (B) L=250	5-09707-030-1	01	1	0904-1205
142	CLIP; HARNESS,ENG (B) L=250	8-98216-430-0	01	1	1206-
171	CLIP; STARTER HARNESS (A) L=350	1-09707-183-0	02	1	0904-1008
171	CLIP; STARTER HARNESS (A) L=350	1-09707-183-0	02	1	1009-
171	CLIP; STARTER HARNESS (B) L=250	5-09707-030-1	04	1	0904-1008
171	CLIP; STARTER HARNESS (B) L=250	5-09707-030-1	04	1	1009-
194	CLIP; BAND (D) L=350	1-09707-183-0	04	1	0904-1002
194	CLIP; BAND (D) L=350	1-09707-183-0	06	1	1003-1202
194	CLIP; BAND (D) L=350	1-09707-183-0	07	1	1203-
194	CLIP; BAND (A) L=250	5-09707-030-1	01	1	0904-
194	CLIP; BAND (A) L=250	5-09707-030-1	01	1	0904-
194	CLIP; BAND (B) L=300	1-09707-001-1	01	1	0904-1008
194	CLIP; BAND (B) L=300	1-09707-001-1	01	1	1009-
194	CLIP; BAND (C) L=180	1-09707-162-1	01	1	0904-1008
194	CLIP; BAND (C) L=180	1-09707-162-1	01	1	1009-
194	CLIP; BAND (A) L=250	5-09707-030-1	06	1	0904-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	0904-1008
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	1009-
212	CLIP; HORN HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	0904-1008
212	CLIP; HORN HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	1009-
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0904-1008
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	1009-
212	CLIP; HORN HARNESS (C) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0904-
212	CLIP; HORN HARNESS (D) L=140	5-09707-031-1	01	1	0904-1008
212	CLIP; HORN HARNESS (D) L=140	5-09707-031-1	01	1	1009-
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	0904-1008
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	1009-
369	CLIP; BAND EDS HARNESS (A) L=250	5-09707-030-1	01	1	1002-1002
369	CLIP; BAND EDS HARNESS (A) L=250	5-09707-030-1	01	1	1003-
369	CLIP; BAND EDS HARNESS 6WG1 TC-R(75L) (A) L=250	5-09707-030-1	01	1	1003-
369	CLIP; BAND EDS HARNESS (C) L=180	1-09707-162-1	01	1	0907-1008
369	CLIP; BAND EDS HARNESS (C) L=180	1-09707-162-1	01	1	1009-
369	CLIP; BAND EDS HARNESS (A) L=250	5-09707-030-1	06	1	0904-1001
369	CLIP; BAND EDS HARNESS (A) L=250	5-09707-030-1	05	1	1002-1002
369	CLIP; BAND EDS HARNESS (A) L=250	5-09707-030-1	03	1	1003-
369	CLIP; BAND EDS HARNESS (B) L=140	5-09707-031-1	01	1	0904-1008
369	CLIP; BAND EDS HARNESS (B) L=140	5-09707-031-1	01	1	1009-
425	CLIP; MODULATOR (D) ID=11 L=41	1-09700-403-0	01	1	0904-0907
425	CLIP; MODULATOR (B) L=350	1-09707-183-0	02	1	0904-
425	CLIP; MODULATOR (A) ID=5-12 L=18	1-09709-287-0	01	1	0904-
425	CLIP; MODULATOR (C) ID=5-12 L=14.5	1-09987-221-0	02	1	0904-0907
425	CLIP; MODULATOR (C) ID=5-12 L=14.5	1-09987-221-0	03	1	0908-
612	CLIP; HARNESS DPD EMISSION REGULATION NEW LONG TERM<JBG> (A) ID=4.8	1-09701-218-0	04	1	1009-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (B) ID=5-12 L=18	1-09709-287-0	01	1	1009-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (C) ID=13-18 L=18	1-09709-291-0	02	1	1009-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (E) L=250	5-09707-030-1	01	1	1009-

38 150 38 242 528 38 139 150 38 242 313 242 38 38 242 38 139 242 313 86 139 313 38 64 86 242 139 516 139 239 38 358 88 133 358 239 38 358 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

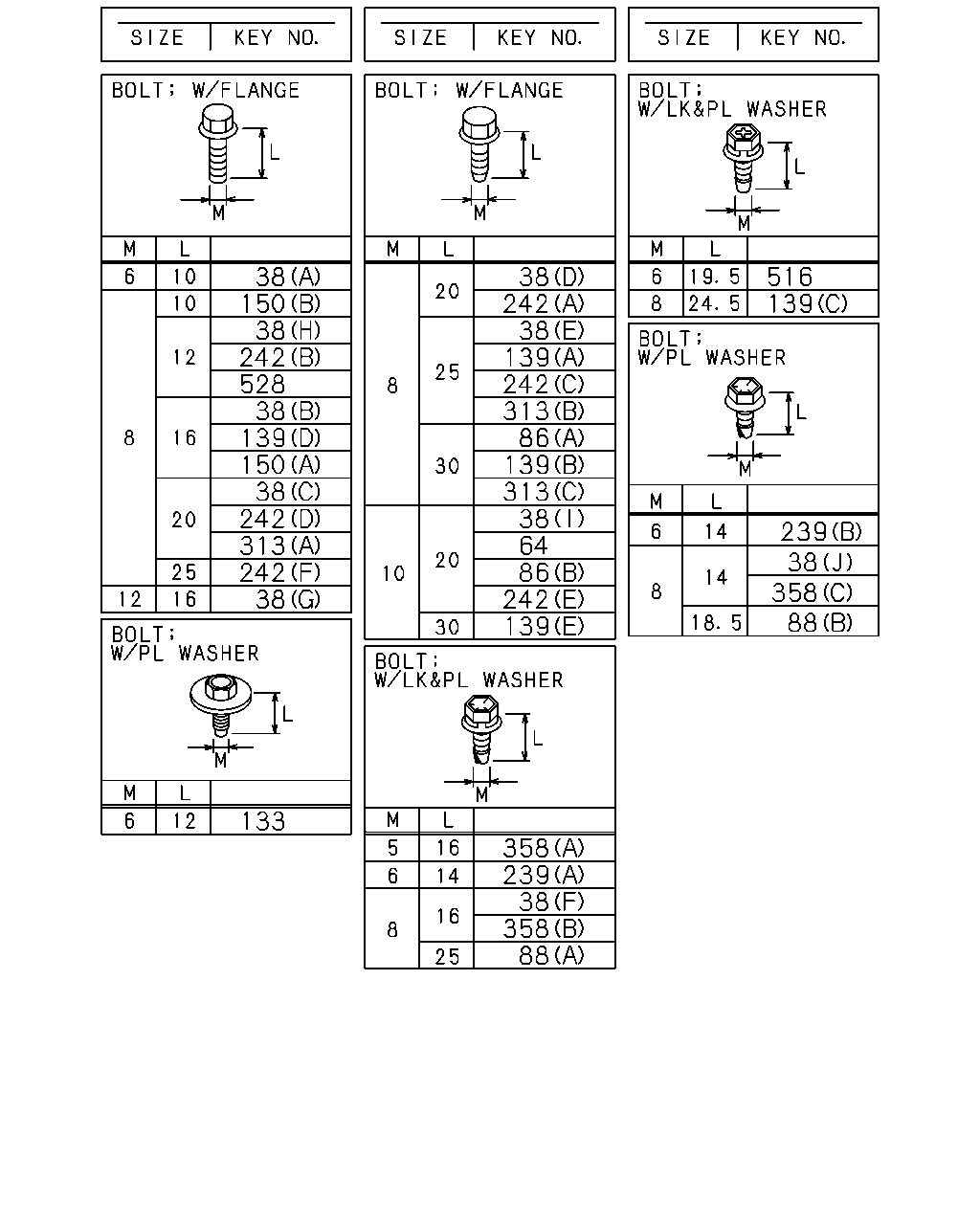

38	BOLT; CLIP,HARNESS (H) M8X12 FLANGE	0-28050-812-0	01	1	0904-0906
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	05	1	0904-1008
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	05	1	1009-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	0904-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	07	1	0904-1008
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	1009-
38	BOLT; CLIP,HARNESS (I) M10X20 FLANGE	0-28751-020-0	01	1	0904-
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	0904-1008
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	1009-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0904-1008
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	07	1	1009-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	0904-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	02	1	0904-1008
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	02	1	1009-
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	1-09044-079-0	01	1	0904-1008
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	1-09044-079-0	01	1	1009-1105
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS (F) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0904-1201
38	BOLT; CLIP,HARNESS (J) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X16 FLANGE	0-28050-816-0	02	1	0904-1008
38	BOLT; CLIP,HARNESS (B) M8X16 FLANGE	0-28050-816-0	02	1	1009-
64	SCREW; CLIP M10X20 FLANGE	0-28751-020-0	01	1	0904-
86	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	0904-1008
86	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-
86	BOLT; CLIP BRKT (B) M10X20 FLANGE	0-28751-020-0	01	1	0904-
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0904-1007
88	BOLT; DOOR HARNESS EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	0904-1008
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	1009-
139	BOLT; BRKT (E) M10X30 FLANGE	0-28151-030-0	01	1	1112-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	06	1	0904-1008
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1009-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0904-1008
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	06	1	1009-
139	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	02	1	0904-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0904-
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0904-0904
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
150	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	13	1	0904-
150	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X10 FLANGE	0-28050-810-0	02	1	0904-
150	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X16 FLANGE	0-28050-816-0	01	1	0904-
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0904-1007
239	BOLT; GRAND (B) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
242	BOLT; BRKT,HARNESS EMISSION REGULATION NEW LONG TERM<JBG> (F) M8X25 FLANGE	0-28050-825-0	04	1	1009-
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0904-1008
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-
242	BOLT; BRKT,HARNESS (C) M8X25 FLANGE	0-28650-825-0	02	1	0904-1008
242	BOLT; BRKT,HARNESS (C) M8X25 FLANGE	0-28650-825-0	02	1	1009-
242	BOLT; BRKT,HARNESS (B) M8X12 FLANGE	0-28050-812-0	01	1	0904-1008
242	BOLT; BRKT,HARNESS (B) M8X12 FLANGE	0-28050-812-0	01	1	1009-
242	BOLT; BRKT,HARNESS (D) M8X20 FLANGE	0-28050-820-0	04	1	0904-1008
242	BOLT; BRKT,HARNESS (D) M8X20 FLANGE	0-28050-820-0	04	1	1009-
242	BOLT; BRKT,HARNESS (E) M10X20 FLANGE	0-28651-020-0	02	1	0904-1008
242	BOLT; BRKT,HARNESS (E) M10X20 FLANGE	0-28651-020-0	02	1	1009-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0904-1001
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1002-1008
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
313	BOLT; BRKT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	03	1	0904-1008
313	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	03	1	1009-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	06	1	0904-1008
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	06	1	1009-
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0904-1008
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1009-
358	BOLT; EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0904-1008
358	BOLT; EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	1009-1201
358	BOLT; EARTH (C) M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0904-1008
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-
528	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	01	1	0904-

128 16 16 16 48 223 16 212 16 212 425 470 16 16 263 16 16 16 16 16 223 16 48 81 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AM) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=21 L=47.5	8-94178-108-0	05	1	1009-
16	CLIP; HARNESS (W) L=350	1-09707-183-0	05	1	0904-1008
16	CLIP; HARNESS (W) L=350	1-09707-183-0	05	1	1009-
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	02	1	0904-1008
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	02	1	1009-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	10	1	0904-1008
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	10	1	1009-
16	CLIP; HARNESS (H) ID=22 L=32	1-09700-126-1	01	1	0904-1008
16	CLIP; HARNESS (H) ID=22 L=32	1-09700-126-1	01	1	1009-
16	CLIP; HARNESS (N) ID=28 L=58	1-09700-400-0	05	1	0904-1008
16	CLIP; HARNESS (N) ID=28 L=58	1-09700-400-0	05	1	1009-
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	14	1	0904-1008
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	14	1	1009-
16	CLIP; HARNESS (J) ID=20 H=23 L=27	1-09700-861-0	02	1	0904-1008
16	CLIP; HARNESS (J) ID=20 H=23 L=27	1-09700-861-0	02	1	1009-
16	CLIP; HARNESS (D) ID=5-12 L=18	1-09709-287-0	09	1	0904-1002
16	CLIP; HARNESS (D) ID=5-12 L=18	1-09709-287-0	08	1	1003-
16	CLIP; HARNESS (L) ID=18-24 L=18	1-09709-294-0	02	1	0904-1008
16	CLIP; HARNESS (L) ID=18-24 L=18	1-09709-294-0	01	1	1009-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	02	1	0904-1008
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	05	1	0904-0906
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	04	1	0907-
16	CLIP; HARNESS (AK) ID=20 L=50	9-09917-430-0	07	1	0904-1008
16	CLIP; HARNESS (AK) ID=20 L=50	9-09917-430-0	07	1	1009-1409
16	CLIP; HARNESS (AK) ID=20 L=50	9-09917-430-0	08	1	1410-
16	CLIP; HARNESS (AL) ID=22 L=52	9-09917-431-0	03	1	0904-1008
16	CLIP; HARNESS (AL) ID=22 L=52	9-09917-431-0	01	1	1009-
16	CLIP; HARNESS (B) ID=11 L=16	0-95235-025-0	02	1	0904-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	05	1	0904-1105
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (R) ID=16 L=20	0-95235-536-0	02	1	0904-
16	CLIP; HARNESS (F) ID=19 L=20	0-95235-836-0	03	1	0904-
16	CLIP; HARNESS (AA) ID=10 H=25 L=20	1-09700-519-0	01	1	0904-
16	CLIP; HARNESS (AA) ID=10 H=25 L=20	1-09700-519-0	01	1	0904-
16	CLIP; HARNESS (I) ID=20 L=50	1-09700-679-1	01	1	0904-1008
16	CLIP; HARNESS (I) ID=20 L=50	1-09700-679-1	01	1	1009-
16	CLIP; HARNESS (AC) ID=24.5 H=23 L=25	1-09700-862-0	03	1	0904-
16	CLIP; HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (AF) ID=24 L=24	1-09701-001-1	01	1	0904-1002
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	02	1	1003-1008
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	03	1	1009-
16	CLIP; HARNESS (Q) ID=26 L=27	1-09701-006-0	02	1	0904-
16	CLIP; HARNESS (Y) ID=15 L=28	1-09701-216-0	02	1	0904-1008
16	CLIP; HARNESS (Y) ID=15 L=28	1-09701-216-0	02	1	1009-
16	CLIP; HARNESS (T) ID=28+34 L=44	1-09701-311-0	01	1	0904-
16	CLIP; HARNESS (V) L=180	1-09707-162-1	01	1	0904-1008
16	CLIP; HARNESS (V) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS (X) W/SPONGE RUBBER	1-09709-150-0	01	1	0904-1008
16	CLIP; HARNESS (X) W/SPONGE RUBBER	1-09709-150-0	01	1	1009-
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	07	1	0904-
16	CLIP; HARNESS (D) ID=5-12 L=18	1-09709-287-0	01	1	0904-1008
16	CLIP; HARNESS (D) ID=5-12 L=18	1-09709-287-0	01	1	1009-
16	CLIP; HARNESS (A) ID=5-12 L=22	1-09709-288-0	02	1	0904-
16	CLIP; HARNESS (A) ID=5-12 L=22	1-09709-288-0	02	1	0904-
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	03	1	0904-1008
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	02	1	1009-
16	CLIP; HARNESS (L) ID=18-24 L=18	1-09709-294-0	01	1	0904-1008
16	CLIP; HARNESS (L) ID=18-24 L=18	1-09709-294-0	02	1	1009-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	01	1	0904-1008
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	02	1	1009-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	09	1	0904-1205
16	CLIP; HARNESS (AD) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (C) ID=21 L=47.5	8-94178-108-0	03	1	0904-1008
16	CLIP; HARNESS 6WG1 TC-R(75L) (C) ID=21 L=47.5	8-94178-108-0	03	1	1009-
16	CLIP; HARNESS (U) L=36	8-94224-891-1	01	1	0904-
16	CLIP; HARNESS (AG) ID=18 L=44	8-97367-985-1	05	1	0904-
16	CLIP; HARNESS (AH) OD=9 H=6	8-97368-793-0	03	1	0904-1008
16	CLIP; HARNESS (AH) OD=9 H=6	8-97368-793-0	03	1	1009-
16	CLIP; HARNESS (S) L=251	8-97619-917-0	03	1	0904-
16	CLIP; HARNESS (AJ) ID=14 L=44	9-09917-427-0	02	1	0904-1008
16	CLIP; HARNESS (AJ) ID=14 L=44	9-09917-427-0	02	1	1009-
16	CLIP; HARNESS (AL) ID=22 L=52	9-09917-431-0	01	1	0904-1008
16	CLIP; HARNESS (AL) ID=22 L=52	9-09917-431-0	03	1	1009-
16	CLIP; HARNESS (AE) L=55	8-94432-655-0	03	1	0904-1008
16	CLIP; HARNESS (AE) L=55	8-94432-655-0	03	1	1009-
16	CLIP; HARNESS (O) L=155	8-97173-307-0	03	1	0904-1008
16	CLIP; HARNESS (O) L=155	8-97173-307-0	03	1	1009-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) ID=11 L=20	0-95235-035-0	02	1	0904-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 H=30 L=17	1-09700-113-0	01	1	0904-
16	CLIP; HARNESS HIGH ROOF<S2F> (G) L=20 SET=10 PIECE	1-09987-246-2	04	1	0904-
48	CLIP; FRAME HARNESS (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0904-1008
48	CLIP; FRAME HARNESS (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-
48	CLIP; FRAME HARNESS (A) ID=20 H=18 L=82	1-09701-288-0	01	1	0904-1008
48	CLIP; FRAME HARNESS (A) ID=20 H=18 L=82	1-09701-288-0	01	1	1009-
48	CLIP; FRAME HARNESS (B) L=350	1-09707-183-0	11	1	0904-1008
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	11	1	1009-
81	CLIP; HARNESS (B) L=140	5-09707-031-1	06	1	0904-1007
81	CLIP; HARNESS (B) L=140	5-09707-031-1	04	1	1008-
81	CLIP; HARNESS (C) ID=7-10	8-94472-578-0	02	1	0904-1007
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	0-95235-025-0	02	1	0904-1008
81	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	1009-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0904-1008
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	1009-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0904-1008
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	1009-
212	CLIP; HORN HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	0904-1008
212	CLIP; HORN HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	1009-
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0904-1008
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	1009-
212	CLIP; HORN HARNESS (C) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0904-
212	CLIP; HORN HARNESS (D) L=140	5-09707-031-1	01	1	0904-1008
212	CLIP; HORN HARNESS (D) L=140	5-09707-031-1	01	1	1009-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0904-1008
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0904-1008
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	1009-
223	CLIP; AIR TANK HARNESS (B) ID=11 H=20 L=20	8-98033-780-0	03	1	0904-1008
223	CLIP; AIR TANK HARNESS (B) ID=11 H=20 L=20	8-98033-780-0	03	1	1009-
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	0904-1008
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	1009-
425	CLIP; MODULATOR (D) ID=11 L=41	1-09700-403-0	01	1	0904-0907
425	CLIP; MODULATOR (B) L=350	1-09707-183-0	02	1	0904-
425	CLIP; MODULATOR (A) ID=5-12 L=18	1-09709-287-0	01	1	0904-
425	CLIP; MODULATOR (C) ID=5-12 L=14.5	1-09987-221-0	02	1	0904-0907
425	CLIP; MODULATOR (C) ID=5-12 L=14.5	1-09987-221-0	03	1	0908-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0904-1008
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	1009-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0904-1008
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1009-

16 162 470 16 223 425 612 16 425 612 16 104 16 612 16 148 16 168 16 116 421 16 16 16 16 16 612

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AM) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS 6WG1 TC-C(72L),6WG1 TC-S(97L) (C) ID=21 L=47.5	8-94178-108-0	05	1	1009-
16	CLIP; HARNESS (W) L=350	1-09707-183-0	05	1	0904-1008
16	CLIP; HARNESS (W) L=350	1-09707-183-0	05	1	1009-
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	02	1	0904-1008
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	02	1	1009-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	10	1	0904-1008
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	10	1	1009-
16	CLIP; HARNESS (H) ID=22 L=32	1-09700-126-1	01	1	0904-1008
16	CLIP; HARNESS (H) ID=22 L=32	1-09700-126-1	01	1	1009-
16	CLIP; HARNESS (N) ID=28 L=58	1-09700-400-0	05	1	0904-1008
16	CLIP; HARNESS (N) ID=28 L=58	1-09700-400-0	05	1	1009-
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	14	1	0904-1008
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	14	1	1009-
16	CLIP; HARNESS (J) ID=20 H=23 L=27	1-09700-861-0	02	1	0904-1008
16	CLIP; HARNESS (J) ID=20 H=23 L=27	1-09700-861-0	02	1	1009-
16	CLIP; HARNESS (D) ID=5-12 L=18	1-09709-287-0	09	1	0904-1002
16	CLIP; HARNESS (D) ID=5-12 L=18	1-09709-287-0	08	1	1003-
16	CLIP; HARNESS (L) ID=18-24 L=18	1-09709-294-0	02	1	0904-1008
16	CLIP; HARNESS (L) ID=18-24 L=18	1-09709-294-0	01	1	1009-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	02	1	0904-1008
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	05	1	0904-0906
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	04	1	0907-
16	CLIP; HARNESS (AK) ID=20 L=50	9-09917-430-0	07	1	0904-1008
16	CLIP; HARNESS (AK) ID=20 L=50	9-09917-430-0	07	1	1009-1409
16	CLIP; HARNESS (AK) ID=20 L=50	9-09917-430-0	08	1	1410-
16	CLIP; HARNESS (AL) ID=22 L=52	9-09917-431-0	03	1	0904-1008
16	CLIP; HARNESS (AL) ID=22 L=52	9-09917-431-0	01	1	1009-
16	CLIP; HARNESS (B) ID=11 L=16	0-95235-025-0	02	1	0904-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	05	1	0904-1105
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (R) ID=16 L=20	0-95235-536-0	02	1	0904-
16	CLIP; HARNESS (F) ID=19 L=20	0-95235-836-0	03	1	0904-
16	CLIP; HARNESS (AA) ID=10 H=25 L=20	1-09700-519-0	01	1	0904-
16	CLIP; HARNESS (AA) ID=10 H=25 L=20	1-09700-519-0	01	1	0904-
16	CLIP; HARNESS (I) ID=20 L=50	1-09700-679-1	01	1	0904-1008
16	CLIP; HARNESS (I) ID=20 L=50	1-09700-679-1	01	1	1009-
16	CLIP; HARNESS (AC) ID=24.5 H=23 L=25	1-09700-862-0	03	1	0904-
16	CLIP; HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0904-
16	CLIP; HARNESS (AF) ID=24 L=24	1-09701-001-1	01	1	0904-1002
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	02	1	1003-1008
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	03	1	1009-
16	CLIP; HARNESS (Q) ID=26 L=27	1-09701-006-0	02	1	0904-
16	CLIP; HARNESS (Y) ID=15 L=28	1-09701-216-0	02	1	0904-1008
16	CLIP; HARNESS (Y) ID=15 L=28	1-09701-216-0	02	1	1009-
16	CLIP; HARNESS (T) ID=28+34 L=44	1-09701-311-0	01	1	0904-
16	CLIP; HARNESS (V) L=180	1-09707-162-1	01	1	0904-1008
16	CLIP; HARNESS (V) L=180	1-09707-162-1	01	1	1009-
16	CLIP; HARNESS (X) W/SPONGE RUBBER	1-09709-150-0	01	1	0904-1008
16	CLIP; HARNESS (X) W/SPONGE RUBBER	1-09709-150-0	01	1	1009-
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	07	1	0904-
16	CLIP; HARNESS (D) ID=5-12 L=18	1-09709-287-0	01	1	0904-1008
16	CLIP; HARNESS (D) ID=5-12 L=18	1-09709-287-0	01	1	1009-
16	CLIP; HARNESS (A) ID=5-12 L=22	1-09709-288-0	02	1	0904-
16	CLIP; HARNESS (A) ID=5-12 L=22	1-09709-288-0	02	1	0904-
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	03	1	0904-1008
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	02	1	1009-
16	CLIP; HARNESS (L) ID=18-24 L=18	1-09709-294-0	01	1	0904-1008
16	CLIP; HARNESS (L) ID=18-24 L=18	1-09709-294-0	02	1	1009-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	01	1	0904-1008
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	02	1	1009-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	09	1	0904-1205
16	CLIP; HARNESS (AD) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (C) ID=21 L=47.5	8-94178-108-0	03	1	0904-1008
16	CLIP; HARNESS 6WG1 TC-R(75L) (C) ID=21 L=47.5	8-94178-108-0	03	1	1009-
16	CLIP; HARNESS (U) L=36	8-94224-891-1	01	1	0904-
16	CLIP; HARNESS (AG) ID=18 L=44	8-97367-985-1	05	1	0904-
16	CLIP; HARNESS (AH) OD=9 H=6	8-97368-793-0	03	1	0904-1008
16	CLIP; HARNESS (AH) OD=9 H=6	8-97368-793-0	03	1	1009-
16	CLIP; HARNESS (S) L=251	8-97619-917-0	03	1	0904-
16	CLIP; HARNESS (AJ) ID=14 L=44	9-09917-427-0	02	1	0904-1008
16	CLIP; HARNESS (AJ) ID=14 L=44	9-09917-427-0	02	1	1009-
16	CLIP; HARNESS (AL) ID=22 L=52	9-09917-431-0	01	1	0904-1008
16	CLIP; HARNESS (AL) ID=22 L=52	9-09917-431-0	03	1	1009-
16	CLIP; HARNESS (AE) L=55	8-94432-655-0	03	1	0904-1008
16	CLIP; HARNESS (AE) L=55	8-94432-655-0	03	1	1009-
16	CLIP; HARNESS (O) L=155	8-97173-307-0	03	1	0904-1008
16	CLIP; HARNESS (O) L=155	8-97173-307-0	03	1	1009-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) ID=11 L=20	0-95235-035-0	02	1	0904-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 H=30 L=17	1-09700-113-0	01	1	0904-
16	CLIP; HARNESS HIGH ROOF<S2F> (G) L=20 SET=10 PIECE	1-09987-246-2	04	1	0904-
104	CLIP; HEADLAMP HARNESS (B) L=140	5-09707-031-1	12	1	0904-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0904-1008
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	1009-
116	CLIP; ROOF HARNESS EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	07	1	1410-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	0904-1409
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	08	1	1410-
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	07	1	0904-1409
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	06	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	04	1	0904-1008
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	04	1	1009-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	0904-1008
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1009-
168	CLIP; DASH HARNESS ID=6 & 10-13	8-97069-515-0	06	1	0904-1008
168	CLIP; DASH HARNESS ID=6 & 10-13	8-97069-515-0	06	1	1009-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0904-1008
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0904-1008
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	1009-
223	CLIP; AIR TANK HARNESS (B) ID=11 H=20 L=20	8-98033-780-0	03	1	0904-1008
223	CLIP; AIR TANK HARNESS (B) ID=11 H=20 L=20	8-98033-780-0	03	1	1009-
421	CLIP; FLOOR HARNESS L=30 SET=10 PIECE	1-09987-265-0	05	1	0904-
425	CLIP; MODULATOR (D) ID=11 L=41	1-09700-403-0	01	1	0904-0907
425	CLIP; MODULATOR (B) L=350	1-09707-183-0	02	1	0904-
425	CLIP; MODULATOR (A) ID=5-12 L=18	1-09709-287-0	01	1	0904-
425	CLIP; MODULATOR (C) ID=5-12 L=14.5	1-09987-221-0	02	1	0904-0907
425	CLIP; MODULATOR (C) ID=5-12 L=14.5	1-09987-221-0	03	1	0908-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0904-1008
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	1009-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0904-1008
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	1009-
612	CLIP; HARNESS DPD EMISSION REGULATION NEW LONG TERM<JBG> (A) ID=4.8	1-09701-218-0	04	1	1009-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (B) ID=5-12 L=18	1-09709-287-0	01	1	1009-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (C) ID=13-18 L=18	1-09709-291-0	02	1	1009-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (E) L=250	5-09707-030-1	01	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
