8-10 — WIRING HARNESS AND FUSE (#20850) — 140 parça

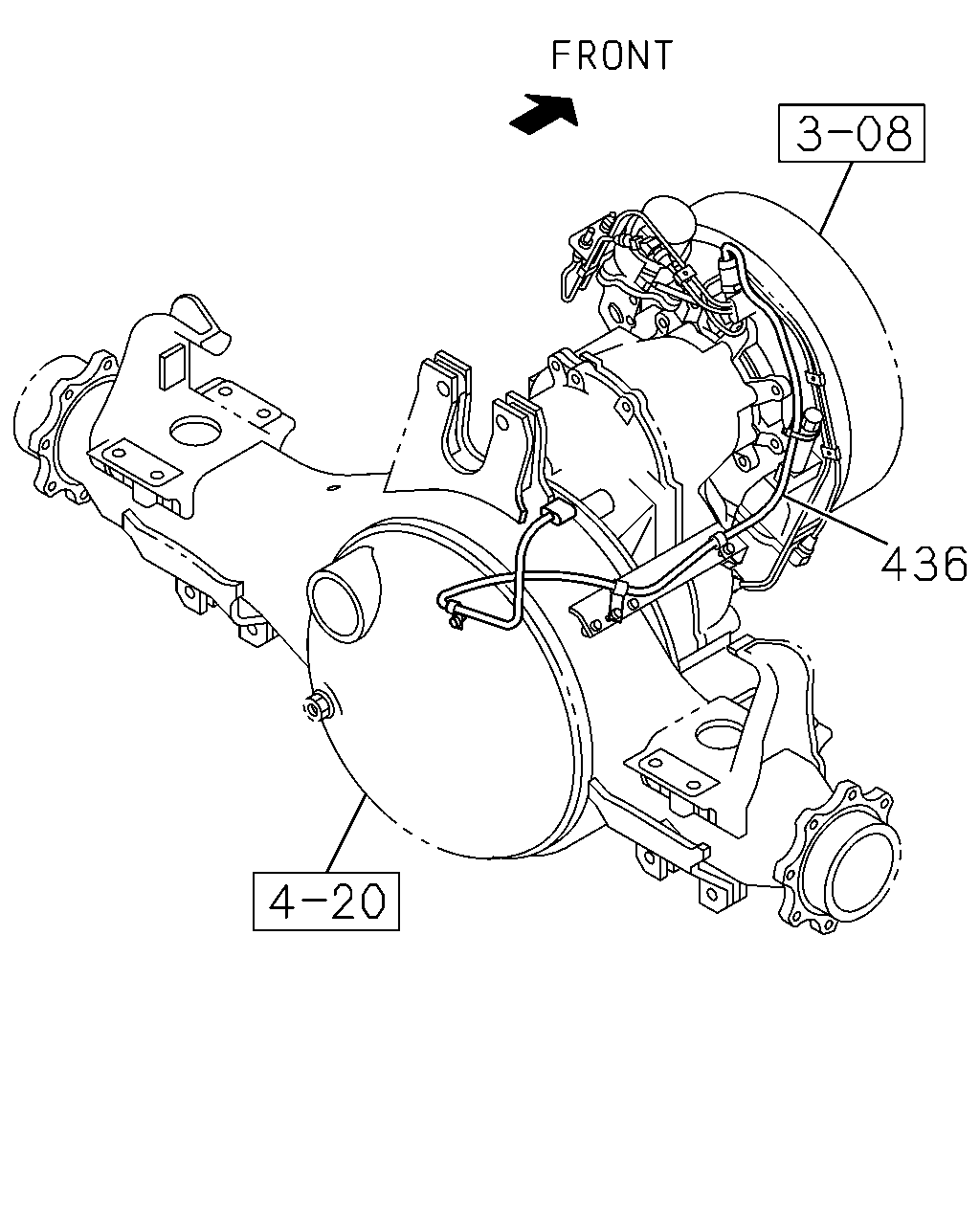

çizim 129808
436
BalonParca AdiParca NoAdetTipApplied Date
436 HARNESS; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82677-224-2 01 1 0904-

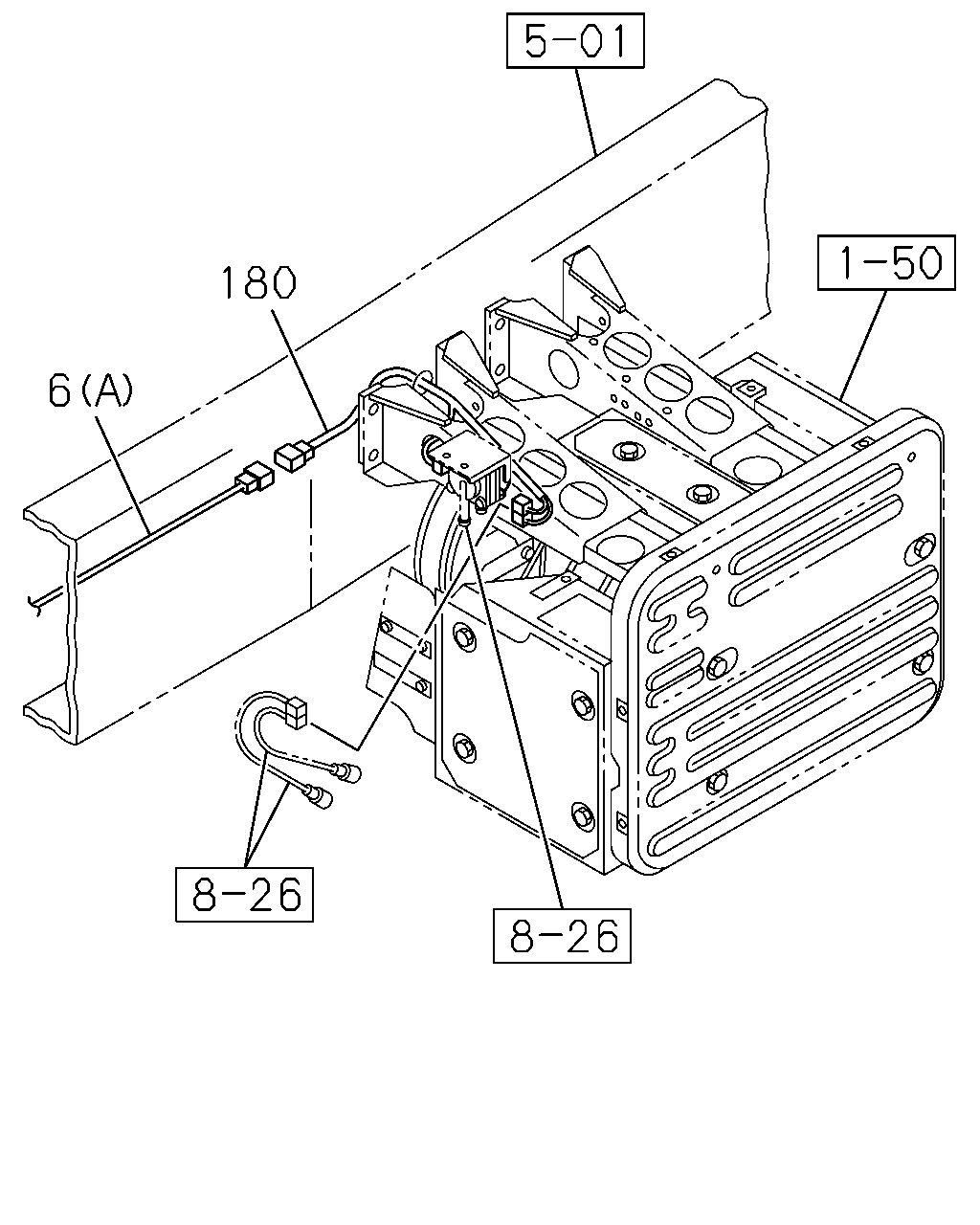

çizim 129821
180 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97632-927-0 01 1 1009-
6 HARNESS; FRAME
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97636-536-1 01 1 1009-
6 HARNESS; FRAME
(A) 		8-97632-138-1 01 1 0904-1002
6 HARNESS; FRAME
(A) 		8-97636-535-1 01 1 1003-1008
6 HARNESS; FRAME
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97636-535-1 01 1 1009-
6 HARNESS; FRAME
(B) 		8-98122-928-0 01 1 0904-1008
6 HARNESS; FRAME
EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98122-928-0 01 1 1009-
180 HARNESS; CABLE
CATALYSIS CONTROL WITH DPD<8JM> 		8-97614-321-2 01 1 1009-

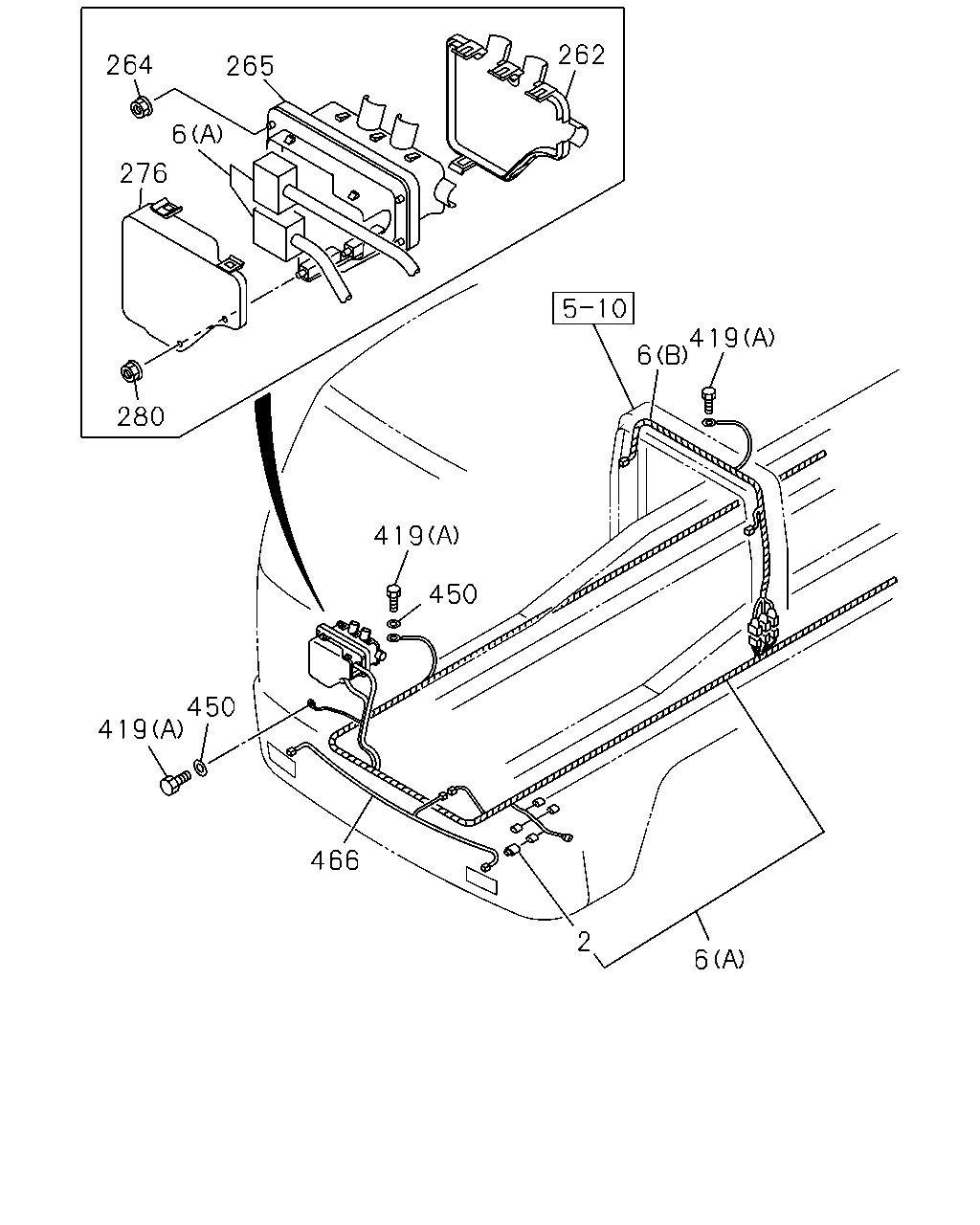

çizim 129828
262 264 265 6 276 419 6 280 419 450 450 419 466 2 6
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 01 1 0904-
6 HARNESS; FRAME
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97632-927-0 01 1 1009-
6 HARNESS; FRAME
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97636-536-1 01 1 1009-
6 HARNESS; FRAME
(A) 		8-97632-138-1 01 1 0904-1002
6 HARNESS; FRAME
(A) 		8-97636-535-1 01 1 1003-1008
6 HARNESS; FRAME
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97636-535-1 01 1 1009-
6 HARNESS; FRAME
(B) 		8-98122-928-0 01 1 0904-1008
6 HARNESS; FRAME
EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98122-928-0 01 1 1009-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 0904-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0904-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0904-
276 COVER; BOX,FRAME HARNESS 1-82699-585-2 01 1 0904-
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0904-
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0904-1201
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0904-1201
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0904-1201
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0904-
466 HARNESS; BUMPER 8-97610-100-0 01 1 0904-
çizim 129836
199 201
BalonParca AdiParca NoAdetTipApplied Date
199 HARNESS; STARTER 8-97607-313-0 01 1 0904-
201 HARNESS; AIR TANK 8-97632-143-1 01 1 0904-1002
201 HARNESS; AIR TANK 8-97634-944-0 01 1 1003-
çizim 129850
199 201
BalonParca AdiParca NoAdetTipApplied Date
199 HARNESS; STARTER 8-97607-313-0 01 1 0904-
201 HARNESS; AIR TANK 8-97632-143-1 01 1 0904-1002
201 HARNESS; AIR TANK 8-97634-944-0 01 1 1003-

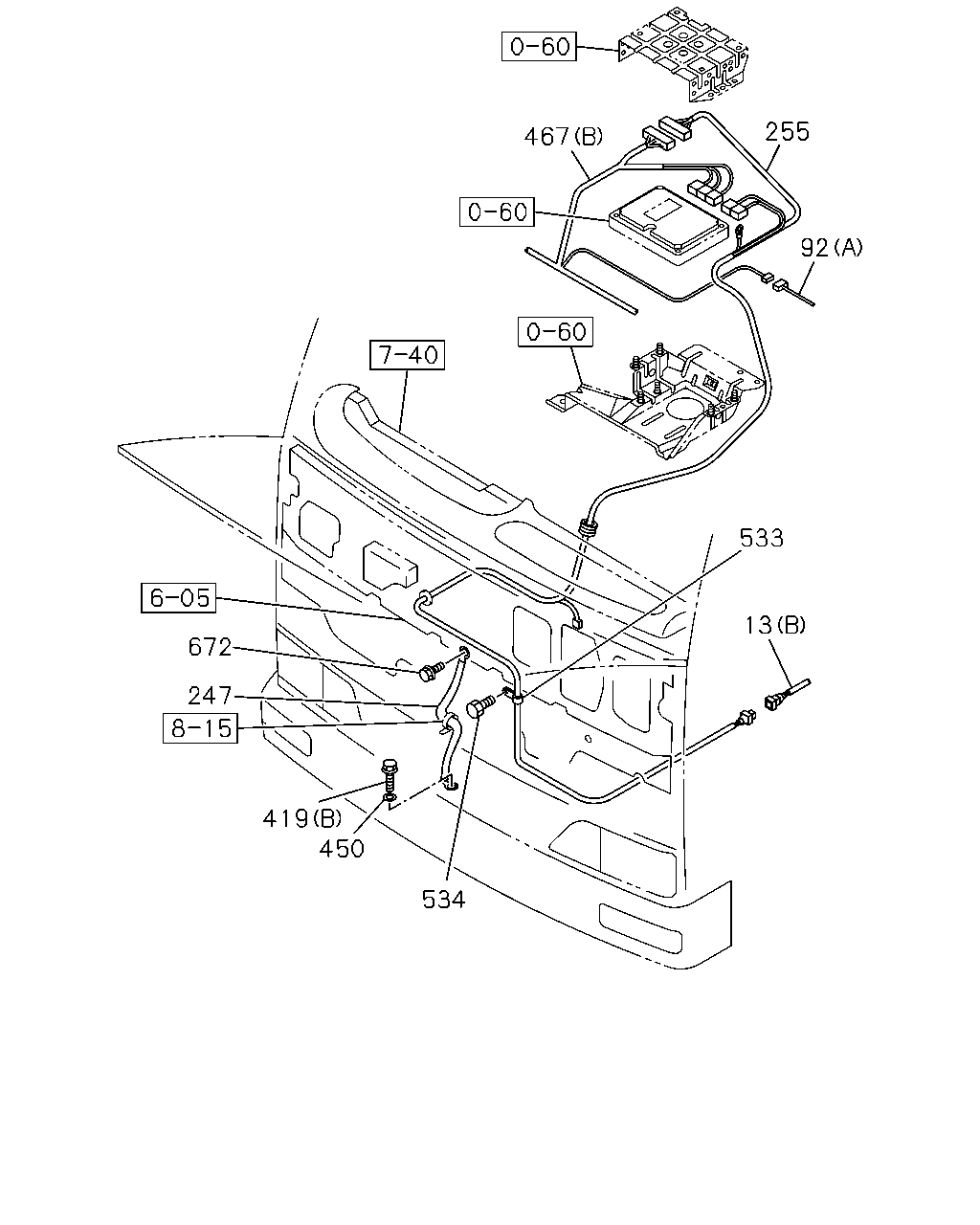

çizim 129851
672 247 419 450 534 13 533 92 255 467
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-97611-417-5 01 1 0904-1008
13 HARNESS; ENG
6WG1 TC-R(75L) (B) 		8-97611-417-5 01 1 1009-
13 HARNESS; ENG
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		8-97611-418-5 01 1 1009-
13 HARNESS; ENG
(A) 		8-98076-007-0 01 1 0904-
92 HARNESS; FLOOR
(A) 		8-97632-128-0 01 1 0904-1210
92 HARNESS; FLOOR
(A) 		8-98229-080-0 01 1 1211-
92 HARNESS; FLOOR
(B) 		8-97632-129-1 01 1 0904-
247 CABLE; BONDING,CAB
L=570 		1-82662-390-1 01 1 0904-
255 HARNESS; ELEC GOV 8-97610-589-0 01 1 0904-1210
255 HARNESS; ELEC GOV 8-98229-087-0 01 1 1211-
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0904-1201
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0904-1201
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0904-1201
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0904-
467 HARNESS; FACIA
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		8-97635-503-0 01 1 1009-
467 HARNESS; FACIA
(A) 		8-97631-062-0 01 1 0904-
467 HARNESS; FACIA
(B) 		8-97632-125-1 01 1 0904-0907
467 HARNESS; FACIA
(B) 		8-97634-137-0 01 1 0908-1008
467 HARNESS; FACIA
6WG1 TC-R(75L) (B) 		8-97634-137-0 01 1 1009-
533 CLIP
ID=28 & 34 L=63 		1-09701-310-0 01 1 0904-
534 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 0904-
672 BOLT; BONDING
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0904-1309
672 BOLT; BONDING
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1310-

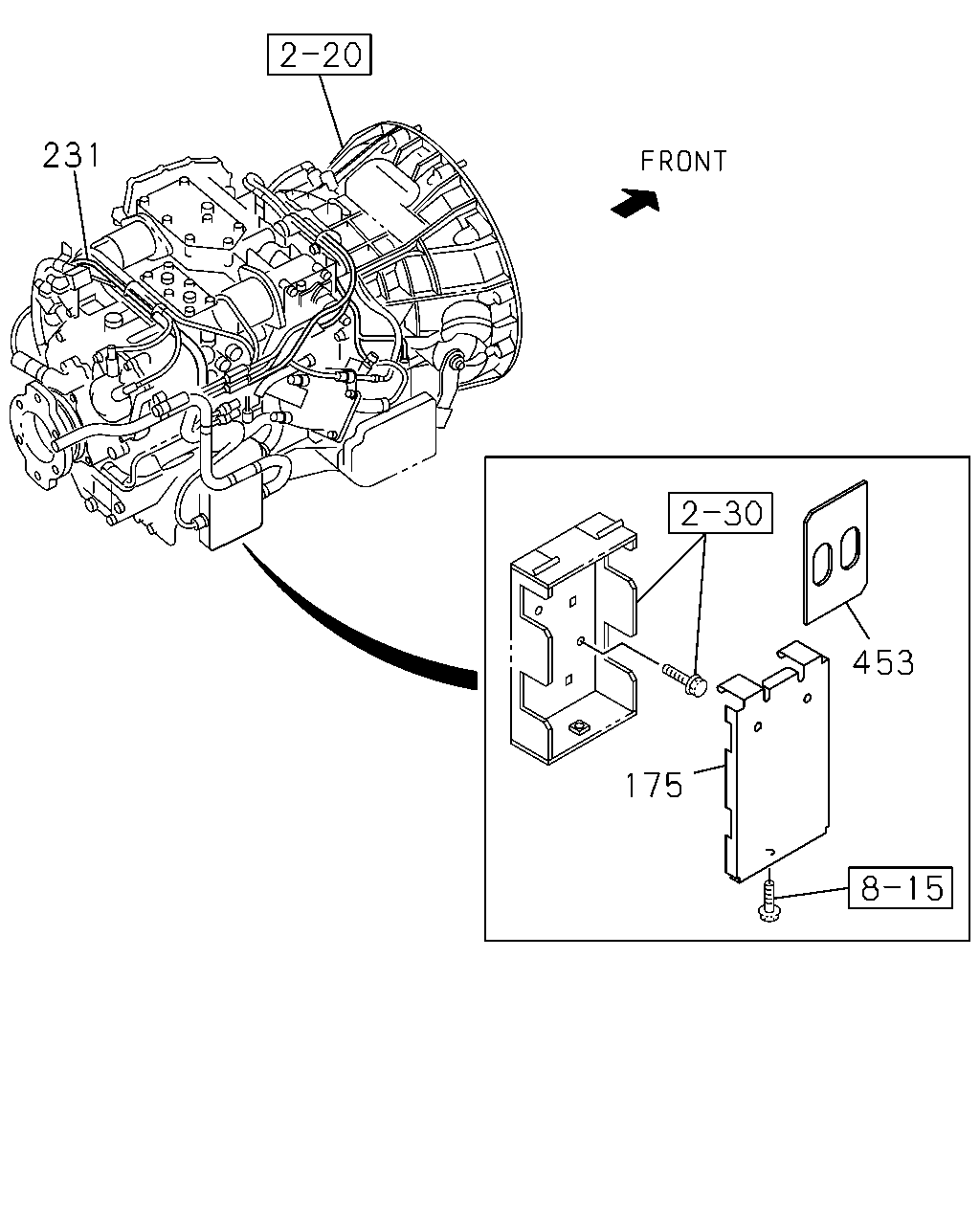

çizim 129996
231 453 175
BalonParca AdiParca NoAdetTipApplied Date
175 BOX; CONNECTOR 1-82569-435-1 01 1 0904-
231 HARNESS; TRANS 8-97624-216-1 01 1 0904-
453 PROTECTOR; HARNESS 8-98213-847-1 01 1 1207-

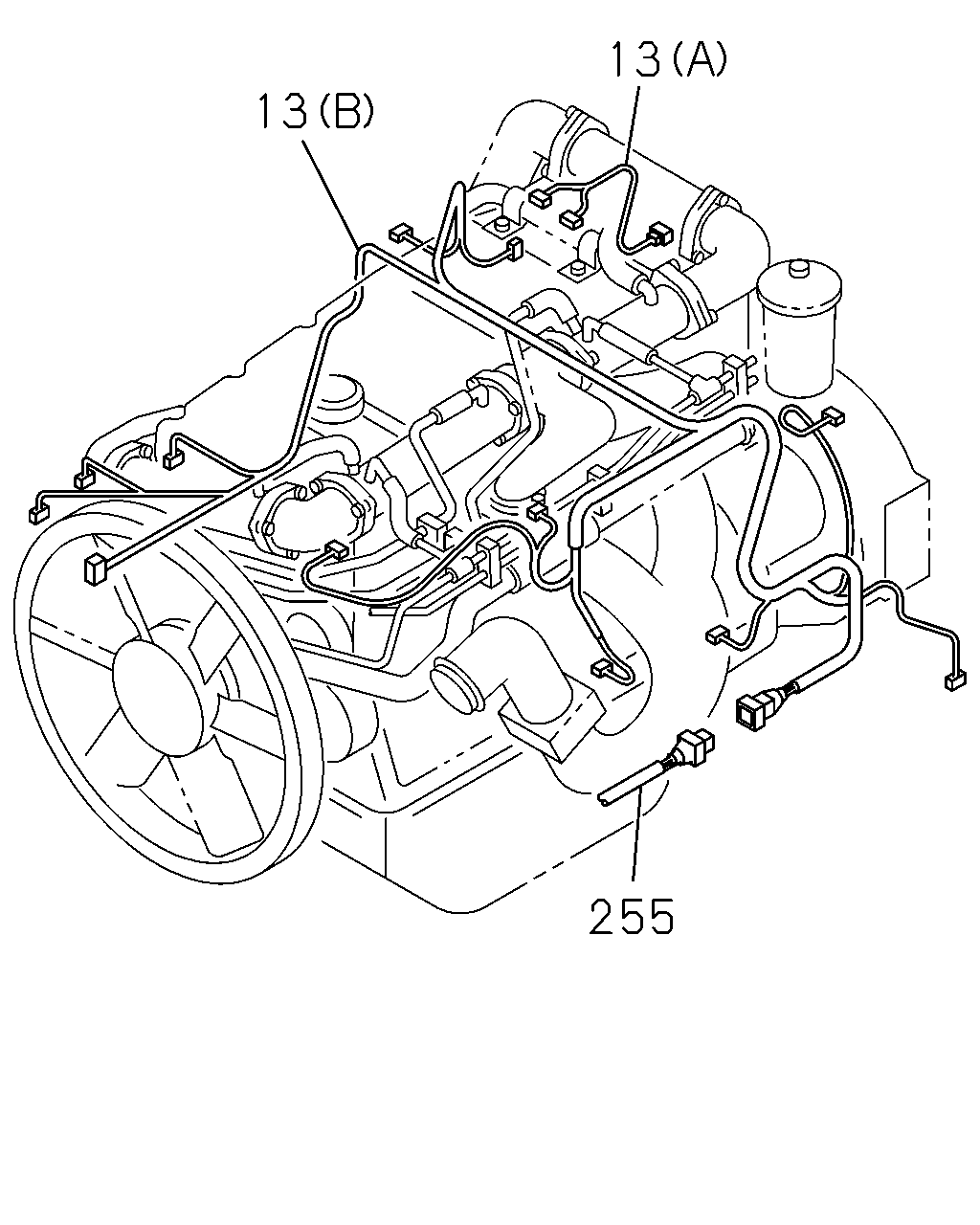

çizim 130000
13 13 255
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-97611-417-5 01 1 0904-1008
13 HARNESS; ENG
6WG1 TC-R(75L) (B) 		8-97611-417-5 01 1 1009-
13 HARNESS; ENG
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		8-97611-418-5 01 1 1009-
13 HARNESS; ENG
(A) 		8-98076-007-0 01 1 0904-
255 HARNESS; ELEC GOV 8-97610-589-0 01 1 0904-1210
255 HARNESS; ELEC GOV 8-98229-087-0 01 1 1211-

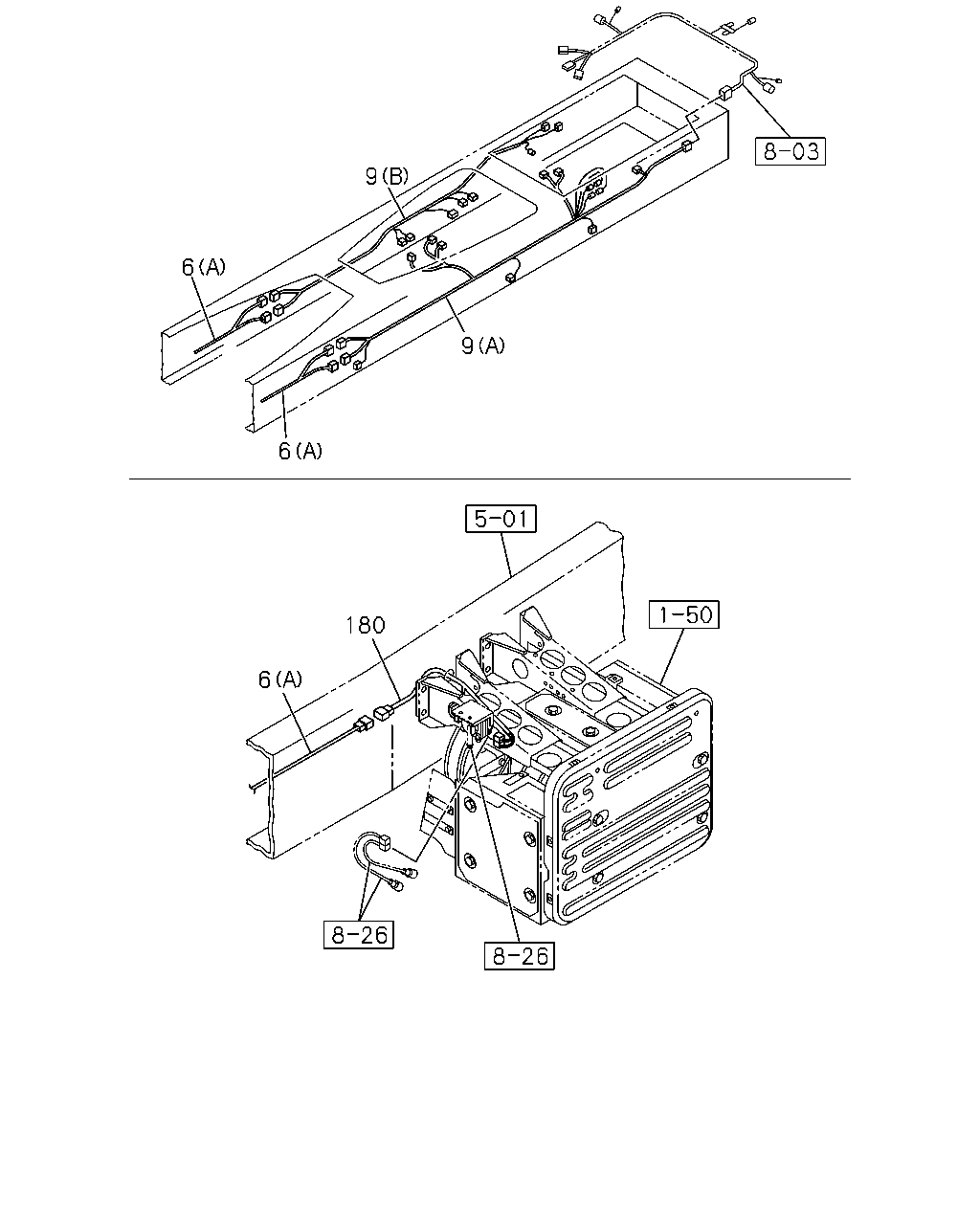

çizim 130004
9 6 9 6 180 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97632-927-0 01 1 1009-
6 HARNESS; FRAME
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97636-536-1 01 1 1009-
6 HARNESS; FRAME
(A) 		8-97632-138-1 01 1 0904-1002
6 HARNESS; FRAME
(A) 		8-97636-535-1 01 1 1003-1008
6 HARNESS; FRAME
EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97636-535-1 01 1 1009-
6 HARNESS; FRAME
(B) 		8-98122-928-0 01 1 0904-1008
6 HARNESS; FRAME
EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98122-928-0 01 1 1009-
9 HARNESS; FRAME,RR
(B) 		8-97632-139-1 01 1 0904-
9 HARNESS; FRAME,RR
(A) 		8-97632-141-0 01 1 0904-1002
9 HARNESS; FRAME,RR
(A) 		8-97636-537-0 01 1 1003-
180 HARNESS; CABLE
CATALYSIS CONTROL WITH DPD<8JM> 		8-97614-321-2 01 1 1009-

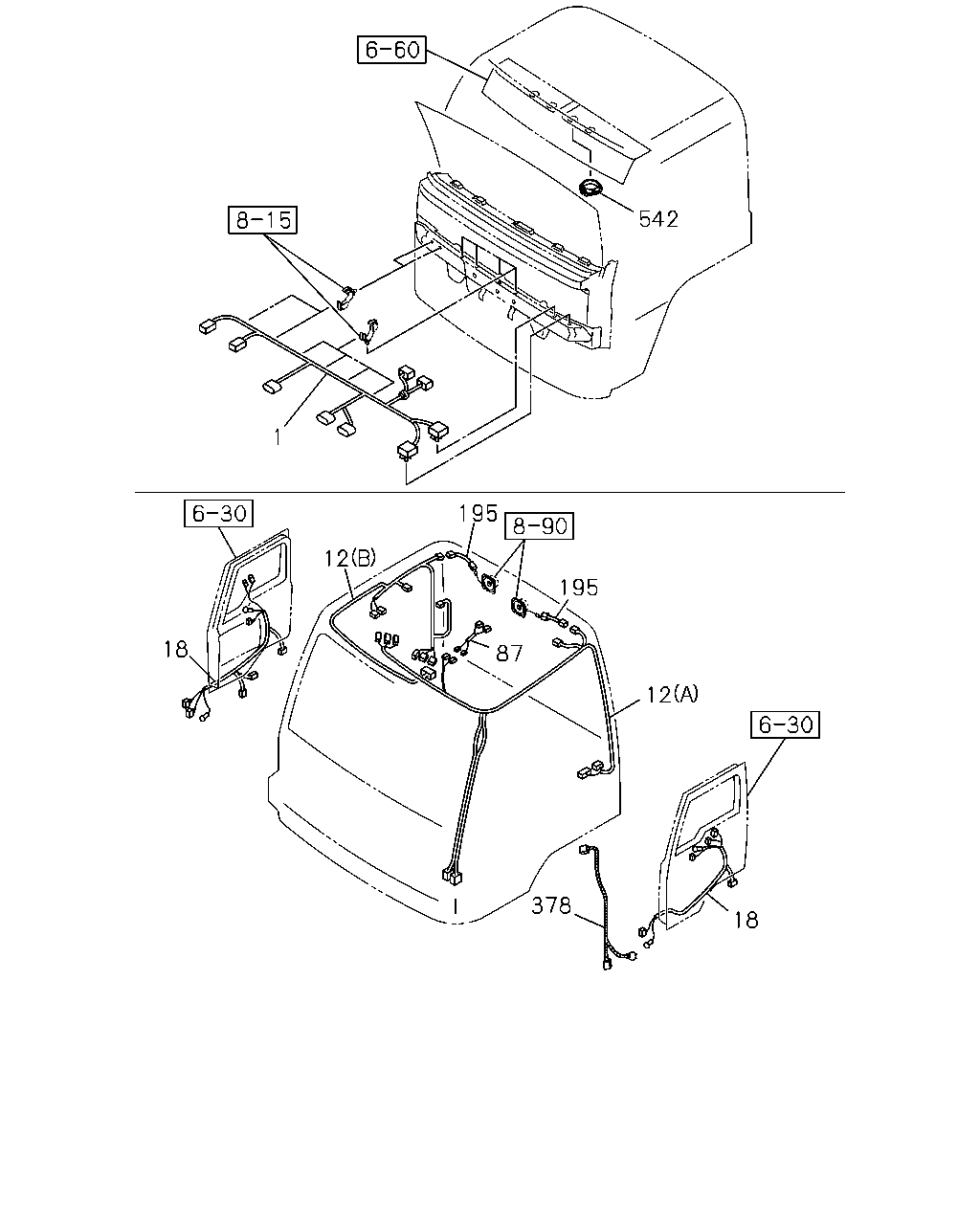

çizim 130005
542 1 195 12 195 18 87 12 378 18
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 1-82662-363-1 01 1 0904-
12 HARNESS; ROOF
HIGH ROOF<S2F> (A) 		8-97622-963-1 01 1 0904-
12 HARNESS; ROOF
(B) 		8-97611-862-0 01 1 0904-
12 HARNESS; ROOF
EXC. HIGH ROOF<S2F> (A) 		8-97625-970-0 01 1 0904-
18 HARNESS; DOOR 8-97632-131-0 01 1 0904-
18 HARNESS; DOOR 8-97632-130-0 01 1 0904-
87 HARNESS; EXT,ROOM LAMP
HIGH ROOF<S2F> 		1-82661-333-0 01 1 0904-
195 HARNESS; EXT
HIGH ROOF<S2F> 		1-82625-300-1 02 1 0904-
378 HARNESS; EXT,MIRROR 8-97621-787-0 02 1 0904-
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 0904-

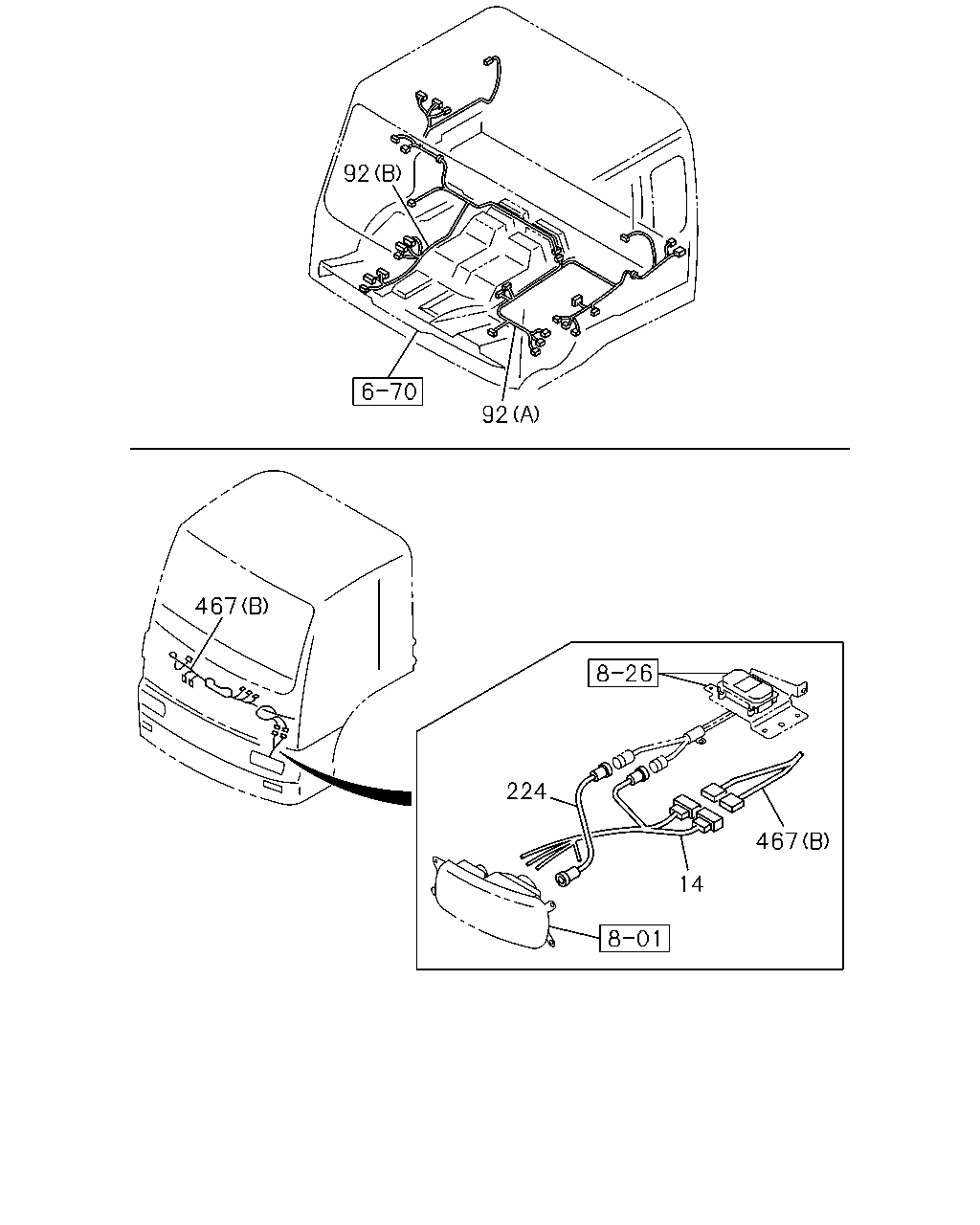

çizim 130020
92 92 467 224 467 14
BalonParca AdiParca NoAdetTipApplied Date
14 HARNESS; HEADLAMP 1-82677-647-3 02 1 0904-
92 HARNESS; FLOOR
(A) 		8-97632-128-0 01 1 0904-1210
92 HARNESS; FLOOR
(A) 		8-98229-080-0 01 1 1211-
92 HARNESS; FLOOR
(B) 		8-97632-129-1 01 1 0904-
224 HARNESS; EXT,HEADLAMP 1-82662-686-1 02 1 0904-
467 HARNESS; FACIA
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		8-97635-503-0 01 1 1009-
467 HARNESS; FACIA
(A) 		8-97631-062-0 01 1 0904-
467 HARNESS; FACIA
(B) 		8-97632-125-1 01 1 0904-0907
467 HARNESS; FACIA
(B) 		8-97634-137-0 01 1 0908-1008
467 HARNESS; FACIA
6WG1 TC-R(75L) (B) 		8-97634-137-0 01 1 1009-

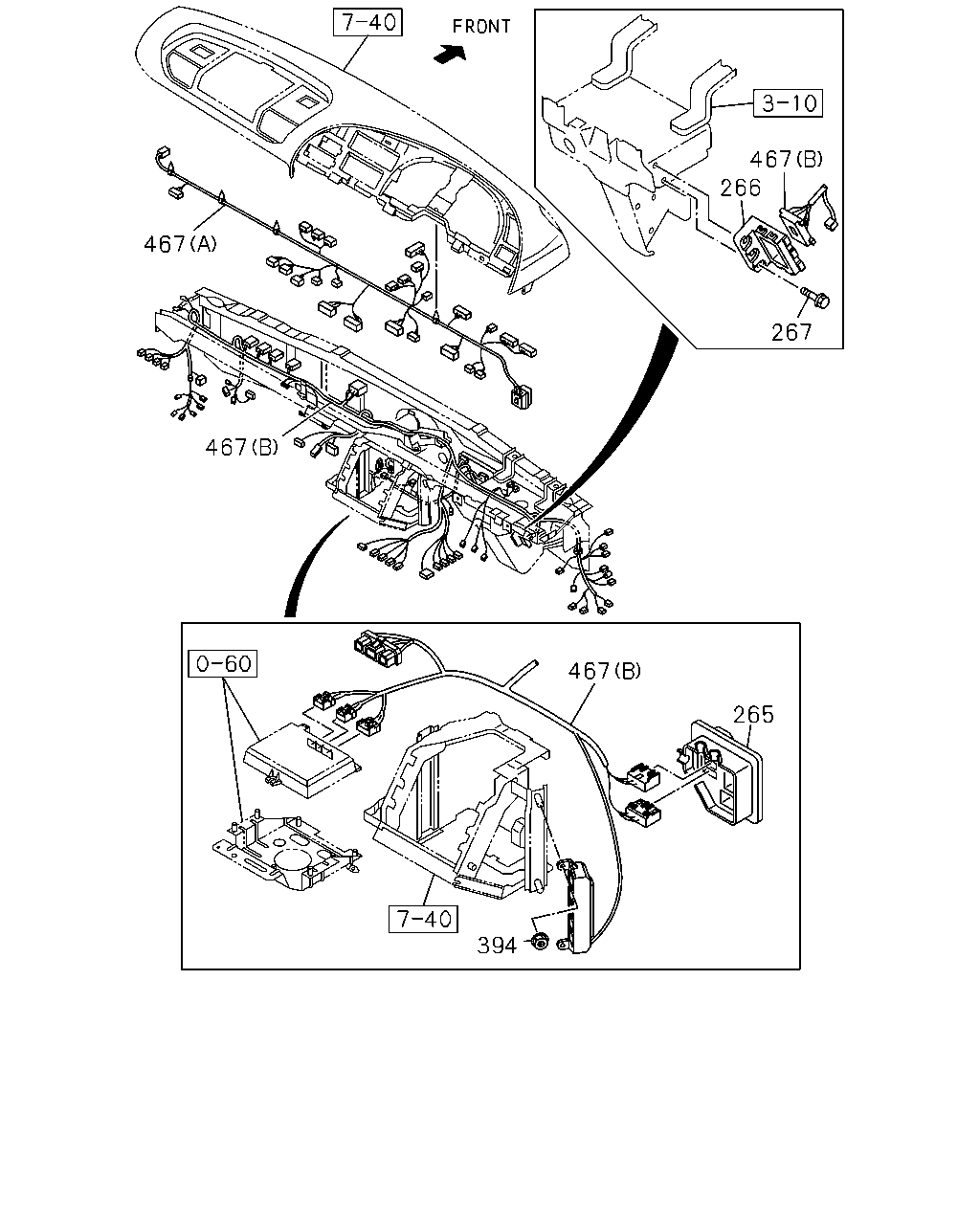

çizim 130021
467 266 467 267 467 467 265 394
BalonParca AdiParca NoAdetTipApplied Date
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0904-
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0904-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0904-
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 0904-
467 HARNESS; FACIA
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		8-97635-503-0 01 1 1009-
467 HARNESS; FACIA
(A) 		8-97631-062-0 01 1 0904-
467 HARNESS; FACIA
(B) 		8-97632-125-1 01 1 0904-0907
467 HARNESS; FACIA
(B) 		8-97634-137-0 01 1 0908-1008
467 HARNESS; FACIA
6WG1 TC-R(75L) (B) 		8-97634-137-0 01 1 1009-

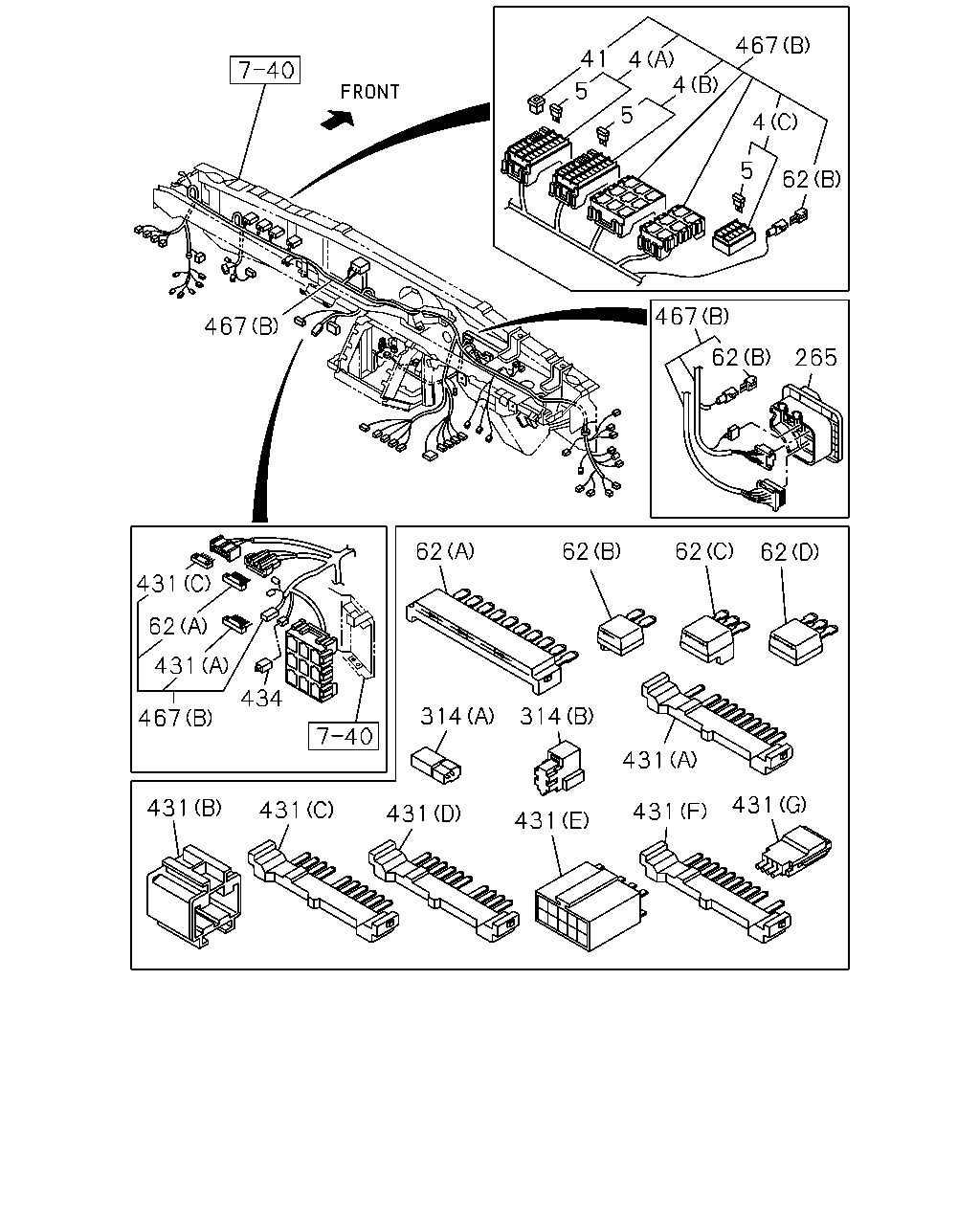

çizim 130022
467 41 4 4 5 5 4 5 62 467 467 62 265 62 62 62 62 431 62 431 434 314 314 467 431 431 431 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX22 10AX4 		1-82510-455-0 01 1 0904-
4 BOX ASM; FUSE,HARNESS
(B) 15AX25 25AX2 		1-82510-602-0 01 1 0904-
4 BOX ASM; FUSE,HARNESS
(C) 15AX3 		1-82510-638-0 01 1 0904-
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 04 1 0904-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 28 1 0904-
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 02 1 0904-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 22 1 0904-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0904-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 03 1 0904-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 02 1 0904-
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 08 1 0904-0907
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 09 1 0908-
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 03 1 0904-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0904-
314 RESISTOR; HARNESS
(A) RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 0904-
314 RESISTOR; HARNESS
(B) BLUE 		1-82691-204-0 02 1 0904-
431 CONNECTOR; JOINT
(B) 6P 		1-82691-206-0 01 1 0904-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 03 1 0904-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 13 1 0904-
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 03 1 0904-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 08 1 0904-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 01 1 0904-
431 CONNECTOR; JOINT
(G) 4P 		8-97376-776-0 17 1 0904-
434 CONNECTOR; SHORT CIRCUIT 1-82691-051-0 01 1 0904-
467 HARNESS; FACIA
6WG1 TC-C(72L),6WG1 TC-S(97L) (B) 		8-97635-503-0 01 1 1009-
467 HARNESS; FACIA
(A) 		8-97631-062-0 01 1 0904-
467 HARNESS; FACIA
(B) 		8-97632-125-1 01 1 0904-0907
467 HARNESS; FACIA
(B) 		8-97634-137-0 01 1 0908-1008
467 HARNESS; FACIA
6WG1 TC-R(75L) (B) 		8-97634-137-0 01 1 1009-
