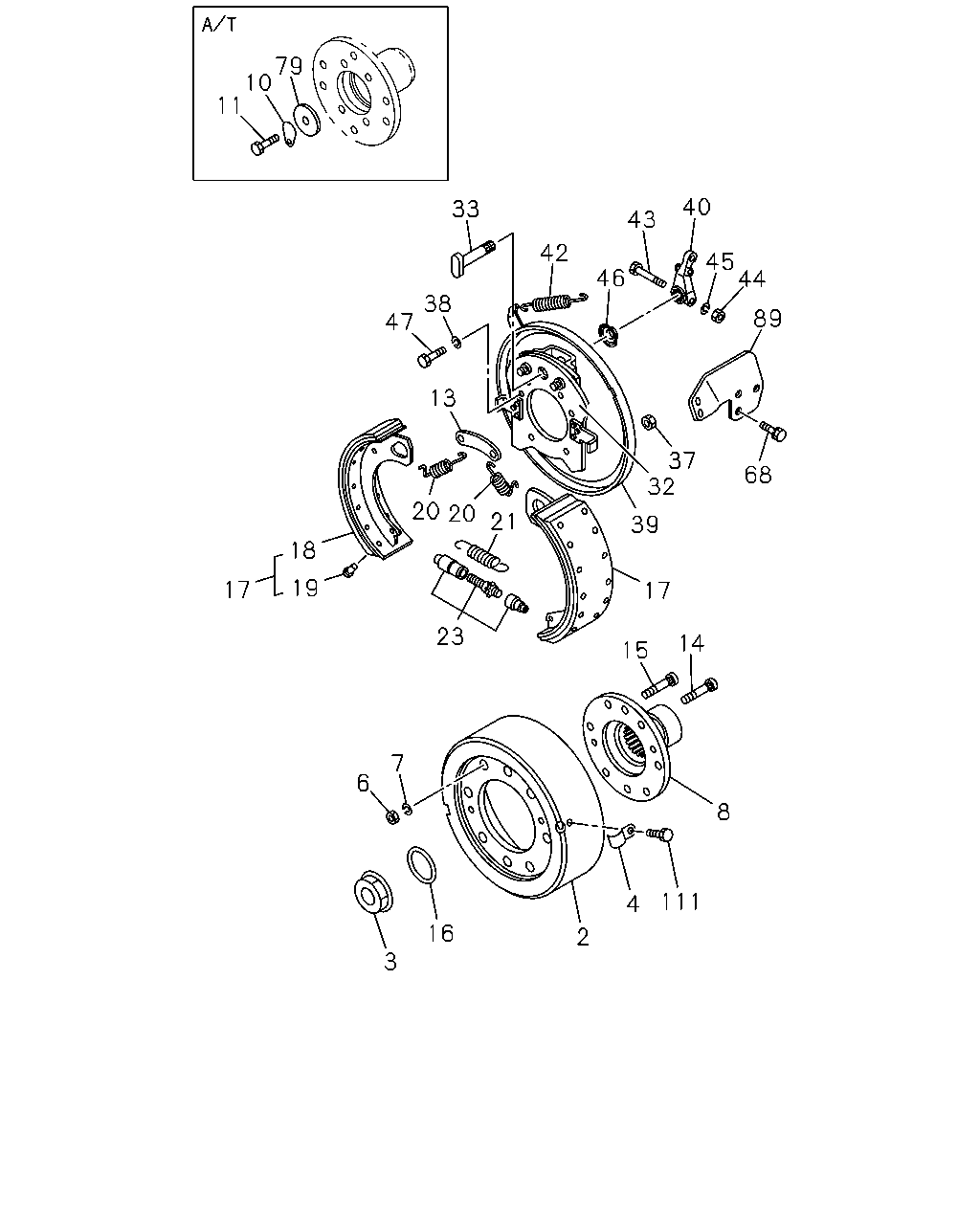

2 |
DRUM; PARKING BRK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
1-46211-031-1 |
01 |
1 |
9001-9003 |
● |
|
|
| |
2 |
DRUM; PARKING BRK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
1-46211-046-0 |
01 |
1 |
9001-9204 |
● |
|
|
| |
3 |
NUT; LK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
M42
|
1-09449-061-0 |
01 |
1 |
9001-9204 |
● |
|
|
| |
4 |
COVER; ADJ HOLE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
1-46219-019-0 |
02 |
1 |
9001-9204 |
● |
|
|
| |
6 |
NUT; FLANGE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
M16
|
9-99110-516-0 |
02 |
1 |
9001-9204 |
● |
|
|
| |
7 |
WASHER; LK,FLANGE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
ID=16.2
|
9-09150-516-0 |
02 |
1 |
9001-9204 |
● |
|
|
| |
8 |
FLANGE; PARKING BRK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
1-37243-123-2 |
01 |
1 |
9001-9003 |
● |
|
|
| |
8 |
FLANGE; PARKING BRK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
1-37243-121-3 |
01 |
1 |
9004-9204 |
● |
|
|
| |
10 |
PLATE; LOCK
|
1-37249-021-0 |
01 |
1 |
9001- |
|
● |
● |
| |
11 |
BOLT; FLANGE FIX
M14X44.5
|
1-09087-014-0 |
01 |
1 |
9001- |
|
● |
● |
| |
13 |
BRACE; PARKING BRK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
9-46239-002-0 |
01 |
1 |
9001-9204 |
● |
|
|
| |
14 |
BOLT; DRUM TO FLANGE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
M16X55
|
1-46219-039-0 |
04 |
1 |
9001-9003 |
● |
|
|
| |
14 |
BOLT; DRUM TO FLANGE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
M16X38
|
1-46219-010-0 |
02 |
1 |
9004-9204 |
● |
|
|
| |
15 |
BOLT; FLANGE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
M16X38
|
1-46219-010-0 |
02 |
1 |
9001-9003 |
● |
|
|
| |
15 |
BOLT; FLANGE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
M16X55
|
1-46219-039-0 |
04 |
1 |
9004-9204 |
● |
|
|
| |
16 |
GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T).
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
9-09920-607-0 |
01 |
1 |
9001-9204 |
● |
|
|
| |
17 |
SHOE; PARKING BRK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
1-46220-009-0 |
02 |
1 |
9001-9204 |
● |
|
|
| |
18 |
LINING; BRK,PARKING
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
1-46225-006-0 |
02 |
1 |
9001-9204 |
● |
|
|
| |
19 |
RIVET; LINING,PARKING BRK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
1-09732-012-0 |
32 |
1 |
9001-9204 |
● |
|
|
| |
20 |
SPRING; RETURN,SECONDARY,PARKING BRK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
9-09942-434-0 |
02 |
1 |
9001-9204 |
● |
|
|
| |
21 |
SPRING; RETURN,PARKING BRK SHOE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
9-09942-516-0 |
01 |
1 |
9001-9204 |
● |
|
|
| |
23 |
SCREW; ADJ,PARKING BRK SHOE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
1-46240-003-0 |
01 |
1 |
9001-9204 |
● |
|
|
| |
32 |
PLATE; SUPPORT,PARKING BRK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
1-46213-033-0 |
01 |
1 |
9001-9204 |
● |
|
|
| |
33 |
SHAFT; CAM,PARKING BRK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
9-46251-069-0 |
01 |
1 |
9001-9204 |
● |
|
|
| |
37 |
NUT; SUPPORT PLATE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
M16
|
9-99110-516-0 |
01 |
1 |
9001-9204 |
● |
|
|
| |
38 |
WASHER; LK,SUPPORT PLATE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
ID=16.2
|
9-09150-516-0 |
04 |
1 |
9001-9204 |
● |
|
|
| |
39 |
COVER; DUST,PARKING BRK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
1-46213-066-1 |
01 |
1 |
9001-9204 |
● |
|
|
| |
40 |
LEVER; CM/SHF,PARKING BRK
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
1-46252-014-0 |
01 |
1 |
9001-9204 |
● |
|
|
| |
42 |
SPRING; RETURN,LEVER
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
1-09583-128-0 |
01 |
1 |
9001-9204 |
● |
|
|
| |
43 |
BOLT; LEVER TO CM/SHF
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
9-01041-045-0 |
01 |
1 |
9001-9204 |
● |
|
|
| |
44 |
NUT; LEVER TO CM/SHF
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
M10
|
9-09111-410-0 |
01 |
1 |
9001-9204 |
● |
|
|
| |
45 |
WASHER; LK,LEVER TO CM/SHF
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
ID=10.2
|
9-09150-510-0 |
01 |
1 |
9001-9204 |
● |
|
|
| |
46 |
WASHER; LEVER
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
9-09855-362-0 |
01 |
1 |
9001-9204 |
● |
|
|
| |
47 |
BOLT; SUPPORT PLATE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
M16X40
|
9-09804-155-0 |
03 |
1 |
9001-9204 |
● |
|
|
| |
68 |
BOLT; BRKT,PARKING BRK CONT
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
M10X25 W/LK WASHER
|
9-01931-025-0 |
03 |
1 |
9001-9002 |
● |
|
|
| |
68 |
BOLT; BRKT,PARKING BRK CONT
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
M10X25 W/LK WASHER
|
0-50051-025-0 |
03 |
1 |
9003-9204 |
● |
|
|
| |
79 |
WASHER; FLANGE
ID=14.5 OD=56.426
|
1-09503-078-0 |
01 |
1 |
9001- |
|
● |
● |
| |
89 |
BRACKET; PARKING BRK CONT
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
|
1-46147-088-0 |
01 |
1 |
9001-9204 |
● |
|
|
| |
111 |
BOLT; COVER,CHECK HOLE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)
M8X20 W/LK WASHER
|
9-01900-820-0 |
02 |
1 |
9001-9204 |
● |
|
|
