◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11200 - CYJ NZ EURO4/JAPAN NEW LONG TERM 2005 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#20844) — 94 parça

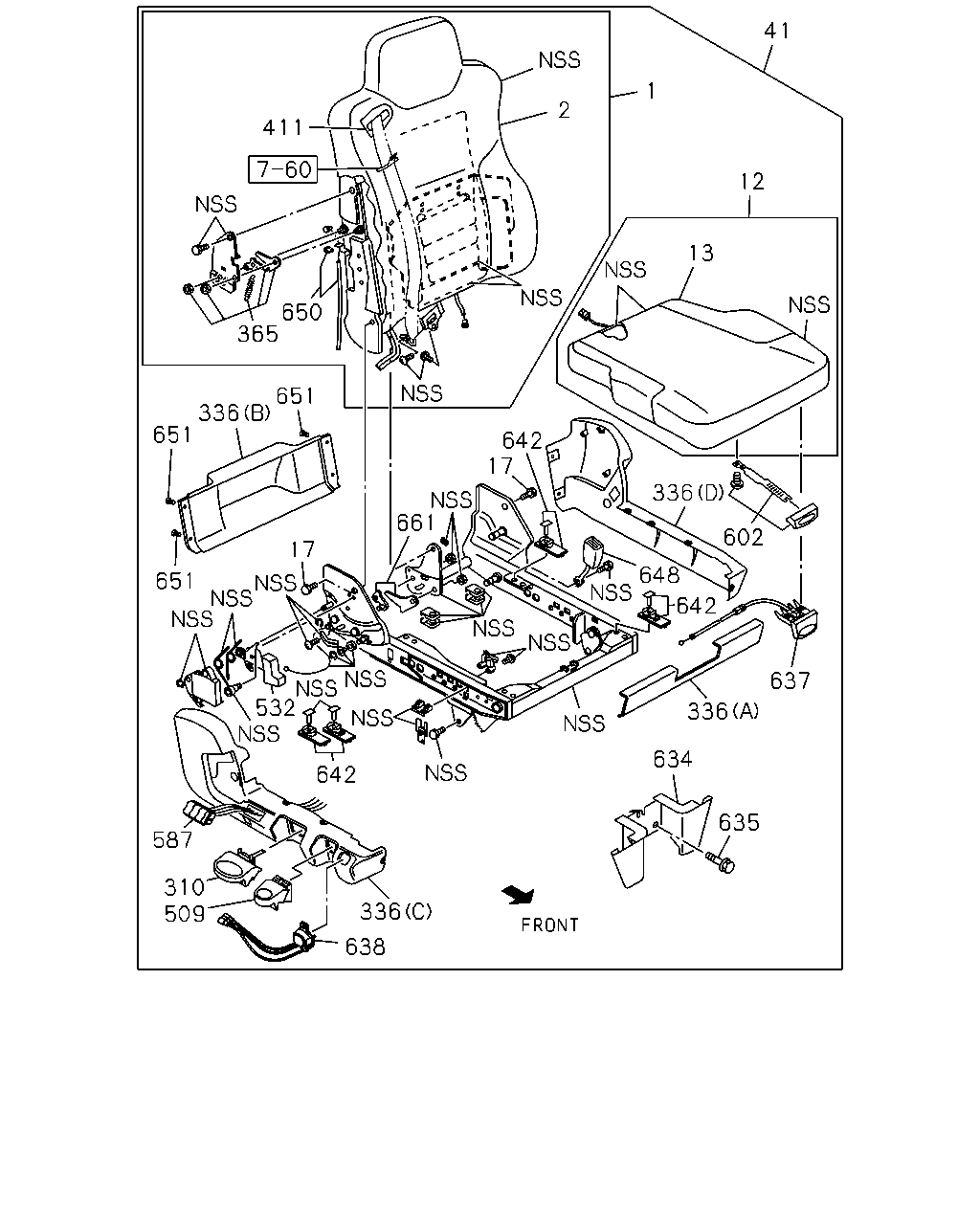

çizim 129962
41 1 2 12 13 642 17 661 336 602 637 336 642 648 634 635 336 638 509 587 310 642 532 17 651 651 336 651 365 650 411
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT 8-98097-964-0 01 1 0904-
2 COVER; TRIM,FRT SEAT,BACK 8-98097-966-0 01 1 0904-1212
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1301-
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 0904-
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 0904-
17 BOLT; RECLINING 8-98097-974-0 02 1 0904-
41 SEAT ASM; DRIVER 8-98036-942-2 01 1 0904-1212
41 SEAT ASM; DRIVER 8-98195-067-1 01 1 1301-
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0904-
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0904-1508
336 COVER; DRIVER SEAT
(D) 		8-98331-313-0 01 1 1509-
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0904-
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0904-
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0904-
365 LOCK ASM; SEAT 8-98097-972-0 01 1 0904-
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0904-
509 LEVER; DAMPER 8-98097-988-0 01 1 0904-
532 LEVER ASM; TILT 8-98097-982-0 01 1 0904-
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0904-
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0904-
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0904-
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0904-
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0904-
638 VALVE; LOWERING 8-98097-994-0 01 1 0904-
642 SLIDER; CUSHION 8-98192-932-0 04 1 0904-
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0904-
650 CABLE 8-98097-973-0 01 1 0904-1212
650 CABLE 8-98232-354-0 01 1 1301-
651 RIVET 8-98194-075-0 04 1 0904-
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 0904-

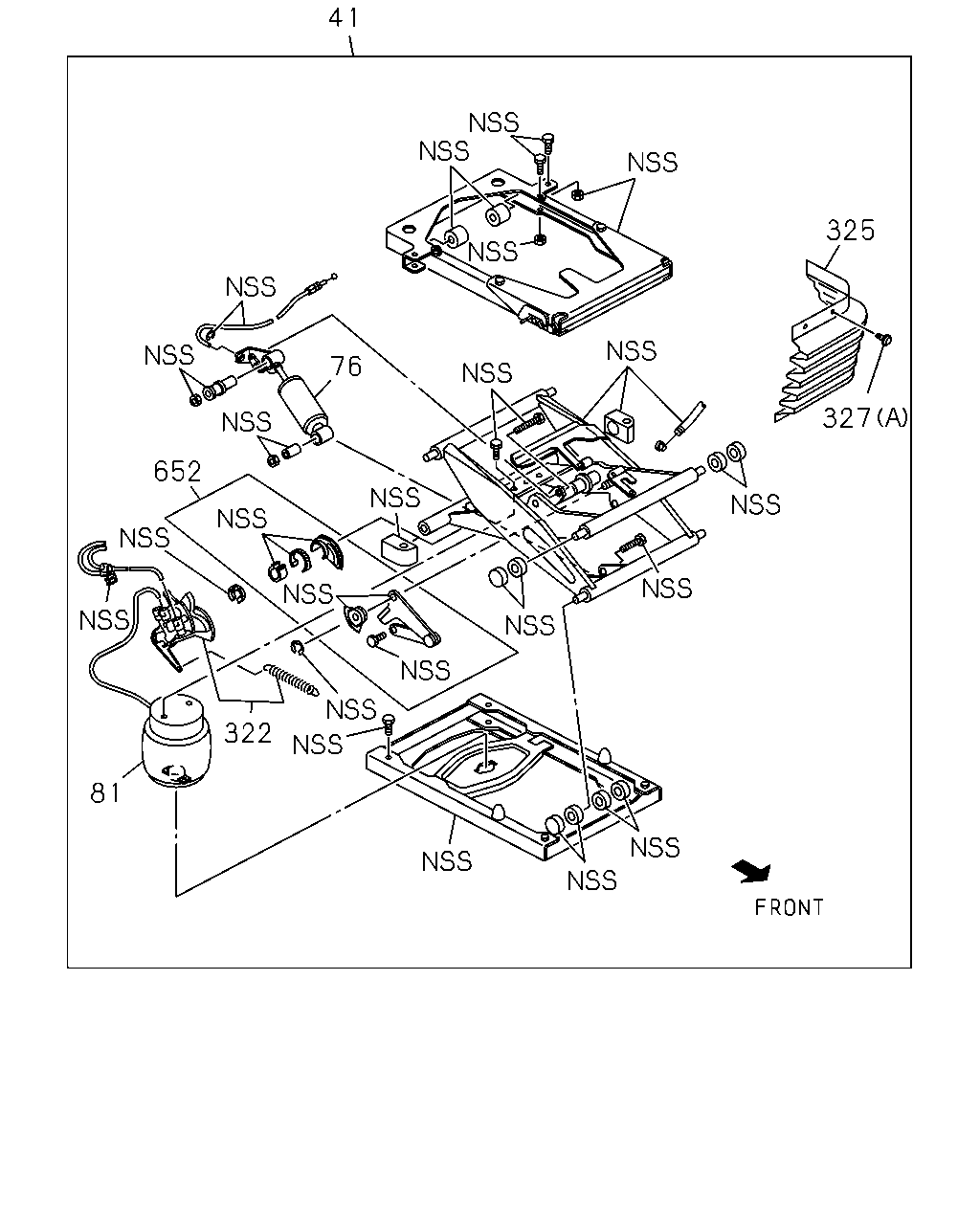

çizim 129963
41 325 327 76 652 81 322
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER 8-98036-942-2 01 1 0904-1212
41 SEAT ASM; DRIVER 8-98195-067-1 01 1 1301-
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 0904-
81 SPRING; AIR 8-98098-000-0 01 1 0904-
322 VALVE; AIR SPRING 8-98098-001-0 01 1 0904-1508
322 VALVE; AIR SPRING 8-98331-314-0 01 1 1509-
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0904-
327 CLIP; COVER
EXC. REMOTE CONT DOOR LOCK<SLG> (B) 		1-09987-273-0 02 1 0904-1009
327 CLIP; COVER
(A) 		8-98098-004-0 01 1 0904-
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0904-

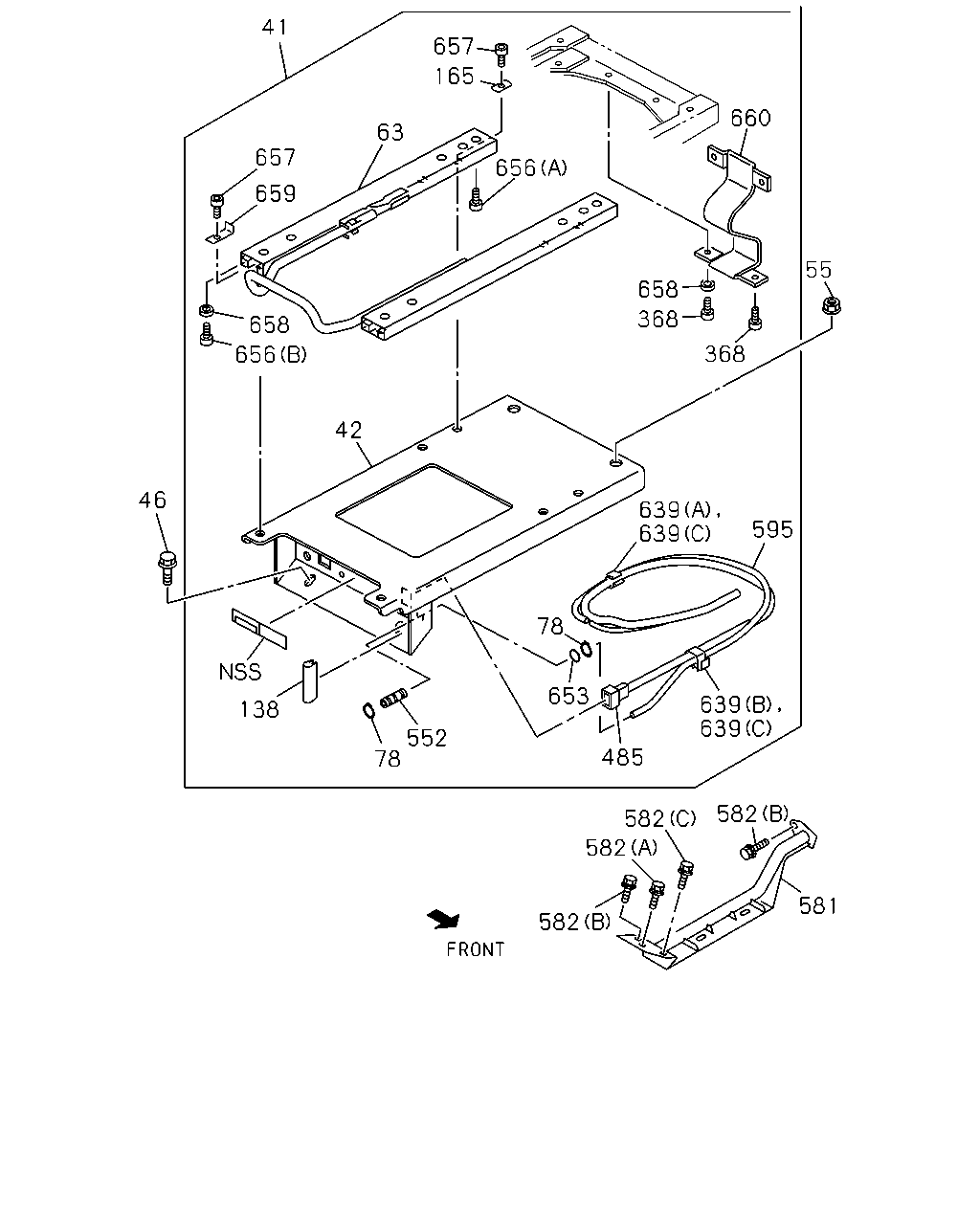

çizim 129964
581 582 582 582 485 639 639 595 639 639 368 368 658 55 660 656 165 657 41 63 657 658 659 656 46 42 138 78 552 78 653 582
BalonParca AdiParca NoAdetTipApplied Date
41 SEAT ASM; DRIVER 8-98036-942-2 01 1 0904-1212
41 SEAT ASM; DRIVER 8-98195-067-1 01 1 1301-
42 STAND; DRIVER SEAT 8-98106-347-0 01 1 0904-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0904-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0904-
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 0904-
78 RING; SNAP 8-98101-900-0 02 1 0904-
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0904-
165 WASHER; PL 1-75590-086-0 04 1 0904-
368 BOLT; SEAT 8-98106-353-0 04 1 0904-
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 0904-
552 CONNECTOR 8-98101-902-0 01 1 0904-1508
552 CONNECTOR 8-98308-101-0 01 1 1509-
581 PIPE; SEAT 1-73907-605-2 01 1 0904-
582 BOLT; PIPE,SEAT
(B) 		1-09980-619-1 02 1 0904-
582 BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0904-0904
582 BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
582 BOLT; PIPE,SEAT
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0904-
595 TUBE; NYLON 8-98106-348-0 01 1 0904-
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0904-1508
639 CLIP; SEAT
(C) 		8-98308-100-0 02 1 1509-
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0904-1508
653 GASKET 8-98101-901-0 01 1 0904-
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0904-
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0904-
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0904-
658 SPACER; BOLT 8-98106-355-0 02 1 0904-
659 STOPPER 8-98106-356-0 02 1 0904-
660 BELT; TETHER 8-98106-357-0 01 1 0904-

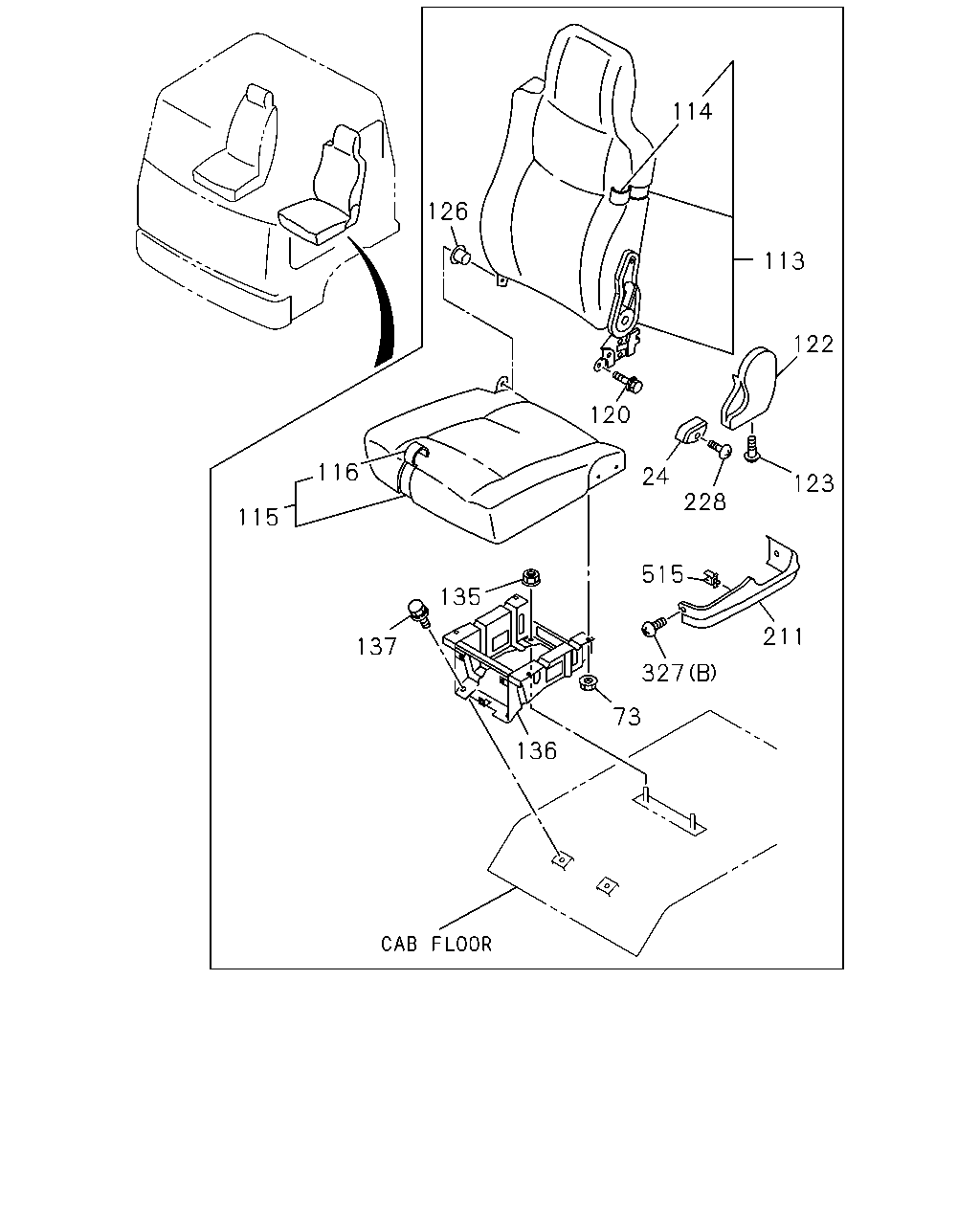

çizim 336635
114 113 122 123 120 126 24 228 211 515 327 73 136 135 137 116 115
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT 1-75418-067-0 01 1 0904-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0904-
113 BACK ASM; SEAT 8-98054-773-0 01 1 0904-
114 COVER; TRIM,PASSENGER SEAT,BACK 8-98054-777-0 01 1 0904-
115 CUSHION ASM; PASSENGER SEAT
REMOTE CONT DOOR LOCK<SLG> 		8-98054-770-0 01 1 0904-1009
115 CUSHION ASM; PASSENGER SEAT 8-98054-770-0 01 1 1010-
115 CUSHION ASM; PASSENGER SEAT
EXC. REMOTE CONT DOOR LOCK<SLG> 		8-98054-771-0 01 1 0904-1009
116 COVER; TRIM,PASSENGER SEAT,CUSHION
REMOTE CONT DOOR LOCK<SLG> 		8-98054-775-0 01 1 0904-1009
116 COVER; TRIM,PASSENGER SEAT,CUSHION 8-98054-775-0 01 1 1010-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. REMOTE CONT DOOR LOCK<SLG> 		8-98054-776-0 01 1 0904-1009
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0904-
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97859-018-0 01 1 0904-
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0904-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0904-
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0904-
136 STAND; PASSENGER SEAT
REMOTE CONT DOOR LOCK<SLG> 		1-75558-601-3 01 1 0904-1009
136 STAND; PASSENGER SEAT 1-75558-601-3 01 1 1010-1305
136 STAND; PASSENGER SEAT 8-98242-298-0 01 1 1306-
136 STAND; PASSENGER SEAT
EXC. REMOTE CONT DOOR LOCK<SLG> 		1-75558-550-7 01 1 0904-1009
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0904-
211 COVER; FRT SEAT
EXC. REMOTE CONT DOOR LOCK<SLG> 		1-72538-274-0 01 1 0904-1009
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 0904-
327 CLIP; COVER
EXC. REMOTE CONT DOOR LOCK<SLG> (B) 		1-09987-273-0 02 1 0904-1009
327 CLIP; COVER
(A) 		8-98098-004-0 01 1 0904-
515 CLIP; PIPE
EXC. REMOTE CONT DOOR LOCK<SLG> BLACK 		8-94227-248-1 01 1 0904-1009
