7-43 — SUN VISOR AND ASSIST GRIP (#20842) — 105 parça

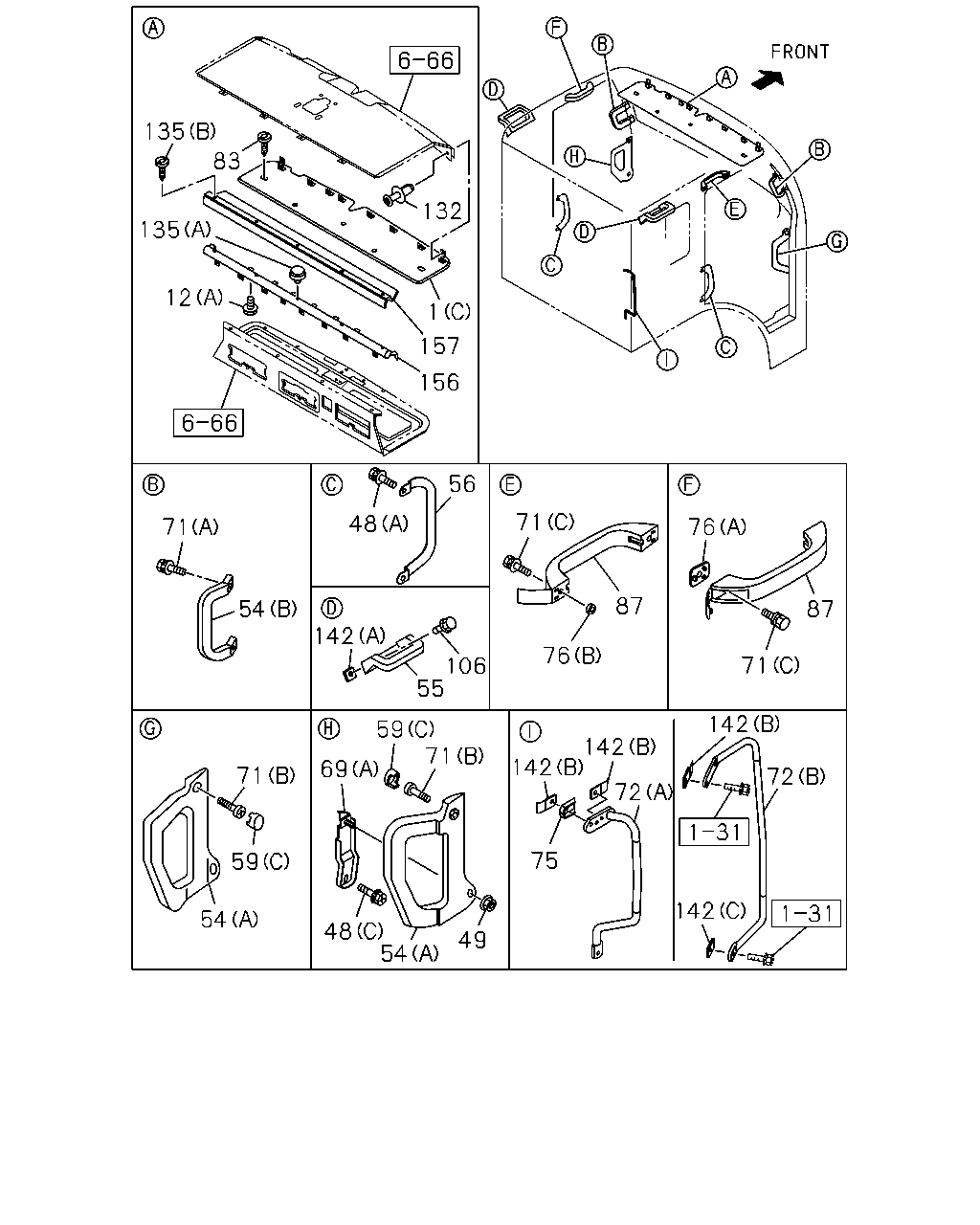

135 83 132 135 12 1 157 156 56 71 48 76 71 87 54 87 142 76 71 106 55 142 59 71 142 142 69 71 72 72 75 59 142 54 48 54 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	0904-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0904-
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0904-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0904-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0904-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0904-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0904-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0904-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0904-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0904-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0904-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0904-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	01	1	0904-
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73618-185-1	02	1	0904-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0904-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0904-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0904-
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0904-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0904-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0904-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0904-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0904-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0904-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0904-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	0904-
71	SCREW (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0904-
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0904-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (B)	1-71907-608-1	01	1	1001-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> (A)	1-71907-544-0	01	1	0904-0912
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52> (A)	1-71907-544-0	01	1	1001-1006
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52> (A)	1-71907-540-0	01	1	1007-
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0904-0912
75	SHEET; ASSIST GRIP,CAB ENTRY PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71997-548-0	01	1	1001-
76	SPACER; ASSIST GRIP LOW ROOF<6XQ> (A)	1-73618-180-0	02	1	0904-
76	SPACER; ASSIST GRIP LOW ROOF<6XQ> (B) OD=13 T=4.5	8-94230-464-1	02	1	0904-1008
76	SPACER; ASSIST GRIP LOW ROOF<6XQ> (B) OD=13 T=4.5	8-94230-464-1	02	1	1009-
83	PLUG D6X23 LIGHT GRAY	1-73318-629-0	03	1	0904-
87	GRIP; ASSIST,CANT RAIL SIDE DARK GRAY	8-97098-476-2	02	1	0904-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0904-
132	FASTENER; BOARD,HEADER SHELF HIGH ROOF<S2F> D8X13.5	1-09987-276-0	08	1	0904-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	0904-
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	0904-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (C)	1-71907-604-0	01	1	1001-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0904-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0904-
156	PIPE; HEADER SHELF HIGH ROOF<S2F>	1-72447-864-2	01	1	0904-
157	FINISHER; PIPE HIGH ROOF<S2F>	1-72447-885-5	01	1	0904-

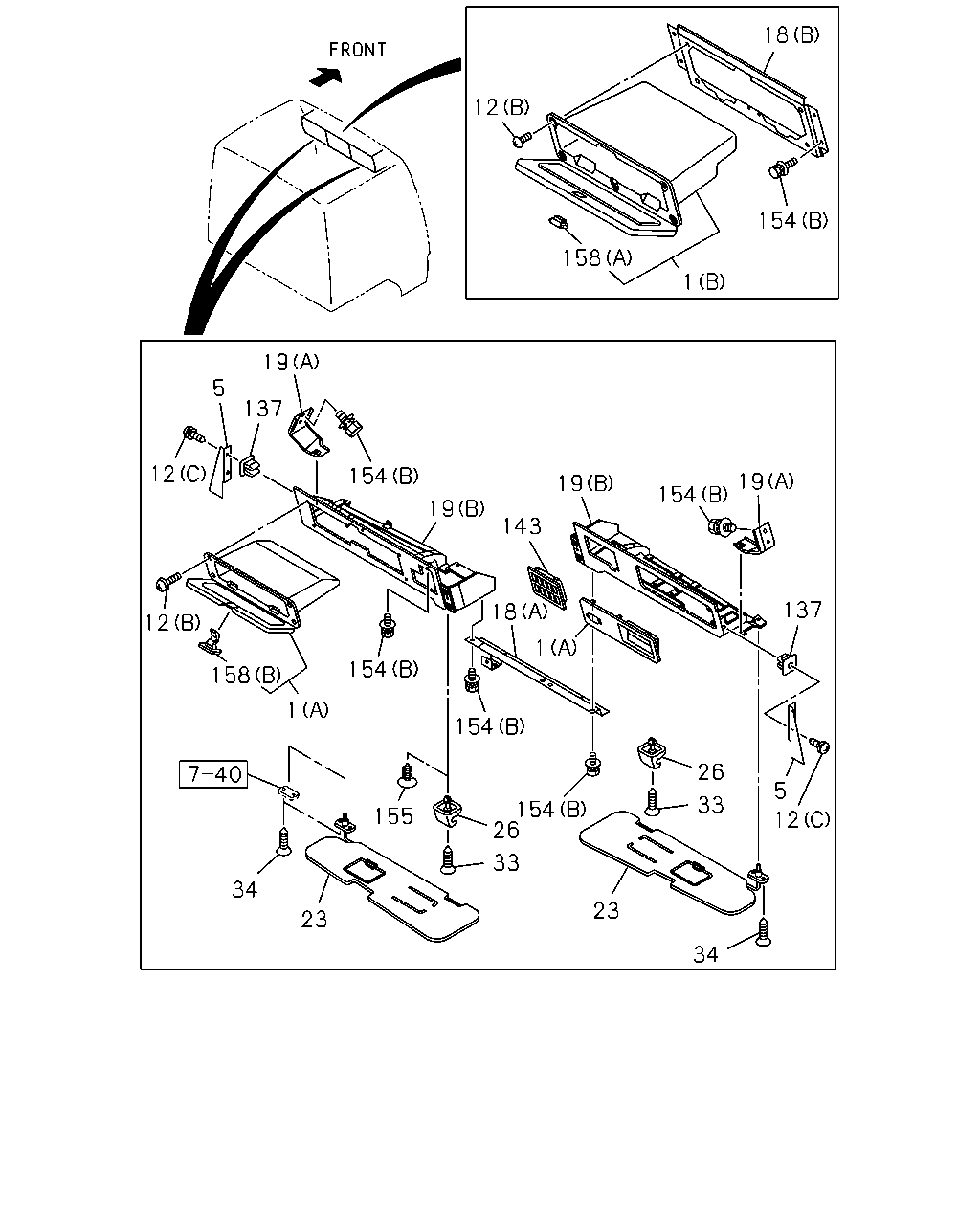

18 12 154 158 1 19 5 137 12 154 19 19 154 19 143 18 137 12 1 154 158 1 154 26 5 33 154 26 155 12 33 34 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-968-0	01	1	0904-
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0904-
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0904-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-886-7	01	1	0904-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	0904-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	0904-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0904-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0904-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0904-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0904-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0904-0909
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	0910-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0904-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0904-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0904-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0904-
23	SUN VISOR 6WG1 TC-C(72L),6WG1 TC-S(97L)	1-73138-162-0	01	1	1009-
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-157-1	01	1	0904-
23	SUN VISOR 6WG1 TC-R(75L)	1-73138-156-1	01	1	0904-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0904-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0904-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0904-
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0904-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0904-
137	GROMMET; SCREW,HEADER SHELF HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0904-
143	BEZEL	1-72447-768-2	01	1	0904-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0904-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0904-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0904-
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0904-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0904-
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0904-
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	0904-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0904-

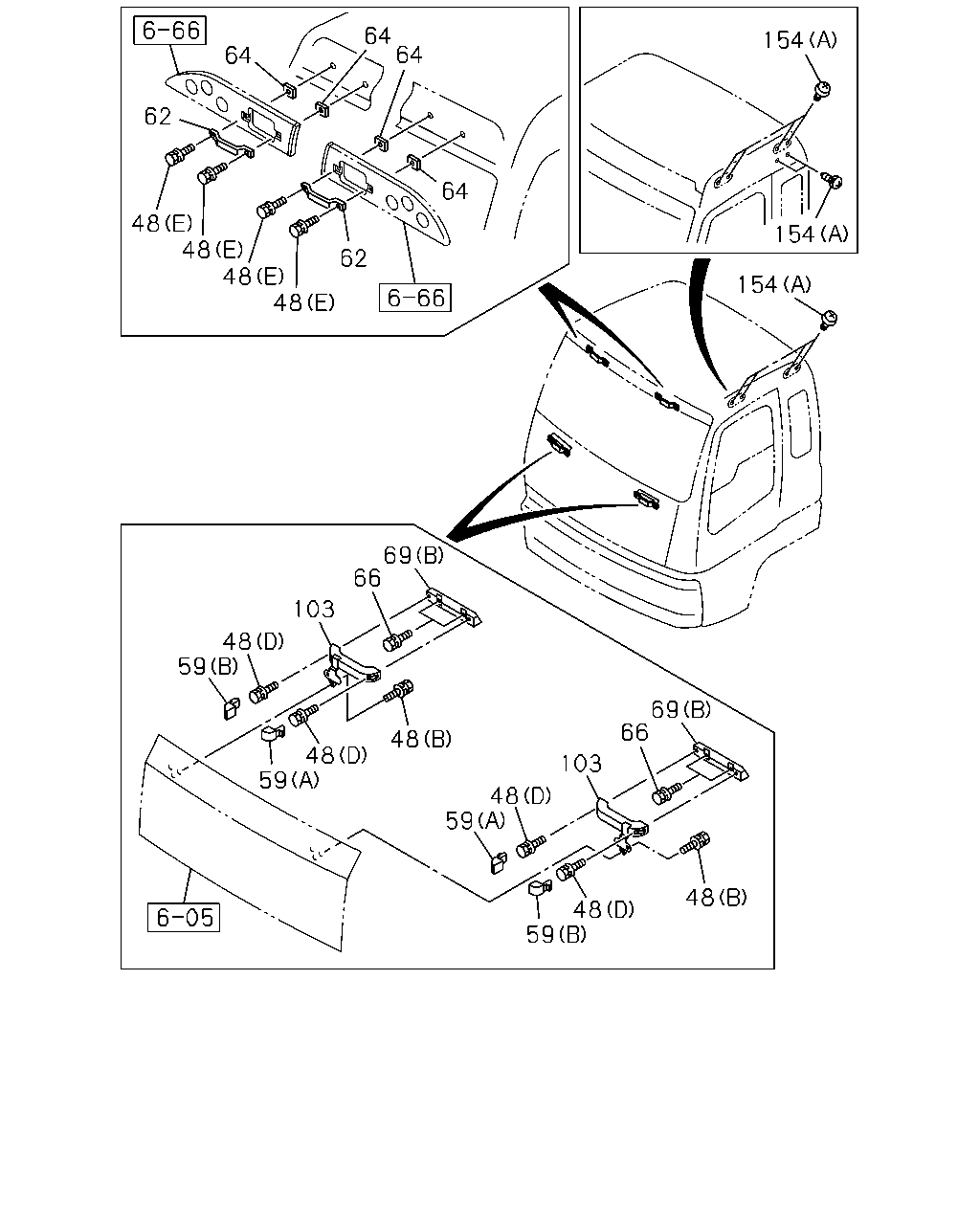

64 64 154 64 62 64 154 48 48 48 48 62 154 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0904-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0904-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0904-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0904-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0904-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	0904-
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	0904-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0904-
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0904-0907
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0908-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0904-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0904-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0904-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0904-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0904-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0904-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0904-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0904-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0904-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0904-
154	BOLT; SUPPORT LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	0904-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	0904-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
