Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#2084) — 334 parça

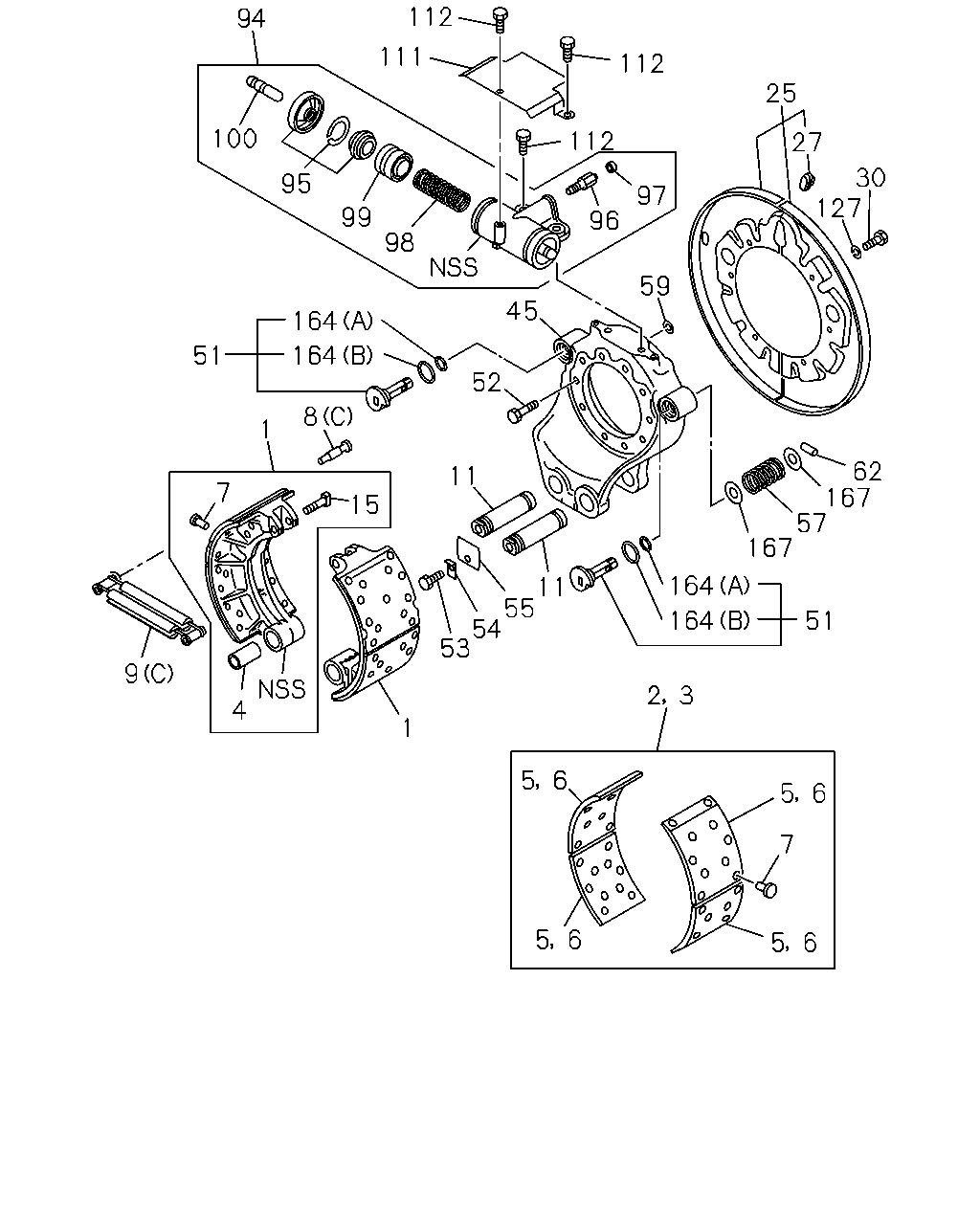

112 94 111 112 25 100 112 27 30 127 95 97 99 96 98 59 45 164 51 164 52 8 1 62 167 57 167 11 7 15 164 11 55 54 53 51 164 9 2 3 4 1 5 6 5 6 7 5 6 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR TRAILING	1-47110-949-0	01	1	9001-9204	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-949-0	01	1	9001-9204		●
1	SHOE; BRK,RR TRAILING	1-47110-949-0	01	1	9205-0107	●	●
1	SHOE; BRK,RR TRAILING	1-47170-111-0	01	1	0108-	●	●
1	SHOE; BRK,RR LEADING	1-47110-951-0	01	1	9001-9204	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-951-0	01	1	9001-9204		●
1	SHOE; BRK,RR LEADING	1-47110-951-0	01	1	9205-0107	●	●
1	SHOE; BRK,RR LEADING	1-47170-113-0	01	1	0108-	●	●
1	SHOE; BRK,RR LEADING	1-47110-948-0	01	1	9001-9204	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-948-0	01	1	9001-9204		●
1	SHOE; BRK,RR LEADING	1-47110-948-0	01	1	9205-0107	●	●
1	SHOE; BRK,RR LEADING	1-47170-110-0	01	1	0108-	●	●
1	SHOE; BRK,RR TRAILING	1-47110-950-0	01	1	9001-9204	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-950-0	01	1	9001-9204		●
1	SHOE; BRK,RR TRAILING	1-47110-950-0	01	1	9205-0107	●	●
1	SHOE; BRK,RR TRAILING	1-47170-112-0	01	1	0108-	●	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47120-378-0	04	1	9001-9204		●
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-968-0	01	1	9001-9204	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-968-0	01	1	9001-9204		●
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-968-0	01	1	9205-0107	●	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88311-061-0	01	1	0108-	●	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-970-0	01	1	9001-9204	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-970-0	01	1	9001-9204		●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-970-0	01	1	9205-0107	●	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88311-063-0	01	1	0108-	●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-88302-715-0	02	1	9001-9204		●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-969-0	01	1	9001-9204	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-969-0	01	1	9001-9204		●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-969-0	01	1	9205-0107	●	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88311-062-0	01	1	0108-	●	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-971-0	01	1	9001-9204	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-971-0	01	1	9001-9204		●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-971-0	01	1	9205-0107	●	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88311-064-0	01	1	0108-	●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-88302-716-0	02	1	9001-9204		●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-004-0	04	1	9001-	●	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-790-0	04	1	9001-9204	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-790-0	04	1	9001-9204		●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-790-0	04	1	9205-0107	●	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47126-394-0	04	1	0108-	●	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-793-0	04	1	9001-9204	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-793-0	04	1	9001-9204		●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-793-0	04	1	9205-0107	●	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47126-396-0	04	1	0108-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47115-533-0	08	1	9001-9204		●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-791-0	04	1	9001-9204	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-791-0	04	1	9001-9204		●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-791-0	04	1	9205-0107	●	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47126-395-0	04	1	0108-	●	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-794-0	04	1	9001-9204	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-794-0	04	1	9001-9204		●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-794-0	04	1	9205-0107	●	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47126-397-0	04	1	0108-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47115-534-0	08	1	9001-9204		●
7	RIVET; LINING,RR BRK	1-09732-008-0	AR	1	9001-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) INNER	1-09744-048-0	04	1	9001-9204	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) INNER	1-09744-048-0	04	1	9001-9204		●
8	PIN; RETURN SPRING,RR BRK SHOE (B) INNER	1-09744-048-0	04	1	9205-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A) OUTER	1-47118-063-0	04	1	9001-9204	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OUTER	1-47118-063-0	04	1	9001-9204		●
8	PIN; RETURN SPRING,RR BRK SHOE (A) OUTER	1-47118-063-0	04	1	9205-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (C)	9-09877-082-0	04	1	9001-9204		●
9	SPRING; RETURN,BRK SHOE (A) INNER	1-09583-032-0	02	1	9001-9204	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER	1-09583-032-0	02	1	9001-9204		●
9	SPRING; RETURN,BRK SHOE (A) INNER	1-09583-032-0	02	1	9205-	●	●
9	SPRING; RETURN,BRK SHOE (B) OUTER	1-09583-033-0	02	1	9001-9204	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OUTER	1-09583-033-0	02	1	9001-9204		●
9	SPRING; RETURN,BRK SHOE (B) OUTER	1-09583-033-0	02	1	9205-	●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (C)	1-09583-097-0	02	1	9001-9204		●
11	PIN; ANCHOR,RR WHEEL BRK	1-47131-028-0	04	1	9001-	●	●
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47116-002-0	04	1	9001-9204		●
25	COVER SET; RR BRK DRUM	1-47151-347-1	02	1	9001-9204	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-347-1	02	1	9001-9204		●
25	COVER SET; RR BRK DRUM	1-47151-347-1	02	1	9205-9604	●	●
25	COVER SET; RR BRK DRUM	1-47151-321-1	02	1	9605-	●	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47151-321-1	02	1	9001-9204		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-045-1	04	1	9001-	●	●
30	BOLT; DRUM COVER M10X16	9-02041-016-0	12	1	9001-9108	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	12	1	9109-9204	●	●
30	BOLT; DRUM COVER M10X16 FLANGE	0-28081-016-0	12	1	9205-9409	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9410-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-082-0	02	1	9001-9204	●
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-082-0	02	1	9001-9204		●
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-082-0	02	1	9205-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47137-055-0	02	1	9001-9204		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) RH FRONT,LH REAR	1-47165-035-0	02	1	9001-9204		●
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) RH REAR,LH FRONT	1-47165-036-0	02	1	9001-9204		●
52	BOLT; ANCHOR BRKT M14X50	1-09000-014-1	06	1	9001-9204	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X50	1-09000-014-1	06	1	9001-9204		●
52	BOLT; ANCHOR BRKT M14X50	1-09000-014-1	06	1	9205-9801	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	06	1	9802-	●	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M14X50	1-09000-014-1	04	1	9001-9204		●
53	BOLT; LOCK PLATE M10X20	9-02041-020-0	02	1	9001-9204	●	●
53	BOLT; LOCK PLATE M10X20	0-20801-020-0	02	1	9205-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	9-47133-030-0	02	1	9001-	●	●
55	PLATE; LK,RR WHEEL CYL	9-47133-031-0	02	1	9001-	●	●
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-09941-293-0	04	1	9001-9204		●
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) ID=14.2	9-09150-514-0	04	1	9001-9204		●
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47169-001-0	04	1	9001-9204		●
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47600-523-1	02	1	9001-9204		●
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-87830-546-0	04	1	9001-9204		●
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47615-002-0	02	1	9001-9204		●
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) OD=9.5	9-47619-005-0	02	1	9001-9204		●
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-09580-019-0	02	1	9001-9204		●
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47624-043-0	04	1	9001-9204		●
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-47621-046-0	04	1	9001-9204		●
111	COVER; WHEEL CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47159-024-0	02	1	9001-9204		●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M8X16 W/LK WASHER	9-01900-816-0	06	1	9001-9204		●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M14X35	9-92051-435-0	04	1	9001-9005		●
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M14X35	0-20801-435-0	04	1	9006-9204		●
127	WASHER; LK,DRUM COVER ID=10.2	9-09150-510-0	12	1	9001-9108	●	●
164	GASKET; ADJ CAM BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A) ID=13.8	9-09561-114-0	04	1	9001-9204		●
164	GASKET; ADJ CAM BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B) ID=29.4	9-09923-533-0	04	1	9001-9204		●
167	WASHER; ADJ CAM BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-09509-005-0	08	1	9001-9204		●

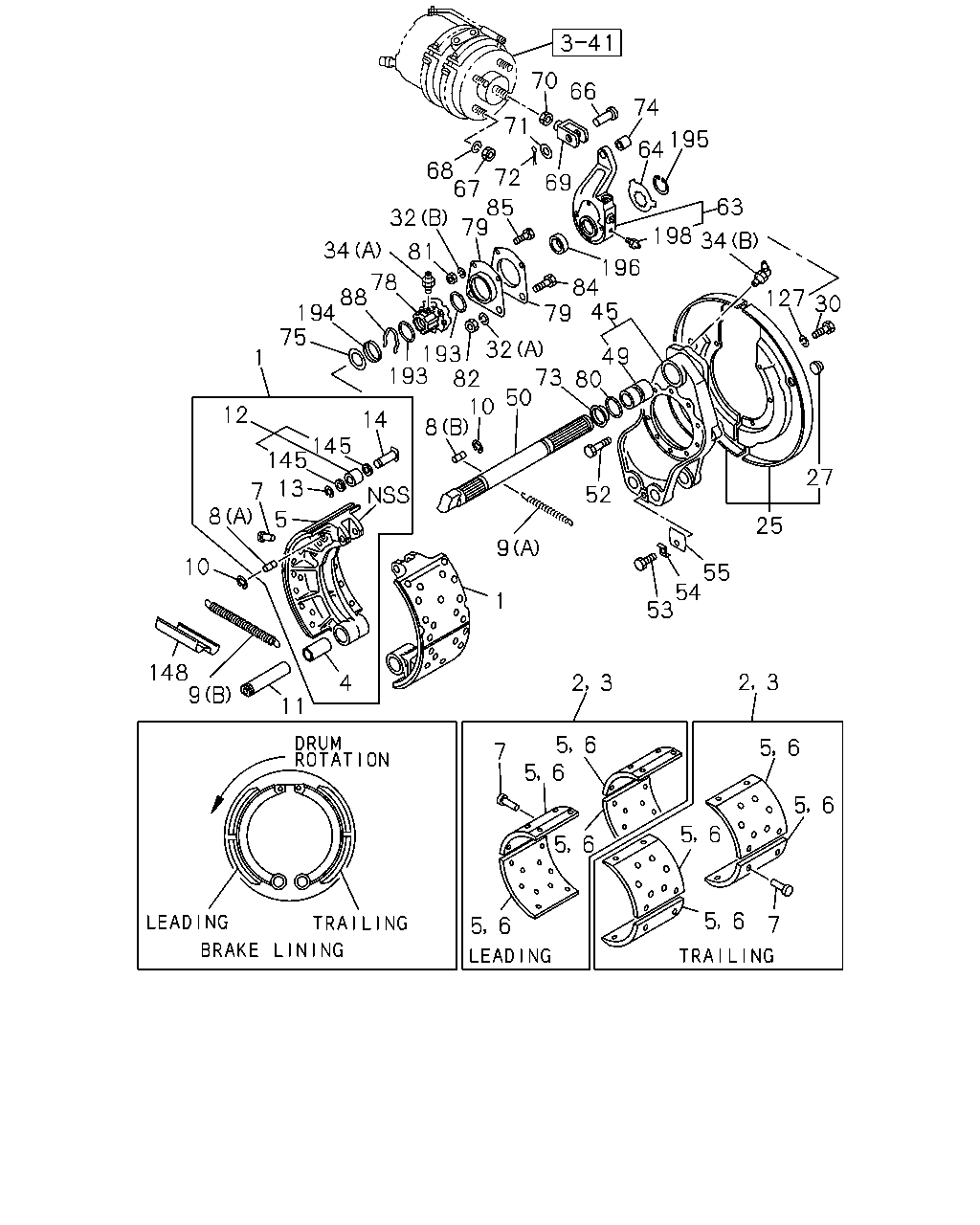

70 71 66 74 195 64 72 68 67 85 79 69 63 32 198 34 34 81 196 84 78 88 194 75 127 30 32 73 50 193 193 82 10 8 49 80 1 12 14 145 145 13 27 7 52 8 5 25 9 10 55 54 53 1 148 9 2 3 2 3 4 11 5 6 6 5 6 7 5 5 6 5 6 6 5 6 7 5 6 5 79 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,RR TRAILING	1-47110-949-0	01	1	9001-9204	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-949-0	01	1	9001-9204		●
1	SHOE; BRK,RR TRAILING	1-47110-949-0	01	1	9205-0107	●	●
1	SHOE; BRK,RR TRAILING	1-47170-111-0	01	1	0108-	●	●
1	SHOE; BRK,RR LEADING	1-47110-951-0	01	1	9001-9204	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-951-0	01	1	9001-9204		●
1	SHOE; BRK,RR LEADING	1-47110-951-0	01	1	9205-0107	●	●
1	SHOE; BRK,RR LEADING	1-47170-113-0	01	1	0108-	●	●
1	SHOE; BRK,RR LEADING	1-47110-948-0	01	1	9001-9204	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-948-0	01	1	9001-9204		●
1	SHOE; BRK,RR LEADING	1-47110-948-0	01	1	9205-0107	●	●
1	SHOE; BRK,RR LEADING	1-47170-110-0	01	1	0108-	●	●
1	SHOE; BRK,RR TRAILING	1-47110-950-0	01	1	9001-9204	●
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-950-0	01	1	9001-9204		●
1	SHOE; BRK,RR TRAILING	1-47110-950-0	01	1	9205-0107	●	●
1	SHOE; BRK,RR TRAILING	1-47170-112-0	01	1	0108-	●	●
1	SHOE; BRK,RR BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47120-378-0	04	1	9001-9204		●
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-968-0	01	1	9001-9204	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-968-0	01	1	9001-9204		●
2	LINING SET; RR BRK,STANDARD LEADING	1-88302-968-0	01	1	9205-0107	●	●
2	LINING SET; RR BRK,STANDARD LEADING	1-88311-061-0	01	1	0108-	●	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-970-0	01	1	9001-9204	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-970-0	01	1	9001-9204		●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88302-970-0	01	1	9205-0107	●	●
2	LINING SET; RR BRK,STANDARD TRAILING	1-88311-063-0	01	1	0108-	●	●
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-88302-715-0	02	1	9001-9204		●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-969-0	01	1	9001-9204	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88302-969-0	01	1	9001-9204		●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88302-969-0	01	1	9205-0107	●	●
3	LINING SET; RR BRK,OVER SIZE LEADING	1-88311-062-0	01	1	0108-	●	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-971-0	01	1	9001-9204	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88302-971-0	01	1	9001-9204		●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88302-971-0	01	1	9205-0107	●	●
3	LINING SET; RR BRK,OVER SIZE TRAILING	1-88311-064-0	01	1	0108-	●	●
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-88302-716-0	02	1	9001-9204		●
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-004-0	04	1	9001-	●	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-790-0	04	1	9001-9204	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-790-0	04	1	9001-9204		●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47115-790-0	04	1	9205-0107	●	●
5	LINING; RR BRK SHOE,STANDARD LEADING	1-47126-394-0	04	1	0108-	●	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-793-0	04	1	9001-9204	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-793-0	04	1	9001-9204		●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47115-793-0	04	1	9205-0107	●	●
5	LINING; RR BRK SHOE,STANDARD TRAILING	1-47126-396-0	04	1	0108-	●	●
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47115-533-0	08	1	9001-9204		●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-791-0	04	1	9001-9204	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-791-0	04	1	9001-9204		●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47115-791-0	04	1	9205-0107	●	●
6	LINING; RR BRK SHOE,OVER SIZE LEADING	1-47126-395-0	04	1	0108-	●	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-794-0	04	1	9001-9204	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-794-0	04	1	9001-9204		●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47115-794-0	04	1	9205-0107	●	●
6	LINING; RR BRK SHOE,OVER SIZE TRAILING	1-47126-397-0	04	1	0108-	●	●
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47115-534-0	08	1	9001-9204		●
7	RIVET; LINING,RR BRK	1-09732-008-0	AR	1	9001-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (B) INNER	1-09744-048-0	04	1	9001-9204	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) INNER	1-09744-048-0	04	1	9001-9204		●
8	PIN; RETURN SPRING,RR BRK SHOE (B) INNER	1-09744-048-0	04	1	9205-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE (A) OUTER	1-47118-063-0	04	1	9001-9204	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OUTER	1-47118-063-0	04	1	9001-9204		●
8	PIN; RETURN SPRING,RR BRK SHOE (A) OUTER	1-47118-063-0	04	1	9205-	●	●
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (C)	9-09877-082-0	04	1	9001-9204		●
9	SPRING; RETURN,BRK SHOE (A) INNER	1-09583-032-0	02	1	9001-9204	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER	1-09583-032-0	02	1	9001-9204		●
9	SPRING; RETURN,BRK SHOE (A) INNER	1-09583-032-0	02	1	9205-	●	●
9	SPRING; RETURN,BRK SHOE (B) OUTER	1-09583-033-0	02	1	9001-9204	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OUTER	1-09583-033-0	02	1	9001-9204		●
9	SPRING; RETURN,BRK SHOE (B) OUTER	1-09583-033-0	02	1	9205-	●	●
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (C)	1-09583-097-0	02	1	9001-9204		●
10	RING; SNAP,SPR PIN ID=12	9-09185-412-0	08	1	9001-9204	●
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12	9-09185-412-0	08	1	9001-9204		●
10	RING; SNAP,SPR PIN ID=12	9-09185-412-0	08	1	9205-	●	●
11	PIN; ANCHOR,RR WHEEL BRK	1-47131-028-0	04	1	9001-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-003-0	04	1	9001-9204	●
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47113-003-0	04	1	9001-9204		●
12	ROLLER; CAM,BRK SHOE	1-47113-003-0	04	1	9205-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9001-9204	●
13	CLIP; ROLLER PIN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47119-022-0	04	1	9001-9204		●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9205-	●	●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-024-0	03	1	9001-9204	●
14	PIN; CAM ROLLER,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-024-0	03	1	9001-9204		●
14	PIN; CAM ROLLER,BRK SHOE	1-09744-024-0	03	1	9205-	●	●
25	COVER SET; RR BRK DRUM	1-47151-347-1	02	1	9001-9204	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-347-1	02	1	9001-9204		●
25	COVER SET; RR BRK DRUM	1-47151-347-1	02	1	9205-9604	●	●
25	COVER SET; RR BRK DRUM	1-47151-321-1	02	1	9605-	●	●
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47151-321-1	02	1	9001-9204		●
27	COVER; CHECK HOLE,DRUM COVER	1-09333-045-1	04	1	9001-	●	●
30	BOLT; DRUM COVER M10X16	9-02041-016-0	12	1	9001-9108	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	9-01901-016-0	12	1	9109-9204	●	●
30	BOLT; DRUM COVER M10X16 FLANGE	0-28081-016-0	12	1	9205-9409	●	●
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9410-	●	●
32	WASHER; LK (A) ID=16.2	9-09150-516-0	04	1	9001-9204	●
32	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16.2	9-09150-516-0	04	1	9001-9204		●
32	WASHER; LK (A) ID=16.2	9-09150-516-0	04	1	9205-	●	●
32	WASHER; LK (B)	9-09920-720-0	02	1	9001-9204	●
32	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	9-09920-720-0	02	1	9001-9204		●
32	WASHER; LK (B)	9-09920-720-0	02	1	9205-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	9001-9204	●
34	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	9001-9204		●
34	NIPPLE; GREASE,CHAMBER BRKT (A) PT1/8 STRAIGHT	9-09031-010-0	02	1	9205-	●	●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9001-9204	●
34	NIPPLE; GREASE,CHAMBER BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9001-9204		●
34	NIPPLE; GREASE,CHAMBER BRKT (B) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9205-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-082-0	02	1	9001-9204	●
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-082-0	02	1	9001-9204		●
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-082-0	02	1	9205-	●	●
45	BRACKET; ANCHOR PIN,W/BUSHING BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47137-055-0	02	1	9001-9204		●
49	BUSHING; CM/SHF,RR BRK	9-47146-028-1	02	1	9001-9204	●
49	BUSHING; CM/SHF,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47146-028-1	02	1	9001-9204		●
49	BUSHING; CM/SHF,RR BRK	9-47146-028-1	02	1	9205-	●	●
50	CAMSHAFT; BRK,RR BRK	1-47141-033-0	01	1	9001-9204	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-033-0	01	1	9001-9204		●
50	CAMSHAFT; BRK,RR BRK	1-47141-033-0	01	1	9205-	●	●
50	CAMSHAFT; BRK,RR BRK	1-47141-032-0	01	1	9001-9204	●
50	CAMSHAFT; BRK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-032-0	01	1	9001-9204		●
50	CAMSHAFT; BRK,RR BRK	1-47141-032-0	01	1	9205-	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09000-014-1	06	1	9001-9204	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M14X50	1-09000-014-1	06	1	9001-9204		●
52	BOLT; ANCHOR BRKT M14X50	1-09000-014-1	06	1	9205-9801	●	●
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	06	1	9802-	●	●
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M14X50	1-09000-014-1	04	1	9001-9204		●
53	BOLT; LOCK PLATE M10X20	9-02041-020-0	02	1	9001-9204	●	●
53	BOLT; LOCK PLATE M10X20	0-20801-020-0	02	1	9205-	●	●
54	WASHER; LK,ANCHOR PIN,RR BRK	9-47133-030-0	02	1	9001-	●	●
55	PLATE; LK,RR WHEEL CYL	9-47133-031-0	02	1	9001-	●	●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-040-1	01	1	9001-9204	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-040-1	01	1	9001-9204		●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-040-1	01	1	9205-	●	●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-039-1	01	1	9001-9204	●
63	ADJUSTER ASM; SLACK,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-039-1	01	1	9001-9204		●
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-039-1	01	1	9205-	●	●
64	PLATE; STOPPER,CM/SHF	1-47149-019-0	02	1	9001-9204	●
64	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-019-0	02	1	9001-9204		●
64	PLATE; STOPPER,CM/SHF	1-47149-019-0	02	1	9205-	●	●
66	PIN; JAW JOINT	1-09744-088-0	02	1	9001-9204	●
66	PIN; JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-088-0	02	1	9001-9204		●
66	PIN; JAW JOINT	1-09744-088-0	02	1	9205-	●	●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	9001-9204	●
67	NUT; POWER CHAMBER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99110-416-0	08	1	9001-9204		●
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	9205-	●	●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9001-9204	●
68	WASHER; LK,CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	08	1	9001-9204		●
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9205-	●	●
69	JOINT; JAW	9-09883-073-0	02	1	9001-9204	●
69	JOINT; JAW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09883-073-0	02	1	9001-9204		●
69	JOINT; JAW	9-09883-073-1	02	1	9205-	●	●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9001-9204	●
70	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	9001-9204		●
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9205-	●	●
71	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	02	1	9001-9204	●
71	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17	9-09160-516-0	02	1	9001-9204		●
71	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	02	1	9205-9401	●	●
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9402-	●	●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	9001-9204	●
72	PIN; SPLIT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	9-08114-028-0	02	1	9001-9204		●
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	9205-	●	●
73	COLLAR; FELT RING,CM/SHF	9-47143-006-1	02	1	9001-9204	●
73	COLLAR; FELT RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47143-006-1	02	1	9001-9204		●
73	COLLAR; FELT RING,CM/SHF	9-47143-006-1	02	1	9205-	●	●
74	BUSHING; SLACK ADJ	9-48279-008-0	02	1	9001-9204	●
74	BUSHING; SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-48279-008-0	02	1	9001-9204		●
74	BUSHING; SLACK ADJ	9-48279-008-0	02	1	9205-	●	●
75	RING; FELT,CM/SHF	1-09620-005-0	02	1	9001-9204	●
75	RING; FELT,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09620-005-0	02	1	9001-9204		●
75	RING; FELT,CM/SHF	1-09620-005-0	02	1	9205-	●	●
78	BUSHING; BRKT	1-47146-001-0	02	1	9001-9204	●
78	BUSHING; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-001-0	02	1	9001-9204		●
78	BUSHING; BRKT	1-47146-001-0	02	1	9205-	●	●
79	BRACKET; CM/SHF	9-47145-013-0	04	1	9001-9204	●
79	BRACKET; CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47145-013-0	04	1	9001-9204		●
79	BRACKET; CM/SHF	9-47145-013-0	04	1	9205-	●	●
80	GASKET; BUSHING	9-09920-720-0	02	1	9001-9204	●
80	GASKET; BUSHING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09920-720-0	02	1	9001-9204		●
80	GASKET; BUSHING	9-09920-720-0	02	1	9205-	●	●
81	NUT M10	9-09110-410-0	04	1	9001-9204	●
81	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10	9-09110-410-0	04	1	9001-9204		●
81	NUT M10	9-09110-410-0	04	1	9205-	●	●
82	NUT M16	9-99110-416-0	04	1	9001-9204	●
82	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99110-416-0	04	1	9001-9204		●
82	NUT M16	9-99110-416-0	04	1	9205-	●	●
84	BOLT; BRKT TO CASE	9-92051-638-0	04	1	9001-9008	●
84	BOLT; BRKT TO CASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-92051-638-0	04	1	9001-9008		●
84	BOLT; BRKT TO CASE	0-20801-638-0	04	1	9009-9204	●
84	BOLT; BRKT TO CASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	0-20801-638-0	04	1	9009-9204		●
84	BOLT; BRKT TO CASE	0-20801-638-0	04	1	9205-	●	●
85	BOLT; CM/SHF BRKT M10X20 W/LK WASHER	9-01911-020-0	04	1	9001-9002	●
85	BOLT; CM/SHF BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20 W/LK WASHER	9-01911-020-0	04	1	9001-9002		●
85	BOLT; CM/SHF BRKT M10X20 W/LK WASHER	0-50041-020-0	04	1	9003-9204	●
85	BOLT; CM/SHF BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20 W/LK WASHER	0-50041-020-0	04	1	9003-9204		●
85	BOLT; CM/SHF BRKT M10X20 W/LK WASHER	0-50041-020-0	04	1	9205-	●	●
88	CLIP; BRKT	9-09952-235-1	02	1	9001-9204	●
88	CLIP; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09952-235-1	02	1	9001-9204		●
88	CLIP; BRKT	9-09952-235-1	02	1	9205-	●	●
127	WASHER; LK,DRUM COVER ID=10.2	9-09150-510-0	12	1	9001-9108	●	●
145	SEAL; OIL,CAM ROLLER	9-09924-486-0	08	1	9001-9204	●
145	SEAL; OIL,CAM ROLLER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09924-486-0	08	1	9001-9204		●
145	SEAL; OIL,CAM ROLLER	9-09924-486-0	08	1	9205-	●	●
148	HOLDER; SPRING,SHOE RETURN	1-47118-029-0	02	1	9001-9204	●
148	HOLDER; SPRING,SHOE RETURN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47118-029-0	02	1	9001-9204		●
148	HOLDER; SPRING,SHOE RETURN	1-47118-029-0	02	1	9205-	●	●
193	GASKET; CM/SHF	9-09920-720-0	02	1	9001-9204	●
193	GASKET; CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09920-720-0	02	1	9001-9204		●
193	GASKET; CM/SHF	9-09920-720-0	02	1	9205-	●	●
194	COVER; FELT RING	1-47139-001-0	02	1	9001-9204	●
194	COVER; FELT RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47139-001-0	02	1	9001-9204		●
194	COVER; FELT RING	1-47139-001-0	02	1	9205-	●	●
195	RING; SNAP,CM/SHF ID=37.0	9-09180-040-0	02	1	9001-9204	●
195	RING; SNAP,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=37.0	9-09180-040-0	02	1	9001-9204		●
195	RING; SNAP,CM/SHF ID=37.0	9-09180-040-0	02	1	9205-	●	●
196	DISTANCE; CM/SHF	1-48279-001-0	02	1	9001-9204	●
196	DISTANCE; CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48279-001-0	02	1	9001-9204		●
196	DISTANCE; CM/SHF	1-48279-001-0	02	1	9205-9708	●	●
196	DISTANCE; CM/SHF	1-47143-014-0	02	1	9709-	●	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	9001-9204	●
198	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	9-09031-010-0	01	1	9001-9204		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	01	1	9205-	●	●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9001-9204	●
198	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9001-9204		●
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5?	9-09031-110-0	01	1	9205-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
