◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11169 - FVZ SOUTH AFRICA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#20836) — 98 parça

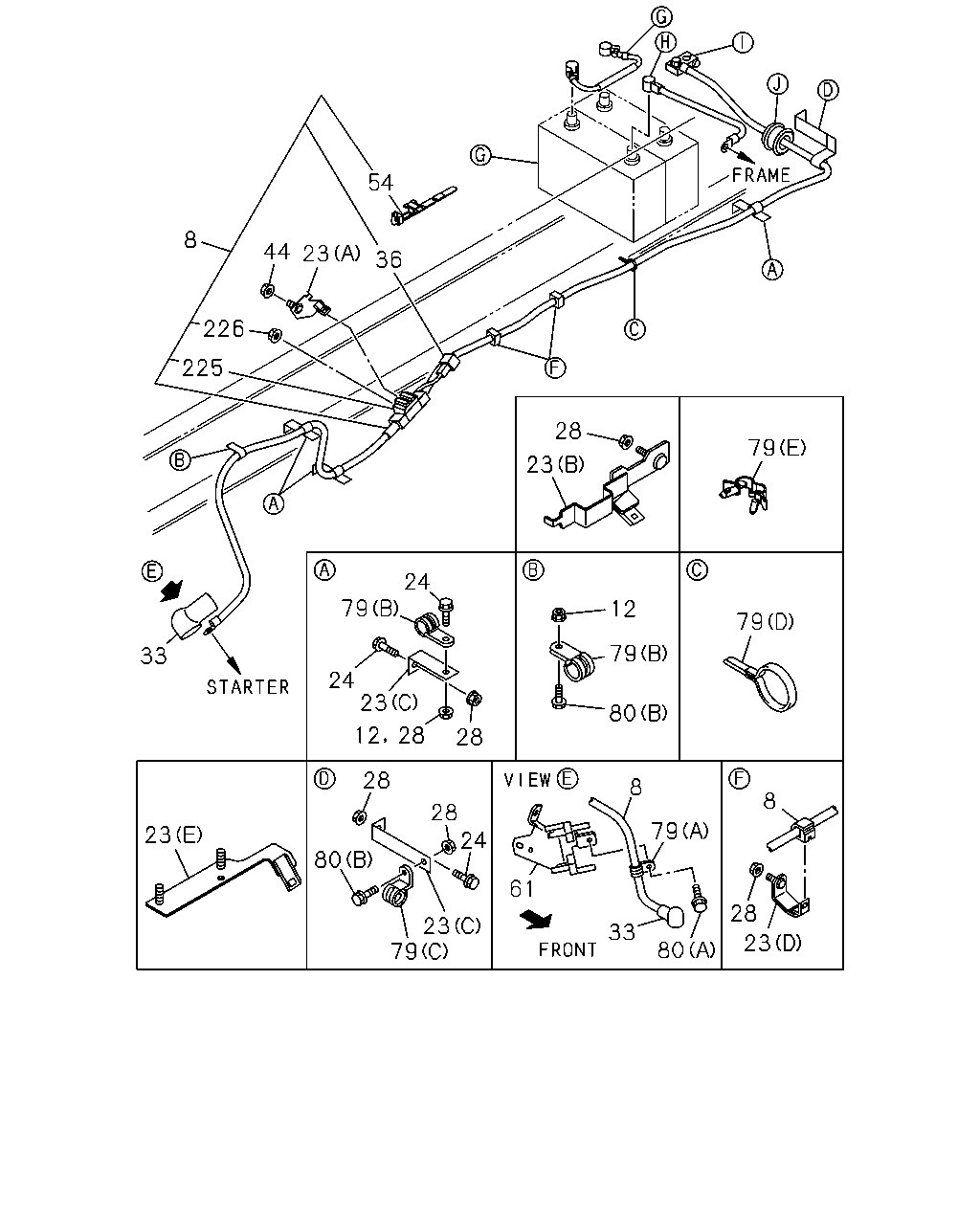

çizim 128368
54 8 44 23 36 226 225 28 79 23 24 79 12 79 79 33 24 23 80 12 28 28 28 8 8 28 24 79 23 80 61 28 23 79 33 23 80
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
ALLISON MD3560P A/T(Y3B) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2750 		8-98190-155-0 01 1 1107-1502
8 CABLE; BATTERY,STARTER
ALLISON MD3560P A/T(Y3B) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-574-0 01 1 1503-
8 CABLE; BATTERY,STARTER
ALLISON MD3560P A/T(Y3B) BATTERY 115E41L<8MA> L=2950 		8-98190-156-0 01 1 1107-1502
8 CABLE; BATTERY,STARTER
ALLISON MD3560P A/T(Y3B) BATTERY 115E41L<8MA> 		8-98295-575-0 01 1 1503-
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> VIN MODEL YEAR 2011<VZB> L=2770 		8-98174-091-0 01 1 1012-1102
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2770 		8-98174-091-0 01 1 1103-1502
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-570-0 01 1 1503-
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> BATTERY 115E41L<8MA> L=2970 		8-98174-097-0 01 1 1012-1102
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> L=2970 		8-98174-097-0 01 1 1103-1502
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> 		8-98295-571-0 01 1 1503-
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> L=3030 		8-98121-965-0 01 1 1001-1004
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> L=3030 		8-98159-431-0 01 1 1005-1011
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> EXC. VIN MODEL YEAR 2011<VZB> L=3030 		8-98159-431-0 01 1 1012-1102
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2830 		8-98121-964-0 01 1 1001-1004
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2830 		8-98159-430-0 01 1 1005-1011
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. VIN MODEL YEAR 2011<VZB> L=2830 		8-98159-430-0 01 1 1012-1102
12 NUT; BATTERY CABLE CLIP
A/T<X9D> M8 FLANGE SOU 		0-91180-108-0 01 1 1107-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1001-1105
12 NUT; BATTERY CABLE CLIP
ZF9S1110 M/T(Y5E) M8 FLANGE SOU 		0-91180-108-0 03 1 1106-
23 BRACKET; CABLE CLIP TO FRAME
A/T<X9D> (D) 		8-97612-957-1 02 1 1107-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=65 		1-47479-064-1 01 1 1001-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1001-1106
23 BRACKET; CABLE CLIP TO FRAME
A/T<X9D> (C) L=95 		1-82699-085-0 01 1 1107-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 1107-
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 03 1 1001-1105
23 BRACKET; CABLE CLIP TO FRAME
ZF9S1110 M/T(Y5E) (C) L=95 		1-82699-085-0 03 1 1106-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 1001-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98085-160-4 01 1 1001-1111
23 BRACKET; CABLE CLIP TO FRAME
(E) 		8-98201-025-0 01 1 1112-
24 BOLT; BRKT TO FRAME
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1001-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 01 1 1001-1106
24 BOLT; BRKT TO FRAME
A/T<X9D> M8X30 FLANGE 		0-28650-830-0 01 1 1107-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 01 1 1107-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 03 1 1001-1105
24 BOLT; BRKT TO FRAME
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 03 1 1106-
28 NUT; BRKT TO FRAME
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-1111
28 NUT; BRKT TO FRAME
M8 FLANGE SOU 		0-91180-108-0 01 1 1112-
28 NUT; BRKT TO FRAME
M8 FLANGE SOU 		0-91180-108-0 01 1 1112-
28 NUT; BRKT TO FRAME
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
28 NUT; BRKT TO FRAME
M8 FLANGE SOU 		0-91180-108-0 03 1 1001-
33 CAP; INSULATOR 1-82699-431-0 01 1 1001-
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 1001-1502
36 FUSIBLE LINK; BATTERY 8-98295-762-0 01 1 1503-
44 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
54 CLIP; BAND,BATTERY CABLE
L=175 		1-09707-176-1 01 1 1001-1004
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1001-
79 CLIP; BATTERY CABLE
A/T<X9D> (B) ID=21 L=24 		8-98019-191-0 01 1 1107-
79 CLIP; BATTERY CABLE
ALLISON MD3560P A/T(Y3B) (E) ID=13-18 L=14.5 		1-09709-290-0 01 1 1107-
79 CLIP; BATTERY CABLE
ALLISON MD3560P A/T(Y3B) (C) ID=13-18 L=26 		1-09709-293-0 01 1 1107-
79 CLIP; BATTERY CABLE
(A) ID=16 L=28 		1-09700-872-0 01 1 1001-1004
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1005-
79 CLIP; BATTERY CABLE
(C) ID=13-18 L=26 		1-09709-293-0 02 1 1001-1106
79 CLIP; BATTERY CABLE
MANUAL TRANSMISSION<X9C> (C) ID=13-18 L=26 		1-09709-293-0 02 1 1107-
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 02 1 1001-
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 03 1 1001-1105
79 CLIP; BATTERY CABLE
ZF9S1110 M/T(Y5E) (B) ID=21 L=24 		8-98019-191-0 03 1 1106-
79 CLIP; BATTERY CABLE
(D) ID=20 L=50 SOU 		9-09917-430-0 01 1 1001-
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE SOU 		0-28050-816-0 01 1 1001-
80 BOLT; BATTERY CABLE CLIP
A/T<X9D> (B) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1107-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE SOU 		0-28650-825-0 03 1 1001-1105
80 BOLT; BATTERY CABLE CLIP
ZF9S1110 M/T(Y5E) (B) M8X25 FLANGE SOU 		0-28650-825-0 03 1 1106-
225 BLOCK; TERMINAL 8-98029-689-0 01 1 1001-1502
225 BLOCK; TERMINAL 8-98294-524-0 01 1 1503-
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 1001-1502
226 NUT; FUSIBLE LINK
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1503-

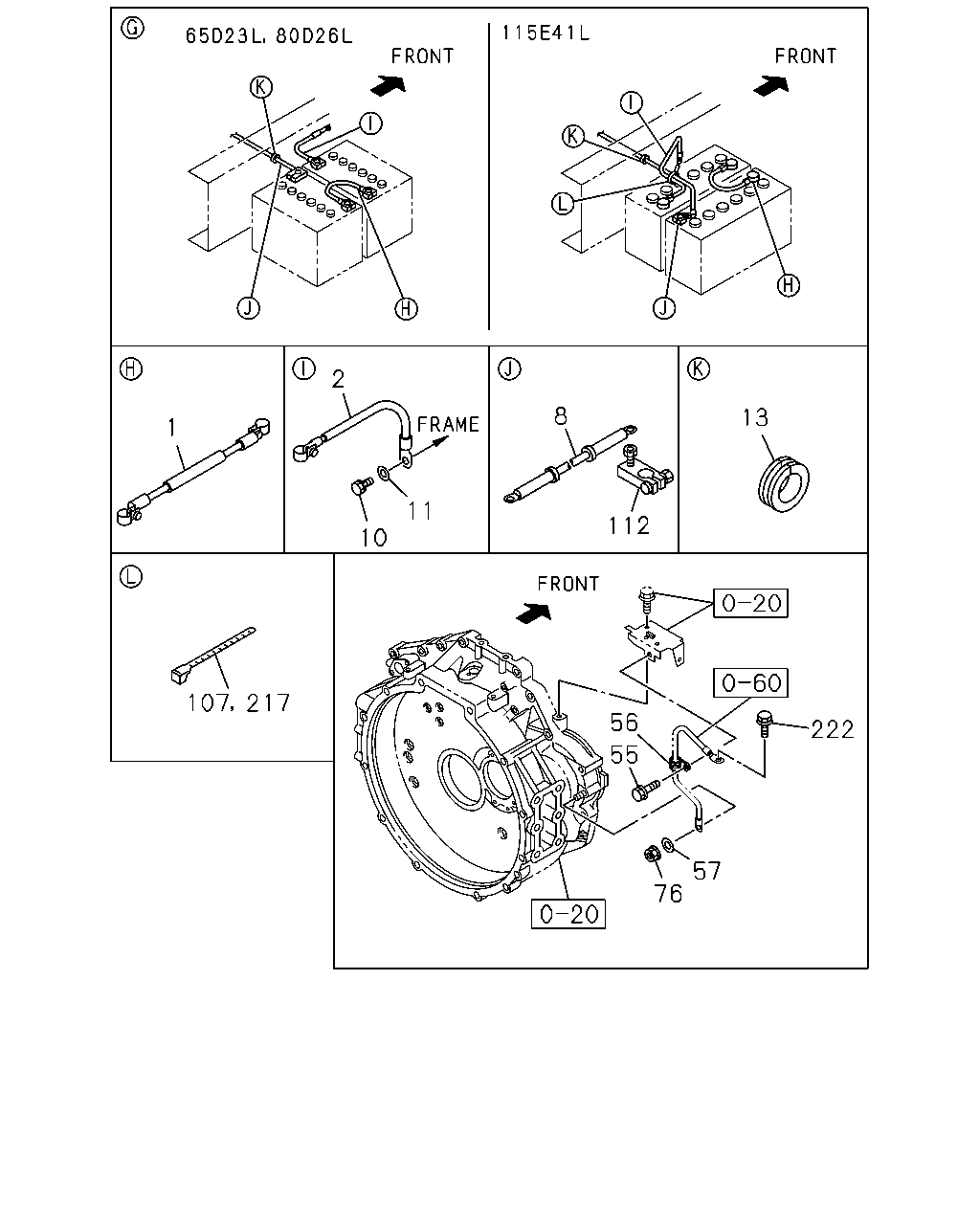

çizim 128369
2 8 13 1 11 112 10 107 217 56 222 55 57 76
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1001-
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=440 		8-97615-309-1 01 1 1001-
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280 		8-98035-647-1 01 1 1001-
8 CABLE; BATTERY,STARTER
ALLISON MD3560P A/T(Y3B) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2750 		8-98190-155-0 01 1 1107-1502
8 CABLE; BATTERY,STARTER
ALLISON MD3560P A/T(Y3B) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-574-0 01 1 1503-
8 CABLE; BATTERY,STARTER
ALLISON MD3560P A/T(Y3B) BATTERY 115E41L<8MA> L=2950 		8-98190-156-0 01 1 1107-1502
8 CABLE; BATTERY,STARTER
ALLISON MD3560P A/T(Y3B) BATTERY 115E41L<8MA> 		8-98295-575-0 01 1 1503-
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> VIN MODEL YEAR 2011<VZB> L=2770 		8-98174-091-0 01 1 1012-1102
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2770 		8-98174-091-0 01 1 1103-1502
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98295-570-0 01 1 1503-
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> BATTERY 115E41L<8MA> L=2970 		8-98174-097-0 01 1 1012-1102
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> L=2970 		8-98174-097-0 01 1 1103-1502
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> 		8-98295-571-0 01 1 1503-
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> L=3030 		8-98121-965-0 01 1 1001-1004
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> L=3030 		8-98159-431-0 01 1 1005-1011
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 115E41L<8MA> EXC. VIN MODEL YEAR 2011<VZB> L=3030 		8-98159-431-0 01 1 1012-1102
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2830 		8-98121-964-0 01 1 1001-1004
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2830 		8-98159-430-0 01 1 1005-1011
8 CABLE; BATTERY,STARTER
ZF9S1110 M/T(Y5E) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. VIN MODEL YEAR 2011<VZB> L=2830 		8-98159-430-0 01 1 1012-1102
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1001-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 SOU 		1-09503-265-0 01 1 1001-
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1001-
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE SOU 		0-28050-816-0 01 1 1001-
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 1001-
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1001-
76 NUT; BATTERY CABLE
M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
107 CLIP; BAND
L=140 SOU 		5-09707-031-1 01 1 1001-
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1001-1408
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409-
217 CLIP; BAND,CABLE
ALLISON MD3560P A/T(Y3B) L=250 SOU 		5-09707-030-1 01 1 1107-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1001-
