◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11165 - FTR SOUTH AFRICA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#20835) — 18 parça

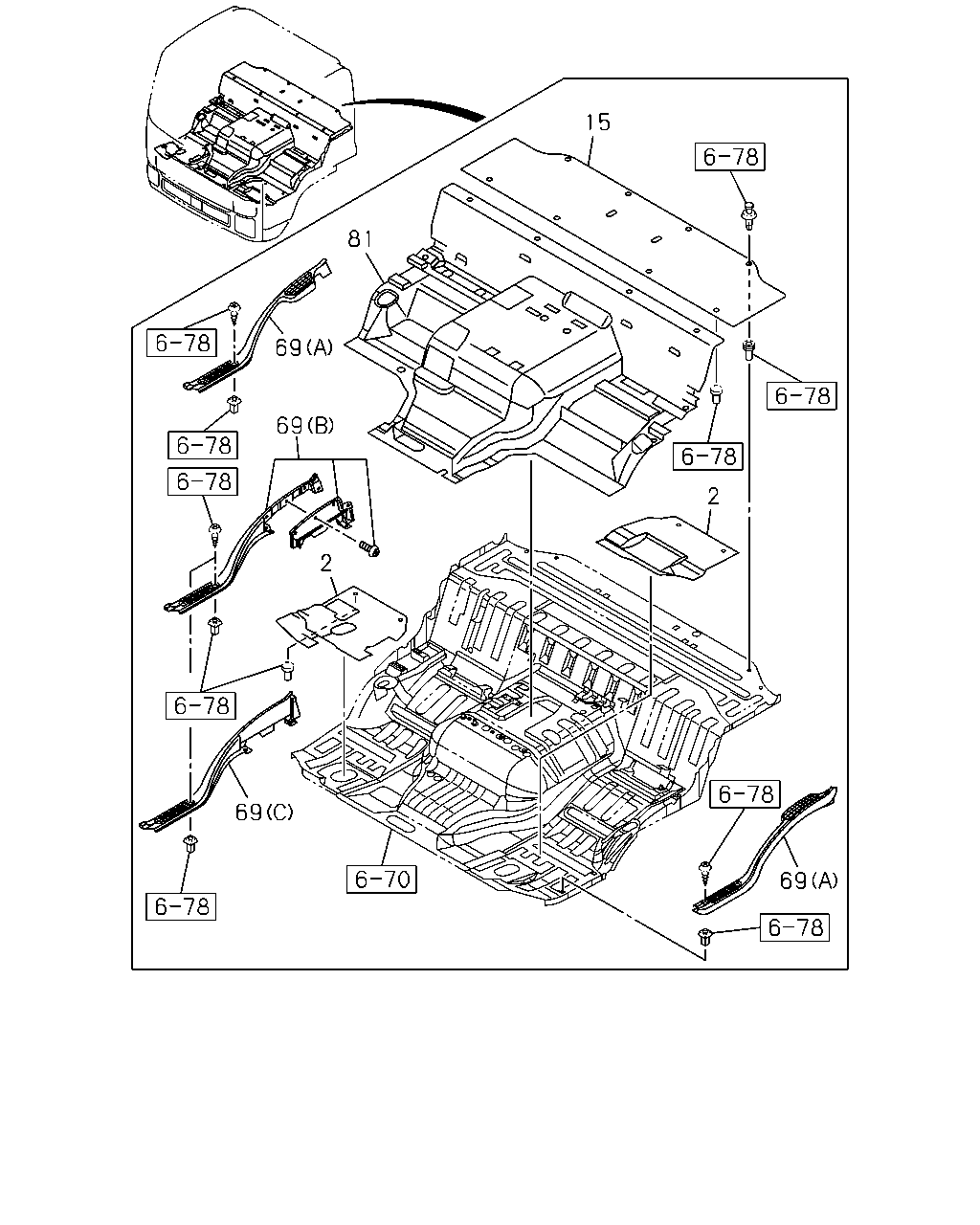

çizim 127555
2 69 69 2 69 69 81 15
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-750-4 01 1 1004-1005
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY 		8-97418-947-0 01 1 1006-
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-751-1 01 1 1004-1005
2 MAT; FLOOR
EXC. FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> DARK GRAY 		8-97418-949-0 01 1 1006-
2 MAT; FLOOR
GRAY 		8-97407-746-5 01 1 1001-1003
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-746-5 01 1 1004-
2 MAT; FLOOR
GRAY 		8-97407-747-2 01 1 1001-1003
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-747-2 01 1 1004-
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1004-
15 MAT; FLOOR REAR
EXC. FLOOR COVER VAR.2<EFK>,MATTRESS SLEEPER CAB<E40>,FLOOR COVER<6WX> GRAY 		8-97407-397-0 01 1 1004-1005
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 1001-1003
15 MAT; FLOOR REAR
FLOOR COVER<6WX> EXC. MATTRESS SLEEPER CAB<E40> GRAY 		8-97407-404-1 01 1 1004-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY 		8-97407-413-1 01 1 1001-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97407-414-3 01 1 1001-1503
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97465-138-0 01 1 1504-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (A) GRAY 		8-97407-412-1 01 1 1001-
81 MAT; FLOOR,CENTER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97411-647-3 01 1 1001-
81 MAT; FLOOR,CENTER
EXC. DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> GRAY 		8-97407-410-3 01 1 1001-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
