Sayfa 3-01 - Isuzu EPC

3-01 — FRONT WHEEL BRAKE (#2083) — 259 parça

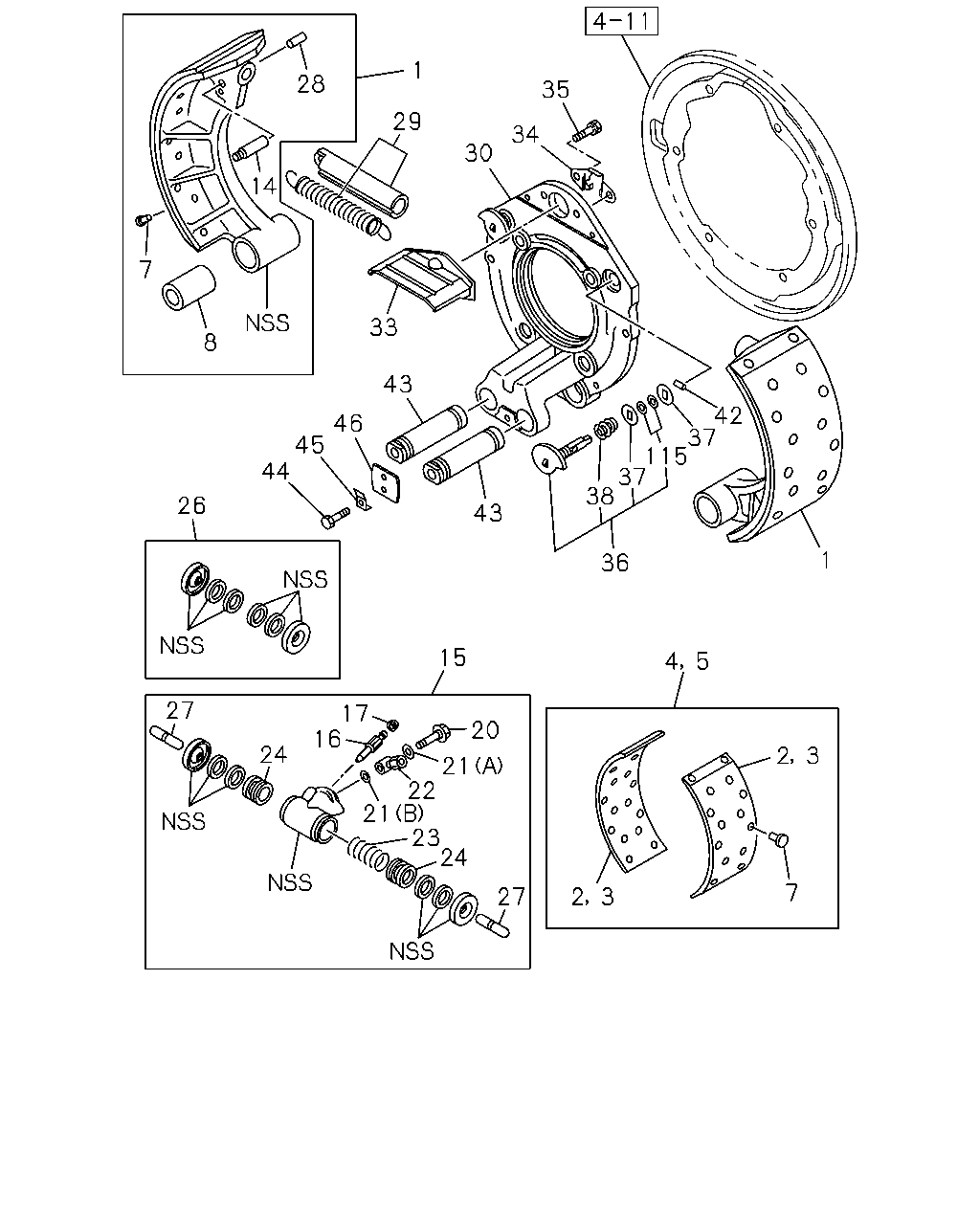

1 28 35 29 34 30 14 7 33 8 43 42 37 115 37 38 46 45 44 26 43 1 36 15 5 4 27 17 16 20 24 2 3 21 22 21 23 24 7 2 3 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT TRAILING	1-47110-941-0	01	1	9001-9204	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-941-0	01	1	9001-9204		●
1	SHOE; BRK,FRT TRAILING	1-47110-941-0	01	1	9205-0107	●	●
1	SHOE; BRK,FRT TRAILING	1-47170-107-0	01	1	0108-	●	●
1	SHOE; BRK,FRT LEADING	1-47110-943-0	01	1	9001-9204	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-943-0	01	1	9001-9204		●
1	SHOE; BRK,FRT LEADING	1-47110-943-0	01	1	9205-0107	●	●
1	SHOE; BRK,FRT LEADING	1-47170-109-0	01	1	0108-	●	●
1	SHOE; BRK,FRT LEADING	1-47110-940-0	01	1	9001-9204	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-940-0	01	1	9001-9204		●
1	SHOE; BRK,FRT LEADING	1-47110-940-0	01	1	9205-0107	●	●
1	SHOE; BRK,FRT LEADING	1-47170-106-0	01	1	0108-	●	●
1	SHOE; BRK,FRT TRAILING	1-47110-942-0	01	1	9001-9204	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-942-0	01	1	9001-9204		●
1	SHOE; BRK,FRT TRAILING	1-47110-942-0	01	1	9205-0107	●	●
1	SHOE; BRK,FRT TRAILING	1-47170-108-0	01	1	0108-	●	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47110-634-0	04	1	9001-9204		●
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47115-784-0	04	1	9001-9204	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-784-0	04	1	9001-9204		●
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47115-784-0	04	1	9205-0107	●	●
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47126-390-0	04	1	0108-	●	●
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47115-787-0	04	1	9001-9204	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-787-0	04	1	9001-9204		●
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47115-787-0	04	1	9205-0107	●	●
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47126-392-0	04	1	0108-	●	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47115-529-0	04	1	9001-9204		●
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47115-785-0	04	1	9001-9204	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-785-0	04	1	9001-9204		●
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47115-785-0	04	1	9205-0107	●	●
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47129-391-0	04	1	0108-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47115-788-0	04	1	9001-9204	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-788-0	04	1	9001-9204		●
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47115-788-0	04	1	9205-0107	●	●
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47129-393-0	04	1	0108-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47115-530-0	04	1	9001-9204		●
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-180-0	01	1	9001-9204	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-180-0	01	1	9001-9204		●
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-180-0	01	1	9205-0107	●	●
4	LINING SET; FRT BRK,STANDARD LEADING	1-88311-057-0	01	1	0108-	●	●
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88310-181-0	01	1	9001-9204	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-181-0	01	1	9001-9204		●
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88310-181-0	01	1	9205-0107	●	●
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88311-059-0	01	1	0108-	●	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-88302-711-0	01	1	9001-9204		●
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-182-0	01	1	9001-9204	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-182-0	01	1	9001-9204		●
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-182-0	01	1	9205-0107	●	●
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88311-058-0	01	1	0108-	●	●
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-183-0	01	1	9001-9204	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-183-0	01	1	9001-9204		●
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-183-0	01	1	9205-0107	●	●
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88311-060-0	01	1	0108-	●	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-88302-712-0	01	1	9001-9204		●
7	RIVET; LINING,FRT BRK	1-09732-008-0	80	1	9001-9204	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09732-008-0	80	1	9001-9204		●
7	RIVET; LINING,FRT BRK	1-09732-008-0	80	1	9205-	●	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-09871-026-0	72	1	9001-9204		●
8	BUSHING; BRK SHOE	1-47112-004-0	04	1	9001-	●	●
14	PIN; SHOE RETURN SPR	1-47118-046-0	04	1	9001-9204	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47118-046-0	04	1	9001-9204		●
14	PIN; SHOE RETURN SPR	1-47118-046-0	04	1	9205-	●	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47118-063-0	04	1	9001-9204		●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47600-013-2	01	1	9001-9204		●
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47600-012-2	01	1	9001-9204		●
16	SCREW; BLEEDER,FRT BRK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) L=66.5	1-47615-005-0	02	1	9001-9204		●
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) OD=9.5	9-47619-005-0	02	1	9001-9204		●
20	BOLT; JOINT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47634-006-0	02	1	9001-9204		●
21	GASKET; UNION BOLT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (A)	1-09630-019-0	02	1	9001-9204		●
21	GASKET; UNION BOLT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) (B)	9-09920-012-0	02	1	9001-9204		●
22	JOINT; PIPE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47631-015-1	02	1	9001-9204		●
23	SPRING; COIL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-09940-435-0	02	1	9001-9204		●
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-47624-211-0	04	1	9001-9204		●
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-87830-543-0	02	1	9001-9204		●
27	ROD; PUSH BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-47621-039-0	04	1	9001-9204		●
28	PIN; SHOE ADJ CAM GUIDE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47116-001-0	04	1	9001-9204		●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-103-0	02	1	9001-9204	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-103-0	02	1	9001-9204		●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-103-0	02	1	9205-	●	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-09583-096-0	02	1	9001-9204		●
30	BRACKET; ANCHOR,FRT	1-47137-079-1	01	1	9001-9204	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-079-1	01	1	9001-9204		●
30	BRACKET; ANCHOR,FRT	1-47137-079-1	01	1	9205-	●	●
30	BRACKET; ANCHOR,FRT	1-47137-078-1	01	1	9001-9204	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-078-1	01	1	9001-9204		●
30	BRACKET; ANCHOR,FRT	1-47137-078-1	01	1	9205-	●	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47137-088-0	02	1	9001-9204		●
33	COVER; WHEEL CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-47159-091-0	02	1	9001-9204		●
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47159-048-0	02	1	9001-9204		●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M12X32 W/LK WASHER	9-01931-232-0	04	1	9001-9005		●
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) M12X32 W/LK WASHER	0-50051-232-0	04	1	9006-9204		●
36	CAM ASM; ADJ BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) RH FRONT,LH REAR	1-47165-033-0	02	1	9001-9204		●
36	CAM ASM; ADJ BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) RH REAR,LH FRONT	1-47165-034-0	02	1	9001-9204		●
37	WASHER; ADJ CAM BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-09559-004-0	08	1	9001-9204		●
38	SPRING; ADJ CAM BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-09940-474-0	04	1	9001-9204		●
42	PIN; SPINDLE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47169-001-0	04	1	9001-9204		●
43	PIN; ANCHOR	1-47131-028-0	04	1	9001-	●	●
44	BOLT; LOCK,ANCHOR PIN M10X20	9-02041-020-0	02	1	9001-9204	●	●
44	BOLT; LOCK,ANCHOR PIN M10X20	0-20801-020-0	02	1	9205-	●	●
45	WASHER; LK	9-47133-030-0	02	1	9001-	●	●
46	PLATE; LOCK	9-47133-031-0	02	1	9001-9204	●
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47133-031-0	02	1	9001-9204		●
46	PLATE; LOCK	9-47133-031-0	02	1	9205-	●	●
46	PLATE; LOCK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47133-001-0	02	1	9001-9204		●
115	GASKET; ADJ CAM BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) ID=13.8	9-09561-114-0	08	1	9001-9204		●

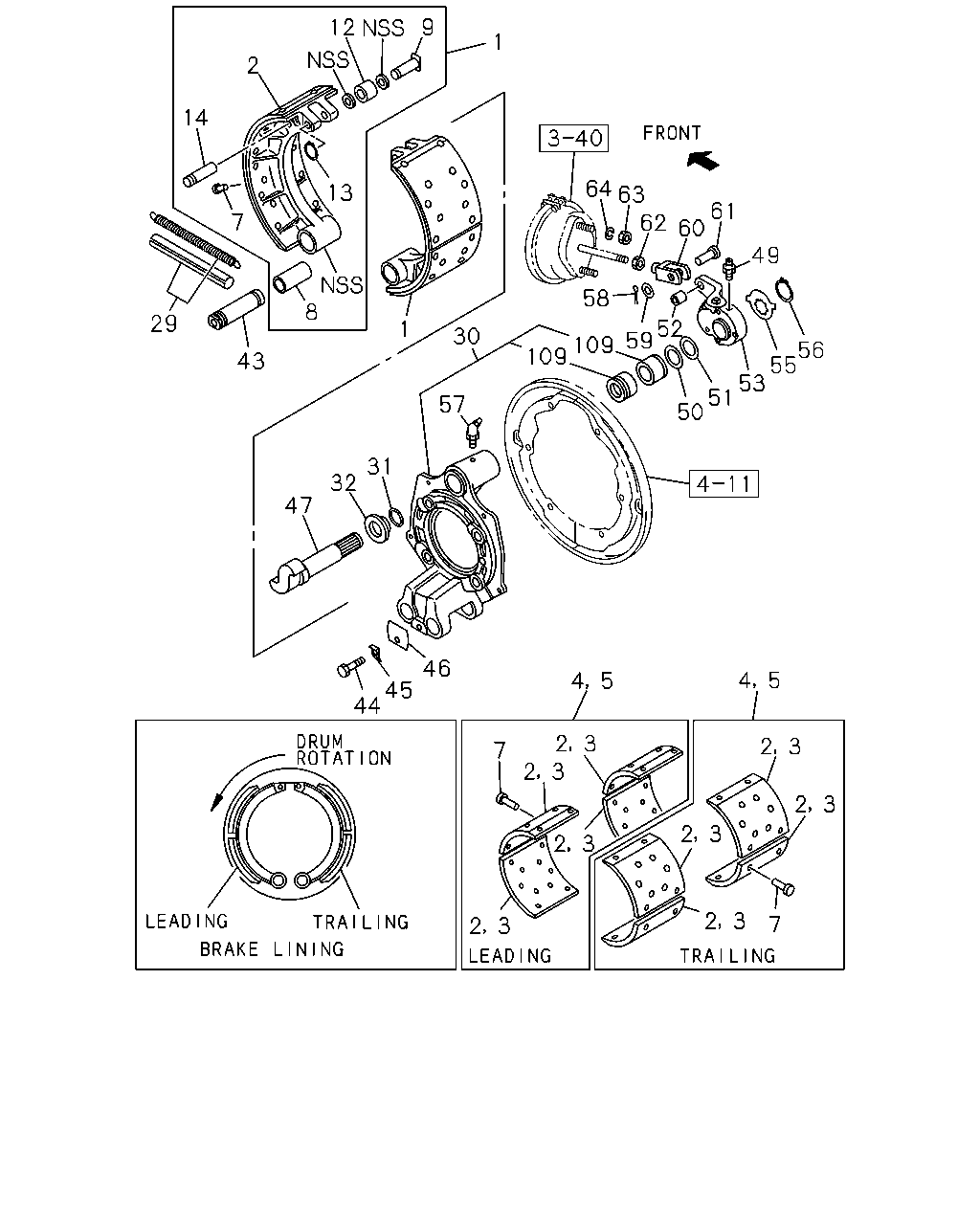

9 1 2 14 64 63 13 61 60 7 62 49 8 58 29 52 59 1 30 109 109 56 55 53 51 50 43 57 31 32 47 46 5 4 5 4 45 44 2 3 3 2 3 7 2 2 3 2 3 2 3 2 3 7 2 3 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT TRAILING	1-47110-941-0	01	1	9001-9204	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-941-0	01	1	9001-9204		●
1	SHOE; BRK,FRT TRAILING	1-47110-941-0	01	1	9205-0107	●	●
1	SHOE; BRK,FRT TRAILING	1-47170-107-0	01	1	0108-	●	●
1	SHOE; BRK,FRT LEADING	1-47110-943-0	01	1	9001-9204	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-943-0	01	1	9001-9204		●
1	SHOE; BRK,FRT LEADING	1-47110-943-0	01	1	9205-0107	●	●
1	SHOE; BRK,FRT LEADING	1-47170-109-0	01	1	0108-	●	●
1	SHOE; BRK,FRT LEADING	1-47110-940-0	01	1	9001-9204	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47110-940-0	01	1	9001-9204		●
1	SHOE; BRK,FRT LEADING	1-47110-940-0	01	1	9205-0107	●	●
1	SHOE; BRK,FRT LEADING	1-47170-106-0	01	1	0108-	●	●
1	SHOE; BRK,FRT TRAILING	1-47110-942-0	01	1	9001-9204	●
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47110-942-0	01	1	9001-9204		●
1	SHOE; BRK,FRT TRAILING	1-47110-942-0	01	1	9205-0107	●	●
1	SHOE; BRK,FRT TRAILING	1-47170-108-0	01	1	0108-	●	●
1	SHOE; BRK,FRT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47110-634-0	04	1	9001-9204		●
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47115-784-0	04	1	9001-9204	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-784-0	04	1	9001-9204		●
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47115-784-0	04	1	9205-0107	●	●
2	LINING; FRT BRK SHOE,STANDARD LEADING	1-47126-390-0	04	1	0108-	●	●
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47115-787-0	04	1	9001-9204	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-787-0	04	1	9001-9204		●
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47115-787-0	04	1	9205-0107	●	●
2	LINING; FRT BRK SHOE,STANDARD TRAILING	1-47126-392-0	04	1	0108-	●	●
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47115-529-0	04	1	9001-9204		●
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47115-785-0	04	1	9001-9204	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-47115-785-0	04	1	9001-9204		●
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47115-785-0	04	1	9205-0107	●	●
3	LINING; FRT BRK SHOE,OVER SIZE LEADING	1-47129-391-0	04	1	0108-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47115-788-0	04	1	9001-9204	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-47115-788-0	04	1	9001-9204		●
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47115-788-0	04	1	9205-0107	●	●
3	LINING; FRT BRK SHOE,OVER SIZE TRAILING	1-47129-393-0	04	1	0108-	●	●
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47115-530-0	04	1	9001-9204		●
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-180-0	01	1	9001-9204	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-180-0	01	1	9001-9204		●
4	LINING SET; FRT BRK,STANDARD LEADING	1-88310-180-0	01	1	9205-0107	●	●
4	LINING SET; FRT BRK,STANDARD LEADING	1-88311-057-0	01	1	0108-	●	●
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88310-181-0	01	1	9001-9204	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-181-0	01	1	9001-9204		●
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88310-181-0	01	1	9205-0107	●	●
4	LINING SET; FRT BRK,STANDARD TRAILING	1-88311-059-0	01	1	0108-	●	●
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-88302-711-0	01	1	9001-9204		●
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-182-0	01	1	9001-9204	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) LEADING	1-88310-182-0	01	1	9001-9204		●
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88310-182-0	01	1	9205-0107	●	●
5	LINING SET; FRT BRK,OVER SIZE LEADING	1-88311-058-0	01	1	0108-	●	●
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-183-0	01	1	9001-9204	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRAILING	1-88310-183-0	01	1	9001-9204		●
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88310-183-0	01	1	9205-0107	●	●
5	LINING SET; FRT BRK,OVER SIZE TRAILING	1-88311-060-0	01	1	0108-	●	●
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-88302-712-0	01	1	9001-9204		●
7	RIVET; LINING,FRT BRK	1-09732-008-0	80	1	9001-9204	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09732-008-0	80	1	9001-9204		●
7	RIVET; LINING,FRT BRK	1-09732-008-0	80	1	9205-	●	●
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	9-09871-026-0	72	1	9001-9204		●
8	BUSHING; BRK SHOE	1-47112-004-0	04	1	9001-	●	●
9	PIN; SHOE HOLDER	1-09744-024-0	04	1	9001-9204	●
9	PIN; SHOE HOLDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-024-0	04	1	9001-9204		●
9	PIN; SHOE HOLDER	1-09744-024-0	04	1	9205-	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-003-0	04	1	9001-9204	●
12	ROLLER; CAM,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47113-003-0	04	1	9001-9204		●
12	ROLLER; CAM,BRK SHOE	1-47113-003-0	04	1	9205-9702	●	●
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	9703-	●	●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9001-9204	●
13	CLIP; ROLLER PIN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47119-022-0	04	1	9001-9204		●
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9205-	●	●
14	PIN; SHOE RETURN SPR	1-47118-046-0	04	1	9001-9204	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47118-046-0	04	1	9001-9204		●
14	PIN; SHOE RETURN SPR	1-47118-046-0	04	1	9205-	●	●
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47118-063-0	04	1	9001-9204		●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-103-0	02	1	9001-9204	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-103-0	02	1	9001-9204		●
29	SPRING; RETURN,FRT BRK SHOE	1-09583-103-0	02	1	9205-	●	●
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-09583-096-0	02	1	9001-9204		●
30	BRACKET; ANCHOR,FRT	1-47137-079-1	01	1	9001-9204	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-079-1	01	1	9001-9204		●
30	BRACKET; ANCHOR,FRT	1-47137-079-1	01	1	9205-	●	●
30	BRACKET; ANCHOR,FRT	1-47137-078-1	01	1	9001-9204	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47137-078-1	01	1	9001-9204		●
30	BRACKET; ANCHOR,FRT	1-47137-078-1	01	1	9205-	●	●
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47137-088-0	02	1	9001-9204		●
31	SEAL; OIL,CM/SHF	9-09920-720-0	02	1	9001-9204	●
31	SEAL; OIL,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09920-720-0	02	1	9001-9204		●
31	SEAL; OIL,CM/SHF	9-09920-720-0	02	1	9205-	●	●
32	COVER; FELT RING	1-47139-001-0	02	1	9001-9204	●
32	COVER; FELT RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47139-001-0	02	1	9001-9204		●
32	COVER; FELT RING	1-47139-001-0	02	1	9205-	●	●
43	PIN; ANCHOR	1-47131-028-0	04	1	9001-	●	●
44	BOLT; LOCK,ANCHOR PIN M10X20	9-02041-020-0	02	1	9001-9204	●	●
44	BOLT; LOCK,ANCHOR PIN M10X20	0-20801-020-0	02	1	9205-	●	●
45	WASHER; LK	9-47133-030-0	02	1	9001-	●	●
46	PLATE; LOCK	9-47133-031-0	02	1	9001-9204	●
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-47133-031-0	02	1	9001-9204		●
46	PLATE; LOCK	9-47133-031-0	02	1	9205-	●	●
46	PLATE; LOCK BRAKE SYSTEM AIR DUAL CIRCUIT(Z04)	1-47133-001-0	02	1	9001-9204		●
47	CAMSHAFT; FRT BRK	1-47141-018-0	01	1	9001-9204	●
47	CAMSHAFT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-018-0	01	1	9001-9204		●
47	CAMSHAFT; FRT BRK	1-47141-018-0	01	1	9205-	●	●
47	CAMSHAFT; FRT BRK	1-47141-017-0	01	1	9001-9204	●
47	CAMSHAFT; FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47141-017-0	01	1	9001-9204		●
47	CAMSHAFT; FRT BRK	1-47141-017-0	01	1	9205-	●	●
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	02	1	9001-9204	●
49	NIPPLE; GREASE,SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 STRAIGHT	9-09031-010-0	02	1	9001-9204		●
49	NIPPLE; GREASE,SLACK ADJ PT1/8 STRAIGHT	9-09031-010-0	02	1	9205-	●	●
50	RING; FELT,CM/SHF	1-09620-005-0	02	1	9001-9204	●
50	RING; FELT,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09620-005-0	02	1	9001-9204		●
50	RING; FELT,CM/SHF	1-09620-005-0	02	1	9205-	●	●
51	COLLAR; RING,CM/SHF	1-47143-001-1	02	1	9001-9204	●
51	COLLAR; RING,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47143-001-1	02	1	9001-9204		●
51	COLLAR; RING,CM/SHF	1-47143-001-1	02	1	9205-	●	●
52	BUSHING; SLACK ADJ	9-48279-008-0	02	1	9001-9204	●
52	BUSHING; SLACK ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-48279-008-0	02	1	9001-9204		●
52	BUSHING; SLACK ADJ	9-48279-008-0	02	1	9205-	●	●
53	ADJUSTER ASM; SLACK	1-48270-036-1	01	1	9001-9204	●
53	ADJUSTER ASM; SLACK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-036-1	01	1	9001-9204		●
53	ADJUSTER ASM; SLACK	1-48270-036-1	01	1	9205-	●	●
53	ADJUSTER ASM; SLACK	1-48270-035-1	01	1	9001-9204	●
53	ADJUSTER ASM; SLACK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48270-035-1	01	1	9001-9204		●
53	ADJUSTER ASM; SLACK	1-48270-035-1	01	1	9205-	●	●
55	PLATE; STOPPER,CM/SHF	1-47149-010-0	02	1	9001-9204	●
55	PLATE; STOPPER,CM/SHF BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47149-010-0	02	1	9001-9204		●
55	PLATE; STOPPER,CM/SHF	1-47149-010-0	02	1	9205-	●	●
56	CLIP; ANCHOR PIN ID=37.0	9-09180-040-0	02	1	9001-9204	●
56	CLIP; ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=37.0	9-09180-040-0	02	1	9001-9204		●
56	CLIP; ANCHOR PIN ID=37.0	9-09180-040-0	02	1	9205-	●	●
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9001-9204	●
57	NIPPLE; GREASE,ANCHOR BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9001-9204		●
57	NIPPLE; GREASE,ANCHOR BRKT PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9205-	●	●
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	9001-9204	●
58	PIN; SPLIT,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=3.7 L=28	9-08114-028-0	02	1	9001-9204		●
58	PIN; SPLIT,JAW JOINT OD=3.7 L=28	9-08114-028-0	02	1	9205-	●	●
59	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	02	1	9001-9204	●
59	WASHER; PL,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=17	9-09160-516-0	02	1	9001-9204		●
59	WASHER; PL,JAW JOINT ID=17	9-09160-516-0	02	1	9205-9401	●	●
59	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9402-	●	●
60	JOINT; JAW,POWER CHAMBER	9-09883-073-0	02	1	9001-9204	●
60	JOINT; JAW,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-09883-073-0	02	1	9001-9204		●
60	JOINT; JAW,POWER CHAMBER	9-09883-073-1	02	1	9205-	●	●
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	9001-9204	●
61	PIN; JAW JOINT,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09744-088-0	02	1	9001-9204		●
61	PIN; JAW JOINT,POWER CHAMBER	1-09744-088-0	02	1	9205-	●	●
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9001-9204	●
62	NUT; LK,JAW JOINT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99111-416-0	02	1	9001-9204		●
62	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9205-	●	●
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	9001-9204	●
63	NUT; POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	9-99110-416-0	04	1	9001-9204		●
63	NUT; POWER CHAMBER M16	9-99110-416-0	04	1	9205-	●	●
64	WASHER; LK,POWER CHAMBER ID=16.2	9-09150-516-0	04	1	9001-9204	●
64	WASHER; LK,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	9-09150-516-0	04	1	9001-9204		●
64	WASHER; LK,POWER CHAMBER ID=16.2	9-09150-516-0	04	1	9205-	●	●
109	BUSHING; CM/SHF,FRT BRK	1-47146-002-0	04	1	9001-9204	●
109	BUSHING; CM/SHF,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47146-002-0	04	1	9001-9204		●
109	BUSHING; CM/SHF,FRT BRK	1-47146-002-0	04	1	9205-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
