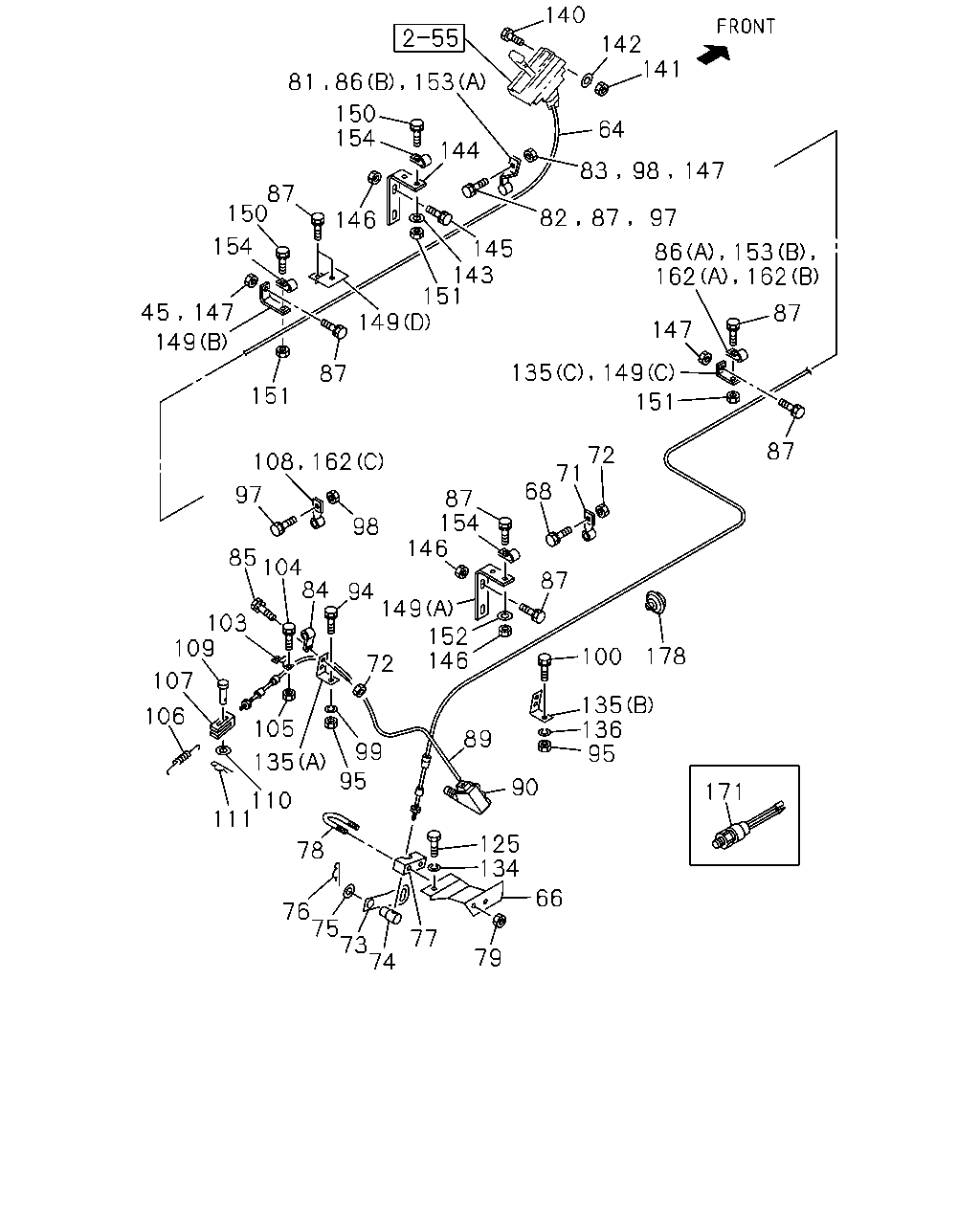

2-56 — AUTO TRANS CONTROL LINK (#2082) — 155 parça

140 142 141 81 86 153 150 154 64 144 83 98 147 87 150 82 87 97 146 154 145 143 151 149 86 153 162 162 45 147 87 147 149 135 149 87 151 151 87 72 71 68 108 162 97 87 154 146 98 85 104 84 87 94 149 152 146 103 109 178 100 72 107 135 136 95 106 105 89 99 135 95 90 171 110 111 125 134 78 66 76 75 73 74 77 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	CLIP; CONT CABLE ID=14.5	9-09916-724-1	01	1	9001-	●	●
64	CABLE; A/T CONT	1-34650-053-0	01	1	9001-9112	●	●
64	CABLE; A/T CONT WHEEL BASE 6600MM(66W)	1-34650-053-0	01	1	9201-	●	●
64	CABLE; A/T CONT WHEEL BASE 5800MM(58W)	1-34650-031-1	01	1	9201-	●	●
66	BRACKET; MTG,A/T CONT CABLE	1-34656-022-0	01	1	9001-	●	●
68	BOLT; A/T CONT CABLE M8X16 W/LK WASHER	9-01900-816-0	01	1	9001-9204	●	●
68	BOLT; A/T CONT CABLE M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-	●	●
71	CLIP; A/T CONT CABLE ID=11 L=35	9-09917-036-1	01	1	9001-	●	●
72	NUT; A/T CONT CABLE M6	9-09110-406-0	01	1	9001-	●	●
72	NUT; A/T CONT CABLE M8	9-09110-408-0	01	1	9001-	●	●
73	ARM; A/T	1-34651-005-0	01	1	9001-	●	●
74	TRUNNION; A/T CONT CABLE	1-34659-005-0	01	1	9001-	●	●
75	WASHER; PL,CONT CABLE TO A/T ID=8.4	9-09160-508-0	01	1	9001-	●	●
76	PIN; SNAP,A/T CONT L=27.7	1-09747-005-0	01	1	9001-	●	●
77	SHIM; A/T CONT CABLE	1-34659-008-0	01	1	9001-	●	●
78	U-BOLT; A/T CONT CABLE	1-34659-004-0	01	1	9001-	●	●
79	NUT; CONT CABLE	1-09487-013-0	02	1	9001-	●	●
81	CLIP; A/T CONT CABLE	9-09916-266-0	01	1	9001-	●	●
82	BOLT; A/T CONT CABLE M6X20 W/LK WASHER	9-01900-620-0	01	1	9001-9204	●	●
82	BOLT; A/T CONT CABLE M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9606	●	●
82	BOLT; A/T CONT CABLE M6X20 FLANGE	0-28680-620-0	01	1	9607-9704	●	●
82	BOLT; A/T CONT CABLE M6X25 FLANGE	0-28680-625-0	01	1	9705-	●	●
83	NUT; A/T CONT CABLE M6	9-09110-406-0	01	1	9001-9606	●	●
83	NUT; A/T CONT CABLE M6 FLANGE	0-91150-106-0	01	1	9607-	●	●
84	CLIP; A/T CONT CABLE ID=11 L=20	9-09525-032-0	02	1	9001-	●	●
85	BOLT; A/T CONT CABLE M6X16 W/LK WASHER	9-01910-616-0	02	1	9001-9005	●	●
85	BOLT; A/T CONT CABLE M6X16 W/LK WASHER	0-50040-616-0	02	1	9006-	●	●
86	CLIP; CONT CABLE,FRAME (A)	1-47465-590-1	02	1	9001-9112	●	●
86	CLIP; CONT CABLE,FRAME (A)	9-09916-893-1	02	1	9201-	●	●
86	CLIP; CONT CABLE,FRAME (B)	9-09916-266-0	05	1	9001-	●	●
87	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	03	1	9001-9204	●
87	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9606	●
87	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9607-	●
87	BOLT; CLIP M6X20 W/LK WASHER	9-01900-620-0	22	1	9001-9112	●	●
87	BOLT; CLIP M6X20 W/LK WASHER	9-01900-620-0	20	1	9201-9204	●	●
87	BOLT; CLIP M6X20 W/LK WASHER	0-50040-620-0	20	1	9205-9606	●	●
87	BOLT; CLIP M6X20 FLANGE	0-28680-620-0	20	1	9607-9704	●	●
87	BOLT; CLIP M6X25 FLANGE	0-28680-625-0	20	1	9705-	●	●
87	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	07	1	9001-9204	●	●
87	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	07	1	9205-9606	●	●
87	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	9607-	●	●
87	BOLT; CLIP M8X28 W/LK WASHER	9-01900-828-0	02	1	9001-9204	●	●
87	BOLT; CLIP M8X28 W/LK WASHER	0-50040-828-0	02	1	9205-9606	●	●
87	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●
89	CABLE; CONT	1-34650-019-0	01	1	9001-	●	●
90	ACTUATOR; THROTTLE WO/CABLE	1-34511-005-0	01	1	9001-	●	●
94	BOLT; CLIP 5/8"X30	1-09040-013-0	01	1	9001-	●	●
94	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9001-9204	●	●
94	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9606	●	●
94	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-	●	●
95	NUT; CLIP M8	9-09110-408-0	01	1	9001-9606	●	●
95	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
95	NUT; CLIP M12	9-99110-412-0	01	1	9001-	●	●
97	BOLT; CLIP M6X20 W/LK WASHER	9-01900-620-0	14	1	9001-9112	●	●
97	BOLT; CLIP M6X20 W/LK WASHER	9-01900-620-0	13	1	9201-9204	●	●
97	BOLT; CLIP M6X20 W/LK WASHER	0-50040-620-0	13	1	9205-9606	●	●
97	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9607-	●	●
97	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	01	1	9001-9204	●	●
97	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9606	●	●
97	BOLT; CLIP M6X20 FLANGE	0-28680-620-0	13	1	9607-9704	●	●
97	BOLT; CLIP M6X25 FLANGE	0-28680-625-0	13	1	9705-	●	●
97	BOLT; CLIP M6X16 W/LK WASHER	9-01910-616-0	02	1	9001-9005	●	●
97	BOLT; CLIP M6X16 W/LK WASHER	0-50040-616-0	02	1	9006-9606	●	●
97	BOLT; CLIP M6X16 FLANGE	0-28080-616-0	02	1	9607-	●	●
97	BOLT; CLIP WHEEL BASE 6600MM(66W) M6X20 W/LK WASHER	9-01900-620-0	01	1	9201-9204	●	●
97	BOLT; CLIP WHEEL BASE 6600MM(66W) M6X20 W/LK WASHER	0-50040-620-0	01	1	9205-9606	●	●
97	BOLT; CLIP WHEEL BASE 6600MM(66W) M6X20 FLANGE	0-28680-620-0	01	1	9607-9704	●	●
97	BOLT; CLIP WHEEL BASE 6600MM(66W) M6X25 FLANGE	0-28680-625-0	01	1	9705-	●	●
98	NUT; CLIP,THROTTLE CONT M6	9-09110-406-0	15	1	9001-9112	●	●
98	NUT; CLIP,THROTTLE CONT M6	9-09110-406-0	14	1	9201-9606	●	●
98	NUT; CLIP,THROTTLE CONT M6 FLANGE	0-91150-106-0	14	1	9607-	●	●
98	NUT; CLIP,THROTTLE CONT M8	9-09110-408-0	01	1	9001-9606	●	●
98	NUT; CLIP,THROTTLE CONT M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
98	NUT; CLIP,THROTTLE CONT WHEEL BASE 6600MM(66W) M6	9-09110-406-0	01	1	9201-9606	●	●
98	NUT; CLIP,THROTTLE CONT WHEEL BASE 6600MM(66W) M6 FLANGE	0-91150-106-0	01	1	9607-	●	●
99	WASHER; LK,BRKT ID=16.2	9-09150-516-0	01	1	9001-9312	●	●
100	BOLT; BRKT FIX M8X20 W/LK WASHER	9-01900-820-0	01	1	9001-9204	●	●
100	BOLT; BRKT FIX M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9606	●	●
100	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	01	1	9607-	●	●
100	BOLT; BRKT FIX M12X40	9-01961-240-0	01	1	9001-9204	●	●
100	BOLT; BRKT FIX M12X40 W/LK&PL WASHER	0-50141-240-0	01	1	9205-	●	●
103	CLIP; WIRE END	1-09709-052-0	02	1	9001-	●	●
104	BOLT; CLIP M6X16 W/LK WASHER	9-01910-616-0	04	1	9001-9005	●	●
104	BOLT; CLIP M6X16 W/LK WASHER	0-50040-616-0	04	1	9006-9606	●	●
104	BOLT; CLIP M6X16 FLANGE	0-28080-616-0	04	1	9607-	●	●
105	NUT; CLIP M6	9-09110-406-0	02	1	9001-9606	●	●
105	NUT; CLIP M6 FLANGE	0-91150-106-0	02	1	9607-	●	●
106	SPRING; RETURN,CONT CABLE	9-09742-149-0	02	1	9001-	●	●
107	JOINT; JAW,CONT CABLE	1-09768-031-1	01	1	9001-9112	●	●
107	JOINT; JAW,CONT CABLE	1-09768-031-1	02	1	9201-	●	●
108	CLIP; BAND,A/T CONT CABLE ID=15 L=42	9-09716-203-1	01	1	9001-	●	●
109	PIN; CONT CABLE OD=6 L=20	9-08223-620-0	02	1	9001-	●	●
110	WASHER; PL,CONT CABLE ID=6.4	9-09160-506-0	02	1	9001-	●	●
111	PIN; SNAP,CONT CABLE L=21.2	1-09747-003-0	02	1	9001-	●	●
125	BOLT; BRKT M16X28	9-92041-628-0	01	1	9001-9204	●	●
125	BOLT; BRKT M16X28	0-20801-628-0	01	1	9205-9606	●	●
125	BOLT; BRKT M16X30	0-28081-630-0	01	1	9607-9608	●	●
125	BOLT; BRKT M16X30	0-20801-630-0	01	1	9609-	●	●
134	WASHER; LK,BRKT ID=16.2	9-09150-616-0	01	1	9001-9606	●	●
135	BRACKET; CLIP (B)	1-47465-644-0	01	1	9001-	●	●
135	BRACKET; CLIP (A)	1-47475-059-0	01	1	9001-	●	●
135	BRACKET; CLIP (C)	1-47465-590-1	02	1	9201-	●	●
136	WASHER; PL,BRKT ID=8	9-09160-608-0	01	1	9001-9606	●	●
136	WASHER; PL,BRKT ID=12.5 OD=26	9-09160-612-0	01	1	9001-	●	●
140	BOLT; SHIFT LEVER	9-09820-118-0	04	1	9001-9204	●	●
140	BOLT; SHIFT LEVER M6X16	1-09981-497-0	04	1	9205-9801	●	●
140	BOLT; SHIFT LEVER M6X13	1-09981-540-0	04	1	9802-	●	●
141	NUT; SHIFT LEVER M8	9-09110-408-0	04	1	9001-9606	●	●
141	NUT; SHIFT LEVER M8 FLANGE	0-91150-108-0	04	1	9607-	●	●
142	WASHER; PL,SHIFT LEVER ID=6.4 OD=14	9-09160-606-0	04	1	9001-9606	●	●
143	WASHER; PL,CLIP ID=8.4 OD=18	9-09160-608-0	01	1	9001-9606	●	●
144	BRACKET; CLIP,CONT CABLE,C/MBR	1-22131-143-0	02	1	9001-	●	●
145	BOLT; BRKT M8X28 W/LK WASHER	9-01900-828-0	04	1	9001-9204	●	●
145	BOLT; BRKT M8X28 W/LK WASHER	0-50040-828-0	04	1	9205-9606	●	●
145	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-	●	●
145	BOLT; BRKT M6X20 W/LK WASHER	9-01900-620-0	02	1	9201-9204	●	●
145	BOLT; BRKT M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-9606	●	●
145	BOLT; BRKT M6X20 FLANGE	0-28680-620-0	02	1	9607-9704	●	●
145	BOLT; BRKT M6X25 FLANGE	0-28680-625-0	02	1	9705-	●	●
146	NUT; BRKT M8	9-09110-408-0	11	1	9001-9606	●	●
146	NUT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9607-	●	●
146	NUT; BRKT M10	9-09110-510-0	01	1	9308-9606	●	●
146	NUT; BRKT M8 FLANGE	0-91150-108-0	09	1	9607-	●	●
146	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	9607-	●	●
147	NUT; CLIP M8	9-09110-408-0	03	1	9001-9606	●
147	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9607-	●
147	NUT; CLIP M6	9-09110-406-0	08	1	9001-9606	●	●
147	NUT; CLIP M6 FLANGE	0-91150-106-0	08	1	9607-	●	●
147	NUT; CLIP M8	9-09110-408-0	02	1	9001-9606	●	●
147	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
149	BRACKET; CLIP,CONT CABLE,FRAME (B)	1-34656-011-0	03	1	9001-	●
149	BRACKET; CLIP,CONT CABLE,FRAME (A)	1-22131-143-0	01	1	9001-	●	●
149	BRACKET; CLIP,CONT CABLE,FRAME (B)	1-34656-011-0	02	1	9001-	●	●
149	BRACKET; CLIP,CONT CABLE,FRAME (D)	1-47465-168-1	02	1	9001-	●	●
149	BRACKET; CLIP,CONT CABLE,FRAME (C)	1-47465-590-1	11	1	9001-	●	●
150	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	03	1	9001-9204	●	●
150	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9606	●	●
150	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	03	1	9607-	●	●
151	NUT; BRKT M6	9-09110-406-0	12	1	9001-9112	●	●
151	NUT; BRKT M6	9-09110-406-0	14	1	9201-9606	●	●
151	NUT; BRKT M6 FLANGE	0-91150-106-0	14	1	9607-	●	●
151	NUT; BRKT M8	9-09110-408-0	03	1	9001-9606	●	●
151	NUT; BRKT M8 FLANGE	0-91150-108-0	05	1	9607-	●	●
152	WASHER; PL,CLIP ID=8.4 OD=18	9-09160-608-0	02	1	9001-9606	●	●
153	CLIP; CABLE,S/MBR (A)	9-09916-266-0	03	1	9001-9112	●	●
153	CLIP; CABLE,S/MBR (A)	9-09916-266-0	02	1	9201-	●	●
153	CLIP; CABLE,S/MBR (B)	9-09916-893-1	04	1	9001-	●	●
153	CLIP; CABLE,S/MBR WHEEL BASE 6600MM(66W) (A)	9-09916-266-0	01	1	9201-	●	●
154	CLIP; CABLE,BRKT,S/ABS ID=14.5	9-09916-724-1	06	1	9001-	●	●
162	CLIP; THROTTLE CABLE (A) ID=11 L=20	9-09525-032-0	02	1	9001-	●	●
162	CLIP; THROTTLE CABLE (B) ID=14.5 L=30	9-09916-893-0	11	1	9001-9112	●	●
162	CLIP; THROTTLE CABLE (B) ID=14.5 L=30	9-09916-893-1	09	1	9201-	●	●
162	CLIP; THROTTLE CABLE (C) ID=11 L=35	9-09917-036-1	01	1	9001-	●	●
171	SWITCH; LOCKUP	1-82410-128-0	01	1	9201-	●	●
178	GROMMET; CONT CABLE	8-94202-821-0	01	1	9001-	●	●
