5-01 — FRAME AND OTHER PARTS
(#20816) — 51 parça
Tümü
A - WHEEL BASE 3900MM
B - WHEEL BASE 5500MM
C - WHEEL BASE 6000MM
◀

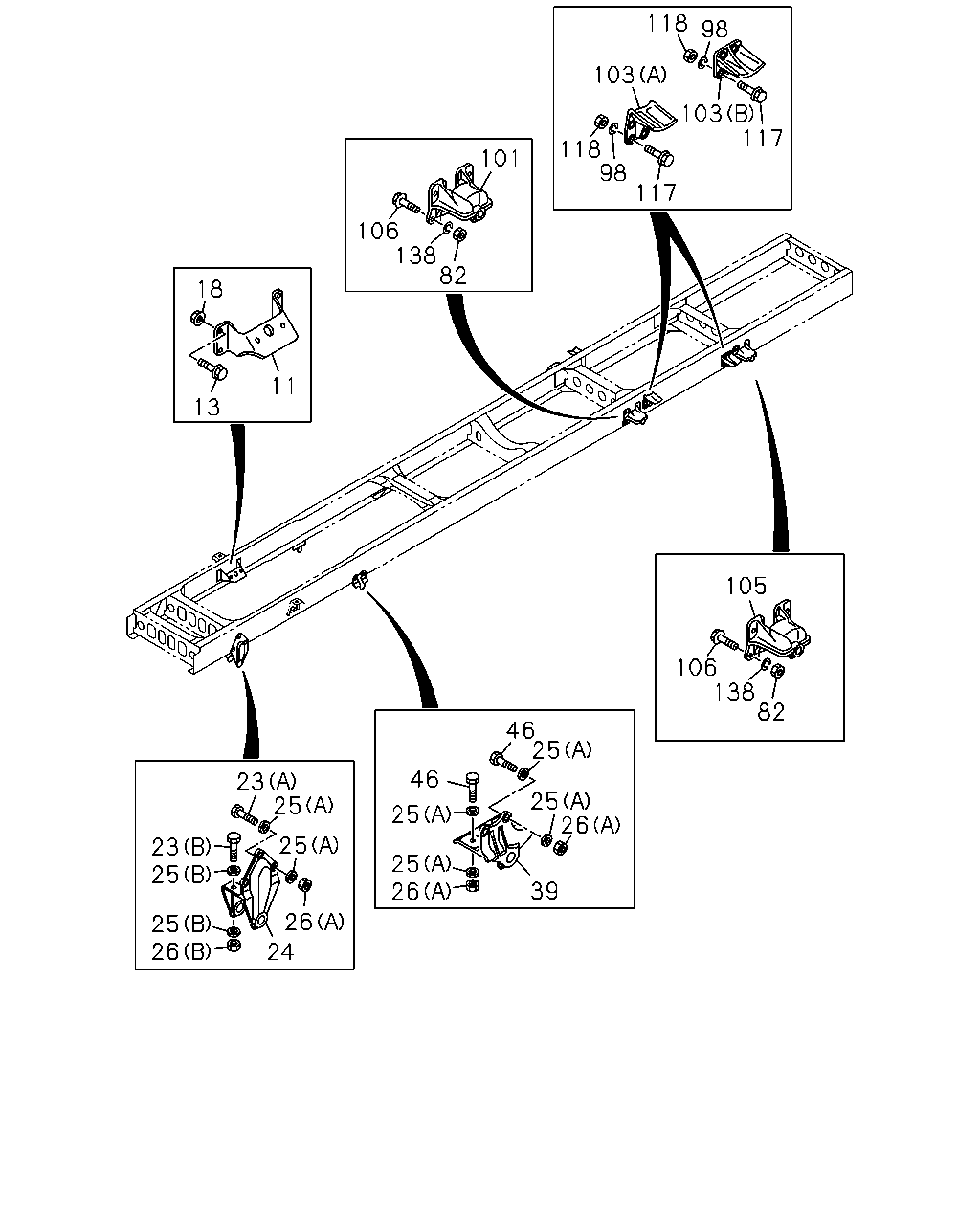

[501A] BRACKET AND OTHER PARTS (24 parça)
[501A] CROSS MEMBER (27 parça)
▶
118
98
103
103
117
118
98
101
117
106
138
82
18
11
13
105
106
138
82
46
25
46
23
25
25
25
26
25
23
25
25
26
39
26
25
26
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
11
BRACKET; ENG MTG
8-97619-549-0
02
1
1001-
●
●
●
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE SOU
0-28661-235-0
08
1
1001-
●
●
●
18
NUT; BRKT,ENG MTG
M12 FLANGE SOU
0-91180-212-0
08
1
1001-
●
●
●
23
BOLT; BRKT,SPR
(A) M14X50 SOU
0-20951-450-0
06
1
1001-
●
●
●
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1001-
●
●
●
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
1001-
●
●
●
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
1001-
●
●
●
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1001-
●
●
●
25
WASHER; PL,BRKT
(A) ID=15 SOU
8-98010-627-1
28
1
1001-
●
●
●
26
NUT; BRKT,SPR
(A) M14 SOU
0-91110-514-0
14
1
1001-
●
●
●
26
NUT; BRKT,SPR
(B) M16 SOU
0-91110-516-0
04
1
1001-
●
●
●
39
BRACKET; FRT SPR,RR
8-98043-648-0
01
1
1001-
●
●
●
39
BRACKET; FRT SPR,RR
8-98043-649-0
01
1
1001-
●
●
●
46
BOLT; BRKT FIX
M14X50 SOU
0-20951-450-0
08
1
1001-
●
●
●
82
NUT; BRKT
M14 SOU
0-91110-514-0
20
1
1001-
●
●
●
98
WASHER; LK,STOPPER
ID=14.2 SOU
0-91510-814-0
16
1
1001-
●
●
●
101
BRACKET; RR SPR,FRT
SOU
1-53353-072-1
02
1
1001-
●
●
●
103
STOPPER; SUB SPR
(A)
1-53356-038-1
02
1
1001-
●
●
●
103
STOPPER; SUB SPR
(B)
1-53357-029-1
02
1
1001-
●
●
●
105
BRACKET; RR SPR,RR
SOU
1-53353-072-1
02
1
1001-
●
●
●
106
BOLT; BRKT
M14X50 SOU
0-20951-450-0
20
1
1001-
●
●
●
117
BOLT; STOPPER
M14X50 SOU
0-20951-450-0
16
1
1001-
●
●
●
118
NUT; STOPPER
M14 SOU
0-91110-514-0
16
1
1001-
●
●
●
138
WASHER; LK,BRKT
ID=14.2 SOU
0-91510-814-0
20
1
1001-
●
●
●
8
544
8
544
2
148
148
19
33
33
202
202
34
130
132
131
344
207
207
69
69
69
69
86
69
69
57
69
69
8
544
544
8
2
148
148
34
202
202
207
207
344
130
131
132
33
19
33
545
345
545
545
545
69
57
69
69
69
69
86
69
69
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
MEMBER; CROSS,1ST
8-97610-852-7
01
1
1001-
●
●
●
8
GUSSET; 1ST C/MBR
SOU
8-97611-027-0
02
1
1001-
●
●
●
19
MEMBER; CROSS,2ND
8-97610-853-5
01
1
1001-
●
●
●
33
SPACER; 2ND C/MBR,UPR
SOU
8-97611-040-0
02
1
1001-
●
●
●
34
MEMBER; CROSS,3RD
SOU
8-97610-854-2
01
1
1001-
●
●
●
57
MEMBER; CROSS,RR SUSP FRT
SOU
8-97610-858-5
01
1
1001-
●
●
●
69
GUSSET; RR SUSP,UPR
(B) SOU
8-97610-865-0
02
1
1001-
●
●
●
69
GUSSET; RR SUSP,UPR
(D) SOU
8-97610-866-0
02
1
1001-
●
●
●
69
GUSSET; RR SUSP,UPR
(A) SOU
8-97612-265-1
01
1
1001-
●
●
●
69
GUSSET; RR SUSP,UPR
(C) SOU
8-97612-267-1
01
1
1001-
●
●
●
69
GUSSET; RR SUSP,UPR
(A) SOU
8-97612-264-0
01
1
1001-
●
●
●
69
GUSSET; RR SUSP,UPR
(C) SOU
8-97612-266-1
01
1
1001-
●
●
●
86
MEMBER; CROSS,RR SUSP RR
SOU
8-97610-858-5
01
1
1001-
●
●
●
130
MEMBER; CROSS,END
8-97610-869-1
01
1
1001-
●
●
●
131
BOLT; END C/MBR
M12X30 W/LK WASHER SOU
0-50541-230-0
04
1
1001-
●
●
●
132
NUT; END C/MBR
M12 SOU
0-91110-512-0
04
1
1001-
●
●
●
148
SPACER; C/MBR
8-97611-039-0
02
1
1001-
●
●
●
202
SPACER; 3RD C/MBR
SOU
8-97610-872-0
02
1
1001-
●
●
●
207
SPACER; 4TH C/MBR
SOU
8-97611-245-0
02
1
1001-
●
207
SPACER; 4TH C/MBR
SOU
8-97611-244-0
02
1
1001-
●
●
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
1001-
●
●
●
345
MEMBER; CROSS,5TH
8-97611-238-1
01
1
1001-
●
●
544
PLATE; CAB FRT MTG
SOU
8-97617-891-0
02
1
1001-
●
544
PLATE; CAB FRT MTG
SOU
8-97611-030-0
02
1
1001-
●
●
544
PLATE; CAB FRT MTG
SOU
8-97617-891-0
02
1
1001-
●
545
SPACER; 5TH C/MBR
(B) SOU
8-97611-244-0
02
1
1001-
●
545
SPACER; 5TH C/MBR
(A) SOU
8-97611-245-0
02
1
1001-
●
●
