◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11165 - FTR SOUTH AFRICA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#20815) — 31 parça

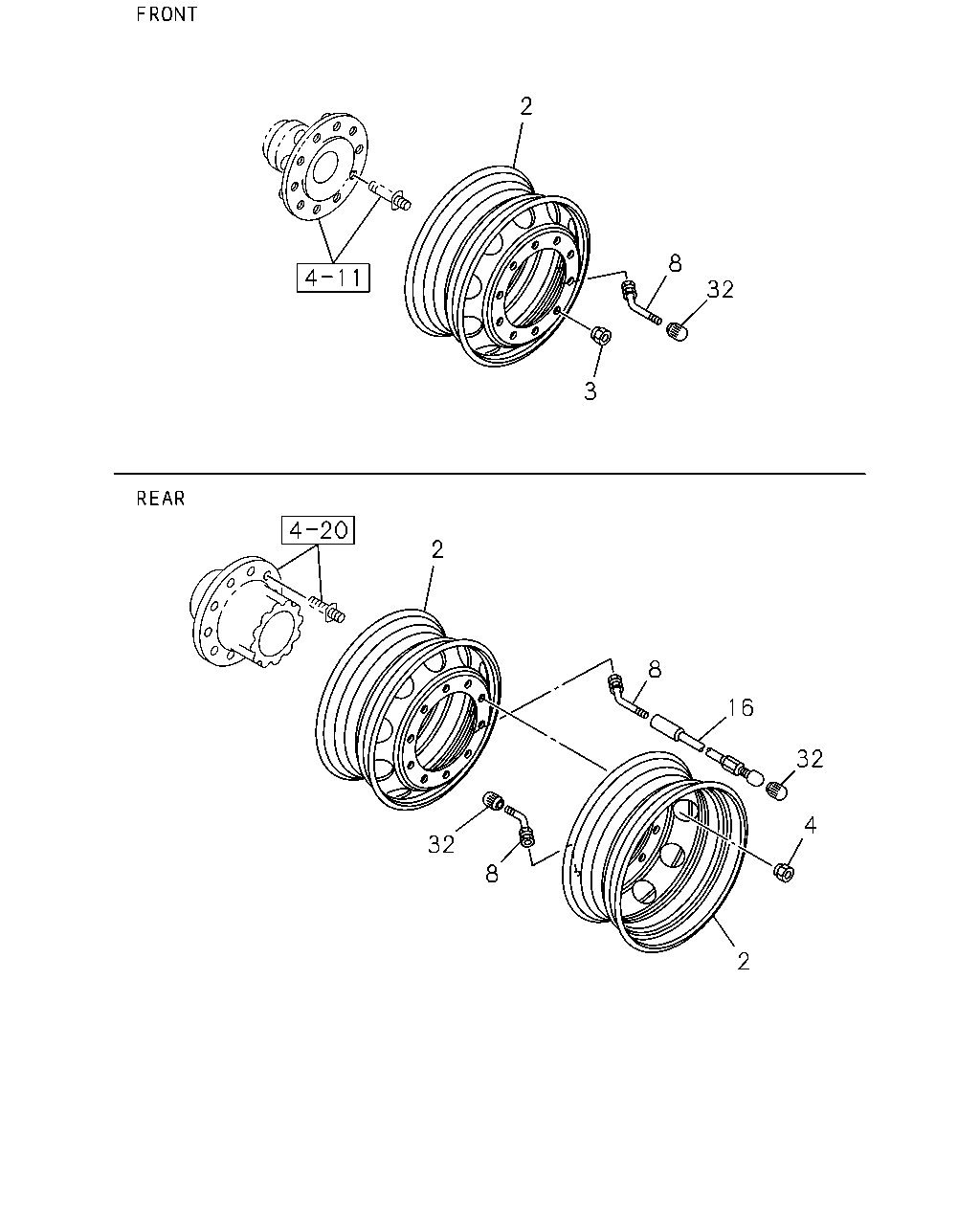

çizim 127509
2 8 32 3 2 8 16 32 4 32 8 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE 		1-42350-745-0 01 1 1001-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE SOU 		1-42350-730-0 01 1 1001-1205
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE SOU 		8-98217-247-0 01 1 1206-1407
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE SOU 		8-98281-497-0 01 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) FRONT 		1-42350-745-0 02 1 1001-
2 WHEEL; DISC
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) REAR 		1-42350-745-0 04 1 1001-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT SOU 		1-42350-730-0 02 1 1001-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT SOU 		8-98217-247-0 02 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT SOU 		8-98281-497-0 02 1 1408-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR SOU 		1-42350-730-0 04 1 1001-1205
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR SOU 		8-98217-247-0 04 1 1206-1407
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR SOU 		8-98281-497-0 04 1 1408-
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 1001-
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 20 1 1001-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE SOU 		1-42370-048-0 01 1 1206-1407
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE SOU 		1-42370-019-3 01 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT SOU 		1-42370-048-0 02 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT SOU 		1-42370-019-3 02 1 1408-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR SOU 		1-42370-048-0 04 1 1206-1407
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR SOU 		1-42370-019-3 04 1 1408-
8 VALVE; TIRE
FRONT SOU 		1-42370-020-3 02 1 1001-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) FRONT SOU 		1-42370-020-3 02 1 1206-
8 VALVE; TIRE
REAR SOU 		1-42370-020-3 04 1 1001-1205
8 VALVE; TIRE
DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) REAR SOU 		1-42370-020-3 04 1 1206-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> SPARE SOU 		1-42370-020-3 01 1 1001-1205
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE SOU 		1-42370-020-3 01 1 1206-
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 1001-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 SOU 		8-98167-052-0 02 1 1004-
32 CAP; VALVE
FRONT SOU 		1-42374-001-0 02 1 1001-
32 CAP; VALVE
REAR SOU 		1-42374-001-0 04 1 1001-
32 CAP; VALVE
DISC WHEEL SPARE<N79> SPARE SOU 		1-42374-001-0 01 1 1001-
