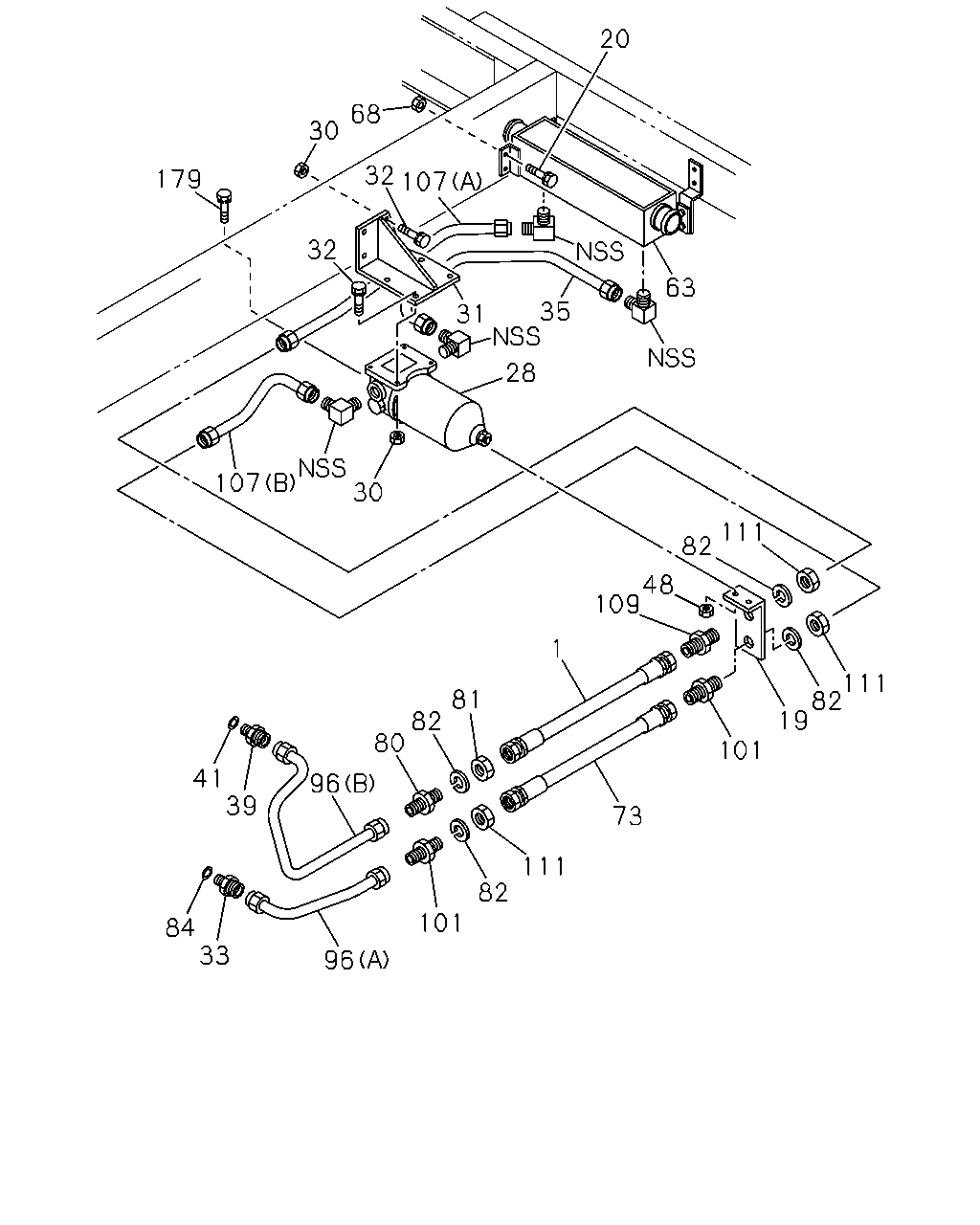

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#2080) — 37 parça
Tümü
A - MT643 A/T ALLISON
B - MT644 A/T ALLISON
20
68
30
32
107
179
32
63
35
31
28
107
30
111
82
48
109
1
111
82
19
81
82
80
101
41
39
96
73
111
82
101
84
33
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; ATF
1-09364-279-0
01
1
9001-
●
●
19
BRACKET; FLEX HOSE
1-32569-012-0
01
1
9001-
●
●
20
BOLT; COOLER TO BRKT
M12X30 W/LK WASHER
9-01911-230-0
06
1
9001-9005
●
●
20
BOLT; COOLER TO BRKT
M12X30 W/LK WASHER
0-50041-230-0
06
1
9006-9606
●
●
20
BOLT; COOLER TO BRKT
M12X30 FLANGE
0-28681-230-0
06
1
9607-
●
●
28
CARTRIDGE; OIL FILTER
1-13200-260-0
01
1
9001-
●
●
30
NUT; BRKT
M10
9-09110-510-0
08
1
9308-9606
●
●
30
NUT; BRKT
M10 FLANGE
0-91150-210-0
08
1
9607-
●
●
31
BRACKET; OIL FILTER
1-53497-005-1
01
1
9001-
●
●
32
BOLT; BRKT
M10X35 W/LK WASHER
9-01911-035-0
08
1
9001-9002
●
●
32
BOLT; BRKT
M10X35 W/LK WASHER
0-50041-035-0
08
1
9003-9606
●
●
32
BOLT; BRKT
M10X35 FLANGE
0-28681-035-0
08
1
9607-
●
●
33
UNION; OIL FILTER
1-09660-079-1
01
1
9001-
●
●
35
PIPE; OIL,OIL COOLER TO FILTER
1-21111-472-0
01
1
9001-
●
●
39
CONNECTOR; FLEX HOSE,A/T
1-09660-079-1
01
1
9001-
●
●
41
GASKET; FLEX HOSE,A/T
9-09920-642-0
01
1
9001-
●
●
48
NUT; BRKT
M10
9-09110-510-0
02
1
9308-9606
●
●
48
NUT; BRKT
M10 FLANGE
0-91150-210-0
02
1
9607-
●
●
63
COOLER; OIL
1-21400-206-2
01
1
9001-
●
●
68
NUT; COOLER
M12
9-99110-412-0
06
1
9001-9307
●
●
68
NUT; COOLER
M12
9-99110-512-0
06
1
9308-9606
●
●
68
NUT; COOLER
M12 FLANGE
0-91150-212-0
06
1
9607-
●
●
73
HOSE; FLEX,TRANS
1-09364-279-0
01
1
9001-
●
●
80
UNION; FLEX HOSE
1-09660-107-0
01
1
9001-
●
●
81
NUT; UNION
1-09400-023-0
01
1
9001-
●
●
82
WASHER; LK,UNION
1-09500-004-0
04
1
9001-
●
●
84
GASKET; OIL PIPE
9-09920-642-0
01
1
9001-
●
●
96
PIPE; OIL,A/T TO FLEX HOSE
(A)
1-21111-445-0
01
1
9001-
●
●
96
PIPE; OIL,A/T TO FLEX HOSE
(B)
1-21111-768-0
01
1
9001-
●
●
101
UNION; FLEX HOSE
1-09660-107-0
02
1
9001-
●
●
107
PIPE; OIL,COOLER TO FLEX HOSE
(A)
1-21111-442-0
01
1
9001-
●
●
107
PIPE; OIL,COOLER TO FLEX HOSE
(B)
1-21111-444-0
01
1
9001-
●
●
109
UNION
1-09660-107-0
01
1
9001-
●
●
111
NUT; UNION
1-09400-023-0
03
1
9001-
●
●
179
BOLT; BRKT
M10X25
9-01911-025-0
02
1
9001-9002
●
●
179
BOLT; BRKT
M10X25 W/LK WASHER
0-50041-025-0
02
1
9003-9606
●
●
179
BOLT; BRKT
M10X25 FLANGE
0-28681-025-0
02
1
9607-
●
●
