3-70 — BRAKE PIPING; AIR,AIR MASTER (#208) — 143 parça

358 359 64 75 358 359 75 170 113 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	PIPE; AIR WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550	1-47437-970-0	01	1	9212-9212
64	PIPE; AIR WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1347 SERVICED BY L=1550	1-47426-419-0	01	1	9301-
75	PIPE; AIR,JOINT TO SUB AIR TANK WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1833 SERVICED BY L=2100	1-47426-422-0	01	1	9212-
75	PIPE; AIR,JOINT TO SUB AIR TANK WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=888 SERVICED BY L=900	1-47426-413-0	01	1	9212-
75	PIPE; AIR,JOINT TO SUB AIR TANK WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1496 SERVICED BY L=1550	1-47437-970-0	01	1	9212-9212
75	PIPE; AIR,JOINT TO SUB AIR TANK WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1496 SERVICED BY L=1550	1-47426-419-0	01	1	9301-
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB FINAL GEAR 13.5"<B3Z> L=341	1-47492-423-0	01	1	9212-9212
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB FINAL GEAR 13.5"<B3Z> L=341	1-47498-513-0	01	1	9301-
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB FINAL GEAR 13.5"<B3Z> L=616 SERVICED BY L=730	1-47437-955-0	01	1	9212-9212
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB FINAL GEAR 13.5"<B3Z> L=616 SERVICED BY L=730	1-47426-382-0	01	1	9301-
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=409 SERVICED BY L=450	9-47415-379-0	01	1	9212-9212
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=568 SERVICED BY L=600	9-47415-382-0	01	1	9301-
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=568 SERVICED BY L=600	9-47415-382-0	01	1	9212-9212
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=409 SERVICED BY L=600	1-47426-379-0	01	1	9301-
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 SERVICED BY L=550	1-47437-953-0	01	1	9212-9212
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=501 SERVICED BY L=550	1-47426-377-0	01	1	9301-
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=692 SERVICED BY L=730	1-47437-955-0	01	1	9212-9212
113	PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=693 SERVICED BY L=730	1-47426-382-0	01	1	9301-
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47492-409-0	01	1	9212-
358	PIPE; AIR,AIR TANK TO AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=579 SERVICED BY L=600	1-47434-473-0	01	1	9212-9212
358	PIPE; AIR,AIR TANK TO AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=579 SERVICED BY L=600	1-47426-408-0	01	1	9301-
358	PIPE; AIR,AIR TANK TO AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=729 SERVICED BY L=800	1-47426-412-0	01	1	9212-
359	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=534	1-47494-899-0	01	1	9212-9212
359	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=534 SERVICED BY L=550	1-47426-407-0	01	1	9301-
359	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=267 SERVICED BY L=300	1-47426-402-0	01	1	9212-

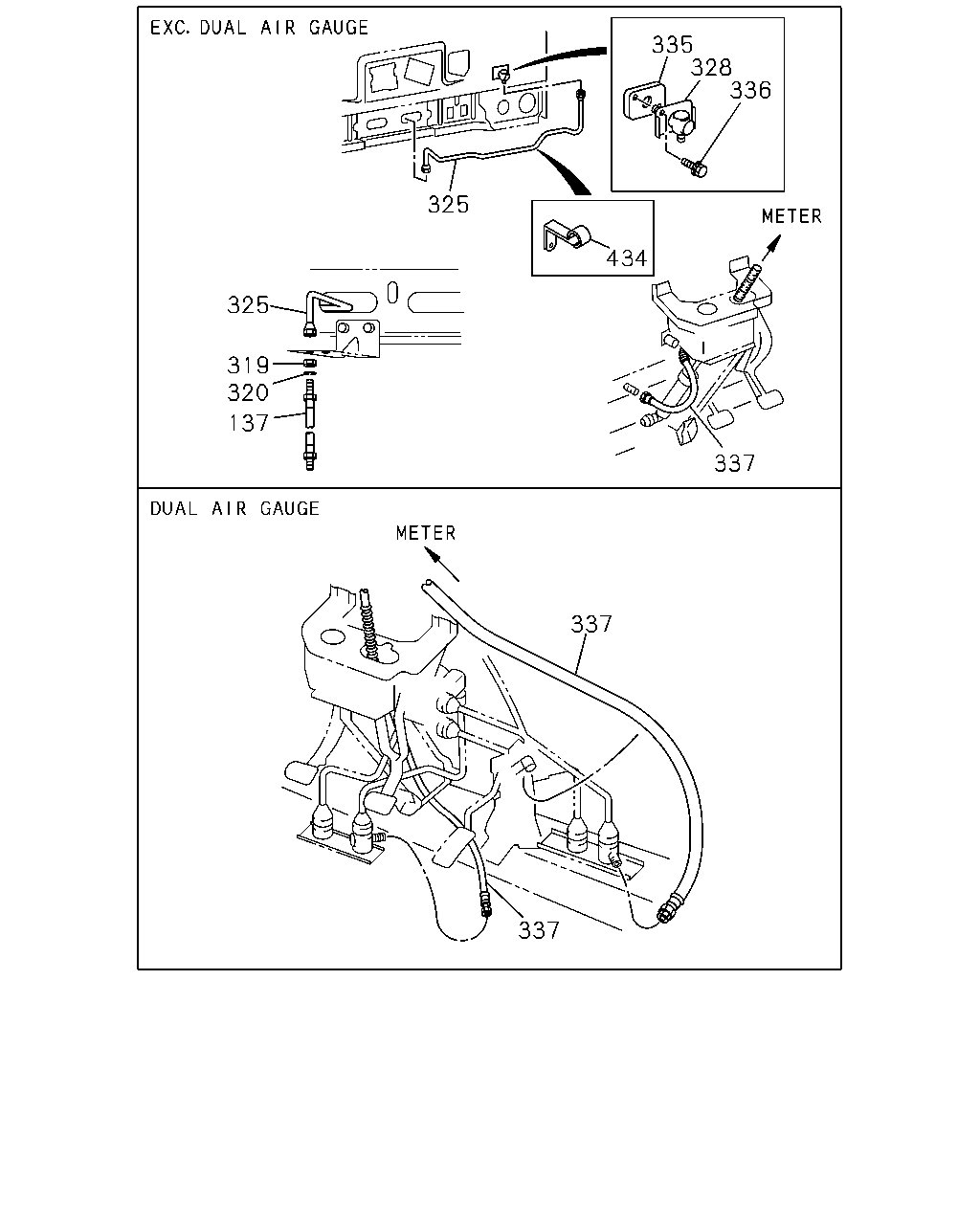

335 328 336 325 434 325 319 320 137 337 337 337

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. DUAL AIR GAUGE<UG2> L=410	0-07020-410-0	01	1	9212-
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> M10 H=8	1-09400-029-0	01	1	9212-
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9212-
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2> L=810	1-47483-116-0	01	1	9212-
328	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-194-1	01	1	9212-
335	SEAL; UNION EXC. DUAL AIR GAUGE<UG2>	1-79998-236-0	01	1	9212-
336	BOLT; PIPE UNION EXC. DUAL AIR GAUGE<UG2> M6X16 W/LK&PL WASHER	1-09980-458-0	02	1	9212-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=810	0-07210-810-0	01	1	9212-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=850	0-07210-850-0	01	1	9212-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=720	0-07210-720-0	01	1	9212-
434	CLIP EXC. DUAL AIR GAUGE<UG2> ID=13 H=50 L=25	1-09700-529-0	01	1	9212-

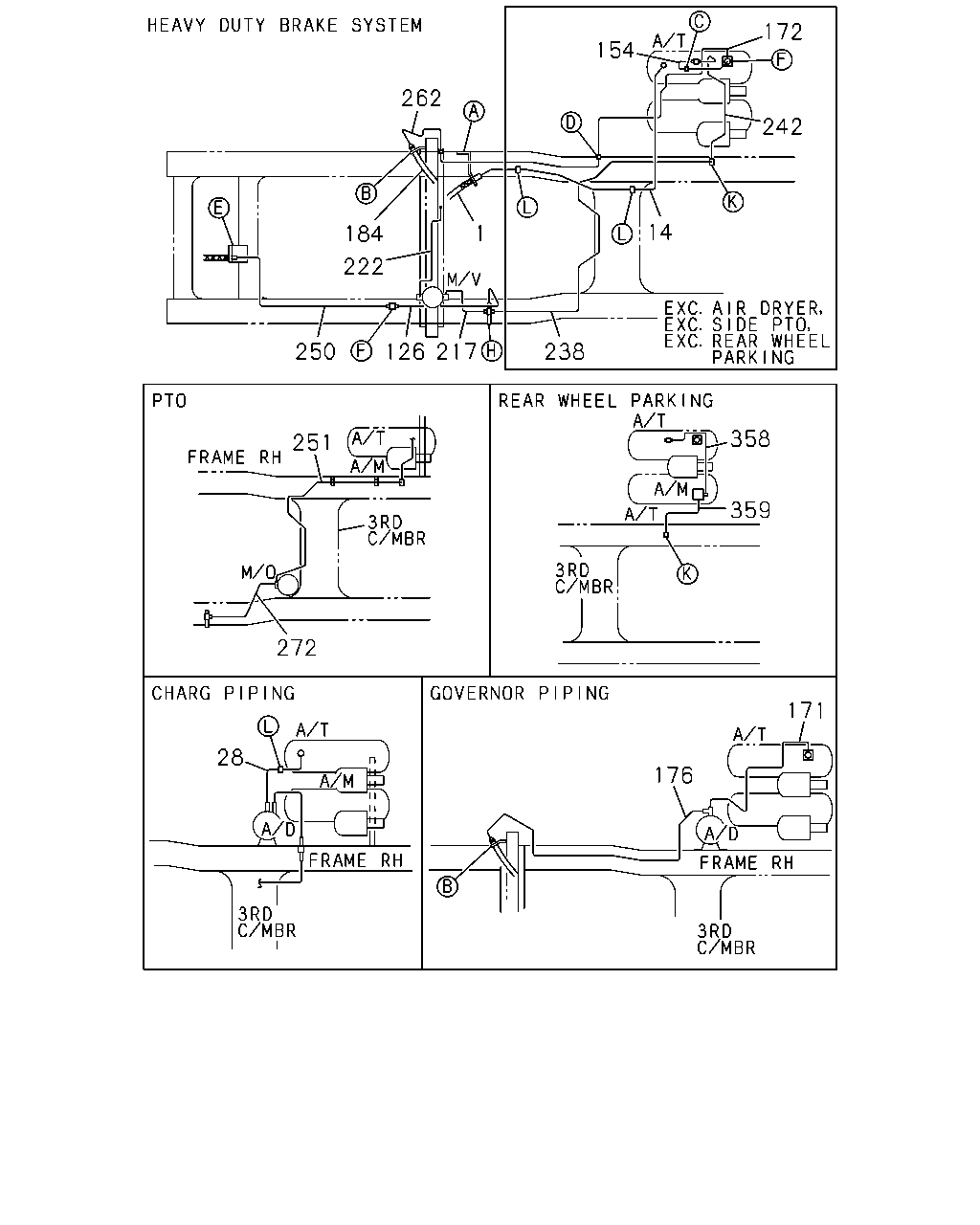

172 154 262 242 14 184 1 222 238 250 126 217 358 251 359 272 171 28 176

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	1-09363-505-0	01	1	9212-
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1880 SERVICED BY L=2000	1-49111-466-0	01	1	9212-
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=363	1-47488-449-0	01	1	9212-
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47492-367-0	01	1	9212-
14	PIPE; AIR,FLEX HOSE TO AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>	1-47496-332-0	01	1	9212-
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47496-368-0	01	1	9212-9212
28	PIPE; AIR,AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47499-570-0	01	1	9301-
126	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> L=795 SERVICED BY L=800	1-47434-384-0	01	1	9212-
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=450	1-47486-409-0	01	1	9212-
154	PIPE; AIR,AIR TANK TO AIR GOV EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=364	1-47484-734-0	01	1	9212-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47496-369-0	01	1	9212-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1146	1-47489-651-0	01	1	9212-
172	PIPE; AIR,GOV TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>	1-47495-514-0	01	1	9212-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47496-370-0	01	1	9212-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=627	1-47488-840-0	01	1	9212-
184	HOSE; FLEX,AIR GOV	1-09363-518-0	01	1	9212-
217	PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE<NF8>	1-47495-776-0	01	1	9212-
222	PIPE; AIR,MAG VLV TO FLEX HOSE EXHAUST BRAKE<NF8> CAB SUSPENSION SEMI FLOATING<SDK> L=1089 SERVICED BY L=1100	1-47434-387-0	01	1	9212-
222	PIPE; AIR,MAG VLV TO FLEX HOSE EXHAUST BRAKE<NF8> EXC. CAB SUSPENSION SEMI FLOATING<SDK> L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	9212-
238	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) HEAVY DUTY PACKAGE TRUCK<RD2> L=2353 SERVICED BY L=2500	1-47434-398-0	01	1	9212-
238	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2405 SERVICED BY L=2650	1-47434-399-0	01	1	9212-
238	PIPE; AIR,UNION TO UNION EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1346 SERVICED BY L=1370	1-47434-390-0	01	1	9212-
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1091 SERVICED BY L=1250	1-47437-968-0	01	1	9212-9212
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1091 SERVICED BY L=1250	1-47426-416-0	01	1	9301-9305
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1091 SERVICED BY L=1100	1-47426-415-0	01	1	9306-
242	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=685 SERVICED BY L=700	1-47426-410-0	01	1	9212-
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=1488 SERVICED BY L=1500	1-47434-391-0	01	1	9212-
251	PIPE; AIR,UNION TO MAG VLV HEAVY DUTY PACKAGE TRUCK<RD2> PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1935 SERVICED BY L=2200	1-47434-396-0	01	1	9212-
251	PIPE; AIR,UNION TO MAG VLV PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=1913 SERVICED BY L=2200	1-47434-396-0	01	1	9212-
251	PIPE; AIR,UNION TO MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=844 SERVICED BY L=900	1-47434-385-0	01	1	9212-
262	PIPE; AIR,UNION TO FLEX BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>	1-47496-373-0	01	1	9212-
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> L=389	1-47491-385-1	01	1	9212-
358	PIPE; AIR,AIR TANK TO AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=579 SERVICED BY L=600	1-47434-473-0	01	1	9212-9212
358	PIPE; AIR,AIR TANK TO AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=579 SERVICED BY L=600	1-47426-408-0	01	1	9301-
358	PIPE; AIR,AIR TANK TO AIR VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=729 SERVICED BY L=800	1-47426-412-0	01	1	9212-
359	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=534	1-47494-899-0	01	1	9212-9212
359	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=534 SERVICED BY L=550	1-47426-407-0	01	1	9301-
359	PIPE; AIR,AIR VLV TO UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=267 SERVICED BY L=300	1-47426-402-0	01	1	9212-

154 171 242 222 250 126 217 238 176 14 34 238 222 272 217

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1880 SERVICED BY L=2000	1-49111-466-0	01	1	9212-
14	PIPE; AIR,FLEX HOSE TO AIR TANK AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=363	1-47488-449-0	01	1	9212-
14	PIPE; AIR,FLEX HOSE TO AIR TANK EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47492-367-0	01	1	9212-
14	PIPE; AIR,FLEX HOSE TO AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>	1-47496-332-0	01	1	9212-
34	PIPE; AIR AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=591	1-47486-769-0	01	1	9212-9212
34	PIPE; AIR AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=591	1-47497-161-0	01	1	9301-
126	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> L=795 SERVICED BY L=800	1-47434-384-0	01	1	9212-
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=450	1-47486-409-0	01	1	9212-
154	PIPE; AIR,AIR TANK TO AIR GOV EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=364	1-47484-734-0	01	1	9212-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47496-369-0	01	1	9212-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1146	1-47489-651-0	01	1	9212-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47496-370-0	01	1	9212-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=627	1-47488-840-0	01	1	9212-
217	PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE<NF8>	1-47495-776-0	01	1	9212-
222	PIPE; AIR,MAG VLV TO FLEX HOSE EXHAUST BRAKE<NF8> CAB SUSPENSION SEMI FLOATING<SDK> L=1089 SERVICED BY L=1100	1-47434-387-0	01	1	9212-
222	PIPE; AIR,MAG VLV TO FLEX HOSE EXHAUST BRAKE<NF8> EXC. CAB SUSPENSION SEMI FLOATING<SDK> L=1078 SERVICED BY L=1100	1-47434-387-0	01	1	9212-
238	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) HEAVY DUTY PACKAGE TRUCK<RD2> L=2353 SERVICED BY L=2500	1-47434-398-0	01	1	9212-
238	PIPE; AIR,UNION TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> L=2405 SERVICED BY L=2650	1-47434-399-0	01	1	9212-
238	PIPE; AIR,UNION TO UNION EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=1346 SERVICED BY L=1370	1-47434-390-0	01	1	9212-
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1091 SERVICED BY L=1250	1-47437-968-0	01	1	9212-9212
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1091 SERVICED BY L=1250	1-47426-416-0	01	1	9301-9305
242	PIPE; AIR,AIR TANK TO UNION BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1091 SERVICED BY L=1100	1-47426-415-0	01	1	9306-
242	PIPE; AIR,AIR TANK TO UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=685 SERVICED BY L=700	1-47426-410-0	01	1	9212-
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=1488 SERVICED BY L=1500	1-47434-391-0	01	1	9212-
272	PIPE; AIR,MAG VLV TO UNION PTO CONTROL<SV6> L=389	1-47491-385-1	01	1	9212-

221 8 2 154 155 184 3 185 186 6 7 1 138 139 137 266 127 72 239 241 240 155 119 117 163 118 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	1-09363-505-0	01	1	9212-
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	01	1	9212-
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	01	1	9212-9312
6	BRACKET; FLEX HOSE,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53497-333-2	01	1	9212-
6	BRACKET; FLEX HOSE,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47476-423-3	01	1	9212-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X20 FLANGE	0-28080-820-0	02	1	9212-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9212-9302
8	NUT; BRKT,FLEX HOSE,AIR TANK HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9303-
72	UNION; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 L=42	9-09233-010-1	01	1	9212-
117	UNION; AIR PIPE EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M12 & M16 STRAIGHT	1-09654-314-1	01	1	9212-
117	UNION; AIR PIPE PTO CONTROL<SV6> DUAL AIR GAUGE<UG2> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M12 & M16 STRAIGHT	1-09654-314-1	01	1	9212-
117	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M12 & M16 STRAIGHT	1-09654-314-1	01	1	9212-
117	UNION; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-09654-293-1	01	1	9212-
117	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M12 & M16X2 3WAY	1-09654-086-1	01	1	9212-
117	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M12 & M16X2 3WAY	1-09654-086-1	01	1	9212-
117	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-09654-315-1	01	1	9212-
117	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8> (B)	1-09654-315-1	01	1	9212-
117	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16 ELBOW	9-09235-210-1	01	1	9212-
117	UNION; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> (A) M14 & M16 STRAIGHT	1-09654-316-1	01	1	9212-
118	NUT; UNION M16	9-99111-416-0	01	1	9212-
119	WASHER; LK,UNION ID=16.2	9-09150-516-0	01	1	9212-9312
127	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> M12 L=40	9-09223-006-1	01	1	9212-
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. DUAL AIR GAUGE<UG2> L=410	0-07020-410-0	01	1	9212-
138	NUT; FLEX HOSE,AIR GOV EXC. DUAL AIR GAUGE<UG2> M12	9-09840-280-0	01	1	9212-
139	WASHER; LK,FLEX HOSE,AIR GOV EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9212-9312
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=450	1-47486-409-0	01	1	9212-
154	PIPE; AIR,AIR TANK TO AIR GOV EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=364	1-47484-734-0	01	1	9212-
155	GASKET; AIR PIPE ID=11 OD=18	9-09572-510-0	02	1	9212-
163	BRACKET; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	01	1	9212-
163	BRACKET; AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	01	1	9212-
184	HOSE; FLEX,AIR GOV	1-09363-518-0	01	1	9212-
185	NUT; FLEX HOSE,AIR GOV M12	9-09840-280-0	01	1	9212-
186	WASHER; LK,FLEX HOSE,AIR GOV ID=12.2	9-09150-512-0	01	1	9212-9312
221	BOLT; BRKT WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9212-
221	BOLT; BRKT WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9212-
221	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9212-
239	UNION; AIR PIPE EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> M12 2WAY	1-09654-059-2	01	1	9212-
239	UNION; AIR PIPE EXHAUST BRAKE<NF8> EXC. DUAL AIR GAUGE<UG2> M12	9-09228-306-1	01	1	9212-
239	UNION; AIR PIPE EXC. EXHAUST BRAKE<NF8>,DUAL AIR GAUGE<UG2> M12 3WAY	1-09654-137-2	01	1	9212-
240	NUT; UNION,AIR PIPE EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> M12	9-99111-412-0	01	1	9212-
240	NUT; UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> M12	9-99111-412-0	01	1	9212-
241	WASHER; LK,UNION,AIR PIPE EXHAUST BRAKE<NF8> DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9212-9312
241	WASHER; LK,UNION,AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9212-9312
266	UNION; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> M12 L=40	9-09223-006-1	01	1	9212-
