Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#20799) — 260 parça

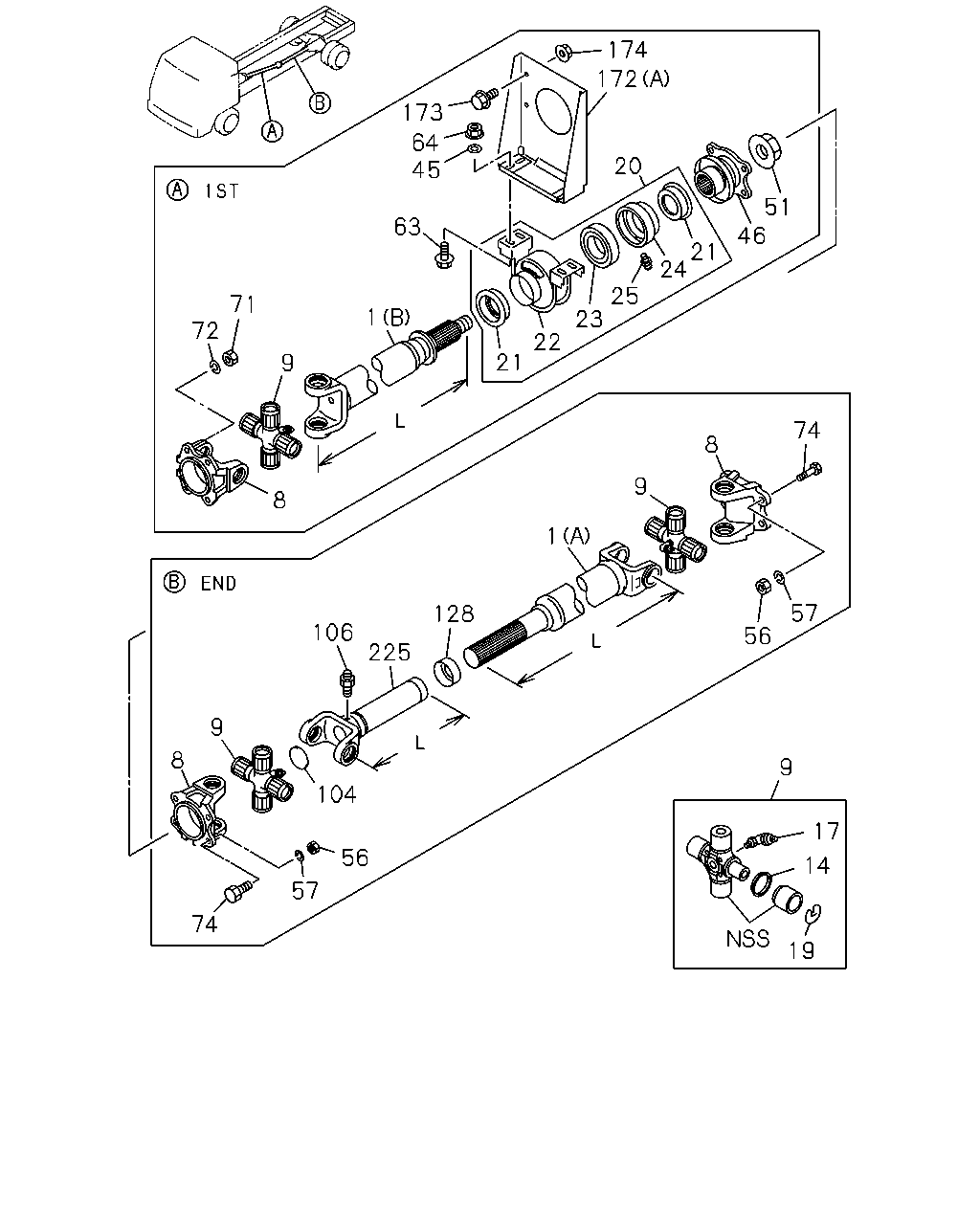

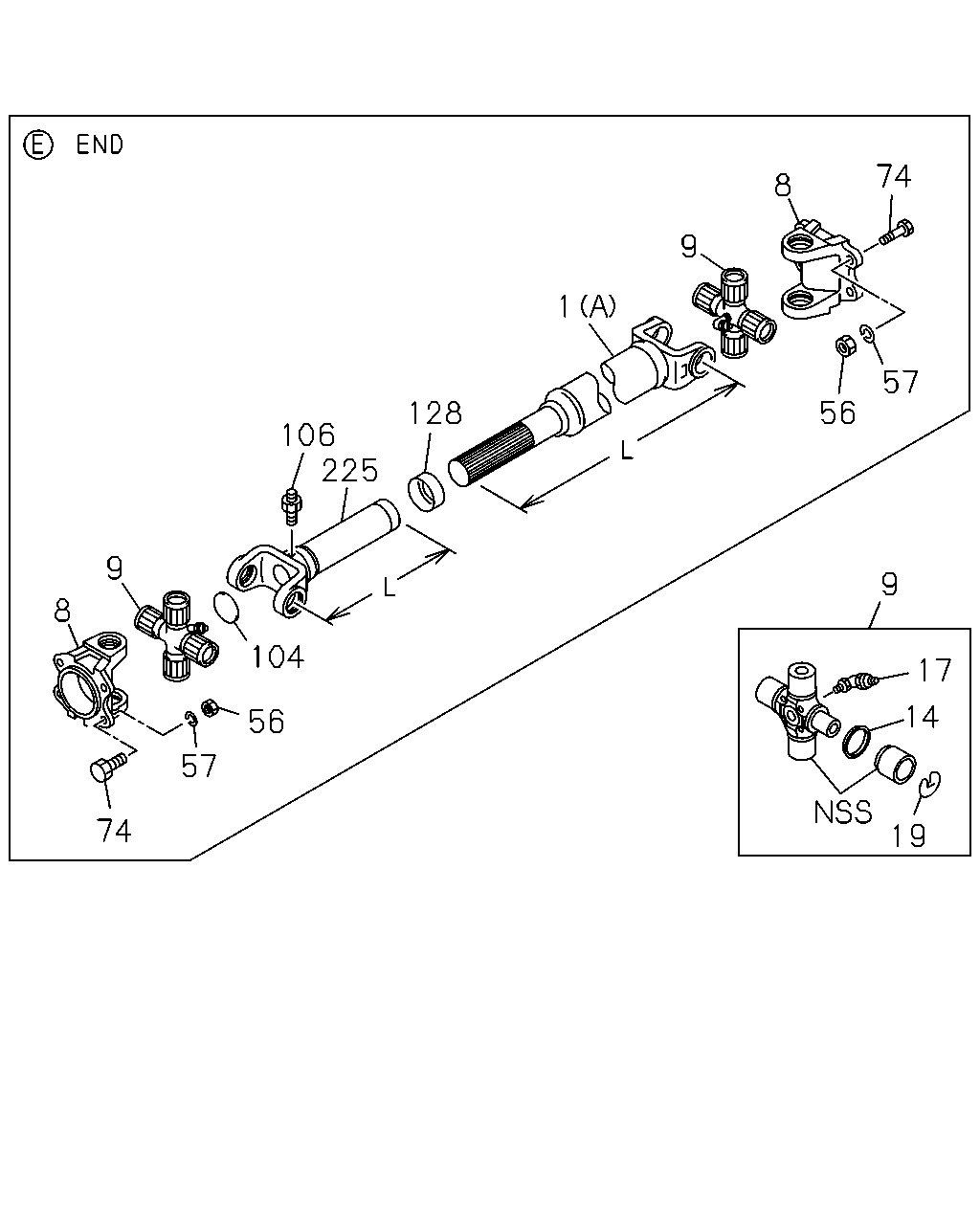

74 8 9 1 57 56 128 106 225 9 9 8 104 17 14 56 57 74 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=661	1-37151-938-1	01	1	1110-	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654	8-98090-947-0	01	1	1110-		●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98200-371-0	01	1	1110-			●
1	SHAFT; PROP (A) L=1011	8-98069-699-0	01	1	1001-	●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=839	8-98069-569-0	01	1	1001-	●	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=729	8-98069-567-0	01	1	1001-1109	●	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729	8-98069-567-0	01	1	1110-	●	●
1	SHAFT; PROP (C) L=1234	8-98069-590-0	01	1	1001-		●	●
1	SHAFT; PROP (A) L=1351	8-98090-992-0	01	1	1001-		●	●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=1339	8-98121-834-0	01	1	1001-			●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=1229	8-98090-949-0	01	1	1001-1109			●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229	8-98090-949-0	01	1	1110-			●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1001-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1001-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1001-		●	●
9	JOURNAL ASM; PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST	1-37300-102-1	AR	1	1110-1505	●
9	JOURNAL ASM; PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-925-1	AR	1	1506-	●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	1001-	●	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	8-98048-925-0	01	1	1001-1109	●	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	8-98048-925-0	01	1	1001-1109		●	●
9	JOURNAL ASM; PROP SHAFT MLD6W M/T(Y2C) 1ST,2ND	8-98048-925-1	01	1	1110-	●
9	JOURNAL ASM; PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND	8-98048-925-1	01	1	1110-	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	8-98048-925-1	01	1	1110-		●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	8-98048-925-1	01	1	1110-		●	●
14	COVER; DUST,SPIDER MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST	1-37319-012-0	04	1	1110-1505	●
14	COVER; DUST,SPIDER END	8-98020-800-0	08	1	1001-	●	●	●
14	COVER; DUST,SPIDER 1ST,2ND	8-98020-800-0	04	1	1001-1109	●	●	●
14	COVER; DUST,SPIDER 1ST,2ND	8-98020-800-0	04	1	1001-1109		●	●
14	COVER; DUST,SPIDER MLD6W M/T(Y2C) 1ST,2ND	8-98020-800-0	04	1	1110-1505	●
14	COVER; DUST,SPIDER MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND	8-98020-800-0	04	1	1110-1505	●
14	COVER; DUST,SPIDER 1ST,2ND	8-98020-800-0	04	1	1110-1505		●	●
14	COVER; DUST,SPIDER 1ST,2ND	8-98020-800-0	04	1	1110-1505		●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-		●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1001-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1001-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1001-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1001-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1001-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1001-		●	●
56	NUT; YOKE M14 SOU	0-91110-514-0	08	1	1001-	●	●	●
57	WASHER; LK,YOKE ID=14.2 SOU	0-91510-614-0	08	1	1001-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1001-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1001-		●	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1001-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT SOU	0-90301-406-0	01	1	1001-	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1001-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1001-	●	●	●

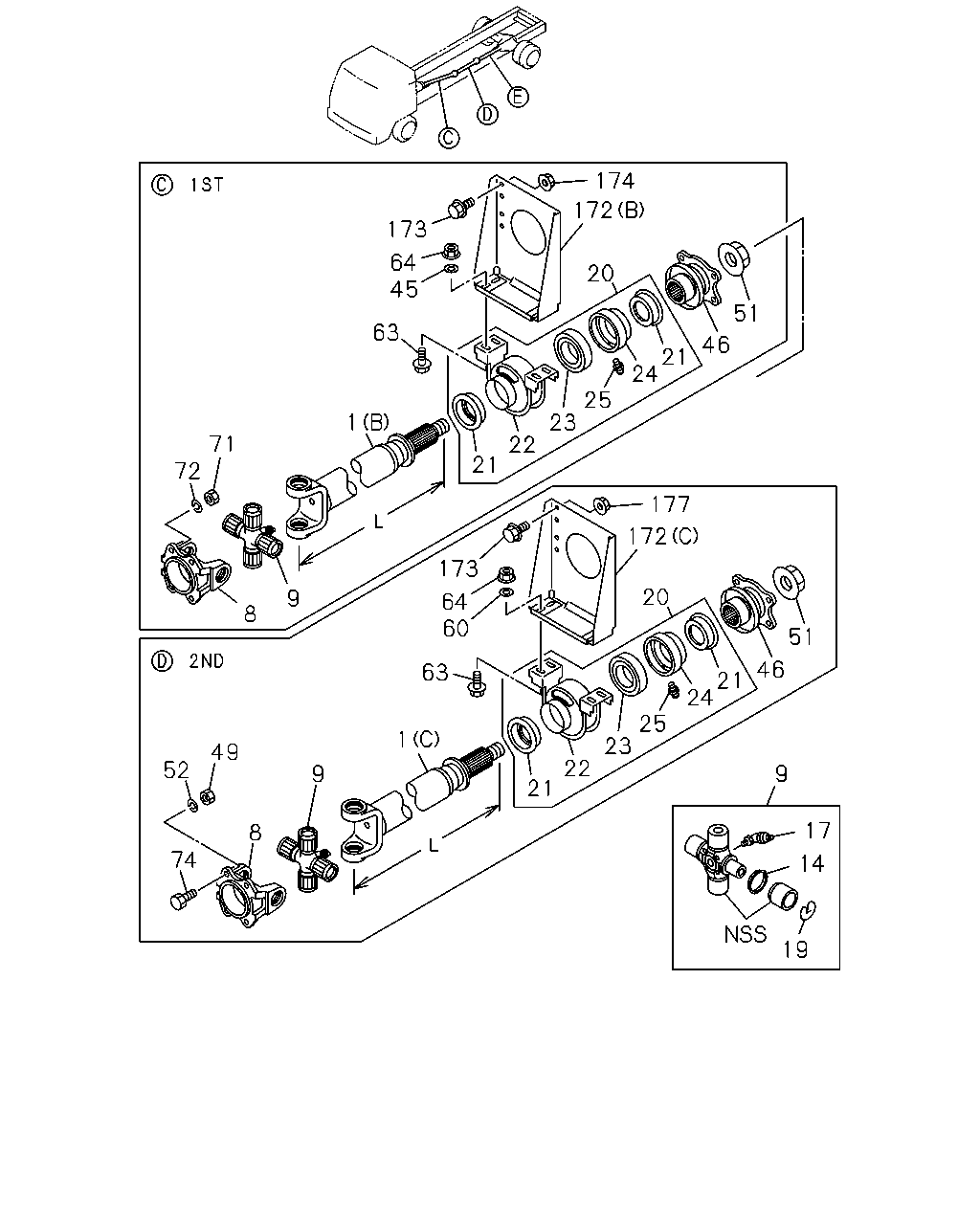

174 172 173 64 45 20 51 63 46 21 24 25 23 1 71 72 22 21 177 172 173 20 9 64 60 8 51 46 63 21 24 25 23 1 49 22 52 9 9 21 17 8 74 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=661	1-37151-938-1	01	1	1110-	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654	8-98090-947-0	01	1	1110-		●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98200-371-0	01	1	1110-			●
1	SHAFT; PROP (A) L=1011	8-98069-699-0	01	1	1001-	●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=839	8-98069-569-0	01	1	1001-	●	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=729	8-98069-567-0	01	1	1001-1109	●	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729	8-98069-567-0	01	1	1110-	●	●
1	SHAFT; PROP (C) L=1234	8-98069-590-0	01	1	1001-		●	●
1	SHAFT; PROP (A) L=1351	8-98090-992-0	01	1	1001-		●	●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=1339	8-98121-834-0	01	1	1001-			●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=1229	8-98090-949-0	01	1	1001-1109			●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229	8-98090-949-0	01	1	1110-			●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1001-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1001-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1001-		●	●
9	JOURNAL ASM; PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST	1-37300-102-1	AR	1	1110-1505	●
9	JOURNAL ASM; PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-925-1	AR	1	1506-	●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	1001-	●	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	8-98048-925-0	01	1	1001-1109	●	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	8-98048-925-0	01	1	1001-1109		●	●
9	JOURNAL ASM; PROP SHAFT MLD6W M/T(Y2C) 1ST,2ND	8-98048-925-1	01	1	1110-	●
9	JOURNAL ASM; PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND	8-98048-925-1	01	1	1110-	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	8-98048-925-1	01	1	1110-		●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	8-98048-925-1	01	1	1110-		●	●
14	COVER; DUST,SPIDER MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST	1-37319-012-0	04	1	1110-1505	●
14	COVER; DUST,SPIDER END	8-98020-800-0	08	1	1001-	●	●	●
14	COVER; DUST,SPIDER 1ST,2ND	8-98020-800-0	04	1	1001-1109	●	●	●
14	COVER; DUST,SPIDER 1ST,2ND	8-98020-800-0	04	1	1001-1109		●	●
14	COVER; DUST,SPIDER MLD6W M/T(Y2C) 1ST,2ND	8-98020-800-0	04	1	1110-1505	●
14	COVER; DUST,SPIDER MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND	8-98020-800-0	04	1	1110-1505	●
14	COVER; DUST,SPIDER 1ST,2ND	8-98020-800-0	04	1	1110-1505		●	●
14	COVER; DUST,SPIDER 1ST,2ND	8-98020-800-0	04	1	1110-1505		●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-		●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1001-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1001-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1001-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1001-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1001-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1001-		●	●
20	BEARING ASM; CTR,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	1-37510-105-0	01	1	1110-	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1001-1109	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1001-1109		●	●
20	BEARING ASM; CTR,PROP SHAFT MLD6W M/T(Y2C)	8-98020-881-0	01	1	1110-	●
20	BEARING ASM; CTR,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98020-881-0	01	1	1110-	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1110-		●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1110-		●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1001-	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1001-		●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1001-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1001-		●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1001-	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1001-		●	●
24	RETAINER; CENTER BRG,1ST MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	1-37529-068-0	01	1	1110-	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1001-1109	●	●	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1001-1109		●	●
24	RETAINER; CENTER BRG,1ST MLD6W M/T(Y2C)	8-98020-882-0	01	1	1110-	●
24	RETAINER; CENTER BRG,1ST MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98020-882-0	01	1	1110-	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1110-		●	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1110-		●	●
25	NIPPLE; GREASE,CENTER BRG MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) MT6 STRAIGHT	1-09380-006-0	01	1	1110-	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1001-1109	●	●	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1001-1109		●	●
25	NIPPLE; GREASE,CENTER BRG MLD6W M/T(Y2C)	8-98020-889-0	01	1	1110-	●
25	NIPPLE; GREASE,CENTER BRG MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98020-889-0	01	1	1110-	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1110-		●	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1110-		●	●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1001-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	1-37245-071-0	01	1	1110-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1001-1109	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1001-1109		●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST MLD6W M/T(Y2C)	8-98020-815-0	01	1	1110-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98020-815-0	01	1	1110-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1110-		●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1110-		●	●
49	NUT; YOKE M14 SOU	0-91110-514-0	04	1	1001-		●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1001-	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1001-		●	●
52	WASHER; LK,YOKE ID=14.2 SOU	0-91510-614-0	04	1	1001-		●	●
60	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1001-		●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE SOU	0-28651-035-0	04	1	1001-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE SOU	0-28651-035-0	04	1	1001-		●	●
64	NUT; RET TO BRKT M10 FLANGE SOU	0-91180-210-0	04	1	1001-	●	●	●
64	NUT; RET TO BRKT M10 FLANGE SOU	0-91180-210-0	04	1	1001-		●	●
71	NUT; YOKE M14 SOU	0-91110-514-0	04	1	1001-	●	●	●
72	WASHER; LK,YOKE ID=14.2 SOU	0-91510-614-0	04	1	1001-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1001-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1001-		●	●
172	BRACKET; CENTER BRG (A)	8-98084-677-0	01	1	1001-	●
172	BRACKET; CENTER BRG (C)	1-37515-101-0	01	1	1001-		●
172	BRACKET; CENTER BRG (B)	1-37515-102-0	01	1	1001-		●	●
172	BRACKET; CENTER BRG (C)	1-37515-135-0	01	1	1001-			●
173	BOLT; BRKT M10X25 FLANGE SOU	0-28651-025-0	04	1	1001-	●	●	●
173	BOLT; BRKT M10X25 FLANGE SOU	0-28651-025-0	04	1	1001-		●	●
174	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	04	1	1001-	●	●	●
177	NUT M10 FLANGE SOU	0-91180-210-0	04	1	1001-		●	●

174 172 173 64 45 20 51 46 63 21 24 25 23 71 1 72 22 21 9 74 8 9 8 1 57 128 106 56 225 9 8 9 104 17 56 14 57 74 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=661	1-37151-938-1	01	1	1110-	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=654	8-98090-947-0	01	1	1110-		●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98200-371-0	01	1	1110-			●
1	SHAFT; PROP (A) L=1011	8-98069-699-0	01	1	1001-	●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=839	8-98069-569-0	01	1	1001-	●	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=729	8-98069-567-0	01	1	1001-1109	●	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=729	8-98069-567-0	01	1	1110-	●	●
1	SHAFT; PROP (C) L=1234	8-98069-590-0	01	1	1001-		●	●
1	SHAFT; PROP (A) L=1351	8-98090-992-0	01	1	1001-		●	●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=1339	8-98121-834-0	01	1	1001-			●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=1229	8-98090-949-0	01	1	1001-1109			●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1229	8-98090-949-0	01	1	1110-			●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1001-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1001-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1001-		●	●
9	JOURNAL ASM; PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST	1-37300-102-1	AR	1	1110-1505	●
9	JOURNAL ASM; PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-925-1	AR	1	1506-	●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	1001-	●	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	8-98048-925-0	01	1	1001-1109	●	●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	8-98048-925-0	01	1	1001-1109		●	●
9	JOURNAL ASM; PROP SHAFT MLD6W M/T(Y2C) 1ST,2ND	8-98048-925-1	01	1	1110-	●
9	JOURNAL ASM; PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND	8-98048-925-1	01	1	1110-	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	8-98048-925-1	01	1	1110-		●	●
9	JOURNAL ASM; PROP SHAFT 1ST,2ND	8-98048-925-1	01	1	1110-		●	●
14	COVER; DUST,SPIDER MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 1ST	1-37319-012-0	04	1	1110-1505	●
14	COVER; DUST,SPIDER END	8-98020-800-0	08	1	1001-	●	●	●
14	COVER; DUST,SPIDER 1ST,2ND	8-98020-800-0	04	1	1001-1109	●	●	●
14	COVER; DUST,SPIDER 1ST,2ND	8-98020-800-0	04	1	1001-1109		●	●
14	COVER; DUST,SPIDER MLD6W M/T(Y2C) 1ST,2ND	8-98020-800-0	04	1	1110-1505	●
14	COVER; DUST,SPIDER MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 1ST,2ND	8-98020-800-0	04	1	1110-1505	●
14	COVER; DUST,SPIDER 1ST,2ND	8-98020-800-0	04	1	1110-1505		●	●
14	COVER; DUST,SPIDER 1ST,2ND	8-98020-800-0	04	1	1110-1505		●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-	●	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-		●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1001-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1001-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1001-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1001-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1001-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1001-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1001-		●	●
20	BEARING ASM; CTR,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	1-37510-105-0	01	1	1110-	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1001-1109	●	●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1001-1109		●	●
20	BEARING ASM; CTR,PROP SHAFT MLD6W M/T(Y2C)	8-98020-881-0	01	1	1110-	●
20	BEARING ASM; CTR,PROP SHAFT MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98020-881-0	01	1	1110-	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1110-		●	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1110-		●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1001-	●	●	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1001-		●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1001-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1001-		●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1001-	●	●	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1001-		●	●
24	RETAINER; CENTER BRG,1ST MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	1-37529-068-0	01	1	1110-	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1001-1109	●	●	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1001-1109		●	●
24	RETAINER; CENTER BRG,1ST MLD6W M/T(Y2C)	8-98020-882-0	01	1	1110-	●
24	RETAINER; CENTER BRG,1ST MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98020-882-0	01	1	1110-	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1110-		●	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1110-		●	●
25	NIPPLE; GREASE,CENTER BRG MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) MT6 STRAIGHT	1-09380-006-0	01	1	1110-	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1001-1109	●	●	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1001-1109		●	●
25	NIPPLE; GREASE,CENTER BRG MLD6W M/T(Y2C)	8-98020-889-0	01	1	1110-	●
25	NIPPLE; GREASE,CENTER BRG MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98020-889-0	01	1	1110-	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1110-		●	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1110-		●	●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1001-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	1-37245-071-0	01	1	1110-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1001-1109	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1001-1109		●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST MLD6W M/T(Y2C)	8-98020-815-0	01	1	1110-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98020-815-0	01	1	1110-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1110-		●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1110-		●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1001-	●	●	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1001-		●	●
56	NUT; YOKE M14 SOU	0-91110-514-0	08	1	1001-	●	●	●
57	WASHER; LK,YOKE ID=14.2 SOU	0-91510-614-0	08	1	1001-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE SOU	0-28651-035-0	04	1	1001-	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE SOU	0-28651-035-0	04	1	1001-		●	●
64	NUT; RET TO BRKT M10 FLANGE SOU	0-91180-210-0	04	1	1001-	●	●	●
64	NUT; RET TO BRKT M10 FLANGE SOU	0-91180-210-0	04	1	1001-		●	●
71	NUT; YOKE M14 SOU	0-91110-514-0	04	1	1001-	●	●	●
72	WASHER; LK,YOKE ID=14.2 SOU	0-91510-614-0	04	1	1001-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1001-	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	1001-		●	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1001-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT SOU	0-90301-406-0	01	1	1001-	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1001-	●	●	●
172	BRACKET; CENTER BRG (A)	8-98084-677-0	01	1	1001-	●
172	BRACKET; CENTER BRG (C)	1-37515-101-0	01	1	1001-		●
172	BRACKET; CENTER BRG (B)	1-37515-102-0	01	1	1001-		●	●
172	BRACKET; CENTER BRG (C)	1-37515-135-0	01	1	1001-			●
173	BOLT; BRKT M10X25 FLANGE SOU	0-28651-025-0	04	1	1001-	●	●	●
173	BOLT; BRKT M10X25 FLANGE SOU	0-28651-025-0	04	1	1001-		●	●
174	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	04	1	1001-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1001-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
