Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#20795) — 186 parça

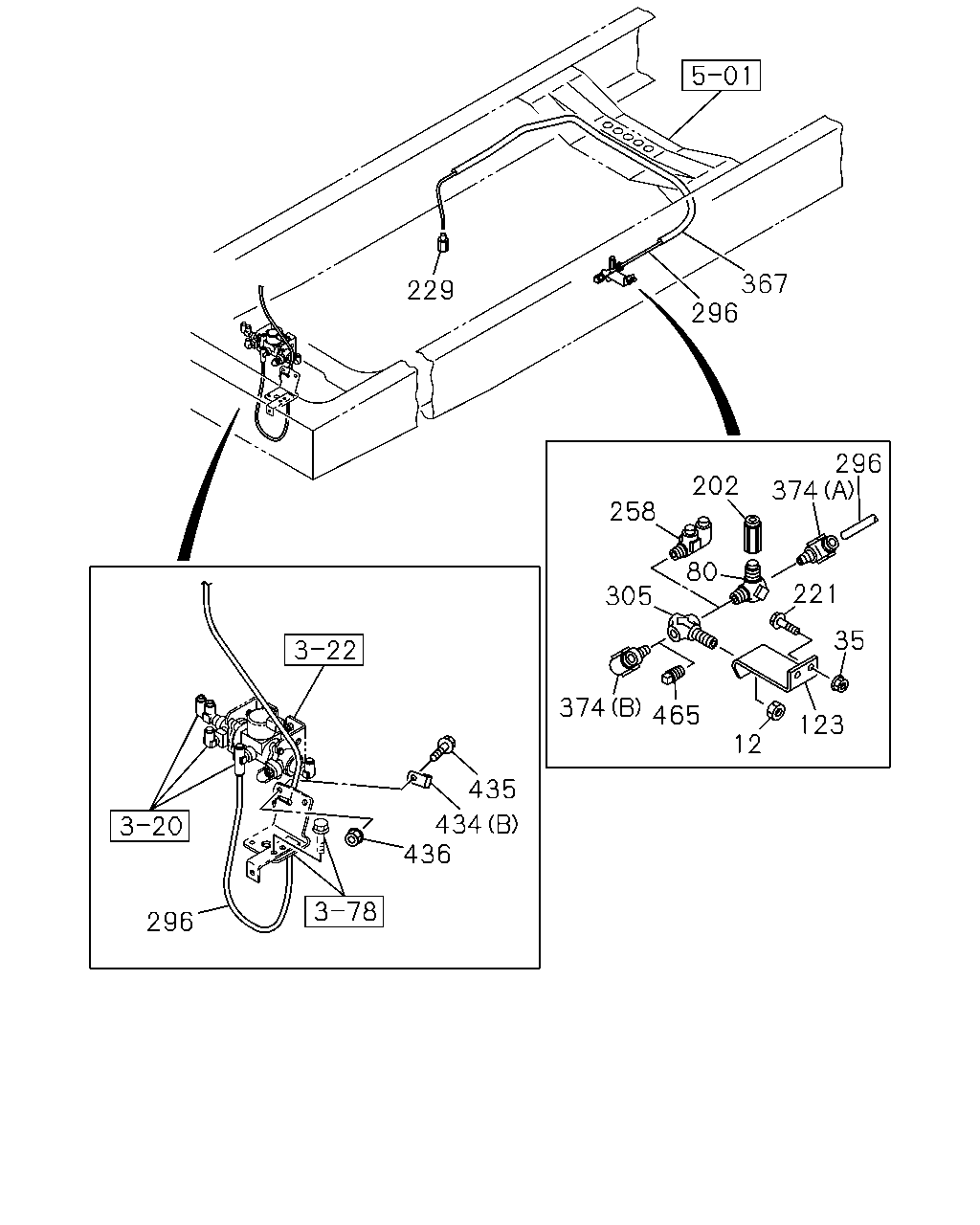

367 296 229 296 374 202 258 80 221 305 35 374 465 123 12 435 434 436 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	1001-1109
12	NUT; UNION H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	1110-
12	NUT; UNION EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12	0-91111-512-0	01	1	1110-
35	NUT; BRKT EXC. PTO CONTROL<SV6> M8 FLANGE SOU	0-91180-108-0	02	1	1001-
80	UNION; 3 WAY EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY SOU	1-09656-586-1	01	1	1001-1109
80	UNION; 3 WAY EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 & PT1/4 3WAY SOU	1-09656-586-1	01	1	1110-1111
123	BRACKET; UNION EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	1001-1109
123	BRACKET; UNION H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98118-545-0	01	1	1110-
123	BRACKET; UNION EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98118-545-0	01	1	1110-
202	ADAPTER EXC. PTO CONTROL<SV6> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1001-1109
202	ADAPTER EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1110-1111
221	BOLT; BRKT EXC. PTO CONTROL<SV6> M8X35 FLANGE SOU	0-28650-835-0	02	1	1001-
229	ADAPTER; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1001-1109
229	ADAPTER; NYLON TUBE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1110-
258	CONNECTOR; NYLON TUBE EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) DIN8X2 & PT1/4 DOUBLE ELBOW SOU	8-98179-708-0	01	1	1112-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1001-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1001-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1001-
305	UNION ASM; NYLON TUBE EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1001-1109
305	UNION ASM; NYLON TUBE H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1110-
305	UNION ASM; NYLON TUBE EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1110-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1001-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1001-
374	CONNECTOR H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW SOU	1-09661-067-0	01	1	1001-1109
374	CONNECTOR EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW SOU	1-09661-067-0	01	1	1001-1109
374	CONNECTOR H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DIN6 & R1/4 ELBOW SOU	1-09661-067-0	01	1	1110-
374	CONNECTOR EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DIN6 & R1/4 ELBOW SOU	1-09661-067-0	01	1	1110-
374	CONNECTOR H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DIN6 & R1/4 ELBOW SOU	1-09661-067-0	01	1	1110-
374	CONNECTOR EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1001-1109
374	CONNECTOR H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1110-1111
374	CONNECTOR EXC. PTO CONTROL<SV6>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1110-1111
374	CONNECTOR H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1112-
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (C) ID=16 L=20	0-95235-536-0	02	1	1110-
434	CLIP AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1001-1109
434	CLIP AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1110-
434	CLIP EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1001-1109
434	CLIP TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1110-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	1001-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1001-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1001-
436	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	1001-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU	0-91180-108-0	01	1	1001-
465	PLUG RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1001-1109
465	PLUG RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP>, TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/4	9-99204-513-0	01	1	1110-

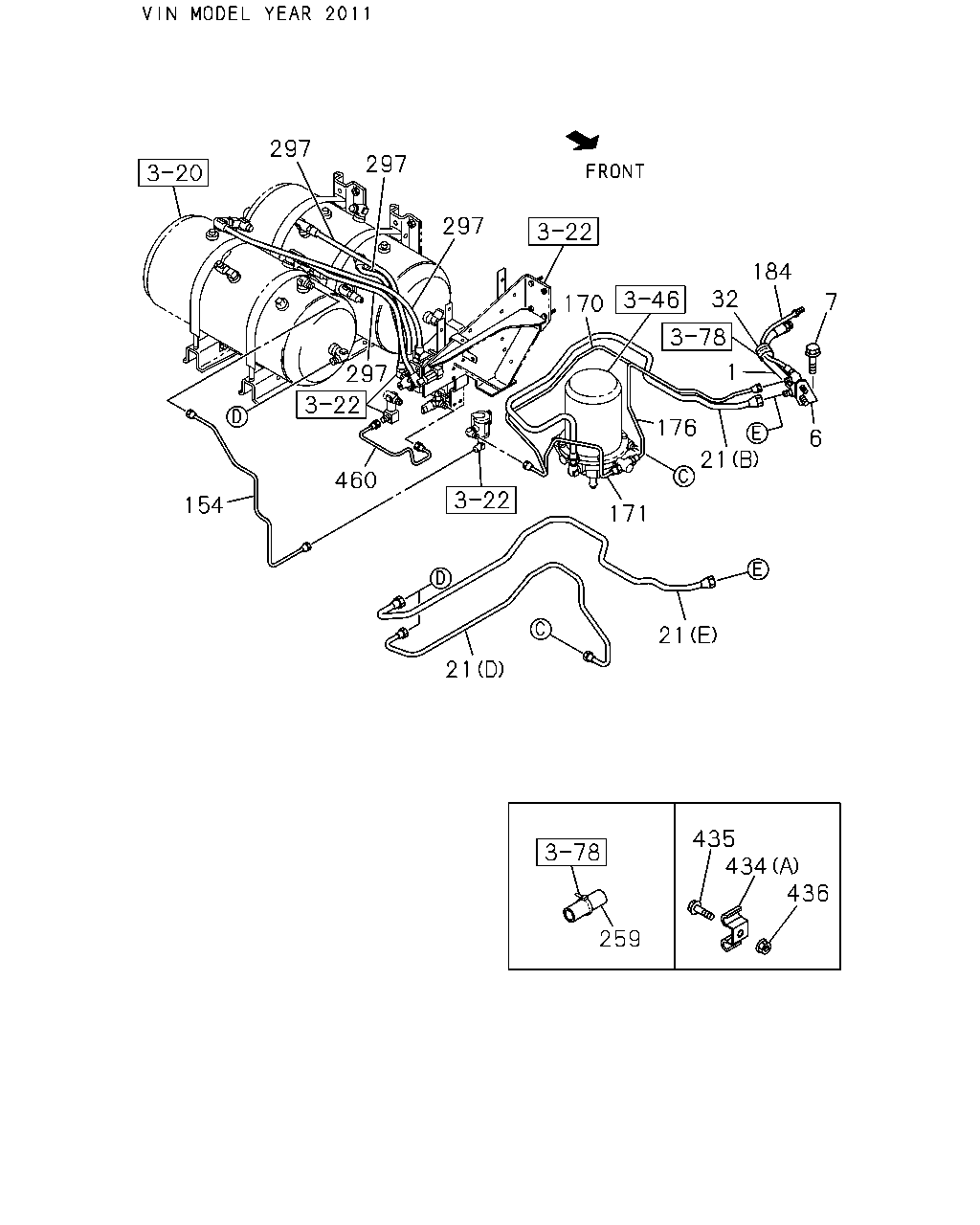

297 297 297 184 32 7 170 1 297 176 21 6 460 154 171 21 21 435 434 436 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1110-
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	1001-1109
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1110-
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T>	8-98076-344-0	01	1	1110-
6	BRACKET; FLEX HOSE,AIR TANK	8-98117-117-0	01	1	1001-1109
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T>	8-98117-117-0	01	1	1110-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	1001-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (C) L=1630	8-98120-164-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (F) L=1715	8-98095-083-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D)	8-98173-546-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D)	8-98184-503-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (D)	8-98184-503-0	01	1	1103-1109
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D)	8-98184-503-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1523	8-98173-570-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1103-1109
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	1001-1009
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=1548	8-98174-993-0	01	1	1010-1109
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A)	8-98147-087-0	01	1	1001-1011
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (C) L=1630	8-98120-164-0	01	1	1001-1011
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (C) L=1630	8-98120-164-0	01	1	1012-1102
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	1001-1109
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1110-
154	PIPE; AIR,AIR TANK TO AIR GOV VIN MODEL YEAR 2011<VZB>	8-98173-547-0	01	1	1012-1012
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1001-1109
170	PIPE; AIR,AIR GOV TO FLEX HOSE TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1110-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1001-1109
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1110-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1001-1109
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1110-
184	HOSE; FLEX,AIR GOV L=350	1-09363-624-0	01	1	1001-1109
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1110-
259	SLEEVE; RUBBER,NYLON TUBE VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40	1-09337-013-0	01	1	1012-1102
259	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	01	1	1103-1109
259	SLEEVE; RUBBER,NYLON TUBE VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40	1-09337-013-0	01	1	1110-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1001-
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (C) ID=16 L=20	0-95235-536-0	02	1	1110-
434	CLIP AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1001-1109
434	CLIP AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1110-
434	CLIP EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1001-1109
434	CLIP TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1110-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	1001-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1001-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1001-
436	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	1001-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU	0-91180-108-0	01	1	1001-
460	PIPE; AIR,PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	8-98173-460-0	01	1	1012-1012
460	PIPE; AIR,PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	8-98184-394-0	01	1	1012-1102
460	PIPE; AIR,PROTECTION VALVE	8-98184-394-0	01	1	1103-1109
460	PIPE; AIR,PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	8-98184-394-0	01	1	1110-

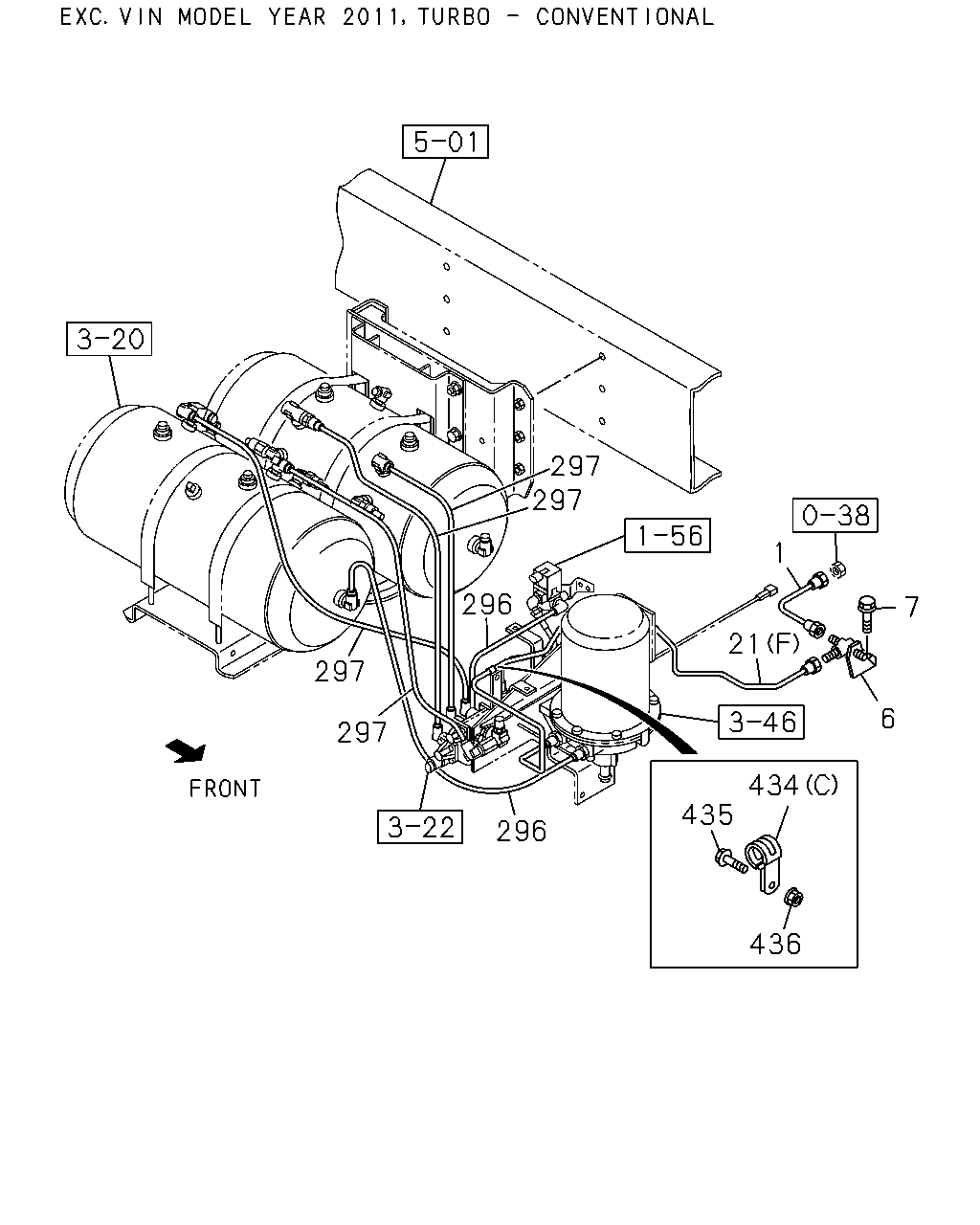

297 297 1 296 7 21 297 6 297 434 435 296 436

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1110-
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	1001-1109
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1110-
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T>	8-98076-344-0	01	1	1110-
6	BRACKET; FLEX HOSE,AIR TANK	8-98117-117-0	01	1	1001-1109
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T>	8-98117-117-0	01	1	1110-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	1001-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (C) L=1630	8-98120-164-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (F) L=1715	8-98095-083-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D)	8-98173-546-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D)	8-98184-503-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (D)	8-98184-503-0	01	1	1103-1109
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D)	8-98184-503-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1523	8-98173-570-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1103-1109
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	1001-1009
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=1548	8-98174-993-0	01	1	1010-1109
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A)	8-98147-087-0	01	1	1001-1011
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (C) L=1630	8-98120-164-0	01	1	1001-1011
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (C) L=1630	8-98120-164-0	01	1	1012-1102
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1001-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1001-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1001-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1001-
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (C) ID=16 L=20	0-95235-536-0	02	1	1110-
434	CLIP AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1001-1109
434	CLIP AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1110-
434	CLIP EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1001-1109
434	CLIP TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1110-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	1001-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1001-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1001-
436	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	1001-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU	0-91180-108-0	01	1	1001-

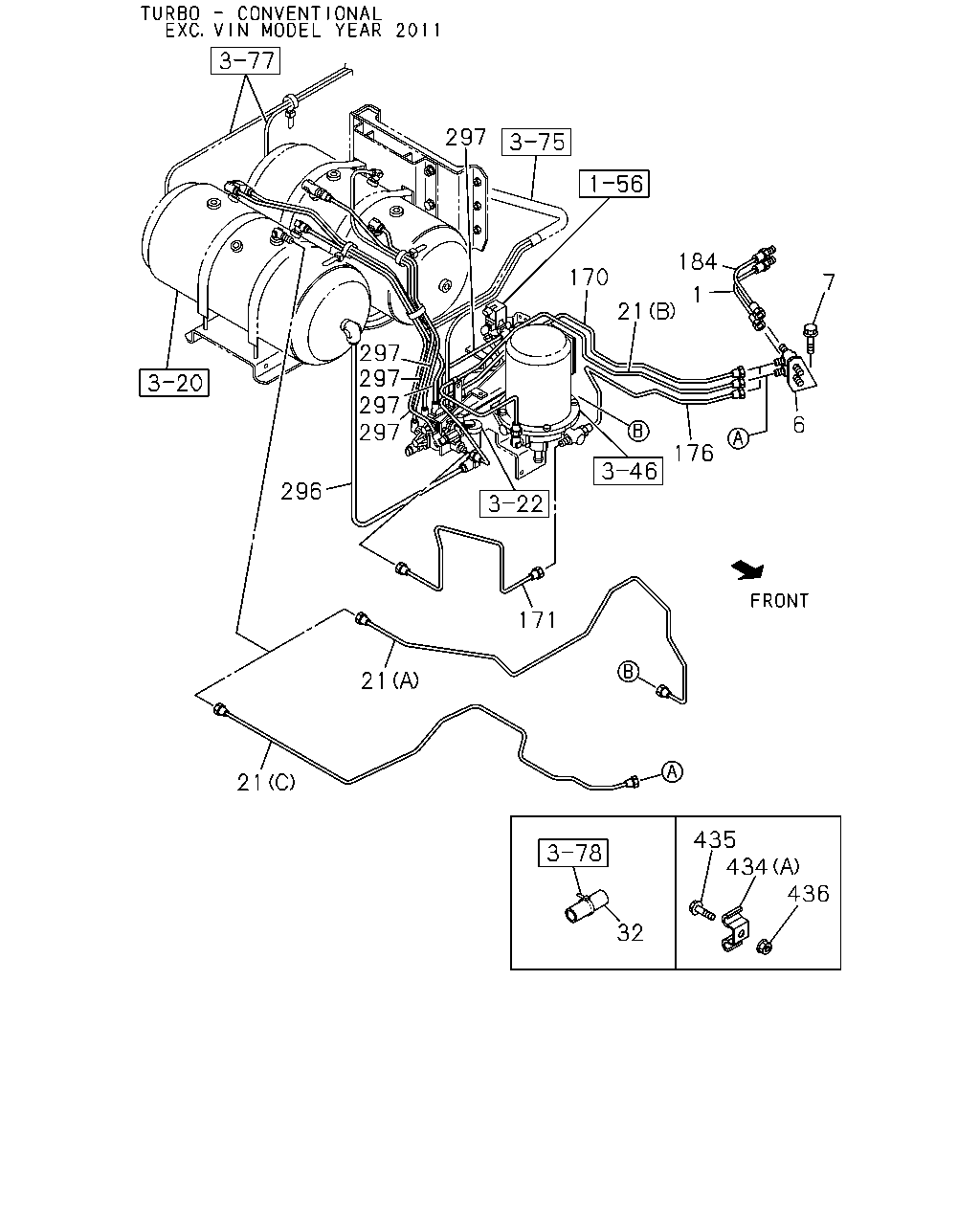

297 184 170 7 1 21 297 297 297 297 6 176 296 171 21 21 435 434 436 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1110-
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	1001-1109
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1110-
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T>	8-98076-344-0	01	1	1110-
6	BRACKET; FLEX HOSE,AIR TANK	8-98117-117-0	01	1	1001-1109
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T>	8-98117-117-0	01	1	1110-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	1001-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (C) L=1630	8-98120-164-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (F) L=1715	8-98095-083-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D)	8-98173-546-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> VIN MODEL YEAR 2011<VZB> (D)	8-98184-503-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (D)	8-98184-503-0	01	1	1103-1109
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (D)	8-98184-503-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1523	8-98173-570-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1103-1109
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (E) L=1526	8-98184-504-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	1001-1009
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (B) L=1548	8-98174-993-0	01	1	1010-1109
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1110-
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> (A)	8-98147-087-0	01	1	1001-1011
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1012-1102
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7> (C) L=1630	8-98120-164-0	01	1	1001-1011
21	PIPE; AIR,UNION TO AIR DRYER EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (C) L=1630	8-98120-164-0	01	1	1012-1102
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	1001-1109
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1110-
170	PIPE; AIR,AIR GOV TO FLEX HOSE EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1001-1109
170	PIPE; AIR,AIR GOV TO FLEX HOSE TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1110-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1001-1109
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1110-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1001-1109
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1110-
184	HOSE; FLEX,AIR GOV L=350	1-09363-624-0	01	1	1001-1109
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1110-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1001-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1001-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1001-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1001-
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (C) ID=16 L=20	0-95235-536-0	02	1	1110-
434	CLIP AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1001-1109
434	CLIP AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1110-
434	CLIP EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1001-1109
434	CLIP TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1110-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	1001-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1001-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1001-
436	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	1001-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU	0-91180-108-0	01	1	1001-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
