Sayfa 3-46 - Isuzu EPC

3-46 — AIR DRYER (#20792) — 163 parça

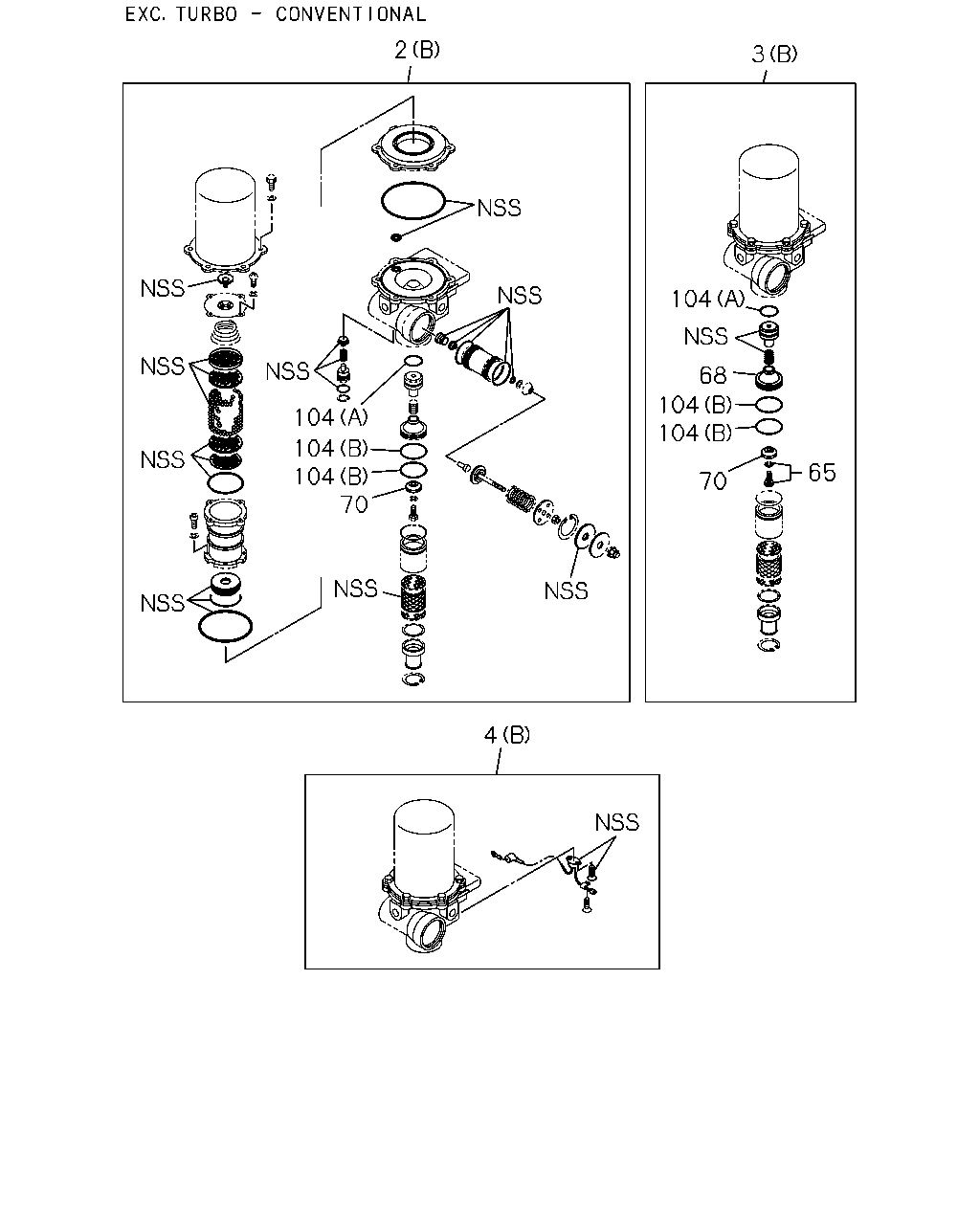

2 3 104 68 104 104 104 104 104 70 65 70 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	1-85576-448-0	01	1	1110-1211
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	8-98226-328-0	01	1	1212-
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> (A) SOU	1-85576-226-0	01	1	1001-1109
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU	1-85576-226-0	01	1	1110-
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	1-85576-383-0	01	1	1110-1211
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	8-98226-322-0	01	1	1212-
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> (A) SOU	1-85576-057-1	01	1	1001-1109
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU	1-85576-057-1	01	1	1110-
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	1-85576-444-0	01	1	1110-
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> (A) SOU	1-85576-254-0	01	1	1001-1109
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU	1-85576-254-0	01	1	1110-
65	BOLT; PURGE VLV AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-517-0	01	1	1110-
65	BOLT; PURGE VLV AIR DRYER<PS7> SOU	1-48199-393-0	01	1	1001-1109
65	BOLT; PURGE VLV AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-393-0	01	1	1110-
68	BODY; VALVE AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-515-0	01	1	1110-
68	BODY; VALVE AIR DRYER<PS7> SOU	1-48199-216-0	01	1	1001-1109
68	BODY; VALVE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-216-0	01	1	1110-
70	VALVE; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-504-0	01	1	1110-
70	VALVE; AIR DRYER AIR DRYER<PS7> SOU	1-48199-105-0	01	1	1001-1109
70	VALVE; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-105-0	01	1	1110-
104	GASKET AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU	1-48199-495-0	01	1	1110-1211
104	GASKET AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU	8-98226-321-0	01	1	1212-
104	GASKET AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	1-48199-496-0	02	1	1110-1211
104	GASKET AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	1-48199-496-0	01	1	1212-

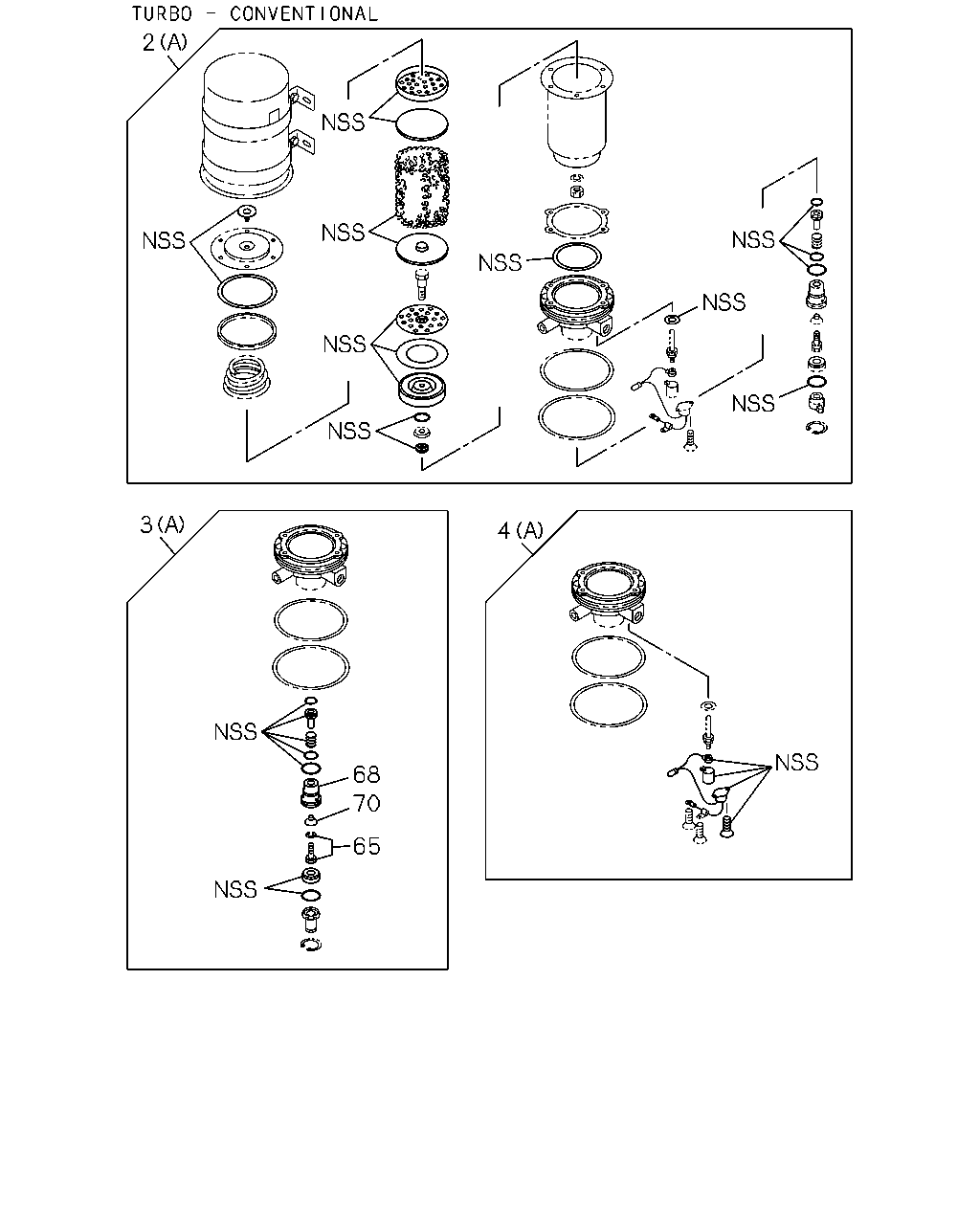

2 3 4 68 70 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	1-85576-448-0	01	1	1110-1211
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	8-98226-328-0	01	1	1212-
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> (A) SOU	1-85576-226-0	01	1	1001-1109
2	REPAIR KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU	1-85576-226-0	01	1	1110-
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	1-85576-383-0	01	1	1110-1211
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	8-98226-322-0	01	1	1212-
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> (A) SOU	1-85576-057-1	01	1	1001-1109
3	PISTON KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU	1-85576-057-1	01	1	1110-
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	1-85576-444-0	01	1	1110-
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> (A) SOU	1-85576-254-0	01	1	1001-1109
4	THERMOSTAT KIT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU	1-85576-254-0	01	1	1110-
65	BOLT; PURGE VLV AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-517-0	01	1	1110-
65	BOLT; PURGE VLV AIR DRYER<PS7> SOU	1-48199-393-0	01	1	1001-1109
65	BOLT; PURGE VLV AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-393-0	01	1	1110-
68	BODY; VALVE AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-515-0	01	1	1110-
68	BODY; VALVE AIR DRYER<PS7> SOU	1-48199-216-0	01	1	1001-1109
68	BODY; VALVE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-216-0	01	1	1110-
70	VALVE; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-504-0	01	1	1110-
70	VALVE; AIR DRYER AIR DRYER<PS7> SOU	1-48199-105-0	01	1	1001-1109
70	VALVE; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-105-0	01	1	1110-

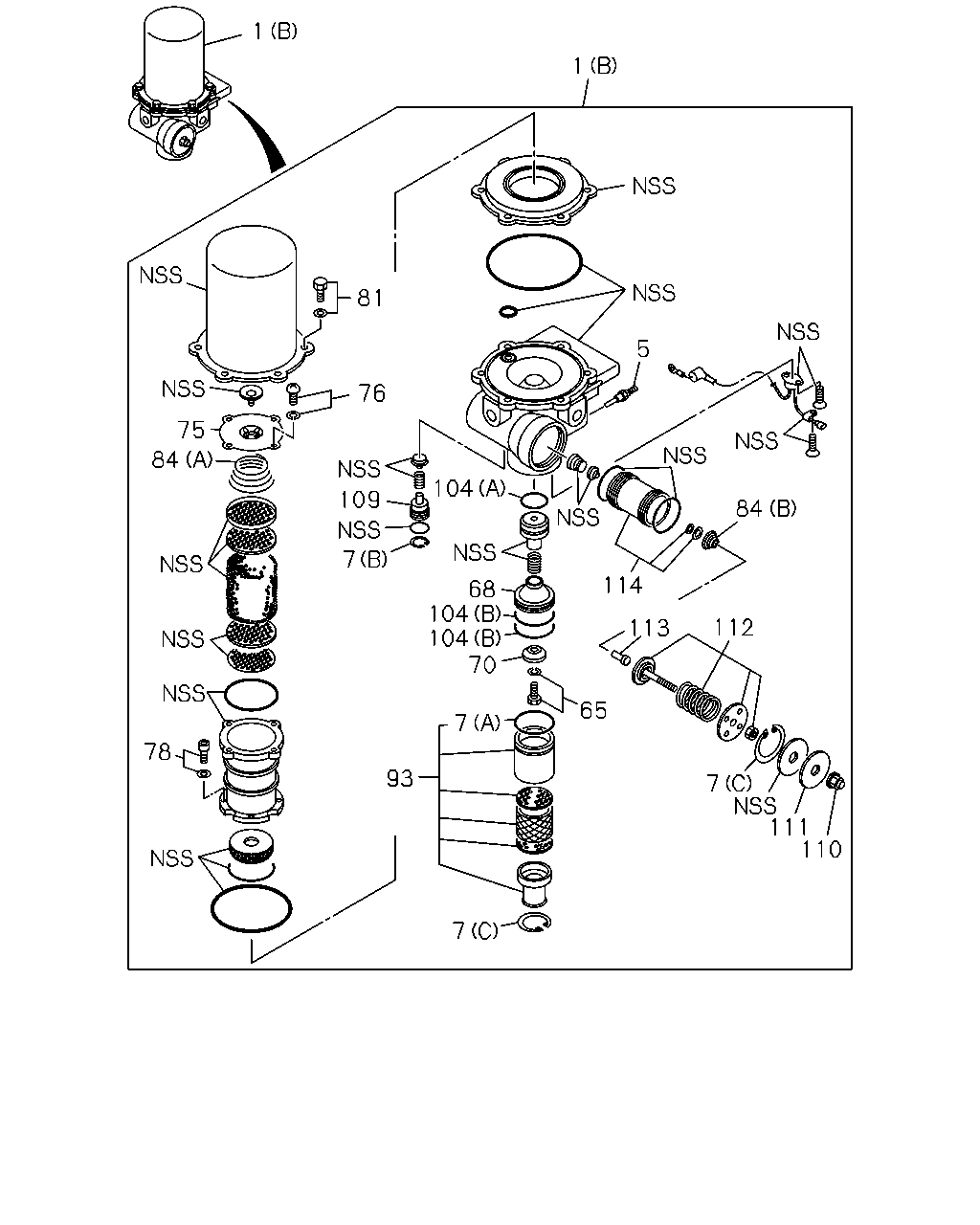

1 1 81 5 76 75 84 104 109 84 7 114 68 104 104 70 112 113 65 7 78 93 7 111 110 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48190-371-2	01	1	1110-1211
1	DRYER; AIR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98225-292-0	01	1	1212-
1	DRYER; AIR AIR DRYER<PS7> (A)	1-48190-277-1	01	1	1001-1109
1	DRYER; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A)	1-48190-277-1	01	1	1110-
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-530-0	01	1	1110-
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> SOU	1-48199-085-0	02	1	1001-1109
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-085-0	02	1	1110-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) SOU	1-48199-520-0	02	1	1110-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	1-48199-529-0	01	1	1110-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU	1-48199-579-0	01	1	1110-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> (D) SOU	1-48199-154-0	01	1	1001-1109
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) SOU	1-48199-154-0	01	1	1110-
65	BOLT; PURGE VLV AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-517-0	01	1	1110-
65	BOLT; PURGE VLV AIR DRYER<PS7> SOU	1-48199-393-0	01	1	1001-1109
65	BOLT; PURGE VLV AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-393-0	01	1	1110-
68	BODY; VALVE AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-515-0	01	1	1110-
68	BODY; VALVE AIR DRYER<PS7> SOU	1-48199-216-0	01	1	1001-1109
68	BODY; VALVE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-216-0	01	1	1110-
70	VALVE; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-504-0	01	1	1110-
70	VALVE; AIR DRYER AIR DRYER<PS7> SOU	1-48199-105-0	01	1	1001-1109
70	VALVE; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-105-0	01	1	1110-
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-562-0	01	1	1110-
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> SOU	1-48199-167-0	01	1	1001-1109
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-167-0	01	1	1110-
76	BOLT; COVER,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-561-0	06	1	1110-
78	BOLT; OIL FILTER,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-557-0	04	1	1110-
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-436-0	08	1	1110-
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> SOU	1-48199-177-0	02	1	1001-1109
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-177-0	02	1	1110-
84	SPRING; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	1-48199-523-0	01	1	1110-
84	SPRING; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU	1-48199-564-0	01	1	1110-
84	SPRING; AIR DRYER AIR DRYER<PS7> (C) SOU	1-48199-166-0	01	1	1001-1109
84	SPRING; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) SOU	1-48199-166-0	01	1	1110-
93	SILENCER; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-619-0	01	1	1110-
104	GASKET AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU	1-48199-495-0	01	1	1110-1211
104	GASKET AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU	8-98226-321-0	01	1	1212-
104	GASKET AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	1-48199-496-0	02	1	1110-1211
104	GASKET AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	1-48199-496-0	01	1	1212-
109	STOPPER; CHECK VALVE AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-539-0	01	1	1110-
110	NUT; CAP AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-527-0	01	1	1110-
111	PLATE; GOVERNOR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-526-0	01	1	1110-
112	SCREW & SPRING ASM; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-524-0	01	1	1110-
113	STEM; EXHAUST AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-522-0	01	1	1110-
114	PISTON ASM; GOVERNOR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-521-0	01	1	1110-

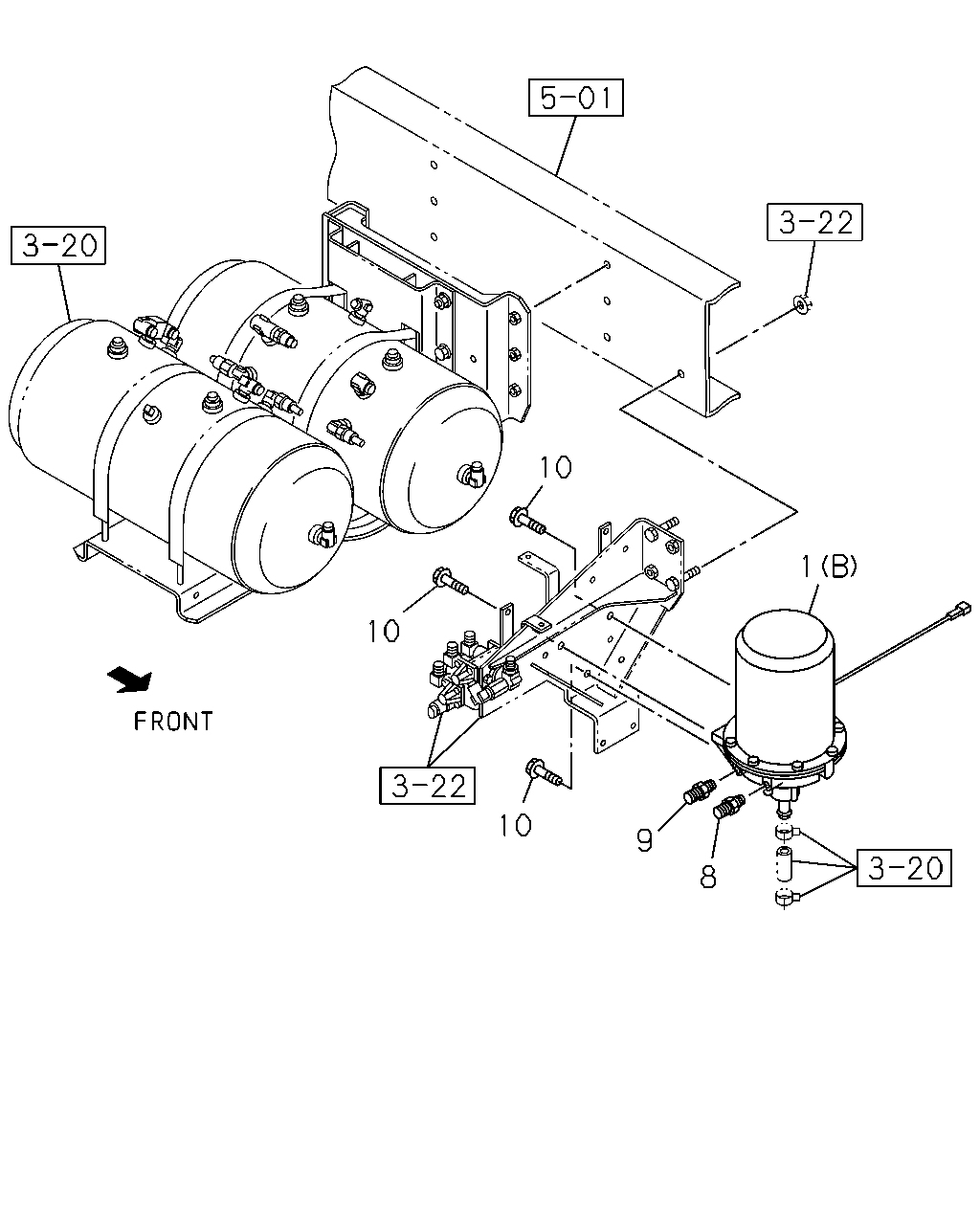

10 1 10 10 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48190-371-2	01	1	1110-1211
1	DRYER; AIR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98225-292-0	01	1	1212-
1	DRYER; AIR AIR DRYER<PS7> (A)	1-48190-277-1	01	1	1001-1109
1	DRYER; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A)	1-48190-277-1	01	1	1110-
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> DIN12 & R1/2 STRAIGHT SOU	1-09660-966-0	01	1	1110-
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M20 & PT1/2 ELBOW SOU	1-09650-443-0	01	1	1001-1109
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW SOU	1-09650-443-0	01	1	1110-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> M22 & PT1/2 FLARE	0-92121-815-0	01	1	1110-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1001-1109
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1110-
10	BOLT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> M12X25 FLANGE	0-28051-225-0	03	1	1110-
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X25 FLANGE SOU	0-28651-025-0	04	1	1001-1109
10	BOLT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M10X25 FLANGE SOU	0-28651-025-0	04	1	1110-

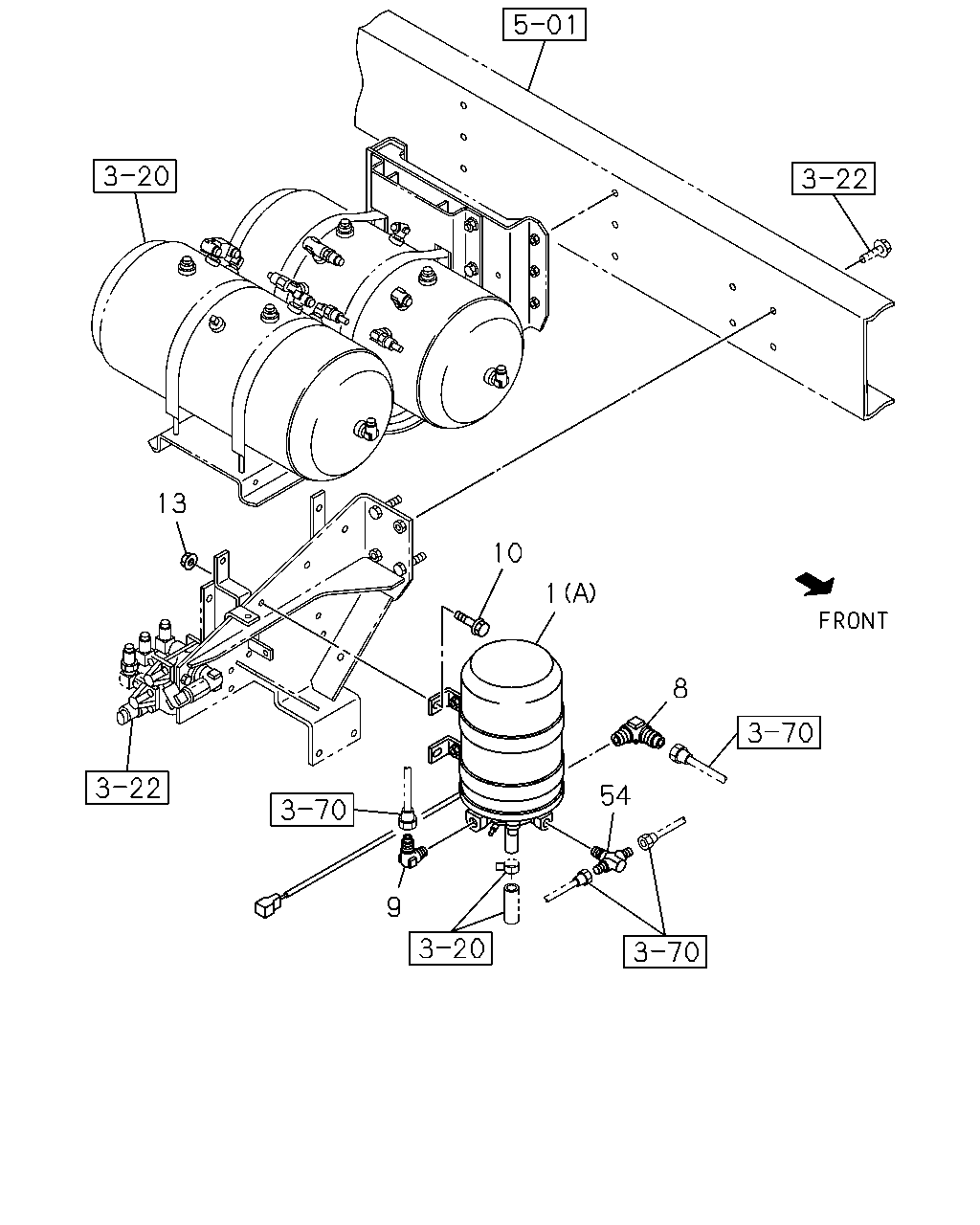

13 10 1 8 54 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48190-371-2	01	1	1110-1211
1	DRYER; AIR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98225-292-0	01	1	1212-
1	DRYER; AIR AIR DRYER<PS7> (A)	1-48190-277-1	01	1	1001-1109
1	DRYER; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A)	1-48190-277-1	01	1	1110-
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> DIN12 & R1/2 STRAIGHT SOU	1-09660-966-0	01	1	1110-
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> M20 & PT1/2 ELBOW SOU	1-09650-443-0	01	1	1001-1109
8	CONNECTOR; OUT,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M20 & PT1/2 ELBOW SOU	1-09650-443-0	01	1	1110-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> M22 & PT1/2 FLARE	0-92121-815-0	01	1	1110-
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1001-1109
9	CONNECTOR; PIPE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M22 & R1/2 W/VALVE	1-48320-026-2	01	1	1110-
10	BOLT; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> M12X25 FLANGE	0-28051-225-0	03	1	1110-
10	BOLT; AIR DRYER AIR DRYER<PS7> M10X25 FLANGE SOU	0-28651-025-0	04	1	1001-1109
10	BOLT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M10X25 FLANGE SOU	0-28651-025-0	04	1	1110-
13	NUT; AIR DRYER AIR DRYER<PS7> M10 FLANGE SOU	0-91180-210-0	04	1	1001-1109
13	NUT; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M10 FLANGE SOU	0-91180-210-0	04	1	1110-
54	CONNECTOR AIR DRYER<PS7> M12X2 & PT1/4 3WAY SOU	1-09656-229-1	01	1	1001-1109
54	CONNECTOR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M12X2 & PT1/4 3WAY SOU	1-09656-229-1	01	1	1110-

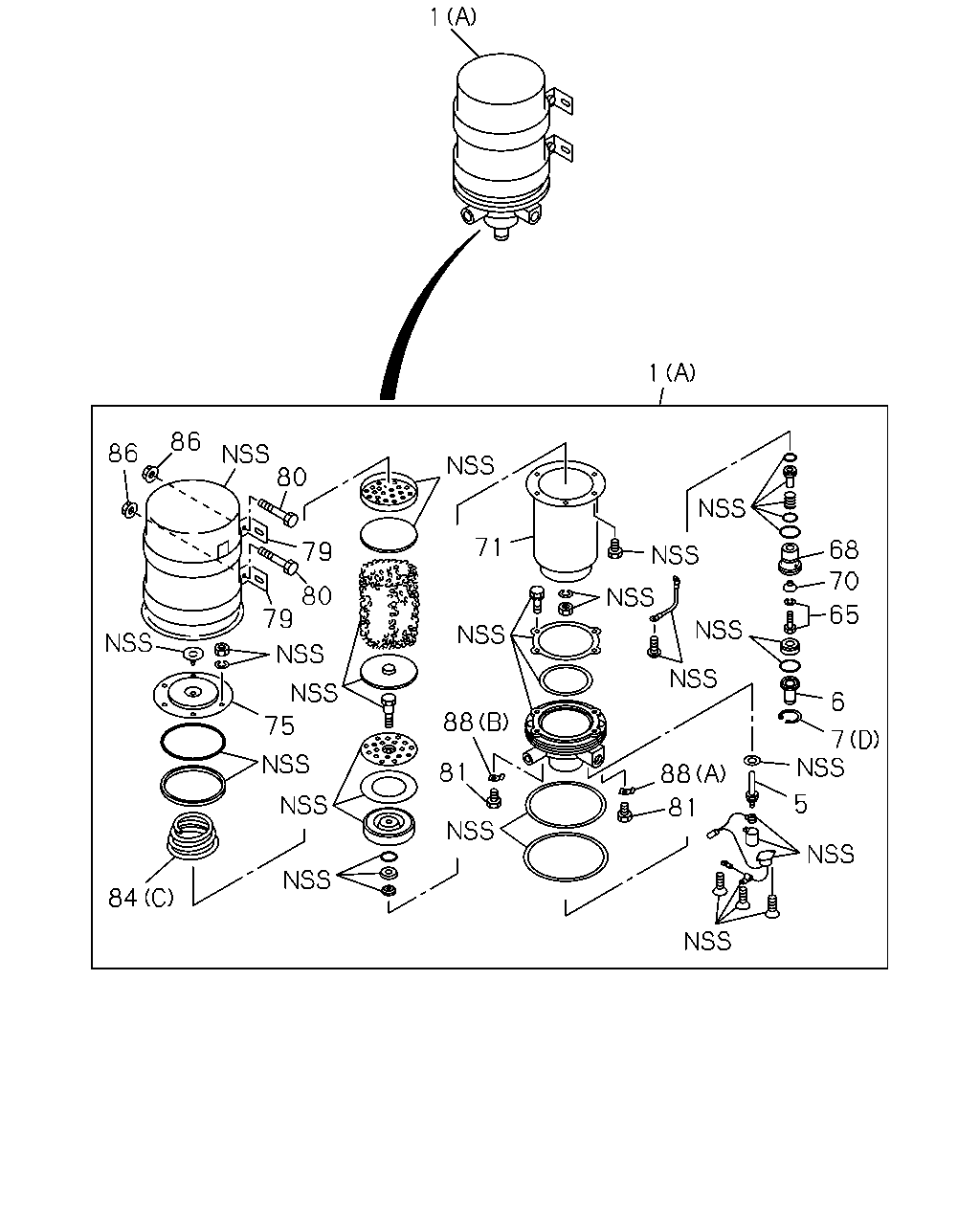

1 1 86 86 80 80 79 71 68 70 79 65 6 88 75 7 81 88 5 81 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	1-48190-371-2	01	1	1110-1211
1	DRYER; AIR AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98225-292-0	01	1	1212-
1	DRYER; AIR AIR DRYER<PS7> (A)	1-48190-277-1	01	1	1001-1109
1	DRYER; AIR AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A)	1-48190-277-1	01	1	1110-
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-530-0	01	1	1110-
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> SOU	1-48199-085-0	02	1	1001-1109
5	HEATER ASM; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-085-0	02	1	1110-
6	COVER; EXH,AIR DRYER AIR DRYER<PS7> SOU	1-48199-101-0	01	1	1001-1109
6	COVER; EXH,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-101-0	01	1	1110-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) SOU	1-48199-520-0	02	1	1110-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	1-48199-529-0	01	1	1110-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU	1-48199-579-0	01	1	1110-
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> (D) SOU	1-48199-154-0	01	1	1001-1109
7	RING; SNAP,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (D) SOU	1-48199-154-0	01	1	1110-
65	BOLT; PURGE VLV AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-517-0	01	1	1110-
65	BOLT; PURGE VLV AIR DRYER<PS7> SOU	1-48199-393-0	01	1	1001-1109
65	BOLT; PURGE VLV AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-393-0	01	1	1110-
68	BODY; VALVE AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-515-0	01	1	1110-
68	BODY; VALVE AIR DRYER<PS7> SOU	1-48199-216-0	01	1	1001-1109
68	BODY; VALVE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-216-0	01	1	1110-
70	VALVE; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-504-0	01	1	1110-
70	VALVE; AIR DRYER AIR DRYER<PS7> SOU	1-48199-105-0	01	1	1001-1109
70	VALVE; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-105-0	01	1	1110-
71	CASE; INNER,AIR DRYER AIR DRYER<PS7> SOU	1-48199-156-1	01	1	1001-1109
71	CASE; INNER,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-156-1	01	1	1110-
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-562-0	01	1	1110-
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> SOU	1-48199-167-0	01	1	1001-1109
75	COVER; CASE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-167-0	01	1	1110-
79	BRACKET; AIR DRYER AIR DRYER<PS7> SOU	1-48199-189-0	02	1	1001-1109
79	BRACKET; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-189-0	02	1	1110-
80	BOLT; BRKT AIR DRYER<PS7> SOU	1-48199-190-0	02	1	1001-1109
80	BOLT; BRKT AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-190-0	02	1	1110-
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> SOU	1-48199-436-0	08	1	1110-
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> SOU	1-48199-177-0	02	1	1001-1109
81	BOLT; CASE,AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-177-0	02	1	1110-
84	SPRING; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) SOU	1-48199-523-0	01	1	1110-
84	SPRING; AIR DRYER AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) SOU	1-48199-564-0	01	1	1110-
84	SPRING; AIR DRYER AIR DRYER<PS7> (C) SOU	1-48199-166-0	01	1	1001-1109
84	SPRING; AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) SOU	1-48199-166-0	01	1	1110-
86	NUT; BRKT AIR DRYER<PS7> SOU	1-48199-320-0	02	1	1001-1109
86	NUT; BRKT AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> SOU	1-48199-320-0	02	1	1110-
88	PLATE; STOPPER AIR DRYER<PS7> (A) SOU	1-48199-178-0	01	1	1001-1109
88	PLATE; STOPPER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) SOU	1-48199-178-0	01	1	1110-
88	PLATE; STOPPER AIR DRYER<PS7> (B) SOU	1-48199-179-0	01	1	1001-1109
88	PLATE; STOPPER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) SOU	1-48199-179-0	01	1	1110-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
