Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#20787) — 289 parça

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1001-1109
	240	REPAIR KIT; AIR CONT GOV TURBO - CONVENTIONAL<Q5T>	1-85576-467-0	01	1	1110-

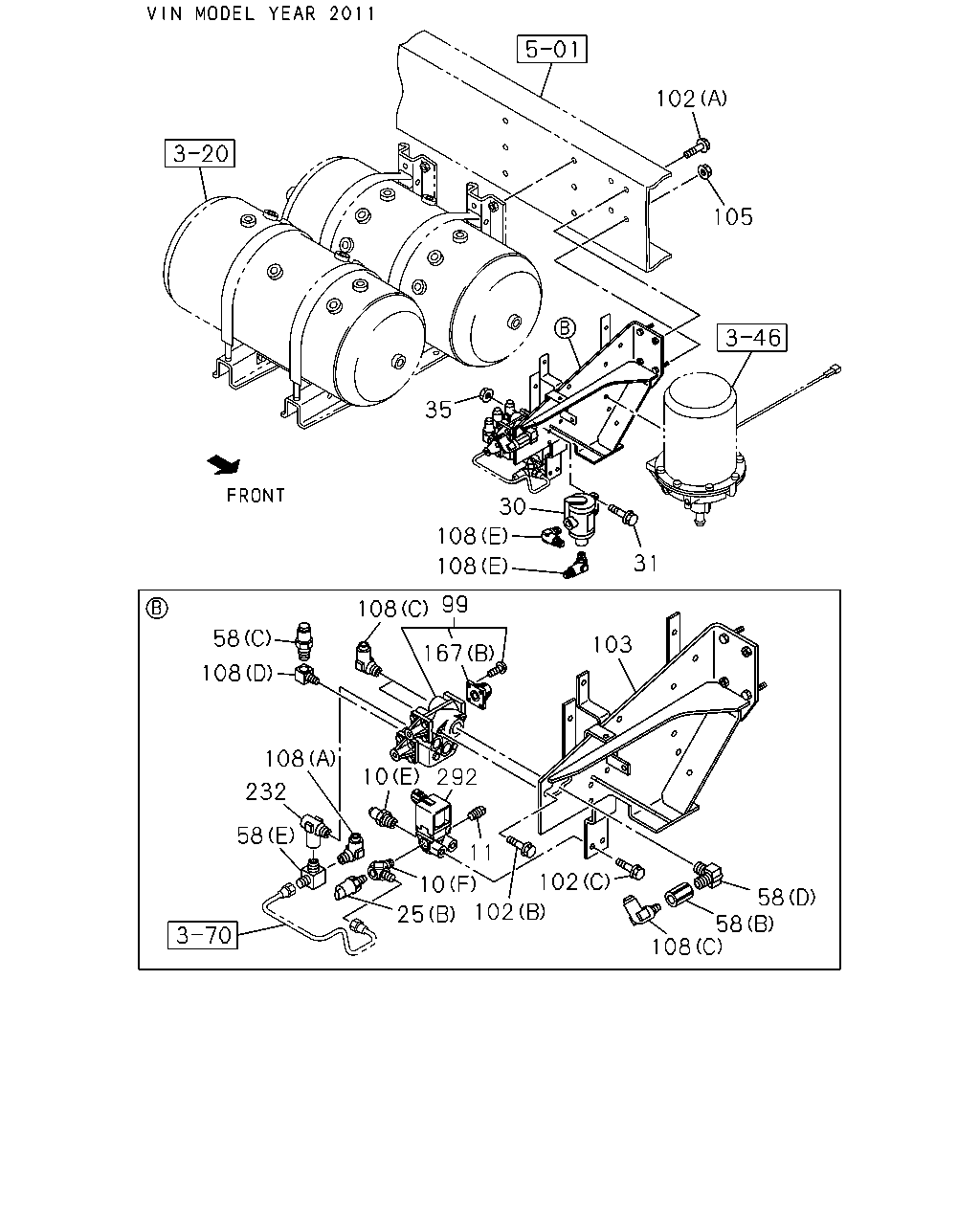

102 105 31 108 108 30 35 108 99 167 103 58 58 108 102 102 25 10 11 292 10 108 232 58 108 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1012-1102
10	CONNECTOR (E) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1103-1109
10	CONNECTOR VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1110-
10	CONNECTOR VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 3WAY SOU	1-09656-586-1	01	1	1012-1102
10	CONNECTOR (F) M12 & PT1/4 3WAY SOU	1-09656-586-1	01	1	1103-1109
10	CONNECTOR VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 3WAY SOU	1-09656-586-1	01	1	1110-
10	CONNECTOR (D) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1001-
10	CONNECTOR (B) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	01	1	1001-
10	CONNECTOR (A) DIN8 & R3/8 STRAIGHT SOU	1-09660-964-0	01	1	1001-
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1001-
11	PLUG VIN MODEL YEAR 2011<VZB> PT1/4	9-99204-513-0	01	1	1012-1102
11	PLUG PT1/4	9-99204-513-0	01	1	1103-1109
11	PLUG VIN MODEL YEAR 2011<VZB> PT1/4	9-99204-513-0	01	1	1110-
25	SWITCH; PRESSURE (B) STAMP 5.5 SOU	8-97609-249-0	01	1	1001-
25	SWITCH; PRESSURE (A) STAMP 2.0	8-98010-856-2	01	1	1001-
30	GOVERNOR; AIR CONT	1-48350-093-2	01	1	1001-1109
30	GOVERNOR; AIR CONT TURBO - CONVENTIONAL<Q5T>	1-48350-093-2	01	1	1110-
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	1001-1109
31	BOLT; GOV TO FRAME TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE	0-28650-830-0	02	1	1110-
35	NUT; GOV TO FRAME M8 FLANGE SOU	0-91180-108-0	02	1	1001-1109
35	NUT; GOV TO FRAME TURBO - CONVENTIONAL<Q5T> M8 FLANGE SOU	0-91180-108-0	02	1	1110-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1012-1102
58	ADAPTER (C) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1103-1109
58	ADAPTER VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1110-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY SOU	8-98031-238-0	01	1	1012-1102
58	ADAPTER (D) DIN17 & RC3/8 & R1/2 3WAY SOU	8-98031-238-0	01	1	1103-1109
58	ADAPTER VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY SOU	8-98031-238-0	01	1	1110-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (E)	8-98148-475-0	01	1	1012-1102
58	ADAPTER (E)	8-98148-475-0	01	1	1103-1109
58	ADAPTER VIN MODEL YEAR 2011<VZB> (E)	8-98148-475-0	01	1	1110-
58	ADAPTER (A) INNER PT3/8,OUTER M22 SOU	1-09650-494-1	04	1	1001-
58	ADAPTER (B) M20 & RC3/8 STRAIGHT SOU	1-09660-883-0	01	1	1001-
99	VALVE; PROTECTION SOU	1-48110-290-3	01	1	1001-
102	BOLT; PROTECTION VALVE VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE	0-28650-820-0	02	1	1012-1102
102	BOLT; PROTECTION VALVE (C) M8X20 FLANGE	0-28650-820-0	02	1	1103-1109
102	BOLT; PROTECTION VALVE VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE	0-28650-820-0	02	1	1110-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-
102	BOLT; PROTECTION VALVE (A) M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-
103	BRACKET; PROTECTION VALVE VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	8-98177-510-0	01	1	1110-
103	BRACKET; PROTECTION VALVE EXC. VIN MODEL YEAR 2011<VZB> SOU	8-98116-826-0	01	1	1110-
103	BRACKET; PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	8-98173-454-0	01	1	1012-1102
103	BRACKET; PROTECTION VALVE	8-98173-454-0	01	1	1103-1109
103	BRACKET; PROTECTION VALVE TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB>	8-98173-454-0	01	1	1110-
103	BRACKET; PROTECTION VALVE SOU	8-98116-826-0	01	1	1001-1011
103	BRACKET; PROTECTION VALVE EXC. VIN MODEL YEAR 2011<VZB> SOU	8-98116-826-0	01	1	1012-1102
105	NUT; BRKT,VALVE M10 FLANGE SOU	0-91180-210-0	02	1	1001-
108	CONNECTOR; ELBOW EXC. VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1012-1012
108	CONNECTOR; ELBOW (E) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1011
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1012-1012
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1012-1102
108	CONNECTOR; ELBOW (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1012-1102
108	CONNECTOR; ELBOW (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1103-1109
108	CONNECTOR; ELBOW (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1103-1109
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1110-
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1110-
108	CONNECTOR; ELBOW (D) PT3/8 ELBOW SOU	1-09660-696-0	01	1	1001-
108	CONNECTOR; ELBOW (A) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1001-1011
108	CONNECTOR; ELBOW (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1012-1109
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1110-
108	CONNECTOR; ELBOW (C) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	03	1	1001-
108	CONNECTOR; ELBOW (B) DIN12 & M22 ELBOW SOU	1-09661-497-0	04	1	1001-
167	COVER; VALVE (B) SOU	1-48119-625-0	04	1	1001-
167	COVER; VALVE (A)	1-48219-070-0	01	1	1001-1109
167	COVER; VALVE (A)	1-48219-070-0	01	1	1110-
167	COVER; VALVE (A)	1-48219-070-0	01	1	1110-
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY SOU	8-98032-527-0	01	1	1001-
292	VALVE ASM; MAGNETIC VIN MODEL YEAR 2011<VZB> SOU	1-82563-871-2	01	1	1012-1102
292	VALVE ASM; MAGNETIC SOU	1-82563-871-2	01	1	1103-1109
292	VALVE ASM; MAGNETIC VIN MODEL YEAR 2011<VZB> SOU	1-82563-871-2	01	1	1110-

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP>	1-85576-304-1	01	1	1001-
	204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1001-

195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1001-
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP>	1-46366-247-0	01	1	1001-
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-234-0	01	1	1001-
192	SPRING; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	1001-
195	SCREW; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	1001-
196	PISTON; HSA VLV H.S.A SYSTEM<6EP>	1-46366-232-0	02	1	1001-
197	SPRING; INNER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	1001-
198	PIN; STRAIGHT,HSA VLV H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	1001-
199	RETAINER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	1001-
200	SPRING; OUTER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	1001-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	1001-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	1001-
202	FILTER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	1001-
203	SCREW; HSA VLV H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	1001-
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1001-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	1001-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	1001-

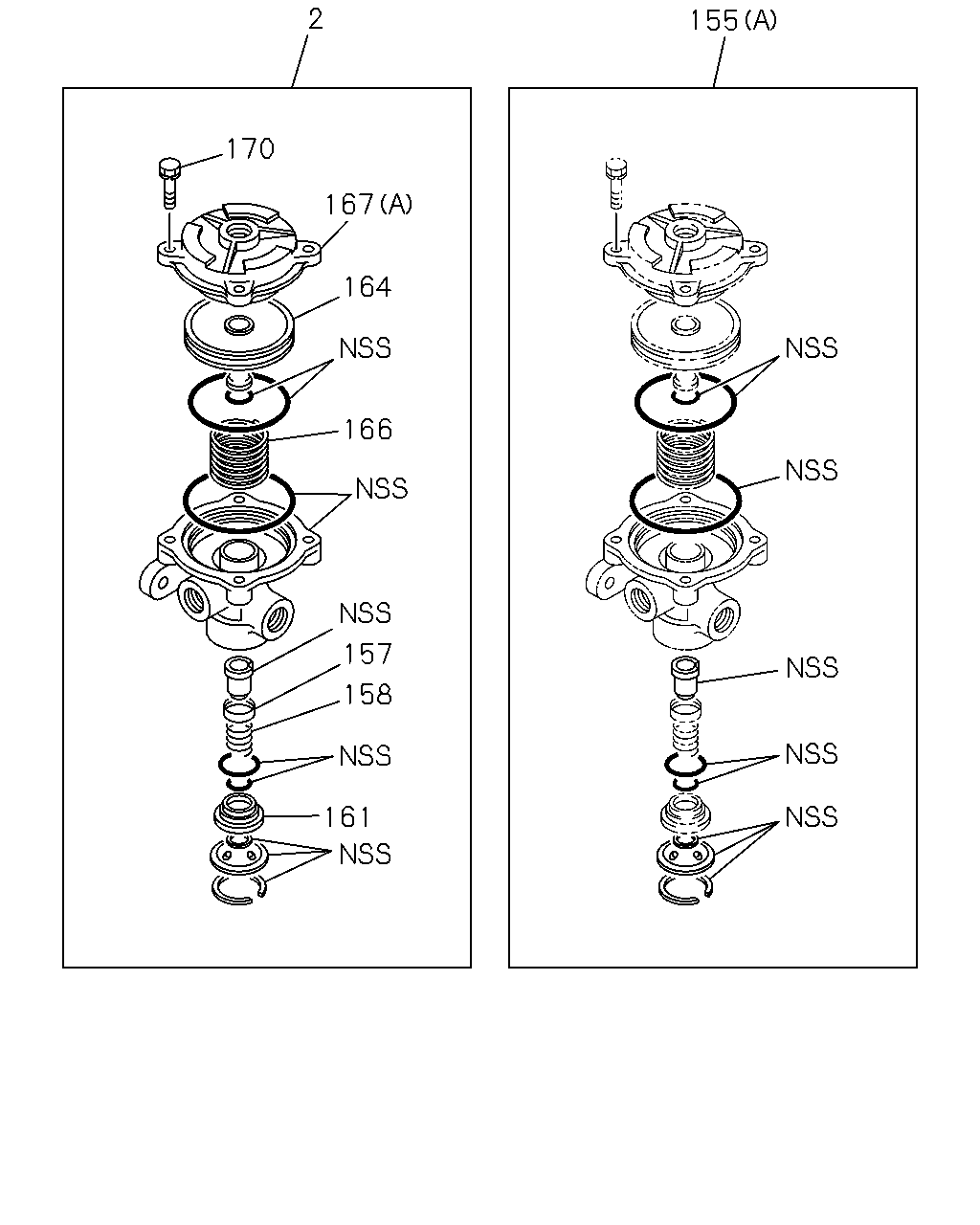

2 155 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-875-0	01	1	1001-1109
2	VALVE; RELAY	1-48210-875-0	01	1	1110-
2	VALVE; RELAY	1-48210-875-0	01	1	1110-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	1001-1109
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	1110-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	1110-

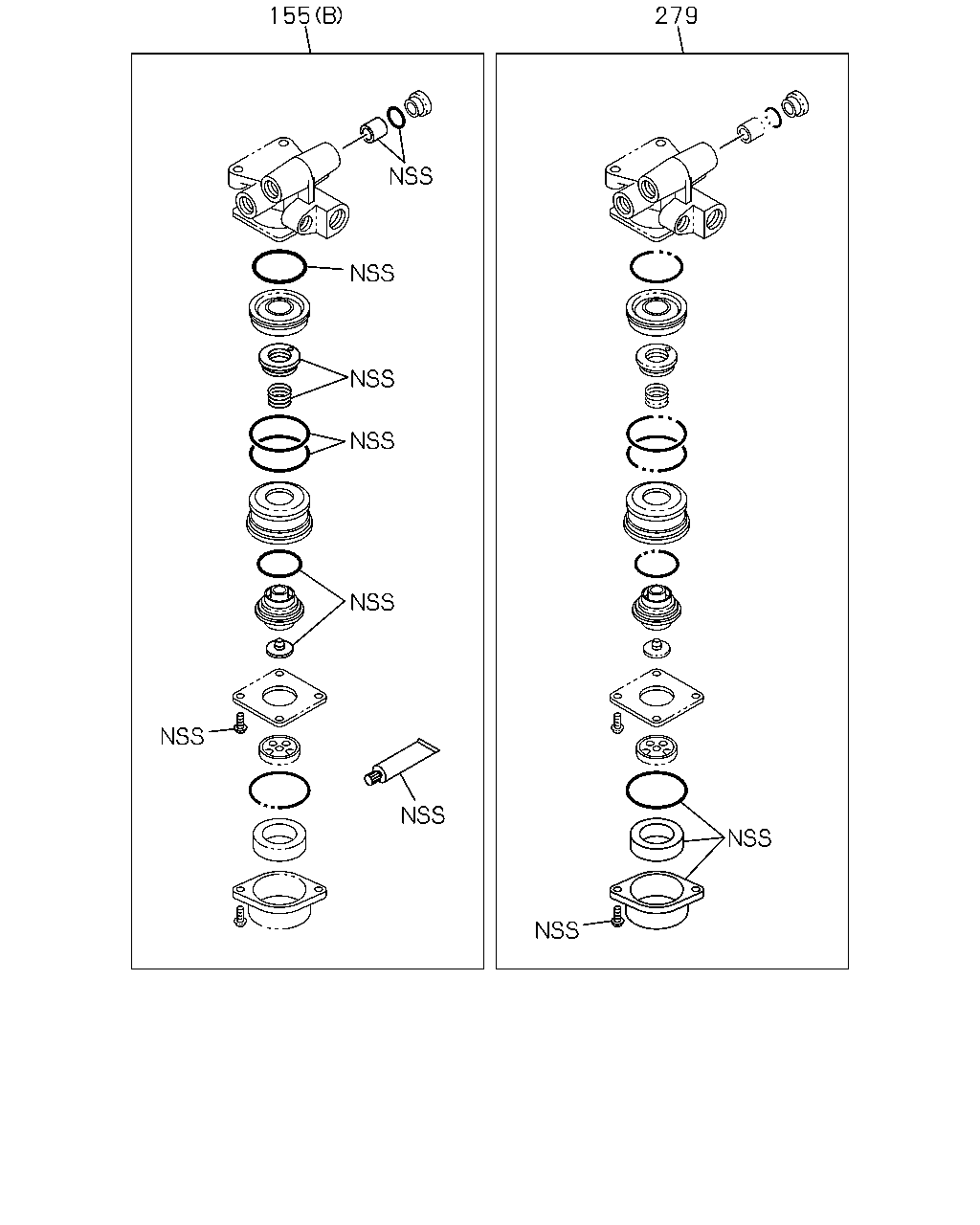

155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1001-
157	RETAINER; VALVE	1-48213-002-0	01	1	1001-1109
157	RETAINER; VALVE	1-48213-002-0	01	1	1110-
157	RETAINER; VALVE	1-48213-002-0	01	1	1110-
158	SPRING; VALVE	1-47819-089-0	01	1	1001-1109
158	SPRING; VALVE	1-47819-089-0	01	1	1110-
158	SPRING; VALVE	1-47819-089-0	01	1	1110-
161	GUIDE; VALVE	1-48129-014-0	01	1	1001-1109
161	GUIDE; VALVE	1-48129-014-0	01	1	1110-
161	GUIDE; VALVE	1-48129-014-0	01	1	1110-
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	1001-1109
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	1110-
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	1110-
166	SPRING; PISTON	1-47819-090-0	01	1	1001-1109
166	SPRING; PISTON	1-47819-090-0	01	1	1110-
166	SPRING; PISTON	1-47819-090-0	01	1	1110-
167	COVER; VALVE (B) SOU	1-48119-625-0	04	1	1001-
167	COVER; VALVE (A)	1-48219-070-0	01	1	1001-1109
167	COVER; VALVE (A)	1-48219-070-0	01	1	1110-
167	COVER; VALVE (A)	1-48219-070-0	01	1	1110-
170	SCREW; COVER TO BODY SOU	1-48219-039-0	04	1	1001-1109
170	SCREW; COVER TO BODY SOU	1-48219-039-0	04	1	1110-
170	SCREW; COVER TO BODY SOU	1-48219-039-0	04	1	1110-

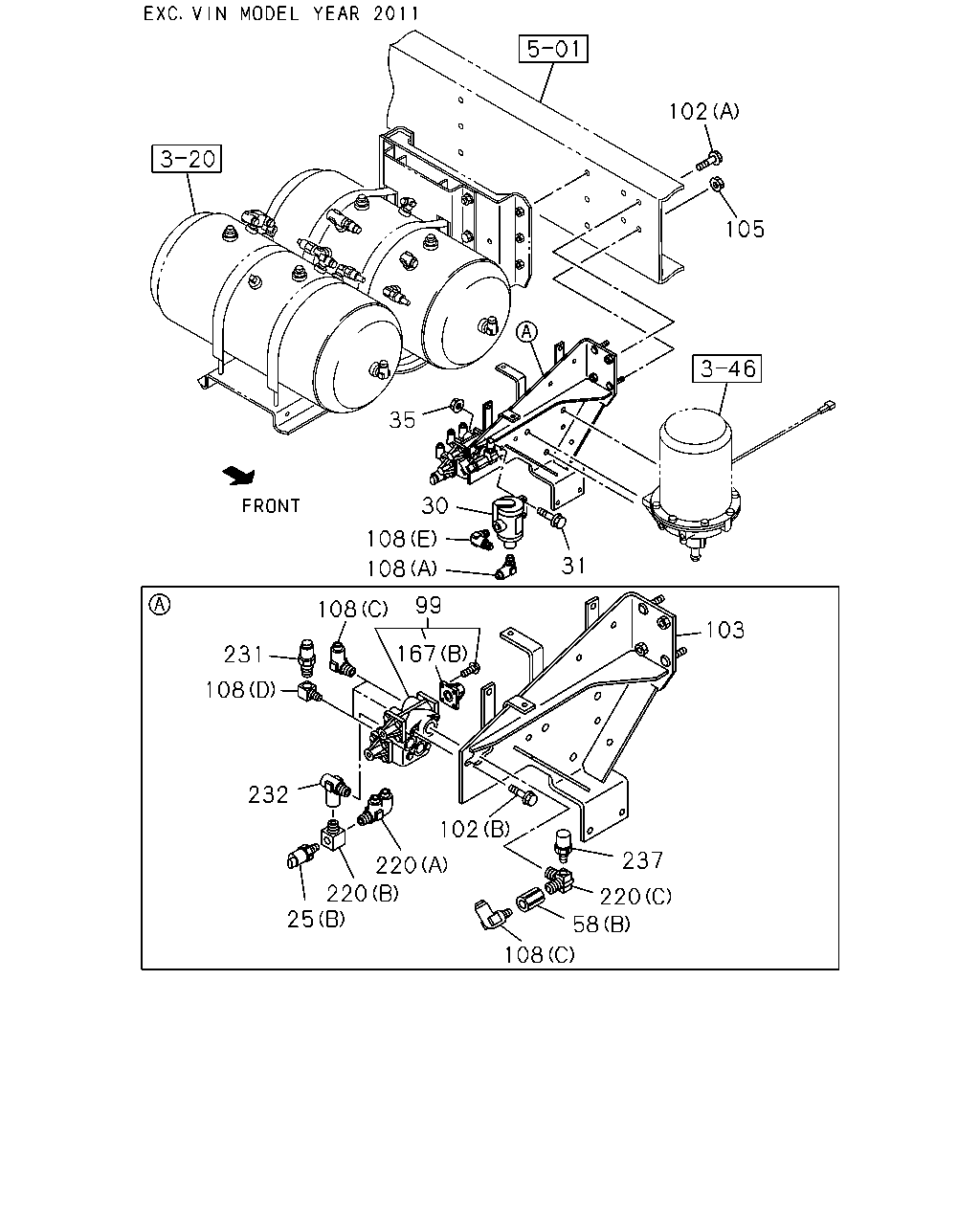

102 105 35 31 103 30 108 108 108 99 167 231 108 232 102 220 220 25 237 220 58 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SWITCH; PRESSURE (B) STAMP 5.5 SOU	8-97609-249-0	01	1	1001-
25	SWITCH; PRESSURE (A) STAMP 2.0	8-98010-856-2	01	1	1001-
30	GOVERNOR; AIR CONT	1-48350-093-2	01	1	1001-1109
30	GOVERNOR; AIR CONT TURBO - CONVENTIONAL<Q5T>	1-48350-093-2	01	1	1110-
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	1001-1109
31	BOLT; GOV TO FRAME TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE	0-28650-830-0	02	1	1110-
35	NUT; GOV TO FRAME M8 FLANGE SOU	0-91180-108-0	02	1	1001-1109
35	NUT; GOV TO FRAME TURBO - CONVENTIONAL<Q5T> M8 FLANGE SOU	0-91180-108-0	02	1	1110-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1012-1102
58	ADAPTER (C) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1103-1109
58	ADAPTER VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1110-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY SOU	8-98031-238-0	01	1	1012-1102
58	ADAPTER (D) DIN17 & RC3/8 & R1/2 3WAY SOU	8-98031-238-0	01	1	1103-1109
58	ADAPTER VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY SOU	8-98031-238-0	01	1	1110-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (E)	8-98148-475-0	01	1	1012-1102
58	ADAPTER (E)	8-98148-475-0	01	1	1103-1109
58	ADAPTER VIN MODEL YEAR 2011<VZB> (E)	8-98148-475-0	01	1	1110-
58	ADAPTER (A) INNER PT3/8,OUTER M22 SOU	1-09650-494-1	04	1	1001-
58	ADAPTER (B) M20 & RC3/8 STRAIGHT SOU	1-09660-883-0	01	1	1001-
99	VALVE; PROTECTION SOU	1-48110-290-3	01	1	1001-
102	BOLT; PROTECTION VALVE VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE	0-28650-820-0	02	1	1012-1102
102	BOLT; PROTECTION VALVE (C) M8X20 FLANGE	0-28650-820-0	02	1	1103-1109
102	BOLT; PROTECTION VALVE VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE	0-28650-820-0	02	1	1110-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-
102	BOLT; PROTECTION VALVE (A) M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-
103	BRACKET; PROTECTION VALVE VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	8-98177-510-0	01	1	1110-
103	BRACKET; PROTECTION VALVE EXC. VIN MODEL YEAR 2011<VZB> SOU	8-98116-826-0	01	1	1110-
103	BRACKET; PROTECTION VALVE VIN MODEL YEAR 2011<VZB>	8-98173-454-0	01	1	1012-1102
103	BRACKET; PROTECTION VALVE	8-98173-454-0	01	1	1103-1109
103	BRACKET; PROTECTION VALVE TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB>	8-98173-454-0	01	1	1110-
103	BRACKET; PROTECTION VALVE SOU	8-98116-826-0	01	1	1001-1011
103	BRACKET; PROTECTION VALVE EXC. VIN MODEL YEAR 2011<VZB> SOU	8-98116-826-0	01	1	1012-1102
105	NUT; BRKT,VALVE M10 FLANGE SOU	0-91180-210-0	02	1	1001-
108	CONNECTOR; ELBOW EXC. VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1012-1012
108	CONNECTOR; ELBOW (E) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1011
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1012-1012
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1012-1102
108	CONNECTOR; ELBOW (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1012-1102
108	CONNECTOR; ELBOW (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1103-1109
108	CONNECTOR; ELBOW (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1103-1109
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1110-
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1110-
108	CONNECTOR; ELBOW (D) PT3/8 ELBOW SOU	1-09660-696-0	01	1	1001-
108	CONNECTOR; ELBOW (A) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1001-1011
108	CONNECTOR; ELBOW (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1012-1109
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1110-
108	CONNECTOR; ELBOW (C) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	03	1	1001-
108	CONNECTOR; ELBOW (B) DIN12 & M22 ELBOW SOU	1-09661-497-0	04	1	1001-
167	COVER; VALVE (B) SOU	1-48119-625-0	04	1	1001-
167	COVER; VALVE (A)	1-48219-070-0	01	1	1001-1109
167	COVER; VALVE (A)	1-48219-070-0	01	1	1110-
167	COVER; VALVE (A)	1-48219-070-0	01	1	1110-
220	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (A) DIN12X2 & PT3/8 DOUBLE ELBOW SOU	1-09661-026-0	01	1	1110-
220	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (C) DIN17 & RC3/8 & R1/2 3WAY SOU	8-98031-238-0	01	1	1110-
220	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (B) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	01	1	1110-
220	CONNECTOR; 3WAY (B) PT3/8X2 & PT1/4 3WAY SOU	1-09656-708-0	01	1	1001-1011
220	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (B) PT3/8X2 & PT1/4 3WAY SOU	1-09656-708-0	01	1	1012-1101
220	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (B) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	01	1	1102-1102
220	CONNECTOR; 3WAY (A) DIN12X2 & PT3/8 DOUBLE ELBOW SOU	1-09661-026-0	01	1	1001-1011
220	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (A) DIN12X2 & PT3/8 DOUBLE ELBOW SOU	1-09661-026-0	01	1	1012-1102
220	CONNECTOR; 3WAY (C) DIN17 & RC3/8 & R1/2 3WAY SOU	8-98031-238-0	01	1	1001-1011
220	CONNECTOR; 3WAY EXC. VIN MODEL YEAR 2011<VZB> (C) DIN17 & RC3/8 & R1/2 3WAY SOU	8-98031-238-0	01	1	1012-1102
231	CONNECTOR; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1110-
231	CONNECTOR; NYLON TUBE DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1001-1011
231	CONNECTOR; NYLON TUBE EXC. VIN MODEL YEAR 2011<VZB> DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1012-1102
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY SOU	8-98032-527-0	01	1	1001-
237	VALVE; SAFETY	1-48320-012-2	01	1	1001-

10 58 213 65 63 10 1 25 74 6 62 134 58 213 213 10 58 213 58 10 73 12 8 12 4 56 2 5 12 12

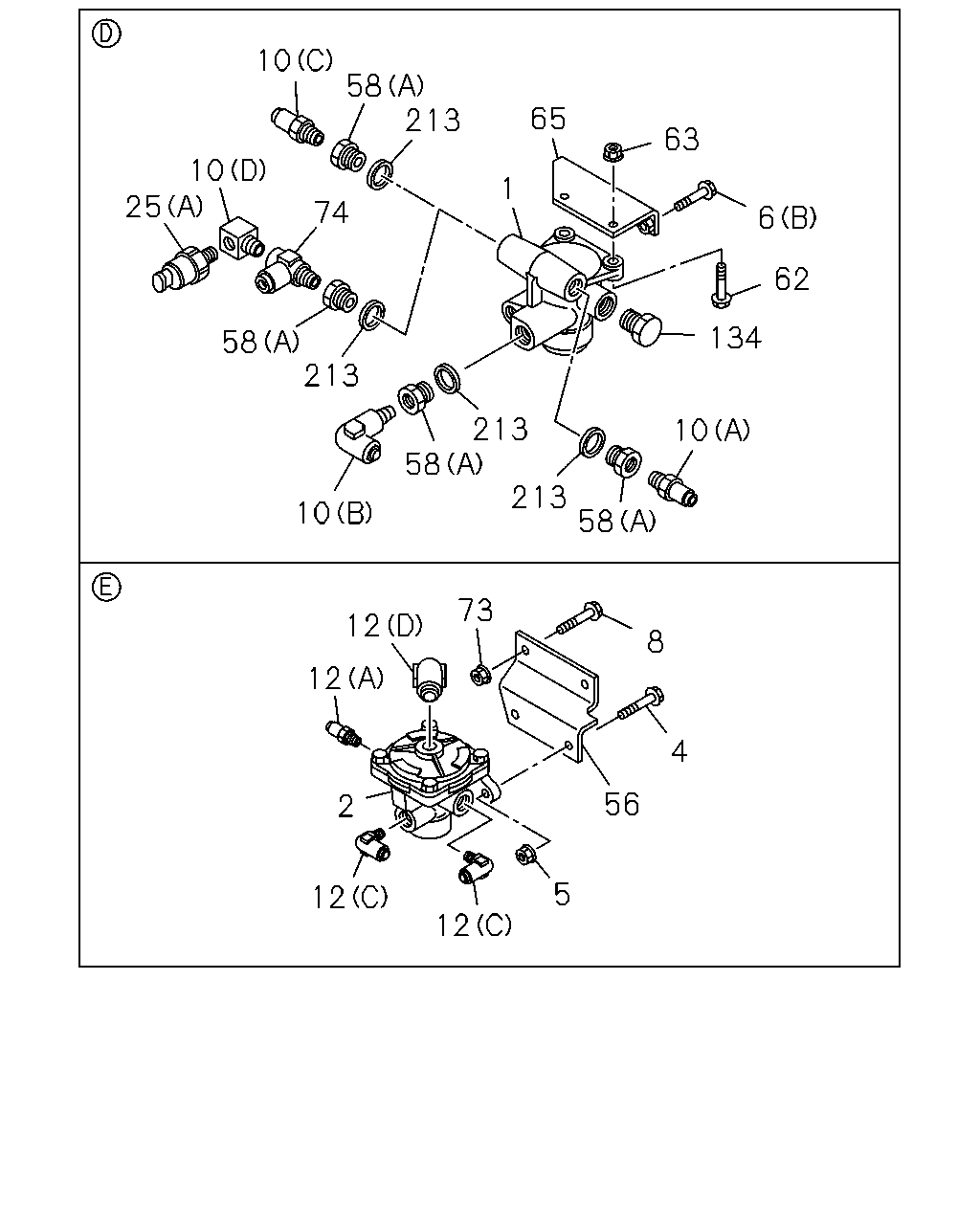

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	1001-
2	VALVE; RELAY	1-48210-875-0	01	1	1001-1109
2	VALVE; RELAY	1-48210-875-0	01	1	1110-
2	VALVE; RELAY	1-48210-875-0	01	1	1110-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-1109
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE SOU	0-28651-035-0	02	1	1110-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE SOU	0-28651-035-0	02	1	1110-
5	NUT M10 FLANGE SOU	0-91180-210-0	02	1	1001-1109
5	NUT M10 FLANGE SOU	0-91180-210-0	02	1	1110-
5	NUT M10 FLANGE SOU	0-91180-210-0	02	1	1110-
6	BOLT; VLV (A) M8X80 FLANGE SOU	0-28050-880-0	04	1	1001-1410
6	BOLT; VLV (A) M8X85 SOU	1-09044-074-0	04	1	1411-
6	BOLT; VLV (B) M8X35 FLANGE SOU	0-28650-835-0	02	1	1001-
8	BOLT; BRKT M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-
10	CONNECTOR VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1012-1102
10	CONNECTOR (E) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1103-1109
10	CONNECTOR VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 STRAIGHT SOU	1-09650-074-1	01	1	1110-
10	CONNECTOR VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 3WAY SOU	1-09656-586-1	01	1	1012-1102
10	CONNECTOR (F) M12 & PT1/4 3WAY SOU	1-09656-586-1	01	1	1103-1109
10	CONNECTOR VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 3WAY SOU	1-09656-586-1	01	1	1110-
10	CONNECTOR (D) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1001-
10	CONNECTOR (B) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	01	1	1001-
10	CONNECTOR (A) DIN8 & R3/8 STRAIGHT SOU	1-09660-964-0	01	1	1001-
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1001-
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1001-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	02	1	1001-1109
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	02	1	1110-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	02	1	1110-
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1001-
12	CONNECTOR; RELAY VLV (B) M12 & M8 & RC3/8 3WAY SOU	1-09661-207-0	01	1	1001-
25	SWITCH; PRESSURE (B) STAMP 5.5 SOU	8-97609-249-0	01	1	1001-
25	SWITCH; PRESSURE (A) STAMP 2.0	8-98010-856-2	01	1	1001-
56	BRACKET; RELAY VLV	8-98126-366-0	01	1	1001-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1012-1102
58	ADAPTER (C) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1103-1109
58	ADAPTER VIN MODEL YEAR 2011<VZB> (C) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1110-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY SOU	8-98031-238-0	01	1	1012-1102
58	ADAPTER (D) DIN17 & RC3/8 & R1/2 3WAY SOU	8-98031-238-0	01	1	1103-1109
58	ADAPTER VIN MODEL YEAR 2011<VZB> (D) DIN17 & RC3/8 & R1/2 3WAY SOU	8-98031-238-0	01	1	1110-
58	ADAPTER VIN MODEL YEAR 2011<VZB> (E)	8-98148-475-0	01	1	1012-1102
58	ADAPTER (E)	8-98148-475-0	01	1	1103-1109
58	ADAPTER VIN MODEL YEAR 2011<VZB> (E)	8-98148-475-0	01	1	1110-
58	ADAPTER (A) INNER PT3/8,OUTER M22 SOU	1-09650-494-1	04	1	1001-
58	ADAPTER (B) M20 & RC3/8 STRAIGHT SOU	1-09660-883-0	01	1	1001-
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	1001-
63	NUT; BRKT FIX M8 FLANGE SOU	0-91180-108-0	02	1	1001-
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	1001-
73	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	02	1	1001-
74	CONNECTOR; 3WAY DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1001-
134	PLUG; RELAY VALVE M22 SOU	1-09661-502-0	01	1	1001-
213	GASKET ID=22.5 SOU	9-09571-422-0	04	1	1001-

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	1001-1109
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	1110-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	1110-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1001-
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	1001-

106 4 71 70 96 52 52 108 286 12 2 12 108 286 5 12 108 287 287 6 6 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-875-0	01	1	1001-1109
2	VALVE; RELAY	1-48210-875-0	01	1	1110-
2	VALVE; RELAY	1-48210-875-0	01	1	1110-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE SOU	0-28651-035-0	02	1	1001-1109
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE SOU	0-28651-035-0	02	1	1110-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE SOU	0-28651-035-0	02	1	1110-
5	NUT M10 FLANGE SOU	0-91180-210-0	02	1	1001-1109
5	NUT M10 FLANGE SOU	0-91180-210-0	02	1	1110-
5	NUT M10 FLANGE SOU	0-91180-210-0	02	1	1110-
6	BOLT; VLV (A) M8X80 FLANGE SOU	0-28050-880-0	04	1	1001-1410
6	BOLT; VLV (A) M8X85 SOU	1-09044-074-0	04	1	1411-
6	BOLT; VLV (B) M8X35 FLANGE SOU	0-28650-835-0	02	1	1001-
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1001-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	02	1	1001-1109
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	02	1	1110-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	02	1	1110-
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1001-
12	CONNECTOR; RELAY VLV (B) M12 & M8 & RC3/8 3WAY SOU	1-09661-207-0	01	1	1001-
52	CONNECTOR; RELAY VLV H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT SOU	1-09660-964-0	01	1	1001-
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY SOU	1-09660-997-0	01	1	1001-
70	BOLT; AIR VLV M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
71	NUT; AIR VLV M8 FLANGE SOU	0-91180-108-0	02	1	1001-
96	BRACKET	8-98074-613-3	01	1	1001-1410
96	BRACKET	8-98273-496-0	01	1	1411-
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1001-
108	CONNECTOR; ELBOW EXC. VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1012-1012
108	CONNECTOR; ELBOW (E) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-1011
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW SOU	1-09650-430-0	02	1	1012-1012
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1012-1102
108	CONNECTOR; ELBOW (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1012-1102
108	CONNECTOR; ELBOW (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1103-1109
108	CONNECTOR; ELBOW (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1103-1109
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1110-
108	CONNECTOR; ELBOW VIN MODEL YEAR 2011<VZB> (E) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1110-
108	CONNECTOR; ELBOW (D) PT3/8 ELBOW SOU	1-09660-696-0	01	1	1001-
108	CONNECTOR; ELBOW (A) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1001-1011
108	CONNECTOR; ELBOW (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1012-1109
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (A) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1110-
108	CONNECTOR; ELBOW (C) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	03	1	1001-
108	CONNECTOR; ELBOW (B) DIN12 & M22 ELBOW SOU	1-09661-497-0	04	1	1001-
286	MODULATOR; FRT SOU	1-48240-115-0	02	1	1001-1410
286	MODULATOR; FRT SOU	8-98215-454-0	02	1	1411-
287	COVER; MODULATOR (A) SOU	1-47479-611-1	01	1	1001-1410
287	COVER; MODULATOR (B) SOU	8-98273-493-0	01	1	1411-
287	COVER; MODULATOR (B) SOU	8-98073-401-0	01	1	1001-1410
287	COVER; MODULATOR (A) SOU	8-98273-494-0	01	1	1411-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	REPAIR KIT; PROTECTION VALVE SOU	1-85576-451-2	01	1	1001-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
