3-10 — BRAKE PEDAL AND CONTROL
(#20784) — 31 parça
◀

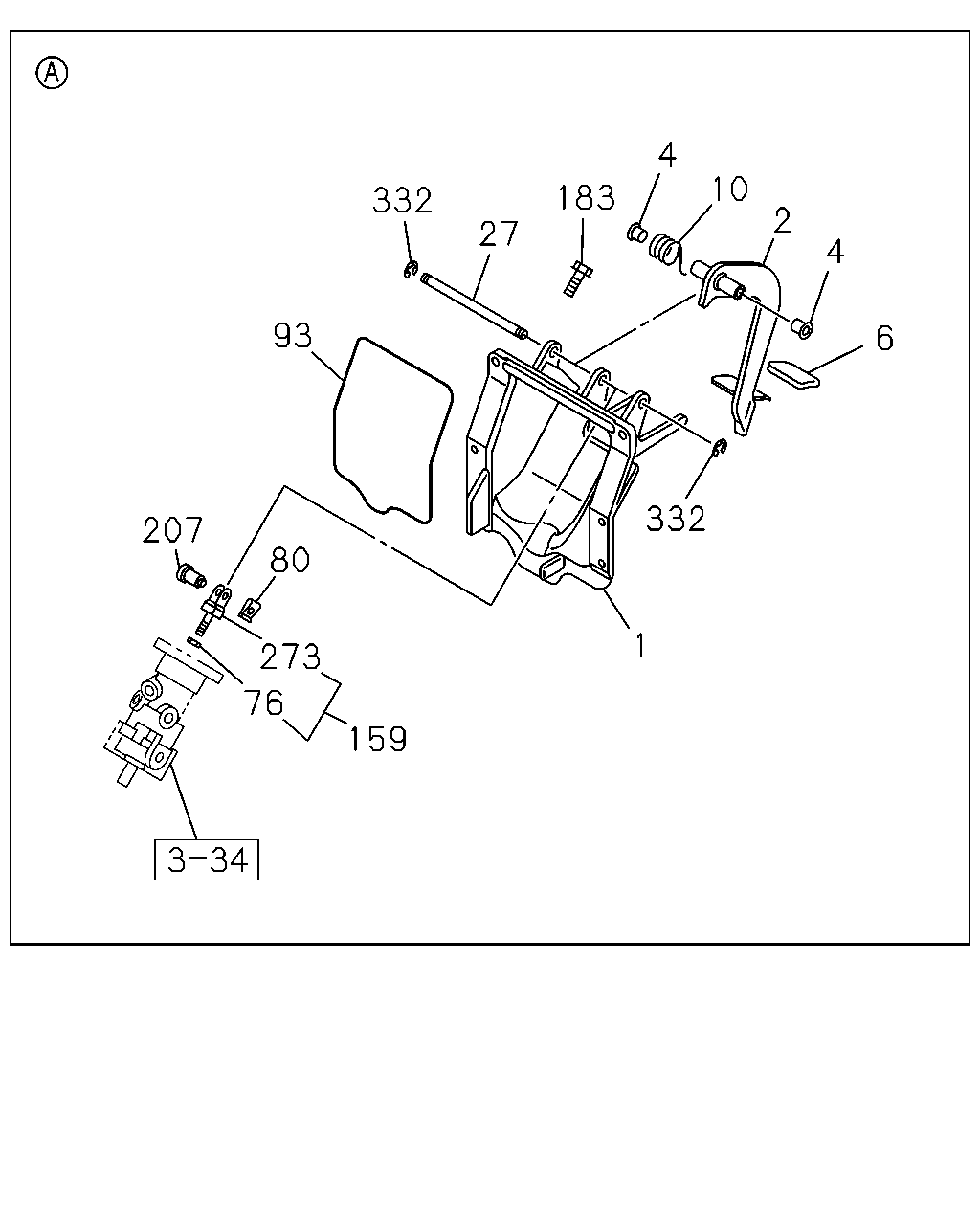

[310A] COMPONENT (17 parça)

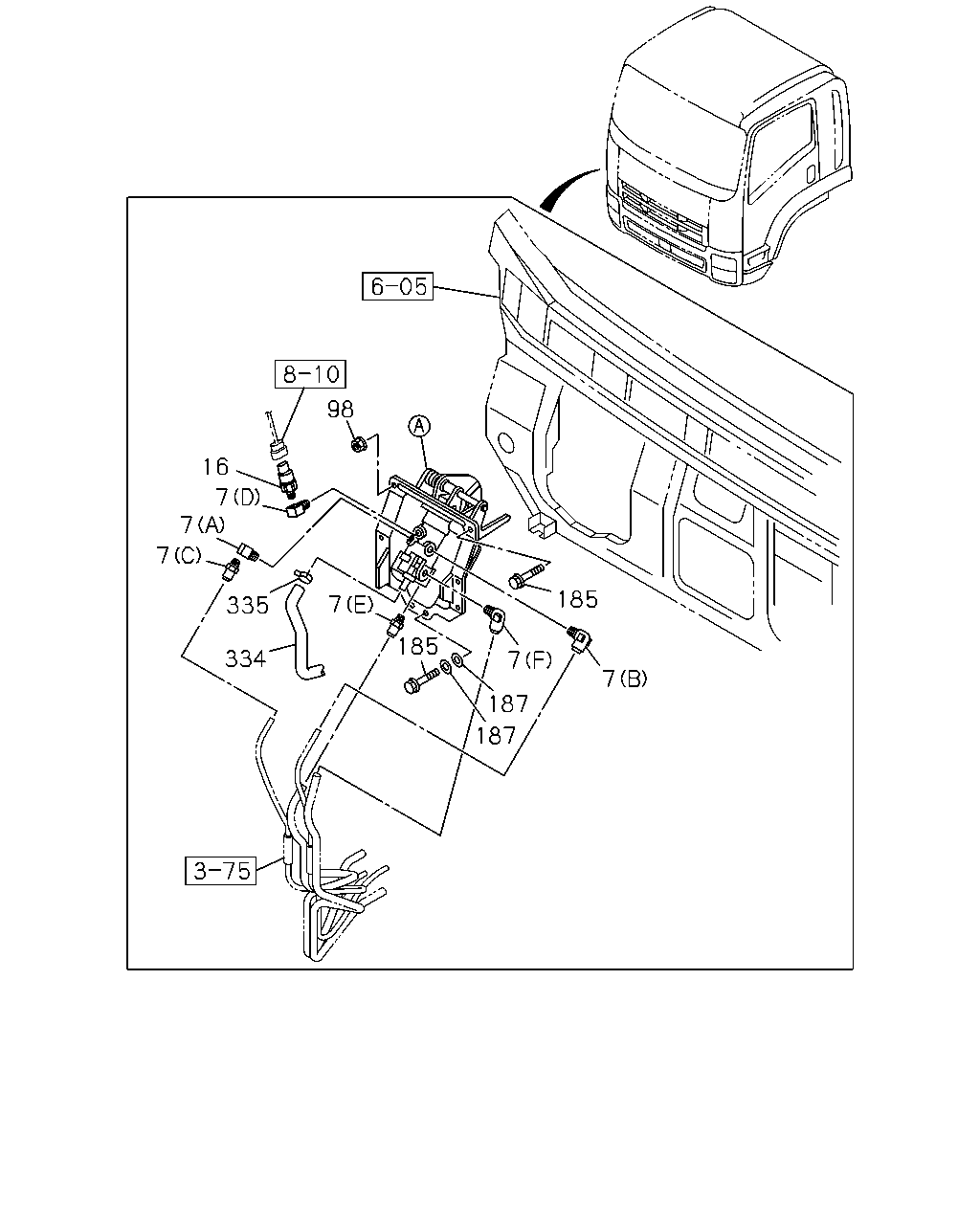

[310A] FIXING (14 parça)
▶
4
10
183
332
2
27
4
93
6
332
207
80
1
273
76
159
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98071-973-1
01
1
1110-
1
BRACKET ASM; PEDAL
8-98071-972-1
01
1
1001-1109
1
BRACKET ASM; PEDAL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98071-972-1
01
1
1110-
2
PEDAL; BRK
8-98057-226-0
01
1
1001-
4
BUSHING; BRK PEDAL
SOU
8-94238-596-0
02
1
1001-
6
COVER; BRK PEDAL
8-98056-865-0
01
1
1001-
10
SPRING; RETURN,BRK PEDAL
8-98057-232-1
01
1
1001-
27
SHAFT; BRK PEDAL
8-98057-231-0
01
1
1001-
76
NUT; PUSH ROD
M8 FLANGE SOU
0-91180-108-0
01
1
1001-
80
PIN; SNAP,BRK PEDAL
8-98007-161-0
01
1
1001-
93
SEAL; BRK PEDAL
1-48199-534-0
01
1
1001-
159
ROD ASM; PUSH,BRK
8-98057-234-0
01
1
1001-
183
BOLT; BRK VLV
M8X30 FLANGE
0-28660-830-0
04
1
1001-
207
PIN; JOINT,BRK PEDAL LINK
8-97387-230-0
01
1
1001-1007
207
PIN; JOINT,BRK PEDAL LINK
8-98147-657-0
01
1
1008-
273
ROD; PULL
8-98057-233-0
01
1
1001-
332
RING; SNAP
ID=12
0-91805-512-0
02
1
1001-
98
16
7
7
7
185
7
335
185
334
7
7
187
187
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
CONNECTOR; BRK VALVE
(D) PT1/4 & PT1/4 2WAY SOU
1-09660-693-0
01
1
1001-
7
CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW SOU
1-09660-696-0
01
1
1001-
7
CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 ELBOW SOU
1-09660-957-0
01
1
1001-
7
CONNECTOR; BRK VALVE
(F) DIN12 & R3/8 ELBOW SOU
1-09660-959-0
01
1
1001-
7
CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 STRAIGHT SOU
1-09660-964-0
01
1
1001-
7
CONNECTOR; BRK VALVE
(E) DIN12 & R3/8 STRAIGHT SOU
1-09660-965-0
01
1
1001-
16
SWITCH; STOP LAMP
STAMP 0.3
8-98010-857-0
01
1
1001-
98
NUT; BRKT
M8 FLANGE SOU
0-91180-208-0
01
1
1001-
185
BOLT; BRKT
M8X25 FLANGE
8-98057-109-0
07
1
1001-1506
185
BOLT; BRKT
M8X25 HEXALOBULAR
8-98316-699-0
07
1
1507-
187
WASHER; PL,BRKT
ID=8.4 OD=26 SOU
0-91614-808-0
04
1
1001-1506
187
WASHER; PL,BRKT
ID=8.4 OD=26
8-98316-762-0
04
1
1507-
334
HOSE; AIR,BRK
8-97611-145-3
01
1
1001-
335
CLAMP; HOSE
ID=24
8-98025-921-0
01
1
1001-
