2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#2077) — 14 parça

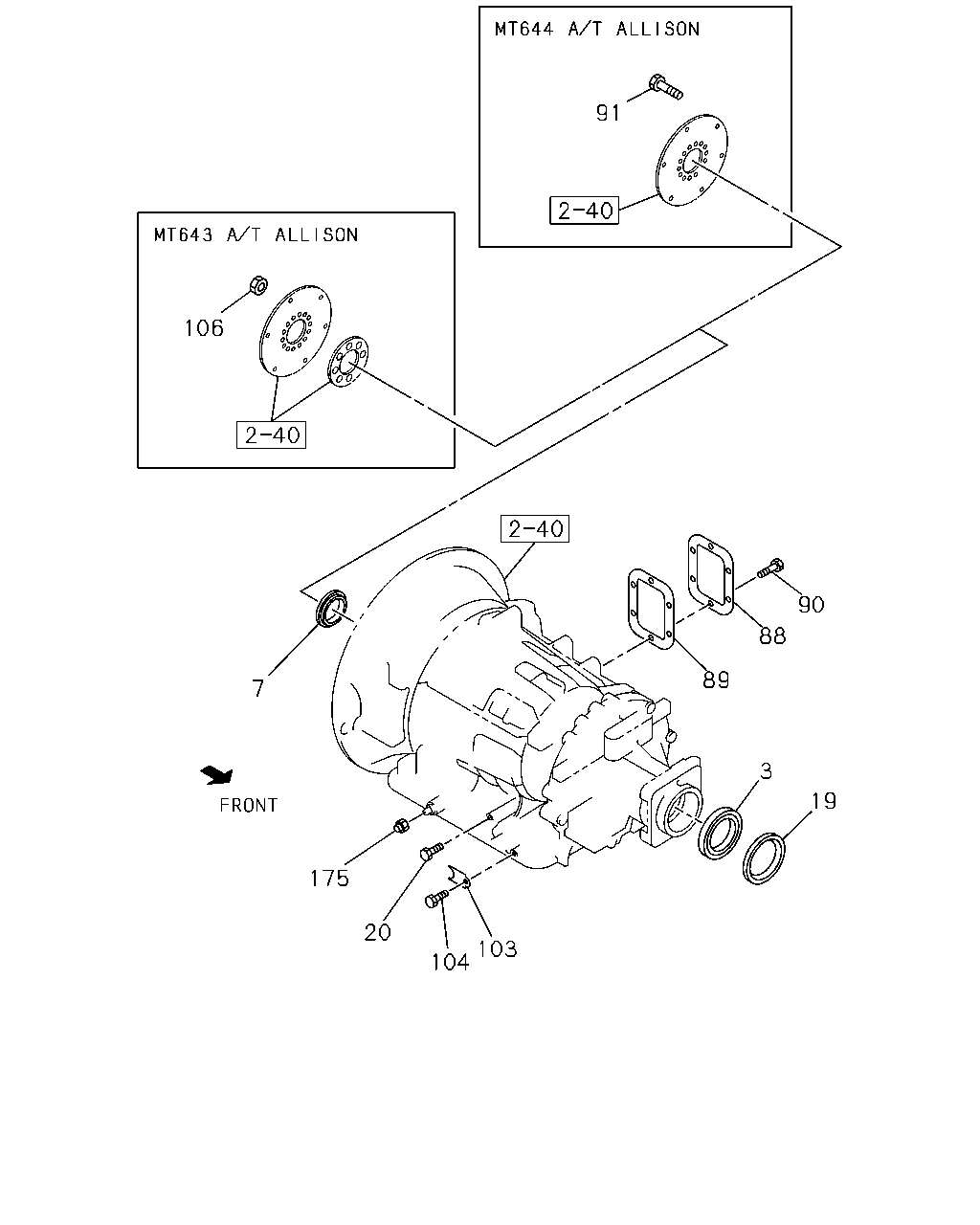

çizim 28699
91 106 90 88 89 7 3 19 175 20 103 104
BalonParca AdiParca NoAdetTipApplied Date A B
3 SEAL; OIL,RR COVER,A/T 1-09625-052-0 01 1 9001- ● ●
7 SEAL; OIL,LIP,A/T 1-09625-255-0 01 1 9001- ●
7 SEAL; OIL,LIP,A/T 1-09625-273-0 01 1 9001- ●
19 COVER; DUST,REAR COVER 1-32129-003-0 01 1 9001- ● ●
20 PLUG; TAPER,A/T CASE 1-38129-008-0 03 1 9001- ●
20 PLUG; TAPER,A/T CASE 1-38129-008-0 05 1 9001- ●
88 COVER; SIDE,A/T 1-38131-007-0 01 1 9001- ● ●
89 GASKET; SIDE COVER 1-38183-004-0 01 1 9001- ● ●
90 BOLT; SIDE COVER 1-09089-002-0 06 1 9001- ● ●
91 BOLT; FLEX PLATE 1-32219-003-0 12 1 9001- ●
103 RETAINER; A/T 1-34559-004-0 01 1 9001- ● ●
104 BOLT; RET 1-09189-004-0 01 1 9001- ● ●
106 NUT KIT; FLEX PLATE 1-32219-002-0 01 1 9001- ●
175 NUT; SELECT SHAFT 1-09464-003-0 01 1 9001- ● ●
