◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11165 - FTR SOUTH AFRICA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10 - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL (#20769) — 36 parça

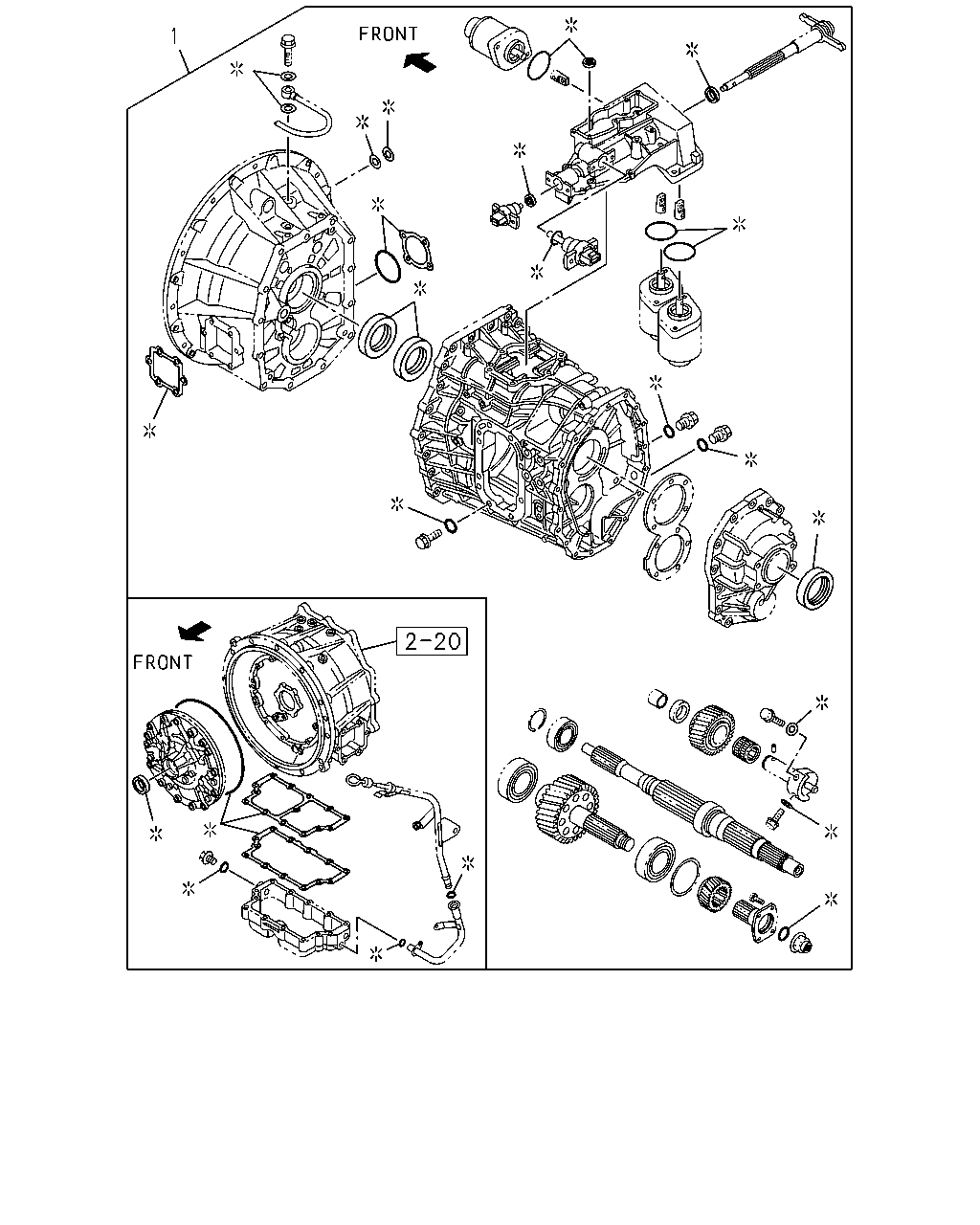

çizim 127324
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-241-0 01 1 1110- ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-237-0 01 1 1110-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-335-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-242-0 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-236-0 01 1 1001-1109 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-236-0 01 1 1110-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-213-1 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-240-0 01 1 1001-1109 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-240-0 01 1 1110- ●

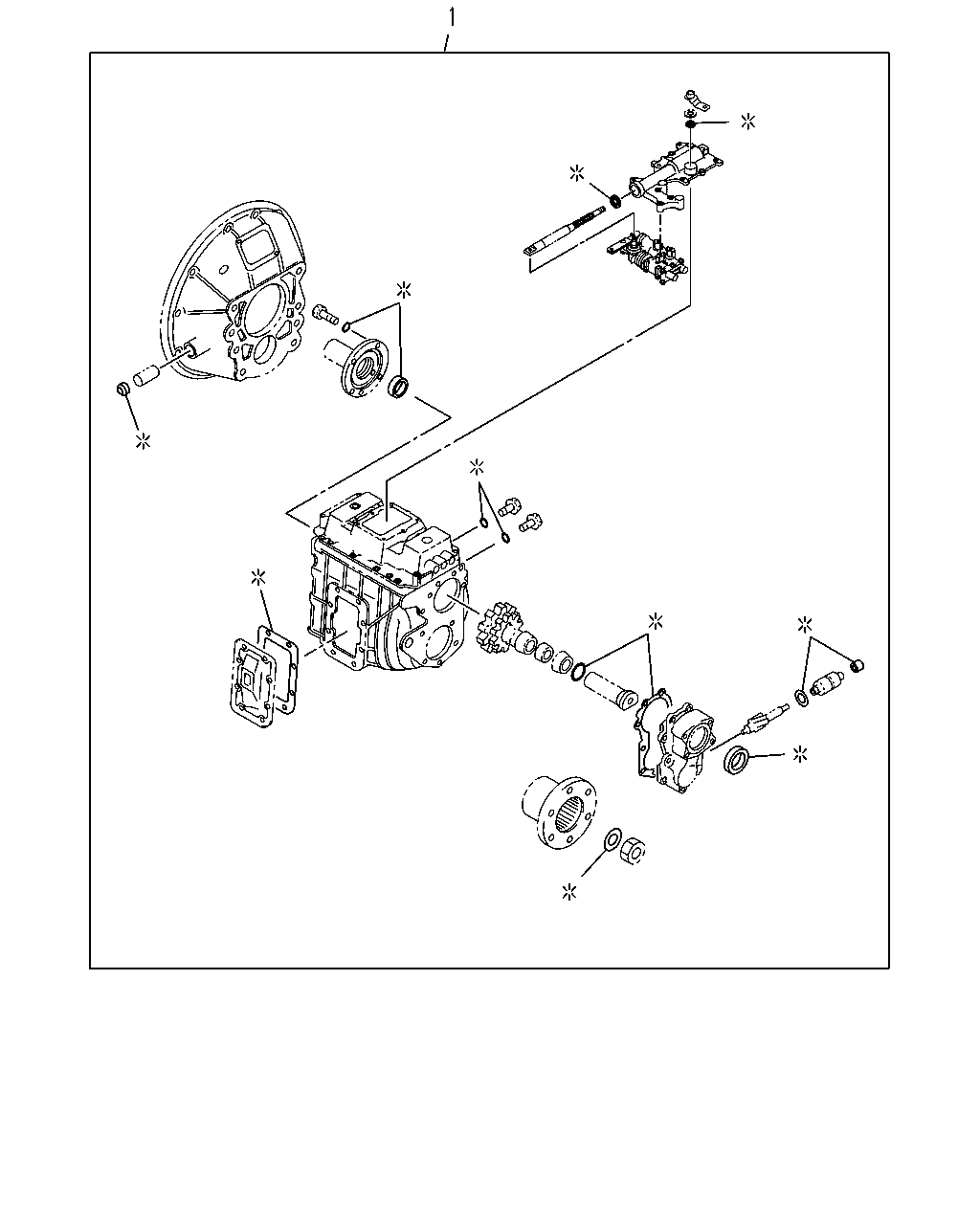

çizim 127405
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-241-0 01 1 1110- ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-237-0 01 1 1110-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-335-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-242-0 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-236-0 01 1 1001-1109 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-236-0 01 1 1110-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-213-1 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-240-0 01 1 1001-1109 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-240-0 01 1 1110- ●

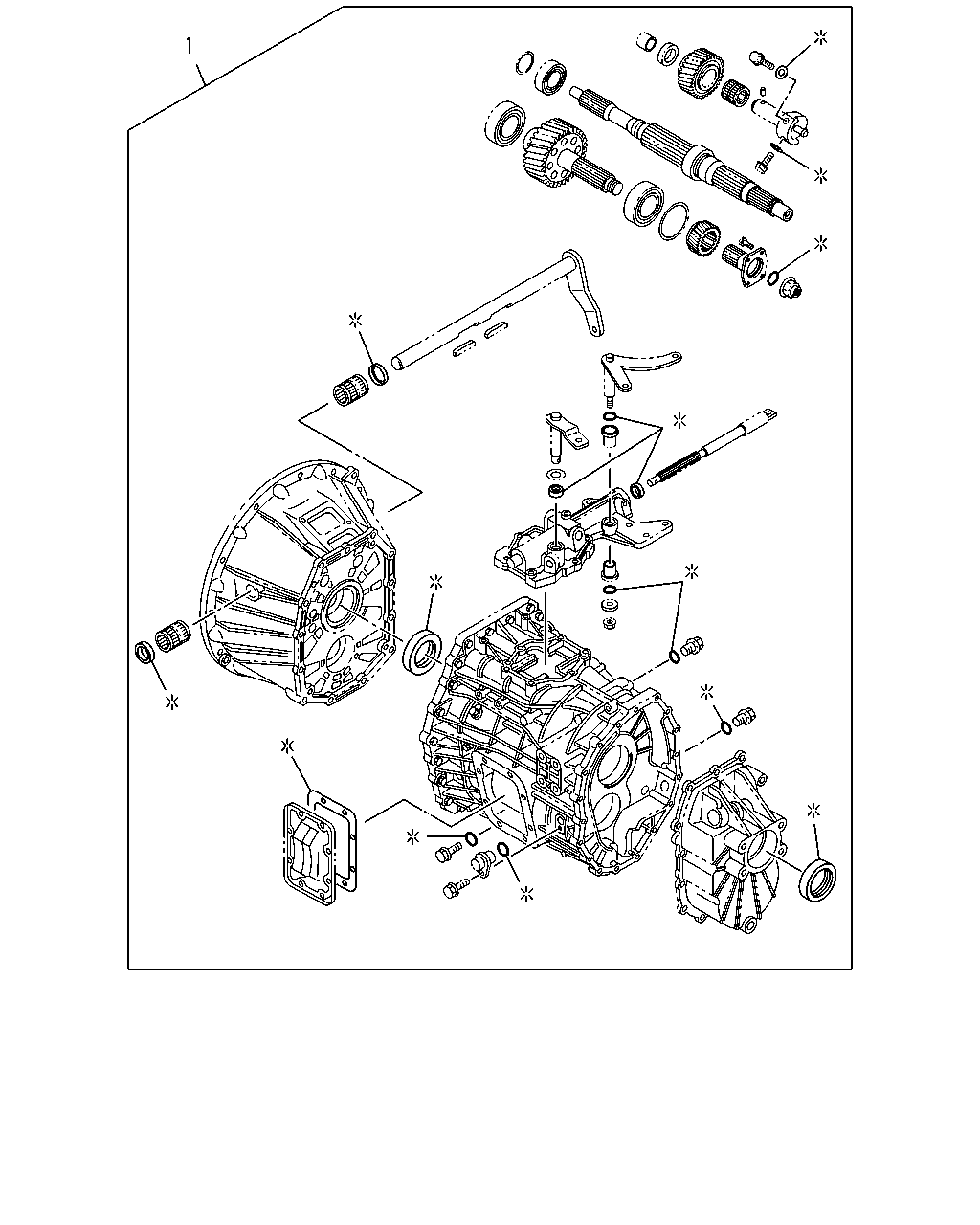

çizim 127418
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-241-0 01 1 1110- ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-237-0 01 1 1110-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-335-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-242-0 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-236-0 01 1 1001-1109 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-236-0 01 1 1110-1404 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-334-0 01 1 1405- ●
1 GASKET SET; TRANS OVERHAUL
ASSISTOR SHIFT CONTROL<WX8> 		1-87831-359-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-87831-372-0 01 1 1001- ●
1 GASKET SET; TRANS OVERHAUL 5-87832-213-1 01 1 1001-1001 ●
1 GASKET SET; TRANS OVERHAUL 5-87832-240-0 01 1 1001-1109 ●
1 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-240-0 01 1 1110- ●
