◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11165 - FTR SOUTH AFRICA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#20768) — 16 parça

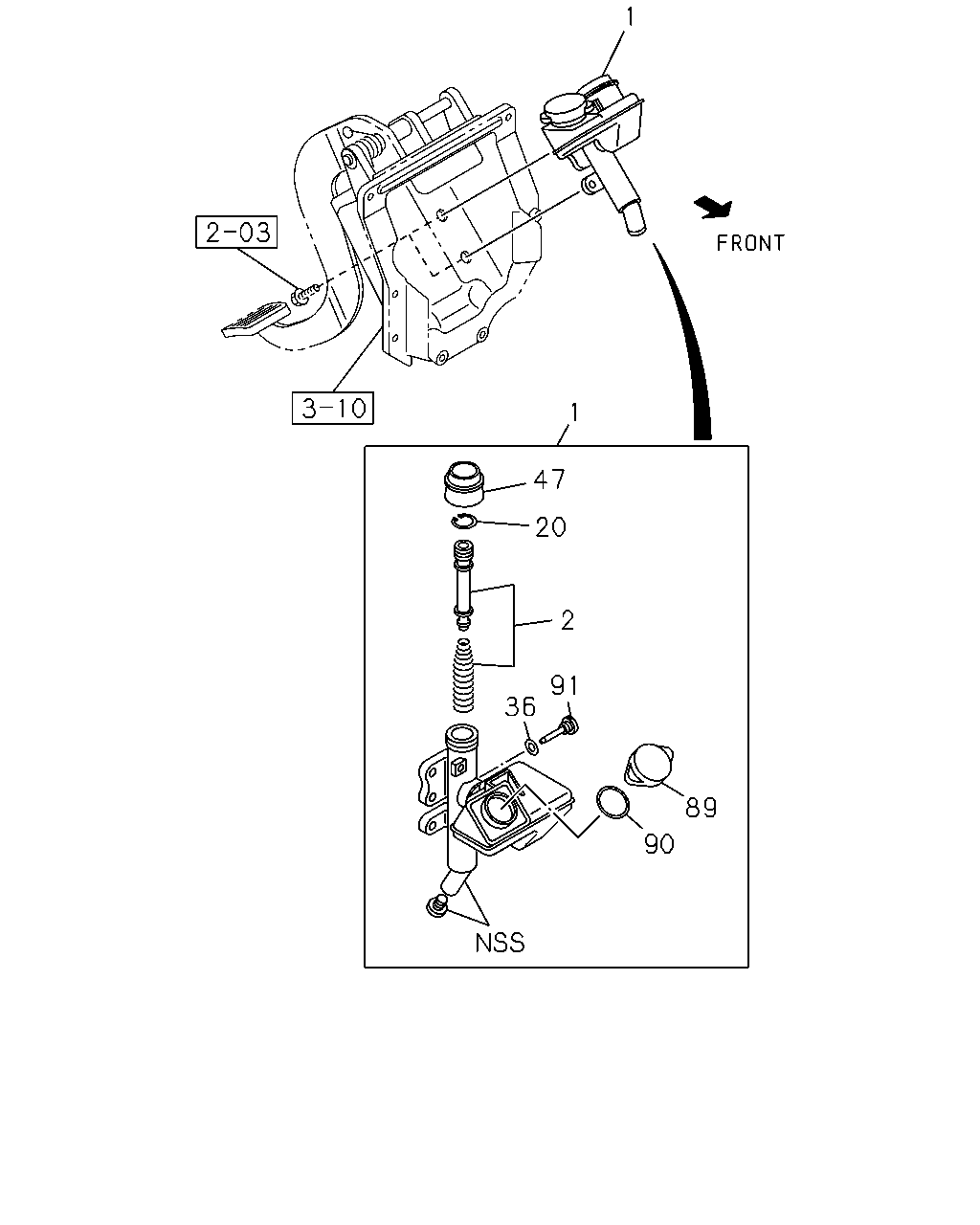

çizim 127409
1 1 47 20 2 91 36 89 90
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER 1-47500-250-2 01 1 1001-1109
1 CYLINDER ASM; CLUTCH MASTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47500-250-2 01 1 1110-
2 REPAIR KIT; CLU M/CYL 1-85576-461-0 01 1 1001-1109
2 REPAIR KIT; CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-85576-461-0 01 1 1110-
20 RING; SNAP,BODY 1-47519-013-0 01 1 1001-1109
20 RING; SNAP,BODY
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-013-0 01 1 1110-
36 GASKET; CLU M/CYL 1-47519-014-0 01 1 1001-1109
36 GASKET; CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-014-0 01 1 1110-
47 COVER; DUST,PUSH ROD 1-47519-018-0 01 1 1001-1109
47 COVER; DUST,PUSH ROD
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-018-0 01 1 1110-
89 CAP; OIL FILLER,CLU M/CYL 1-47519-017-0 01 1 1001-1109
89 CAP; OIL FILLER,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-017-0 01 1 1110-
90 GASKET; OIL FILLER,CLU M/CYL 1-47519-016-0 01 1 1001-1109
90 GASKET; OIL FILLER,CLU M/CYL
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-016-0 01 1 1110-
91 BOLT; STOPPER 1-47519-015-0 01 1 1001-1109
91 BOLT; STOPPER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-47519-015-0 01 1 1110-
