2-05 — CLUTCH PIPING (#20766) — 58 parça

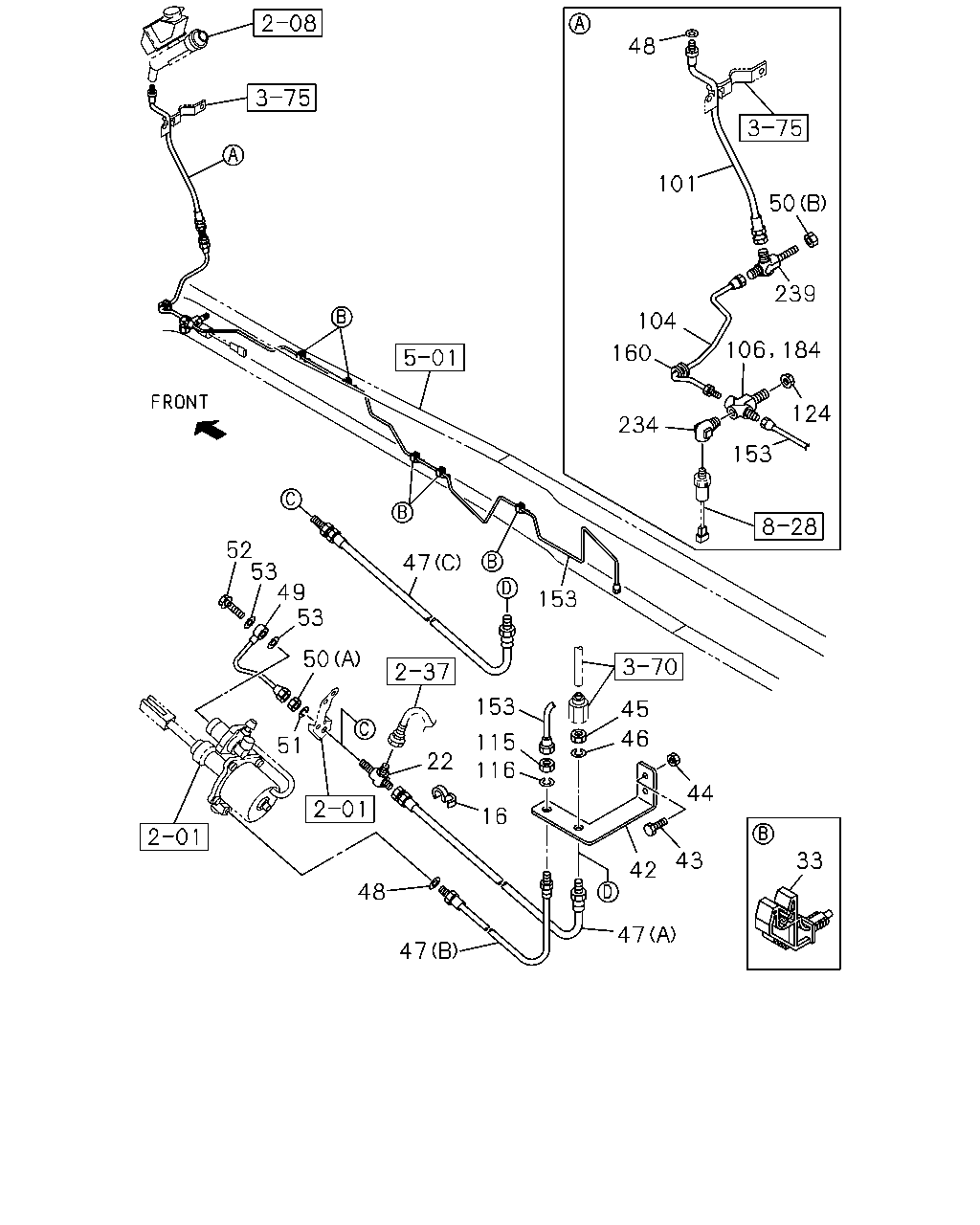

çizim 127413
48 101 50 239 104 160 124 234 153 52 53 49 53 47 153 50 153 45 46 115 116 51 22 44 16 43 33 42 48 47 47 106 184
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1001-1109
16 CLIP; FLEX HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10 & 12 		1-09709-278-1 01 1 1110-
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1001-
33 CLIP; OIL PIPE
ID=6.35 		1-09701-247-1 05 1 1001-1109
33 CLIP; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=6.35 		1-09701-247-1 05 1 1110-
42 BRACKET; FLEX HOSE,CLU CONT 8-98105-654-0 01 1 1001-1109
42 BRACKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98105-654-0 01 1 1110-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1001-1109
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE 		0-28650-830-0 02 1 1110-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-1109
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE SOU 		0-91180-108-0 02 1 1110-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1001-1109
45 NUT; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 1110-
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 SOU 		0-91510-512-0 01 1 1001-1009
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-812-0 01 1 1010-1011
47 HOSE; FLEX,CLU CONT
(B) L=375 		1-09364-407-0 01 1 1001-1109
47 HOSE; FLEX,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=375 		1-09364-407-0 01 1 1110-
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=380 		1-09363-884-0 01 1 1001-1109
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=380 		1-09363-884-0 01 1 1110-
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470 		1-09363-716-0 01 1 1001-1109
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) L=470 		1-09363-716-0 01 1 1110-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1001-1109
48 GASKET; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1110-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239 		1-49117-401-0 01 1 1001-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1001-1109
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M12 		0-91111-512-0 01 1 1110-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1001-1109
50 NUT; UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 		9-09840-280-0 01 1 1110-
51 WASHER; LK
ID=12.2 SOU 		0-91510-512-0 01 1 1001-1009
51 WASHER; LK
ID=12.2 		0-91510-812-0 01 1 1010-1109
51 WASHER; LK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=12.2 		0-91510-812-0 01 1 1110-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 1001-
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 SOU 		1-09630-085-0 02 1 1001-1312
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1001-1109
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=440 		8-98072-346-0 01 1 1110-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=554 		8-98114-452-0 01 1 1001-1109
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=554 		8-98114-452-0 01 1 1110-
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> M12 3WAY 		8-98051-113-0 01 1 1001-1109
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 3WAY 		8-98051-113-0 01 1 1110-
115 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1001-1109
115 NUT; FLEX HOSE,CLU CONT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		9-09840-280-0 01 1 1110-
116 WASHER; FLEX HOSE,CLU CONT
ID=12.2 SOU 		0-91510-512-0 01 1 1001-1009
116 WASHER; FLEX HOSE,CLU CONT
ID=12.2 		0-91510-812-0 01 1 1010-1011
124 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 1001-1109
124 NUT; PIPE UNION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 		0-91111-512-0 01 1 1110-
153 PIPE ASM; CLU,UNION TO FLEX
WHEEL BASE 3900MM(39W) L=2738 		8-98152-246-0 01 1 1001-1109
153 PIPE ASM; CLU,UNION TO FLEX
WHEEL BASE 3900MM(39W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2738 		8-98152-246-0 01 1 1110-
153 PIPE ASM; CLU,UNION TO FLEX
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=2749 		8-98152-243-0 01 1 1001-1109
153 PIPE ASM; CLU,UNION TO FLEX
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=2749 		8-98152-243-0 01 1 1110-
160 GROMMET; OIL PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1001-1109
160 GROMMET; OIL PIPE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1110-
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 1001-1109
184 UNION; FLEX HOSE
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98150-865-0 01 1 1110-
234 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> PT1/8 ELBOW 		8-94338-418-1 01 1 1001-1109
234 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) PT1/8 ELBOW 		8-94338-418-1 01 1 1110-
239 UNION; CLU HOSE
M12 2WAY SOU 		1-09654-059-2 01 1 1001-1109
239 UNION; CLU HOSE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M12 2WAY SOU 		1-09654-059-2 01 1 1110-
