Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#20764) — 203 parça

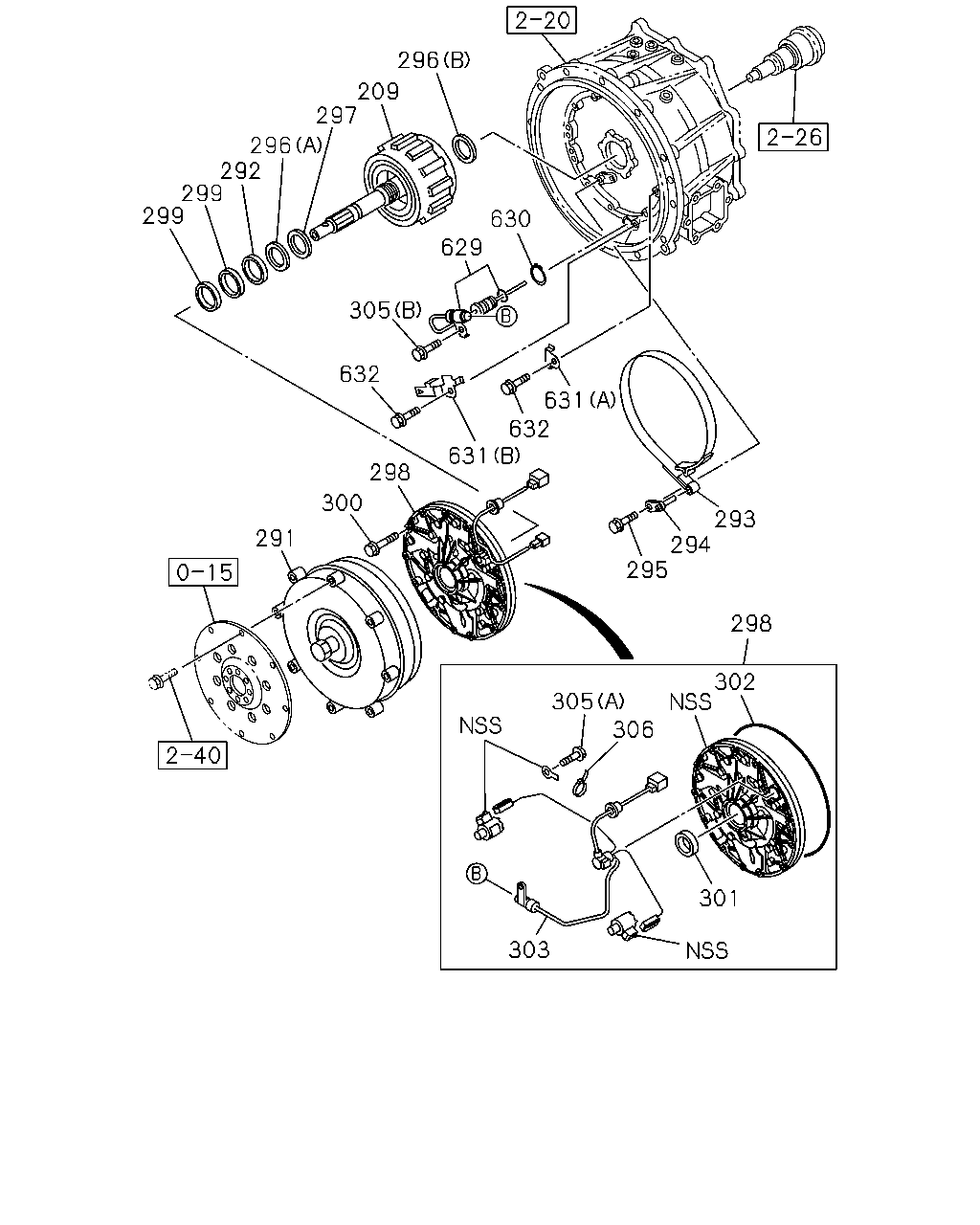

296 209 297 296 292 299 299 630 629 305 632 631 632 631 298 300 293 294 295 291 298 302 305 306 301 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
209	CLUTCH ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-527-3	01	1	1110-1412	●	●
209	CLUTCH ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98275-315-0	01	1	1501-	●	●
291	COUPLING; FLUID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97371-295-3	01	1	1110-1308		●
291	COUPLING; FLUID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98248-560-1	01	1	1309-		●
292	RING; SEAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-329-0	01	1	1110-	●	●
293	BAND; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-651-0	01	1	1110-	●	●
294	PIN; ANCHOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-703-0	01	1	1110-	●	●
295	BOLT; ANCHOR PIN TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1110-	●	●
296	BEARING; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97255-688-0	01	1	1110-	●	●
296	BEARING; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97255-689-0	01	1	1110-	●	●
297	WASHER; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97300-070-0	01	1	1110-	●	●
298	PUMP ASM; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98107-925-2	01	1	1110-	●	●
299	RING; SEAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-330-0	02	1	1110-	●	●
300	BOLT; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X45 FLANGE SOU	0-28050-845-0	11	1	1110-	●	●
301	SEAL; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-811-0	01	1	1110-	●	●
302	RING; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-188-0	01	1	1110-	●	●
303	HARNESS ASM; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-613-1	01	1	1110-	●	●
305	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X12 FLANGE SOU	0-28050-612-0	01	1	1110-	●	●
305	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1110-	●	●
306	CLIP; BAND TRANSMISSION CONTROL-SMOOTHER(8GF) L=100	8-94279-939-0	02	1	1110-	●	●
629	SENSOR; OIL TEMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-895-0	01	1	1110-	●	●
630	RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17.5	9-09180-019-0	01	1	1110-	●	●
631	PLATE; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98021-285-0	02	1	1110-	●	●
631	PLATE; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98023-254-0	01	1	1110-	●	●
632	BOLT; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	03	1	1110-	●	●

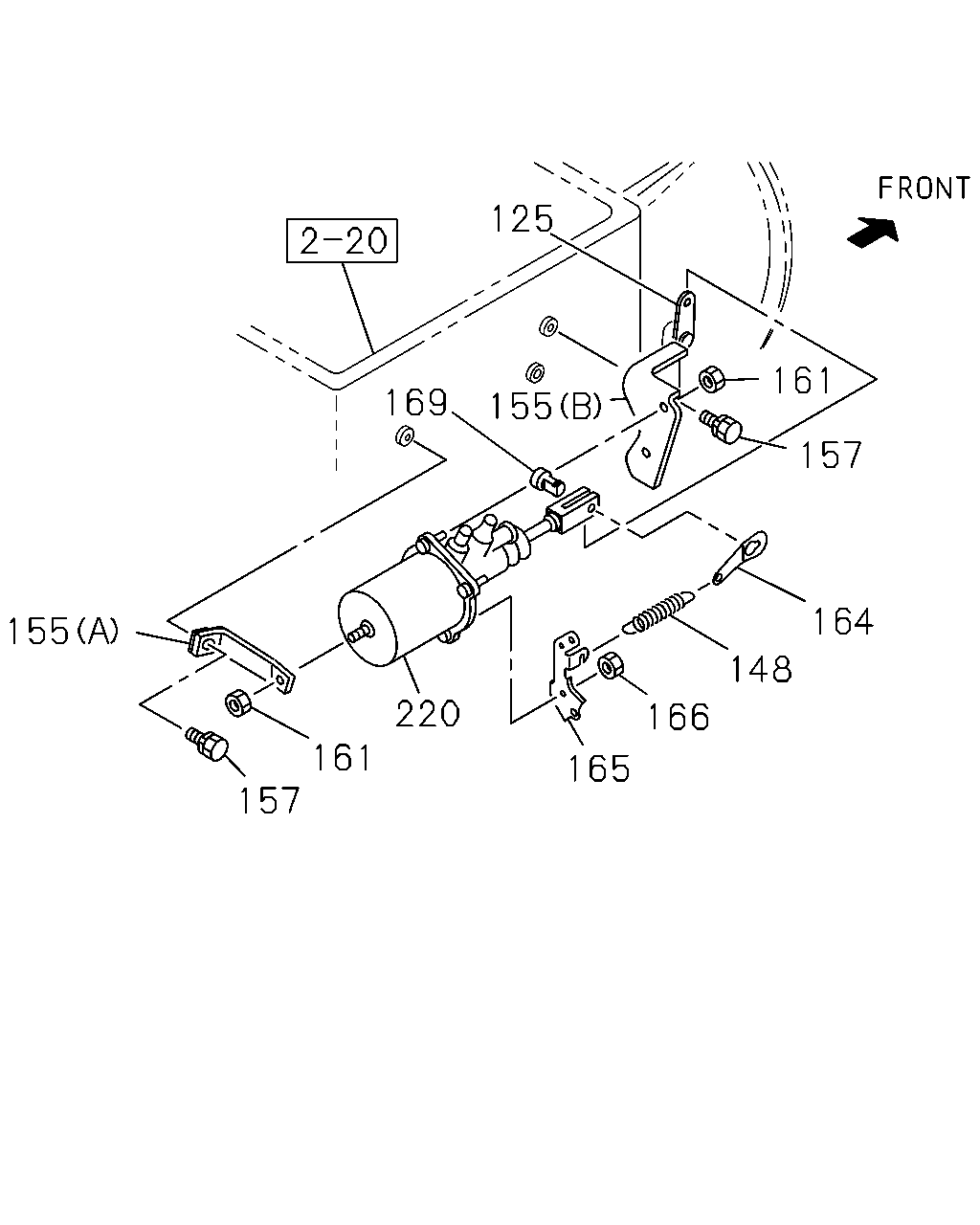

125 161 155 169 157 164 155 148 220 166 161 157 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
125	SHAFT; CLU	1-31342-343-0	01	1	1001-			●
125	SHAFT; CLU	1-31342-335-0	01	1	1001-1109	●	●
125	SHAFT; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31342-335-0	01	1	1110-	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1001-1109	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1110-			●
148	SPRING; CLU RETURN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=135	1-09583-305-0	01	1	1110-	●	●
155	BRACKET; MINIPACK (A)	1-31429-507-0	01	1	1001-			●
155	BRACKET; MINIPACK (B)	1-31429-508-0	01	1	1001-			●
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	1001-1109	●	●
155	BRACKET; MINIPACK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-31429-475-1	01	1	1110-	●	●
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	1001-1109	●	●
155	BRACKET; MINIPACK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-31429-478-0	01	1	1110-	●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	1001-1109	●	●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	1110-			●
157	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X25 FLANGE	0-28751-025-0	03	1	1110-	●	●
161	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	03	1	1001-			●
161	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	05	1	1001-1109	●	●
161	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE SOU	0-91180-210-0	05	1	1110-	●	●
164	EYE; SPRING	1-31426-041-0	01	1	1001-1109	●	●	●
164	EYE; SPRING	1-31426-041-0	01	1	1110-			●
164	EYE; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31426-041-0	01	1	1110-	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1001-1109	●	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1110-			●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-47477-789-0	01	1	1110-	●	●
166	NUT; SPRING EYE M10 FLANGE SOU	0-91180-210-0	02	1	1001-			●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	1001-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	1001-1109	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-87610-089-0	01	1	1110-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-089-0	01	1	1110-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-1	01	1	1001-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-2	01	1	1001-1109	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31800-511-2	01	1	1110-	●	●

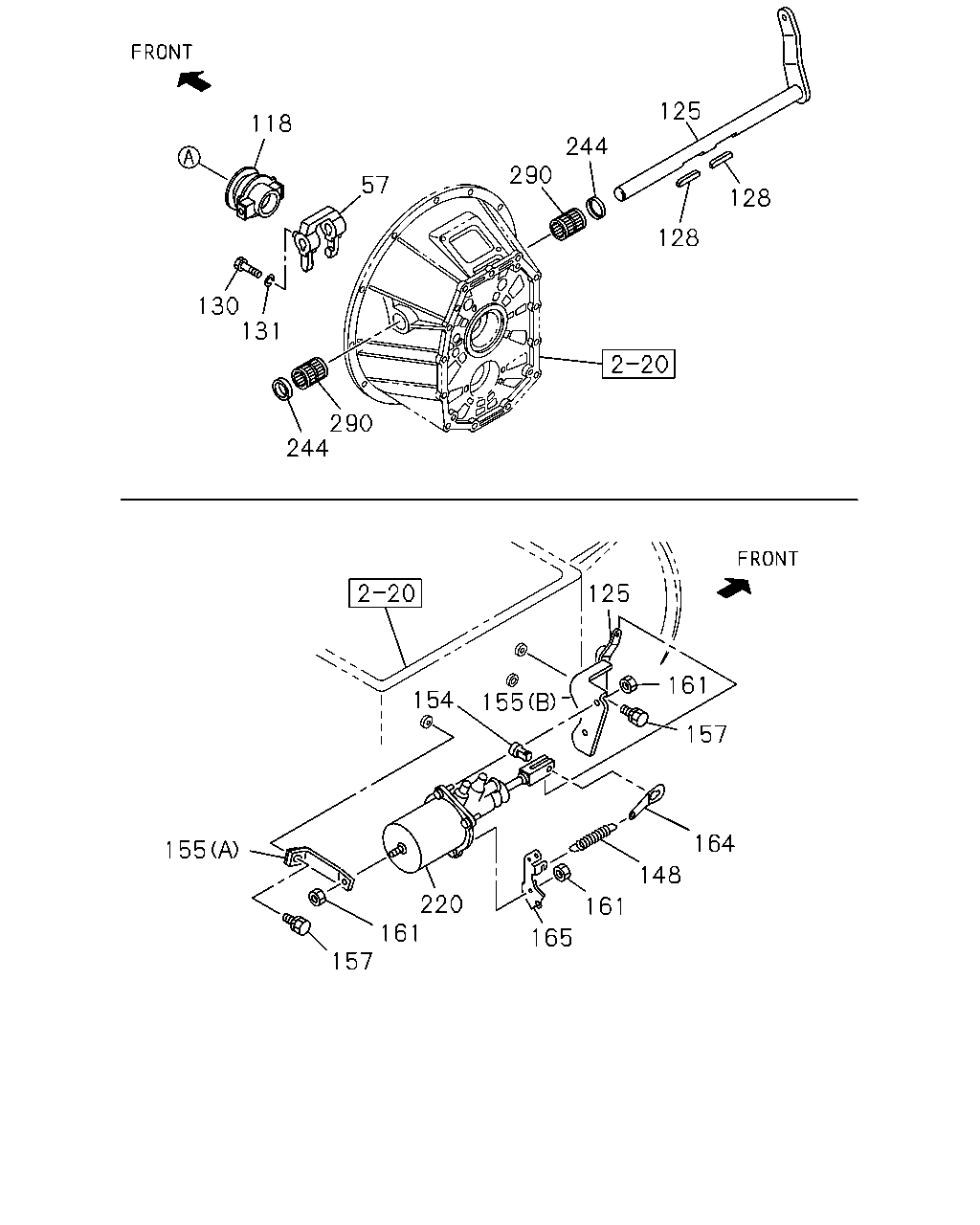

125 118 244 290 57 128 128 130 131 290 244 125 161 155 154 157 164 155 148 220 161 157 161 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	1001-1306			●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-			●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	1001-1109	●	●
57	FORK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31341-048-2	01	1	1110-	●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	1001-1109	●	●
118	BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-109-0	01	1	1110-	●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	1001-			●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	1001-			●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	1001-1109	●	●
118	BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31310-026-0	01	1	1110-	●	●
125	SHAFT; CLU	1-31342-343-0	01	1	1001-			●
125	SHAFT; CLU	1-31342-335-0	01	1	1001-1109	●	●
125	SHAFT; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31342-335-0	01	1	1110-	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1001-1109	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1110-			●
128	KEY; FEATHER,CLU SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09867-008-0	02	1	1110-	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1001-1109	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1110-			●
130	SCREW; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X14	0-61200-814-0	01	1	1110-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2 SOU	0-91510-508-0	01	1	1001-1109	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2 SOU	0-91510-508-0	01	1	1110-			●
131	WASHER; LK,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2 SOU	0-91510-508-0	01	1	1110-	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1001-1109	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1110-			●
148	SPRING; CLU RETURN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=135	1-09583-305-0	01	1	1110-	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	1001-1109	●	●
154	PIN; JAW JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31424-009-0	01	1	1110-	●	●
155	BRACKET; MINIPACK (A)	1-31429-507-0	01	1	1001-			●
155	BRACKET; MINIPACK (B)	1-31429-508-0	01	1	1001-			●
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	1001-1109	●	●
155	BRACKET; MINIPACK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-31429-475-1	01	1	1110-	●	●
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	1001-1109	●	●
155	BRACKET; MINIPACK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-31429-478-0	01	1	1110-	●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	1001-1109	●	●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	1110-			●
157	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X25 FLANGE	0-28751-025-0	03	1	1110-	●	●
161	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	03	1	1001-			●
161	NUT; BRKT M10 FLANGE SOU	0-91180-210-0	05	1	1001-1109	●	●
161	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE SOU	0-91180-210-0	05	1	1110-	●	●
164	EYE; SPRING	1-31426-041-0	01	1	1001-1109	●	●	●
164	EYE; SPRING	1-31426-041-0	01	1	1110-			●
164	EYE; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31426-041-0	01	1	1110-	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1001-1109	●	●	●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1110-			●
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-47477-789-0	01	1	1110-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	1001-1109	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-87610-089-0	01	1	1110-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-089-0	01	1	1110-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-516-1	01	1	1001-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-2	01	1	1001-1109	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31800-511-2	01	1	1110-	●	●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1001-1109	●	●
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09625-002-0	02	1	1110-	●	●
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1001-1109	●	●
290	BEARING; NEEDLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NTN	1-09811-002-1	02	1	1110-	●	●

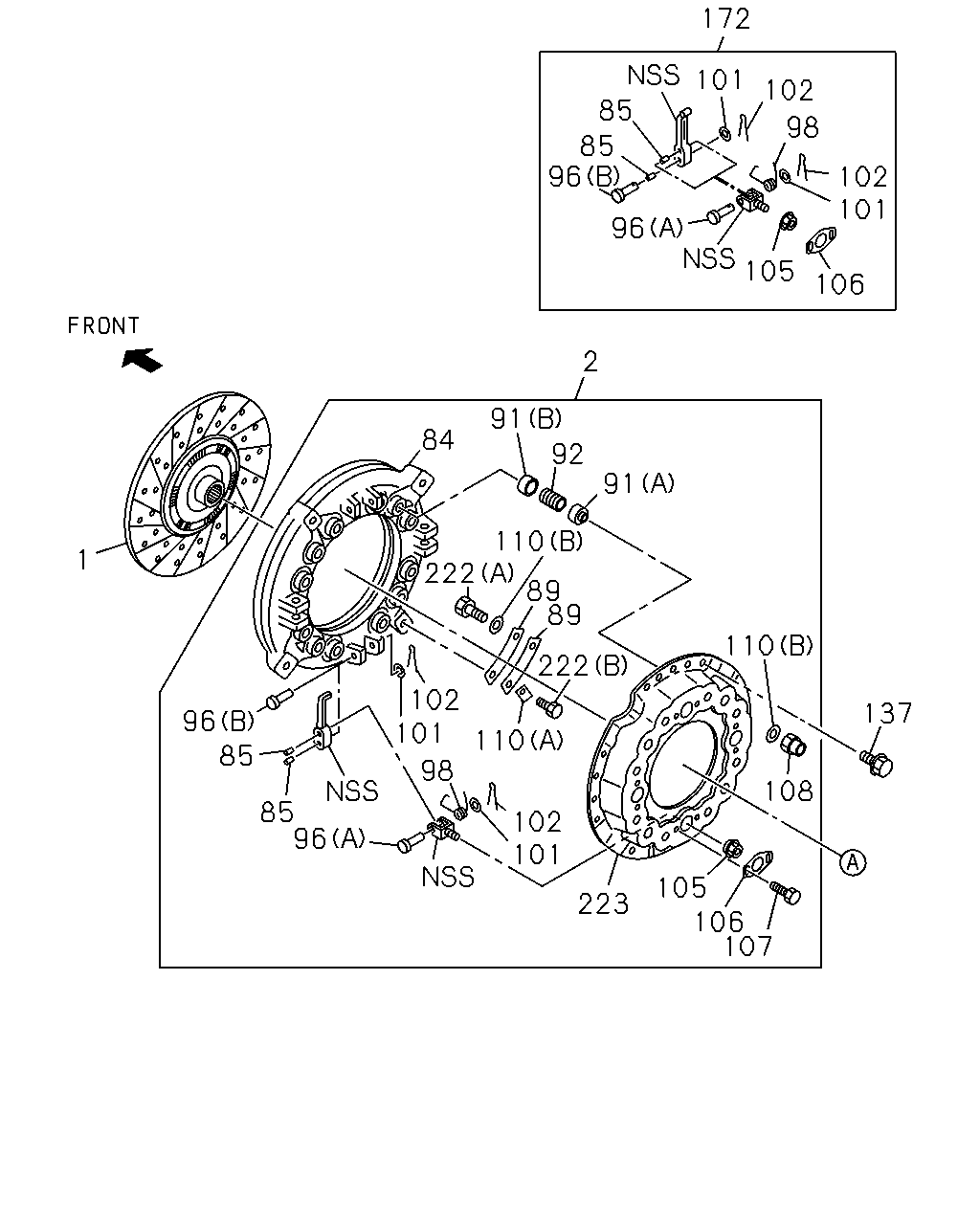

172 101 102 85 98 85 96 102 101 96 105 106 2 91 84 92 91 110 222 89 89 1 222 110 102 101 137 96 85 110 98 108 85 96 102 101 105 106 107 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-119-0	01	1	1411-	●	●	●
1	DISC; CLUTCH 15"	1-31240-851-2	01	1	1001-	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	1001-1009	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	1010-	●	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-146-0	01	1	1001-1009	●	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	1010-	●	●	●
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	1001-	●	●	●
85	BUSHING; RELEASE LEVER 15" CLUTCH(RE9)	9-31239-116-0	08	1	1001-	●	●	●
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	1001-	●	●	●
91	SEAT; SPR 15" CLUTCH(RE9) (A) ID=37 H=25	1-31219-012-0	12	1	1001-	●	●	●
91	SEAT; SPR 15" CLUTCH(RE9) (B) ID=37 H=15	1-31219-013-0	12	1	1001-	●	●	●
92	SPRING; CLU	1-31214-066-0	12	1	1001-1009	●	●	●
92	SPRING; CLU	1-31214-086-0	12	1	1010-	●	●	●
96	PIN; RELEASE LEVER 15" CLUTCH(RE9) (A) L=49.0	1-31232-005-0	04	1	1001-	●	●	●
96	PIN; RELEASE LEVER 15" CLUTCH(RE9) (B) L=57.0	1-31232-014-0	04	1	1001-	●	●	●
98	SPRING; RETURN 15" CLUTCH(RE9)	1-31233-003-0	04	1	1001-	●	●	●
101	WASHER; RELEASE LEVER 15" CLUTCH(RE9)	1-31239-058-0	08	1	1001-	●	●	●
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	1001-	●	●	●
105	NUT; SUPPORT 15" CLUTCH(RE9)	1-31235-014-0	04	1	1001-	●	●	●
106	PLATE; LK,LEVER SUPPORT 15" CLUTCH(RE9)	1-31239-019-0	04	1	1001-	●	●	●
107	BOLT; LK PLATE 15" CLUTCH(RE9)	1-31239-061-0	08	1	1001-	●	●	●
108	NUT; STRAP 15" CLUTCH(RE9)	1-09449-036-0	04	1	1001-	●	●	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (A) T=1.2	1-31229-009-0	04	1	1001-	●	●	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (B) T=3.2	8-97374-512-0	08	1	1001-	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1001-	●	●	●
172	LEVER KIT; RELEASE,CLU 15" CLUTCH(RE9)	1-87831-170-1	01	1	1001-	●	●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	1001-	●	●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1001-	●	●	●
223	COVER; CLU 15" CLUTCH(RE9)	1-31211-019-1	01	1	1001-	●	●	●

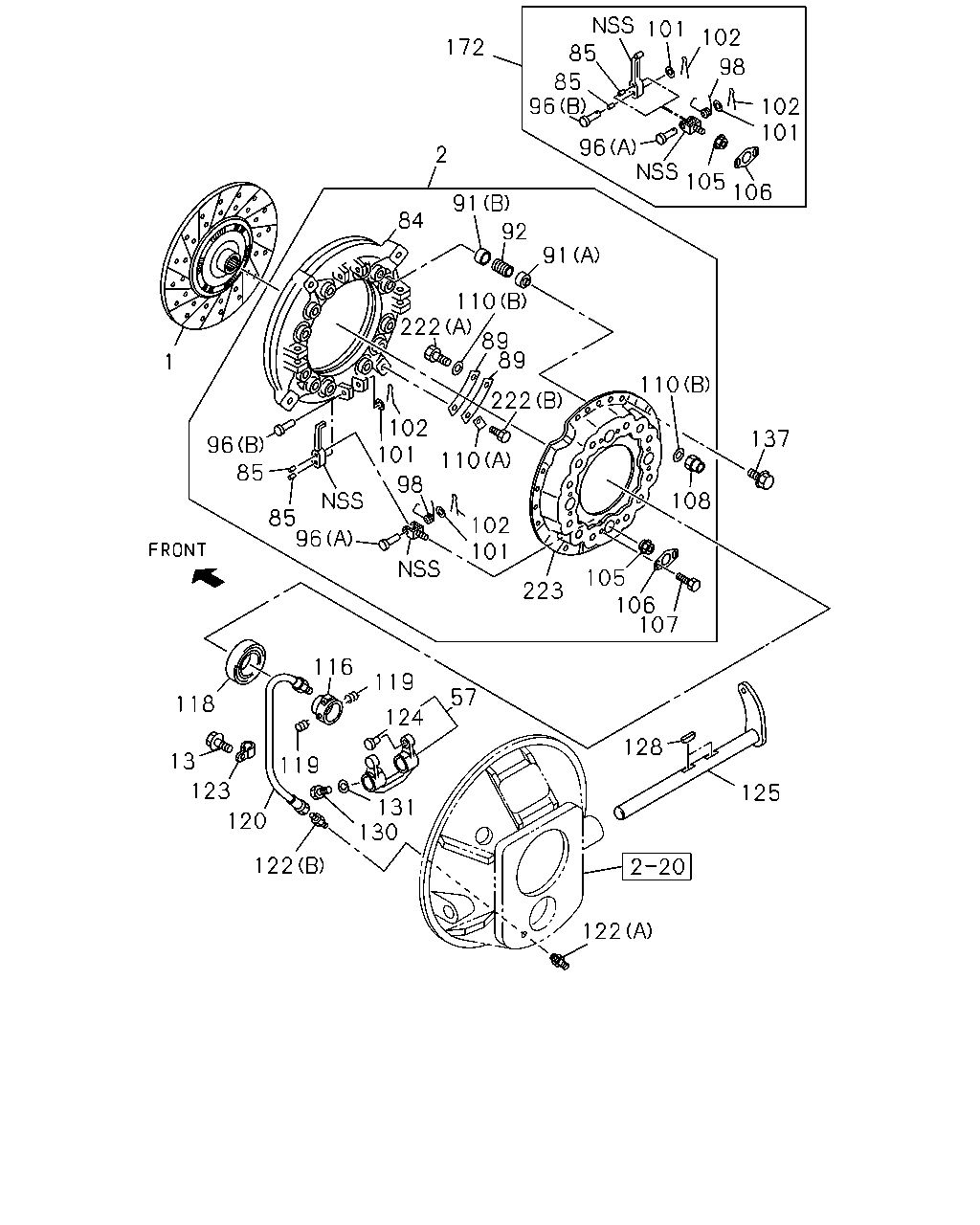

101 102 172 85 98 85 96 102 101 96 105 106 2 91 84 92 91 110 222 89 89 1 222 110 102 101 137 96 85 110 98 108 85 96 102 101 105 106 107 223 116 119 57 118 124 128 13 119 131 130 123 125 120 122 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH BEST VALUE PARTS	1-87610-119-0	01	1	1411-	●	●	●
1	DISC; CLUTCH 15"	1-31240-851-2	01	1	1001-	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	1001-1009	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	1010-	●	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-146-0	01	1	1001-1009	●	●	●
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	1010-	●	●	●
13	BOLT; CLIP M8X16 FLANGE SOU	0-28050-816-0	01	1	1001-			●
57	FORK; SHIFT,CLU	1-31340-060-0	01	1	1001-1306			●
57	FORK; SHIFT,CLU	1-31340-077-0	01	1	1307-			●
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	1001-1109	●	●
57	FORK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31341-048-2	01	1	1110-	●	●
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	1001-	●	●	●
85	BUSHING; RELEASE LEVER 15" CLUTCH(RE9)	9-31239-116-0	08	1	1001-	●	●	●
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	1001-	●	●	●
91	SEAT; SPR 15" CLUTCH(RE9) (A) ID=37 H=25	1-31219-012-0	12	1	1001-	●	●	●
91	SEAT; SPR 15" CLUTCH(RE9) (B) ID=37 H=15	1-31219-013-0	12	1	1001-	●	●	●
92	SPRING; CLU	1-31214-066-0	12	1	1001-1009	●	●	●
92	SPRING; CLU	1-31214-086-0	12	1	1010-	●	●	●
96	PIN; RELEASE LEVER 15" CLUTCH(RE9) (A) L=49.0	1-31232-005-0	04	1	1001-	●	●	●
96	PIN; RELEASE LEVER 15" CLUTCH(RE9) (B) L=57.0	1-31232-014-0	04	1	1001-	●	●	●
98	SPRING; RETURN 15" CLUTCH(RE9)	1-31233-003-0	04	1	1001-	●	●	●
101	WASHER; RELEASE LEVER 15" CLUTCH(RE9)	1-31239-058-0	08	1	1001-	●	●	●
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	1001-	●	●	●
105	NUT; SUPPORT 15" CLUTCH(RE9)	1-31235-014-0	04	1	1001-	●	●	●
106	PLATE; LK,LEVER SUPPORT 15" CLUTCH(RE9)	1-31239-019-0	04	1	1001-	●	●	●
107	BOLT; LK PLATE 15" CLUTCH(RE9)	1-31239-061-0	08	1	1001-	●	●	●
108	NUT; STRAP 15" CLUTCH(RE9)	1-09449-036-0	04	1	1001-	●	●	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (A) T=1.2	1-31229-009-0	04	1	1001-	●	●	●
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (B) T=3.2	8-97374-512-0	08	1	1001-	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-075-1	01	1	1001-1204			●
116	BLOCK; SHIFT,CLU	1-31321-113-0	01	1	1205-1306			●
116	BLOCK; SHIFT,CLU	1-31321-114-0	01	1	1307-			●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	1001-1109	●	●
118	BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-109-0	01	1	1110-	●	●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	1001-			●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	1001-			●
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	1001-1109	●	●
118	BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31310-026-0	01	1	1110-	●	●
119	SPRING; SHIFT FORK	1-09585-054-1	01	1	1001-			●
119	SPRING; SHIFT FORK	1-09585-053-1	01	1	1001-			●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	1001-			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT SOU	0-90301-410-0	01	1	1001-			●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	1001-			●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	1001-			●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	1001-			●
125	SHAFT; CLU	1-31342-343-0	01	1	1001-			●
125	SHAFT; CLU	1-31342-335-0	01	1	1001-1109	●	●
125	SHAFT; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31342-335-0	01	1	1110-	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1001-1109	●	●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1110-			●
128	KEY; FEATHER,CLU SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09867-008-0	02	1	1110-	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1001-1109	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1110-			●
130	SCREW; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X14	0-61200-814-0	01	1	1110-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2 SOU	0-91510-508-0	01	1	1001-1109	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2 SOU	0-91510-508-0	01	1	1110-			●
131	WASHER; LK,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2 SOU	0-91510-508-0	01	1	1110-	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1001-	●	●	●
172	LEVER KIT; RELEASE,CLU 15" CLUTCH(RE9)	1-87831-170-1	01	1	1001-	●	●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	1001-	●	●	●
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1001-	●	●	●
223	COVER; CLU 15" CLUTCH(RE9)	1-31211-019-1	01	1	1001-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
