◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11165 - FTR SOUTH AFRICA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#20761) — 98 parça

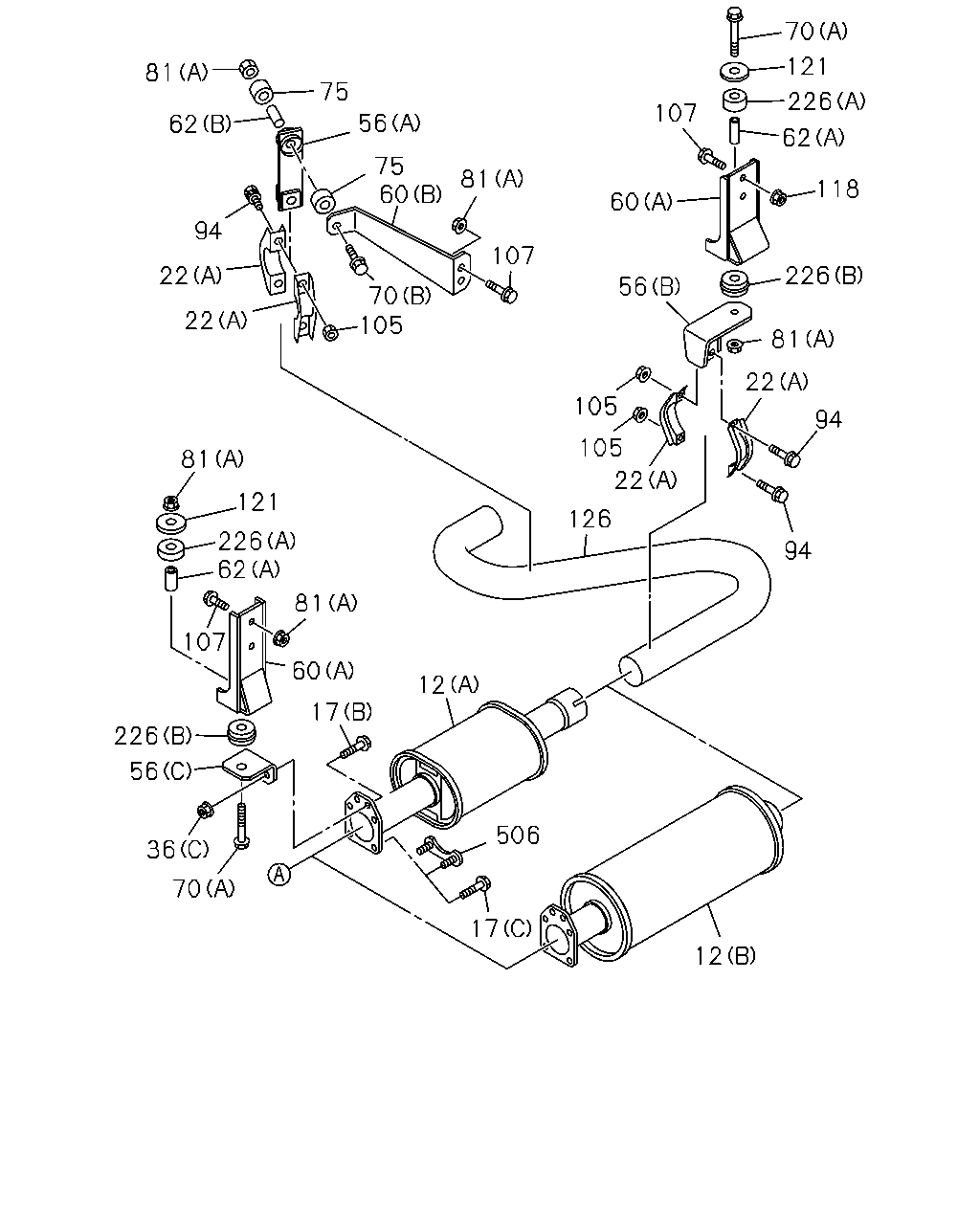

çizim 127397
12 17 506 12 17 60 226 56 36 70 81 107 62 81 226 121 22 22 94 62 81 75 56 75 60 81 107 70 105 126 94 94 22 81 226 56 105 105 22 60 107 70 121 226 62 118
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
EURO3 SPECIFICATION<NT3> (B) 		8-98090-389-2 01 1 1110-
12 SILENCER ASM; EXH
(A) 		8-98101-274-0 01 1 1001-1109
12 SILENCER ASM; EXH
EURO2 SPECIFICATION<NT2> (A) 		8-98101-274-1 01 1 1110-
17 BOLT; EXH PIPE
(C) M12X35 FLANGE 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1001-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
22 CLAMP; EXH PIPE
TURBO - CONVENTIONAL<Q5T> (B) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
(A) ID=80-84 SOU 		1-22133-233-0 02 1 1001-
22 CLAMP; EXH PIPE
(A) ID=80-84 SOU 		1-22133-233-0 02 1 1001-
36 NUT; EXH PIPE
(C) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
36 NUT; EXH PIPE
(B) M12 FLANGE SOU 		0-91180-212-0 07 1 1001-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1001-
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22131-528-1 01 1 1001-
56 BRACKET; CLAMP,EXH PIPE
(C) 		1-22152-324-0 01 1 1001-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98070-639-0 01 1 1001-1309
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98245-536-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1001-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98070-628-0 01 1 1001-1309
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(A) 		8-98245-532-0 01 1 1310-
60 BRACKET; FRAME TO BRKT
(B) 		8-98108-507-0 01 1 1001-
62 TUBE; DIST,BRKT
(A) L=39 SOU 		8-98060-852-0 01 1 1001-
62 TUBE; DIST,BRKT
(A) L=39 SOU 		8-98060-852-0 01 1 1001-
62 TUBE; DIST,BRKT
(B) L=22 SOU 		9-22159-024-0 01 1 1001-
70 BOLT; BRKT
(B) M10X50 FLANGE SOU 		0-28051-050-0 01 1 1001-
70 BOLT; BRKT
(A) M10X70 FLANGE SOU 		0-28051-070-0 01 1 1001-
70 BOLT; BRKT
(A) M10X70 FLANGE SOU 		0-28051-070-0 01 1 1001-
75 RUBBER; SUPPORT,BRKT
OD=40 SOU 		1-22159-193-0 02 1 1001-
81 NUT; BRKT
TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE SOU 		0-91180-110-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
94 BOLT; CLAMP
M10X40 FLANGE SOU 		0-28651-040-0 02 1 1001-
94 BOLT; CLAMP
M10X40 FLANGE SOU 		0-28651-040-0 02 1 1001-
105 NUT; CLAMP
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
105 NUT; CLAMP
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
107 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
107 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
107 BOLT; BRKT
M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
118 NUT; SILENCER MTG BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1001-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1001-
126 PIPE; EXH,RR 8-98069-920-0 01 1 1001-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1001-
226 RUBBER; CUSHION
(A) 		8-94457-277-1 01 1 1001-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1001-
226 RUBBER; CUSHION
(B) 		8-94457-278-1 01 1 1001-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1001-1203

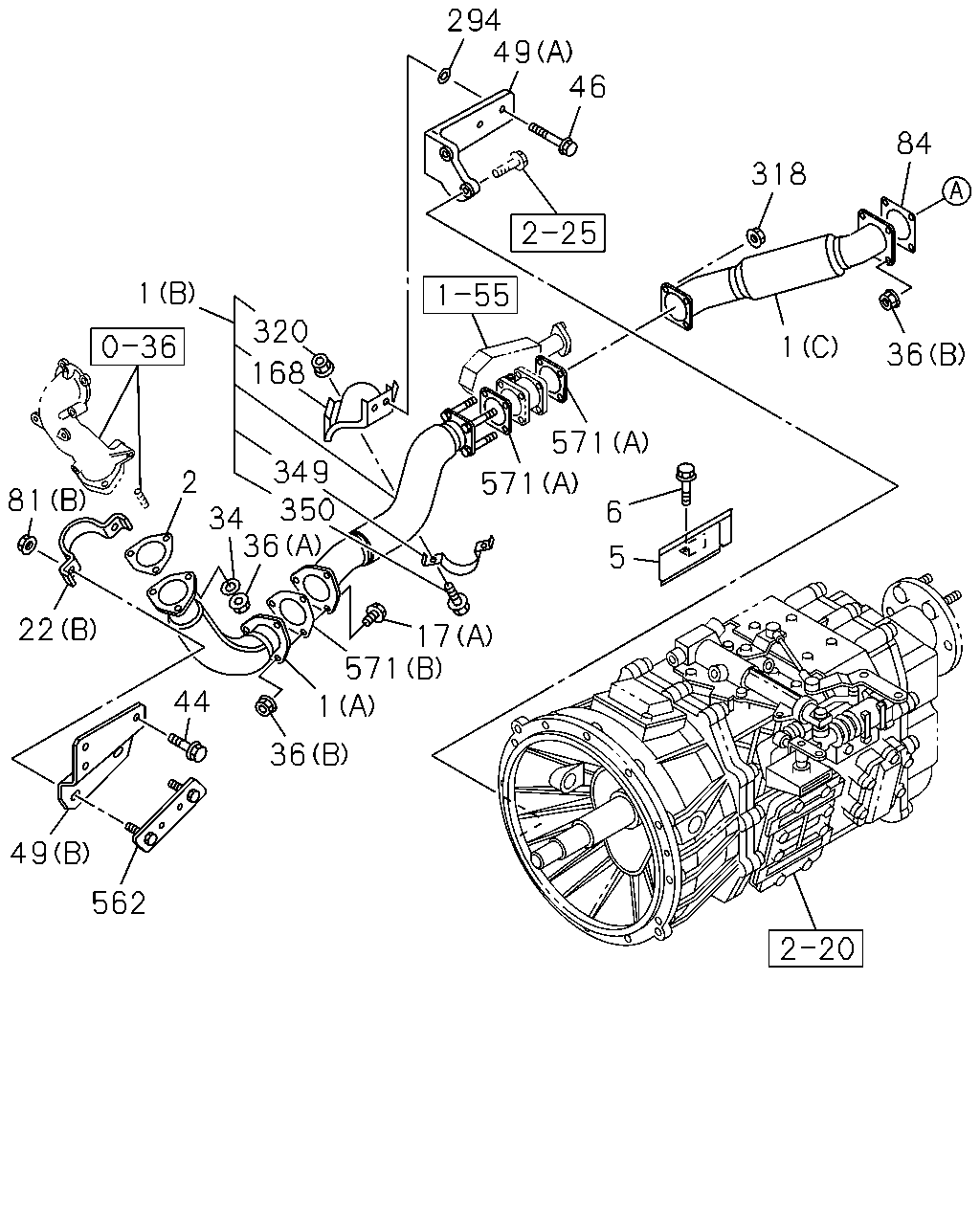

çizim 127407
294 46 318 84 36 1 5 571 571 6 17 571 1 36 562 49 44 22 36 34 2 81 350 349 168 320 1 49
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98090-385-0 01 1 1110-
1 PIPE; EXH
(A) 		8-98073-006-3 01 1 1001-1109
1 PIPE; EXH
TURBO - CONVENTIONAL<Q5T> (A) 		8-98073-006-3 01 1 1110-
1 PIPE; EXH
(C) 		8-98096-668-2 01 1 1001-
1 PIPE; EXH
(B) 		8-98119-515-0 01 1 1001-1209
1 PIPE; EXH
(B) 		8-98230-001-0 01 1 1210-1309
1 PIPE; EXH
(B) 		8-98245-502-0 01 1 1310-1406
1 PIPE; EXH
(B) 		8-98234-516-1 01 1 1407-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=81 		8-98043-481-0 01 1 1001-
5 PROTECTOR; HEAT 8-98073-436-0 01 1 1001-1406
5 PROTECTOR; HEAT 8-98255-001-0 01 1 1407-
6 BOLT; HEAT PROTECTOR
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-
17 BOLT; EXH PIPE
(C) M12X35 FLANGE 		0-28051-235-0 04 1 1204-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1001-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE SOU 		0-28651-035-0 02 1 1001-
22 CLAMP; EXH PIPE
TURBO - CONVENTIONAL<Q5T> (B) 		8-97615-334-0 01 1 1305-
22 CLAMP; EXH PIPE
(A) ID=80-84 SOU 		1-22133-233-0 02 1 1001-
22 CLAMP; EXH PIPE
(A) ID=80-84 SOU 		1-22133-233-0 02 1 1001-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1001-
36 NUT; EXH PIPE
(C) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
36 NUT; EXH PIPE
(B) M12 FLANGE SOU 		0-91180-212-0 07 1 1001-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 1001-
44 BOLT; BRKT
TURBO - CONVENTIONAL<Q5T> M10X20 FLANGE 		0-28751-020-0 03 1 1305-
46 BOLT; BRKT,EXH PIPE
M10X25 L=40 		0-44011-025-0 02 1 1001-
49 BRACKET; EXH PIPE TO TRANS
TURBO - CONVENTIONAL<Q5T> (B) 		8-97629-970-0 01 1 1305-
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98120-495-0 01 1 1110-
49 BRACKET; EXH PIPE TO TRANS
MLD6W M/T(Y2C) (A) 		8-98113-012-0 01 1 1001-
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98120-493-0 01 1 1001-1109
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98120-493-0 01 1 1110-
81 NUT; BRKT
TURBO - CONVENTIONAL<Q5T> (B) M10 FLANGE SOU 		0-91180-110-0 02 1 1305-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 01 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
81 NUT; BRKT
(A) M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
84 GASKET; EXH PIPE 8-98096-305-0 01 1 1001-
168 BRACKET; EXH PIPE,FRT 8-98071-144-0 01 1 1001-1209
168 BRACKET; EXH PIPE,FRT 8-98221-369-1 01 1 1210-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1001-
318 NUT; EXH PIPE,FRT
M10 FLANGE SOU 		0-91180-210-0 04 1 1001-
320 NUT; CLAMP,EXH PIPE
M10 FLANGE SOU 		0-91180-210-0 02 1 1001-
349 CLAMP; EXH PIPE 8-98115-162-0 01 1 1001-
350 BOLT; CLAMP,EXH PIPE
M10X30 FLANGE SOU 		0-28651-030-0 02 1 1001-
562 PLATE; STUD,BOLT
TURBO - CONVENTIONAL<Q5T> 		8-97615-333-1 01 1 1305-
571 GASKET
(A) ID=85.8 		1-22116-043-0 02 1 1001-
571 GASKET
(B) ID=81 		8-98043-481-0 01 1 1001-
