Isuzu WW
▶
TRUCKS
▶
CHR
▶
10648 - CHR/CJR/CQR
▶
2 - Clutch, Transmission, Trans Axle
▶

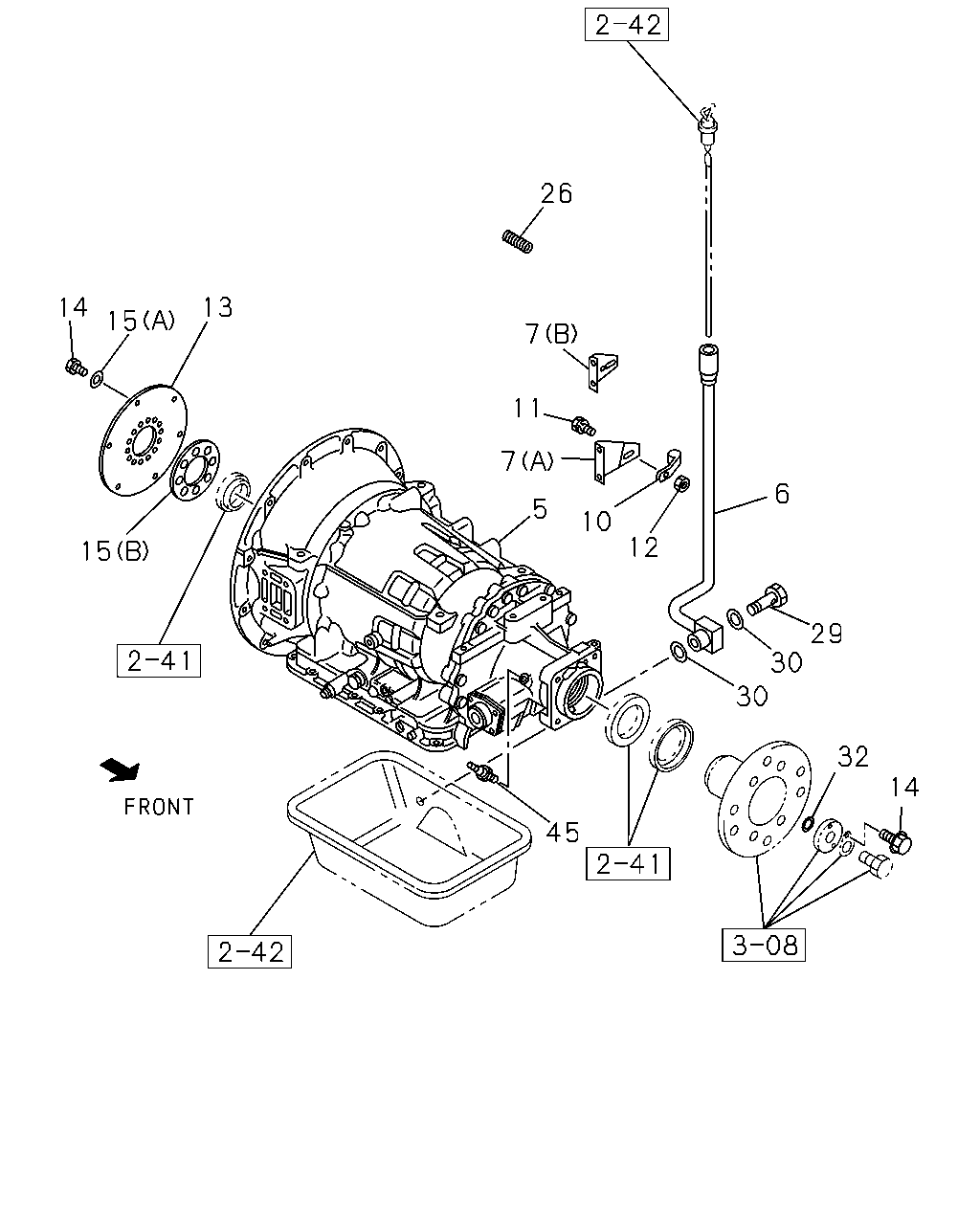

2-40 - AUTO TRANS ASM AND REPAIR KIT
▶
2-40 — AUTO TRANS ASM AND REPAIR KIT
(#2076) — 36 parça
Tümü
A - MT643 A/T ALLISON
B - MT644 A/T ALLISON
26
13
14
15
7
11
7
6
5
10
12
15
29
30
30
32
14
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
TRANSMISSION ASM; AUTO
1-34000-077-1
01
1
9001-
●
5
TRANSMISSION ASM; AUTO
1-34000-022-1
01
1
9001-
●
6
FILLER; OIL
1-34121-015-2
01
1
9001-
●
●
7
BRACKET; OIL FILLER
(A)
1-34129-003-0
01
1
9001-
●
●
7
BRACKET; OIL FILLER
(B)
1-34129-015-1
01
1
9001-
●
●
10
CLIP; OIL FILLER
9-09916-667-0
02
1
9001-
●
●
11
BOLT; CLIP
M8X14 W/LK WASHER
9-01910-814-0
01
1
9001-9005
●
●
11
BOLT; CLIP
M8X14 W/LK WASHER
0-50040-814-0
01
1
9006-9606
●
●
11
BOLT; CLIP
M8X12 FLANGE
0-28080-812-0
01
1
9607-
●
●
11
BOLT; CLIP
M8X16 W/LK WASHER
9-01910-816-0
01
1
9001-9005
●
●
11
BOLT; CLIP
M8X16 W/LK WASHER
0-50040-816-0
01
1
9006-
●
●
12
NUT; BOLT
M8
9-09110-408-0
02
1
9001-9606
●
●
12
NUT; BOLT
M8
9-09110-408-0
01
1
9607-
●
●
12
NUT; BOLT
M8 FLANGE
0-91150-108-0
01
1
9607-
●
●
13
PLATE; FLEX,A/T
OD=150
1-32213-024-2
01
1
9001-9205
●
13
PLATE; FLEX,A/T
OD=362
1-32213-037-0
01
1
9206-
●
13
PLATE; FLEX,A/T
OD=330
1-32213-027-0
01
1
9001-9205
●
13
PLATE; FLEX,A/T
OD=400
1-32213-035-0
01
1
9206-
●
13
PLATE; FLEX,A/T
OD=422
1-32213-020-0
01
1
9001-
●
13
PLATE; FLEX,A/T
OD=198
1-32213-021-1
01
1
9001-
●
14
BOLT; FLEX PLATE
M10X15
1-09044-054-0
06
1
9206-
●
14
BOLT; FLEX PLATE
M18X25
9-92061-825-0
08
1
9206-
●
14
BOLT; FLEX PLATE
M10X32 W/LK WASHER
1-09029-001-1
01
1
9001-
●
●
14
BOLT; FLEX PLATE
M10X15
1-89920-240-3
06
1
9001-
●
●
14
BOLT; FLEX PLATE
M6X14
9-01910-614-0
01
1
9001-9005
●
●
14
BOLT; FLEX PLATE
M6X14 W/LK WASHER
0-50040-614-0
01
1
9006-
●
●
14
BOLT; FLEX PLATE
M12X28
9-92061-228-0
16
1
9001-9205
●
●
14
BOLT; FLEX PLATE
M12X28
9-92061-228-0
16
1
9206-9606
●
14
BOLT; FLEX PLATE
M12X30 FLANGE
0-28691-230-0
16
1
9607-
●
15
WASHER; FLEX PLATE
(B)
1-32213-033-0
01
1
9206-
●
15
WASHER; FLEX PLATE
(A)
1-09503-033-1
12
1
9001-
●
●
26
HELISERT; A/T
9-09957-020-0
01
1
9001-
●
●
29
BOLT; EYE,OIL FILLER
1-09675-062-0
01
1
9001-
●
●
30
GASKET; EYE BOLT
9-09571-427-0
02
1
9001-
●
●
32
GASKET
9-09921-103-0
01
1
9001-
●
●
45
GEAR; DRIVEN,SPD,A/T
1-33372-085-0
01
1
9001-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
