◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11165 - FTR SOUTH AFRICA ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#20756) — 68 parça

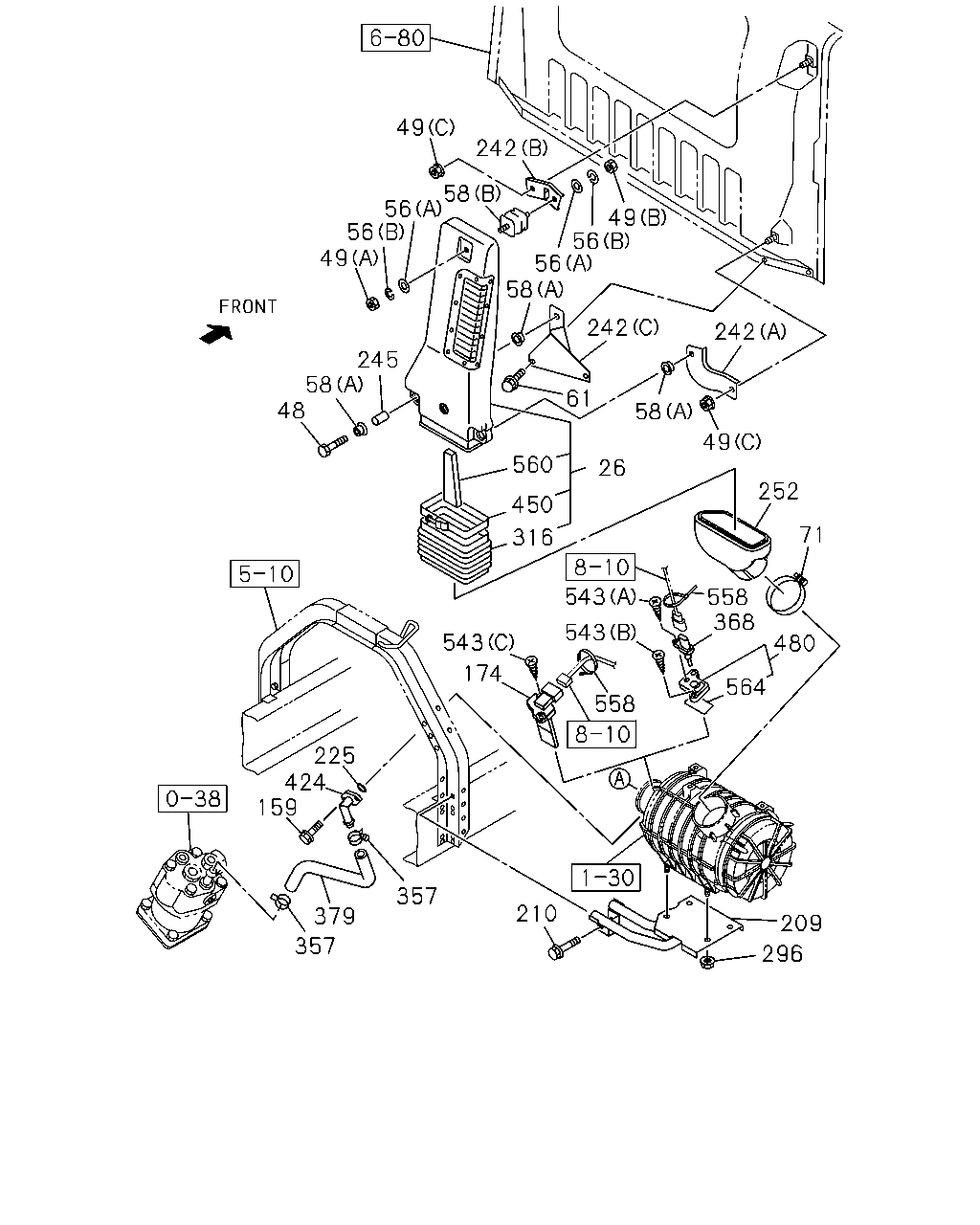

çizim 127388
49 242 58 56 56 49 49 56 56 58 242 242 245 61 58 48 58 49 560 26 252 450 71 316 543 558 368 543 543 480 174 564 558 225 424 159 357 210 379 209 357 296
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 1001-
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1001-
49 NUT; AIR DUCT
(B) M8 FLANGE SOU 		1-09984-122-0 01 1 1001-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1001-
49 NUT; AIR DUCT
(C) M8 FLANGE SOU 		8-94279-517-0 02 1 1001-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 SOU 		1-09985-177-0 02 1 1001-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1001-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1001-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1001-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1001-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1001-
159 BOLT; AIR PIPE
M6X16 FLANGE SOU 		0-28050-616-0 02 1 1001-
174 SENSOR; AIR FLOW CONT
EURO3 SPECIFICATION<NT3> 		8-97601-967-0 01 1 1110-1112
174 SENSOR; AIR FLOW CONT
EURO3 SPECIFICATION<NT3> 		8-97601-967-0 01 1 1201-
209 BRACKET; ACL 8-98021-995-1 01 1 1001-
210 BOLT; ACL BRKT
M10X25 FLANGE SOU 		0-28651-025-0 04 1 1001-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1001-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1001-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1001-
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1001-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1001-
252 DUCT; AIR INT 8-98012-861-1 01 1 1001-
296 NUT; ACL
M8 FLANGE SOU 		0-91180-108-0 04 1 1001-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1001-
357 CLIP; RUBBER HOSE
ID=26 		1-09707-091-0 02 1 1001-
368 SENSOR; TEMP 8-98065-377-0 01 1 1001-1109
368 SENSOR; TEMP
EURO2 SPECIFICATION<NT2> 		8-98065-377-0 01 1 1110-1112
368 SENSOR; TEMP
EURO2 SPECIFICATION<NT2> 		8-98065-377-0 01 1 1201-
368 SENSOR; TEMP
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98065-377-0 01 1 1201-
379 HOSE; RUBBER 8-98077-469-0 01 1 1001-
424 PIPE; AIR,INL 8-98081-834-0 01 1 1001-
450 CLAMP; HOSE 9-09915-504-1 01 1 1001-
480 ADAPTER 8-98086-417-0 01 1 1001-1109
480 ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98086-417-0 01 1 1110-1112
480 ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98086-417-0 01 1 1201-
480 ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98086-417-0 01 1 1201-
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1110-1112
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1201-
543 SCREW; SENSOR
(A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1001-1109
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1110-1112
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1201-
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1201-
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1001-1109
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1110-1112
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1201-
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1201-
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1001-
558 CLIP; AIR FLOW SENSOR
L=250 SOU 		5-09707-030-1 02 1 1001-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1001-
564 GASKET; ADAPTER 8-98071-416-0 01 1 1001-1109
564 GASKET; ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98071-416-0 01 1 1110-1112
564 GASKET; ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98071-416-0 01 1 1201-
564 GASKET; ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98071-416-0 01 1 1201-

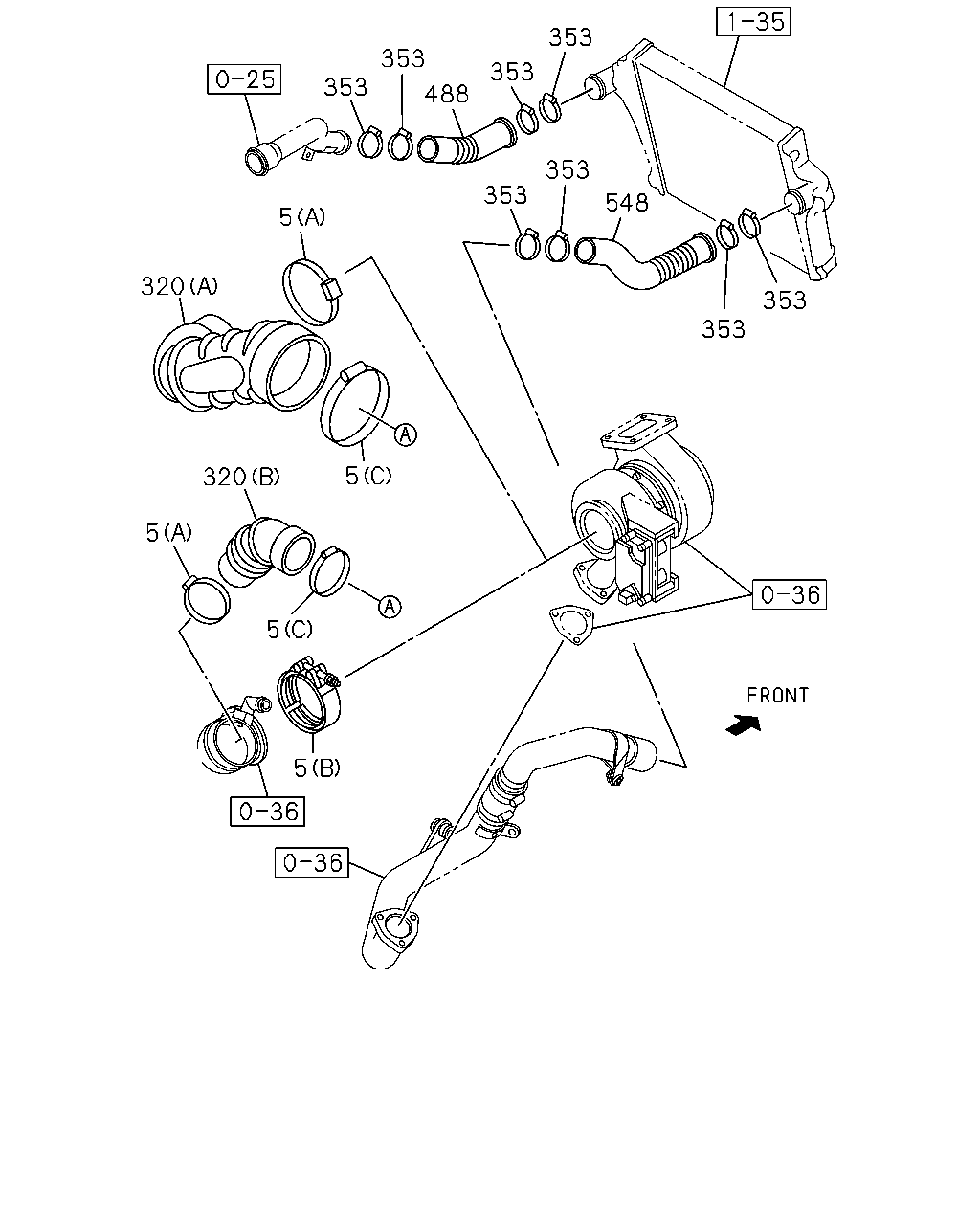

çizim 127389
353 353 353 353 488 353 353 548 5 320 353 353 5 320 5 5 5
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> (B) ID=114 		8-15178-030-0 01 1 1110-
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> (A) ID=100-120 		8-98133-366-0 01 1 1110-
5 CLIP; AIR DUCT
(C) ID=110-130 		8-98133-359-0 01 1 1001-
5 CLIP; AIR DUCT
(A) ID=90-110 		8-98133-365-0 01 1 1001-1109
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) ID=90-110 		8-98133-365-0 01 1 1110-
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) 		8-98167-258-0 01 1 1110-
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		8-98012-859-2 01 1 1110-
320 HOSE; CONN,ACL
(A) 		8-98073-257-0 01 1 1001-1109
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> (A) 		8-98073-257-0 01 1 1110-
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 1001-
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1001-
548 HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2> 		8-98065-044-0 01 1 1110-
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98065-044-0 01 1 1001-1101
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98181-974-1 01 1 1102-1109
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> 		8-98181-974-1 01 1 1110-
