Isuzu WW
▶
TRUCKS
▶
FSR
▶
11357 - FSR(MALAYSIA)W/B5500
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#20746) — 105 parça
◀

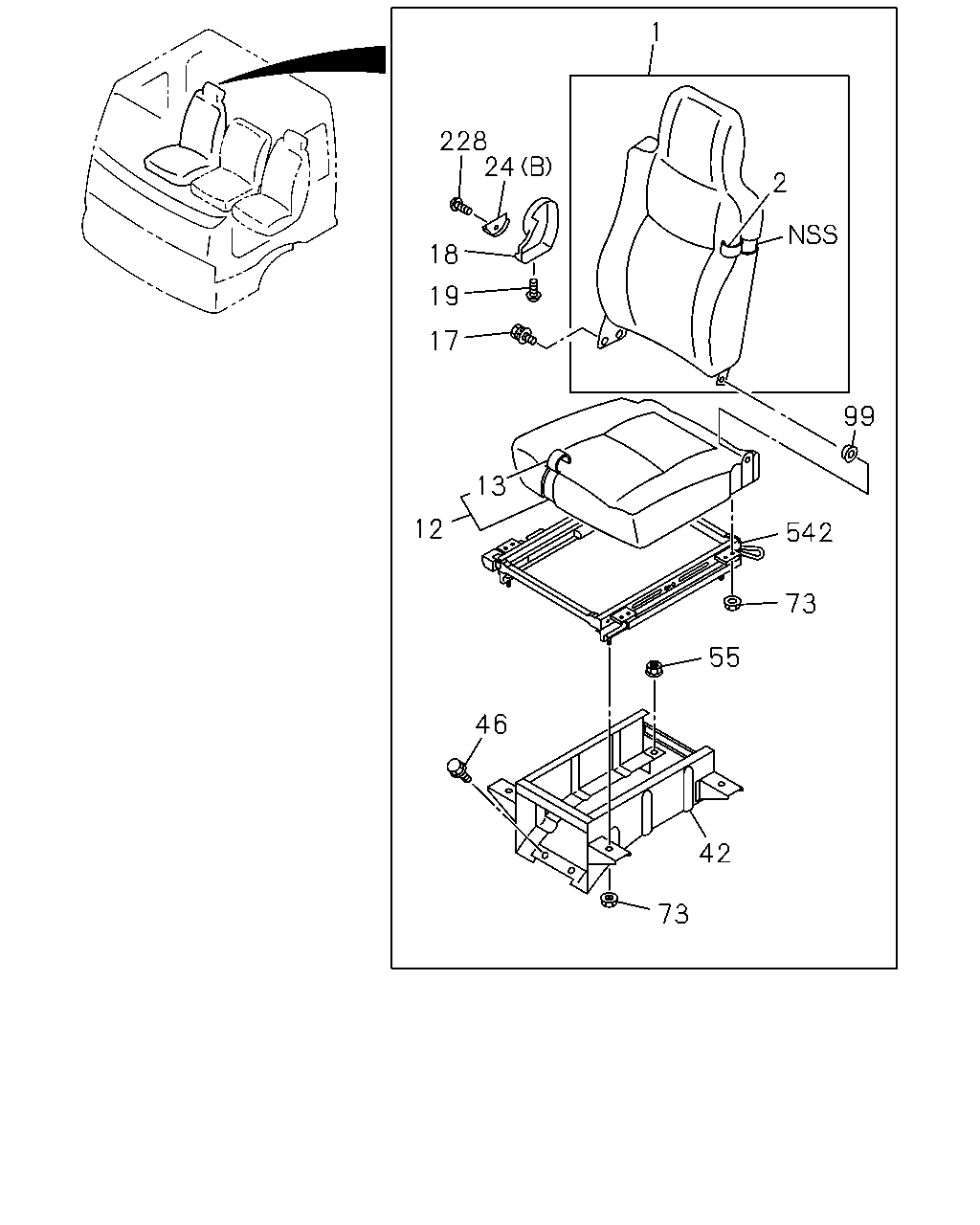

[750A] DRIVER (24 parça)

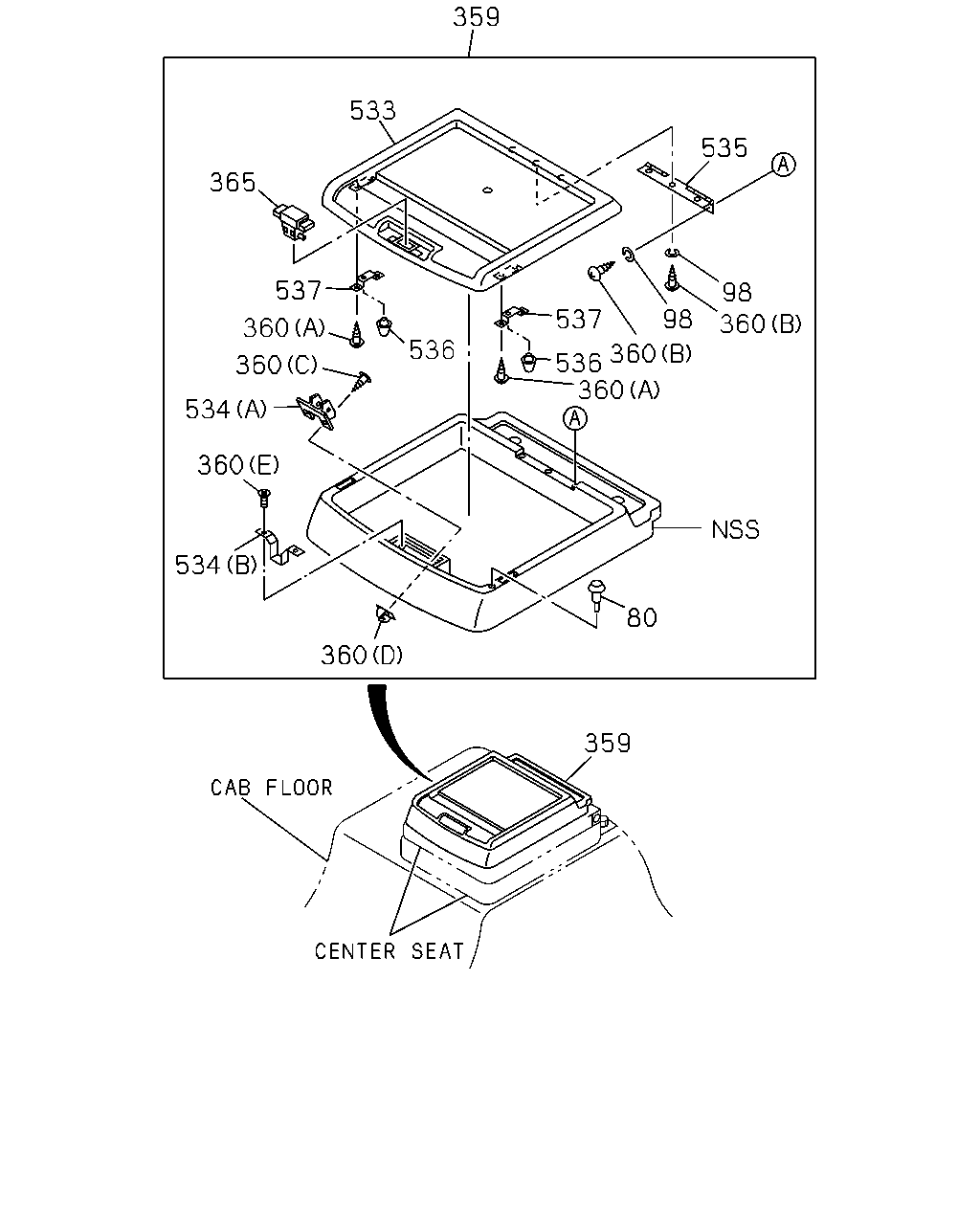

[750A] PARCEL BOX (21 parça)

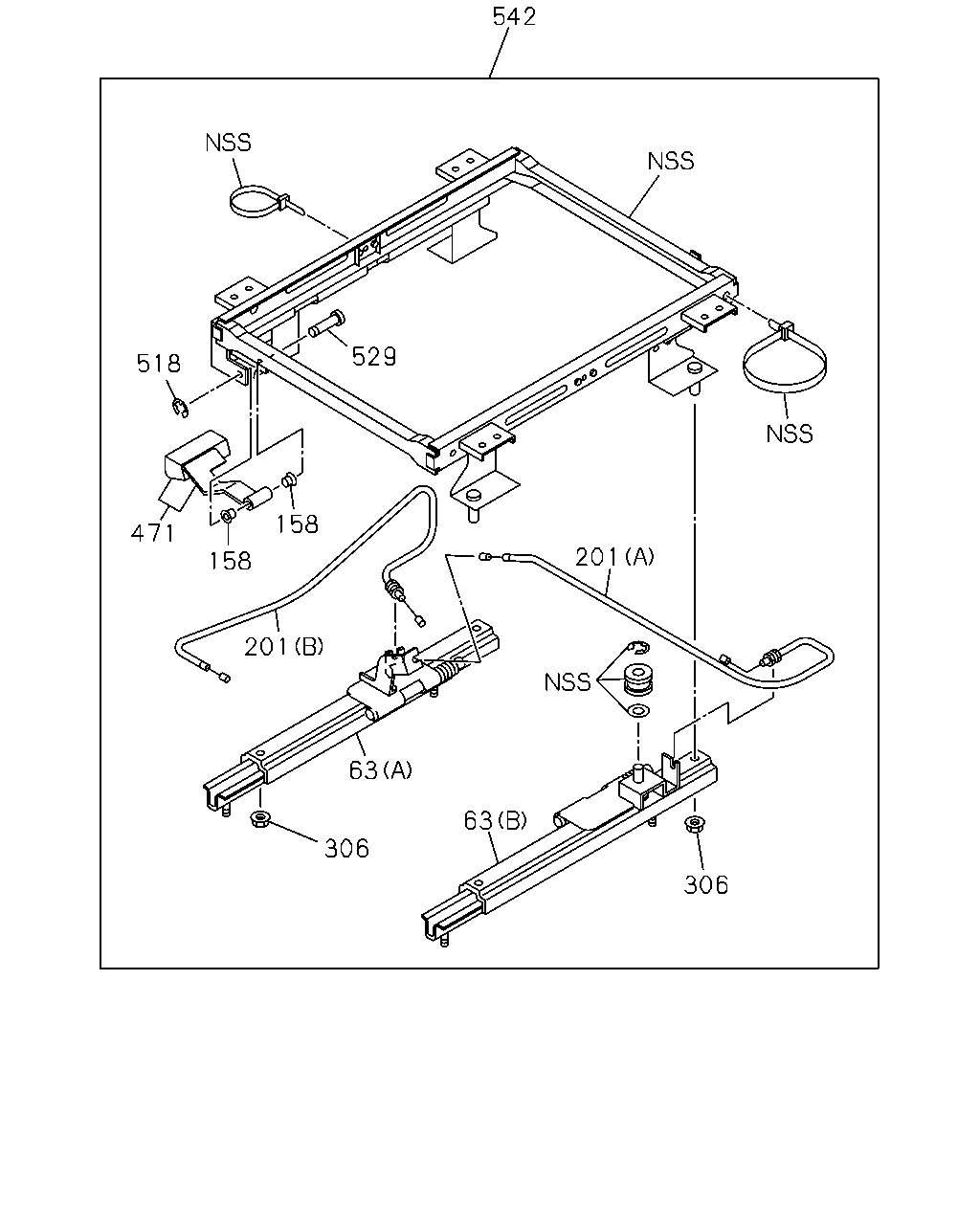

[750A] ADJUSTER ASM (12 parça)
[750A] CENTER (22 parça)

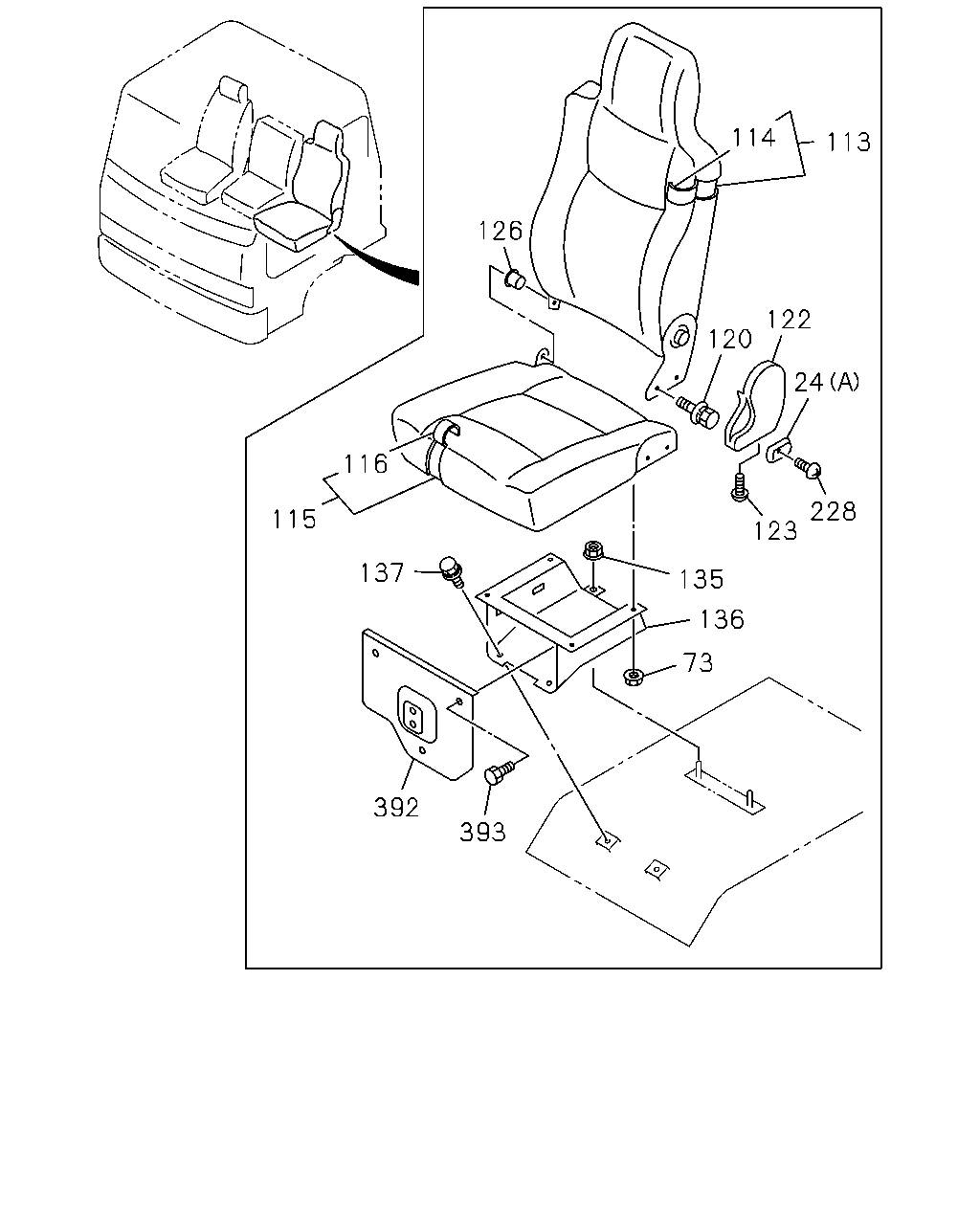

[750A] PASSENGER (26 parça)
▶
1
228
24
2
18
19
17
99
13
12
542
73
55
46
42
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
1-75208-067-3
01
1
0403-
2
COVER; TRIM,FRT SEAT,BACK
1-75116-702-1
01
1
0403-
12
CUSHION; SEAT,FRT
1-75026-692-1
01
1
0403-
13
COVER; TRIM,FRT SEAT,CUSHION
1-75116-680-1
01
1
0403-
17
BOLT; RECLINING
M8X20 MAL
8-97255-906-0
02
1
0403-
18
COVER; RECLINING
DARK GRAY MAL
8-97867-020-0
01
1
0403-
19
SCREW; COVER
M5X16 TAPPING W/PL WASHER
0-74310-516-0
01
1
0403-
24
KNOB; RECLINING,FRT,SEAT
(A) PASSENGER DARK GRAY
8-97859-019-0
01
1
0403-
24
KNOB; RECLINING,FRT,SEAT
(B) DRIVER DARK GRAY MAL
8-97867-021-0
01
1
0403-0710
24
KNOB; RECLINING,FRT,SEAT
(B) DRIVER
1-75418-066-0
01
1
0711-
42
STAND; DRIVER SEAT
1-75558-604-2
01
1
0403-
46
BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER
8-94279-211-0
02
1
0403-0703
46
BOLT; STAND TO FLOOR
M10X20 FLANGE
0-28451-020-0
02
1
0704-
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
1-09984-153-0
02
1
0403-0703
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE MAL
0-91180-110-0
02
1
0704-
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
1-75538-207-0
04
1
0403-
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
1-75538-207-0
08
1
0403-
99
BUSHING; SEAT BACK
MAL
8-97854-087-0
01
1
0403-
228
SCREW; KNOB
M4X6 MAL
8-97042-273-0
01
1
0403-0710
228
SCREW; KNOB
M4X6 MAL
8-97042-273-0
01
1
0403-0710
228
SCREW; KNOB
M4X6 MAL
8-97042-273-0
01
1
0711-
228
SCREW; KNOB
M4 MAL
8-98062-662-0
01
1
0711-
542
ADJUSTER ASM; SEAT SLIDE
1-75518-286-3
01
1
0403-1502
542
ADJUSTER ASM; SEAT SLIDE
8-98291-659-0
01
1
1503-
359
533
535
365
537
98
360
98
537
360
536
360
536
360
360
534
360
534
80
360
359
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
80
RUBBER; STOPPER
1-72538-187-0
02
1
1007-
98
WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK
9-09152-704-0
06
1
0403-
359
BOX; PARCEL
1-72538-275-4
01
1
0403-1006
359
BOX; PARCEL
8-98145-114-0
01
1
1007-
360
SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD
0-70080-310-0
04
1
0403-0612
360
SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD
0-70040-310-0
04
1
0701-1006
360
SCREW; PARCEL
(E) M5X14 TAPPING CK-HEAD
0-70040-514-0
02
1
1007-
360
SCREW; PARCEL
(B) M4X16
0-70080-416-0
06
1
0403-0612
360
SCREW; PARCEL
(B) M4X16
0-70040-416-0
06
1
0701-1104
360
SCREW; PARCEL
(B) M4X16
0-70080-416-0
06
1
1105-
360
SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER
0-74310-516-0
06
1
0403-1006
360
SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER
0-74310-516-0
04
1
1007-
360
SCREW; PARCEL
(D)
1-09983-165-0
02
1
0403-1006
365
LOCK ASM; SEAT
1-72538-180-0
01
1
0403-
533
LID; PARCEL BOX
1-72538-277-1
01
1
0403-1006
533
LID; PARCEL BOX
8-98145-118-0
01
1
1007-
534
STRIKER; PARCEL BOX
(A)
1-72538-181-0
01
1
0403-1006
534
STRIKER; PARCEL BOX
(B)
1-72538-190-0
01
1
1007-
535
HINGE; PARCEL BOX
1-72447-391-1
01
1
0403-
536
RUBBER; CUSHION
5-09983-002-1
02
1
0403-1006
537
BRACKET; RUBBER
1-72548-057-1
02
1
0403-1006
542
529
518
158
471
201
158
201
63
63
306
306
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
63
ADJUSTER; SEAT SLIDE
(B)
1-75518-199-1
01
1
0403-
63
ADJUSTER; SEAT SLIDE
(A)
1-75518-294-1
01
1
0403-
158
BUSHING; LINK ARM
1-75518-209-0
02
1
0403-
201
CABLE; ADJ
(B) L=667
1-75518-288-0
01
1
0403-
201
CABLE; ADJ
(A) L=605
1-75518-289-1
01
1
0403-
306
NUT; SEAT ADJ
M8 FLANGE
1-75538-207-0
04
1
0403-
471
LEVER; SEAT ADJ
1-75518-291-0
01
1
0403-0710
471
LEVER; SEAT ADJ
8-98107-869-0
01
1
0711-
518
NUT; TILT ADJ
1-75518-263-0
01
1
0403-
529
PIN; LINK
1-75518-262-0
01
1
0403-
542
ADJUSTER ASM; SEAT SLIDE
1-75518-286-3
01
1
0403-1502
542
ADJUSTER ASM; SEAT SLIDE
8-98291-659-0
01
1
1503-
506
360
175
176
188
16
188
189
359
403
179
182
403
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
ADJUSTER ASM; RECLINING
1-75418-062-1
01
1
0403-
175
BACK ASM; PASSENGER CENTER SEAT
1-75026-855-3
01
1
0403-
176
COVER; TRIM,PASSENGER SEAT CENTER,BACK
1-75116-651-1
01
1
0403-
179
COVER; TRIM,PASSENGER SEAT CENTER,CUSH
1-75116-638-1
01
1
0403-
182
CUSHION ASM; CENTER SEAT
1-75026-840-4
01
1
0403-
188
BOLT; BACK TO CUSHION
M10X16 FLANGE
1-75198-053-0
04
1
0403-
189
BUSHING; HINGE,CENTER SEAT BACK
MAL
8-97854-900-0
01
1
0403-
359
BOX; PARCEL
1-72538-275-4
01
1
0403-1006
359
BOX; PARCEL
8-98145-114-0
01
1
1007-
360
SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD
0-70080-310-0
04
1
0403-0612
360
SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD
0-70040-310-0
04
1
0701-1006
360
SCREW; PARCEL
(E) M5X14 TAPPING CK-HEAD
0-70040-514-0
02
1
1007-
360
SCREW; PARCEL
(B) M4X16
0-70080-416-0
06
1
0403-0612
360
SCREW; PARCEL
(B) M4X16
0-70040-416-0
06
1
0701-1104
360
SCREW; PARCEL
(B) M4X16
0-70080-416-0
06
1
1105-
360
SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER
0-74310-516-0
06
1
0403-1006
360
SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER
0-74310-516-0
04
1
1007-
360
SCREW; PARCEL
(D)
1-09983-165-0
02
1
0403-1006
403
NUT; CENTER SEAT
M8 FLANGE
1-75538-207-0
04
1
0403-0703
403
NUT; CENTER SEAT
M8 FLANGE MAL
0-91180-108-0
04
1
0704-
506
CAP; PARCEL BOX
1-09983-180-3
04
1
0403-1006
506
CAP; PARCEL BOX
1-09983-180-3
02
1
1007-
114
113
126
122
120
24
116
228
115
123
137
135
136
73
392
393
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
KNOB; RECLINING,FRT,SEAT
(A) PASSENGER DARK GRAY
8-97859-019-0
01
1
0403-
24
KNOB; RECLINING,FRT,SEAT
(B) DRIVER DARK GRAY MAL
8-97867-021-0
01
1
0403-0710
24
KNOB; RECLINING,FRT,SEAT
(B) DRIVER
1-75418-066-0
01
1
0711-
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
1-75538-207-0
04
1
0403-
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
1-75538-207-0
08
1
0403-
113
BACK ASM; SEAT
1-75208-074-3
01
1
0403-
114
COVER; TRIM,PASSENGER SEAT,BACK
1-75116-592-1
01
1
0403-
115
CUSHION ASM; PASSENGER SEAT
1-75026-701-1
01
1
0403-
116
COVER; TRIM,PASSENGER SEAT,CUSHION
1-75116-689-1
01
1
0403-
120
BOLT; RECLINING ADJ
M8X20 MAL
8-97255-906-0
02
1
0403-
122
COVER; ADJ,RECLINING
DARK GRAY
8-97859-018-0
01
1
0403-
123
SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER
0-74310-516-0
01
1
0403-
126
BUSHING; HINGE,RECLINING
MAL
8-97854-087-0
01
1
0403-
135
NUT; SEAT STAND
M10 FLANGE
1-09984-153-0
02
1
0403-0703
135
NUT; SEAT STAND
M10 FLANGE MAL
0-91180-110-0
02
1
0704-
136
STAND; PASSENGER SEAT
1-75558-602-3
01
1
0403-1305
136
STAND; PASSENGER SEAT
8-98242-299-0
01
1
1306-
137
BOLT; STAND
M10X20 W/LK&PL WASHER
8-94279-211-0
02
1
0403-0703
137
BOLT; STAND
M10X20 FLANGE
0-28451-020-0
02
1
0704-
228
SCREW; KNOB
M4X6 MAL
8-97042-273-0
01
1
0403-0710
228
SCREW; KNOB
M4X6 MAL
8-97042-273-0
01
1
0403-0710
228
SCREW; KNOB
M4X6 MAL
8-97042-273-0
01
1
0711-
228
SCREW; KNOB
M4 MAL
8-98062-662-0
01
1
0711-
392
COVER; STAND,PASSENGER SEAT
1-75558-556-1
01
1
0403-
393
BOLT; COVER,SEAT STAND
M6X19.5 W/LK&PL WASHER MAL
8-94279-201-0
03
1
0403-0703
393
BOLT; COVER,SEAT STAND
M6X16
0-52000-616-0
03
1
0704-
