Isuzu WW
▶
TRUCKS
▶
FSR
▶
11357 - FSR(MALAYSIA)W/B5500
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

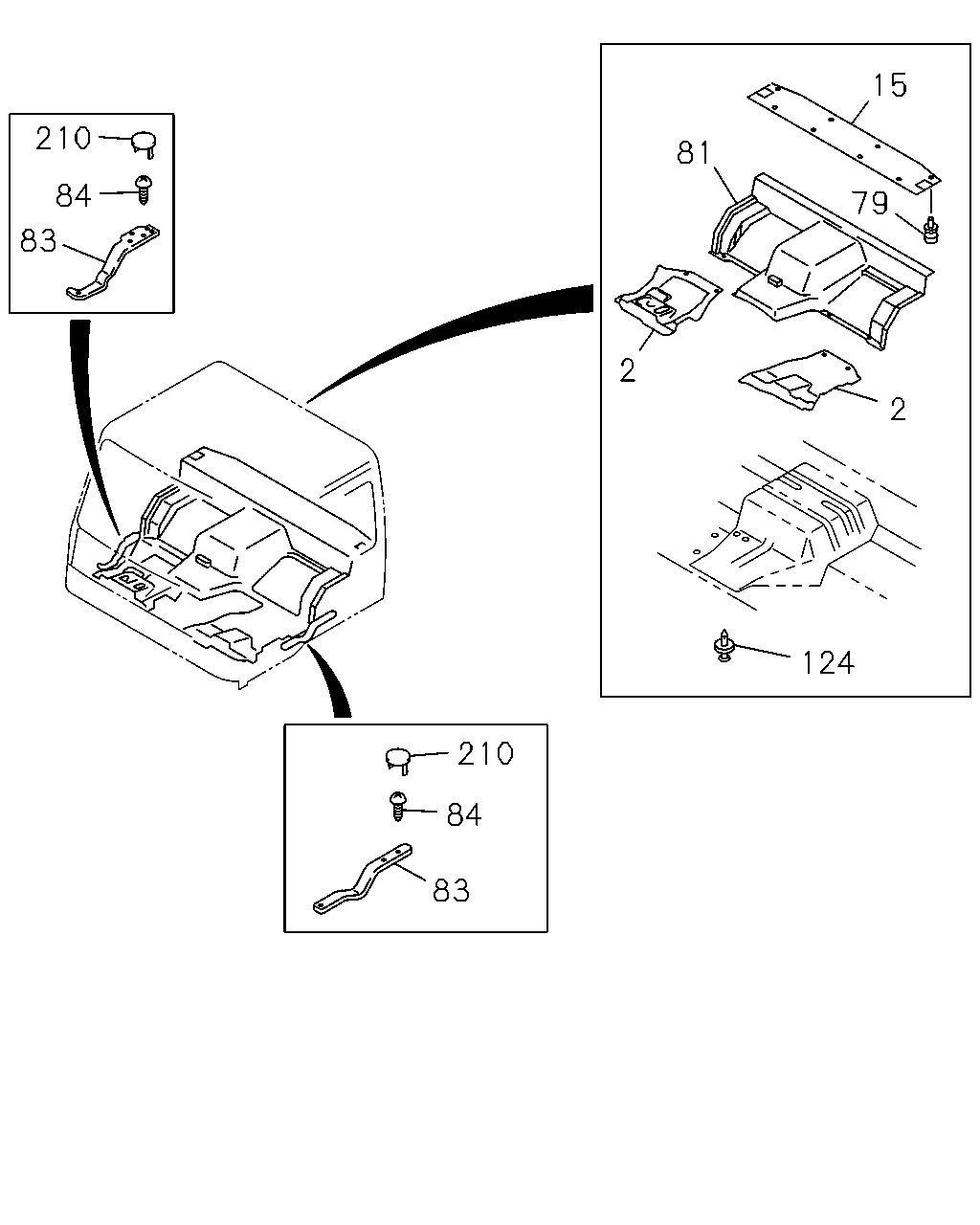

6-75 — MAT AND CARPET
(#20732) — 14 parça
15
210
81
79
84
83
2
2
124
210
84
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MAT; FLOOR
VINYL CARPET<B30>
1-73236-469-1
01
1
0403-
2
MAT; FLOOR
VINYL CARPET<B30>
1-73236-470-1
01
1
0403-
2
MAT; FLOOR
EXC. VINYL CARPET<B30>
1-73236-473-1
01
1
0403-
2
MAT; FLOOR
EXC. VINYL CARPET<B30>
1-73236-474-1
01
1
0403-
15
MAT; FLOOR REAR
VINYL CARPET<B30> EXC. MATTRESS SLEEPER CAB<E40>
1-73236-522-1
01
1
0403-
15
MAT; FLOOR REAR
MATTRESS SLEEPER CAB<E40>
1-73236-522-1
01
1
0403-
79
HOOK; MALE
BLACK MAL
8-94279-089-0
08
1
0403-
81
MAT; FLOOR,CENTER
VINYL CARPET<B30>
1-73236-547-3
01
1
0403-
81
MAT; FLOOR,CENTER
EXC. VINYL CARPET<B30>
1-73236-510-3
01
1
0403-
83
PLATE; KICKING,FLOOR MAT
1-76798-046-0
01
1
0403-
83
PLATE; KICKING,FLOOR MAT
1-76798-045-0
01
1
0403-
84
SCREW; PLATE TO FLOOR
M5X16
8-94279-312-0
08
1
0403-
124
FASTENER
1-09470-007-0
04
1
0403-
210
COVER; KICKING PLATE
1-76337-461-0
09
1
0403-
