2-36A — MANUAL TRANSMISSION CONT LINK AND CABLE (#2072) — 35 parça

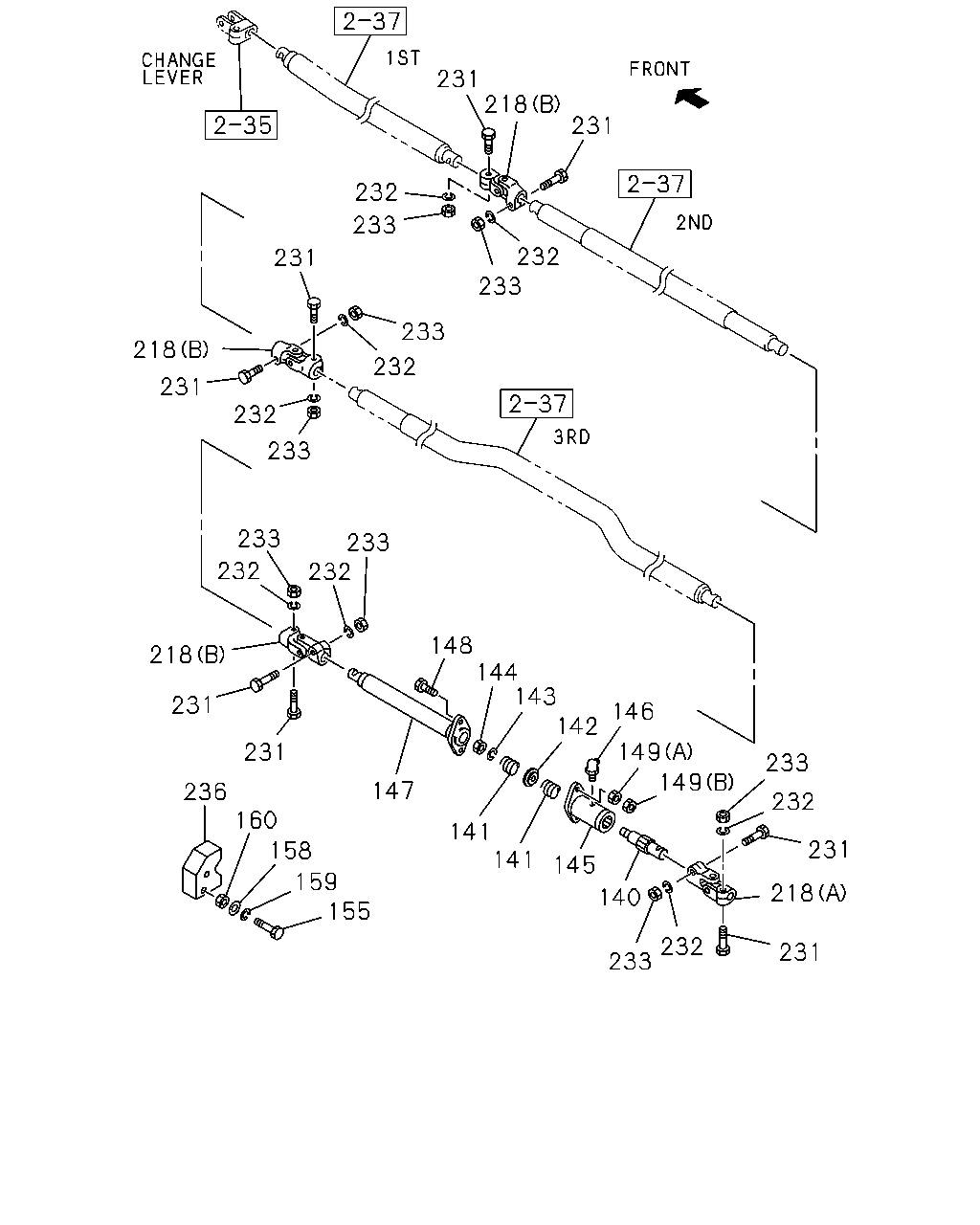

çizim 27713
231 218 231 232 233 232 233 231 233 218 232 231 232 233 233 233 232 232 148 144 143 218 231 146 142 231 149 233 149 147 236 232 160 141 141 231 158 145 159 155 218 140 232 233 231
BalonParca AdiParca NoAdetTipApplied Date A B C D
140 END; ROD,CONT ROD 1-33652-156-0 01 1 9001- ● ● ● ●
141 SPRING; CONT ROD 9-09940-831-0 02 1 9001- ● ● ● ●
142 GUIDE; CONT ROD 9-33659-384-0 01 1 9001- ● ● ● ●
143 WASHER; LK,CONT ROD
ID=14.2 		9-09150-514-0 01 1 9001- ● ● ● ●
144 NUT; CONT ROD
M14 		9-99110-414-0 01 1 9001- ● ● ● ●
145 SLEEVE; CONT ROD 9-33659-399-0 01 1 9001- ● ● ● ●
146 NIPPLE; GREASE,SLEEVE
PT1/8 ELBOW 		9-09031-210-0 01 1 9001- ● ● ● ●
147 ROD; LINK
6QA1 STD ENG(L24) WHEEL BASE 5800MM(58W) 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-33652-246-0 01 1 9001-9012 ● ● ● ●
147 ROD; LINK
6RB1 STD ENG(07L) WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) 		1-33652-246-0 01 1 9001-9012 ● ●
147 ROD; LINK
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) EXC. BUS BODY REAR OVERHANG<YK4> 		1-33652-246-0 01 1 9101- ● ● ● ●
147 ROD; LINK
6QA1 STD ENG(L24),6RA1 STD ENG(14L) WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-33652-185-1 01 1 9001-9012 ● ● ● ●
147 ROD; LINK
EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3),BUS BODY REAR OVERHANG<YK4> 		1-33652-185-1 01 1 9101- ● ● ● ●
147 ROD; LINK
6RB1 STD ENG(07L) WHEEL BASE 6600MM(66W) 		1-33652-247-0 01 1 9001-9012 ● ● ● ●
147 ROD; LINK
BUS BODY REAR OVERHANG<YK4> EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) 		1-33652-222-0 01 1 9101- ● ● ● ●
147 ROD; LINK
16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) BUS BODY REAR OVERHANG<YK4> 		1-33652-602-0 01 1 9101- ● ● ● ●
148 BOLT; SLEEVE TO CONT ROD
M10X28 		9-02051-028-0 02 1 9001-9002 ● ● ● ●
148 BOLT; SLEEVE TO CONT ROD
M10X28 		0-20801-028-0 02 1 9003- ● ● ● ●
149 NUT; SLEEVE TO CONT ROD
(A) M10 		9-09110-410-0 02 1 9001- ● ● ● ●
149 NUT; SLEEVE TO CONT ROD
(B) M10 		9-09111-410-0 02 1 9001- ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M8X60 		9-01045-860-0 04 1 9001-9204 ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M8X60 		0-10805-860-0 04 1 9205-9606 ● ● ● ●
155 BOLT; SUPPORT BRKT TO COVER,CONT ROD
M8X60 FLANGE 		0-28080-860-0 04 1 9607- ● ● ● ●
158 WASHER; PL,SUPPORT BRKT TO COVER
ID=8.4 OD=26 		9-09164-808-0 04 1 9001-9606 ● ● ● ●
158 WASHER; PL,SUPPORT BRKT TO COVER
ID=8.4 OD=26 		9-09164-808-0 04 1 9702- ● ● ● ●
159 WASHER; LK,SUPPORT BRKT TO COVER
ID=8.2 		9-09150-508-0 04 1 9001-9606 ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
M8 LOCK NUT 		9-09131-408-0 04 1 9001-9606 ● ● ● ●
160 NUT; SUPPORT BRKT TO COVER
M8 FLANGE 		0-91150-108-0 04 1 9607- ● ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(A) 		1-33655-006-0 01 1 9001-9606 ● ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(A) 		1-33655-014-0 01 1 9607- ● ● ● ●
218 JOINT ASM; UNIVERSAL,TRANS CONT ROD
(B) 		1-33655-013-0 03 1 9001- ● ● ● ●
231 BOLT; UJT,TRANS CONT ROD
M10X47 		1-09029-025-0 08 1 9001- ● ● ● ●
232 WASHER; LK,UJT,CONT ROD
ID=10.2 		9-09150-610-0 08 1 9001-9606 ● ● ● ●
233 NUT; UJT,CONT ROD
M10 		9-09110-510-0 08 1 9001-9606 ● ● ● ●
233 NUT; UJT,CONT ROD
M10 FLANGE 		0-91150-210-0 08 1 9607- ● ● ● ●
236 SUPPORT ASM; TRANS CONT ROD 1-23335-085-0 02 1 9001- ● ● ● ●
