◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11357 - FSR(MALAYSIA)W/B5500 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#20719) — 139 parça

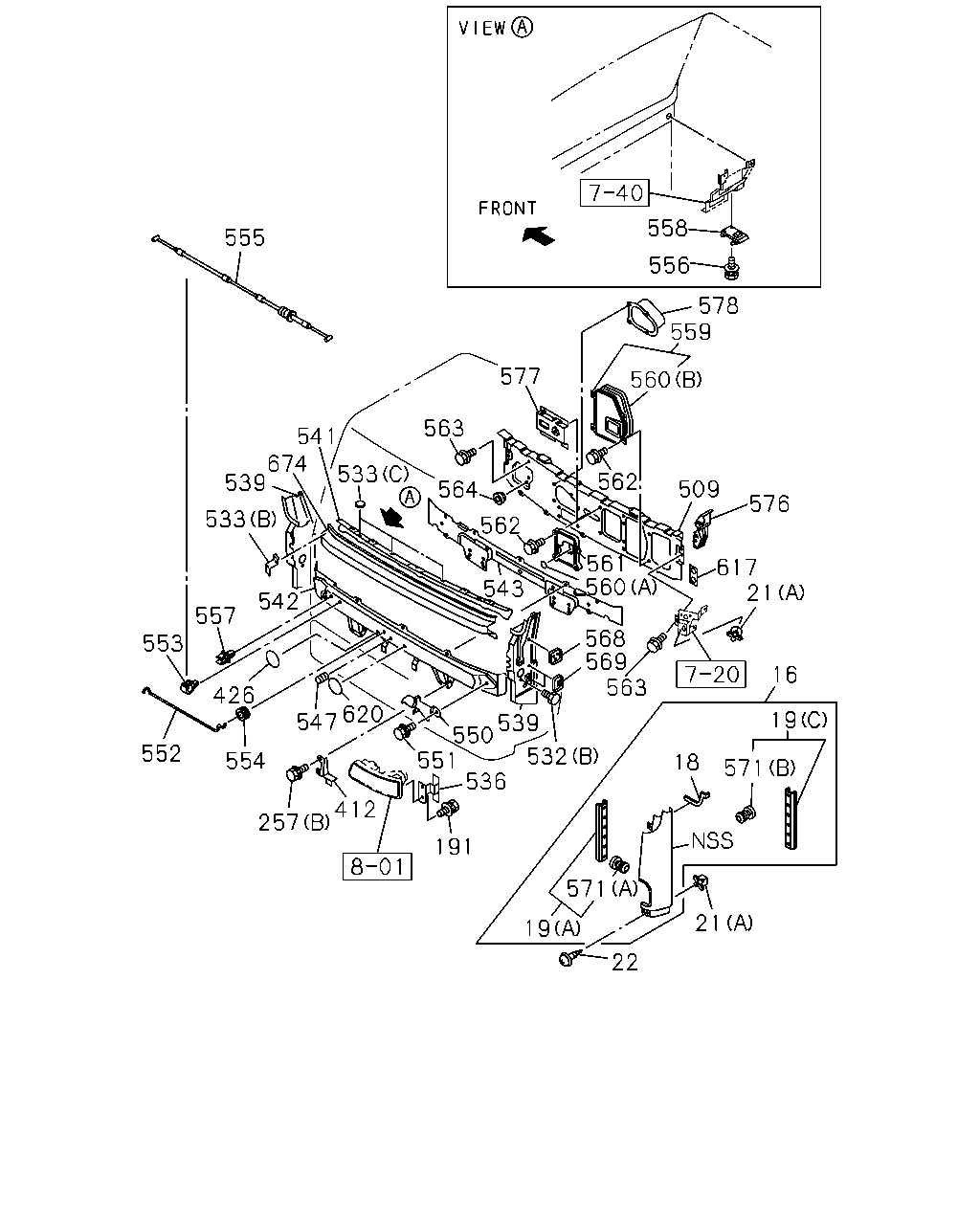

çizim 102649
558 555 556 578 559 577 560 563 541 674 539 533 562 509 564 576 533 562 561 560 543 617 21 542 557 568 569 563 553 16 426 620 547 19 539 550 551 552 532 554 18 571 536 412 257 191 571 21 19 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-563-3 01 1 0403-
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 0403-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0403-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0403-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0403-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0403-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0403-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0403-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0403-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0403-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 MAL 		8-94279-078-0 02 1 0403-
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0403-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING MAL 		8-94279-123-0 12 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011-
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 04 1 0403-0708
191 BOLT; HINGE
M6X16 FLANGE MAL 		0-28650-616-0 04 1 0709-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0403-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER MAL 		8-94279-208-0 04 1 0403-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER MAL 		8-98059-720-0 04 1 0905-
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0403-
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0403-
426 GASKET
OD=25 BLACK MAL 		1-76798-019-0 03 1 0403-
509 PANEL; DASH 1-62280-193-5 01 1 0403-0604
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0403-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0403-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0403-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0403-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 13 1 0403-
533 SEAL; FRT PANEL
(A) 25X25 MAL 		8-94272-533-0 02 1 0403-
536 HINGE 1-86830-004-5 01 1 0403-
536 HINGE 1-86830-003-5 01 1 0403-
539 CLOSING; PILLAR 1-61480-673-6 01 1 0403-
539 CLOSING; PILLAR 1-61480-674-6 01 1 0403-
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 0403-
542 RAIL; FRT MOUNTING 1-61480-825-6 01 1 0403-
543 CLOSING; FRT MTG RAIL 1-61480-687-4 01 1 0403-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 0403-
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 0403-
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 0403-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER MAL 		8-94279-207-0 04 1 0403-
552 STAY; FRT LID 1-71996-310-0 01 1 0403-0706
552 STAY; FRT LID 1-71996-352-0 01 1 0707-
553 CLIP; STAY 8-97031-428-0 01 1 0403-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 0403-
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 0403-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER MAL 		8-94279-200-0 01 1 0403-
557 CLIP; CABLE
ID=4.8 MAL 		8-94128-483-0 02 1 0403-
558 LEVER; FRT LID 1-79338-007-1 01 1 0403-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0403-
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 0403-
560 SEAL; COVER
(A) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 01 1 0403-
560 SEAL; COVER
(A) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 02 1 0403-
561 COVER; HEATER CORE 1-71998-829-1 01 1 0403-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 08 1 0403-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0403-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0403-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0403-
568 PATCH; INST REINF 1-61480-675-2 02 1 0403-
569 PATCH; LWR GRIP 1-61480-689-2 01 1 0403-
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0403-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0403-
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0403-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0403-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0403-
576 FRAME; INST SIDE 1-62280-176-6 01 1 0403-0604
576 FRAME; INST SIDE 1-62280-177-7 01 1 0403-0604
577 BRACKET; IDLER 1-62280-195-0 01 1 0403-0604
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 0403-0604
617 SEAL; DASH 1-61281-497-0 02 1 0403-0604
620 SEAL; FRT MTG
OD=25 BLACK MAL 		1-76798-019-0 02 1 0403-
674 PANEL; UPR 1-61480-677-4 01 1 0403-

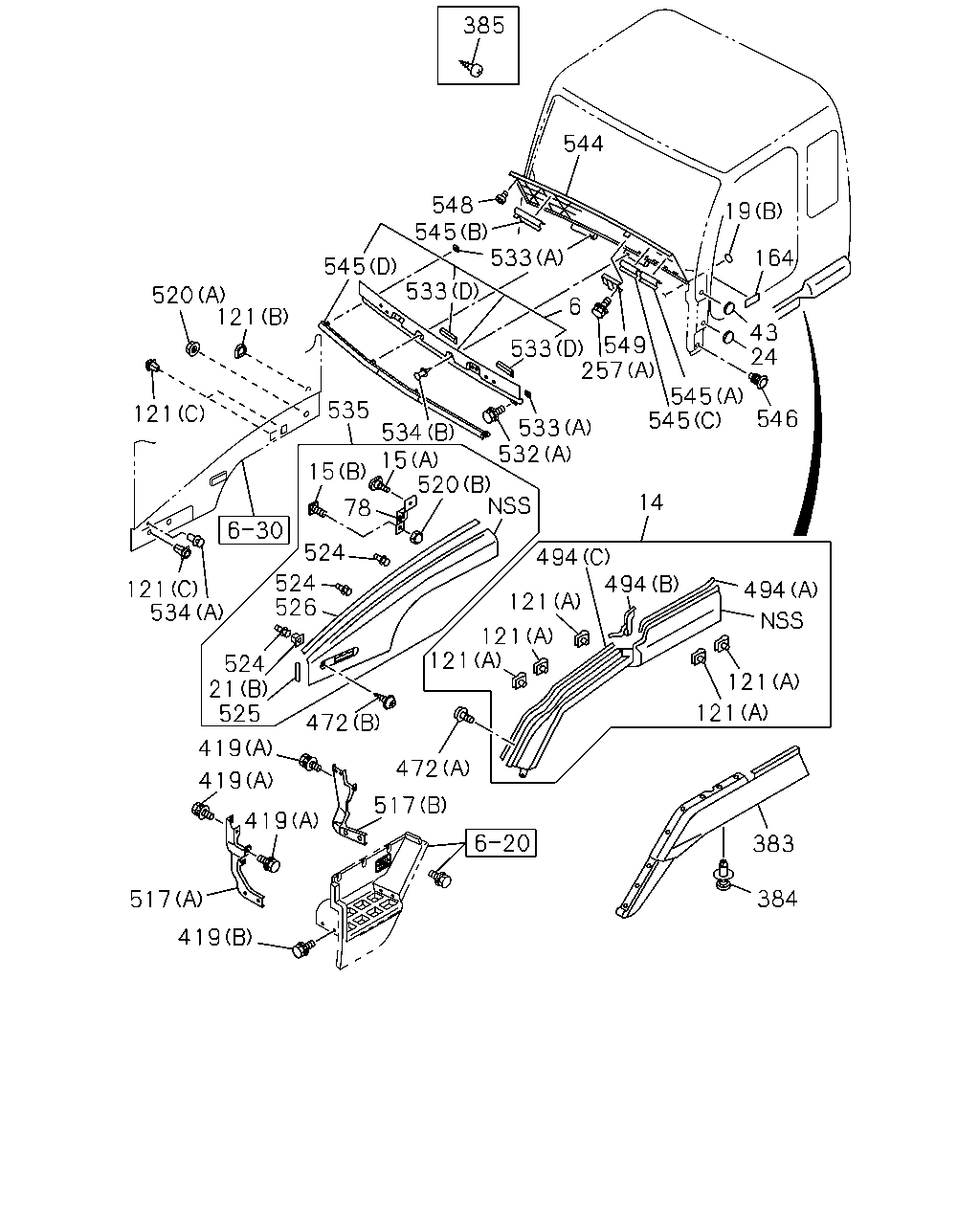

çizim 102650
385 544 548 545 533 19 164 545 533 6 520 121 43 24 533 549 257 121 545 545 535 533 532 546 534 15 520 78 15 14 524 494 494 524 526 121 534 494 121 121 121 524 21 525 121 121 472 419 472 419 517 419 383 384 517 419
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-744-2 01 1 0403-
14 FENDER; FRT
WHITE 		1-65482-023-1 01 1 0403-
14 FENDER; FRT
WHITE 		1-65482-022-1 01 1 0403-
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 0403-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 0403-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0403-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0403-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0403-
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0403-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0403-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0403-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 MAL 		8-94279-078-0 02 1 0403-
24 SEAL; FRT PANEL LWR
OD=25 BLACK MAL 		1-76798-019-0 08 1 0403-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0403-
78 BRACKET; FENDER 1-71268-323-0 01 1 0403-
78 BRACKET; FENDER 1-71268-322-0 01 1 0403-
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 0403-1009
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL MAL 		8-94279-043-0 12 1 0403-
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 0403-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0403-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0403-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER MAL 		8-94279-208-0 04 1 0403-0904
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER MAL 		8-98059-720-0 04 1 0905-
383 GUARD; MUD,FENDER LWR 1-71996-061-3 01 1 0403-
383 GUARD; MUD,FENDER LWR 1-71996-062-3 01 1 0403-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 06 1 0403-
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 01 1 0403-
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER MAL 		8-94279-208-0 10 1 0403-0904
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER MAL 		8-98059-720-0 10 1 0905-
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0403-
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 17 1 0403-
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING MAL 		8-94279-123-0 02 1 0403-
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 0403-0610
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611-
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0403-
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0403-
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0403-
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0403-
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 0403-
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0403-
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 0403-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0403-
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 0403-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0403-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 0403-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER 1-71268-275-1 02 1 0403-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0403-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0403-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0403-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0403-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK MAL 		5-76777-035-0 13 1 0403-
533 SEAL; FRT PANEL
(A) 25X25 MAL 		8-94272-533-0 02 1 0403-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0403-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0403-
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0403-
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0403-
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> MITRAS 		1-71108-116-0 01 1 0403-0411
544 LID; FRT
FRONT PANEL CARGO FACE<NGD> HITACHI CHEMICAL 		1-71108-152-0 01 1 0403-
544 LID; FRT
EXC. FRONT PANEL CARGO FACE<NGD> 		1-71108-235-3 01 1 0403-
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0403-
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0403-
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0403-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0403-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0403-
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 0403-
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0403-
