Isuzu WW
▶
TRUCKS
▶
FSR
▶
11357 - FSR(MALAYSIA)W/B5500
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

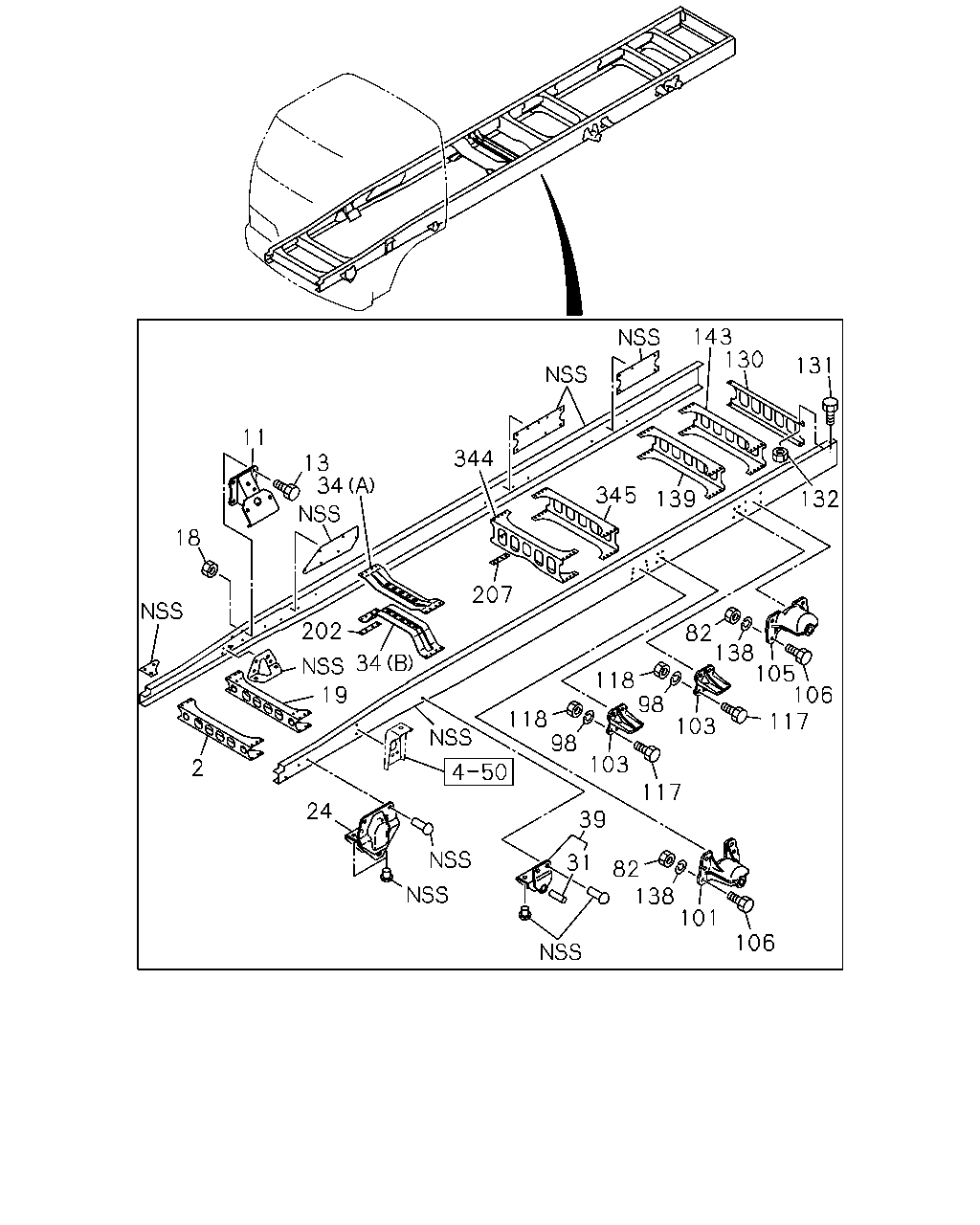

5-01 — FRAME AND OTHER PARTS
(#20712) — 38 parça
143
130
131
11
344
13
34
345
139
132
18
207
82
138
105
106
117
202
34
118
98
19
118
98
103
103
2
117
24
39
31
82
138
101
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
1-53181-460-9
01
1
0403-0407
2
MEMBER; CROSS,1ST
1-53181-892-4
01
1
0408-
11
BRACKET; ENG MTG
1-53211-197-0
02
1
0403-
13
BOLT; BRKT,ENG MTG
M12X40 FLANGE
0-28691-240-0
08
1
0403-0512
13
BOLT; BRKT,ENG MTG
M12X40 FLANGE
0-28661-240-0
08
1
0601-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91150-212-0
08
1
0403-0602
18
NUT; BRKT,ENG MTG
M12 FLANGE MAL
0-91180-212-0
08
1
0603-
19
MEMBER; CROSS,2ND
1-53181-716-8
01
1
0403-
24
BRACKET; FRT SPR,FRT
1-53351-166-0
02
1
0403-
31
BUSHING; FRT SPR,RR
ID=25 MAL
8-98082-176-0
02
1
0403-
34
MEMBER; CROSS,3RD
(A)
1-53175-358-1
01
1
0403-
34
MEMBER; CROSS,3RD
(B)
1-53175-360-1
01
1
0403-
39
BRACKET; FRT SPR,RR
1-53352-154-2
02
1
0403-
82
NUT; BRKT
M14
9-99110-414-0
22
1
0403-0512
82
NUT; BRKT
M14 MAL
0-91110-514-0
22
1
0601-
98
WASHER; LK,STOPPER
ID=14.2 MAL
9-09150-614-0
16
1
0403-0603
98
WASHER; LK,STOPPER
ID=14.2 MAL
0-91510-614-0
16
1
0604-
101
BRACKET; RR SPR,FRT
1-53353-090-4
02
1
0403-
103
STOPPER; SUB SPR
1-53356-059-1
04
1
0403-
105
BRACKET; RR SPR,RR
MAL
1-53354-074-0
02
1
0403-
106
BOLT; BRKT
M14X40
0-20801-440-0
22
1
0403-0512
106
BOLT; BRKT
M14X40
0-20851-440-0
22
1
0601-
117
BOLT; STOPPER
M14X45 MAL
0-20801-445-0
16
1
0403-
118
NUT; STOPPER
M14
9-99110-414-0
16
1
0403-0512
118
NUT; STOPPER
M14 MAL
0-91110-514-0
16
1
0601-
130
MEMBER; CROSS,END
1-53181-516-2
01
1
0403-
131
BOLT; END C/MBR
M10X30 FLANGE
0-28681-030-0
04
1
0403-0512
131
BOLT; END C/MBR
M10X30 FLANGE
0-28651-030-0
04
1
0601-
132
NUT; END C/MBR
M10 FLANGE MAL
0-91150-110-0
04
1
0403-0602
132
NUT; END C/MBR
M10 FLANGE MAL
0-91180-110-0
04
1
0603-
138
WASHER; LK,BRKT
ID=14.2 MAL
9-09150-614-0
22
1
0403-0603
138
WASHER; LK,BRKT
ID=14.2 MAL
0-91510-614-0
22
1
0604-
139
MEMBER; CROSS,6TH
1-53181-465-9
01
1
0403-
143
MEMBER; CROSS,7TH
1-53181-465-9
01
1
0403-
202
SPACER; 3RD C/MBR
1-53178-015-0
02
1
0403-
207
SPACER; 4TH C/MBR
T=7.0
1-53168-321-0
02
1
0403-
344
MEMBER; CROSS,4TH
1-53181-604-3
01
1
0403-
345
MEMBER; CROSS,5TH
1-53181-604-3
01
1
0403-
