◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35A - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35A — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#2070) — 69 parça

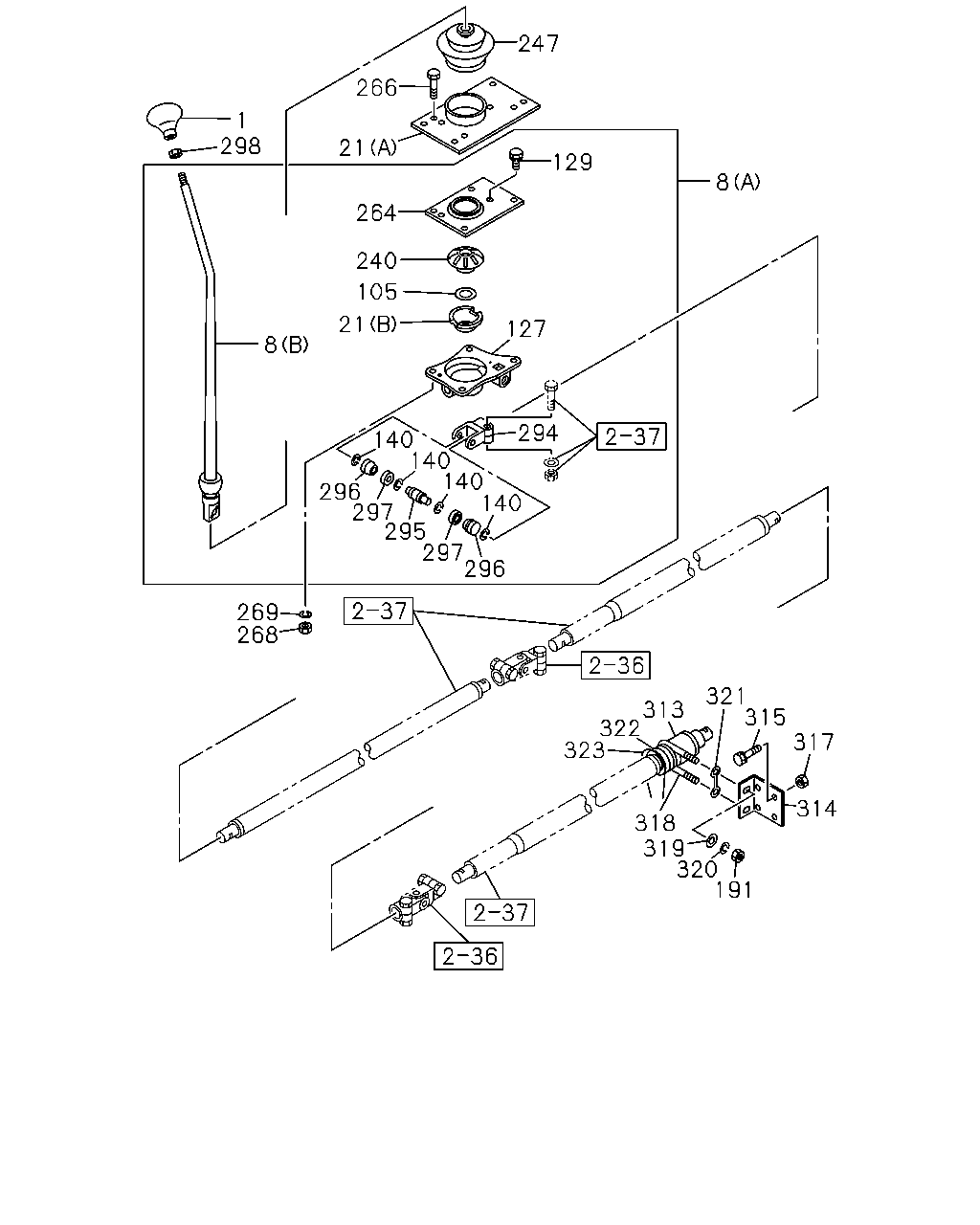

çizim 29270
247 266 1 298 21 129 8 264 240 105 21 127 8 294 140 140 140 140 296 297 295 297 296 269 268 321 315 317 313 322 323 314 318 319 320 191
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 KNOB; CHANGE LEVER
RIGHT HAND DRIVE(LVR5FB) 		1-33611-014-0 01 1 9001-9012 ● ●
1 KNOB; CHANGE LEVER
LEFT HAND DRIVE(LVR6FB) WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) 		1-33611-014-0 01 1 9001-9012 ● ●
1 KNOB; CHANGE LEVER 1-33611-014-0 01 1 9101-9305 ● ●
1 KNOB; CHANGE LEVER
EXC. TAIWAN EQUIPMENT(WW5) 		1-33611-014-0 01 1 9306- ● ●
1 KNOB; CHANGE LEVER
LEFT HAND DRIVE(LVR6FB) WHEEL BASE 6600MM(66W) 		1-33611-023-0 01 1 9001-9012 ● ●
1 KNOB; CHANGE LEVER
WHEEL BASE 6600MM(66W) 		1-33611-023-0 01 1 9001-9012 ● ●
1 KNOB; CHANGE LEVER 1-33611-023-0 01 1 9101-9305 ● ●
1 KNOB; CHANGE LEVER
EXC. TAIWAN EQUIPMENT(WW5) 		1-33611-023-0 01 1 9306- ● ●
1 KNOB; CHANGE LEVER
TAIWAN EQUIPMENT(WW5) 		1-33611-060-0 01 1 9306- ● ● ● ●
8 LEVER; CHANGE
RIGHT HAND DRIVE(LVR5FB) (A) 		1-33610-968-0 01 1 9001- ● ●
8 LEVER; CHANGE
LEFT HAND DRIVE(LVR6FB) (A) 		1-33610-708-0 01 1 9001-9305 ● ●
8 LEVER; CHANGE
(A) 		1-33610-708-0 01 1 9001-9305 ● ●
8 LEVER; CHANGE
LEFT HAND DRIVE(LVR6FB) TAIWAN EQUIPMENT(WW5) (A) 		1-33610-967-0 01 1 9306- ● ●
8 LEVER; CHANGE
TAIWAN EQUIPMENT(WW5) (A) 		1-33610-967-0 01 1 9306- ● ●
8 LEVER; CHANGE
LEFT HAND DRIVE(LVR6FB) EXC. TAIWAN EQUIPMENT(WW5) (A) 		1-33610-708-0 01 1 9306- ● ●
8 LEVER; CHANGE
EXC. TAIWAN EQUIPMENT(WW5) (A) 		1-33610-708-0 01 1 9306- ● ●
8 LEVER; CHANGE
(B) 		1-33613-235-2 01 1 9001- ● ● ● ●
21 SEAT; CHANGE LEVER
(A) 		1-33619-081-0 01 1 9001- ● ● ● ●
21 SEAT; CHANGE LEVER
(B) 		1-33619-293-0 01 1 9001- ● ● ● ●
105 SHIM; CHANGE LEVER
T=0.3 ID=25 		1-33612-004-0 AR 1 9001- ● ● ● ●
105 SHIM; CHANGE LEVER
T=0.1 ID=25 		1-33612-005-0 AR 1 9001- ● ● ● ●
127 SUPPORT; CHANGE LEVER 1-33619-112-0 01 1 9001- ● ● ● ●
129 BOLT; SUPPORT,CHANGE LEVER
M6X12 W/LK WASHER 		9-01900-612-0 02 1 9001-9204 ● ● ● ●
129 BOLT; SUPPORT,CHANGE LEVER
M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205- ● ● ● ●
140 RING; SNAP
T=0.9 OD=19.5 		1-09587-068-0 AR 1 9001- ● ● ● ●
140 RING; SNAP
T=1.00 OD=19.5 		1-09587-069-0 AR 1 9001- ● ● ● ●
140 RING; SNAP
T=1.025 OD=19.5 		1-09587-070-0 AR 1 9001- ● ● ● ●
140 RING; SNAP
T=1.05 OD=19.5 		1-09587-071-0 AR 1 9001- ● ● ● ●
140 RING; SNAP
T=1.0 OD=18 		9-09180-416-0 AR 1 9001- ● ● ● ●
191 NUT; U BOLT
M8 		9-09110-408-0 06 1 9001-9606 ● ● ● ●
191 NUT; U BOLT
M8 FLANGE 		0-91150-108-0 06 1 9607- ● ● ● ●
240 COVER; SPHERICAL,CHANGE LEVER 1-33614-049-0 01 1 9001- ● ● ● ●
247 SEAL; DUST,CHANGE LEVER 1-33614-046-0 01 1 9001- ● ● ● ●
264 PLATE; COVER 1-33619-026-0 01 1 9001- ● ● ● ●
266 BOLT; SEAT SET
M8X35 W/LK WASHER 		9-01910-835-0 04 1 9001-9005 ● ● ● ●
266 BOLT; SEAT SET
M8X35 W/LK WASHER 		0-50040-835-0 04 1 9006-9606 ● ● ● ●
266 BOLT; SEAT SET
M8X30 FLANGE 		0-28680-830-0 04 1 9607- ● ● ● ●
268 NUT; SEAT SET
M8 		9-09110-408-0 04 1 9001-9606 ● ● ● ●
268 NUT; SEAT SET
M8 FLANGE 		0-91150-108-0 04 1 9607- ● ● ● ●
269 WASHER; PL,SEAT SET
ID=8.4 		9-09160-508-0 04 1 9001-9606 ● ● ● ●
294 YOKE; CHANGE LEVER 1-33655-009-1 01 1 9001- ● ● ● ●
295 PIN; KNOCK PIN 1-33659-091-0 01 1 9001- ● ● ● ●
296 BEARING; NEEDLE ROLLER 1-09811-280-0 02 1 9001- ● ● ● ●
297 SEAL; DUST,CHANGE LEVER 1-33614-092-0 02 1 9001- ● ● ● ●
298 NUT; LK,KNOB 9-33619-043-0 01 1 9001- ● ● ● ●
313 BUSHING; BALL,GUIDE ROD 1-23333-003-0 03 1 9001- ● ● ● ●
314 BRACKET; BALL BUSHING 1-53419-051-0 03 1 9001- ● ● ● ●
315 BOLT; BRKT
M10X25 		9-01911-025-0 12 1 9001-9002 ● ● ● ●
315 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 12 1 9003-9606 ● ● ● ●
315 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 12 1 9607- ● ● ● ●
317 NUT; BRKT
M10 		9-09110-510-0 12 1 9308-9606 ● ● ● ●
317 NUT; BRKT
M10 FLANGE 		0-91150-210-0 12 1 9607- ● ● ● ●
318 U-BOLT; BALL BUSHING 1-33659-022-0 03 1 9001- ● ● ● ●
319 WASHER; PL,BALL BUSHING
ID=8.4 OD=18 		9-09160-608-0 06 1 9001-9606 ● ● ● ●
320 WASHER; LK,BALL BUSHING
ID=8.2 		9-09150-508-0 06 1 9001-9606 ● ● ● ●
321 GUIDE; U BOLT 1-33659-021-0 03 1 9001- ● ● ● ●
322 SEAL; DUST,BALL BUSHING 1-33659-047-0 06 1 9001- ● ● ● ●
323 WIRE; SEAL
L=200 		9-08351-020-0 09 1 9001- ● ● ● ●
çizim 94085
286 293 292 291 287 288 126 289 290 145
BalonParca AdiParca NoAdetTipApplied Date A B C D
126 BOSS; CHANGE LEVER 9-33615-041-0 01 1 9001- ● ● ● ●
145 GASKET; CHANGE LEVER TO TRANS
ALSO INCLUDED IN GASKET SET(M/T). 		9-33619-089-0 01 1 9001- ● ● ● ●
286 LEVER; CHANGE,TRANS 1-33613-147-0 01 1 9001- ● ● ● ●
287 SPRING; COIL,CHANGE LEVER 9-09940-012-0 01 1 9001- ● ● ● ●
288 PIN; KNOCK,CHANGE LEVER 9-09878-110-0 01 1 9001- ● ● ● ●
289 SCREW; BOSS 9-06130-822-0 01 1 9001- ● ● ● ●
290 WASHER; LK,BOSS
ID=8.2 		9-09150-508-0 01 1 9001- ● ● ● ●
291 CAGE; CHANGE LEVER 9-33616-005-0 01 1 9001- ● ● ● ●
292 COVER; DUST,CAGE,CHANGE LEVER 1-33614-091-0 01 1 9001- ● ● ● ●
293 BOLT; COVER,QUAD BOX
M8X20 		9-02040-820-0 03 1 9001-9204 ● ● ● ●
293 BOLT; COVER,QUAD BOX
M8X20 		0-20800-820-0 03 1 9205- ● ● ● ●
