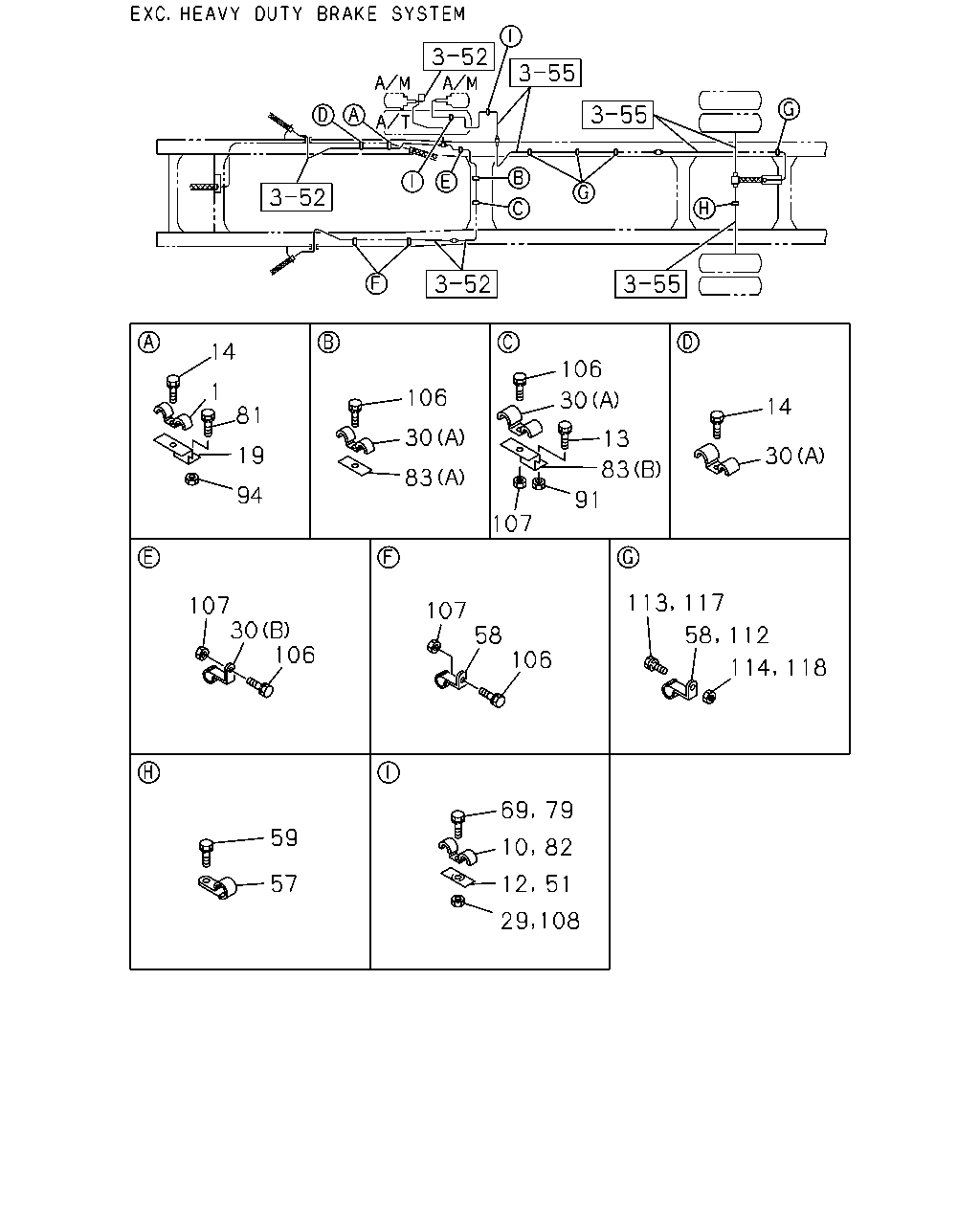

3-58 — FIXING PARTS; OIL PIPING (#207) — 139 parça

14 106 1 106 30 14 81 30 13 19 30 83 83 94 91 107 113 117 107 30 106 107 58 58 112 106 118 114 69 79 59 10 57 12 51 108 82 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9212-
1	CLIP; OIL PIPE TO BODY EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9212-
10	CLIP; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9212-
12	BRACKET; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	01	1	9212-
13	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9212-
13	BOLT; BRKT,OIL PIPE EXC. EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28080-825-0	02	1	9212-
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	02	1	9212-
14	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9212-
19	BRACKET; OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47475-427-1	02	1	9212-
19	BRACKET; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47475-461-0	01	1	9212-
29	NUT; CLIP M8	9-09110-408-0	01	1	9212-
30	CLIP; OIL PIPE (B) ID=6 L=20	1-09700-603-0	01	1	9212-
30	CLIP; OIL PIPE (A) 7X7	1-09700-745-0	02	1	9212-
30	CLIP; OIL PIPE DUAL AIR GAUGE<UG2> EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7X9	1-09700-746-0	02	1	9212-
30	CLIP; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 L=10	1-09701-029-0	02	1	9212-9311
30	CLIP; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 L=10	1-09701-029-0	01	1	9312-
51	BRACKET; OIL PIPE L=50	1-47475-299-2	01	1	9212-
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	9212-
58	CLIP; OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	05	1	9212-9312
58	CLIP; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	05	1	9212-9312
58	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	01	1	9401-
58	CLIP; OIL PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	06	1	9212-9312
58	CLIP; OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	03	1	9401-
58	CLIP; OIL PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=6 H=20 L=20	1-09700-603-0	05	1	9401-
58	CLIP; OIL PIPE WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	04	1	9401-
58	CLIP; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	04	1	9401-
58	CLIP; OIL PIPE WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	07	1	9212-9312
58	CLIP; OIL PIPE WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	06	1	9401-
59	BOLT; BRK PIPE,RR AXLE M8X12 W/LK WASHER	0-50040-812-0	04	1	9212-
69	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9212-
79	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9212-
81	BOLT; BRKT,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9212-
82	CLIP; OIL PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9212-
83	BRACKET; PIPE CLIP (A) L=50	1-47475-299-2	01	1	9212-
83	BRACKET; PIPE CLIP (B) 45X55	1-47475-460-1	01	1	9212-
83	BRACKET; PIPE CLIP EXC. EXHAUST BRAKE<NF8> (B) 45X55	1-47475-460-1	02	1	9212-
91	NUT; BRKT,OIL PIPE M8	9-09110-408-0	01	1	9212-
91	NUT; BRKT,OIL PIPE DUAL AIR GAUGE<UG2> M8	9-09110-408-0	02	1	9212-
94	NUT; BRKT,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	02	1	9212-
106	BOLT; CLIP,OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9212-
106	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9212-
107	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9212-
107	NUT; CLIP,OIL PIPE DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> M8	9-09110-408-0	01	1	9212-
107	NUT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	03	1	9212-
108	NUT; CLIP,AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9212-
112	CLIP; OIL PIPE WHEEL BASE 3700MM(37W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	02	1	9212-
112	CLIP; OIL PIPE WHEEL BASE 4200MM(42W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	03	1	9212-
112	CLIP; OIL PIPE WHEEL BASE 4800MM(48W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	04	1	9212-
112	CLIP; OIL PIPE WHEEL BASE 5500MM(55W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	06	1	9212-
113	BOLT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9212-
113	BOLT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	03	1	9212-
113	BOLT; CLIP,OIL PIPE WHEEL BASE 4800MM(48W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	04	1	9212-
113	BOLT; CLIP,OIL PIPE WHEEL BASE 5500MM(55W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	06	1	9212-
114	NUT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-
114	NUT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	03	1	9212-
114	NUT; CLIP,OIL PIPE WHEEL BASE 4800MM(48W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	04	1	9212-
114	NUT; CLIP,OIL PIPE WHEEL BASE 5500MM(55W) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	06	1	9212-
117	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9212-9312
117	BOLT; CLIP,OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	01	1	9401-
117	BOLT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	04	1	9212-9312
117	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	04	1	9212-9312
117	BOLT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	03	1	9401-
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	05	1	9212-9312
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	04	1	9401-
117	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	04	1	9401-
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M8X25 FLANGE	0-28080-825-0	05	1	9401-
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	06	1	9212-
118	NUT; CLIP,OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9401-
118	NUT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	05	1	9212-9312
118	NUT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	05	1	9212-9312
118	NUT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	03	1	9401-
118	NUT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	06	1	9212-9312
118	NUT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M8	9-09110-408-0	05	1	9401-
118	NUT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	04	1	9401-
118	NUT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	04	1	9401-
118	NUT; CLIP,OIL PIPE WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	07	1	9212-9312
118	NUT; CLIP,OIL PIPE WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	06	1	9401-

106 107 69 14 30 30 82 106 13 83 51 91 107 29 14 59 1 57 19 101 101 83 30 58 117 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; OIL PIPE TO BODY BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9212-
1	CLIP; OIL PIPE TO BODY EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9212-
13	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28080-825-0	01	1	9212-
13	BOLT; BRKT,OIL PIPE EXC. EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28080-825-0	02	1	9212-
14	BOLT; CLIP,OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	02	1	9212-
14	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9212-
19	BRACKET; OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47475-427-1	02	1	9212-
19	BRACKET; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47475-461-0	01	1	9212-
29	NUT; CLIP M8	9-09110-408-0	01	1	9212-
30	CLIP; OIL PIPE (B) ID=6 L=20	1-09700-603-0	01	1	9212-
30	CLIP; OIL PIPE (A) 7X7	1-09700-745-0	02	1	9212-
30	CLIP; OIL PIPE DUAL AIR GAUGE<UG2> EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 7X9	1-09700-746-0	02	1	9212-
30	CLIP; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 L=10	1-09701-029-0	02	1	9212-9311
30	CLIP; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=6 L=10	1-09701-029-0	01	1	9312-
51	BRACKET; OIL PIPE L=50	1-47475-299-2	01	1	9212-
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	04	1	9212-
58	CLIP; OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	05	1	9212-9312
58	CLIP; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	05	1	9212-9312
58	CLIP; OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	01	1	9401-
58	CLIP; OIL PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	06	1	9212-9312
58	CLIP; OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	03	1	9401-
58	CLIP; OIL PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=6 H=20 L=20	1-09700-603-0	05	1	9401-
58	CLIP; OIL PIPE WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	04	1	9401-
58	CLIP; OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	04	1	9401-
58	CLIP; OIL PIPE WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	07	1	9212-9312
58	CLIP; OIL PIPE WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	06	1	9401-
59	BOLT; BRK PIPE,RR AXLE M8X12 W/LK WASHER	0-50040-812-0	04	1	9212-
69	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9212-
82	CLIP; OIL PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9212-
83	BRACKET; PIPE CLIP (A) L=50	1-47475-299-2	01	1	9212-
83	BRACKET; PIPE CLIP (B) 45X55	1-47475-460-1	01	1	9212-
83	BRACKET; PIPE CLIP EXC. EXHAUST BRAKE<NF8> (B) 45X55	1-47475-460-1	02	1	9212-
91	NUT; BRKT,OIL PIPE M8	9-09110-408-0	01	1	9212-
91	NUT; BRKT,OIL PIPE DUAL AIR GAUGE<UG2> M8	9-09110-408-0	02	1	9212-
101	NUT; CLIP,OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9212-
106	BOLT; CLIP,OIL PIPE M8X16 FLANGE	0-28080-816-0	02	1	9212-
106	BOLT; CLIP,OIL PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9212-
106	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9212-
107	NUT; CLIP,OIL PIPE M8	9-09110-408-0	02	1	9212-
107	NUT; CLIP,OIL PIPE DUAL AIR GAUGE<UG2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. EXHAUST BRAKE<NF8>,PTO CONTROL<SV6> M8	9-09110-408-0	01	1	9212-
107	NUT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	03	1	9212-
117	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9212-9312
117	BOLT; CLIP,OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	01	1	9401-
117	BOLT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	04	1	9212-9312
117	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	04	1	9212-9312
117	BOLT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	03	1	9401-
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	05	1	9212-9312
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	04	1	9401-
117	BOLT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	04	1	9401-
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M8X25 FLANGE	0-28080-825-0	05	1	9401-
117	BOLT; CLIP,OIL PIPE WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	06	1	9212-
118	NUT; CLIP,OIL PIPE HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9401-
118	NUT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	05	1	9212-9312
118	NUT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	05	1	9212-9312
118	NUT; CLIP,OIL PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	03	1	9401-
118	NUT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	06	1	9212-9312
118	NUT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M8	9-09110-408-0	05	1	9401-
118	NUT; CLIP,OIL PIPE WHEEL BASE 4200MM(42W) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	04	1	9401-
118	NUT; CLIP,OIL PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	04	1	9401-
118	NUT; CLIP,OIL PIPE WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	07	1	9212-9312
118	NUT; CLIP,OIL PIPE WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	06	1	9401-
