3-70 — BRAKE PIPING; AIR,AIR MASTER (#20695) — 83 parça

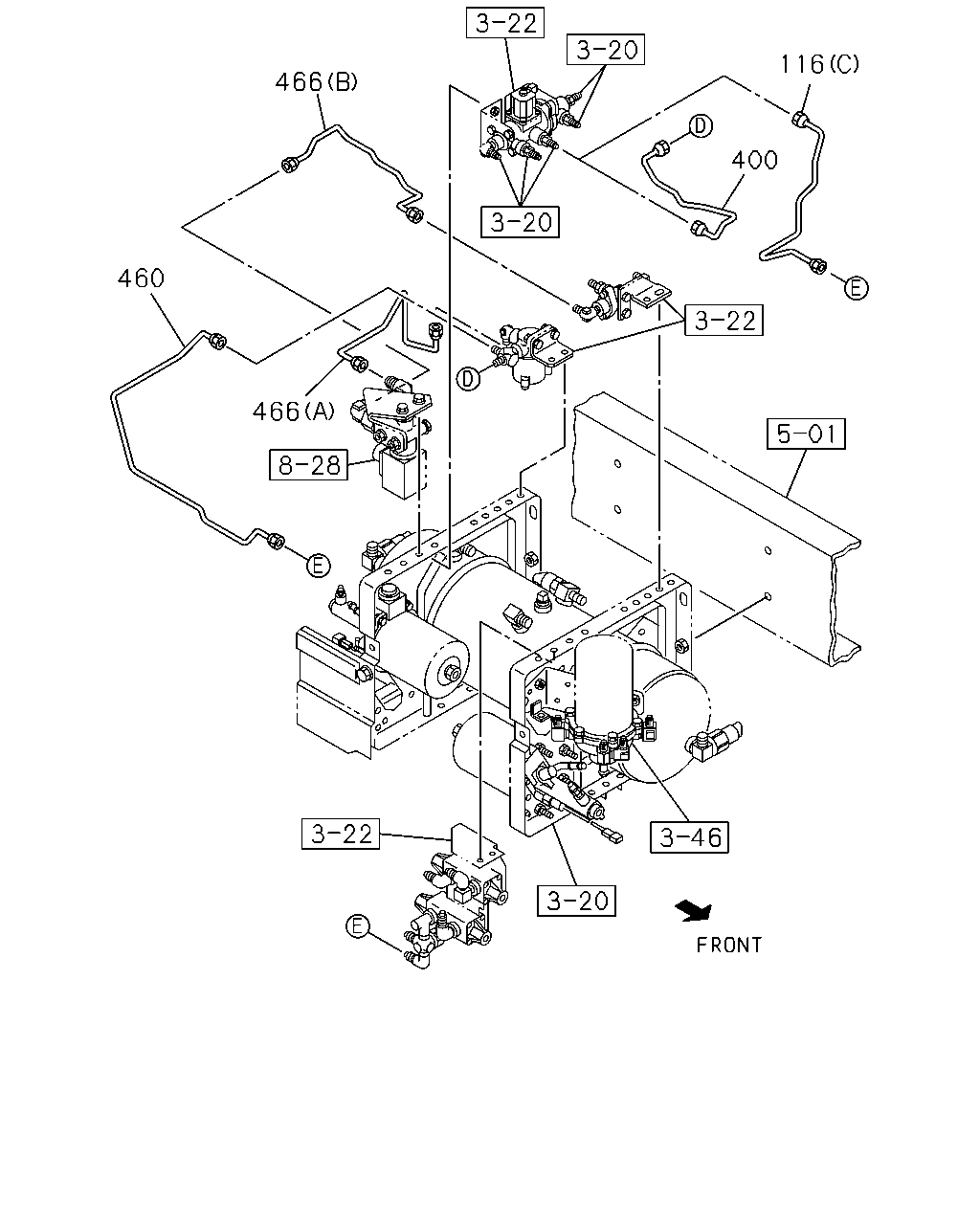

116 466 400 460 466

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	1105-
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	1105-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1105-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650	1-47428-810-0	01	1	1105-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	1105-
116	PIPE; AIR,PROTECTION VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370	1-47428-818-0	01	1	1105-
400	PIPE; AIR,HSA VLV H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) L=467	8-98066-848-0	01	1	1105-
460	PIPE; AIR,PROTECTION VALVE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) THROTTLE CONTROL SYSTEM(6XH)	8-98066-846-0	01	1	1105-
460	PIPE; AIR,PROTECTION VALVE THROTTLE CONTROL SYSTEM(6XH) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98066-847-0	01	1	1105-
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (B) L=756 SERVICED BY L=800	1-47428-872-0	01	1	1105-
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (A) L=492	8-98077-879-0	01	1	1105-

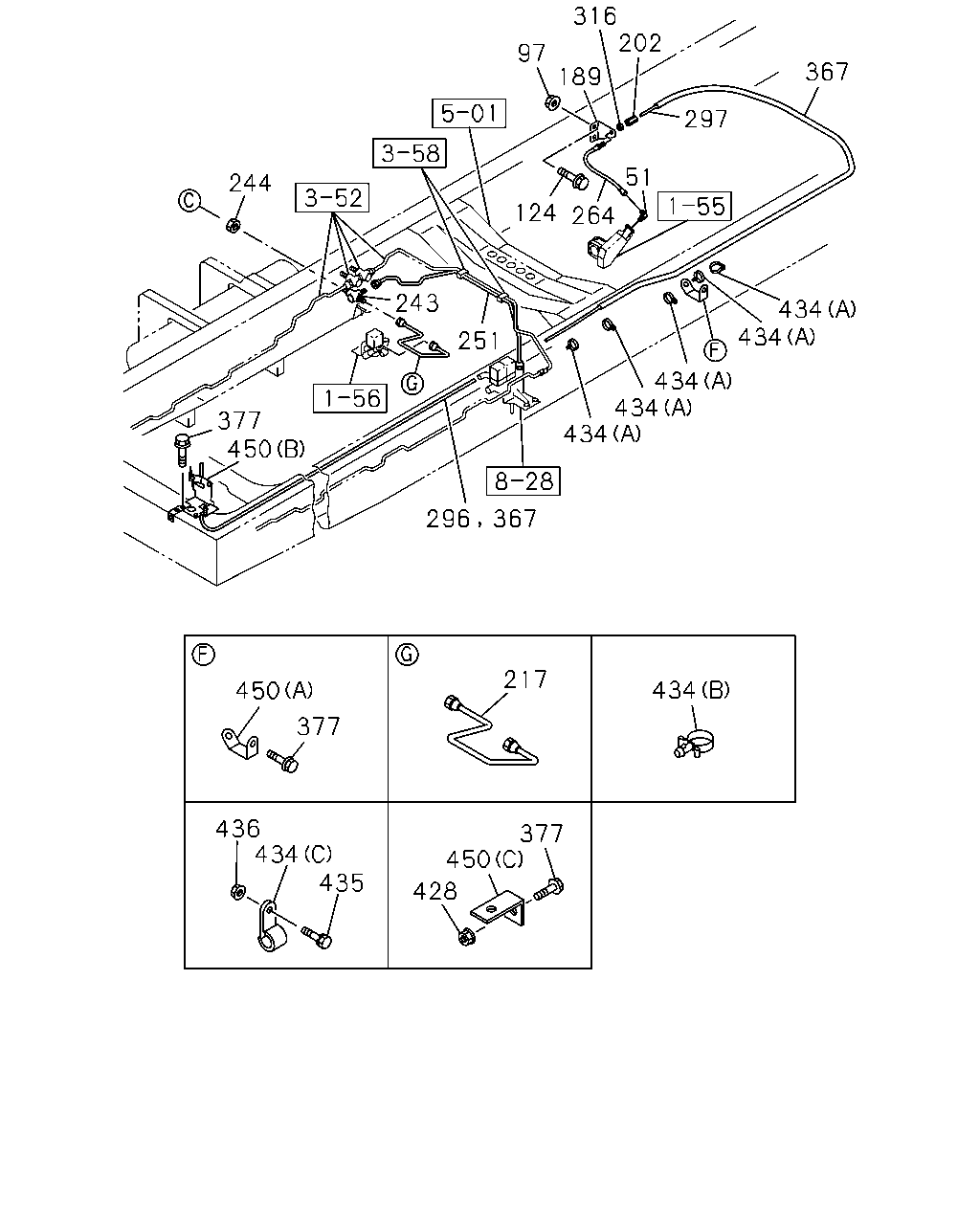

316 202 97 367 189 297 51 244 124 264 243 434 434 251 434 434 434 377 450 367 296 217 434 450 377 436 434 435 377 450 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	UNION M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1105-
97	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1105-
124	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1105-
189	BRACKET; FLEX HOSE	8-98054-640-0	01	1	1105-
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1105-
217	PIPE; VAC,UNION TO MAG VLV L=265	8-98067-433-0	01	1	1105-
243	UNION; AIR PIPE M12 3WAY	0-92138-906-0	01	1	1105-
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1105-
251	PIPE; AIR,UNION TO MAG VLV L=931 SERVICED BY L=1000	1-47428-814-0	01	1	1105-
264	HOSE; FLEX L=220	1-09363-627-0	01	1	1105-
296	TUBE; NYLON EXC. PTO CONTROL<SV6> SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	1105-
296	TUBE; NYLON EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	1105-
297	TUBE; NYLON WHEEL BASE 4000MM(40W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1105-
297	TUBE; NYLON WHEEL BASE 4600MM(46W) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1105-
316	NUT; FLEX HOSE M12	9-09840-280-0	01	1	1105-
367	TUBE; CORRUGATE EXC. PTO CONTROL<SV6> SERVICED BY L=4000 ID=7	1-87411-017-0	01	1	1105-
367	TUBE; CORRUGATE EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 ID=7	1-87411-017-0	01	1	1105-
367	TUBE; CORRUGATE WHEEL BASE 4000MM(40W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1105-
367	TUBE; CORRUGATE WHEEL BASE 4600MM(46W) SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	1105-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	01	1	1105-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	01	1	1105-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28650-825-0	02	1	1105-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	1105-
377	BOLT; BRKT FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	1105-
377	BOLT; BRKT FIX EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE	0-28651-030-0	02	1	1105-
428	NUT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	1105-
428	NUT; BRKT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1105-
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	1105-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1105-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	08	1	1105-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	08	1	1105-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1105-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1105-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	1105-
434	CLIP WHEEL BASE 4000MM(40W) (A) L=350	1-09707-183-0	05	1	1105-
434	CLIP WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	07	1	1105-
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1105-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1105-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1105-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1105-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-47477-694-0	01	1	1105-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (C)	1-47477-694-0	01	1	1105-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98070-479-0	01	1	1105-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B)	8-98070-479-0	01	1	1105-
450	BRACKET; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98117-686-0	02	1	1105-
450	BRACKET; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A)	8-98117-686-0	02	1	1105-

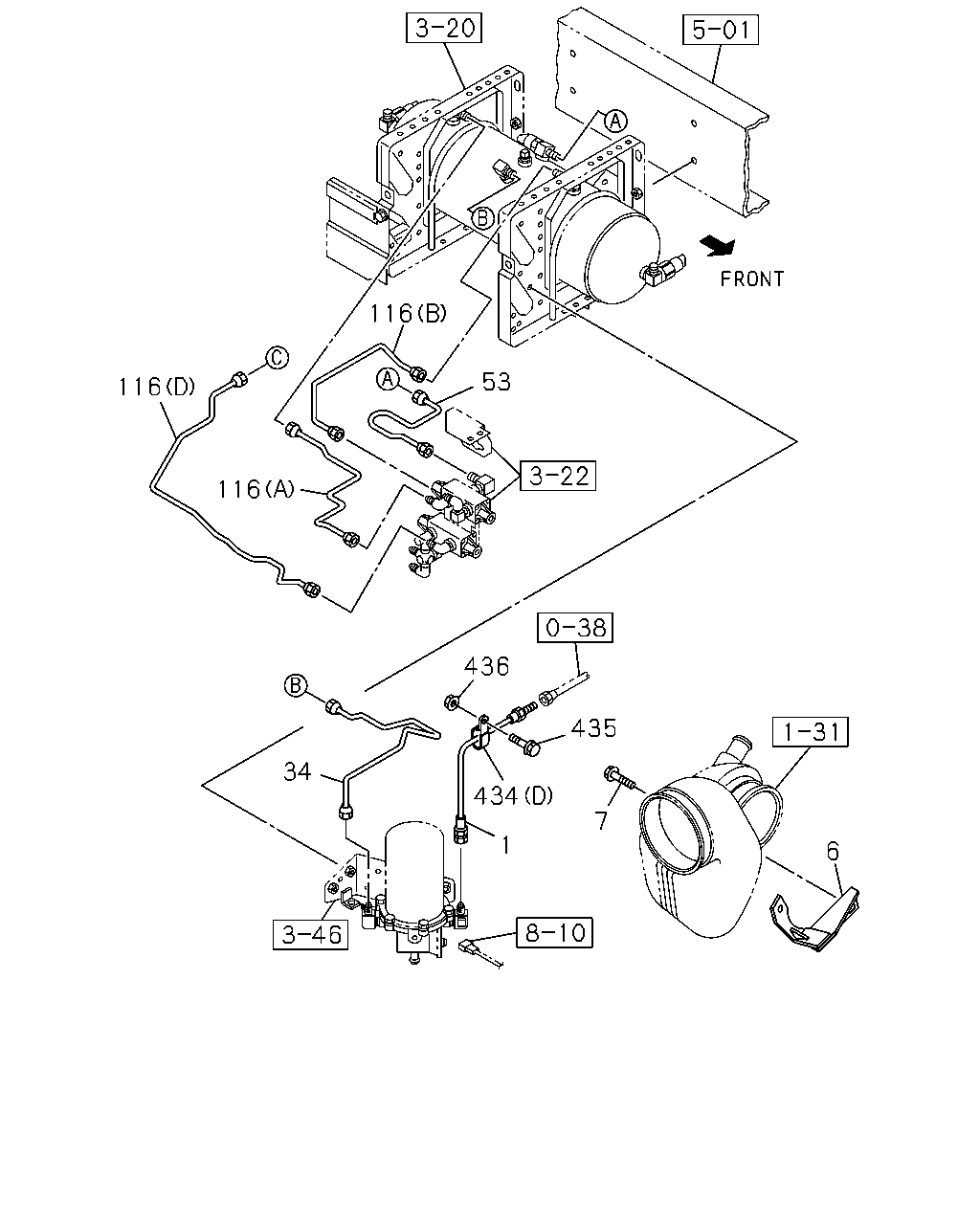

53 116 116 116 436 435 434 34 1 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK	8-98066-976-1	01	1	1105-
6	BRACKET; FLEX HOSE,AIR TANK	8-98066-733-1	01	1	1105-1205
6	BRACKET; FLEX HOSE,AIR TANK	8-98214-081-1	01	1	1206-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	1105-
34	PIPE; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=673 SERVICED BY L=700	1-49115-481-0	01	1	1105-
34	PIPE; AIR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=659 SERVICED BY L=660	1-49115-480-0	01	1	1105-
53	PIPE; AIR,AIR TANK TO VALVE	8-98061-086-0	01	1	1105-
116	PIPE; AIR,PROTECTION VLV (A) L=510 SERVICED BY L=550	1-47428-867-0	01	1	1105-
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	1105-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=519 SERVICED BY L=550	1-47428-808-0	01	1	1105-
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), THROTTLE CONTROL SYSTEM(6XH) (C) L=601 SERVICED BY L=650	1-47428-810-0	01	1	1105-
116	PIPE; AIR,PROTECTION VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=987 SERVICED BY L=1000	1-47428-814-0	01	1	1105-
116	PIPE; AIR,PROTECTION VLV EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=1333 SERVICED BY L=1370	1-47428-818-0	01	1	1105-
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	1105-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	01	1	1105-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=350	1-09707-183-0	08	1	1105-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (A) L=350	1-09707-183-0	08	1	1105-
434	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1105-
434	CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), RIGID SEAT WO/ARM REST<TAZ> (B) ID=18-24 L=14.5	1-09709-298-0	02	1	1105-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20	0-95234-635-0	01	1	1105-
434	CLIP WHEEL BASE 4000MM(40W) (A) L=350	1-09707-183-0	05	1	1105-
434	CLIP WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	07	1	1105-
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1105-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	1105-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1105-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	1105-
