3-78 — FIXING PARTS; AIR PIPING (#20692) — 92 parça

13 376 290 33 288 367 13 170 290 356 393 172 170 171 288 300 292 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0403-
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0403-0606
13	CLIP; AIR PIPE (B) ID=7 L=40	0-95234-675-0	01	1	0607-
33	CLIP; BOLT EXC. AIR DRYER<PS7> ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0403-
170	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0403-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	02	1	0403-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0403-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0403-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0403-0512
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0601-1303
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	16	1	1304-
170	CLIP; NYLON TUBE (C) ID=11 L=50	9-09525-085-0	01	1	0403-0606
170	CLIP; NYLON TUBE (C) ID=11 L=50	0-95235-085-0	01	1	0607-
171	BOLT; TUBE CLIP M8X20 FLANGE MAL	0-28680-820-0	01	1	0403-0512
171	BOLT; TUBE CLIP M8X20 FLANGE MAL	0-28650-820-0	01	1	0601-
171	BOLT; TUBE CLIP M8X25 FLANGE MAL	0-28680-825-0	01	1	0403-0512
171	BOLT; TUBE CLIP M8X25 FLANGE MAL	0-28650-825-0	01	1	0601-
172	BRACKET; TUBE CLIP (A)	1-47477-256-1	01	1	0403-
172	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0403-
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	0403-
172	BRACKET; TUBE CLIP (B) L=225	1-47477-646-3	01	1	0403-
172	BRACKET; TUBE CLIP (F) L=60 H=30	1-47477-716-1	02	1	0403-
172	BRACKET; TUBE CLIP (C) L=90	1-47477-755-1	01	1	0403-
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-1	02	1	0403-
172	BRACKET; TUBE CLIP (D) L=117	1-47478-116-0	01	1	0403-
172	BRACKET; TUBE CLIP (G) L=59 B=20	1-47479-048-0	01	1	0403-
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE MAL	0-28680-820-0	02	1	0403-0512
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0403-0602
290	NUT; CLIP,AIR PIPE M8 FLANGE MAL	0-91180-108-0	02	1	0603-
292	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	0403-
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER MAL	8-94279-208-0	02	1	0403-0904
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER MAL	8-98059-720-0	02	1	0905-
318	CLIP; AIR PIPE ID=6.35 & 6.35	1-09709-273-1	01	1	0403-
318	CLIP; AIR PIPE AIR DRYER<PS7> ID=6.35 & 12	1-09709-275-1	02	1	0403-0410
318	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	0403-0410
318	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	02	1	0411-
356	CLIP; AIR PIPE ID=4.8 MAL	8-94128-483-0	01	1	0403-
367	BRACKET ASM EXC. AIR DRYER<PS7>	1-47475-427-1	01	1	0403-
376	BOLT; BRKT M8X25 FLANGE MAL	0-28680-825-0	01	1	0403-0512
376	BOLT; BRKT M8X25 FLANGE MAL	0-28650-825-0	01	1	0601-
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X45 FLANGE	0-28080-845-0	01	1	0403-0512
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X45 FLANGE	0-28050-845-0	01	1	0601-
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	0403-0602
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	0403-0602
393	NUT; UNION M8 FLANGE MAL	0-91180-108-0	01	1	0603-
393	NUT; UNION M8 FLANGE MAL	0-91180-108-0	01	1	0603-

20 375 172 170 322 376 21 173 174 297 172 172 174 174 173 174 174 172 173 173 173 172 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	BOLT; CLIP M8X20 FLANGE MAL	0-28680-820-0	01	1	0403-0512
20	BOLT; CLIP M8X20 FLANGE MAL	0-28650-820-0	01	1	0601-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0403-0602
21	NUT; CLIP M8 FLANGE MAL	0-91180-108-0	01	1	0603-
170	CLIP; NYLON TUBE (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0403-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	02	1	0403-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0403-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	01	1	0403-
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	14	1	0403-0512
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	15	1	0601-1303
170	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	16	1	1304-
170	CLIP; NYLON TUBE (C) ID=11 L=50	9-09525-085-0	01	1	0403-0606
170	CLIP; NYLON TUBE (C) ID=11 L=50	0-95235-085-0	01	1	0607-
172	BRACKET; TUBE CLIP (A)	1-47477-256-1	01	1	0403-
172	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0403-
172	BRACKET; TUBE CLIP (B) L=100 H=30	1-47477-645-2	03	1	0403-
172	BRACKET; TUBE CLIP (B) L=225	1-47477-646-3	01	1	0403-
172	BRACKET; TUBE CLIP (F) L=60 H=30	1-47477-716-1	02	1	0403-
172	BRACKET; TUBE CLIP (C) L=90	1-47477-755-1	01	1	0403-
172	BRACKET; TUBE CLIP (D) L=125	1-47477-975-1	02	1	0403-
172	BRACKET; TUBE CLIP (D) L=117	1-47478-116-0	01	1	0403-
172	BRACKET; TUBE CLIP (G) L=59 B=20	1-47479-048-0	01	1	0403-
173	BOLT; CLIP BRKT M8X25 FLANGE MAL	0-28680-825-0	01	1	0403-0512
173	BOLT; CLIP BRKT M8X25 FLANGE MAL	0-28650-825-0	01	1	0601-
173	BOLT; CLIP BRKT M8X25 FLANGE MAL	0-28680-825-0	07	1	0403-0512
173	BOLT; CLIP BRKT M8X25 FLANGE MAL	0-28650-825-0	07	1	0601-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0403-0512
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	05	1	0403-0512
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	05	1	0601-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0403-0602
174	NUT; CLIP BRKT M8 FLANGE MAL	0-91180-108-0	01	1	0603-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0403-0602
174	NUT; CLIP BRKT M8 FLANGE MAL	0-91180-108-0	02	1	0603-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	08	1	0403-0602
174	NUT; CLIP BRKT M8 FLANGE MAL	0-91180-108-0	08	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0403-0602
297	NUT; BRKT M8 FLANGE MAL	0-91180-108-0	01	1	0603-
322	BRACKET; CLIP L=90 B=25	1-47475-530-0	01	1	0403-
375	CLIP; AIR PIPE D=9 T=45	5-09700-021-0	01	1	0403-
376	BOLT; BRKT M8X25 FLANGE MAL	0-28680-825-0	01	1	0403-0512
376	BOLT; BRKT M8X25 FLANGE MAL	0-28650-825-0	01	1	0601-
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X45 FLANGE	0-28080-845-0	01	1	0403-0512
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X45 FLANGE	0-28050-845-0	01	1	0601-

333

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

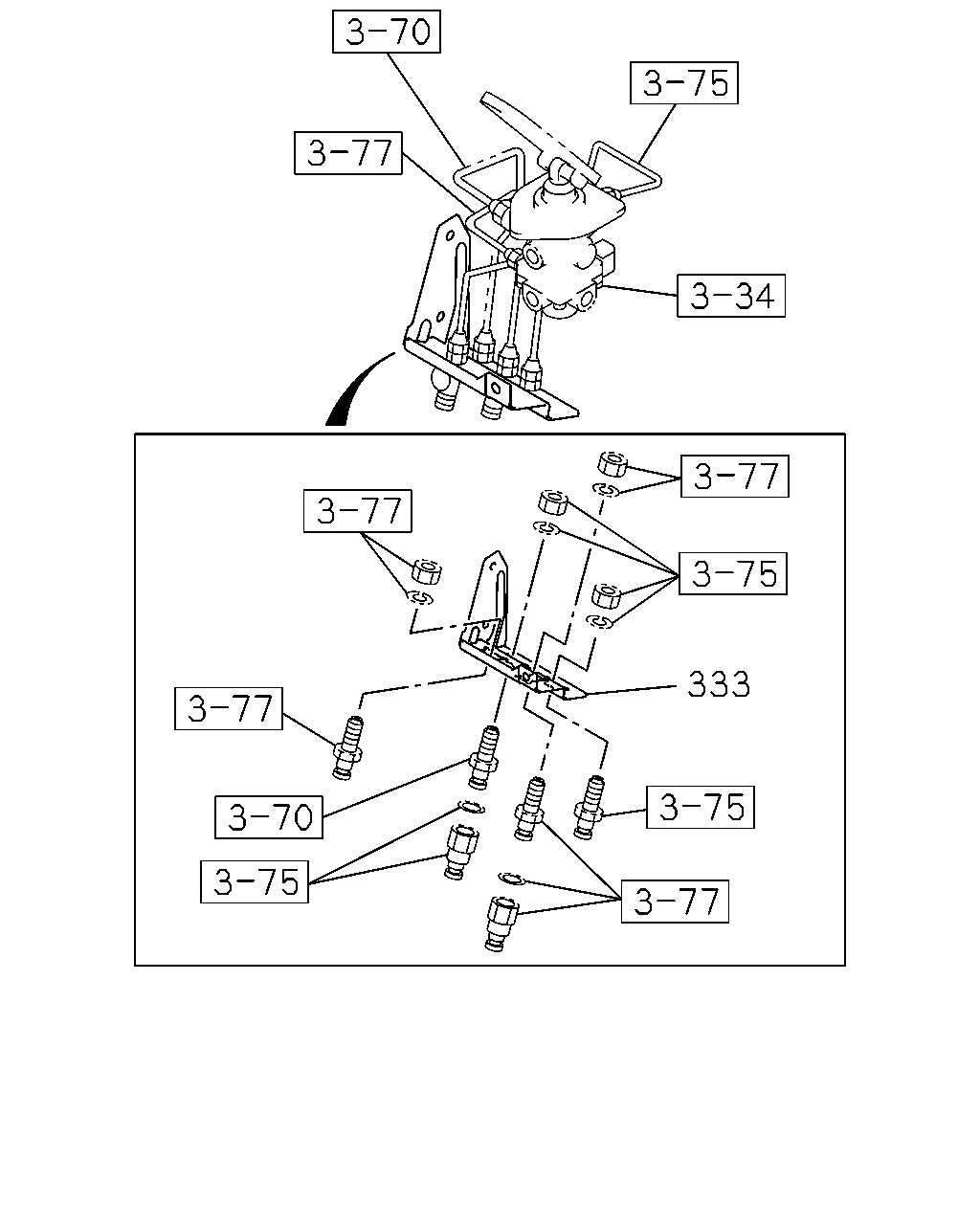

	333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0403-
