9-01 — TOOLS (#20691) — 94 parça

274 271 268 209 285 281 280 283 282 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
209	CLIP; JACK HANDLE	1-73638-011-1	02	1	9510-0708
209	CLIP; JACK HANDLE	8-98053-799-0	02	1	0709-
268	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9510-0604
268	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-
271	CLIP; TIRE HANGER	1-73638-012-1	02	1	9510-0708
271	CLIP; TIRE HANGER	8-98053-800-0	02	1	0709-
274	SCREW; CLIP M6X12 W/LK WASHER	9-03910-612-0	02	1	9510-0604
274	SCREW; CLIP M6X12 W/LK WASHER	0-36220-612-0	02	1	0605-
280	BOX; TOOL KEY LOCK TOOL BOX<RC5>	1-85561-006-2	01	1	9510-0305
281	BRACKET; TOOL BOX KEY LOCK TOOL BOX<RC5>	1-53459-665-2	02	1	9510-0305
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10	9-09110-510-0	04	1	9510-9606
282	NUT; BRKT KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	9607-0305
283	WASHER; LK,BRKT KEY LOCK TOOL BOX<RC5> ID=10.2	9-09150-510-0	04	1	9510-0305
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 W/LK WASHER	0-50041-020-0	04	1	9510-9606
284	BOLT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10X20 FLANGE	0-28681-020-0	04	1	9607-0305
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10	9-09110-510-0	04	1	9510-9606
285	NUT; TOOL BOX KEY LOCK TOOL BOX<RC5> M10 FLANGE	0-91150-210-0	04	1	9607-0305

166 174 167 230 193 178 208 232 237 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
166	ALIGNER; CLU RELEASE LEVER L=480	1-85253-023-0	01	1	9610-
167	ALIGNER; CLU PILOT L=185	1-85253-012-0	01	1	9510-9609
167	ALIGNER; CLU PILOT L=185	1-85253-008-0	01	1	9610-
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	9510-
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9510-
193	JACK ASM 7TON	1-85510-005-2	01	1	9510-0208
193	JACK ASM 7TON	1-85510-005-2	01	1	0209-0305
193	JACK ASM EXC. CAUTIONS ARABIAN<WJ7> 7TON	1-85510-005-2	01	1	0306-
193	JACK ASM CAUTIONS ARABIAN<WJ7> 7TON	1-85510-024-0	01	1	0306-
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9510-0105
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-1107
208	HANDLE; JACK L=600	8-98181-437-0	01	1	1108-
230	PUMP; GREASE	1-85556-007-2	01	1	9510-0208
230	PUMP; GREASE TOOL B KIT<SL1>	1-85556-007-5	01	1	0209-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<SG4>	1-09360-245-1	01	1	9510-
237	BAG; TOOL	8-97130-902-0	01	1	9510-0208
237	BAG; TOOL	8-97130-902-1	01	1	0209-
321	SOCKET; PROP SHAFT L=250	1-85115-023-0	01	1	9803-0004

126 120 122 128 143 144 153 129 157 161 160 159 158 162 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
120	PULLER ASM; MAIN REAR BRG	9-85210-169-0	01	1	9510-
122	PULLER ASM; COUNTER FRT	9-85210-168-0	01	1	9510-
126	WRENCH; FRT HUB BRG NUT EXC. FRONT AXLE F049(FS4) L=257 B=54	1-85111-011-0	01	1	9510-0004
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9510-
129	PULLER ASM; PITMAN ARM	9-85210-170-0	01	1	9510-
143	GUIDE; BOOT,TIE ROD END EXC. FRONT AXLE F049(FS4)	1-85229-011-0	01	1	9510-
144	BASE; BOOT GUIDE,TIE ROD END EXC. FRONT AXLE F049(FS4)	1-85229-012-0	01	1	9510-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0005-
157	REPLACER KIT; RETURN SPR	9-85231-554-0	01	1	9510-0004
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9510-0004
159	REMOVER; RETURN SPR ID=12.5	9-85231-555-0	01	1	9510-0004
160	REMOVER; NEEDLE BRG FRONT AXLE F049(FS4) L=228	1-85238-010-0	01	1	9510-
161	REMOVER; TIE ROD ARM EXC. FRONT AXLE F049(FS4)	1-85176-001-0	01	1	9510-
162	SETTING TOOL; NEEDLE BRG FRONT AXLE F049(FS4) (B) L=181	1-85238-008-0	01	1	9510-
162	SETTING TOOL; NEEDLE BRG FRONT AXLE F049(FS4) (A) L=213	1-85238-009-0	01	1	9510-

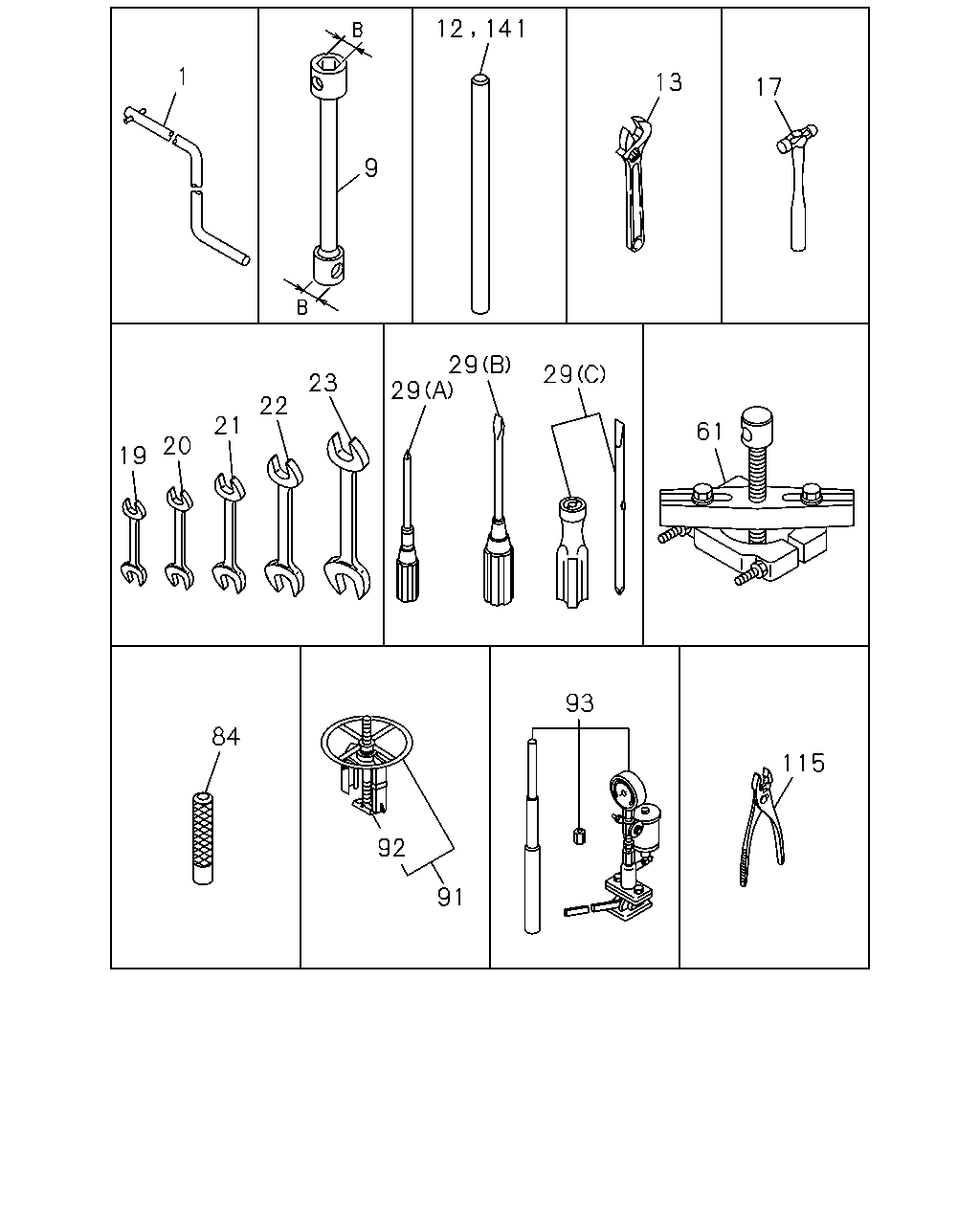

12 141 1 13 17 9 29 29 23 29 22 21 61 20 19 93 84 115 92 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9510-
9	WRENCH; WHEEL PIN B=41X21 L=440	1-85113-015-1	01	1	9510-0208
9	WRENCH; WHEEL PIN B=41X21 L=440	1-85113-015-1	01	1	0209-
9	WRENCH; WHEEL PIN B=41X21 L=445	8-97118-906-0	01	1	9606-9903
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	9510-0208
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0209-1501
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1502-
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	9510-0208
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	1-85117-002-1	01	1	0209-0211
13	WRENCH; MONKEY TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	0212-1407
13	WRENCH; MONKEY TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-
17	HAMMER	9-85121-406-0	01	1	9510-0208
17	HAMMER TOOL B KIT<SL1>	9-85121-406-0	01	1	0209-
19	WRENCH; 7X8 8X10	9-99592-108-0	01	1	9510-9602
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	9510-0208
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	9-09592-110-0	01	1	0209-0607
20	WRENCH; 10X12 TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	0608-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	9510-0208
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	9-09592-114-0	01	1	0209-0607
21	WRENCH; 14X17 TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	0608-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	9510-0208
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	9-99592-119-0	01	1	0209-0607
22	WRENCH; 19X22 TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	0608-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	9510-0208
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	9-09592-124-0	01	1	0209-0607
23	WRENCH; 24X27 TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	0608-
29	DRIVER; SCREW (B) <-> L=285	1-85151-004-0	01	1	9510-0208
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=285	1-85151-004-0	01	1	0209-0611
29	DRIVER; SCREW TOOL B KIT<SL1> (B) <-> L=275	8-98061-105-0	01	1	0612-
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	9510-0208
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	0209-
29	DRIVER; SCREW (A) <+> L=190	9-09595-522-0	01	1	9510-0208
29	DRIVER; SCREW TOOL B KIT<SL1> (A) <+> L=190	9-09595-522-0	01	1	0209-
61	PULLER ASM; PILOT BRG	1-85210-050-0	01	1	9510-
84	REPLACER; VALVE SEAL	8-94396-815-0	01	1	9510-
91	REPLACER ASM; CYL LINER	8-94396-849-0	01	1	9510-
92	ANKLE; REPLACER,CYL LINER	8-94396-821-0	01	1	9510-
93	SETTING KIT; VALVE GUIDE	1-85220-001-0	01	1	9510-
115	PLIER	5-85171-001-0	01	1	9510-9602
115	PLIER	5-85171-002-0	01	1	9603-0208
115	PLIER TOOL B KIT<SL1>	5-85171-002-0	01	1	0209-1410
115	PLIER TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-
141	HANDLE; WRENCH OD=25 L=480	1-85116-011-0	01	1	9510-1501
141	HANDLE; WRENCH OD=25 L=480	8-98257-407-0	01	1	1502-
