Sayfa 2-30B - Isuzu EPC

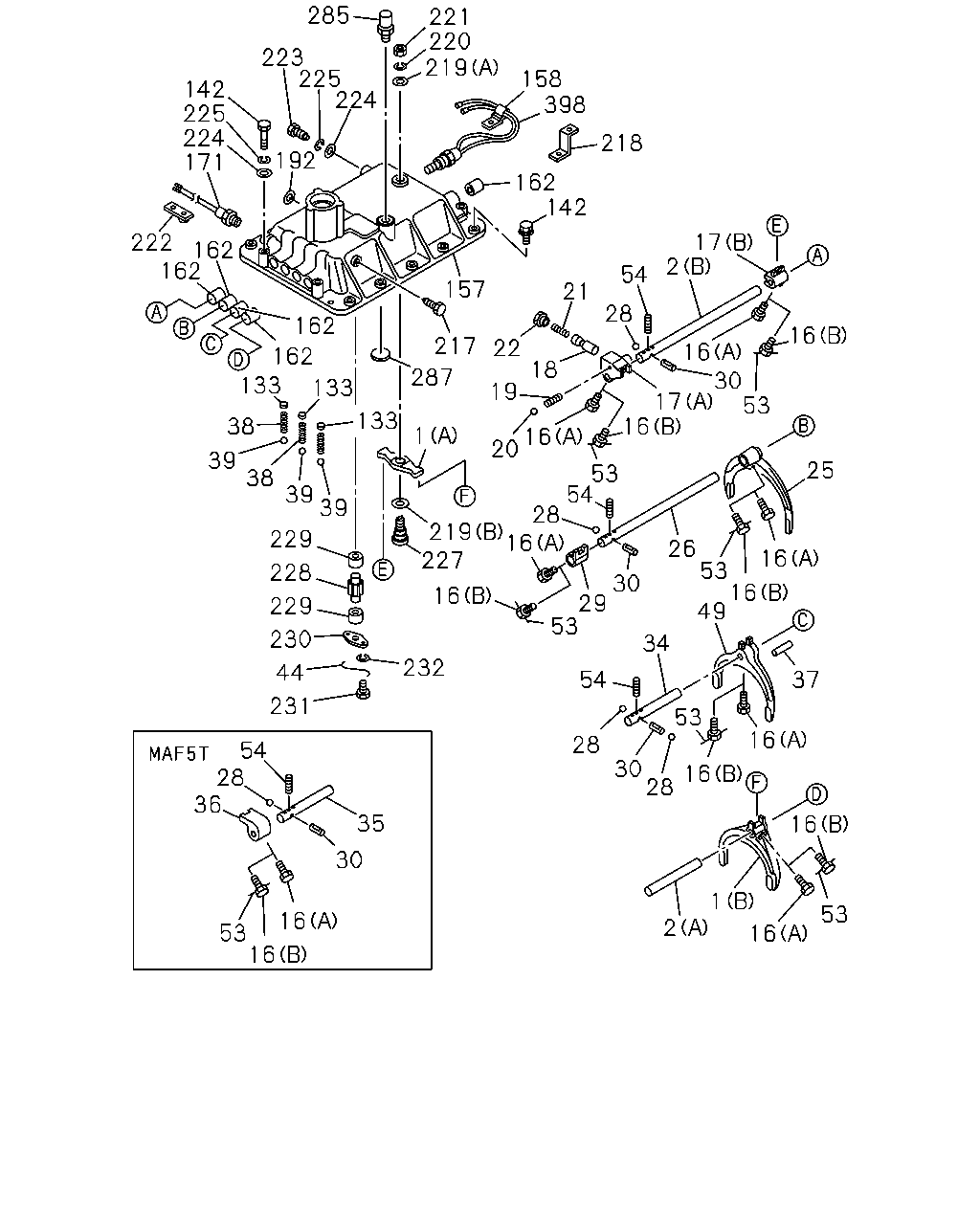

2-30B — GEAR SHIFTER AND QUADRANT BOX (#2069) — 224 parça

285 221 220 219 223 225 224 158 398 142 225 224 171 218 192 162 142 17 2 222 162 162 54 157 21 28 162 16 217 22 16 30 53 162 133 18 287 133 19 17 16 133 38 1 16 20 39 25 53 54 28 219 16 227 38 39 39 229 26 53 16 49 16 228 30 29 53 16 229 230 34 232 44 54 37 231 53 16 28 54 28 36 30 28 16 35 16 30 1 53 16 2 53 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	9001-	●	●	●	●	●
1	ARM; SHIFT,1ST & REV (B)	1-33511-166-2	01	1	9001-	●	●	●	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-324-0	01	1	9001-9010	●		●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-351-0	01	1	9011-9603	●		●	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-415-1	01	1	9604-	●		●	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-298-1	01	1	9001-9603	●	●	●	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-400-1	01	1	9604-	●	●	●	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-103-0	01	1	9001-9012		●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 3-HOLE	1-09052-025-0	06	1	9001-9107		●	●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 NO-HOLE	1-09052-032-1	06	1	9108-9512			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20	1-09052-039-0	06	1	9601-9803			●
16	BOLT; SHIFT ARM & BLOCK SET (B) M12X20 W/HOLE	1-09052-038-0	06	1	9804-			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 NO-HOLE	1-09052-032-1	07	1	9208-9512					●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20	1-09052-039-0	07	1	9601-9803					●
16	BOLT; SHIFT ARM & BLOCK SET (B) M12X20 W/HOLE	1-09052-038-0	07	1	9804-					●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 3-HOLE	1-09052-025-0	08	1	9001-9107	●			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 NO-HOLE	1-09052-032-1	08	1	9108-9512	●			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20	1-09052-039-0	08	1	9601-9803	●			●
16	BOLT; SHIFT ARM & BLOCK SET (B) M12X20 W/HOLE	1-09052-038-0	08	1	9804-	●			●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-304-2	01	1	9001-		●	●		●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	9001-	●	●	●	●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-302-2	01	1	9001-	●			●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-024-0	01	1	9001-		●	●		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK L=45.5	1-33516-023-0	01	1	9001-	●			●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9001-	●		●	●	●
19	SPRING; COIL COMP	9-09940-305-0	01	1	9001-9012		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9001-	●		●	●	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	9001-9012		●
21	SPRING; COIL COMP SLEEVE	9-09940-411-0	01	1	9001-	●	●	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9001-	●	●	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-187-1	01	1	9001-9402	●	●	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-481-0	01	1	9403-	●		●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-325-0	01	1	9001-9603	●		●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-416-1	01	1	9604-	●		●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-187-0	01	1	9001-9012		●
28	BALL; INTER LK	9-00097-501-0	03	1	9001-		●	●		●
28	BALL; INTER LK	9-00097-501-0	04	1	9001-	●			●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-346-1	01	1	9001-9809		●	●		●
29	BLOCK; SHIFT,2ND & 3RD 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33511-346-1	01	1	9810-			●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-331-3	01	1	9001-9809	●			●
29	BLOCK; SHIFT,2ND & 3RD EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33511-583-0	01	1	9810-			●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-583-0	01	1	9810-					●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-538-0	01	1	9810-	●			●
30	PIN; INTER LK	9-33534-003-0	02	1	9001-		●	●		●
30	PIN; INTER LK	9-33534-003-0	03	1	9001-	●			●
34	ROD; SHIFT,4TH & 5TH ARM L=160	1-33531-327-0	01	1	9001-9603	●		●	●
34	ROD; SHIFT,4TH & 5TH ARM L=160	1-33531-417-1	01	1	9604-	●		●	●
34	ROD; SHIFT,4TH & 5TH ARM L=158 W/RACK	1-33531-299-0	01	1	9001-		●			●
35	ROD; SHIFT,4TH & 5TH BLOCK	1-33531-326-1	01	1	9208-9603					●
35	ROD; SHIFT,4TH & 5TH BLOCK	1-33531-404-1	01	1	9604-					●
36	BLOCK; SHIFT,4TH & 5TH	1-33511-050-0	01	1	9208-					●
37	PIN; STOPPER ARM	9-09878-624-0	01	1	9001-			●
38	SPRING; DETENT	1-09580-379-0	03	1	9001-		●	●		●
38	SPRING; DETENT	1-09580-379-0	04	1	9001-	●			●
39	BALL; DETENT	1-09843-012-0	03	1	9001-		●	●		●
39	BALL; DETENT	1-09843-012-0	04	1	9001-	●			●
44	WIRE; LK L=200	9-08351-020-0	01	1	9505-					●
49	ARM; SHIFT,4TH & 5TH	1-33511-194-1	01	1	9001-		●			●
49	ARM; SHIFT,4TH & 5TH	1-33511-347-1	01	1	9001-9407	●			●
49	ARM; SHIFT,4TH & 5TH	1-33511-495-0	01	1	9408-	●			●
53	WIRE; BOLT L=200	9-08351-020-0	01	1	9804-			●
53	WIRE; BOLT L=180	1-09780-024-0	05	1	9804-		●	●		●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	9804-	●			●	●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	9804-	●			●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	02	1	9001-		●	●		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9001-	●			●
133	SEAT; SPR EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33549-072-0	03	1	9001-			●
142	BOLT; QUAD BOX M10X50	9-01656-050-0	01	1	9001-9004	●	●	●	●	●
142	BOLT; QUAD BOX M10X50	0-16806-050-0	01	1	9005-9205	●	●	●	●	●
142	BOLT; QUAD BOX M10X45 FLANGE	0-28181-045-0	01	1	9206-	●		●	●	●
142	BOLT; QUAD BOX M10X60	9-01656-060-0	03	1	9001-9004	●	●	●	●	●
142	BOLT; QUAD BOX M10X60	0-16806-060-0	03	1	9005-9205	●	●	●	●	●
142	BOLT; QUAD BOX M10X55 FLANGE	8-94399-863-1	03	1	9206-	●		●	●	●
142	BOLT; QUAD BOX M10X32 W/LK WASHER	9-01991-032-0	10	1	9001-9002	●	●	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	10	1	9003-9205	●	●	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	10	1	9206-	●		●	●	●
157	BOX; QUAD,TRANS	1-33541-294-2	01	1	9001-	●	●	●	●
157	BOX; QUAD,TRANS	1-33541-292-2	01	1	9208-					●
158	CLIP; HARNESS ID=6	9-09917-391-0	02	1	9001-	●	●	●	●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	9001-	●	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-044-2	01	1	9001-9009	●	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-0	01	1	9010-9012	●	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9101-	●		●	●	●
192	WASHER; PL ID=8.4	9-09160-508-0	01	1	9001-	●	●	●	●	●
217	SCREW; SET,6TH SHIFT BLOCK	9-09802-677-0	01	1	9307-	●		●	●
218	BRACKET; HARNESS CLIP,QUAD BOX EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-82699-058-0	01	1	9001-			●
218	BRACKET; HARNESS CLIP,QUAD BOX 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-82699-058-0	02	1	9001-			●
218	BRACKET; HARNESS CLIP,QUAD BOX	1-82699-058-0	02	1	9001-	●	●		●	●
219	WASHER; PL,SPINDLE (A) ID=12.5 OD=26	9-09164-612-0	01	1	9001-9205	●	●	●	●	●
219	WASHER; PL,SPINDLE (B) ID=16.5	9-09857-042-0	01	1	9001-	●	●	●	●	●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	9001-9205	●	●	●	●	●
221	NUT; SPINDLE M12	9-99110-412-0	01	1	9001-9205	●	●	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-	●		●	●	●
222	BRACKET; CLIP EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) L=65	1-47465-485-0	02	1	9001-9801			●
222	BRACKET; CLIP EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) L=65	1-47476-513-0	02	1	9802-			●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9001-	●		●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9001-	●	●	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	04	1	9001-9205	●	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	04	1	9001-9205	●	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9001-	●	●	●	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9001-	●	●	●	●	●
228	PINION; 4TH & 5TH SHIFT	1-33539-019-0	01	1	9208-					●
229	BEARING; NEEDLE,PINION	1-09811-202-0	02	1	9208-					●
230	COVER; BRG,PINION	1-33539-018-0	01	1	9208-					●
231	BOLT; BRG COVER,PINION	1-09050-013-0	02	1	9208-9706					●
231	BOLT; BRG COVER,PINION M8X20	1-09050-005-1	02	1	9707-					●
232	WASHER; LK,BRG COVER ID=8.2	9-09150-508-0	02	1	9208-					●
285	BREATHER; AIR,QUAD BOX	9-33547-010-0	01	1	9001-	●	●	●	●	●
287	COVER; AIR BREATHER	9-09860-030-0	01	1	9001-	●	●	●	●	●
398	SWITCH; REV LAMP	1-82440-054-0	01	1	9001-	●	●	●	●	●

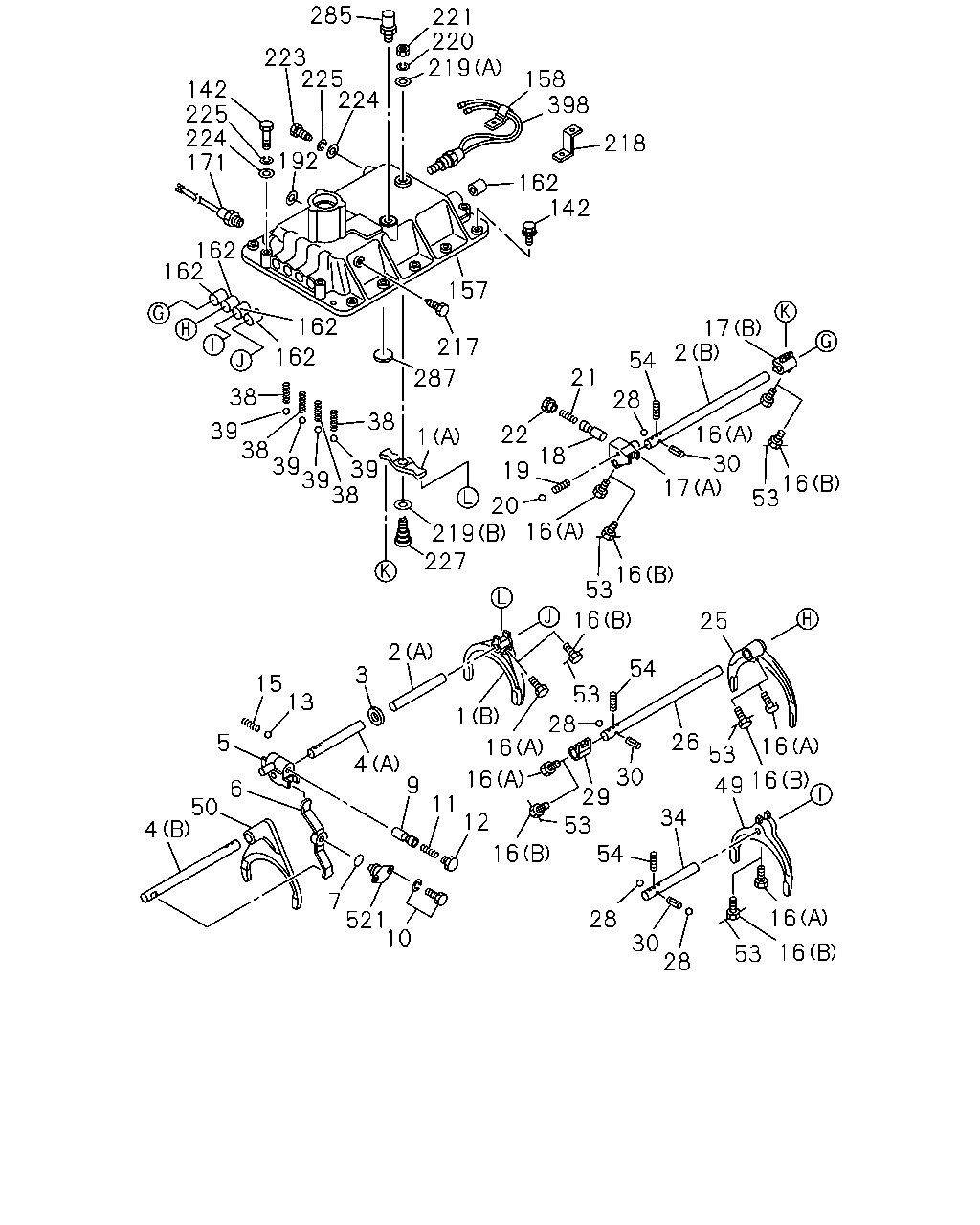

285 221 220 219 223 225 224 158 398 142 225 224 171 218 192 162 142 162 162 157 162 17 2 217 162 54 21 287 38 28 38 39 38 39 39 39 38 22 16 1 18 30 19 16 53 17 20 219 16 227 16 53 16 25 2 54 3 15 13 53 1 28 26 5 16 16 53 4 9 30 29 53 54 16 16 49 6 11 50 4 34 12 16 7 521 10 16 28 30 28 16 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	9001-	●	●	●	●	●
1	ARM; SHIFT,1ST & REV (B)	1-33511-166-2	01	1	9001-	●	●	●	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-324-0	01	1	9001-9010	●		●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-351-0	01	1	9011-9603	●		●	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-415-1	01	1	9604-	●		●	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-298-1	01	1	9001-9603	●	●	●	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-400-1	01	1	9604-	●	●	●	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-103-0	01	1	9001-9012		●
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	9001-	●			●
4	ROD; SHIFT,6TH (B)	1-33531-300-0	01	1	9001-	●			●
4	ROD; SHIFT,6TH (A)	1-33531-328-1	01	1	9001-9603	●			●
4	ROD; SHIFT,6TH (A)	1-33531-405-1	01	1	9604-	●			●
5	BLOCK; SHIFT,6TH	1-33511-306-1	01	1	9001-	●			●
6	LEVER; RELAY	9-33511-402-1	01	1	9001-	●			●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9001-	●			●
9	SLEEVE; 6TH,SHIFT BLOCK L=45.5	1-33516-023-0	01	1	9001-	●			●
10	BOLT; SPINDLE M10X25 W/LK WASHER	9-01931-025-0	02	1	9001-9002	●			●
10	BOLT; SPINDLE M10X25 W/LK WASHER	0-50051-025-0	02	1	9003-9203	●			●
10	BOLT; SPINDLE M10X22	1-09033-005-0	02	1	9204-9205	●			●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9206-	●			●
11	SPRING; RETURN,SHIFT SLEEVE	9-09940-411-0	01	1	9001-	●			●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9001-	●			●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	9001-	●			●
15	SPRING; LK,SHIFT SLEEVE	9-09941-007-0	01	1	9001-	●			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 3-HOLE	1-09052-025-0	06	1	9001-9107		●	●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 NO-HOLE	1-09052-032-1	06	1	9108-9512			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20	1-09052-039-0	06	1	9601-9803			●
16	BOLT; SHIFT ARM & BLOCK SET (B) M12X20 W/HOLE	1-09052-038-0	06	1	9804-			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 NO-HOLE	1-09052-032-1	07	1	9208-9512					●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20	1-09052-039-0	07	1	9601-9803					●
16	BOLT; SHIFT ARM & BLOCK SET (B) M12X20 W/HOLE	1-09052-038-0	07	1	9804-					●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 3-HOLE	1-09052-025-0	08	1	9001-9107	●			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 NO-HOLE	1-09052-032-1	08	1	9108-9512	●			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20	1-09052-039-0	08	1	9601-9803	●			●
16	BOLT; SHIFT ARM & BLOCK SET (B) M12X20 W/HOLE	1-09052-038-0	08	1	9804-	●			●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-304-2	01	1	9001-		●	●		●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	9001-	●	●	●	●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-302-2	01	1	9001-	●			●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-024-0	01	1	9001-		●	●		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK L=45.5	1-33516-023-0	01	1	9001-	●			●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9001-	●		●	●	●
19	SPRING; COIL COMP	9-09940-305-0	01	1	9001-9012		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9001-	●		●	●	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	9001-9012		●
21	SPRING; COIL COMP SLEEVE	9-09940-411-0	01	1	9001-	●	●	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9001-	●	●	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-187-1	01	1	9001-9402	●	●	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-481-0	01	1	9403-	●		●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-325-0	01	1	9001-9603	●		●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-416-1	01	1	9604-	●		●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-187-0	01	1	9001-9012		●
28	BALL; INTER LK	9-00097-501-0	03	1	9001-		●	●		●
28	BALL; INTER LK	9-00097-501-0	04	1	9001-	●			●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-346-1	01	1	9001-9809		●	●		●
29	BLOCK; SHIFT,2ND & 3RD 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33511-346-1	01	1	9810-			●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-331-3	01	1	9001-9809	●			●
29	BLOCK; SHIFT,2ND & 3RD EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-33511-583-0	01	1	9810-			●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-583-0	01	1	9810-					●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-538-0	01	1	9810-	●			●
30	PIN; INTER LK	9-33534-003-0	02	1	9001-		●	●		●
30	PIN; INTER LK	9-33534-003-0	03	1	9001-	●			●
34	ROD; SHIFT,4TH & 5TH ARM L=160	1-33531-327-0	01	1	9001-9603	●		●	●
34	ROD; SHIFT,4TH & 5TH ARM L=160	1-33531-417-1	01	1	9604-	●		●	●
34	ROD; SHIFT,4TH & 5TH ARM L=158 W/RACK	1-33531-299-0	01	1	9001-		●			●
38	SPRING; DETENT	1-09580-379-0	03	1	9001-		●	●		●
38	SPRING; DETENT	1-09580-379-0	04	1	9001-	●			●
39	BALL; DETENT	1-09843-012-0	03	1	9001-		●	●		●
39	BALL; DETENT	1-09843-012-0	04	1	9001-	●			●
49	ARM; SHIFT,4TH & 5TH	1-33511-194-1	01	1	9001-		●			●
49	ARM; SHIFT,4TH & 5TH	1-33511-347-1	01	1	9001-9407	●			●
49	ARM; SHIFT,4TH & 5TH	1-33511-495-0	01	1	9408-	●			●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	9001-	●			●
53	WIRE; BOLT L=200	9-08351-020-0	01	1	9804-			●
53	WIRE; BOLT L=180	1-09780-024-0	05	1	9804-		●	●		●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	9804-	●			●	●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	9804-	●			●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	02	1	9001-		●	●		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9001-	●			●
142	BOLT; QUAD BOX M10X50	9-01656-050-0	01	1	9001-9004	●	●	●	●	●
142	BOLT; QUAD BOX M10X50	0-16806-050-0	01	1	9005-9205	●	●	●	●	●
142	BOLT; QUAD BOX M10X45 FLANGE	0-28181-045-0	01	1	9206-	●		●	●	●
142	BOLT; QUAD BOX M10X60	9-01656-060-0	03	1	9001-9004	●	●	●	●	●
142	BOLT; QUAD BOX M10X60	0-16806-060-0	03	1	9005-9205	●	●	●	●	●
142	BOLT; QUAD BOX M10X55 FLANGE	8-94399-863-1	03	1	9206-	●		●	●	●
142	BOLT; QUAD BOX M10X32 W/LK WASHER	9-01991-032-0	10	1	9001-9002	●	●	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	10	1	9003-9205	●	●	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	10	1	9206-	●		●	●	●
157	BOX; QUAD,TRANS	1-33541-294-2	01	1	9001-	●	●	●	●
157	BOX; QUAD,TRANS	1-33541-292-2	01	1	9208-					●
158	CLIP; HARNESS ID=6	9-09917-391-0	02	1	9001-	●	●	●	●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	9001-	●	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-044-2	01	1	9001-9009	●	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-0	01	1	9010-9012	●	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9101-	●		●	●	●
192	WASHER; PL ID=8.4	9-09160-508-0	01	1	9001-	●	●	●	●	●
217	SCREW; SET,6TH SHIFT BLOCK	9-09802-677-0	01	1	9307-	●		●	●
218	BRACKET; HARNESS CLIP,QUAD BOX EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-82699-058-0	01	1	9001-			●
218	BRACKET; HARNESS CLIP,QUAD BOX 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3)	1-82699-058-0	02	1	9001-			●
218	BRACKET; HARNESS CLIP,QUAD BOX	1-82699-058-0	02	1	9001-	●	●		●	●
219	WASHER; PL,SPINDLE (A) ID=12.5 OD=26	9-09164-612-0	01	1	9001-9205	●	●	●	●	●
219	WASHER; PL,SPINDLE (B) ID=16.5	9-09857-042-0	01	1	9001-	●	●	●	●	●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	9001-9205	●	●	●	●	●
221	NUT; SPINDLE M12	9-99110-412-0	01	1	9001-9205	●	●	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-	●		●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9001-	●		●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9001-	●	●	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	04	1	9001-9205	●	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	04	1	9001-9205	●	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9001-	●	●	●	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9001-	●	●	●	●	●
285	BREATHER; AIR,QUAD BOX	9-33547-010-0	01	1	9001-	●	●	●	●	●
287	COVER; AIR BREATHER	9-09860-030-0	01	1	9001-	●	●	●	●	●
398	SWITCH; REV LAMP	1-82440-054-0	01	1	9001-	●	●	●	●	●
521	SPINDLE; 6TH	1-33519-008-1	01	1	9001-	●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
