Sayfa 8-40 - Isuzu EPC

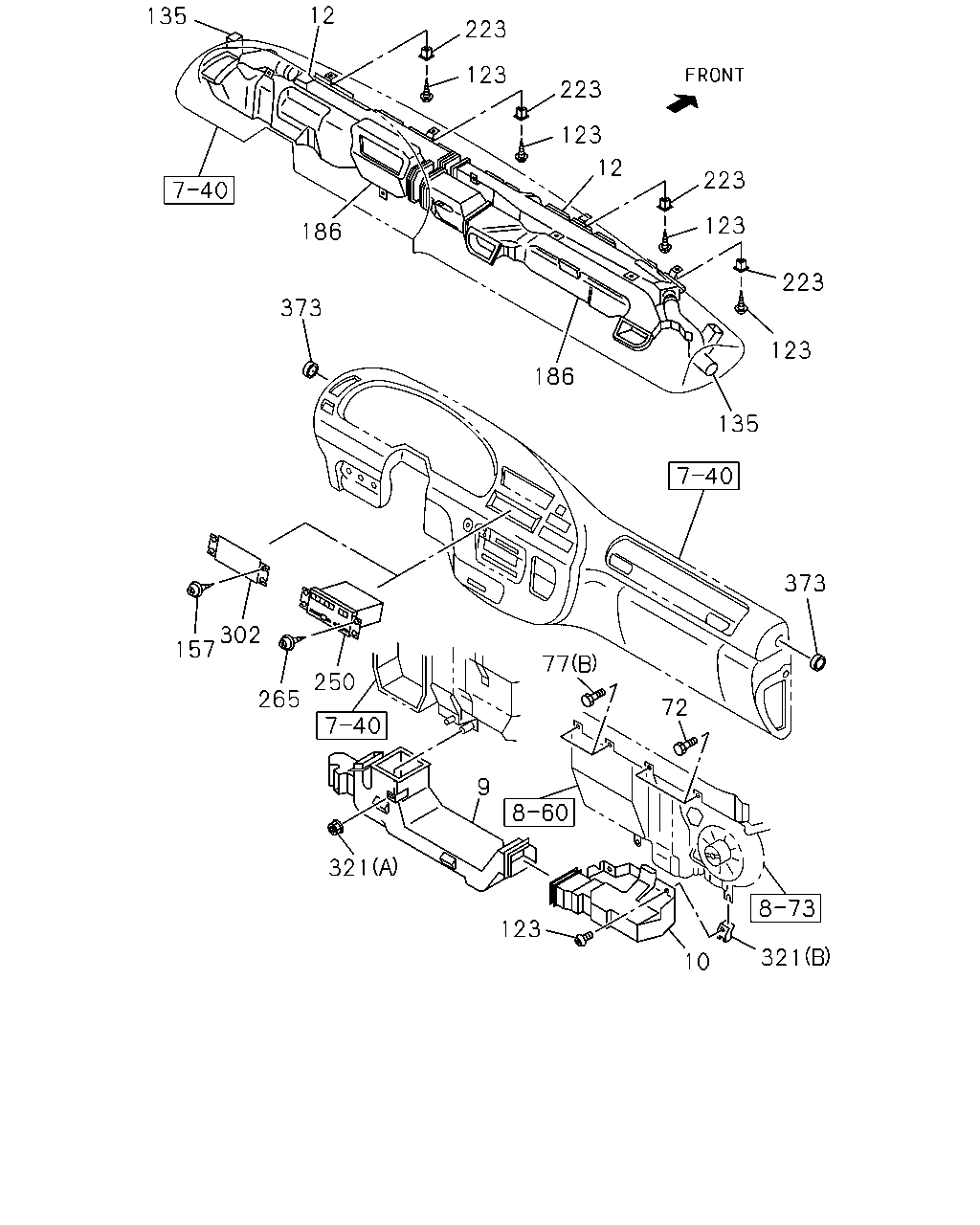

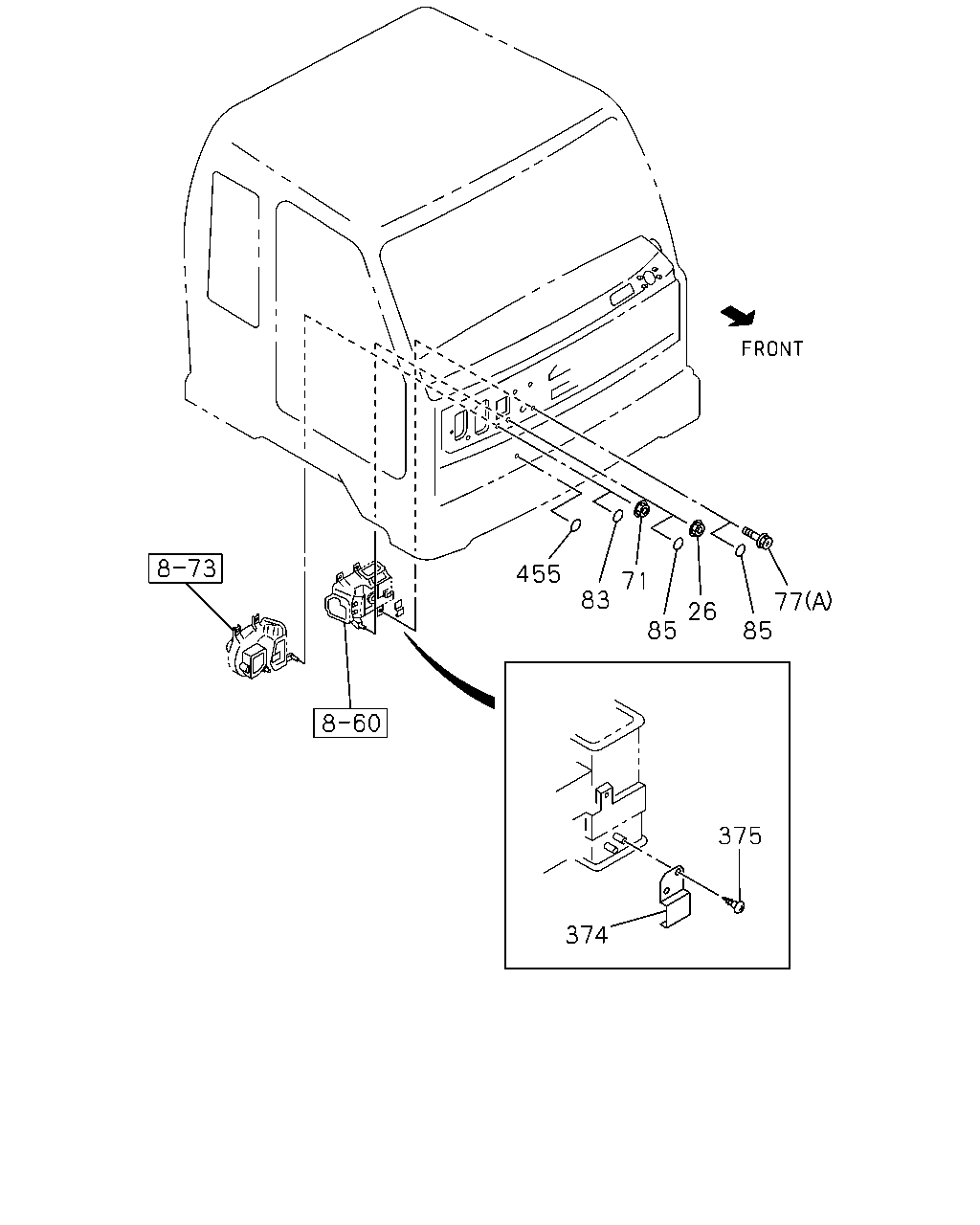

8-40 — HEATER SYSTEM (#20680) — 113 parça

250 459 460 461 461 250 459 459 460 461

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

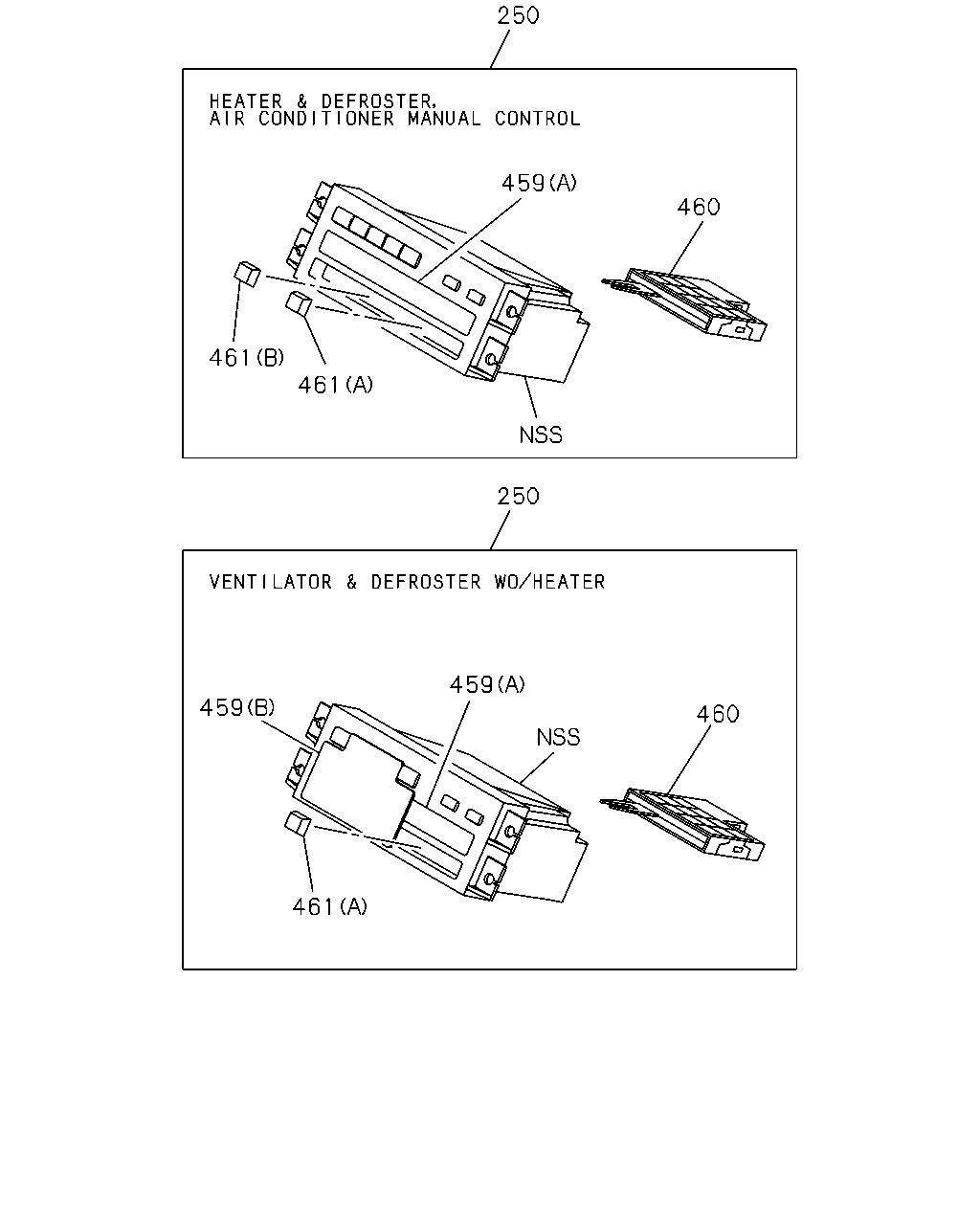

250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83543-033-2	01	1	9510-9603
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41)	1-83543-033-2	01	1	9604-9909
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41)	1-83543-050-0	01	1	9910-0010
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83543-050-0	01	1	0011-
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83543-034-1	01	1	9510-
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-013-0	01	1	9510-9603
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-013-0	01	1	9604-0010
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-013-0	01	1	0011-
459	PANEL; CONTROL ASM,A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83549-017-0	01	1	9510-
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82489-006-0	01	1	9510-9603
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82489-006-0	01	1	9604-0010
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82489-006-0	01	1	0011-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	9510-9603
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41) (B)	1-83549-015-0	01	1	9604-0010
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	0011-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-016-0	01	1	9510-9603
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-016-0	01	1	9604-0010
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-016-0	01	1	0011-

455 71 83 77 85 26 85 375 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9510-9603
26	NUT; HTR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9604-0010
26	NUT; HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0011-
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9510-9603
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9604-0010
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0011-
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-0	02	1	9510-9603
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-1	02	1	9604-0010
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-1	02	1	0011-
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9603
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-0010
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9510-9603
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9604-0010
83	SEAL; COVER,HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	0011-
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9510-9603
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	9604-0010
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=25 BLACK	1-76798-019-0	04	1	0011-
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76398-012-1	01	1	9510-9603
374	HOLDER; DUCT HEATER & DEFROSTER(C41)	1-76398-012-1	01	1	9604-0010
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76398-012-1	01	1	0011-
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	9510-9603
375	SCREW; HOLDER HEATER & DEFROSTER(C41) M5X14	8-94279-325-0	02	1	9604-0010
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0011-
455	SEAL; CLIP HOLE EXC. HEATER & DEFROSTER(C41) OD=25 BLACK	1-76798-019-0	01	1	9903-0010
455	SEAL; CLIP HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0011-

12 135 223 123 223 123 12 223 123 186 223 373 123 186 135 373 302 157 77 250 265 72 9 321 123 321 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-377-3	01	1	9510-9603
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41)	1-76378-377-3	01	1	9604-0006
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41)	1-76378-431-2	01	1	0007-0010
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-431-2	01	1	0011-
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-368-2	01	1	9510-9603
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41)	1-76378-368-2	01	1	9604-0010
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76378-368-2	01	1	0011-
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-360-2	01	1	9510-9603
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-360-2	01	1	9604-0010
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-360-2	01	1	0011-
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-359-2	01	1	9510-9603
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-359-2	01	1	9604-0010
12	NOZZLE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-359-2	01	1	0011-
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9603
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-0010
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-0	02	1	9510-9603
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-1	02	1	9604-0010
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) M6X16	1-09980-598-1	02	1	0011-
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9510-9603
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9604-0010
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0011-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	9510-9603
123	SCREW; DUCT HEATER & DEFROSTER(C41) M5X14	8-94279-325-0	02	1	9604-0010
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0011-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	9510-9603
123	SCREW; DUCT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	9604-0010
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14	8-94279-325-0	08	1	0011-
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-364-2	01	1	9510-9603
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-364-3	01	1	9604-0010
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-364-3	01	1	0011-
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-363-2	01	1	9510-9603
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-363-2	01	1	9604-0010
135	HOSE; DEFROSTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-363-2	01	1	0011-
157	SCREW EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	9510-9603
157	SCREW EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	9604-0010
157	SCREW EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	0011-0604
157	SCREW EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74160-620-0	02	1	0605-
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-362-3	01	1	9510-9603
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-362-4	01	1	9604-0010
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-362-4	01	1	0011-
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-361-3	01	1	9510-9603
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-361-3	01	1	9604-0010
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-361-3	01	1	0011-
223	GROMMET; SCREW HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9510-9603
223	GROMMET; SCREW HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9604-0010
223	GROMMET; SCREW HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	0011-
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83543-033-2	01	1	9510-9603
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41)	1-83543-033-2	01	1	9604-9909
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41)	1-83543-050-0	01	1	9910-0010
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83543-050-0	01	1	0011-
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83543-034-1	01	1	9510-
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	04	1	9510-9510
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	9510-9603
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	9604-0010
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	0011-0604
265	SCREW; A/C CONT UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X20 TAPPING W/PL WASHER	0-74160-620-0	02	1	0605-
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-72438-140-1	01	1	9510-9603
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTERWO/HEATER(SAZ)	1-72438-140-1	01	1	9604-0010
302	COVER; AIR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-72438-140-1	01	1	0011-
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6 FLANGE	0-91150-106-0	01	1	9510-9603
321	NUT; DUCT FIX HEATER & DEFROSTER(C41) (A) M6 FLANGE	0-91150-106-0	01	1	9604-0010
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6 FLANGE	0-91150-106-0	01	1	0011-0602
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M6 FLANGE	0-91180-106-0	01	1	0603-
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5	1-09984-150-0	01	1	9510-9603
321	NUT; DUCT FIX HEATER & DEFROSTER(C41) (B) M5	1-09984-150-0	01	1	9604-0010
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5	1-09984-150-0	01	1	0011-0409
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M5	1-09984-196-0	01	1	0410-
373	RUBBER; JOINT	1-76378-291-0	02	1	9510-
