Sayfa 2-30A - Isuzu EPC

2-30A — GEAR SHIFTER AND QUADRANT BOX (#2068) — 231 parça

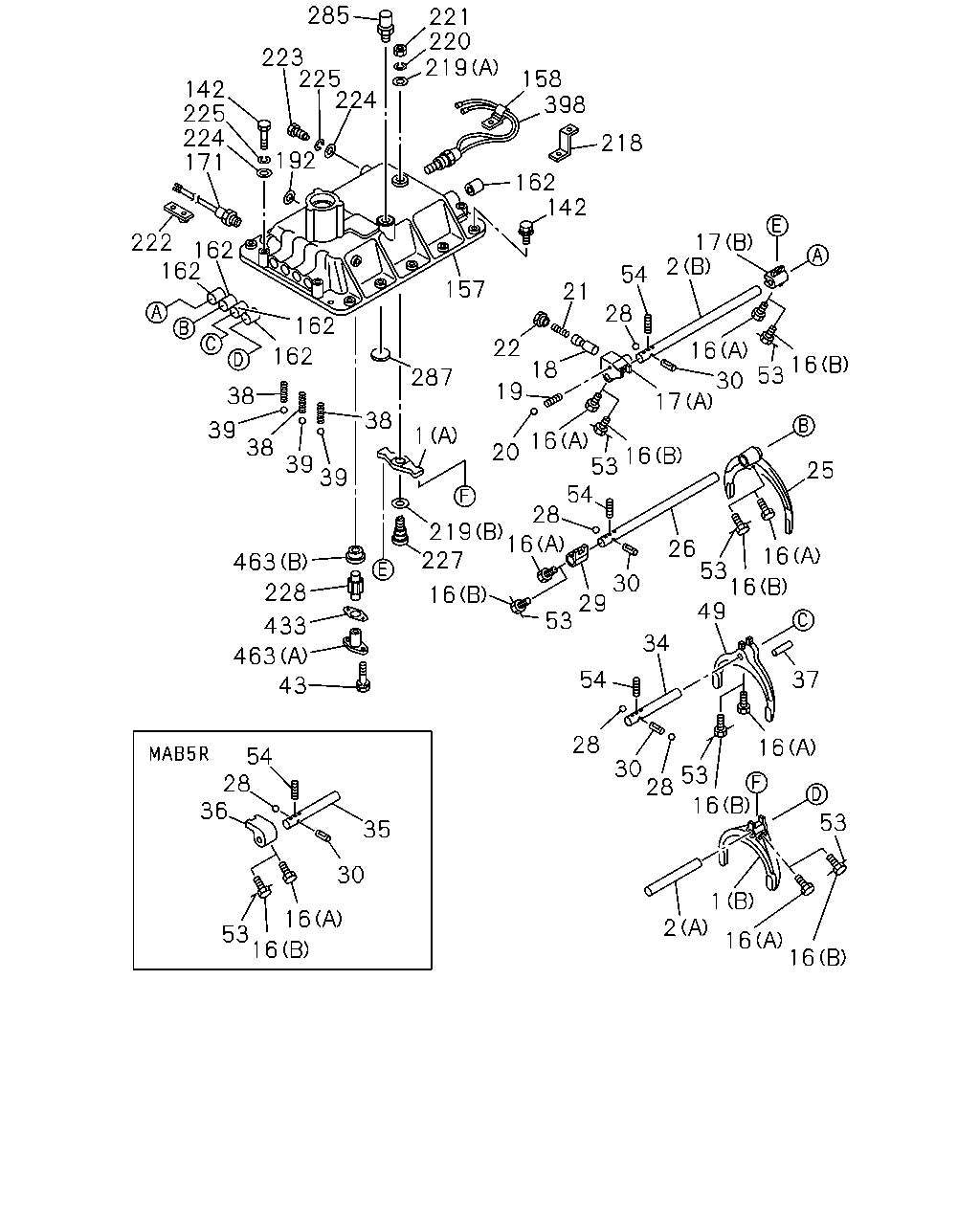

285 221 220 219 223 225 224 158 398 142 225 224 171 218 192 162 142 17 2 222 162 162 54 157 21 28 162 22 16 16 53 162 18 287 30 19 38 17 38 39 1 16 16 53 54 28 38 20 39 39 25 219 16 227 26 53 16 49 16 463 30 29 53 228 16 433 34 463 54 37 43 28 16 54 28 36 30 53 28 16 53 35 30 1 16 2 53 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	9001-	●	●	●	●
1	ARM; SHIFT,1ST & REV (B)	1-33511-166-2	01	1	9001-	●	●	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-324-0	01	1	9001-9010	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-351-0	01	1	9011-9603	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-415-1	01	1	9604-	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-298-1	01	1	9001-9603	●	●	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-400-1	01	1	9604-	●	●	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-103-0	01	1	9001-		●	●	●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 3-HOLE	1-09052-025-0	06	1	9001-9107	●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 NO-HOLE	1-09052-032-1	06	1	9108-9512	●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20	1-09052-039-0	06	1	9601-9803	●
16	BOLT; SHIFT ARM & BLOCK SET (B) M12X20 W/HOLE	1-09052-038-0	06	1	9804-	●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 3-HOLE	1-09052-025-0	07	1	9001-9107			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 NO-HOLE	1-09052-032-1	07	1	9108-9207			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 NO-HOLE	1-09052-032-1	07	1	9208-9512			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20	1-09052-039-0	07	1	9601-9803			●
16	BOLT; SHIFT ARM & BLOCK SET (B) M12X20 W/HOLE	1-09052-038-0	07	1	9804-			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 3-HOLE	1-09052-025-0	08	1	9001-9107		●		●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 NO-HOLE	1-09052-032-1	08	1	9108-9512		●		●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20	1-09052-039-0	08	1	9601-9803		●		●
16	BOLT; SHIFT ARM & BLOCK SET (B) M12X20 W/HOLE	1-09052-038-0	08	1	9804-		●		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-304-2	01	1	9001-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	9001-	●	●	●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-172-2	01	1	9001-			●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-170-3	01	1	9001-		●		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-024-0	01	1	9001-	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-019-1	01	1	9001-			●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-018-1	01	1	9001-		●		●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9001-	●
19	SPRING; COIL COMP	9-09940-305-0	01	1	9001-		●	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9001-	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	9001-		●	●	●
21	SPRING; COIL COMP SLEEVE	9-09940-411-0	01	1	9001-	●	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9001-	●	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-187-1	01	1	9001-9402	●	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-481-0	01	1	9403-	●	●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-325-0	01	1	9001-9603	●
26	ROD; SHIFT,2ND & 3RD	1-33531-416-1	01	1	9604-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-187-0	01	1	9001-		●	●	●
28	BALL; INTER LK	9-00097-501-0	03	1	9001-	●		●
28	BALL; INTER LK	9-00097-501-0	04	1	9001-		●		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-346-1	01	1	9001-9809	●		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-346-1	01	1	9810-	●		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-331-3	01	1	9001-9809		●		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-331-3	01	1	9810-		●		●
30	PIN; INTER LK	9-33534-003-0	02	1	9001-	●		●
30	PIN; INTER LK	9-33534-003-0	03	1	9001-		●		●
34	ROD; SHIFT,4TH & 5TH ARM L=160	1-33531-327-0	01	1	9001-9603	●
34	ROD; SHIFT,4TH & 5TH ARM L=160	1-33531-417-1	01	1	9604-	●
34	ROD; SHIFT,4TH & 5TH ARM L=158 W/RACK	1-33531-299-0	01	1	9001-			●
34	ROD; SHIFT,4TH & 5TH ARM L=158	1-33531-188-0	01	1	9001-		●		●
35	ROD; SHIFT,4TH & 5TH BLOCK	1-33531-189-0	01	1	9001-			●
36	BLOCK; SHIFT,4TH & 5TH	1-33511-050-0	01	1	9001-9207			●
36	BLOCK; SHIFT,4TH & 5TH	1-33511-050-0	01	1	9208-			●
37	PIN; STOPPER ARM	9-09878-624-0	01	1	9001-	●
38	SPRING; DETENT	1-09580-379-0	03	1	9001-	●
38	SPRING; DETENT	1-09580-074-0	03	1	9001-			●
38	SPRING; DETENT	1-09580-074-0	04	1	9001-		●		●
39	BALL; DETENT	1-09843-012-0	03	1	9001-	●
39	BALL; DETENT	9-00097-013-0	03	1	9001-			●
39	BALL; DETENT	9-00097-013-0	04	1	9001-		●		●
43	BOLT; PINION CAGE M8X20 W/LK WASHER	9-01900-820-0	02	1	9001-9204			●
43	BOLT; PINION CAGE M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-			●
49	ARM; SHIFT,4TH & 5TH	1-33511-194-1	01	1	9001-			●
49	ARM; SHIFT,4TH & 5TH	1-33511-347-1	01	1	9001-9407		●		●
49	ARM; SHIFT,4TH & 5TH	1-33511-495-0	01	1	9408-		●		●
53	WIRE; BOLT L=200	9-08351-020-0	01	1	9804-	●
53	WIRE; BOLT L=180	1-09780-024-0	05	1	9804-	●		●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	9804-		●	●	●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	9804-		●		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	02	1	9001-	●		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9001-		●		●
142	BOLT; QUAD BOX M10X50	9-01656-050-0	01	1	9001-9004	●	●	●	●
142	BOLT; QUAD BOX M10X50	0-16806-050-0	01	1	9005-9205	●	●	●	●
142	BOLT; QUAD BOX M10X45 FLANGE	0-28181-045-0	01	1	9206-	●	●	●	●
142	BOLT; QUAD BOX M10X60	9-01656-060-0	03	1	9001-9004	●	●	●	●
142	BOLT; QUAD BOX M10X60	0-16806-060-0	03	1	9005-9205	●	●	●	●
142	BOLT; QUAD BOX M10X55 FLANGE	8-94399-863-1	03	1	9206-	●	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK WASHER	9-01991-032-0	10	1	9001-9002	●	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	10	1	9003-9205	●	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	10	1	9206-	●	●	●	●
157	BOX; QUAD,TRANS	1-33541-294-2	01	1	9001-	●
157	BOX; QUAD,TRANS	1-33541-175-5	01	1	9001-			●
157	BOX; QUAD,TRANS	1-33541-176-5	01	1	9001-		●		●
158	CLIP; HARNESS ID=6	9-09917-391-0	02	1	9001-	●	●	●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	9001-	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-044-2	01	1	9001-9009	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-0	01	1	9010-9012	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9101-	●	●	●	●
192	WASHER; PL ID=8.4	9-09160-508-0	01	1	9001-	●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX	1-82699-058-0	01	1	9001-	●
218	BRACKET; HARNESS CLIP,QUAD BOX	1-82699-058-0	02	1	9001-		●	●	●
219	WASHER; PL,SPINDLE (A) ID=12.5 OD=26	9-09164-612-0	01	1	9001-9205	●	●	●	●
219	WASHER; PL,SPINDLE (B) ID=16.5	9-09857-042-0	01	1	9001-	●	●	●	●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	9001-9205	●	●	●	●
221	NUT; SPINDLE M12	9-99110-412-0	01	1	9001-9205	●	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-	●	●	●	●
222	BRACKET; CLIP L=65	1-47465-485-0	02	1	9001-9801	●
222	BRACKET; CLIP L=65	1-47476-513-0	02	1	9802-	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9001-	●	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9001-	●	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	04	1	9001-9205	●	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	04	1	9001-9205	●	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9001-	●	●	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9001-	●	●	●	●
228	PINION; 4TH & 5TH SHIFT	9-33539-021-0	01	1	9001-			●
285	BREATHER; AIR,QUAD BOX	9-33547-010-0	01	1	9001-	●	●	●	●
287	COVER; AIR BREATHER	9-09860-030-0	01	1	9001-	●	●	●	●
398	SWITCH; REV LAMP	1-82440-054-0	01	1	9001-	●	●	●	●
433	GASKET; BUSHING	1-33542-019-0	01	1	9001-			●
463	BUSHING; PINION,QUAD BOX (B)	9-33539-023-0	01	1	9001-			●
463	BUSHING; PINION,QUAD BOX (A)	9-33539-028-0	01	1	9001-			●

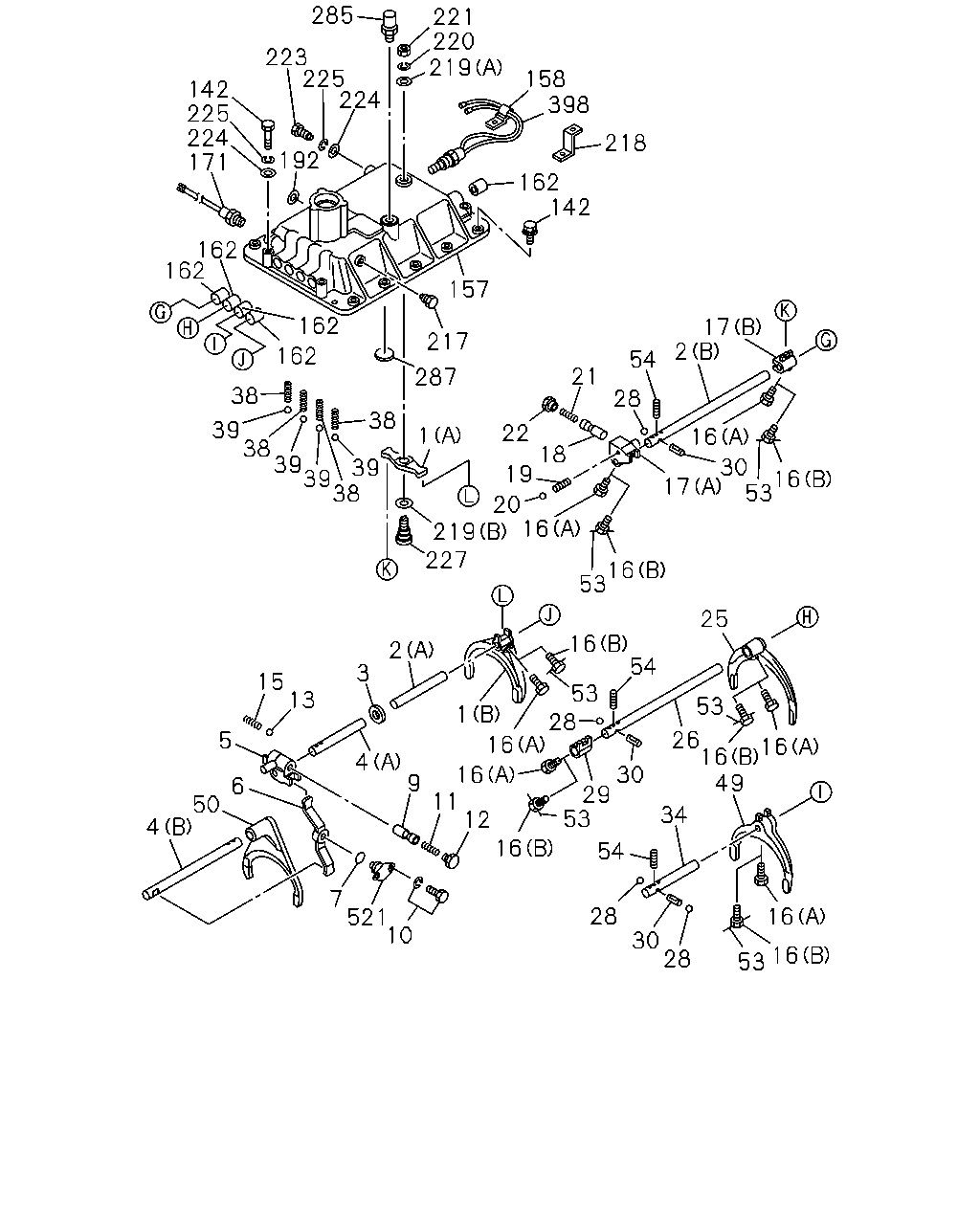

285 221 220 219 223 225 224 158 398 142 225 224 171 218 192 162 142 162 162 157 162 17 2 217 162 54 21 287 38 28 38 39 38 39 39 39 38 22 1 16 18 30 16 53 19 17 219 16 227 16 53 25 16 54 2 3 15 13 53 28 53 1 26 16 16 49 5 16 4 9 30 29 53 16 11 6 50 4 34 12 16 54 7 521 10 28 16 30 28 16 53 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	9001-	●	●	●	●
1	ARM; SHIFT,1ST & REV (B)	1-33511-166-2	01	1	9001-	●	●	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-324-0	01	1	9001-9010	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-351-0	01	1	9011-9603	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-415-1	01	1	9604-	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-298-1	01	1	9001-9603	●	●	●	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-400-1	01	1	9604-	●	●	●	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-103-0	01	1	9001-		●	●	●
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	9001-		●		●
4	ROD; SHIFT,6TH (A)	1-33531-191-0	01	1	9001-		●		●
4	ROD; SHIFT,6TH (B)	1-33531-300-0	01	1	9001-		●		●
5	BLOCK; SHIFT,6TH	1-33511-171-2	01	1	9001-		●		●
6	LEVER; RELAY	9-33511-402-1	01	1	9001-		●		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	9001-		●		●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-018-1	01	1	9001-		●		●
10	BOLT; SPINDLE M10X25 W/LK WASHER	9-01931-025-0	02	1	9001-9002		●		●
10	BOLT; SPINDLE M10X25 W/LK WASHER	0-50051-025-0	02	1	9003-9203		●		●
10	BOLT; SPINDLE M10X22	1-09033-005-0	02	1	9204-9205		●		●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9206-		●		●
11	SPRING; RETURN,SHIFT SLEEVE	9-09940-411-0	01	1	9001-		●		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9001-		●		●
13	BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	9001-		●		●
15	SPRING; LK,SHIFT SLEEVE	1-09580-190-0	01	1	9001-		●		●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 3-HOLE	1-09052-025-0	06	1	9001-9107	●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 NO-HOLE	1-09052-032-1	06	1	9108-9512	●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20	1-09052-039-0	06	1	9601-9803	●
16	BOLT; SHIFT ARM & BLOCK SET (B) M12X20 W/HOLE	1-09052-038-0	06	1	9804-	●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 3-HOLE	1-09052-025-0	07	1	9001-9107			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 NO-HOLE	1-09052-032-1	07	1	9108-9207			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 NO-HOLE	1-09052-032-1	07	1	9208-9512			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20	1-09052-039-0	07	1	9601-9803			●
16	BOLT; SHIFT ARM & BLOCK SET (B) M12X20 W/HOLE	1-09052-038-0	07	1	9804-			●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 3-HOLE	1-09052-025-0	08	1	9001-9107		●		●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20 NO-HOLE	1-09052-032-1	08	1	9108-9512		●		●
16	BOLT; SHIFT ARM & BLOCK SET (A) M12X20	1-09052-039-0	08	1	9601-9803		●		●
16	BOLT; SHIFT ARM & BLOCK SET (B) M12X20 W/HOLE	1-09052-038-0	08	1	9804-		●		●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-304-2	01	1	9001-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	9001-	●	●	●	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-172-2	01	1	9001-			●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-170-3	01	1	9001-		●		●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-024-0	01	1	9001-	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-019-1	01	1	9001-			●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-018-1	01	1	9001-		●		●
19	SPRING; COIL COMP	1-09580-438-0	01	1	9001-	●
19	SPRING; COIL COMP	9-09940-305-0	01	1	9001-		●	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	9001-	●
20	BALL; DETENT SLEEVE	9-00097-009-0	01	1	9001-		●	●	●
21	SPRING; COIL COMP SLEEVE	9-09940-411-0	01	1	9001-	●	●	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	9001-	●	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-187-1	01	1	9001-9402	●	●	●	●
25	ARM; SHIFT,2ND & 3RD	1-33511-481-0	01	1	9403-	●	●	●	●
26	ROD; SHIFT,2ND & 3RD	1-33531-325-0	01	1	9001-9603	●
26	ROD; SHIFT,2ND & 3RD	1-33531-416-1	01	1	9604-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-187-0	01	1	9001-		●	●	●
28	BALL; INTER LK	9-00097-501-0	03	1	9001-	●		●
28	BALL; INTER LK	9-00097-501-0	04	1	9001-		●		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-346-1	01	1	9001-9809	●		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-346-1	01	1	9810-	●		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-331-3	01	1	9001-9809		●		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-331-3	01	1	9810-		●		●
30	PIN; INTER LK	9-33534-003-0	02	1	9001-	●		●
30	PIN; INTER LK	9-33534-003-0	03	1	9001-		●		●
34	ROD; SHIFT,4TH & 5TH ARM L=160	1-33531-327-0	01	1	9001-9603	●
34	ROD; SHIFT,4TH & 5TH ARM L=160	1-33531-417-1	01	1	9604-	●
34	ROD; SHIFT,4TH & 5TH ARM L=158 W/RACK	1-33531-299-0	01	1	9001-			●
34	ROD; SHIFT,4TH & 5TH ARM L=158	1-33531-188-0	01	1	9001-		●		●
38	SPRING; DETENT	1-09580-379-0	03	1	9001-	●
38	SPRING; DETENT	1-09580-074-0	03	1	9001-			●
38	SPRING; DETENT	1-09580-074-0	04	1	9001-		●		●
39	BALL; DETENT	1-09843-012-0	03	1	9001-	●
39	BALL; DETENT	9-00097-013-0	03	1	9001-			●
39	BALL; DETENT	9-00097-013-0	04	1	9001-		●		●
49	ARM; SHIFT,4TH & 5TH	1-33511-194-1	01	1	9001-			●
49	ARM; SHIFT,4TH & 5TH	1-33511-347-1	01	1	9001-9407		●		●
49	ARM; SHIFT,4TH & 5TH	1-33511-495-0	01	1	9408-		●		●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	9001-		●		●
53	WIRE; BOLT L=200	9-08351-020-0	01	1	9804-	●
53	WIRE; BOLT L=180	1-09780-024-0	05	1	9804-	●		●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	9804-		●	●	●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	9804-		●		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	02	1	9001-	●		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	9001-		●		●
142	BOLT; QUAD BOX M10X50	9-01656-050-0	01	1	9001-9004	●	●	●	●
142	BOLT; QUAD BOX M10X50	0-16806-050-0	01	1	9005-9205	●	●	●	●
142	BOLT; QUAD BOX M10X45 FLANGE	0-28181-045-0	01	1	9206-	●	●	●	●
142	BOLT; QUAD BOX M10X60	9-01656-060-0	03	1	9001-9004	●	●	●	●
142	BOLT; QUAD BOX M10X60	0-16806-060-0	03	1	9005-9205	●	●	●	●
142	BOLT; QUAD BOX M10X55 FLANGE	8-94399-863-1	03	1	9206-	●	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK WASHER	9-01991-032-0	10	1	9001-9002	●	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	10	1	9003-9205	●	●	●	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	10	1	9206-	●	●	●	●
157	BOX; QUAD,TRANS	1-33541-294-2	01	1	9001-	●
157	BOX; QUAD,TRANS	1-33541-175-5	01	1	9001-			●
157	BOX; QUAD,TRANS	1-33541-176-5	01	1	9001-		●		●
158	CLIP; HARNESS ID=6	9-09917-391-0	02	1	9001-	●	●	●	●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	9001-	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-044-2	01	1	9001-9009	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-0	01	1	9010-9012	●	●	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9101-	●	●	●	●
192	WASHER; PL ID=8.4	9-09160-508-0	01	1	9001-	●	●	●	●
217	SCREW; SET,6TH SHIFT BLOCK	9-09802-677-0	01	1	9001-9306		●		●
217	SCREW; SET,6TH SHIFT BLOCK	9-09802-677-0	01	1	9307-		●		●
218	BRACKET; HARNESS CLIP,QUAD BOX	1-82699-058-0	01	1	9001-	●
218	BRACKET; HARNESS CLIP,QUAD BOX	1-82699-058-0	02	1	9001-		●	●	●
219	WASHER; PL,SPINDLE (A) ID=12.5 OD=26	9-09164-612-0	01	1	9001-9205	●	●	●	●
219	WASHER; PL,SPINDLE (B) ID=16.5	9-09857-042-0	01	1	9001-	●	●	●	●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	9001-9205	●	●	●	●
221	NUT; SPINDLE M12	9-99110-412-0	01	1	9001-9205	●	●	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-	●	●	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	9001-	●	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	9001-	●	●	●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	04	1	9001-9205	●	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	04	1	9001-9205	●	●	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	9001-	●	●	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	9001-	●	●	●	●
285	BREATHER; AIR,QUAD BOX	9-33547-010-0	01	1	9001-	●	●	●	●
287	COVER; AIR BREATHER	9-09860-030-0	01	1	9001-	●	●	●	●
398	SWITCH; REV LAMP	1-82440-054-0	01	1	9001-	●	●	●	●
521	SPINDLE; 6TH	1-33519-008-1	01	1	9001-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
