◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#20678) — 20 parça

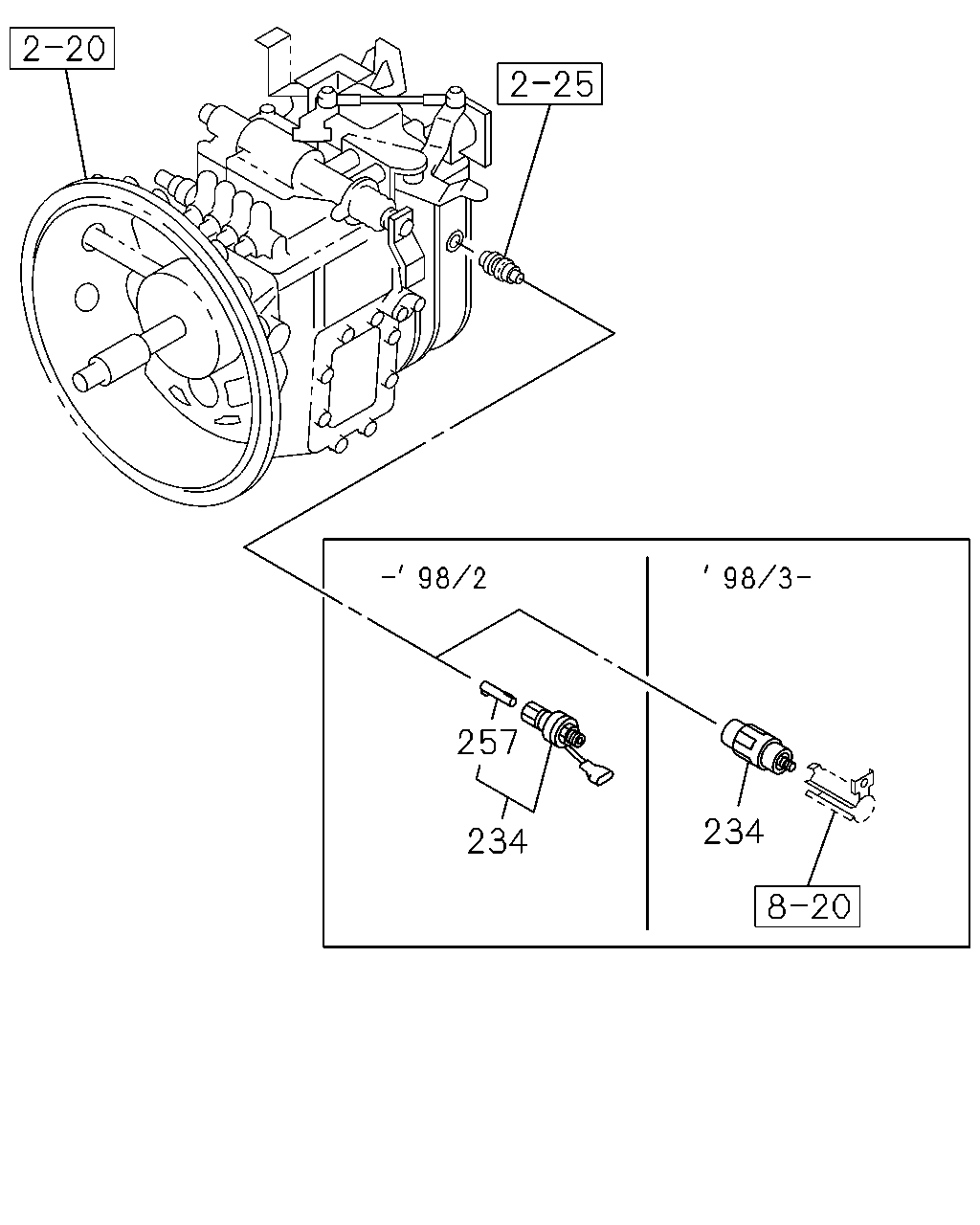

çizim 16377
257 234 234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD 1-83127-241-1 01 1 9510-9802
234 SENSOR; VEHICLE SPD 1-80240-001-1 01 1 9803-0202
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0203-
257 KEY; SPEED SENSOR 1-83129-126-0 01 1 9510-9802

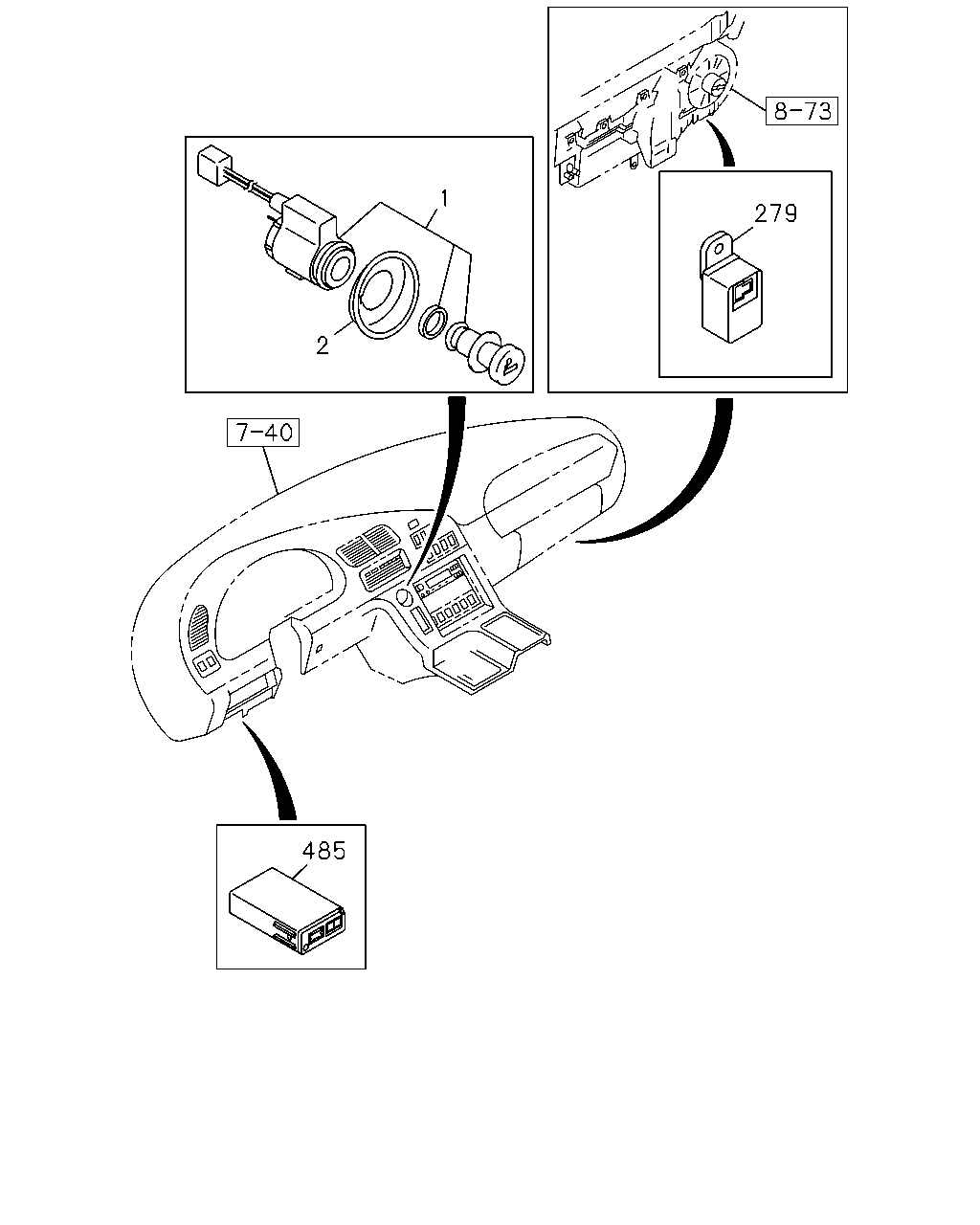

çizim 16593
1 279 2 485
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9510-0108
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9510-
279 BUZZER ASM; SEAT BELT WARNING
12V 		5-83460-004-1 01 1 9510-
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9510-0004
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 0005-0402
485 CONTROL UNIT; SPEED SENSOR 1-80190-149-0 01 1 0403-0410
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0411-

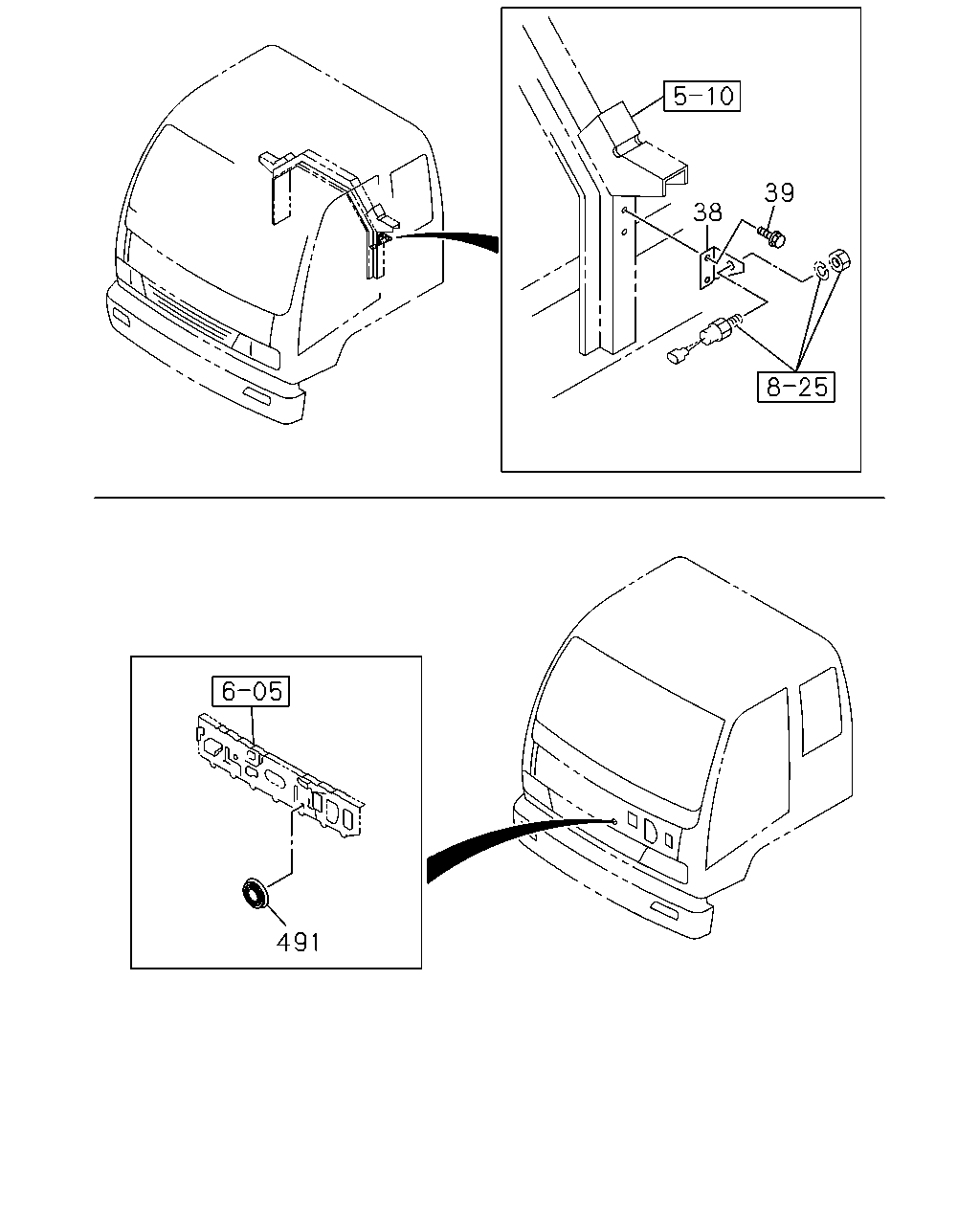

çizim 65019
39 38 491
BalonParca AdiParca NoAdetTipApplied Date
38 BRACKET; SW,STARTER SUB 1-82699-351-0 01 1 9510-0211
38 BRACKET; SW,STARTER SUB
EXC. STARTER SWITCH DELETION<E5D> 		1-82699-351-0 01 1 0212-
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606
39 BOLT; BRKT,STARTER SUB SW
M8X25 FLANGE 		0-28680-825-0 02 1 9607-9801
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9802-0211
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28680-820-0 02 1 0212-0512
39 BOLT; BRKT,STARTER SUB SW
EXC. STARTER SWITCH DELETION<E5D> M8X20 FLANGE 		0-28650-820-0 02 1 0601-
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9510-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
