◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#20674) — 213 parça
çizim 16589
154 335 59
BalonParca AdiParca NoAdetTipApplied Date
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 9510-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 9510-
335 BRACKET; CONNECTOR 1-82699-517-0 01 1 9510-9910
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 9911-

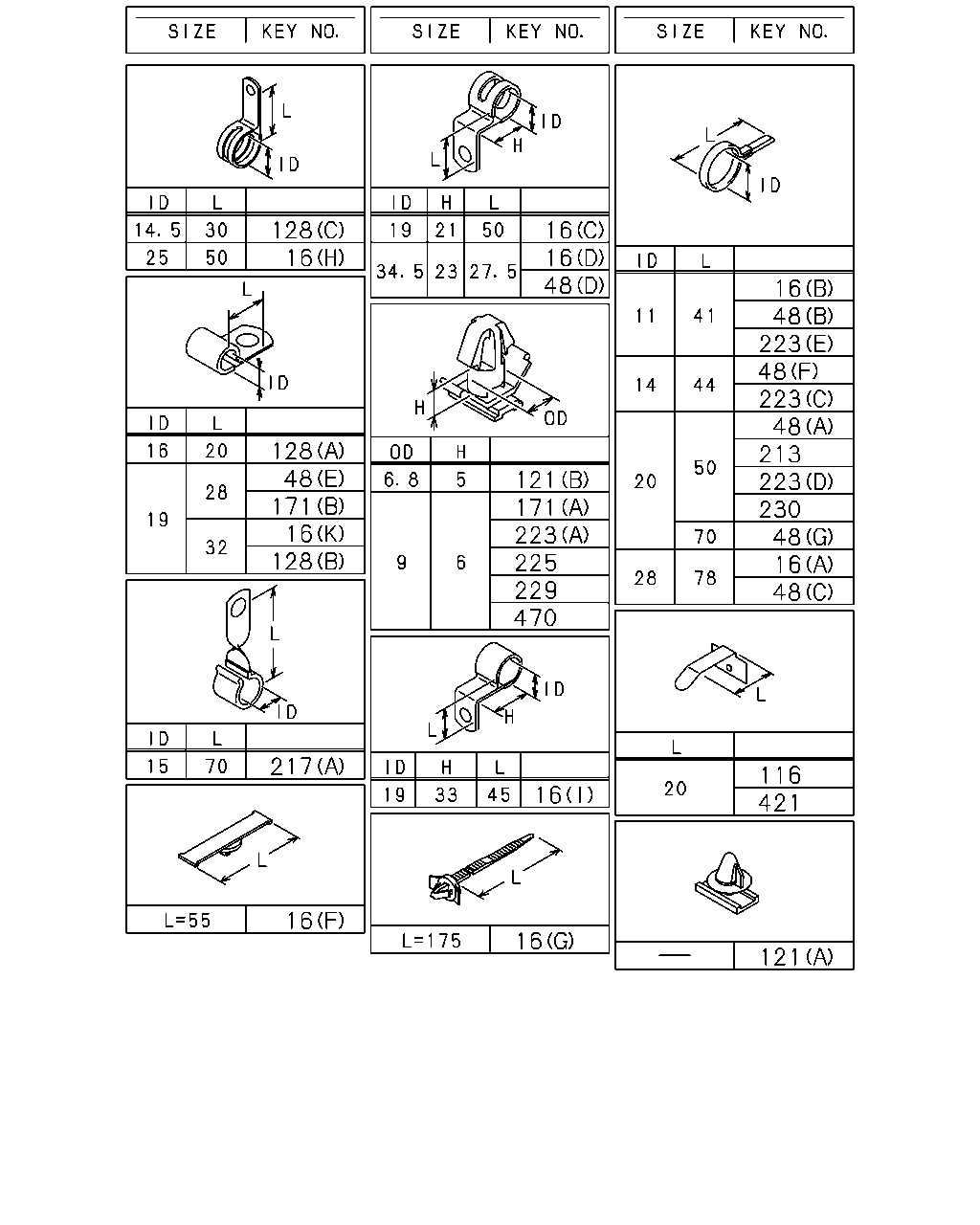

çizim 16591
128 16 16 16 48 16 48 223 48 223 48 213 223 230 48 16 48 128 48 171 16 128 121 171 223 225 229 470 217 116 421 16 16 16 121
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9510-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9510-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9510-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9510-
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 9510-
16 CLIP; HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 9510-9801
16 CLIP; HARNESS
(C) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 01 1 9510-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9510-
16 CLIP; HARNESS
(K) ID=19 L=32 		9-09525-866-0 01 1 9510-0606
16 CLIP; HARNESS
(K) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (F) L=55 		8-94432-655-0 03 1 9510-9603
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (F) L=55 		8-94432-655-0 03 1 9510-9603
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (F) L=55 		8-94432-655-0 06 1 9510-9603
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 04 1 9510-9603
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 9510-9603
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 9510-9603
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 9510-9603
16 CLIP; HARNESS
EXC. FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 9604-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9510-
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 9510-
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 9510-0606
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 9510-0004
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 01 1 0005-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 04 1 9510-9510
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 03 1 9510-9511
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 01 1 9512-0004
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 04 1 0005-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9510-9510
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9510-9510
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9510-9511
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9510-9511
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9510-9511
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9512-0004
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 9512-0004
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0005-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0005-
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9510-
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 03 1 9512-0004
48 CLIP; FRAME HARNESS
WHEEL BASE 3700MM(37W) (A) ID=20 L=50 		9-09917-430-0 11 1 9510-
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (A) ID=20 L=50 		9-09917-430-0 14 1 9510-
48 CLIP; FRAME HARNESS
WHEEL BASE 4800MM(48W) (A) ID=20 L=50 		9-09917-430-0 17 1 9510-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> EXC. MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-1 02 1 9510-9603
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-1 05 1 9510-9603
116 CLIP; ROOF HARNESS
MAP LAMP<C85> L=20 SET=10 PIECE 		1-09987-246-1 05 1 9510-9603
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 9604-0009
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 0010-0112
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
121 CLIP; FACIA HARNESS
FRONT FENDER WIDE<SA4> EXC. POWER WINDOW<A30> (A) OD=7 H=1.2 		8-94364-750-0 02 1 9510-9603
121 CLIP; FACIA HARNESS
FRONT FENDER WIDE<SA4> (A) OD=7 H=1.2 		8-94364-750-0 02 1 9604-
121 CLIP; FACIA HARNESS
EXC. FRONT FENDER WIDE<SA4> (B) OD=6.8 H=5 		8-97082-051-0 02 1 9510-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9510-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9510-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 9510-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 9510-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 0607-
171 CLIP; STARTER HARNESS
(C) L=300 		1-09707-001-1 01 1 0005-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 9510-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9510-0208
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9510-
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 9510-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 9510-
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 9510-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 9510-
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 9510-9909
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 9910-
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> OD=9 H=6 		1-09709-178-0 01 1 0110-
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9510-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 9510-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 9510-9708
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 9709-0101
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-0406
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 9510-

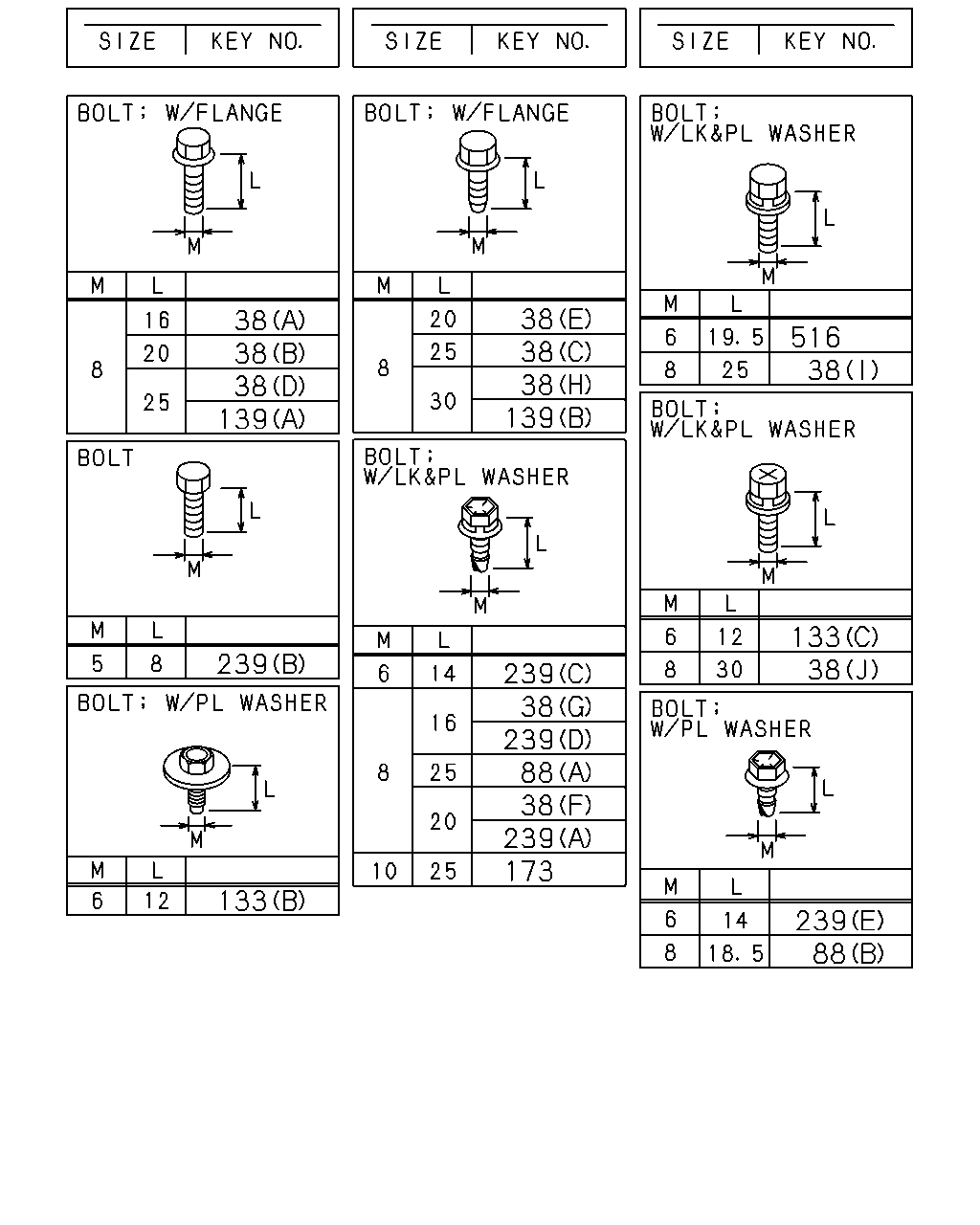

çizim 63946
38 38 38 139 38 38 38 139 516 38 133 38 239 239 38 239 88 38 239 173 133 239 88
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 9510-0512
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 02 1 9607-0512
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28080-825-0 04 1 9510-9606
38 BOLT; CLIP,HARNESS
(E) M8X20 FLANGE 		0-28680-820-0 02 1 9607-0512
38 BOLT; CLIP,HARNESS
(E) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9510-9907
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-9909
38 BOLT; CLIP,HARNESS
(F) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9910-1201
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512
38 BOLT; CLIP,HARNESS
(H) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(I) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9607-9702
38 BOLT; CLIP,HARNESS
(J) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 9703-0512
38 BOLT; CLIP,HARNESS
(J) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
88 BOLT; DOOR HARNESS EARTH
DOOR WINDOW MANUAL CONT<SKF> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9510-9603
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9510-9603
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 9604-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9510-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28080-825-0 02 1 9510-9606
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 02 1 9607-0512
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9510-
239 BOLT; GRAND
(B) M5X8 		0-20800-508-0 01 1 9510-
239 BOLT; GRAND
(C) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9510-0004
239 BOLT; GRAND
(C) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9510-0004
239 BOLT; GRAND
(C) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0005-1007
239 BOLT; GRAND
(E) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9510-9907
239 BOLT; GRAND
(D) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9908-1201
239 BOLT; GRAND
(D) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9510-
çizim 64823
119 210 423 520 184 133 209 524 219 294 219 294
BalonParca AdiParca NoAdetTipApplied Date
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 9510-9603
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 9510-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 9908-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 9510-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9908-
219 NUT
(A) M8 		9-09110-408-0 02 1 9510-9606
219 NUT
(A) M8 		9-09110-408-0 02 1 9607-9609
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 9610-9802
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9803-0602
219 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-
219 NUT
(A) M8 		9-09110-408-0 04 1 9510-9606
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-9609
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-9609
219 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9610-9802
219 NUT
(B) M8 FLANGE 		0-91150-108-0 04 1 9803-0602
219 NUT
(B) M8 FLANGE 		0-91180-108-0 04 1 0603-
294 NUT
(A) M8 		9-09110-408-0 02 1 9510-9606
294 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 9607-0602
294 NUT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 9908-9909
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 9908-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9510-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-

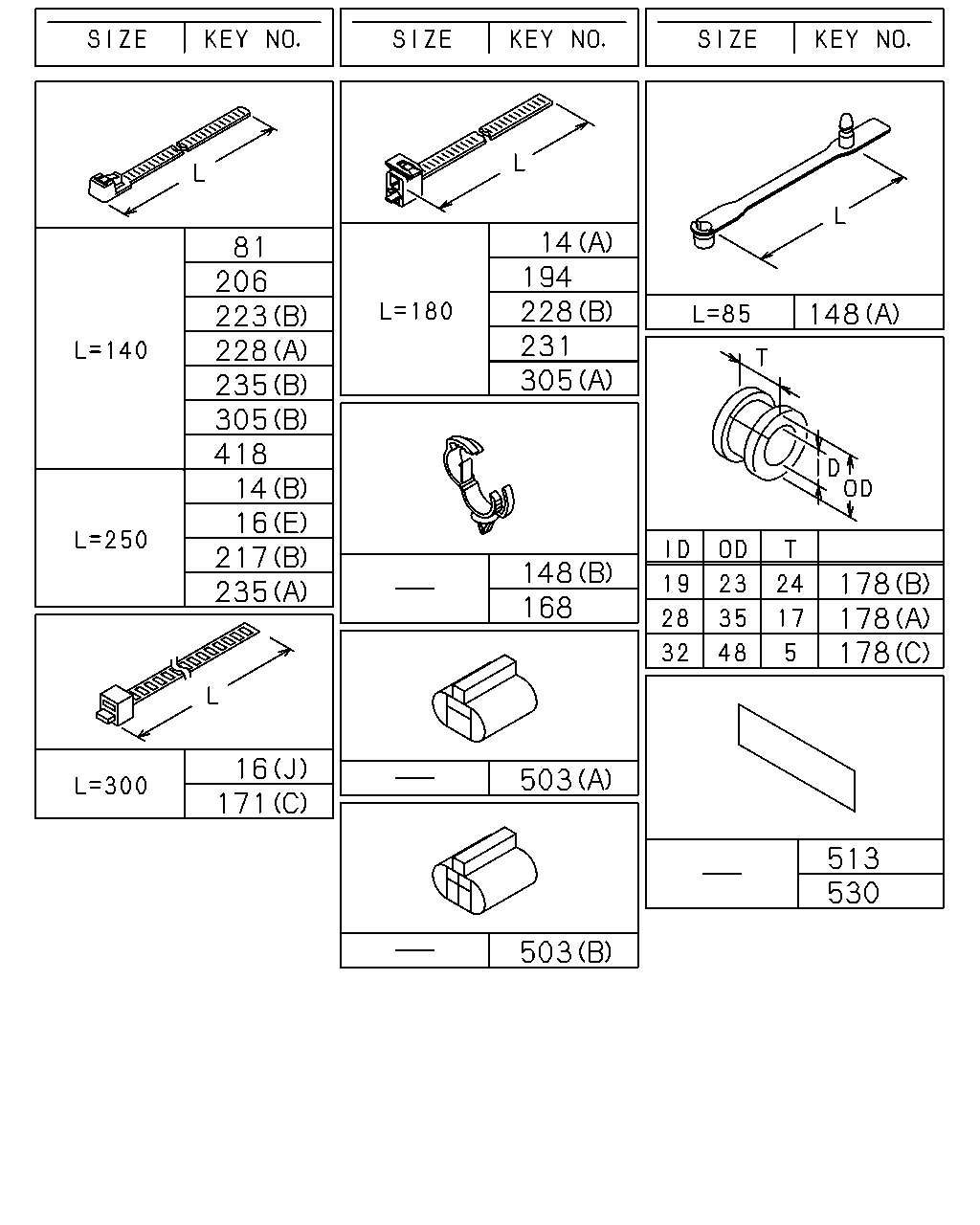

çizim 64971
14 194 228 231 305 81 206 223 228 235 305 418 14 16 217 235 148 148 168 178 178 178 16 171 503 513 530 503
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 01 1 0002-1205
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 01 1 1206-
14 CLIP; BAND,HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=180 		1-09707-162-1 01 1 9510-
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 9510-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9510-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 9510-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 9510-
16 CLIP; HARNESS
(H) ID=25 L=50 		1-09701-019-0 01 1 9510-
16 CLIP; HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 9510-9801
16 CLIP; HARNESS
(C) ID=19 H=21 L=50 		1-09700-910-1 01 1 9802-
16 CLIP; HARNESS
(J) L=300 		1-09707-001-1 01 1 9510-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 9510-
16 CLIP; HARNESS
(K) ID=19 L=32 		9-09525-866-0 01 1 9510-0606
16 CLIP; HARNESS
(K) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (F) L=55 		8-94432-655-0 03 1 9510-9603
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (F) L=55 		8-94432-655-0 03 1 9510-9603
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (F) L=55 		8-94432-655-0 06 1 9510-9603
16 CLIP; HARNESS
POWER WINDOW<A30> EXC. FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 04 1 9510-9603
16 CLIP; HARNESS
EXC. POWER WINDOW<A30>,FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 9510-9603
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 9510-9603
16 CLIP; HARNESS
POWER WINDOW<A30> FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 9510-9603
16 CLIP; HARNESS
EXC. FRONT FENDER WIDE<SA4> (G) L=175 		8-97110-167-0 02 1 9604-
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 9510-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 9510-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 9510-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 9510-
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 9510-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 04 1 9510-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 04 1 0607-
171 CLIP; STARTER HARNESS
(C) L=300 		1-09707-001-1 01 1 0005-
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 9510-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 9510-
178 GROMMET; HARNESS
LOW ROOF<6XQ> (C) ID=32 OD=48 T=5 		9-09575-232-0 01 1 9510-9603
178 GROMMET; HARNESS
(C) ID=32 OD=48 T=5 		9-09575-232-0 01 1 9604-
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 9510-0004
194 CLIP; BAND
DUAL AIR GAUGE<UG2> L=180 		1-09707-162-1 02 1 0005-
194 CLIP; BAND
EXC. DUAL AIR GAUGE<UG2> L=180 		1-09707-162-1 01 1 0005-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9510-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 9510-0208
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 9510-
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 9510-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 9510-
223 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 01 1 9510-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 9510-
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 9510-9909
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 04 1 9910-
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 9510-0112
228 CLIP; COOLER HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140 		5-09707-031-1 01 1 0201-0405
228 CLIP; COOLER HARNESS
(A) L=140 		5-09707-031-1 01 1 0406-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=180 		1-09707-162-1 01 1 0201-0405
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 9510-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 		5-09707-030-0 01 1 9510-9802
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=140 		5-09707-031-1 01 1 9510-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 9510-
305 CLIP; ENG HARNESS
EXC. TACHOMETER<UD7> (B) L=140 		5-09707-031-1 01 1 9510-
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=140 		5-09707-031-1 01 1 0703-
503 CONNECTOR
(A) 		1-82690-668-0 01 1 9510-9608
503 CONNECTOR
(A) 		1-82690-668-0 01 1 9609-0010
503 CONNECTOR
(A) 		1-82690-668-0 01 1 9609-0010
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82690-668-0 01 1 0011-0109
503 CONNECTOR
(A) 		1-82690-668-0 01 1 0011-0109
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-82690-668-0 01 1 0110-
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-668-0 01 1 0110-
503 CONNECTOR
STARTER SWITCH DELETION<E5D> (B) 		1-82690-666-0 01 1 0212-
513 TAPE; SOFT,HARNESS
100X30 		1-72498-014-1 02 1 9709-9903
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 02 1 9904-0101
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0102-
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 0407-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
