Sayfa 2-26B - Isuzu EPC

2-26B — MANUAL TRANSMISSION GEAR (#2067) — 260 parça

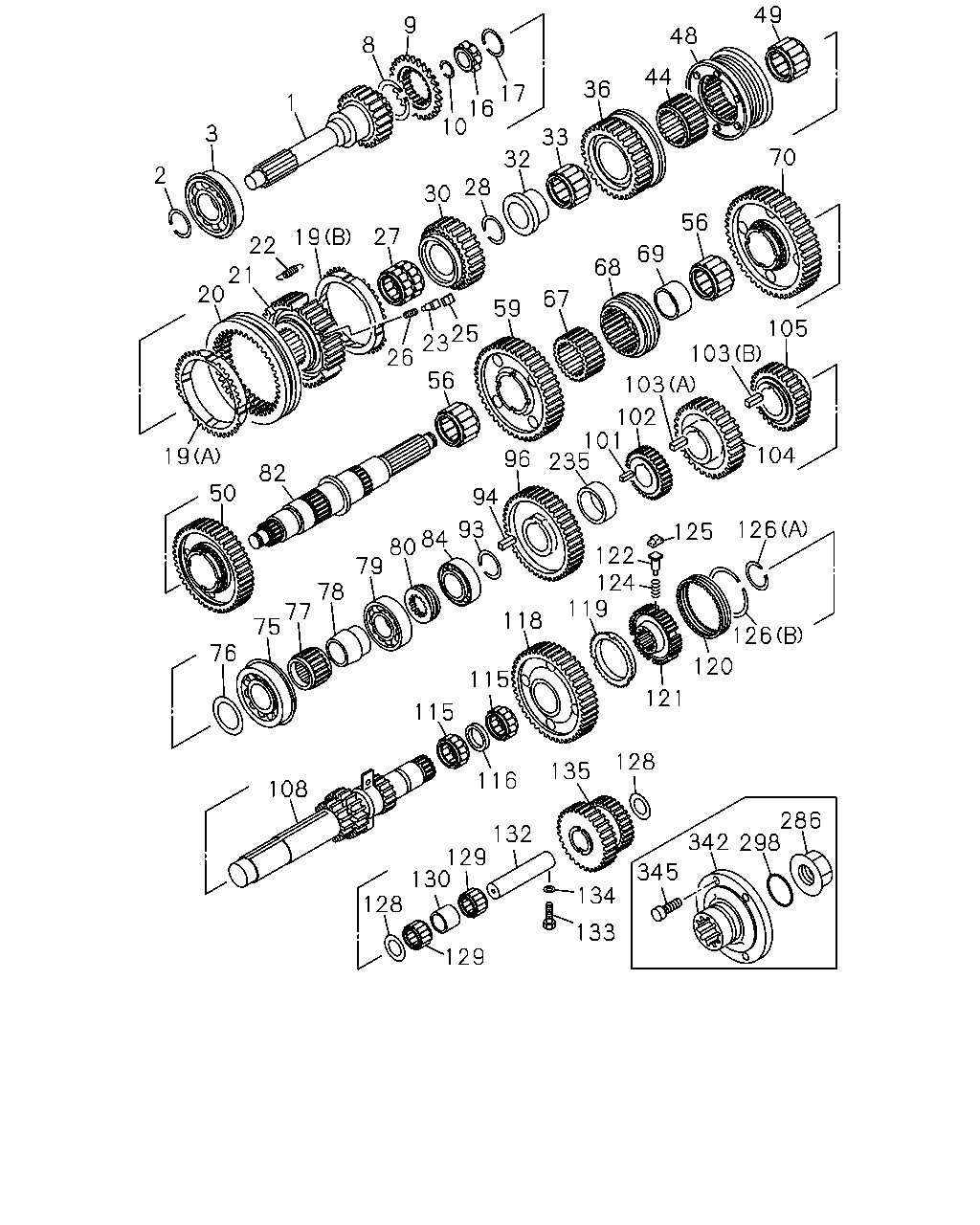

49 9 48 8 44 36 17 16 10 1 3 33 70 32 2 28 30 56 27 19 22 69 68 21 20 67 59 105 103 25 23 26 56 103 102 101 235 104 19 96 82 50 94 126 93 125 84 80 79 122 124 119 78 77 75 118 126 76 120 115 121 115 128 135 116 108 286 298 132 129 130 128 342 345 134 133 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=21	1-33211-276-2	01	1	9001-	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-276-2	01	1	9001-		●	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-338-2	01	1	9001-				●
1	SHAFT; TOP GEAR,TRANS EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=21	1-33211-556-0	01	1	9001-	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-390-0	01	1	9001-9012					●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	01	1	9001-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	01	1	9001-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	01	1	9001-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	01	1	9001-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9001-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9001-	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9001-	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9001-	●	●	●	●	●
10	RING; SNAP,PILOT BRG	1-09588-177-0	01	1	9001-	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9001-	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9001-	●	●	●	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9001-	●	●	●	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9101-9503	●	●	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9504-9908	●	●	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	9909-	●	●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9001-	●	●	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-199-3	01	1	9001-9012					●
20	SLEEVE	1-33262-097-1	01	1	9001-9204	●	●	●	●
20	SLEEVE	1-33262-097-1	01	1	9205-	●	●	●	●
20	SLEEVE	1-33262-072-1	01	1	9001-9012					●
21	HUB; CLU,4TH & 5TH	1-33261-134-0	01	1	9001-9204	●	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9205-	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9001-	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9001-	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9001-	●	●	●	●	●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	9001-		●	●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9001-	●	●	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9001-	●	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-154-0	01	1	9001-	●	●	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=30	1-33253-358-0	01	1	9001-			●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-325-0	01	1	9001-		●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9001-9201	●	●	●	●	●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9202-9203	●	●	●	●
32	COLLAR; 3RD GEAR	1-33234-067-0	01	1	9204-	●	●	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-200-0	01	1	9001-	●	●	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-201-0	01	1	9001-	●	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9001-			●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-199-1	01	1	9001-				●	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-193-1	01	1	9001-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-112-1	01	1	9001-	●	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-117-1	01	1	9001-	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-096-1	01	1	9001-9012					●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-200-0	01	1	9001-	●	●	●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-201-0	01	1	9001-	●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9001-	●	●			●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-201-2	01	1	9001-			●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9001-	●	●	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9001-	●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-003-1	01	1	9001-9001	●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-	●	●	●	●	●
67	HUB; CLU,1ST TO REV	1-33261-052-1	01	1	9001-	●	●	●	●	●
68	SLEEVE; 1ST TO REV	1-33262-003-0	01	1	9001-	●	●	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-060-0	01	1	9001-9302	●	●	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-084-0	01	1	9303-0012	●	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-097-0	01	1	0101-	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-004-1	01	1	9001-9001	●	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-050-1	01	1	9002-	●	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-021-1	01	1	9001-	●	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-163-0	01	1	9001-	●	●	●	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-094-1	01	1	9001-	●	●	●	●	●
77	GEAR; 6TH,MAINSHAFT Z=20	1-33253-355-0	01	1	9001-			●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-352-0	01	1	9001-		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-075-0	01	1	9001-		●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-148-0	01	1	9001-9203		●	●
79	BEARING; BALL,MAINSHAFT NSK	1-09810-172-0	01	1	9204-		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-149-0	01	1	9001-9205		●	●
79	BEARING; BALL,MAINSHAFT NTN	1-09810-173-0	01	1	9206-		●	●
80	GEAR; SPD DRIVE Z=5	1-33371-031-1	01	1	9001-	●				●
80	GEAR; SPD DRIVE Z=7	1-33371-032-1	01	1	9001-		●	●	●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-140-8	01	1	9101-		●	●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-141-8	01	1	9101-	●			●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9001-9901	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	9902-	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9001-	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=60.8	9-09180-065-0	01	1	9001-	●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-032-0	01	1	9001-9103	●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-032-0	01	1	9104-	●			●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-030-0	01	1	9104-		●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9001-	●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-118-1	01	1	9001-			●	●	●
101	KEY; PTO DRIVE GEAR	1-09735-031-0	01	1	9104-		●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	9-33337-006-0	01	1	9104-		●	●
103	KEY; COUNTER GEAR (B) L=45	1-09735-032-0	01	1	9001-	●	●	●	●	●
103	KEY; COUNTER GEAR (A) L=47	1-09735-034-0	01	1	9001-	●	●	●	●	●
104	GEAR; 4TH,COUNTER Z=34	1-33338-178-1	01	1	9001-			●
104	GEAR; 4TH,COUNTER Z=35	1-33338-176-2	01	1	9001-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-078-0	01	1	9001-	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9001-			●
105	GEAR; 3RD,COUNTER Z=31	1-33333-079-0	01	1	9001-9012					●
105	GEAR; 3RD,COUNTER Z=31	1-33333-079-0	01	1	9208-				●
108	SHAFT; COUNTER Z=22-15-13	1-33311-175-1	01	1	9001-9201	●			●	●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-175-1	01	1	9202-9202	●
108	SHAFT; COUNTER Z=22-15-13	1-33311-242-0	01	1	9202-	●
108	SHAFT; COUNTER Z=22-15-13	1-33311-163-0	01	1	9001-9001		●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-213-0	01	1	9002-9201		●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-250-0	01	1	9202-		●
108	SHAFT; COUNTER Z=23-15-13	1-33311-183-1	01	1	9001-9201			●
108	SHAFT; COUNTER Z=23-15-13	1-33311-244-0	01	1	9202-			●
108	SHAFT; COUNTER Z=23-15-13	1-33311-246-0	01	1	9208-				●
115	BEARING; NEEDLE,6TH,COUNTER NSK	9-00096-135-0	02	1	9001-		●	●
115	BEARING; NEEDLE,6TH,COUNTER NTN	9-00096-136-0	02	1	9001-		●	●
116	COLLAR; DIST,COUNTER SHAFT	1-33315-001-0	01	1	9001-		●	●
118	GEAR; 6TH,COUNTER Z=43	1-33338-207-2	01	1	9001-			●
118	GEAR; 6TH,COUNTER Z=45	1-33338-202-2	01	1	9001-		●
119	RING; BLOCK,6TH SYN	1-33265-213-1	01	1	9001-9203		●	●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	9204-		●	●
120	SLEEVE	1-33262-098-2	01	1	9001-		●	●
121	HUB; CLU,6TH	1-33261-135-0	01	1	9001-9204		●	●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9205-		●	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9001-		●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	9001-		●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	9001-		●	●
126	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9001-	●			●	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	9001-		●	●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	02	1	9001-		●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9001-	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9001-	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9001-	●	●	●	●	●
130	COLLAR; DIST,NEEDLE BRG	9-33362-018-0	01	1	9001-	●	●	●	●	●
132	SHAFT; REV	1-33351-014-1	01	1	9001-	●	●	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9001-9201	●	●	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9202-9203	●	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9204-	●	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9001-	●	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-040-1	01	1	9001-9001	●	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201	●	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9202-9202	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-	●	●	●	●
235	COLLAR; DIST,DRIVE GEAR	9-33314-026-0	01	1	9001-9103	●	●	●	●	●
235	COLLAR; DIST,DRIVE GEAR	9-33314-026-0	01	1	9104-	●	●	●	●	●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9001-	●	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9001-	●	●	●	●	●
342	FLANGE; OUTPUT	1-37243-061-2	01	1	9001-9605	●	●	●	●	●
342	FLANGE; OUTPUT	1-37243-305-0	01	1	9606-	●	●	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9001-9412	●	●	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-	●	●	●	●

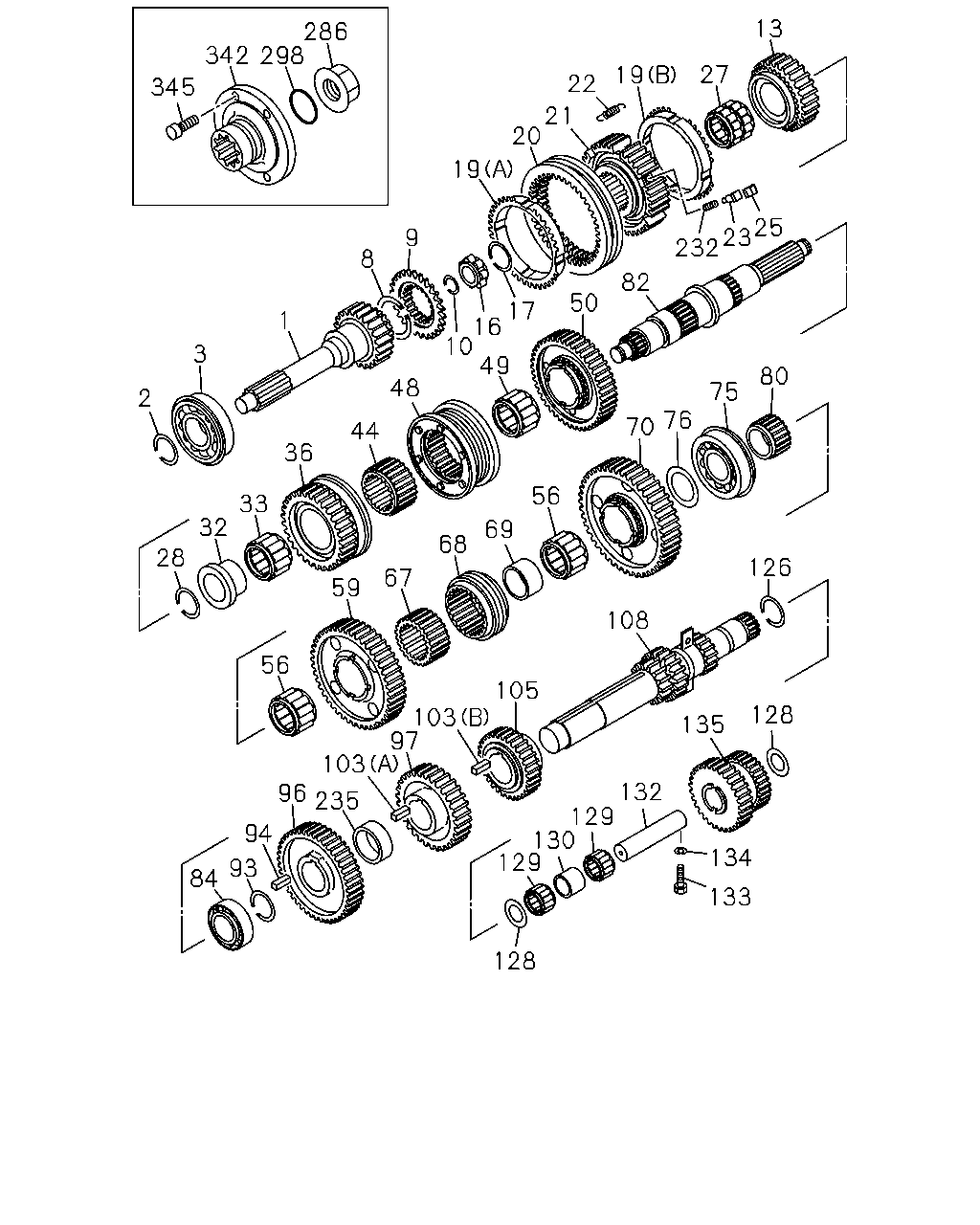

13 286 298 342 27 19 22 345 21 20 19 25 23 232 9 8 82 50 17 16 10 49 1 3 80 48 75 2 76 70 44 36 56 33 32 69 68 28 126 67 59 108 56 105 103 97 128 135 103 132 129 130 129 96 235 94 134 93 84 133 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	SHAFT; TOP GEAR,TRANS 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=21	1-33211-276-2	01	1	9001-	●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-276-2	01	1	9001-		●	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-338-2	01	1	9001-				●
1	SHAFT; TOP GEAR,TRANS EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2), 17"CLUTCH SINGLE PLATE STRAP DRIVE(RF3) Z=21	1-33211-556-0	01	1	9001-	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-390-0	01	1	9001-9012					●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	01	1	9001-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	01	1	9001-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	01	1	9001-	●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	01	1	9001-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9001-	●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9001-	●	●	●	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9001-	●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9001-	●	●	●	●	●
10	RING; SNAP,PILOT BRG	1-09588-177-0	01	1	9001-	●	●	●	●	●
13	GEAR; 5TH,MAINSHAFT Z=20	1-33253-360-0	01	1	9001-				●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-323-0	01	1	9001-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-178-0	01	1	9001-	●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-179-0	01	1	9001-	●	●	●	●	●
17	RING; SNAP,4TH GEAR	9-09952-251-1	01	1	9001-	●	●	●	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9101-9503	●	●	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9504-9908	●	●	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	9909-	●	●	●	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-5	01	1	9001-	●	●	●	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-199-3	01	1	9001-9012					●
20	SLEEVE	1-33262-097-1	01	1	9001-9204	●	●	●	●
20	SLEEVE	1-33262-097-1	01	1	9205-	●	●	●	●
20	SLEEVE	1-33262-072-1	01	1	9001-9012					●
21	HUB; CLU,4TH & 5TH	1-33261-134-0	01	1	9001-9204	●	●	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9205-	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9001-	●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9001-	●	●	●	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9001-	●	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-100-1	01	1	9001-	●	●	●	●	●
27	BEARING; 4TH GEAR NTN	1-09811-230-1	01	1	9001-	●	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-154-0	01	1	9001-	●	●	●	●	●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9001-9201	●	●	●	●	●
32	COLLAR; 3RD GEAR	1-33234-049-0	01	1	9202-9203	●	●	●	●
32	COLLAR; 3RD GEAR	1-33234-067-0	01	1	9204-	●	●	●	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-200-0	01	1	9001-	●	●	●	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-201-0	01	1	9001-	●	●	●	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-195-1	01	1	9001-			●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-199-1	01	1	9001-				●	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-193-1	01	1	9001-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-112-1	01	1	9001-	●	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-117-1	01	1	9001-	●	●	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-096-1	01	1	9001-9012					●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-200-0	01	1	9001-	●	●	●	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-201-0	01	1	9001-	●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-052-2	01	1	9001-	●	●			●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-201-2	01	1	9001-			●	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-200-0	02	1	9001-	●	●	●	●	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-201-0	02	1	9001-	●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-003-1	01	1	9001-9001	●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=41-40	1-33257-054-1	01	1	9002-	●	●	●	●	●
67	HUB; CLU,1ST TO REV	1-33261-052-1	01	1	9001-	●	●	●	●	●
68	SLEEVE; 1ST TO REV	1-33262-003-0	01	1	9001-	●	●	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-060-0	01	1	9001-9302	●	●	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-084-0	01	1	9303-0012	●	●	●	●
69	COLLAR; 1ST GEAR MAIN	1-33234-097-0	01	1	0101-	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-004-1	01	1	9001-9001	●	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-050-1	01	1	9002-	●	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-021-1	01	1	9001-	●	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-163-0	01	1	9001-	●	●	●	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-094-1	01	1	9001-	●	●	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-031-1	01	1	9001-	●				●
80	GEAR; SPD DRIVE Z=7	1-33371-032-1	01	1	9001-		●	●	●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-140-8	01	1	9101-		●	●
82	SHAFT; MAIN,TRANS Z=28-37-37-21	1-33231-141-8	01	1	9101-	●			●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-118-0	01	1	9001-9901	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	9902-	●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	9001-	●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=60.8	9-09180-065-0	01	1	9001-	●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-032-0	01	1	9001-9103	●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-032-0	01	1	9104-	●			●
94	KEY; FEATHER,COUNTER SHAFT	1-09735-030-0	01	1	9104-		●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-116-2	01	1	9001-	●	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-118-1	01	1	9001-			●	●	●
97	GEAR; 5TH,COUNTER Z=43	1-33338-177-3	01	1	9208-				●
97	GEAR; 5TH,COUNTER Z=35	1-33338-176-2	01	1	9001-	●				●
103	KEY; COUNTER GEAR (B) L=45	1-09735-032-0	01	1	9001-	●	●	●	●	●
103	KEY; COUNTER GEAR (A) L=47	1-09735-034-0	01	1	9001-	●	●	●	●	●
105	GEAR; 3RD,COUNTER Z=28	1-33333-078-0	01	1	9001-	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-077-0	01	1	9001-			●
105	GEAR; 3RD,COUNTER Z=31	1-33333-079-0	01	1	9001-9012					●
105	GEAR; 3RD,COUNTER Z=31	1-33333-079-0	01	1	9208-				●
108	SHAFT; COUNTER Z=22-15-13	1-33311-175-1	01	1	9001-9201	●			●	●
108	SHAFT; COUNTER Z=15-22-13-28	1-33311-175-1	01	1	9202-9202	●
108	SHAFT; COUNTER Z=22-15-13	1-33311-242-0	01	1	9202-	●
108	SHAFT; COUNTER Z=22-15-13	1-33311-163-0	01	1	9001-9001		●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-213-0	01	1	9002-9201		●
108	SHAFT; COUNTER Z=28-22-15-13	1-33311-250-0	01	1	9202-		●
108	SHAFT; COUNTER Z=23-15-13	1-33311-183-1	01	1	9001-9201			●
108	SHAFT; COUNTER Z=23-15-13	1-33311-244-0	01	1	9202-			●
108	SHAFT; COUNTER Z=23-15-13	1-33311-246-0	01	1	9208-				●
126	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9001-	●			●	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	9001-		●	●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	02	1	9001-		●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-012-0	02	1	9001-	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	9-00096-137-0	02	1	9001-	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-138-0	02	1	9001-	●	●	●	●	●
130	COLLAR; DIST,NEEDLE BRG	9-33362-018-0	01	1	9001-	●	●	●	●	●
132	SHAFT; REV	1-33351-014-1	01	1	9001-	●	●	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9001-9201	●	●	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-014-1	01	1	9202-9203	●	●	●	●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9204-	●	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9001-	●	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-040-1	01	1	9001-9001	●	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9002-9201	●	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-052-0	01	1	9202-9202	●	●	●	●
135	GEAR; REV IDLER Z=26-20	1-33361-059-1	01	1	9202-	●	●	●	●
232	SPRING; PLUNGER	1-09580-091-1	03	1	9001-	●				●
235	COLLAR; DIST,DRIVE GEAR	9-33314-026-0	01	1	9001-9103	●	●	●	●	●
235	COLLAR; DIST,DRIVE GEAR	9-33314-026-0	01	1	9104-	●	●	●	●	●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9001-	●	●	●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9001-	●	●	●	●	●
342	FLANGE; OUTPUT	1-37243-061-2	01	1	9001-9605	●	●	●	●	●
342	FLANGE; OUTPUT	1-37243-305-0	01	1	9606-	●	●	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-048-1	04	1	9001-9412	●	●	●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9501-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
