◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#20668) — 44 parça

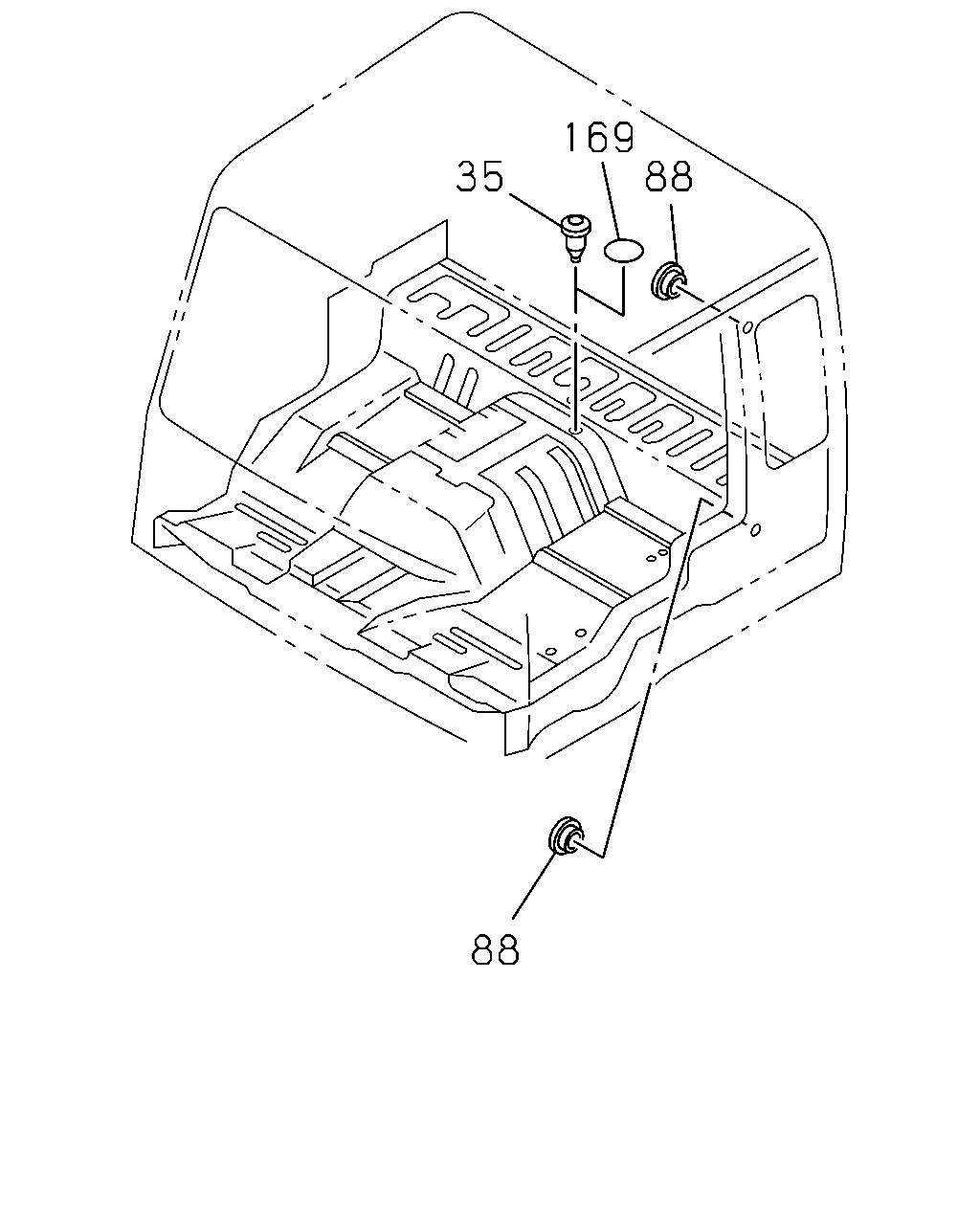

çizim 16815
169 88 35 88
BalonParca AdiParca NoAdetTipApplied Date
35 GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=22 		9-61168-535-0 03 1 9510-1005
35 GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=22 		9-61168-535-0 02 1 1006-
35 GROMMET; SEAT BELT ANCHOR
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> OD=22 		9-61168-535-0 01 1 9510-1005
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> OD=31.6 		8-94198-177-0 01 1 9510-9602
88 PLUG; HOLE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=31.6 		8-94198-177-0 02 1 9510-9709
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> OD=31.6 		8-94198-177-0 02 1 9710-
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> OD=25 BLACK 		1-76798-019-0 03 1 1006-
169 SEAL
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> OD=25 BLACK 		1-76798-019-0 01 1 1006-

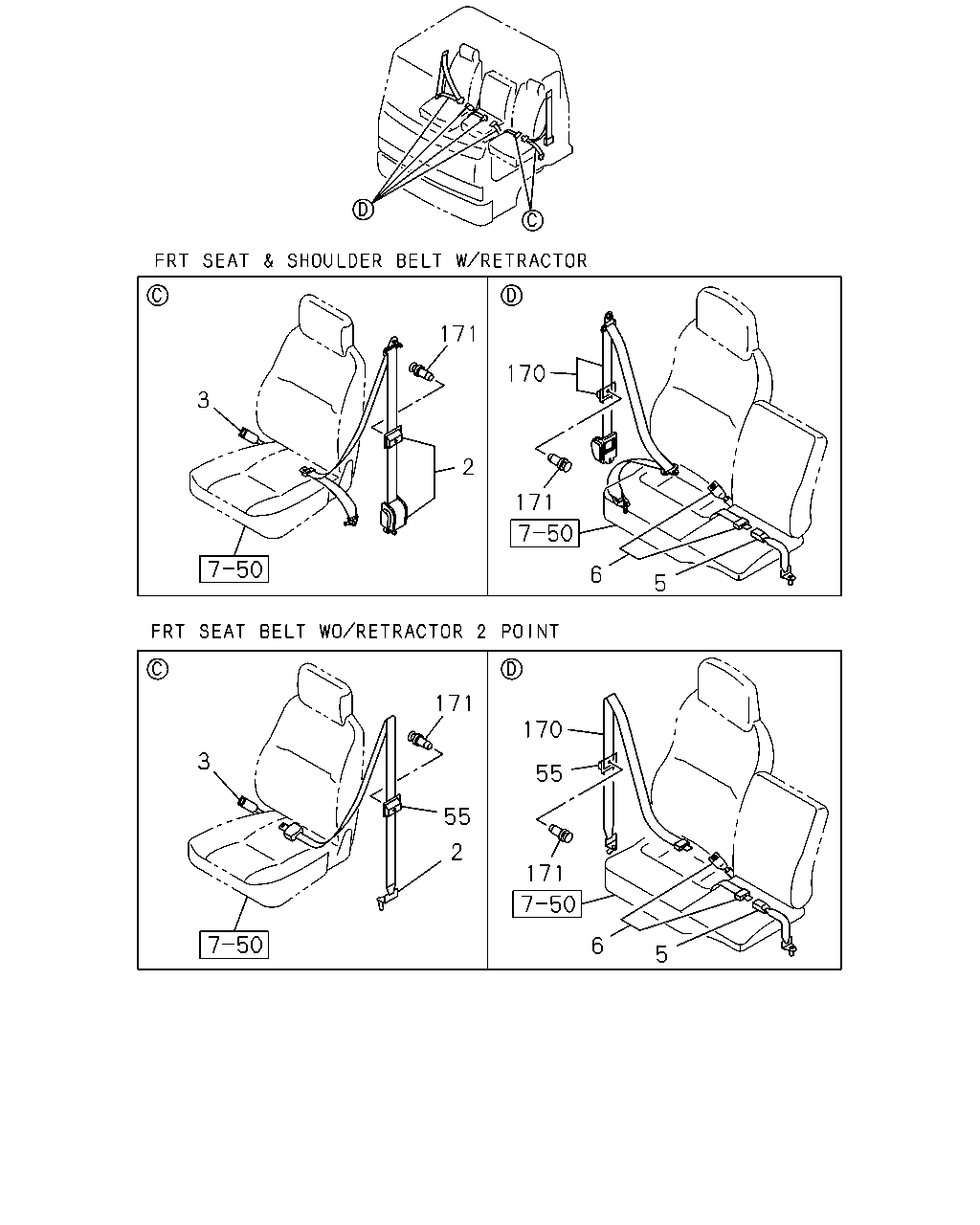

çizim 64918
171 170 3 2 171 6 5 171 170 3 55 55 2 171 6 5
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-514-2 01 1 9510-0004
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-909-5 01 1 0005-0806
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		8-98120-810-0 01 1 0807-
2 BELT; SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-780-2 01 1 9510-0004
2 BELT; SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-936-4 01 1 0005-
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-735-2 01 1 9510-0004
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75617-545-0 01 1 0005-
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-739-0 01 1 9510-0004
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75617-553-1 01 1 0005-
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75617-511-2 01 1 9510-0004
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-915-4 01 1 0005-
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-513-0 02 1 9510-0004
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-556-0 02 1 0005-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-509-2 01 1 9510-0004
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-912-5 01 1 0005-0806
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		8-98120-818-0 01 1 0807-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-780-2 01 1 9510-0004
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-936-4 01 1 0005-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9510-

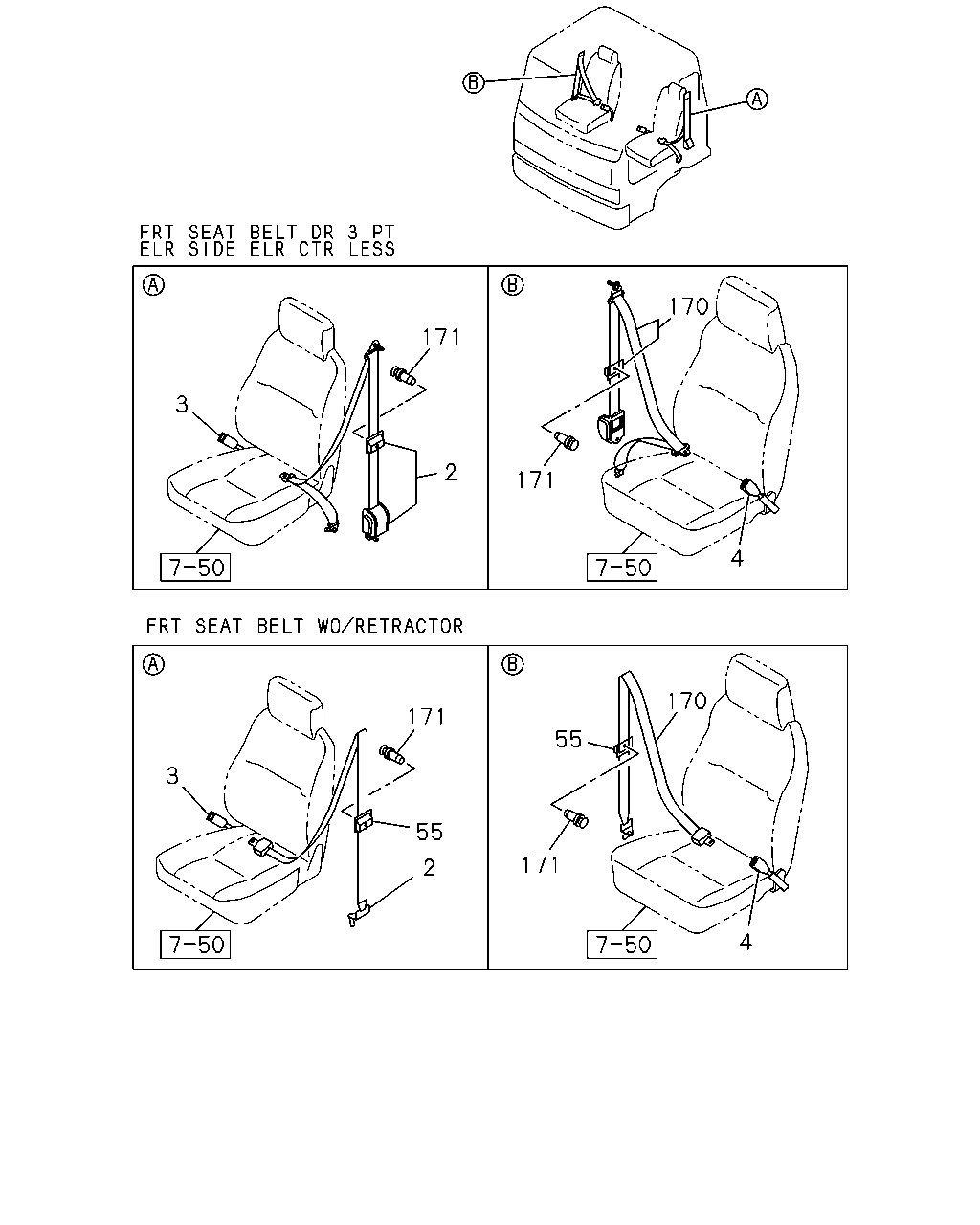

çizim 64928
170 171 3 2 171 4 170 171 55 3 55 171 2 4
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-514-2 01 1 9510-0004
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-909-5 01 1 0005-0806
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		8-98120-810-0 01 1 0807-
2 BELT; SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-780-2 01 1 9510-0004
2 BELT; SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-936-4 01 1 0005-
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-735-2 01 1 9510-0004
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75617-545-0 01 1 0005-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-797-0 01 1 9510-0004
4 BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-911-1 01 1 0005-
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-513-0 02 1 9510-0004
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-556-0 02 1 0005-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-509-2 01 1 9510-0004
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-912-5 01 1 0005-0806
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEAT BELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		8-98120-818-0 01 1 0807-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-780-2 01 1 9510-0004
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT BELT WO/RETRACTOR<A37>,FRT SEAT BELT WO/RETRACTOR 2 POINT<W25> 		1-75618-936-4 01 1 0005-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9510-
