Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#20667) — 469 parça

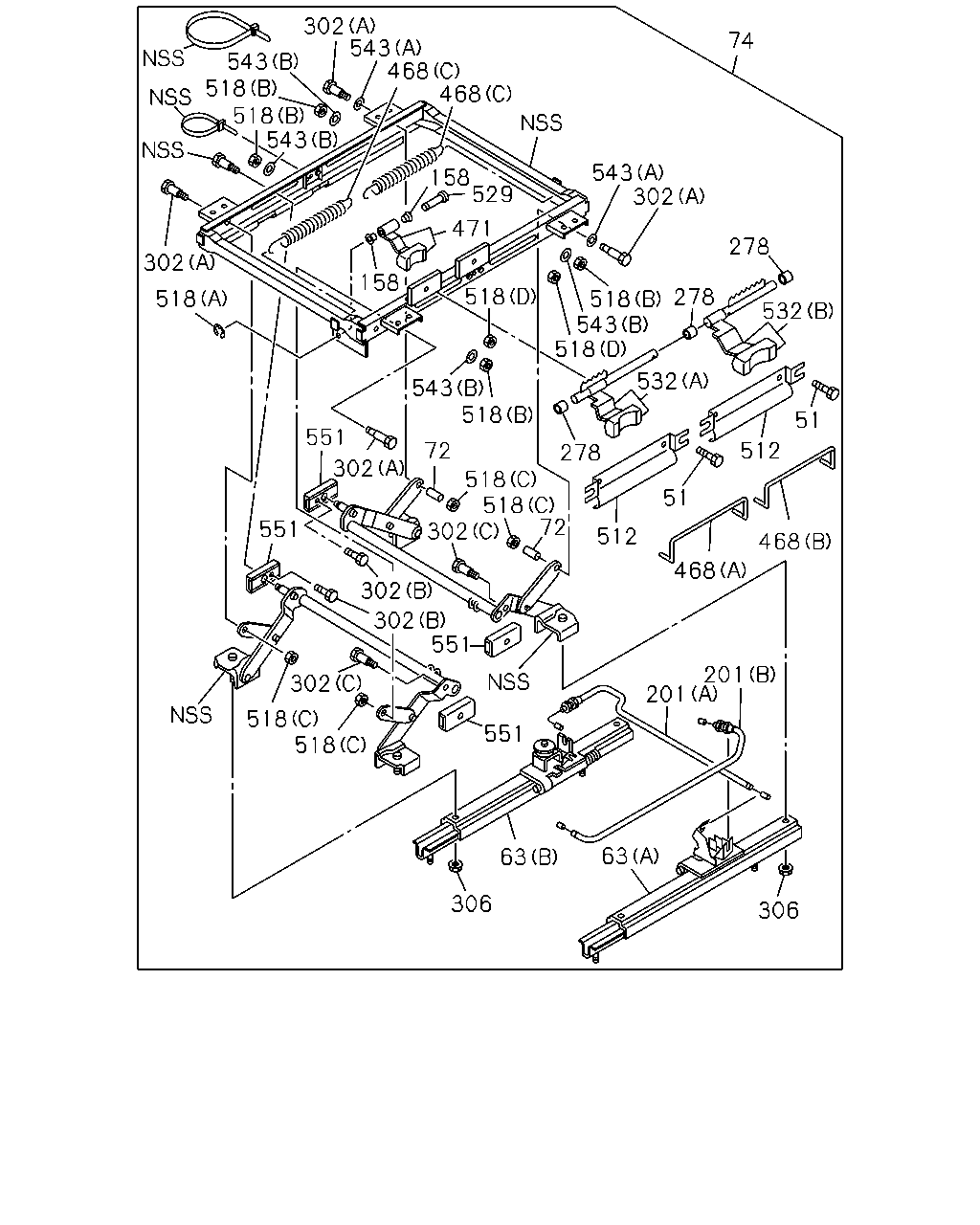

302 543 468 468 74 543 518 518 543 158 529 543 302 471 278 302 158 518 278 518 518 543 518 532 543 518 532 51 278 551 72 512 302 518 518 302 51 551 512 468 468 302 302 551 201 201 302 518 518 551 63 63 306 306 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER DELUXE CAB(W14) M6X12 W/LK WASHER	9-03910-612-0	04	1	9510-9603
63	ADJUSTER; SEAT SLIDE (A)	1-75518-226-0	01	1	9510-9705
63	ADJUSTER; SEAT SLIDE (A)	1-75518-295-1	01	1	9706-
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	9510-
72	SPACER; SEAT ADJ DELUXE CAB(W14)	1-75518-269-0	02	1	9603-9603
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-200-4	01	1	9510-9602
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-255-0	01	1	9603-9603
158	BUSHING; LINK ARM	1-75518-209-0	02	1	9510-
201	CABLE; ADJ (A) L=667	1-75518-201-0	01	1	9510-9705
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	9706-
201	CABLE; ADJ (B) L=605	1-75518-202-1	01	1	9510-9705
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	9706-
278	COLLAR; FRT SEAT DELUXE CAB(W14)	1-75518-244-0	03	1	9510-9603
302	BOLT; ADJ,HEIGHT CONT DELUXE CAB(W14) (A)	1-75518-236-0	04	1	9510-9602
302	BOLT; ADJ,HEIGHT CONT DELUXE CAB(W14) (A)	1-75518-270-0	04	1	9603-9603
302	BOLT; ADJ,HEIGHT CONT DELUXE CAB(W14) (C)	1-75518-266-0	02	1	9603-9603
302	BOLT; ADJ,HEIGHT CONT DELUXE CAB(W14) (B)	1-75518-271-0	02	1	9603-9603
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	04	1	9510-0003
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0004-0501
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	12	1	0502-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0502-
468	SPRING; RETURN DELUXE CAB(W14) (A)	1-75518-206-0	01	1	9510-9603
468	SPRING; RETURN DELUXE CAB(W14) (B)	1-75518-207-0	01	1	9510-9603
468	SPRING; RETURN DELUXE CAB(W14) (C)	1-75518-208-0	02	1	9510-9603
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	9510-
471	LEVER; SEAT ADJ	1-75518-220-1	01	1	9510-9705
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	9706-0710
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0711-
512	COVER; LEVER DELUXE CAB(W14)	1-75518-245-0	02	1	9510-9603
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	9706-
518	NUT; TILT ADJ DELUXE CAB(W14) (A)	1-75518-263-0	01	1	9603-9603
518	NUT; TILT ADJ DELUXE CAB(W14) (C) M8	1-75518-264-0	04	1	9603-9603
518	NUT; TILT ADJ DELUXE CAB(W14) (D) M6 LOCK NUT	5-09984-020-0	02	1	9603-9603
518	NUT; TILT ADJ DELUXE CAB(W14) (B) M8 FLANGE	8-94152-886-0	04	1	9603-9603
529	PIN; LINK	1-75518-262-0	01	1	9706-
529	PIN; LINK DELUXE CAB(W14)	1-75518-262-0	01	1	9603-9603
532	LEVER ASM; TILT DELUXE CAB(W14) (A)	1-75518-221-0	01	1	9510-9603
532	LEVER ASM; TILT DELUXE CAB(W14) (B)	1-75518-222-1	01	1	9510-9603
543	WASHER; HEIGHT ADJUSTER DELUXE CAB(W14) (A) ID=10.5	9-09164-510-0	02	1	9510-9603
543	WASHER; HEIGHT ADJUSTER DELUXE CAB(W14) (B) ID=6.4	9-09160-506-0	04	1	9603-9603
551	SLIDER; HEIGHT ADJ DELUXE CAB(W14)	1-75518-265-0	04	1	9603-9603

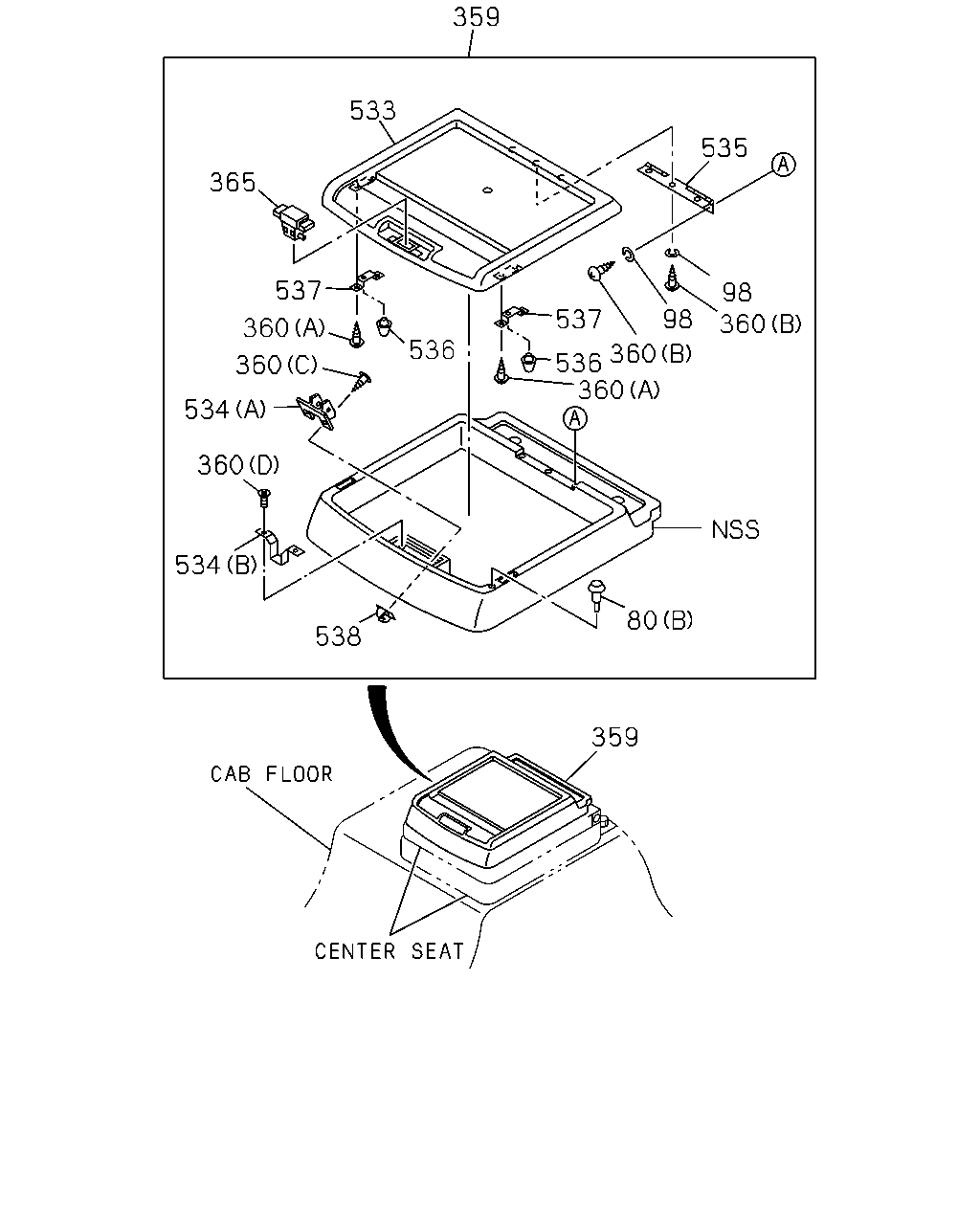

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> (A)	1-09987-123-0	01	1	9510-
80	RUBBER; STOPPER VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (B)	1-72538-187-0	02	1	1007-
98	WASHER; HINGE VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	9510-9802
98	WASHER; HINGE VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	9803-0004
98	WASHER; HINGE VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0005-0310
98	WASHER; HINGE VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0311-
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-72538-275-0	01	1	0005-0211
359	BOX; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	1-72538-275-4	01	1	0212-1006
359	BOX; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	8-98145-114-0	01	1	1007-
359	BOX; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	1-72538-157-2	01	1	9510-9802
359	BOX; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	1-72538-157-2	01	1	9803-0004
359	BOX; PARCEL VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-72538-157-2	01	1	0005-0211
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	08	1	0005-0310
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X20	9-09829-324-1	02	1	0005-0211
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X20	9-09829-324-1	01	1	0212-0310
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9510-9802
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9803-0612
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9> (B) M4X16	0-70080-416-0	06	1	9510-9802
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	9803-0612
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70040-416-0	06	1	0701-1104
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9510-9802
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9803-0004
360	SCREW; PARCEL VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0005-0310
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0311-1006
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-
365	LOCK ASM; SEAT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	1-72538-180-0	01	1	9510-9802
365	LOCK ASM; SEAT VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	1-72538-180-0	01	1	9803-
533	LID; PARCEL BOX VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	1-72538-194-2	01	1	9510-9802
533	LID; PARCEL BOX VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	1-72538-194-2	01	1	9803-0310
533	LID; PARCEL BOX VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	1-72538-277-1	01	1	0311-1006
533	LID; PARCEL BOX VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	8-98145-118-0	01	1	1007-
534	STRIKER; PARCEL BOX VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9> (A)	1-72538-181-0	01	1	9510-9802
534	STRIKER; PARCEL BOX VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (A)	1-72538-181-0	01	1	9803-1006
534	STRIKER; PARCEL BOX VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (B)	1-72538-190-0	01	1	1007-
535	HINGE; PARCEL BOX VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	1-72447-391-1	01	1	9510-9802
535	HINGE; PARCEL BOX VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	1-72447-391-1	01	1	9803-
536	RUBBER; CUSHION VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	5-09983-002-1	02	1	9510-9802
536	RUBBER; CUSHION VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	5-09983-002-1	02	1	9803-1006
537	BRACKET; RUBBER VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	1-72548-057-1	02	1	9510-9802
537	BRACKET; RUBBER VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	1-72548-057-1	02	1	9803-1006
538	GROMMET; SCREW VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	1-09983-165-0	02	1	9510-9802
538	GROMMET; SCREW VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	1-09983-165-0	02	1	9803-1006

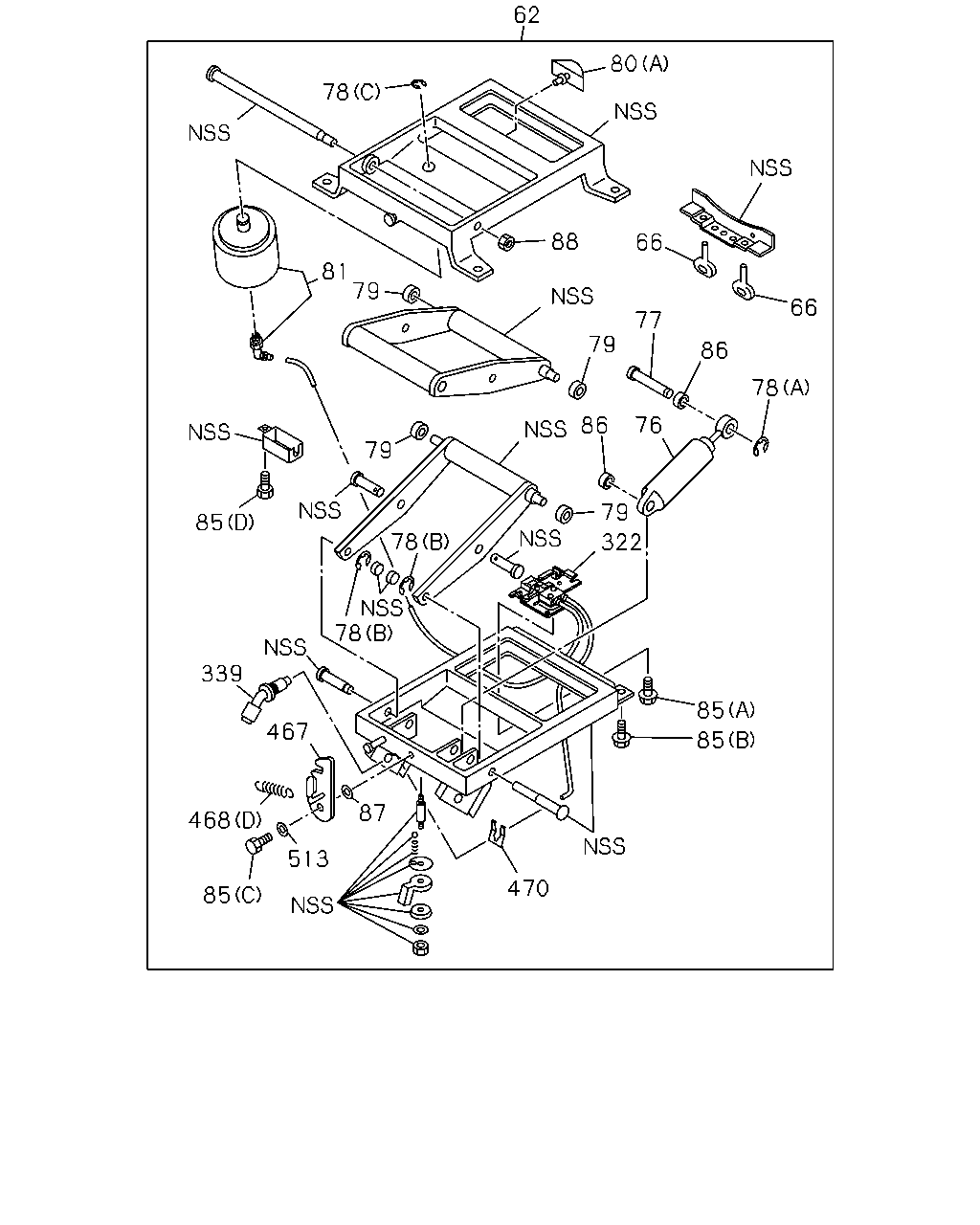

470 468 513 339 467 78 322 85 87 85 85 78 79 79 76 86 79 77 78 66 66 86 88 79 81 78 62 80 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-141-4	01	1	9510-9602
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-158-0	01	1	9603-9712
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-169-0	01	1	9801-9804
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-182-0	01	1	9805-9811
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	9812-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56>	1-75538-145-0	02	1	9510-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-139-0	01	1	9510-
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56>	1-75538-138-2	01	1	9510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	9510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=10	9-09185-410-0	02	1	9510-0406
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (C) ID=15	9-09185-415-0	01	1	9510-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-155-0	04	1	9510-9602
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-159-0	04	1	9603-1403
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> (A)	1-09987-123-0	01	1	9510-
80	RUBBER; STOPPER VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (B)	1-72538-187-0	02	1	1007-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	1-75538-151-2	01	1	9510-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56>	8-98242-816-0	01	1	1401-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12 W/LK WASHER	0-50040-612-0	02	1	9510-0102
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	0103-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9510-0003
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0004-1312
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	9510-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	9510-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	9-09150-508-0	01	1	9510-0710
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	0711-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	8-94279-519-0	01	1	9510-0003
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10	1-75537-273-1	01	1	0004-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-148-1	01	1	9510-9804
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56>	1-75538-187-3	01	1	9805-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>	1-75538-131-3	01	1	9510-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56>	1-75538-134-0	01	1	9510-
468	SPRING; RETURN DELUXE CAB(W14) (A)	1-75518-206-0	01	1	9510-9603
468	SPRING; RETURN DELUXE CAB(W14) (B)	1-75518-207-0	01	1	9510-9603
468	SPRING; RETURN DELUXE CAB(W14) (C)	1-75518-208-0	02	1	9510-9603
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D)	1-75538-132-0	01	1	9510-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56>	1-75538-137-0	01	1	9510-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56>	1-75538-133-0	01	1	9510-

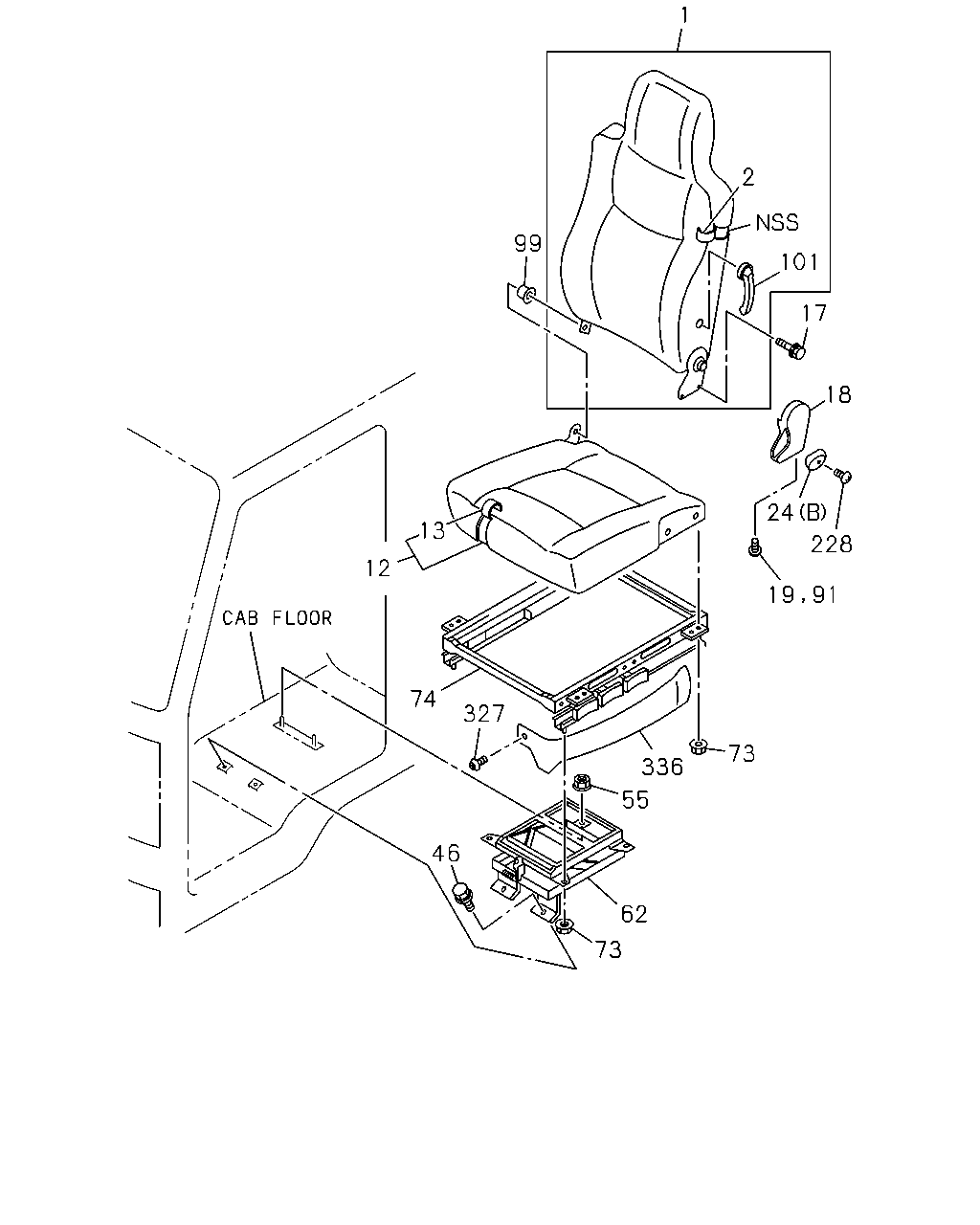

1 2 99 101 17 18 24 13 228 12 74 327 73 336 55 46 62 73 19 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75028-625-1	01	1	9510-9802
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75028-861-1	01	1	9803-0003
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75026-719-0	01	1	0004-0004
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75026-733-0	01	1	0005-0105
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75208-072-3	01	1	0106-
1	BACK ASM; SEAT DELUXE CAB(W14)	1-75028-576-0	01	1	9510-9603
1	BACK ASM; SEAT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75028-637-1	01	1	9510-9603
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75028-615-2	01	1	9510-9603
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75028-615-2	01	1	9604-0003
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75026-720-0	01	1	0004-0004
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75026-735-0	01	1	0005-0105
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-3	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-279-0	01	1	9510-9611
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-253-1	01	1	9612-9802
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-343-0	01	1	9803-0003
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-598-0	01	1	0004-0004
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-707-1	01	1	0005-
2	COVER; TRIM,FRT SEAT,BACK DELUXE CAB(W14)	1-75116-253-0	01	1	9510-9603
2	COVER; TRIM,FRT SEAT,BACK HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-284-1	01	1	9510-9603
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75116-273-1	01	1	9510-9603
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-273-1	01	1	9604-0003
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-599-0	01	1	0004-0004
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-1	01	1	0005-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75028-600-1	01	1	9510-9802
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75028-996-0	01	1	9803-0003
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-684-0	01	1	0004-0004
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-700-1	01	1	0005-
12	CUSHION; SEAT,FRT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75028-529-1	01	1	9510-9603
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75028-599-3	01	1	9510-9603
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75028-599-3	01	1	9604-0003
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75026-685-0	01	1	0004-0004
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-1	01	1	0005-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75117-842-0	01	1	9510-9802
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-371-0	01	1	9803-0003
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-552-0	01	1	0004-0004
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-688-1	01	1	0005-
13	COVER; TRIM,FRT SEAT,CUSHION HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-224-1	01	1	9510-9603
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75116-272-2	01	1	9510-9603
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-272-2	01	1	9604-9705
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-277-2	01	1	9706-0003
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-553-0	01	1	0004-0004
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-1	01	1	0005-
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9510-0003
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0004-
18	COVER; RECLINING	1-75418-052-0	01	1	9510-0004
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0005-
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9510-
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-056-0	01	1	9510-0004
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0005-0710
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-067-0	01	1	0711-
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER	1-75418-059-0	01	1	9510-0004
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0005-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9510-0703
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9510-0703
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-141-4	01	1	9510-9602
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-158-0	01	1	9603-9712
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-169-0	01	1	9801-9804
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-182-0	01	1	9805-9811
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	9812-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	08	1	9510-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0004-0501
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	9510-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-200-4	01	1	9510-9602
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-255-0	01	1	9603-9603
91	SCREW; SEAT ADJ COVER DELUXE CAB(W14) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9510-9603
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9510-
101	LEVER ASM; LUMBAR DELUXE CAB(W14)	5-75190-138-0	01	1	9510-9603
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	9510-0710
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	9510-0710
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0711-
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56>	1-09987-273-0	01	1	0005-0201
327	CLIP; COVER DELUXE CAB(W14)	1-09987-249-0	01	1	9510-9603
336	COVER; DRIVER SEAT DELUXE CAB(W14)	1-75518-194-2	01	1	9510-9603

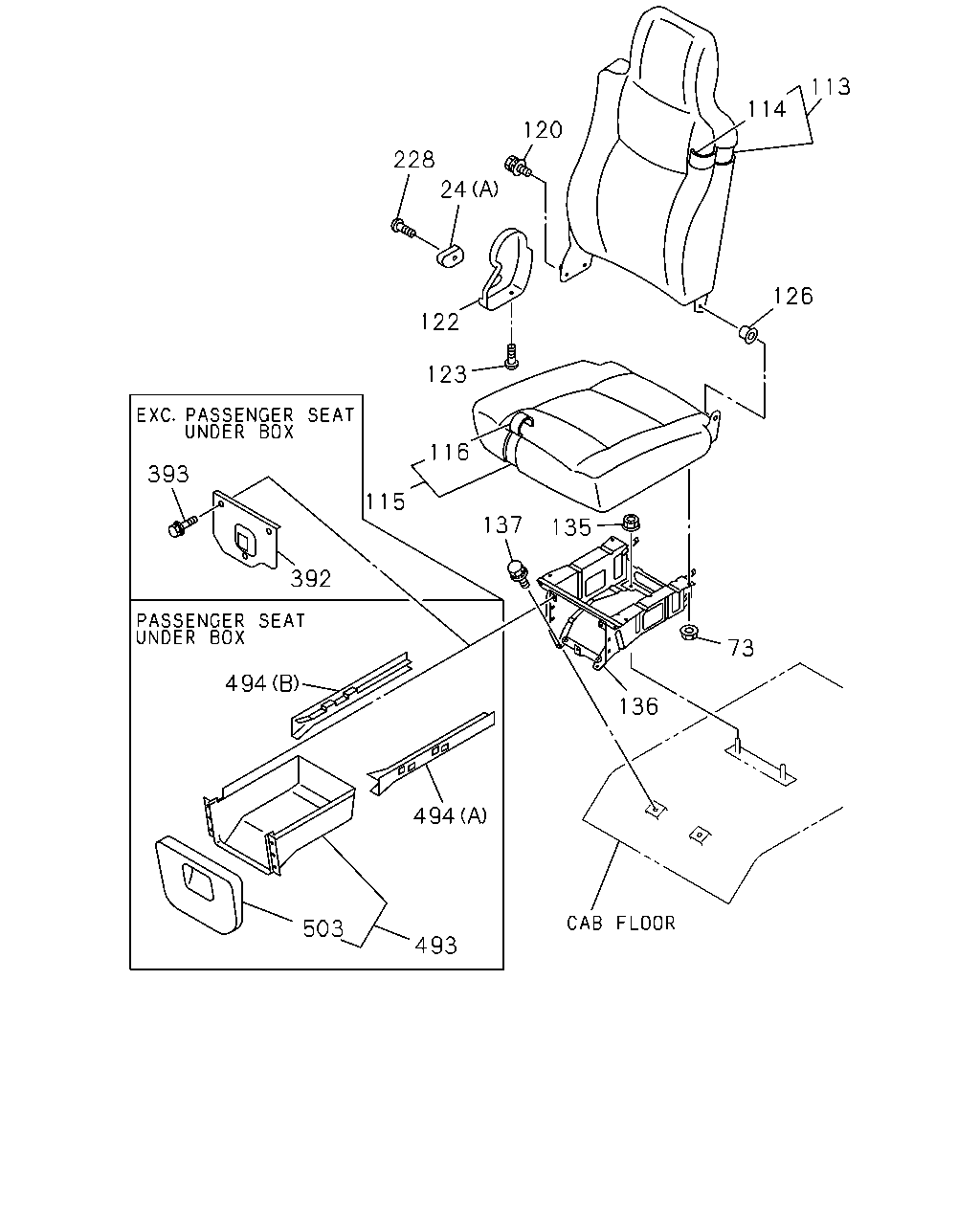

113 114 120 228 24 126 122 123 116 393 115 137 135 392 73 494 136 494 503 493

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-056-0	01	1	9510-0004
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0005-0710
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-067-0	01	1	0711-
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER	1-75418-059-0	01	1	9510-0004
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0005-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	08	1	9510-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0004-0501
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	9510-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75028-586-1	01	1	9510-9802
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75028-998-0	01	1	9803-0003
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-712-0	01	1	0004-0004
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-723-0	01	1	0005-0105
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75208-062-3	01	1	0106-
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75028-618-1	01	1	9510-9610
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75028-590-2	01	1	9611-0003
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75026-721-0	01	1	0004-0004
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75026-728-0	01	1	0005-0105
113	BACK ASM; SEAT VINYL SEAT<A83>	1-75208-067-3	01	1	0106-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-256-0	01	1	9510-9802
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-373-0	01	1	9803-0003
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-587-0	01	1	0004-0004
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING<SFQ>	1-75116-602-1	01	1	0005-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-274-1	01	1	9510-9610
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-277-2	01	1	9611-0003
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-600-0	01	1	0004-0004
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83>	1-75116-702-1	01	1	0005-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75028-583-2	01	1	9510-9802
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-024-0	01	1	9803-0003
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-682-0	01	1	0004-0004
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING<SFQ>	1-75026-698-1	01	1	0005-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75028-620-2	01	1	9510-9610
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75028-531-2	01	1	9611-0003
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75026-771-0	01	1	0004-0004
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83>	1-75026-692-1	01	1	0005-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75117-841-1	01	1	9510-9802
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75116-378-0	01	1	9803-0003
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75116-550-0	01	1	0004-0004
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING<SFQ>	1-75116-686-1	01	1	0005-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-275-2	01	1	9510-9610
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-225-1	01	1	9611-0003
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-575-0	01	1	0004-0004
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83>	1-75116-680-1	01	1	0005-
120	BOLT; RECLINING ADJ M8X18	8-94279-109-1	02	1	9510-0003
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0004-
122	COVER; ADJ,RECLINING	1-75418-050-0	01	1	9510-0004
122	COVER; ADJ,RECLINING DARK GRAY	8-97867-020-0	01	1	0005-
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9510-
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	9510-
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	9510-0703
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-
136	STAND; PASSENGER SEAT	1-75558-547-1	01	1	9510-9610
136	STAND; PASSENGER SEAT	1-75558-550-4	01	1	9611-0004
136	STAND; PASSENGER SEAT	1-75558-582-1	01	1	0005-0005
136	STAND; PASSENGER SEAT	1-75558-550-4	01	1	0006-0105
136	STAND; PASSENGER SEAT	1-75558-587-0	01	1	0106-0212
136	STAND; PASSENGER SEAT	1-75558-550-7	01	1	0301-1305
136	STAND; PASSENGER SEAT	8-98242-292-0	01	1	1306-
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9510-0703
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	9510-0710
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	9510-0710
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0711-
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-
392	COVER; STAND,PASSENGER SEAT	1-75558-535-3	01	1	9611-
393	BOLT; COVER,SEAT STAND M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9611-0703
393	BOLT; COVER,SEAT STAND M6X16	0-52000-616-0	03	1	0704-
493	BOX; SEAT STAND PASSENGER SEAT UNDER BOX<TDN>	1-72537-130-1	01	1	9510-9603
494	RAIL; GUIDE PASSENGER SEAT UNDER BOX<TDN> (A)	1-72537-149-0	01	1	9510-9603
494	RAIL; GUIDE PASSENGER SEAT UNDER BOX<TDN> (B)	1-72537-150-0	01	1	9510-9603
503	COVER; BOX PASSENGER SEAT UNDER BOX<TDN>	1-72537-136-0	01	1	9510-9603

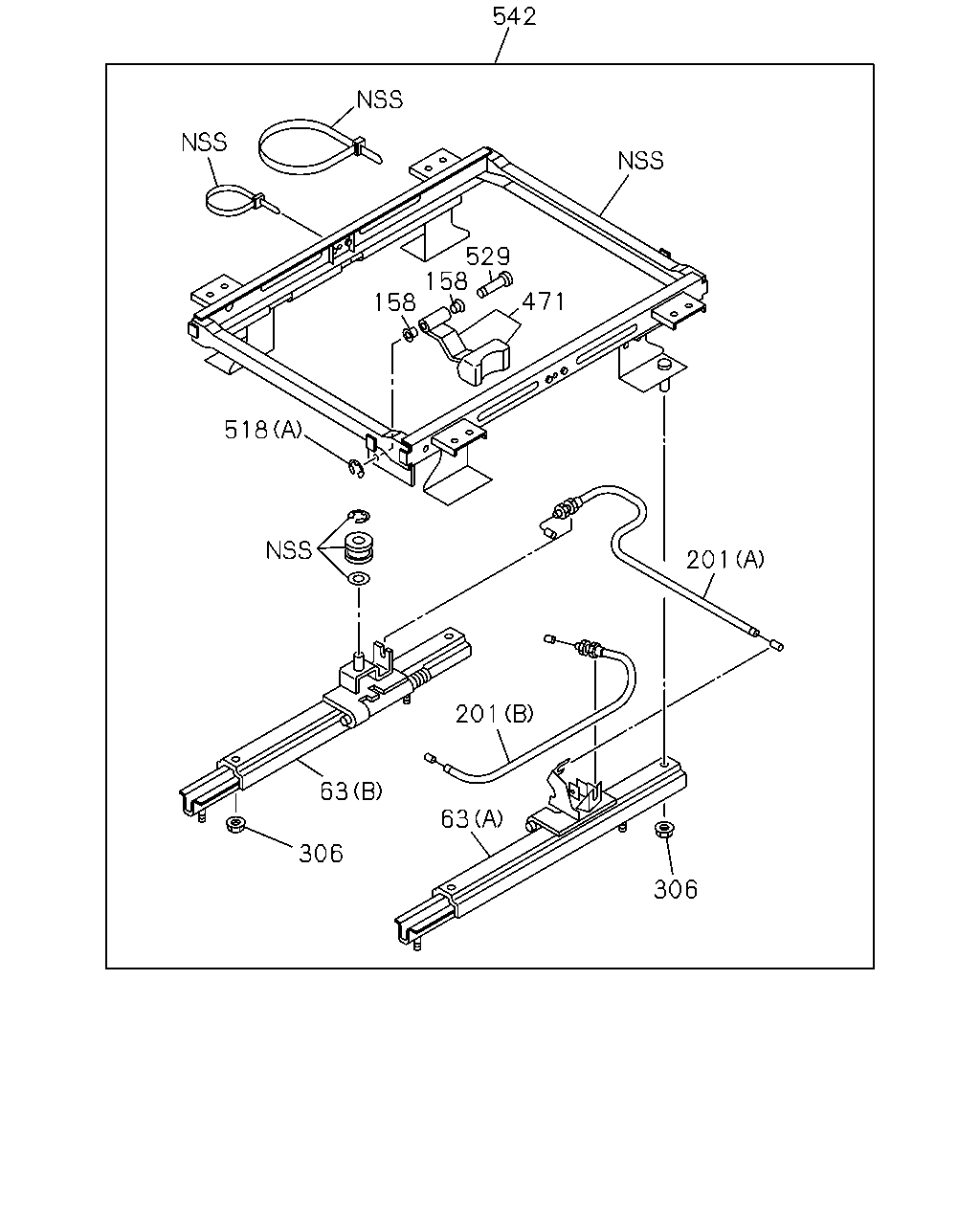

542 529 158 471 158 518 201 201 63 63 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
63	ADJUSTER; SEAT SLIDE (A)	1-75518-226-0	01	1	9510-9705
63	ADJUSTER; SEAT SLIDE (A)	1-75518-295-1	01	1	9706-
63	ADJUSTER; SEAT SLIDE (B)	1-75518-227-1	01	1	9510-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	9510-
201	CABLE; ADJ (A) L=667	1-75518-201-0	01	1	9510-9705
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	9706-
201	CABLE; ADJ (B) L=605	1-75518-202-1	01	1	9510-9705
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	9706-
306	NUT; SEAT ADJ M8 FLANGE	8-94279-518-0	04	1	9510-0003
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0004-0501
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> M8 FLANGE	1-75538-207-0	12	1	0502-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	04	1	0502-
471	LEVER; SEAT ADJ	1-75518-220-1	01	1	9510-9705
471	LEVER; SEAT ADJ	1-75518-290-0	01	1	9706-0710
471	LEVER; SEAT ADJ	8-98107-870-0	01	1	0711-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	9706-
518	NUT; TILT ADJ DELUXE CAB(W14) (A)	1-75518-263-0	01	1	9603-9603
518	NUT; TILT ADJ DELUXE CAB(W14) (C) M8	1-75518-264-0	04	1	9603-9603
518	NUT; TILT ADJ DELUXE CAB(W14) (D) M6 LOCK NUT	5-09984-020-0	02	1	9603-9603
518	NUT; TILT ADJ DELUXE CAB(W14) (B) M8 FLANGE	8-94152-886-0	04	1	9603-9603
529	PIN; LINK	1-75518-262-0	01	1	9706-
529	PIN; LINK DELUXE CAB(W14)	1-75518-262-0	01	1	9603-9603
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75518-189-1	01	1	9510-9603
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	1-75518-189-1	01	1	9510-9603
542	ADJUSTER ASM; SEAT SLIDE	1-75518-189-2	01	1	9604-9705
542	ADJUSTER ASM; SEAT SLIDE	1-75518-283-3	01	1	9706-1502
542	ADJUSTER ASM; SEAT SLIDE	8-98291-656-0	01	1	1503-

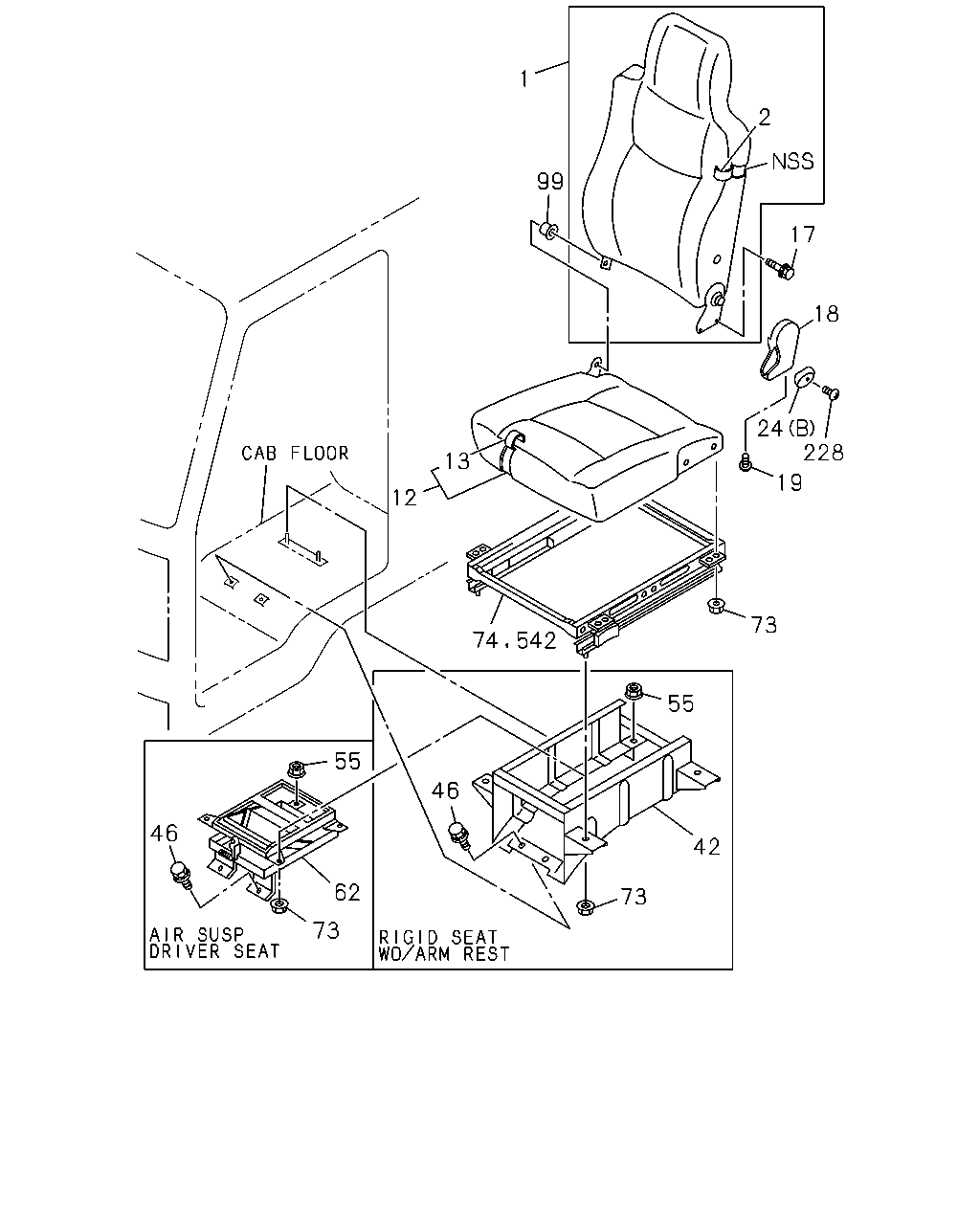

1 2 99 17 18 24 228 13 19 12 73 55 55 46 46 42 62 73 73 74 542

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75028-625-1	01	1	9510-9802
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75028-861-1	01	1	9803-0003
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75026-719-0	01	1	0004-0004
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75026-733-0	01	1	0005-0105
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56>	1-75208-072-3	01	1	0106-
1	BACK ASM; SEAT DELUXE CAB(W14)	1-75028-576-0	01	1	9510-9603
1	BACK ASM; SEAT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75028-637-1	01	1	9510-9603
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75028-615-2	01	1	9510-9603
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75028-615-2	01	1	9604-0003
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75026-720-0	01	1	0004-0004
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75026-735-0	01	1	0005-0105
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75208-074-3	01	1	0106-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-279-0	01	1	9510-9611
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-253-1	01	1	9612-9802
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-343-0	01	1	9803-0003
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-598-0	01	1	0004-0004
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56>	1-75116-707-1	01	1	0005-
2	COVER; TRIM,FRT SEAT,BACK DELUXE CAB(W14)	1-75116-253-0	01	1	9510-9603
2	COVER; TRIM,FRT SEAT,BACK HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-284-1	01	1	9510-9603
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75116-273-1	01	1	9510-9603
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-273-1	01	1	9604-0003
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-599-0	01	1	0004-0004
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ>	1-75116-592-1	01	1	0005-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75028-600-1	01	1	9510-9802
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75028-996-0	01	1	9803-0003
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-684-0	01	1	0004-0004
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>	1-75026-700-1	01	1	0005-
12	CUSHION; SEAT,FRT HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75028-529-1	01	1	9510-9603
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75028-599-3	01	1	9510-9603
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75028-599-3	01	1	9604-0003
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75026-685-0	01	1	0004-0004
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ>	1-75026-701-1	01	1	0005-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75117-842-0	01	1	9510-9802
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-371-0	01	1	9803-0003
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-552-0	01	1	0004-0004
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>	1-75116-688-1	01	1	0005-
13	COVER; TRIM,FRT SEAT,CUSHION HIGH ROOF<S2F> RIGID SEAT WO/ARM REST<TAZ>	1-75116-224-1	01	1	9510-9603
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> EXC. HIGH ROOF<S2F>	1-75116-272-2	01	1	9510-9603
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-272-2	01	1	9604-9705
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-277-2	01	1	9706-0003
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-553-0	01	1	0004-0004
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ>	1-75116-689-1	01	1	0005-
17	BOLT; RECLINING M8X18	8-94279-109-1	02	1	9510-0003
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0004-
18	COVER; RECLINING	1-75418-052-0	01	1	9510-0004
18	COVER; RECLINING DARK GRAY	8-97859-018-0	01	1	0005-
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	9510-
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-056-0	01	1	9510-0004
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER DARK GRAY	8-97859-019-0	01	1	0005-0710
24	KNOB; RECLINING,FRT,SEAT (B) DRIVER	1-75418-067-0	01	1	0711-
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER	1-75418-059-0	01	1	9510-0004
24	KNOB; RECLINING,FRT,SEAT (A) PASSENGER DARK GRAY	8-97867-021-0	01	1	0005-
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-491-4	01	1	9510-0003
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-604-2	01	1	0004-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9510-0703
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9510-0703
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-141-4	01	1	9510-9602
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-158-0	01	1	9603-9712
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-169-0	01	1	9801-9804
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-182-0	01	1	9805-9811
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-185-8	01	1	9812-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-451-0	01	1	1404-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	08	1	9510-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0004-0501
73	NUT; ADJ,HEIGHT CONT RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	1-75538-207-0	08	1	0502-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	9510-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-200-4	01	1	9510-9602
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE CAB(W14)	1-75518-255-0	01	1	9603-9603
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	9510-
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	9510-0710
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	9510-0710
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0711-
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-
542	ADJUSTER ASM; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> EXC. DELUXE CAB(W14)	1-75518-189-1	01	1	9510-9603
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	1-75518-189-1	01	1	9510-9603
542	ADJUSTER ASM; SEAT SLIDE	1-75518-189-2	01	1	9604-9705
542	ADJUSTER ASM; SEAT SLIDE	1-75518-283-3	01	1	9706-1502
542	ADJUSTER ASM; SEAT SLIDE	8-98291-656-0	01	1	1503-

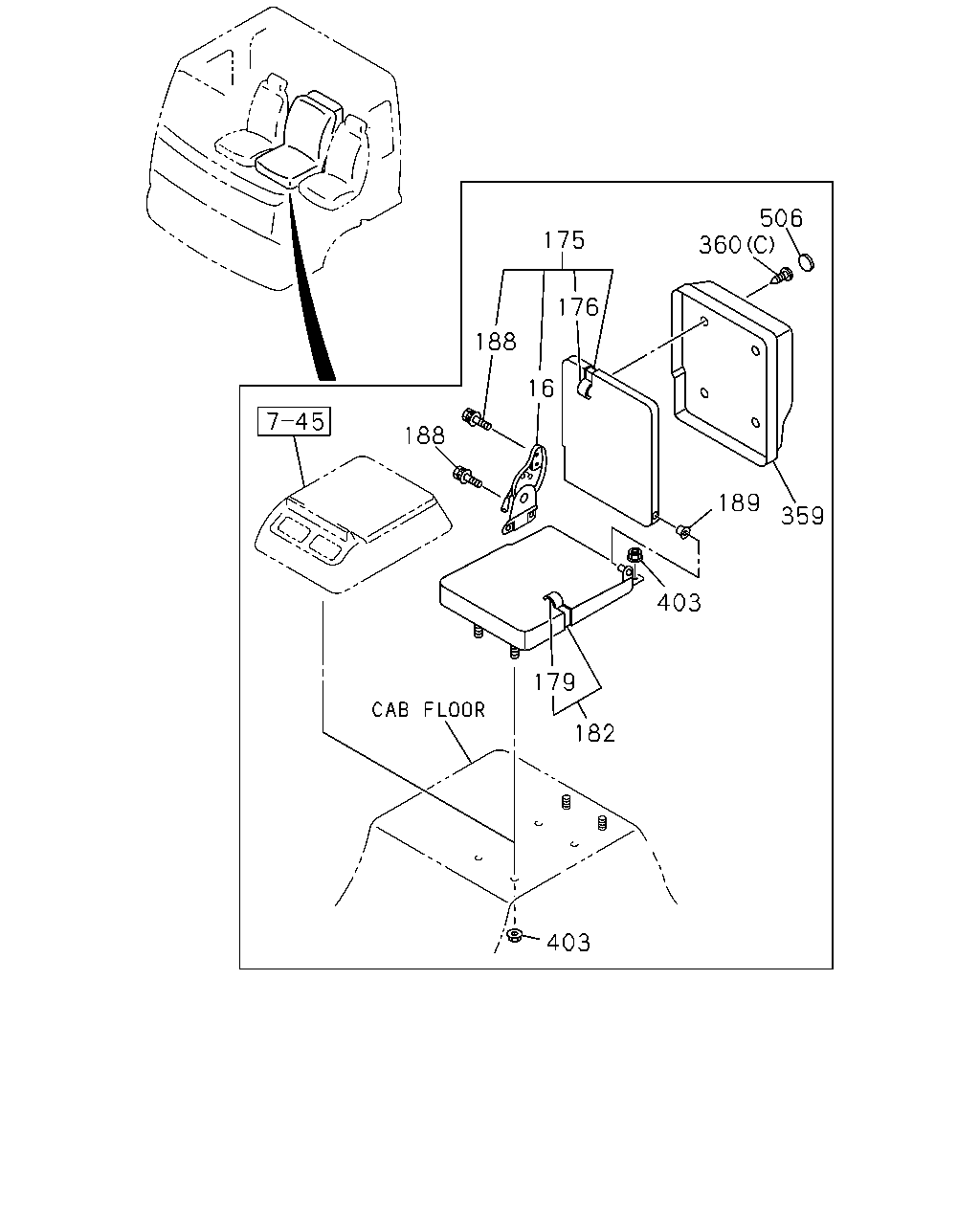

506 360 175 176 188 16 188 189 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75418-061-0	01	1	9807-0003
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75418-061-0	01	1	0005-0211
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	1-75418-057-1	01	1	9510-9802
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	1-75418-057-1	01	1	9803-9806
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75418-057-1	01	1	9807-0003
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	1-75418-062-0	01	1	0004-0004
16	ADJUSTER ASM; RECLINING CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75418-062-0	01	1	0005-0211
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	1-75418-062-1	01	1	0212-
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	1-75028-592-1	01	1	9510-9605
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	1-75028-924-0	01	1	9606-9802
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75028-924-0	01	1	9803-9806
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75028-861-0	01	1	9807-0003
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75026-850-0	01	1	0004-0004
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75026-854-3	01	1	0005-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> EXC. CENTER SEAT DELETE<SP9>	1-75028-587-1	01	1	9510-9605
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> EXC. CENTER SEAT DELETE<SP9>	1-75028-925-0	01	1	9606-9802
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75028-925-0	01	1	9803-0003
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75207-253-0	01	1	0004-0004
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75026-856-3	01	1	0005-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	1-75116-257-0	01	1	9510-9802
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-257-0	01	1	9803-9806
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-423-0	01	1	9807-0003
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-646-0	01	1	0004-0004
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-650-1	01	1	0005-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> EXC. CENTER SEAT DELETE<SP9>	1-75116-258-1	01	1	9510-9802
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75116-258-1	01	1	9803-0003
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75116-641-0	01	1	0004-0004
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75116-710-1	01	1	0005-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	1-75116-250-1	01	1	9510-9802
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-250-1	01	1	9803-9806
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-450-0	01	1	9807-0003
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-635-0	01	1	0004-0004
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75116-693-1	01	1	0005-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> EXC. CENTER SEAT DELETE<SP9>	1-75116-223-1	01	1	9510-9802
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75116-223-1	01	1	9803-0003
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75116-629-0	01	1	0004-0004
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75116-692-1	01	1	0005-
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	1-75028-589-1	01	1	9510-9802
182	CUSHION ASM; CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75028-589-1	01	1	9803-9806
182	CUSHION ASM; CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75028-186-0	01	1	9807-0003
182	CUSHION ASM; CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75026-837-0	01	1	0004-0004
182	CUSHION ASM; CENTER SEAT CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-75026-842-4	01	1	0005-
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> EXC. CENTER SEAT DELETE<SP9>	1-75028-533-2	01	1	9510-9802
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75028-533-2	01	1	9803-0003
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75026-831-0	01	1	0004-0004
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-75026-841-4	01	1	0005-
188	BOLT; BACK TO CUSHION VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9> M10X16 FLANGE	1-75198-053-0	04	1	9510-9802
188	BOLT; BACK TO CUSHION VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> M10X16 FLANGE	1-75198-053-0	04	1	9803-
189	BUSHING; HINGE,CENTER SEAT BACK VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	8-97854-900-0	01	1	9510-9802
189	BUSHING; HINGE,CENTER SEAT BACK VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	8-97854-900-0	01	1	9803-
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-72538-275-0	01	1	0005-0211
359	BOX; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	1-72538-275-4	01	1	0212-1006
359	BOX; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	8-98145-114-0	01	1	1007-
359	BOX; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	1-72538-157-2	01	1	9510-9802
359	BOX; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	1-72538-157-2	01	1	9803-0004
359	BOX; PARCEL VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-72538-157-2	01	1	0005-0211
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	08	1	0005-0310
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X20	9-09829-324-1	02	1	0005-0211
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ> (C) M5X20	9-09829-324-1	01	1	0212-0310
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9510-9802
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9803-0612
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9> (B) M4X16	0-70080-416-0	06	1	9510-9802
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	9803-0612
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70040-416-0	06	1	0701-1104
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9510-9802
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9803-0004
360	SCREW; PARCEL VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0005-0310
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	05	1	0311-1006
360	SCREW; PARCEL VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE<SP9> M8 FLANGE	8-94279-504-1	04	1	9510-9806
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE<SP9> M8 FLANGE	8-94279-518-0	04	1	9807-0312
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE<SP9> M8 FLANGE	1-75538-207-0	04	1	0401-0703
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE<SP9> M8 FLANGE	0-91180-108-0	04	1	0704-
506	CAP; PARCEL BOX CENTER SEAT 3 CREWS<SA1> FABRIC SEAT W/RECLINING<SFQ>	1-09983-180-0	04	1	0005-0211
506	CAP; PARCEL BOX VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	1-09983-180-3	04	1	0212-1006
506	CAP; PARCEL BOX VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	1-09983-180-3	02	1	1007-
506	CAP; PARCEL BOX VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	1-09983-163-0	04	1	9510-9510
506	CAP; PARCEL BOX VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> EXC. CENTER SEAT DELETE<SP9>	1-09983-164-0	04	1	9511-9802
506	CAP; PARCEL BOX VINYL SEAT<A83>,FABRIC SEAT W/RECLINING<SFQ> CENTER SEAT 3 CREWS<SA1>	1-09983-164-0	04	1	9803-0004
506	CAP; PARCEL BOX VINYL SEAT<A83> CENTER SEAT 3 CREWS<SA1>	1-09983-164-0	04	1	0005-0211

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
